  1. Dell | Oracle Rapid Deployment Techniques on LinuxRavi KumarDell Inc.

  2. Agenda • Oracle Rapid Deployment Techniques • Pre OS tasks • OS installation – Red Hat Linux • Pre Oracle tasks • Oracle installation • Post Oracle tasks • Dell Deployment Kit • Deliverables • Testing • Drill down

  3. Oracle Rapid Deployment Techniques SKIP

  4. Pre OS - Tasks • You are deploying an integrated system… • Read the Oracle documentation • Make deployment choices: • Oracle 9i RAC DB: raw partitions or OCFS for shared storage? • Oracle Collaboration Suite: Storage: infrastructure, storage: use existing OID, DB, etc, or deploy new servers. • Select and implement a hardware topology… Ex: RAC… • Gather system components • Supported Oracle software, patches, etc. • OS software, errata updates, etc. • Hardware components: servers, switches, HBAs, disks, cables, etc. • Check Oracle minimum/recommended hardware requirements • Ensure latest supported BIOS, firmware, drivers. Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  5. Example: RAC HW Topology: Direct Attach - SCSI 1 Gbps Server Server PERC NIC NIC PERC 160 Mbps SCSI Enclosure X-over Cable SCSI Cable Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  6. Example: RAC HW Topology: Direct Attach – Fiber Channel 1 Gbps Server Server HBA NIC NIC HBA 2 Gbps SAN X-over Cable FC Cable Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  7. Example: RAC HW Topology: SAN (Basic) 1 Gbps Ethernet Switch Server Server HBA NIC NIC HBA 2 Gbps FC SWITCH SAN GigE Cable FC Cable Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  8. Example: RAC HW Topology: SAN (Redundant) Ethernet Switch 1 Gbps Server Server HBAs NICs NICs HBAs Ethernet Switch 2 Gbps FC SWITCH FC SWITCH SAN GigE Cable FC Cables Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  9. OS Installation - Tasks OS installation must: • Follow IT environment guidelines for deploying Linux hosts • Update kernel and other OS errata, both for Oracle functionality and OS robustness, for example: • binutils, pdksh – 9iAS • e25 kernel, pdksh – 9i RAC • Update hardware drivers, for example: • megaraid, qla2300_6x, bcm5700, e1000 • Partition boot drive (Oracle product specific), for example: • swap, /, /usr, /var, /tmp, /home, /opt, etc. Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  10. OS Installation – CD-ROM OS installation can be achieved via: • OS CD-ROM based install • PXE based network install • Redeployment partition CD-ROM based install / (sda1) /usr /var /home /opt/oracle /tmp swap Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  11. OS Installation – Network OS installation can be achieved via: • OS CD-ROM based install • PXE based network install • Redeployment partition Network install / (sda1) PXE / DHCP Server /usr /var /home /opt/oracle /tmp swap Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  12. OS Installation - RP OS installation can be achieved via: • OS CD-ROM based install • PXE based network install • Redeployment partition RP based install RP (sda1) / /usr /var PXE / DHCP Server /home /opt/oracle /tmp swap Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  13. OS Installation – RP Details • Dell recommends the use of a redeployment partition • The RP can be created via CD-ROM, network, or imaging • RP enables rapid redeployment • RP ensures consistent install on all servers (IT compliance, RAC) • Enables scale out (grid) computing from the OS layer • Key difference w/ Network-based is self-reliance Traditional Partitioning +RP Partitioning / (sda1) RP (sda1) /usr / /var /usr /home /var /opt/oracle /home /tmp /opt/oracle swap /tmp swap Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

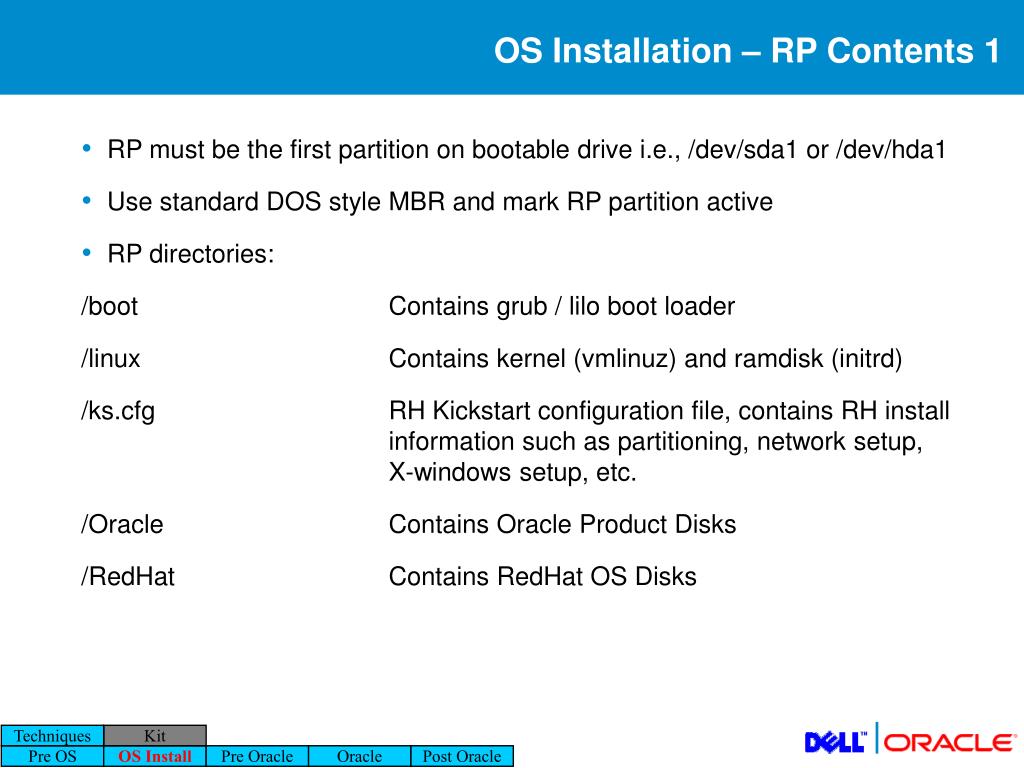

  14. OS Installation – RP Contents 1 • RP must be the first partition on bootable drive i.e., /dev/sda1 or /dev/hda1 • Use standard DOS style MBR and mark RP partition active • RP directories: /boot Contains grub / lilo boot loader /linux Contains kernel (vmlinuz) and ramdisk (initrd) /ks.cfg RH Kickstart configuration file, contains RH install information such as partitioning, network setup, X-windows setup, etc. /Oracle Contains Oracle Product Disks /RedHat Contains RedHat OS Disks Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  15. OS Installation – RP Contents 2 • RP directories cont’d: /custom/scripts Scripts that can be called from ks.cfg (%post) /custom/rpms RPMS for errata, drivers etc, installed from a script in ../scripts /custom/files Files (.tar, .gz, .txt etc), needed during installation Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

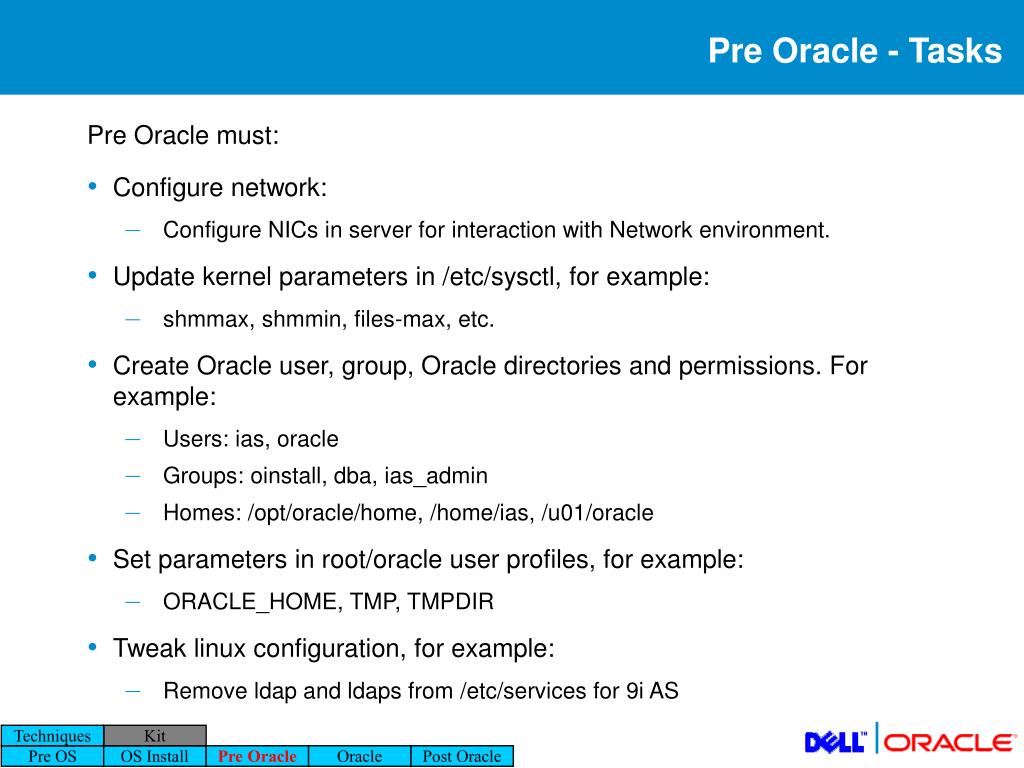

  16. Pre Oracle - Tasks Pre Oracle must: • Configure network: • Configure NICs in server for interaction with Network environment. • Update kernel parameters in /etc/sysctl, for example: • shmmax, shmmin, files-max, etc. • Create Oracle user, group, Oracle directories and permissions. For example: • Users: ias, oracle • Groups: oinstall, dba, ias_admin • Homes: /opt/oracle/home, /home/ias, /u01/oracle • Set parameters in root/oracle user profiles, for example: • ORACLE_HOME, TMP, TMPDIR • Tweak linux configuration, for example: • Remove ldap and ldaps from /etc/services for 9i AS Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  17. Pre Oracle - Manual Pre Oracle tasks can be: • Manual • Script-based • Script-based kicked off during OS install ks.cfg %post Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  18. Pre Oracle – Script-based Pre Oracle tasks can be: • Manual • Script-based • Script-based kicked off during OS install ks.cfg %post Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  19. Pre Oracle – Script-based+ Pre Oracle tasks can be: • Manual • Script-based • Script-based kicked off during OS install ks.cfg %post Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  20. Oracle Installation - Tasks Oracle Installation must: • Install any pre-Oracle product services: • Oracm, gsd (RAC) • Install Oracle: • RAC, SN DB, 9i AS, Collaboration Suite (Infrastructure, Storage, and Middle tier), 11i, etc. • Apply any patch sets: • Update OUI (if necessary) • Apply patch set(s) • Apply other hot fixes • Validate ORACLE_HOME and other environment variables in Oracle user profile Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  21. Oracle Install - Manual Oracle installation tasks can be: • Manual • Script-based • Script-based kicked off during OS install ks.cfg %post Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

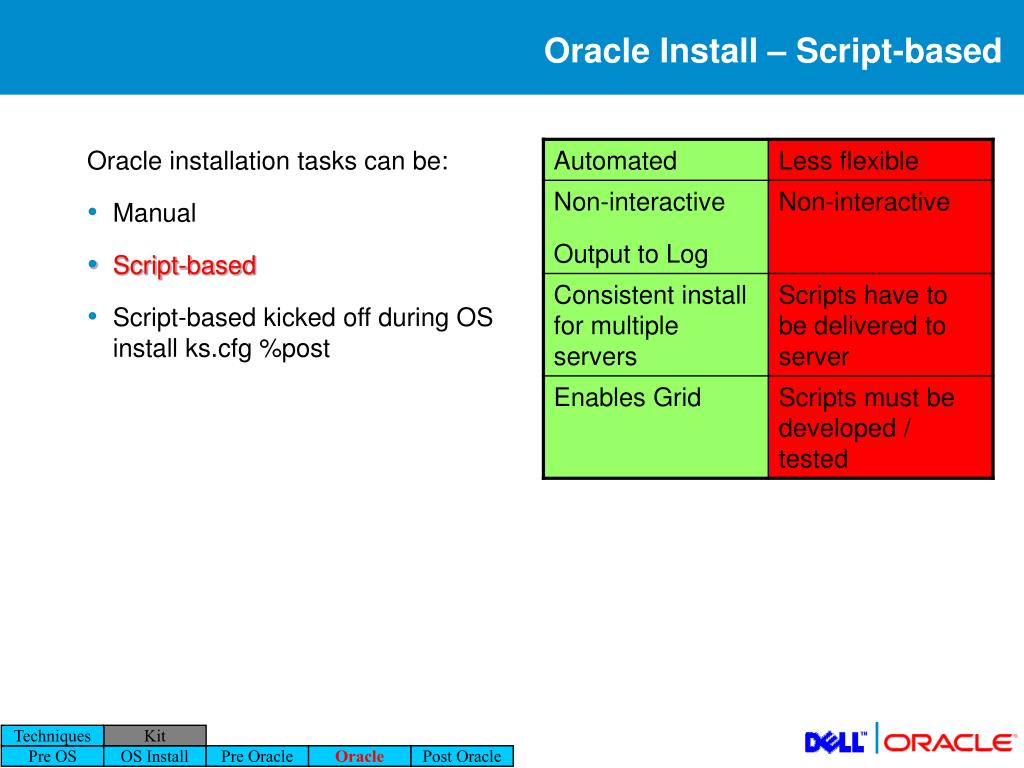

  22. Oracle Install – Script-based Oracle installation tasks can be: • Manual • Script-based • Script-based kicked off during OS install ks.cfg %post Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

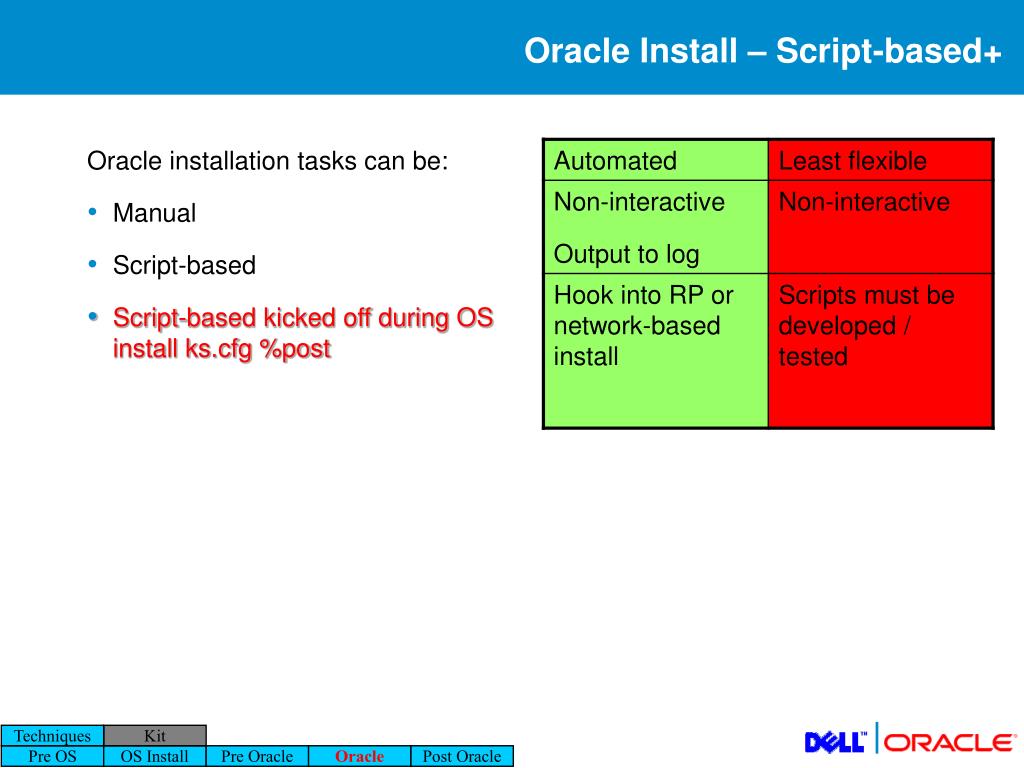

  23. Oracle Install – Script-based+ Oracle installation tasks can be: • Manual • Script-based • Script-based kicked off during OS install ks.cfg %post Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  24. Post Oracle - Tasks Automate some tasks: • Scripts • OUI response files Post Oracle tasks: • Configure Oracle services: • Create a new database (RAC, DB) • Load servlets, jsps, html, etc. (9iAS) • Configure Linux boot behavior: • Configure Oracle services to startup at boot • Create other users • Collaboration suite users, DB users, etc. • Test Oracle services functionality • Tune Oracle services for performance Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  25. Oracle Deployment Techniques Summary OS install Pre Oracle Oracle Install Post Oracle Manual Manual Manual Manual Script Network Pre OS Script Script RP Script+ Script+ Techniques Kit Pre OS OS Install Pre Oracle Oracle Post Oracle

  26. Dell Deployment Kit SKIP

  27. Dell Test Methodology:Solution Components Oracle Test Focus Oracle Database Database OS/OCFS versions Red Hat AS Updates/Major Releases N-1 and/or OCFS N-1 Red Hat AS Updates/Major Release N and/or OCFS N Servers PE2650, 4600, 6600, 6650, 8450 PE2650, 4600, 6600, 6650 PERC 4/DC PERC 3/DC QLA2310 QLA2340 QLA2342 HBA / RAID Switch SW3200 SW3800 DA PV220S U160 PV220S U320 Storage FC4700-2 CX200 CX400 CX600 EMC Test Focus Techniques Kit Test Deliverables Drilldown

  28. Dell Test Methodology • Dell performs comprehensive tests on 9i RAC [Clusters of 2-8 nodes] and 9i DB [Single Node] products • Level 1 Testing [Functionality Testing]: • Integration Testing [Ex: Oracle + OCFS + Power Path] • Functional Testing [Ex: Install Wizard and Configuration Wizard] • Bounds / Coverage testing • Documentation testing • Level 2 Testing [Integration Testing]: • Performance / stress testing • Multiple Configurations [Ex: 2x2650, 4x6650, 8x8450, CX200, CX400, CX600 etc.,] • Destructive testing while running stress [Ex: Power Path, Private interconnect] • Documentation testing Techniques Kit Test Deliverables Drilldown

  29. Deployment Kit drilldown:What does it do for the User? Pre OS • Provides a Dell certified and tested software stack for a tested hardware stack. Customers know that this exact software combination that has been tested in combination with the hardware. • This CD Kit Performs a turnkey installation (eliminates need for manual OS, and Oracle install). • Creates a redeployment partition which installs the system quickly and reduces redeployment time and complexity. • Installs/configures/updates the OS – Red Hat Linux. • Installs/configures/updates Oracle – 9i R2 Database (RAC and SN). • Provides configuration wizards for Oracle configuration. OS Install, Pre Oracle, Oracle Post Oracle Techniques Kit Test Deliverables Drilldown

  30. Deployment Kit drilldown:Install Wizard Operation 1 Dell PowerEdge 2650 F2 setup DELL Techniques Kit Test Deliverables Drilldown

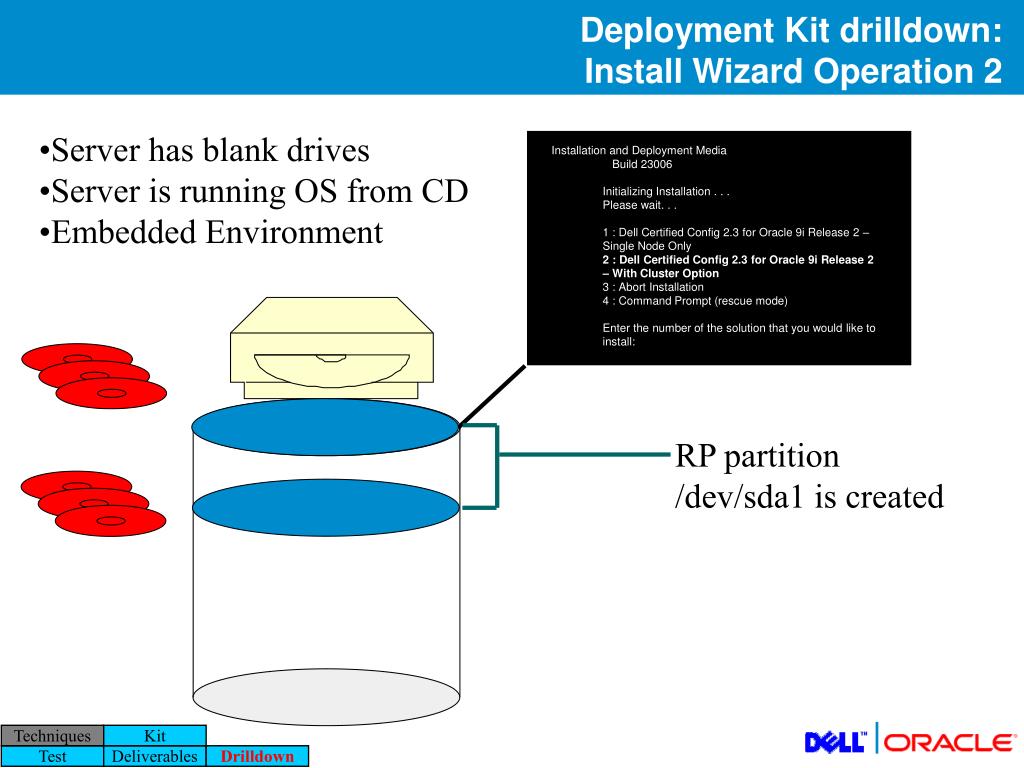

  31. RP partition /dev/sda1 is created Deployment Kit drilldown:Install Wizard Operation 2 • Server has blank drives • Server is running OS from CD • Embedded Environment • Installation and Deployment Media • Build 23006 • Initializing Installation . . . • Please wait. . . • 1 : Dell Certified Config 2.3 for Oracle 9i Release 2 – Single Node Only • 2 : Dell Certified Config 2.3 for Oracle 9i Release 2 – With Cluster Option • 3 : Abort Installation • 4 : Command Prompt (rescue mode) • Enter the number of the solution that you would like to install: Techniques Kit Test Deliverables Drilldown

  32. Deployment Kit drilldown:Install Wizard Operation 3 • Red Hat Linux CDs are inserted • Enter the number of the solution that you would like to install: • Insert Advanced Server CD 1 • got cd….. • Insert Advanced Server CD 2 • got cd…… • Insert Advanced Server CD 3 • got cd……. The Red Hat CDs are copied to the Redeployment Partition (RP). Techniques Kit Test Deliverables Drilldown

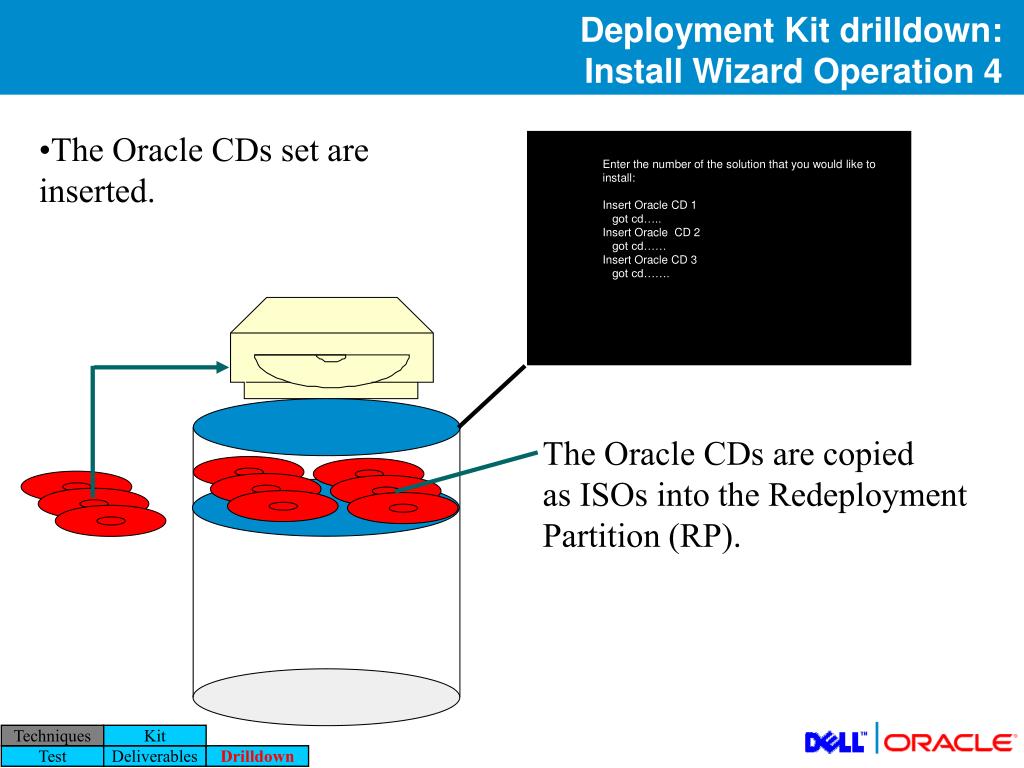

  33. Deployment Kit drilldown:Install Wizard Operation 4 • The Oracle CDs set are inserted. • Enter the number of the solution that you would like to install: • Insert Oracle CD 1 • got cd….. • Insert Oracle CD 2 • got cd…… • Insert Oracle CD 3 • got cd……. The Oracle CDs are copied as ISOs into the Redeployment Partition (RP). Techniques Kit Test Deliverables Drilldown

  34. Redhat Install 1/2 DELL Dell PowerEdge 2650 DELL Deployment Kit drilldown:Install Wizard Operation 5 • System Reboots. • Begins reading dynamically • generated Red Hat kickstart file. Language = fr_FR, de_DE Hard Drive Partitions / = growable /tmp /var /home PACKAGES %post /updates/kickstart2.sh Techniques Kit Test Deliverables Drilldown

  35. Redhat Install 1/2 DELL Deployment Kit drilldown:Install Wizard Operation 6 • System Reboots. • Begins reading dynamically • generated Red Hat kickstart file. runInstaller 9.2.0.1 9.2.0.2 Techniques Kit Test Deliverables Drilldown

  36. Deployment Kit drilldown:Post Install Operation • Before the reboot, the Post-Install executes a number of scripted tasks • Install of Kernel • Drivers • Install of Oracle • Modifications to the system • Etc. 9.2.0.2 Techniques Kit Test Deliverables Drilldown

  37. Deployment Kit drilldown:Configuration • After reboot, system is ready to be configured (Post Oracle) • Configuration Wizard for raw partitions • Scripts / instructions for OCFS 9.2.0.2 Techniques Kit Test Deliverables Drilldown

  38. Dell Deployment Kit Summary OS install Pre Oracle Oracle Install Post Oracle Manual Manual Manual Manual Script Network Pre OS Script Script RP Script+ Script+ Techniques Kit Test Deliverables Drilldown

  39. Q & AThank You
