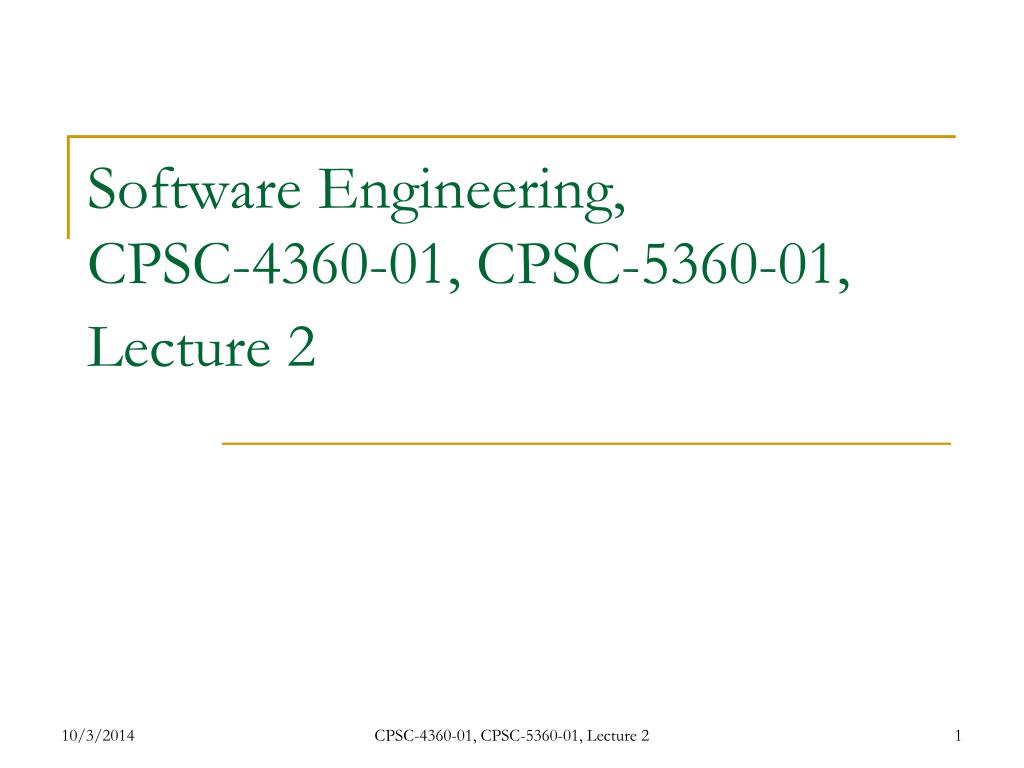

  1. Software Engineering, CPSC-4360-01, CPSC-5360-01,Lecture 2 CPSC-4360-01, CPSC-5360-01, Lecture 2

  2. Overview of the Last Lecture • Overview of Software Engineering • SE definitions • Quality of Good Software • Overview of Software Process • Activities and associated stages • Overview of Software Engineering Method • Structured Analysis • Object-Oriented Method CPSC-4360-01, CPSC-5360-01, Lecture 2

  3. Overview of This Lecture • Software Development Models • Waterfall Model • Evolutionary Models • Incremental Model • Spiral Model • Unified Process • Overview of UML • History • 4 + 1 View models • Using UML in UP CPSC-4360-01, CPSC-5360-01, Lecture 2

  4. Software Development Models • High level, abstract representation of software development (software process): • Specification. • Development. • Validation. • Evolution. • Theoretical framework that is usually extended and adapted in real world application. • Two Generic Models: • Waterfall Model. • Evolutionary Model. CPSC-4360-01, CPSC-5360-01, Lecture 2

  5. Waterfall Model • The earliest software development model (Royce, 1970). CPSC-4360-01, CPSC-5360-01, Lecture 2

  6. Waterfall Model • Defined a number of phases, e.g., “requirement phase”, “design phase”, etc. • The phases correspond to the four stages of the fundamental software process activities (lecture 1). • Assumption behind the model: • a phase takes place in sequence to another. • each activity is completed before the next starts. CPSC-4360-01, CPSC-5360-01, Lecture 2

  7. Waterfall Model • In theory: • Each phase produces documents that are: • Verified and validated. • Assumed to be complete. • Each phase depends on the documents of the previous stage to proceed → it has to wait for the completion of previous stage. • In practice: • The phases overlap and feedback to each other (see the feedback arrow in the diagram). CPSC-4360-01, CPSC-5360-01, Lecture 2

  8. Waterfall Model: Advantages • Tangible products (the various documents) at the end of every phases → good to measure progress. • Intuitive, sensible and general purpose: • Emphasize planning before action. • Recommend a top-down perspective. See the big picture before zooming down. CPSC-4360-01, CPSC-5360-01, Lecture 2

  9. Waterfall Model: Problems • Specification is frozen early, because: • It is costly and time consuming. • Later stages can be carried out. • Cannot adapt to changing or incorrect specification: • Ignore or code around. • Does not meet user requirement. • Testing at the very end of development: • Work or die situation. CPSC-4360-01, CPSC-5360-01, Lecture 2

  10. Waterfall Model: Observations • Process stages can be iterative. • Flexibility in coping with changing specification. • Early and frequent validation of software system. • The later models are designed in response to these observations. CPSC-4360-01, CPSC-5360-01, Lecture 2

  11. Evolutionary Model • Evolves an initial implementation with user feedback → multiple versions until the final version. CPSC-4360-01, CPSC-5360-01, Lecture 2

  12. Evolutionary Model • Two fundamental types: • Exploratory Development: • Explores the requirement and delivers a final system. • Starts with something that is understood and evolves by adding new features proposed by customers. • Throwaway prototyping: • Understands the requirement and develop a better requirement definition. • Experimenting with poorly understood requirement. • Usually develops User Interface (UI) with minor or no functionality. CPSC-4360-01, CPSC-5360-01, Lecture 2

  13. Evolutionary Model: Advantages • Customer involvement in the process: • More likely to meet the user requirement. • Early and frequent testing: • More likely to identify problems. • Lower risk. • Suitable for small to medium sized system. CPSC-4360-01, CPSC-5360-01, Lecture 2

  14. Evolutionary Model: Problems • The process is intangible: • No regular, well-defined deliverables. • The process is unpredictable: • Hard to manage, e.g., scheduling, workforce allocation, etc. • Systems are poorly structured: • Continual, unpredictable change tends to corrupt the software structure. • Can cause major problems during software evolution. • Systems may not even converge to a final version. • No strategy to gauge or solve this problem. CPSC-4360-01, CPSC-5360-01, Lecture 2

  15. Requirements Outline Split into increments Design System Architecture Develop Increment Validate Increment Integrate Increment Validate System Incremental Model • Combine the advantages of Waterfall and Evolutionary Model. Final System CPSC-4360-01, CPSC-5360-01, Lecture 2

  16. Incremental Model • Each increment is a mini-waterfall. CPSC-4360-01, CPSC-5360-01, Lecture 2

  17. Incremental Model • Prioritizes the services to be provided by the system. • Maps these requirements to Increment based on priority. • Freezes requirement for the current Increment. • Requirements for the later increments can evolve concurrently. • Each Increment release is a working system: • Allows user to experiment. • Can be put into service right away. CPSC-4360-01, CPSC-5360-01, Lecture 2

  18. Incremental Model: Advantages • Early utilization: • the 1st increment satisfies the most critical requirement. • Early increments can serves as prototypes. • Lower risk of overall project failure. • Most crucial and basic services are implemented first → receives multiple testing throughout development. CPSC-4360-01, CPSC-5360-01, Lecture 2

  19. Incremental Model: Problems • Hard to map requirement into small increments (< 20,000 lines of code). • Hard to define the basic services that are shared by all subsequent increments. • Popular variant: • AGILE method: • eXtreme Programming (XP) • Not covered here. CPSC-4360-01, CPSC-5360-01, Lecture 2

  20. Spiral Model • Formalize the Evolutionary Model and avoid the management shortcomings. CPSC-4360-01, CPSC-5360-01, Lecture 2

  21. Spiral Model • Process is represented as a spiral rather than as a sequence of activities with backtracking. • Each loop = One Iteration = A process phase. • Each Loop passes through 4 quadrants (90°): • Objective Setting. • Risk Assessment and Reduction. • Development and Validation. • Planning. • As loops move away from center → Time and Cost increase. CPSC-4360-01, CPSC-5360-01, Lecture 2

  22. Spiral Model • Risk Driven: • Explicitly identify risks for each iteration. • Address the highest perceived risk. • Does not prescribe a fix process: • Project Manager chooses the appropriate activity for each iteration base on progress and perceived risk. • Flexible: • May resemble other process model depends on needs. CPSC-4360-01, CPSC-5360-01, Lecture 2

  23. Unified Process • State of the art process, by learning from the history of previous software development processes. CPSC-4360-01, CPSC-5360-01, Lecture 2

  24. Unified Process • Integrating two seemingly contradicting insights: • Definitive activities and deliverables as in the Waterfall Model. • Iterative and incremental processes. • A project is split into several phases: • Each phase is split into several iterations. • Each iteration consists of the traditional process activities, known as workflow. • Each workflow places different emphasis on the activities depending on the current iteration. CPSC-4360-01, CPSC-5360-01, Lecture 2

  25. Unified Process: 4 Phases • Inception: • Plan the project. • Evaluate risk. • Elaboration: • Understand problem domain. • Design system architecture. • Plan development. • Construction: • Design, programming and test. • Transition: • Moving system from developer to user environment. • Acceptance testing, release of full system. CPSC-4360-01, CPSC-5360-01, Lecture 2

  26. Other Process Models • Formal System Development: • Transforms a mathematical based specification through different representation → executable program. • Program correctness is easy to demonstrate, as the transformations preserve the correctness. • Reuse-Oriented Development: • Concentrates on integrating new system with existing components/systems. • Growing rapidly as development cost increase. • Aspect-Oriented Development. • Agent-Oriented Software Development. CPSC-4360-01, CPSC-5360-01, Lecture 2

  27. Unified Modeling Language (UML) • A visual language to • Visualize, construct, document software system. • Similar to all other languages, UML has: • Grammar: Rules to follow when drawing diagrams. • Semantics: The meaning behind each diagram. • Used with the Object-Oriented Method. • Separates the language from the software process → can be used with other software development model. • Currently, this is an industry standard. CPSC-4360-01, CPSC-5360-01, Lecture 2

  28. What UML is NOT • Not a programming language. • Not executable. • Exist tools to translate into code (skeleton), but the programmer still need to do the bulk of work. • Not a software modeling tool. • There are tools that implement the UML standard, e.g., ArgoUML, Visual Paradigm, RationalRose. • Not a SE method or software development process. CPSC-4360-01, CPSC-5360-01, Lecture 2

  29. UML: Brief History • OO Modeling approach with different strengths and weaknesses grows rapidly. • In 1995, • There were more than 50 named techniques in the industry. • The Object Management Group (OMG) calls for a common modeling approach. • Rumbaugh, Booch, and Jacobson (Thethree amigos) with input from others, formalized the UML standard (UML 1.1) in 1997. • Revised in 2003 (UML 1.5): Currently most widely used. • Reorganized in 2005 (UML 2.0): A new standard. CPSC-4360-01, CPSC-5360-01, Lecture 2

  30. UML: 4 + 1 View Models • A system can be viewed in different ways, usually depends on the role of the viewer. • UML supports this by providing the 4 + 1 View Models [Kruchten, 1995]: System Design View Implementation View Use Case View Deployment View Process View CPSC-4360-01, CPSC-5360-01, Lecture 2

  31. Use Case View • Audience: • System Analyst, End Users and Testers. • Usage: • Describes the system’s external behaviour. • Defines the requirements of the system, so it constraints all the other views. • Has the central role in driving the development process. CPSC-4360-01, CPSC-5360-01, Lecture 2

  32. Example of Use Case • Elevator System • Use case 1: ‘Call Elevator’ is this possible written story: • Basic course of events: If the userOutside wants to call lift to go up/down, then he/she presses UpButton/DownButton; • Exception 1: If the lift is at the ground floor, then there is no DownButton; • Exception 2: If the lift is at the top floor, then there is no UpButton; • Use case 2: ‘Move From Inside’ is this written story: • The userFromInside can select a floor number (from 1 to the number of floors of the building), or can press “Open”, “Close”. CPSC-4360-01, CPSC-5360-01, Lecture 2

  33. Design View • Audience: • System Analyst and Programmers. • Usage: • Describes the logical structures that support the functional requirements expressed in the use case view. • Consists of definitions of program components (classes, data), their behaviour and interactions. • Useful as basis for coding. CPSC-4360-01, CPSC-5360-01, Lecture 2

  34. Implementation View • Audience: • System Engineer and Tester. • Usage: • Describes the physical components out of which the system is to be constructed: • executable files, • libraries of code, • databases. • Useful for configuration management and system integration. CPSC-4360-01, CPSC-5360-01, Lecture 2

  35. Process View • Audience: • System Analyst, Programmer and Tester. • Usage: • Non-Functional requirements. • Defines concurrency within the system. • Relatively undeveloped. CPSC-4360-01, CPSC-5360-01, Lecture 2

  36. Deployment View • Audience: • System Integrator (setup the system at client side). • Usage: • Non-Functional. • Describes physical components that are deployed in the physical environment: • Network of computers, connection protocol. • Computer specification. • Relatively Undeveloped. CPSC-4360-01, CPSC-5360-01, Lecture 2

  37. UML Terminology • Model: • Refers to the information in a single view, e.g., Use Case Model. OR • Refers to all the information about the system, i.e., System Model. • Model element: • Independent graphical notation element, e.g., a box, an arrow, etc, that has a well defined meaning. • Diagram: • Graphical presentation of a collection of model elements. CPSC-4360-01, CPSC-5360-01, Lecture 2

  38. UML Diagrams by Views • Use case diagram (use case view) • Object diagram (use case and design views) • Sequence diagram (use case and design views) • Collaboration diagram (use case and design views) • Class diagram (design view) • Statechart diagram (design and process views) • Activity diagram (design and process views) • Component diagram (implementation view) • Deployment diagram (deployment view) CPSC-4360-01, CPSC-5360-01, Lecture 2

  39. UML Diagrams by Characteristic • Software system exhibits two characteristics: • Static: Logical Structure, e.g., relationship between classes, attributes of a class, etc. • Dynamic: Behavior of the system, e.g., how to respond to a certain event, how to initiate an action, etc. • In addition, knowledge about setting up and running the system: Implementation. CPSC-4360-01, CPSC-5360-01, Lecture 2

  40. UML Diagrams by Characteristic • Static: • Use case diagram • Class diagram • Dynamic: • Object diagram • State diagram • Activity diagram • Sequence diagram • Collaboration diagram • Implementation: • Component diagram • Deployment diagram CPSC-4360-01, CPSC-5360-01, Lecture 2

  41. Source code Executing program Design Model and Code • Models present an abstract view of system. • Implementation adds enough detail to make these models executable. specifies Object structures UML model UML Abstract view of Abstract view of Java specifies Run time Compile time CPSC-4360-01, CPSC-5360-01, Lecture 2

  42. UML Models • Both documentation (‘UML model’) and ‘Source code’ can be described as compile-time artifacts. • ‘Object structures’: Programmers in object-oriented languages (e.g., Java, C++) tend to use abstract models of program execution which talk in terms of objects being created and destroyed as a program runs. • ‘Executing program’: describes the effect the program has on computer’s processor and memory when the program is running. • The upper and below parts refer to design and programming. • The left and right parts refer to compile-time and run-time. CPSC-4360-01, CPSC-5360-01, Lecture 2

  43. Unified Process and UML • UP is Use Case Driven: • A systematic utilization of Use Case. • UML diagrams are used in the Requirement, Analysis and Design activities in the UP workflow. • Because of their history, there is a close fit between UML and the UP. CPSC-4360-01, CPSC-5360-01, Lecture 2

  44. UP: Requirement and Analysis • UP starts with use cases describing how users interact with the system: • A domain model records facts about real world entities. • UML use case and class diagrams document these. CPSC-4360-01, CPSC-5360-01, Lecture 2

  45. UP: Analysis and Design • Analysis and Design usually overlap in UP as the same diagrams are used. • Proceed by Realization and Refinement. CPSC-4360-01, CPSC-5360-01, Lecture 2

  46. UP: Realization and Refinement • Use case realizations indicate how the functionality will be supported by the system. • Documented in UML interaction diagrams, e.g., Sequence Diagram, Collaboration Diagram. • This causes the domain model to be refined into a more implementation-oriented class diagram. CPSC-4360-01, CPSC-5360-01, Lecture 2

  47. UP: Specifying Behavior • UML provides State Chart to document the behavior of classes. CPSC-4360-01, CPSC-5360-01, Lecture 2

  48. Summary (1) • Waterfall Process Model: • Development activities in a linear fashion. • Requirements to freeze very early in development. • Testing very late in the process. • Evolutionary Process Model in response to iterative nature of development: • Use of prototyping. • Requirements evolve with users’ feedback. CPSC-4360-01, CPSC-5360-01, Lecture 2

  49. Summary (2) • Incremental Process Model in response to incremental nature of development: • Delivery in increments. • Allows prioritizing risks in development. • Allows different process models for different increments. CPSC-4360-01, CPSC-5360-01, Lecture 2

  50. Summary (3) • Spiral Model: • Addresses incremental and iterative nature of development. • Allows risk evaluation at every phase. • Expensive process. • Allows use of multiple process models. • Unified Process: • Incorporates best industry practices. • Extensive use of UML models. • Allows iteration of workflows. CPSC-4360-01, CPSC-5360-01, Lecture 2
