Test Logging and Automated Failure Analysis

1. Test Logging and Automated Failure Analysis Why Weak Automation Is Worse Than No Automation Geoff Staneff (gstaneff@microsoft.com)

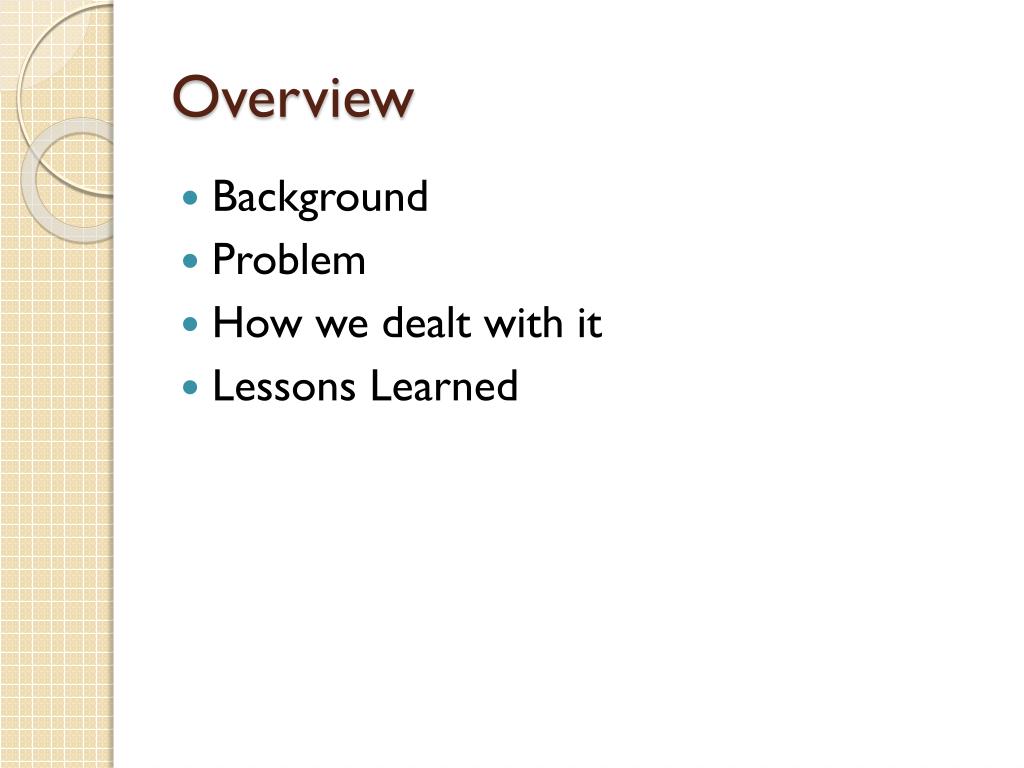

2. Overview • Background • Problem • How we dealt with it • Lessons Learned

3. Background • Started at MSFT in ‘05 • Working on the Windows Event Log • Service • API • UI • Test Environment • Hundreds of automated tests • Several platforms and languages • Regular execution of test passes

4. Problem: Not enough time and too many failures • Analysis Paralysis • Our weak automation was time consuming to maintain • New Features • Require new automation • Wide test matrix • One set of the code runs against many machines

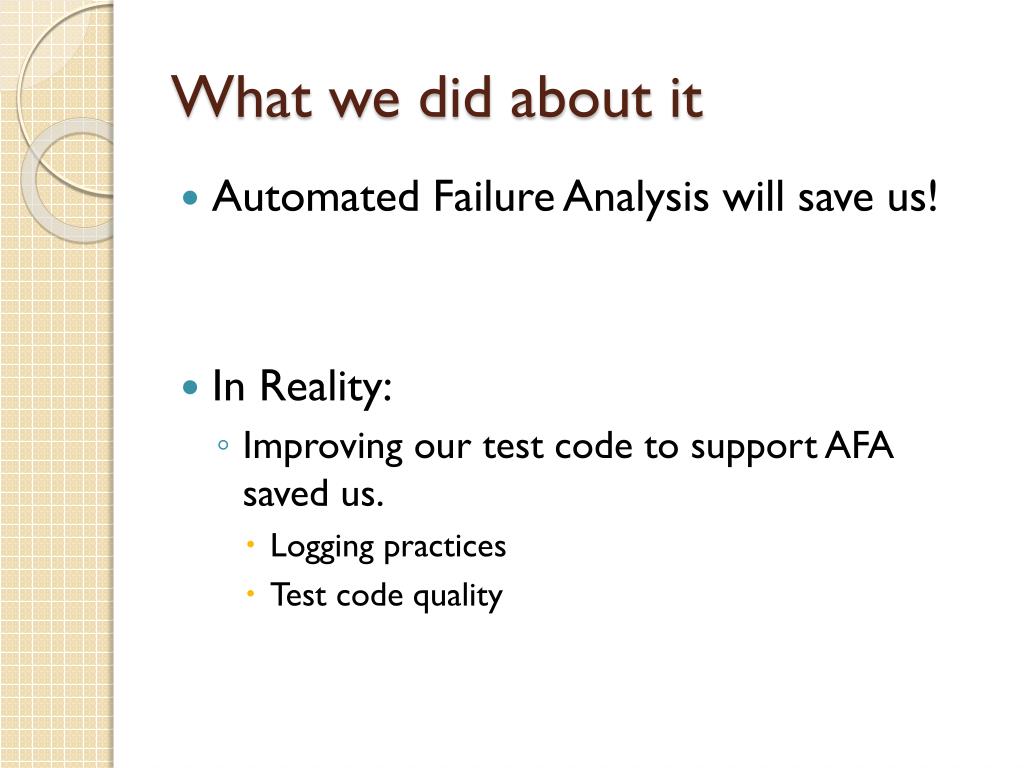

5. What we did about it • Automated Failure Analysis will save us! • In Reality: • Improving our test code to support AFA saved us. • Logging practices • Test code quality

6. What is Automated Failure Analysis • Automated Failure Analysis is a means of determining if a specific observed failure has previously been diagnosed.

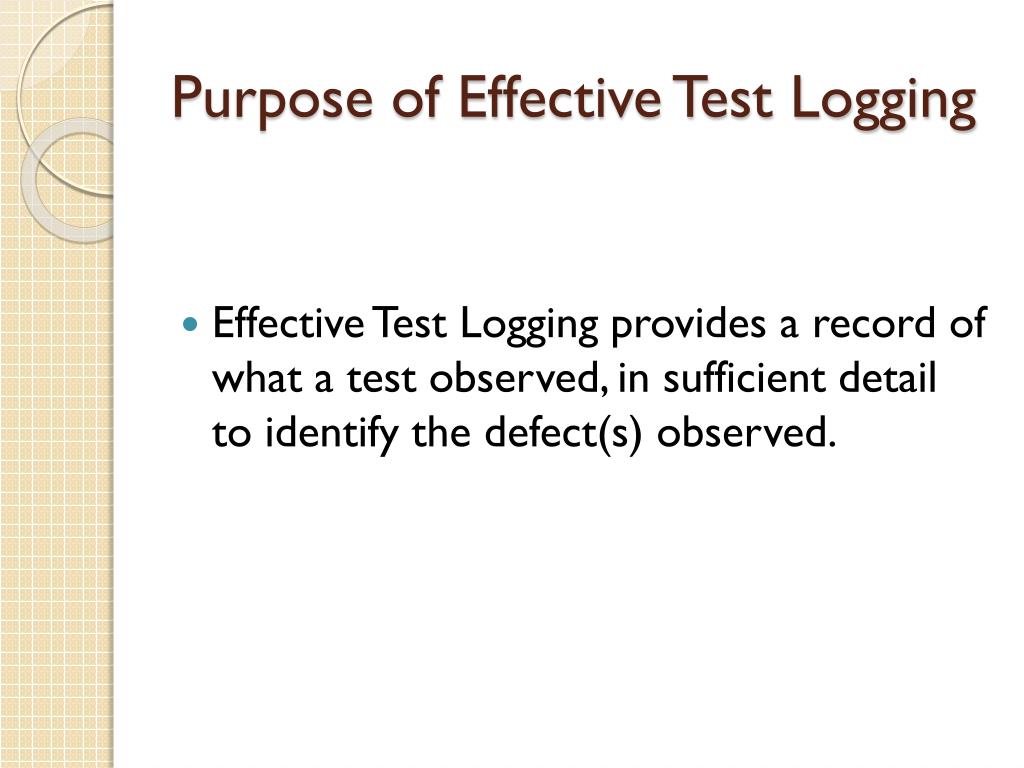

7. Purpose of Effective Test Logging • Effective Test Logging provides a record of what a test observed, in sufficient detail to identify the defect(s) observed.

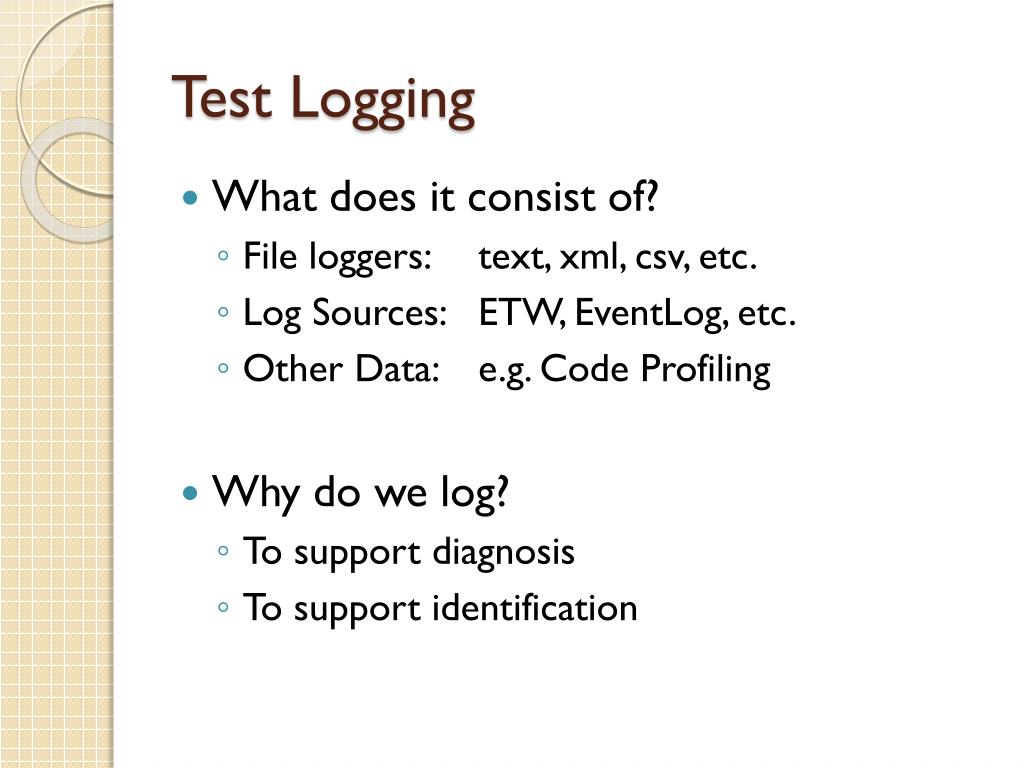

8. Test Logging • What does it consist of? • File loggers: text, xml, csv, etc. • Log Sources: ETW, EventLog, etc. • Other Data: e.g. Code Profiling • Why do we log? • To support diagnosis • To support identification

9. Logging Consequences • Test logging decisions made early in the product cycle outlast their authors and management • Certain failure analysis methods inspire or shatter confidence in the test process • Certain logging practices enable or preclude various analysis methodologies

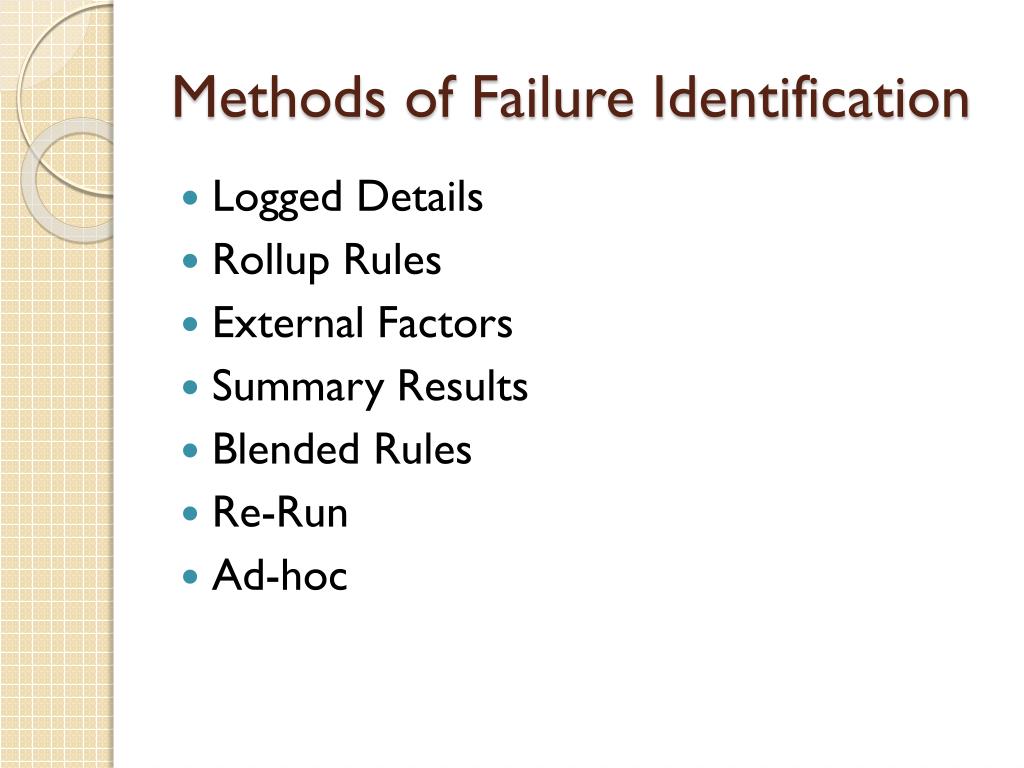

10. Methods of Failure Identification • Logged Details • Rollup Rules • External Factors • Summary Results • Blended Rules • Re-Run • Ad-hoc

11. Logging Taxonomy • Many advantages accrue when teams use the same names for the same data • Team members can read test logs for tests they didn’t author • Disciplines outside test can understand test failures • Easier for new employees to produce good logs • Wider product, test or lab issues can be identified across component boundaries

12. Trace Failure Context • Knowing more about how the failure was computed will assist in diagnosis of the underlying defect. The following is an example of how one instance of a Windows API failure could be traced: • Test Failed. • Expected 1. • Found 0 Expected 1. • Win32BoolAPI returned 0, expected 1. • Win32BoolAPI with arguments Arg1, Arg2, Arg3 returned 0, expected 1. • Win32BoolAPI with arguments Arg1, Arg2, Arg3 returned 0 and set the last error to 0x57, expected 1 and 0x0.

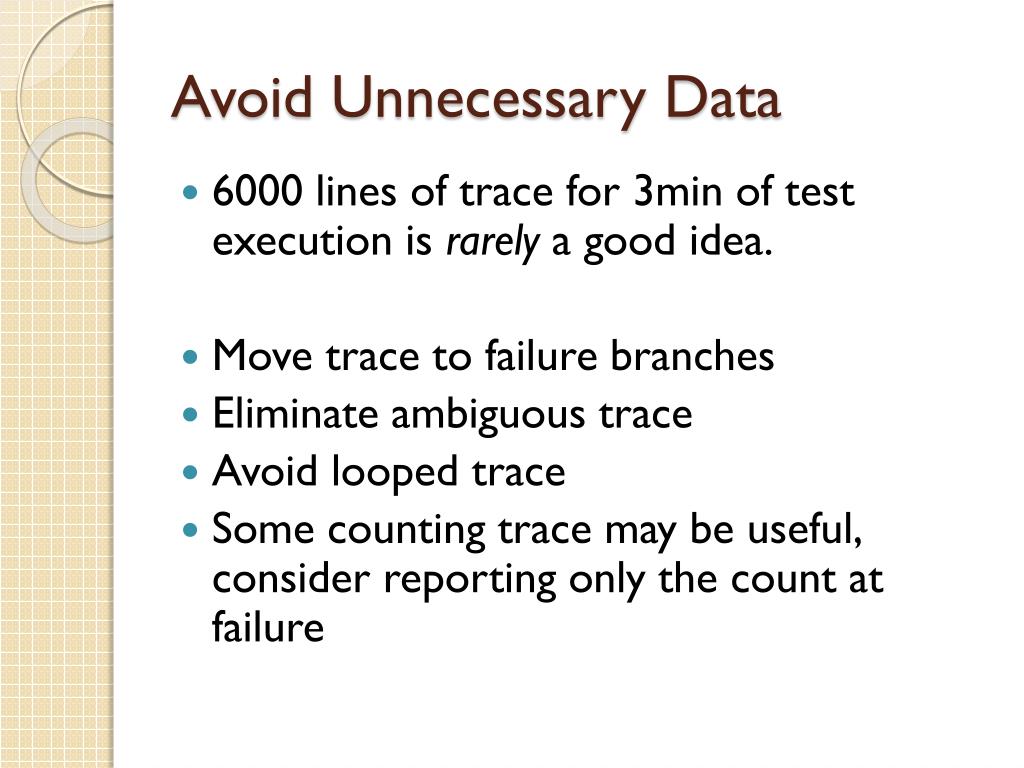

13. Avoid Unnecessary Data • 6000 lines of trace for 3min of test execution is rarely a good idea. • Move trace to failure branches • Eliminate ambiguous trace • Avoid looped trace • Some counting trace may be useful, consider reporting only the count at failure

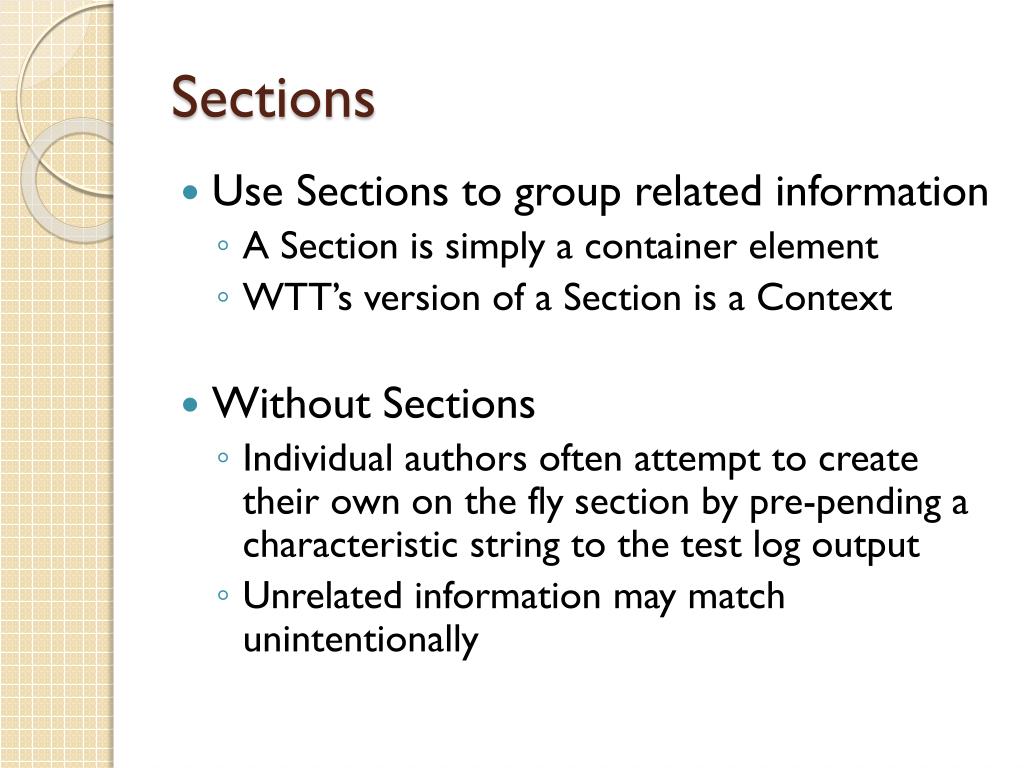

14. Sections • Use Sections to group related information • A Section is simply a container element • WTT’s version of a Section is a Context • Without Sections • Individual authors often attempt to create their own on the fly section by pre-pending a characteristic string to the test log output • Unrelated information may match unintentionally

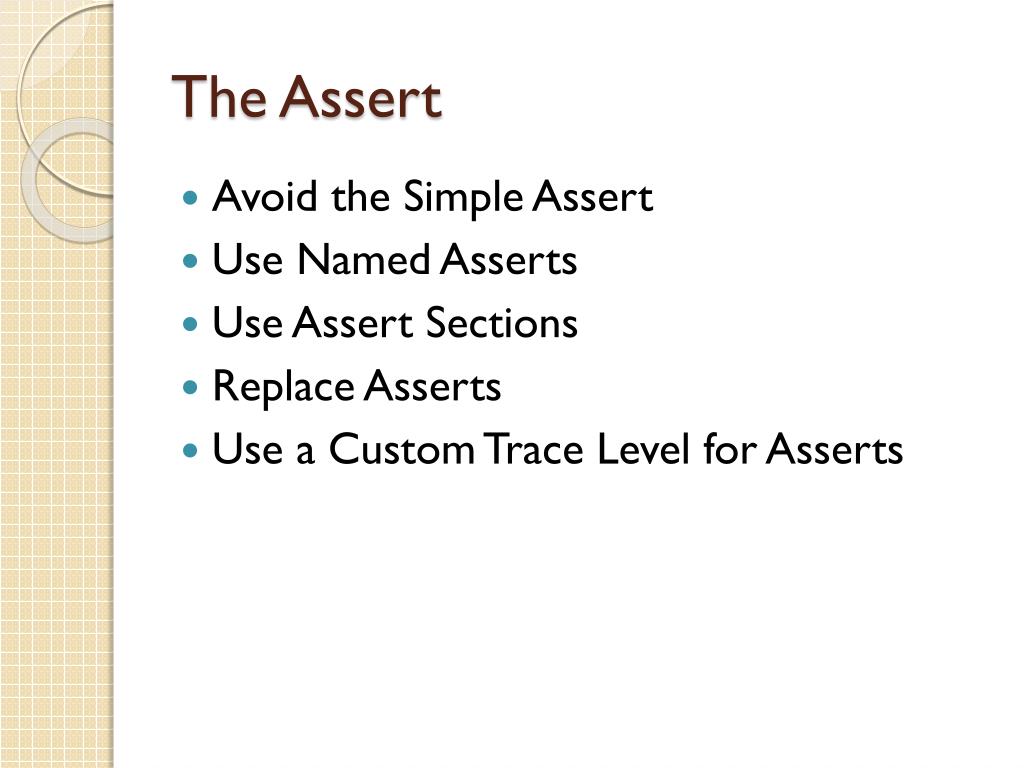

15. The Assert • Avoid the Simple Assert • Use Named Asserts • Use Assert Sections • Replace Asserts • Use a Custom Trace Level for Asserts

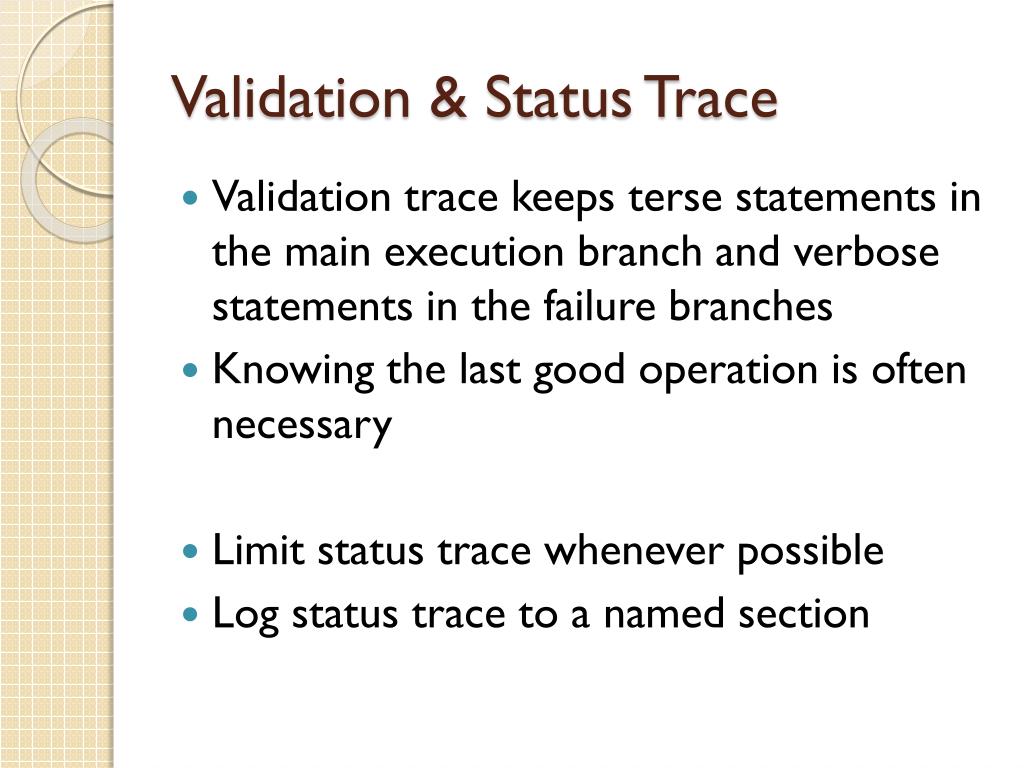

16. Validation & Status Trace • Validation trace keeps terse statements in the main execution branch and verbose statements in the failure branches • Knowing the last good operation is often necessary • Limit status trace whenever possible • Log status trace to a named section

17. Setup Code • Failures in setup code are often lab or test issues • Test logs don’t frequently classify setup trace any differently than product related trace • Consider modeling setup steps as a distinct test result • Use a Setup section and standard names

18. Parameter Trace • Often represents the dynamic data fed into the test case at the start of the test • Parameter trace can also identify the local variables passed to a function that fails • Initial parameters have a parameters section • Function parameters should have their own sections

19. Library Code • Opportunity for cross-test and cross-team failure resolution • Logging changes made to library code impact all tests that reference that code • Consider using either a named section or Validation Trace model

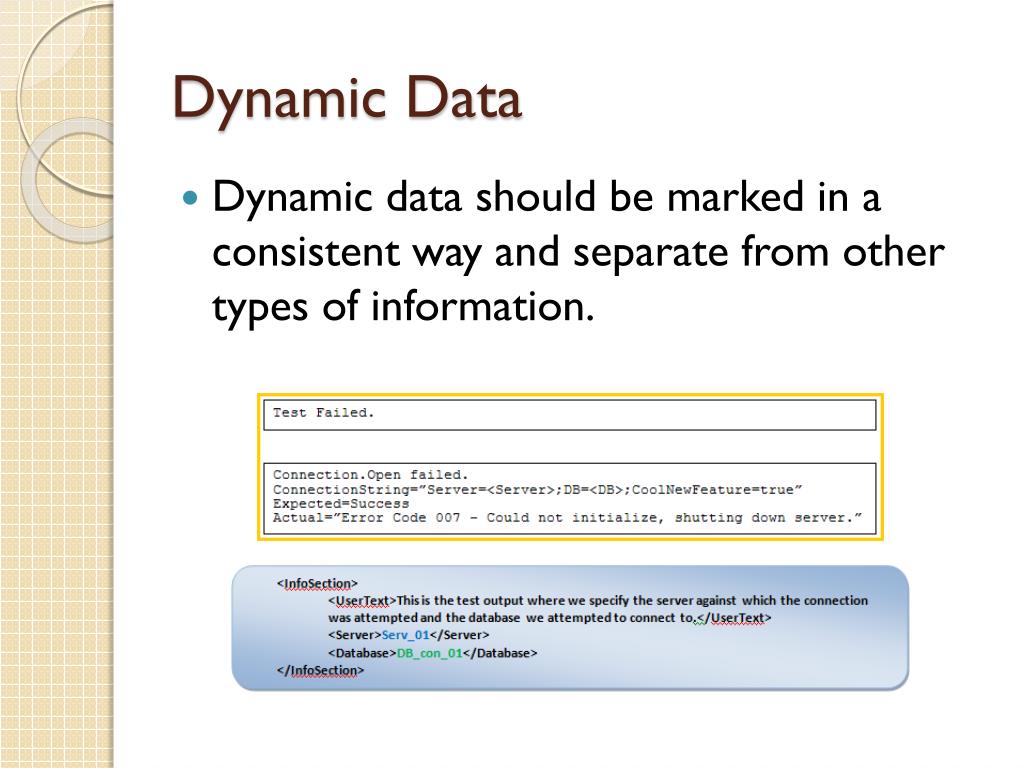

20. Dynamic Data • Dynamic data should be marked in a consistent way and separate from other types of information.

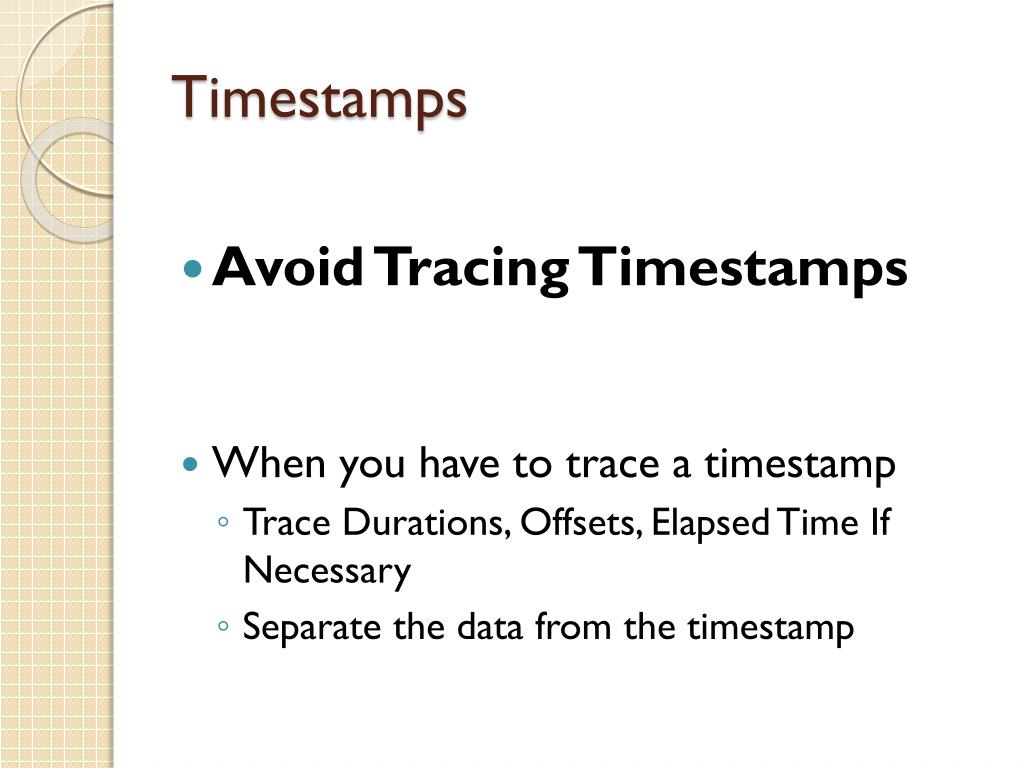

21. Timestamps • Avoid Tracing Timestamps • When you have to trace a timestamp • Trace Durations, Offsets, Elapsed Time If Necessary • Separate the data from the timestamp

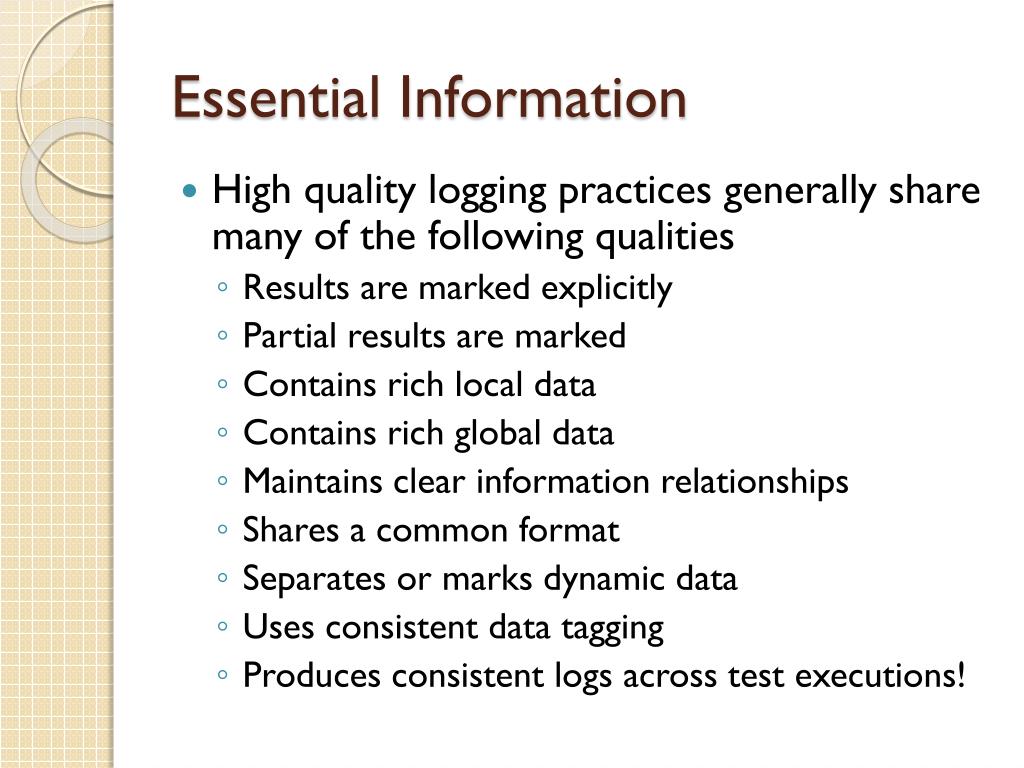

22. Essential Information • High quality logging practices generally share many of the following qualities • Results are marked explicitly • Partial results are marked • Contains rich local data • Contains rich global data • Maintains clear information relationships • Shares a common format • Separates or marks dynamic data • Uses consistent data tagging • Produces consistent logs across test executions!

23. Questions • And Answers • Geoff Staneff (gstaneff@microsoft.com)
