Vapor compression cycle performance

Vapor compression cycle performance. 1- Effect of evaporation pressure “ or temperature” for the following figs: R-22, 4.5% clearance, 50 L/s displacement rate and 35 C condensing temperature . a - Volumetric efficiency and mass flow rate. B- Specific work and compressor power.

fern
Télécharger la présentation

Vapor compression cycle performance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Vapor compression cycle performance

  2. 1- Effect of evaporation pressure “ or temperature”for the following figs:R-22, 4.5% clearance, 50 L/s displacement rate and 35 C condensing temperature

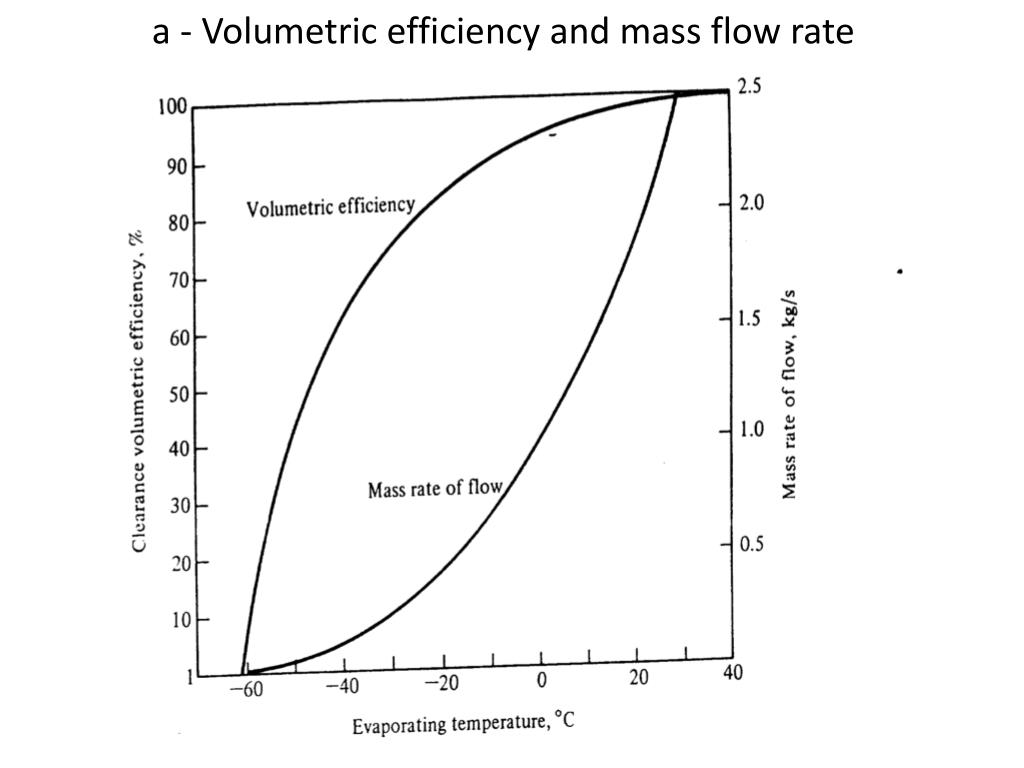

  3. a - Volumetric efficiency and mass flow rate

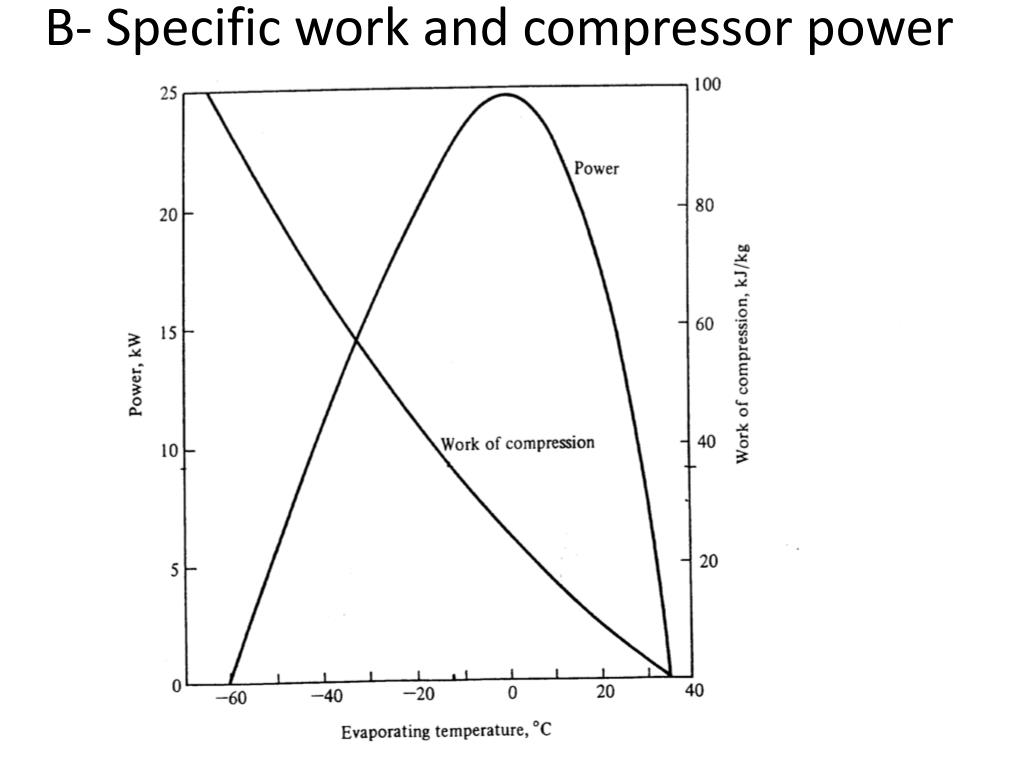

  4. B- Specific work and compressor power

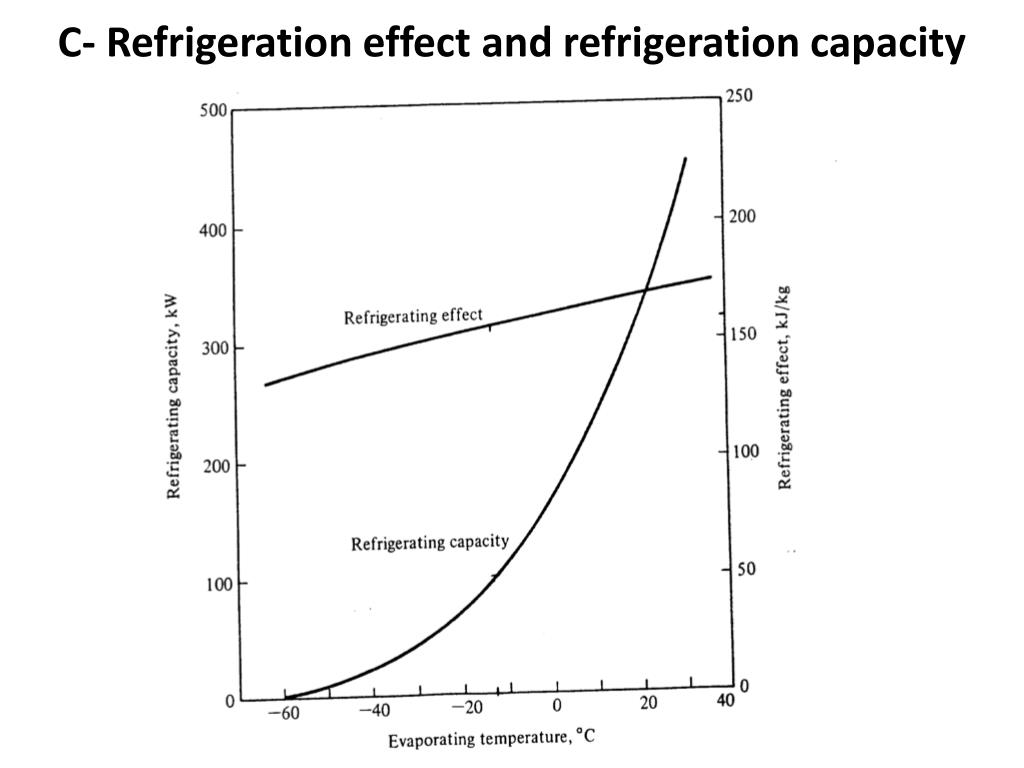

  5. C- Refrigeration effect and refrigeration capacity

  6. D- C.O.P and volume flow rate/unit capacity

  7. 2- Effect of condensing pressure “ temperature” • for the following figs:R-22, 4.5% clearance, 50 L/s displacement rate and -20 C evaporating temperature

  8. A- Volumetric efficiency and mass flow rate

  9. B- Refrigeration effect and refrigeration capacity

  10. C- Specific work and compressor power

  11. 3- Effect of pressure ratio- 1- volumetric efficiency

  12. 4- Variation of discharge temperature with condensing pressure” temperature” isentropic compression from saturated vapor at 0 C
