  1. WEB-BASED LOAD DURATION CURVE Indrajeet Chaubey Purdue University Presented at the EPA Region 5 TMDL Practitioners Workshop April 20, 2008

  2. Collaborators Christine Urban – EPA Region 5 Bernard Engel, James Hunter, Joseph Quansah, Larry Theller – Purdue University K.J. Lim – Kangwon National University Stacy Goodwin – IDEM Thomas Over - USGS

  3. Flow Duration Curve (FDC) Flow Duration Curve (Adapted from USEPA, 2007)

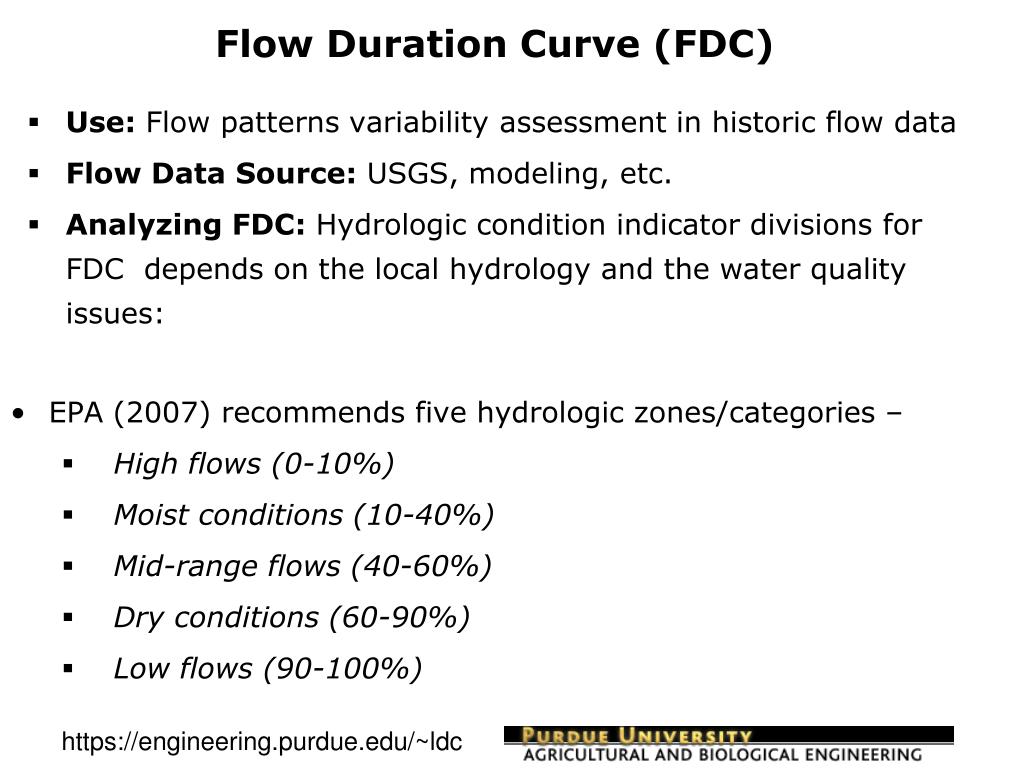

  4. Flow Duration Curve (FDC) • EPA (2007) recommends five hydrologic zones/categories – • High flows (0-10%) • Moist conditions (10-40%) • Mid-range flows (40-60%) • Dry conditions (60-90%) • Low flows (90-100%) • Use: Flow patterns variability assessment in historic flow data • Flow Data Source: USGS, modeling, etc. • Analyzing FDC: Hydrologic condition indicator divisions for FDC depends on the local hydrology and the water quality issues:

  5. Load Duration Curve (LDC) • Use: To understand water quality concentration and load variability for developing TMDLs • Water Quality Data: Federal, State and Educational • institutions, watershed practitioners, etc • Water Quality Standard: EPA, Local Stakeholders • LDC Development: • LDC = Stream flow *water quality target *conversion factor

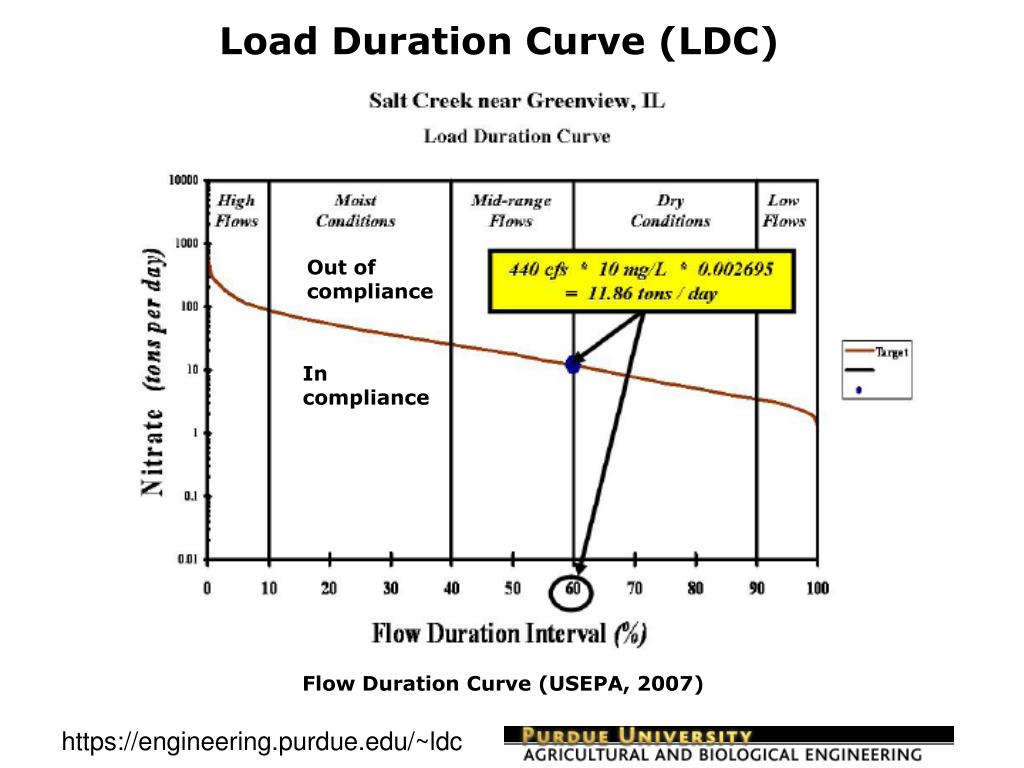

  6. Load Duration Curve (LDC) Out of compliance In compliance Flow Duration Curve (USEPA, 2007)

  7. Web-Based Flow Duration and Load Duration Curve Tool

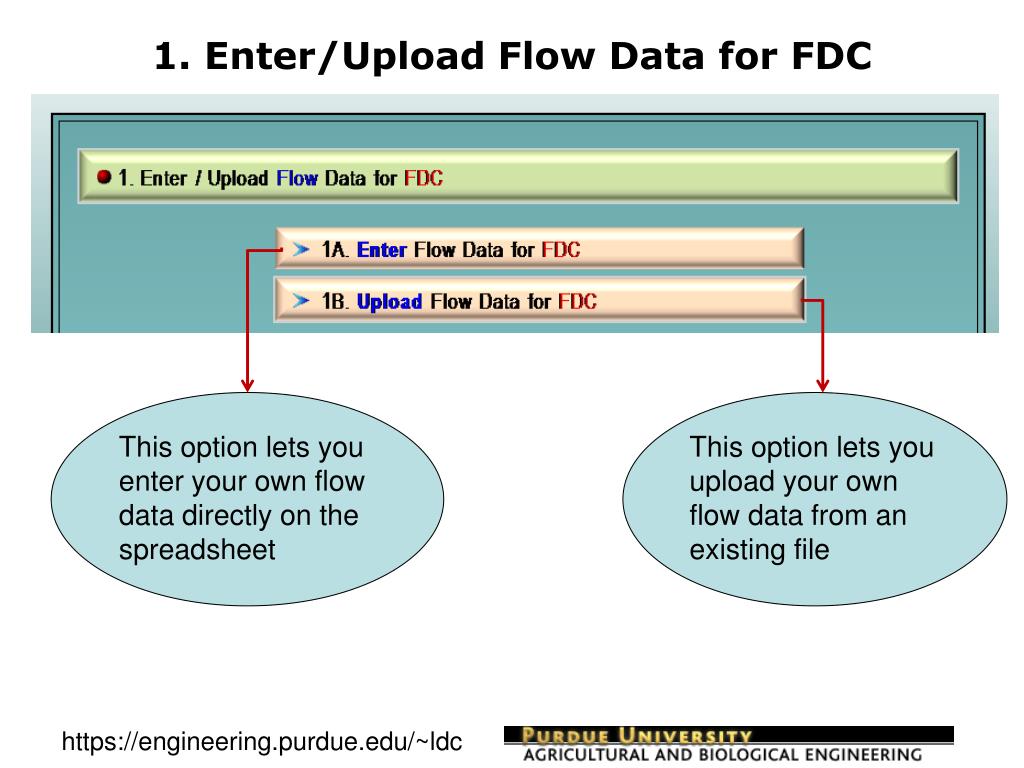

  8. 1. Enter/Upload Flow Data for FDC This option lets you enter your own flow data directly on the spreadsheet This option lets you upload your own flow data from an existing file

  9. 1A. Enter Flow Data for FDC You can type your own Description here Flow unit can be either cms or cfs Date should be in yyyymmdd format Clicking this button will create the FDC

  10. 1A. Enter Flow Data for FDC FDC – Analysis Flood Conditions 100 cfs Flow Duration Curve (2002-2007) for USGS Gauge 04180000, Cedar Creek, IN

  11. 1A. Enter Flow Data for FDC You can download the dataset by Clicking on this button You can click on the graph/image to save it on your computer

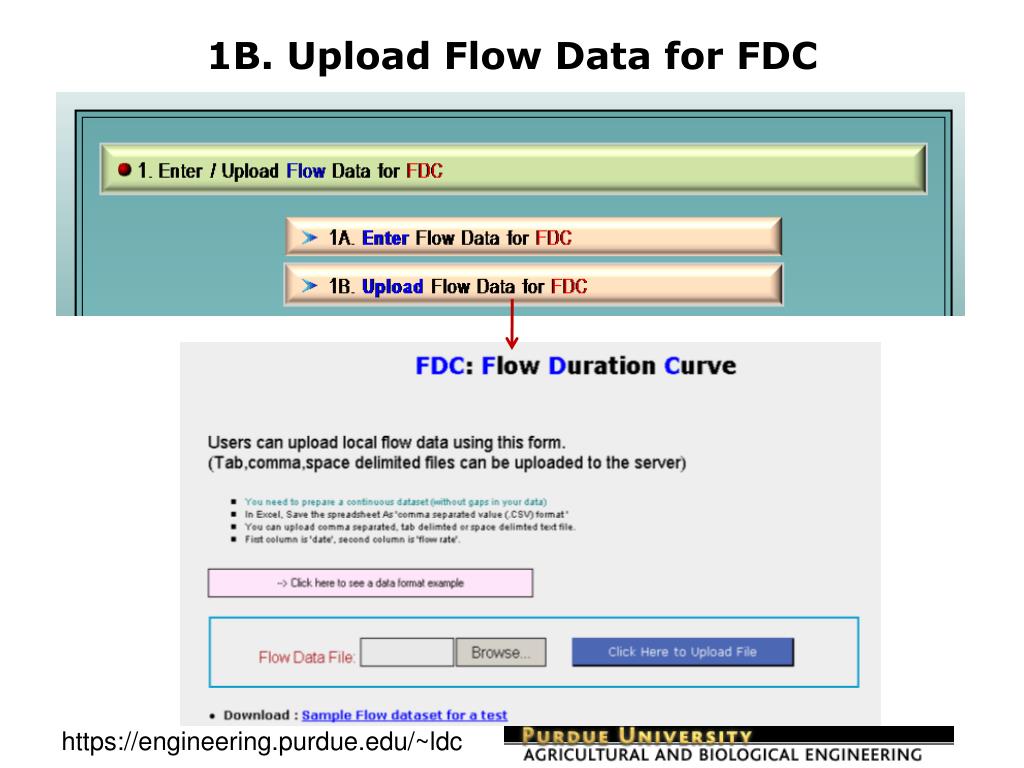

  12. 1B. Upload Flow Data for FDC

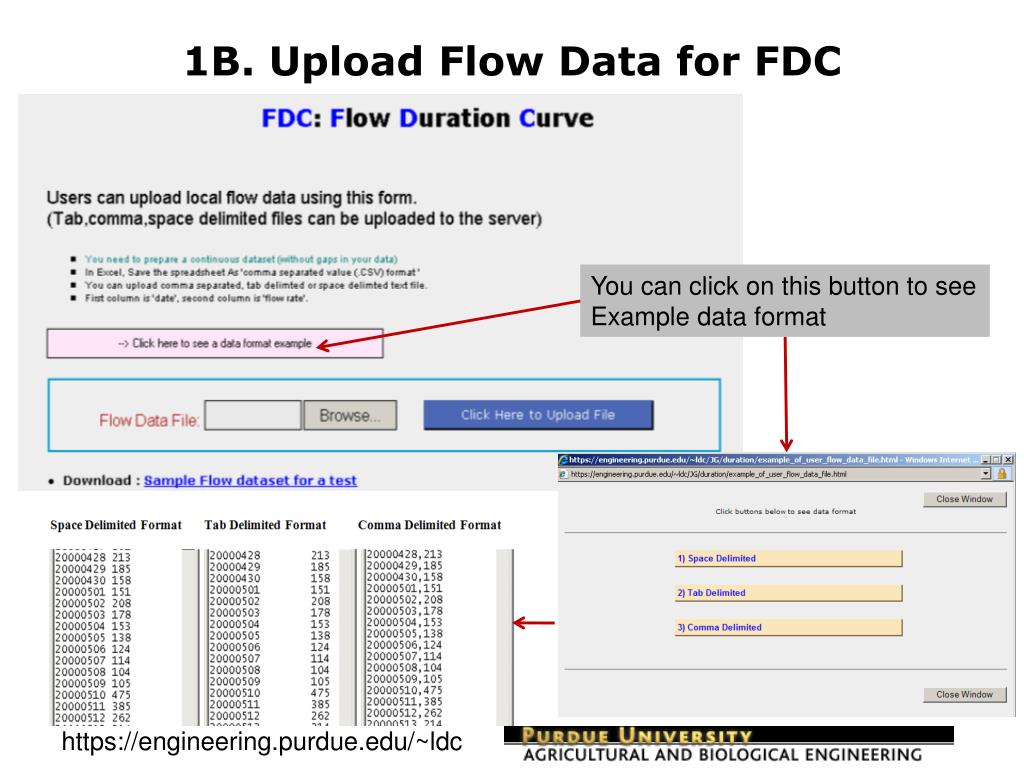

  13. 1B. Upload Flow Data for FDC You can click on this button to see Example data format

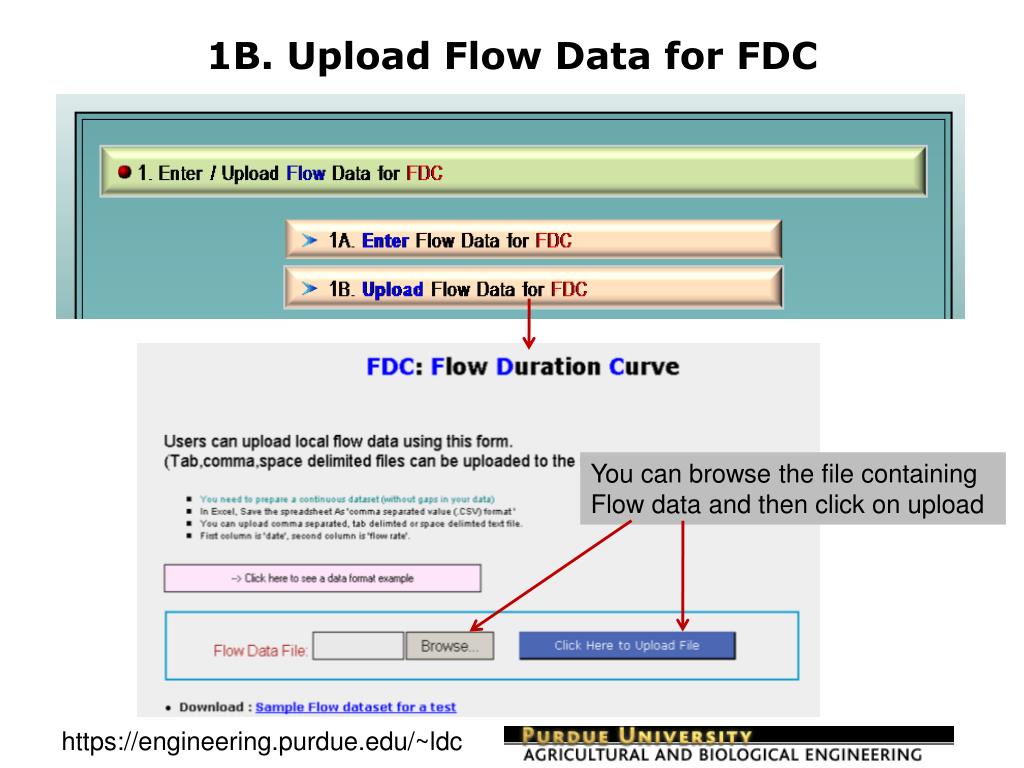

  14. 1B. Upload Flow Data for FDC You can browse the file containing Flow data and then click on upload

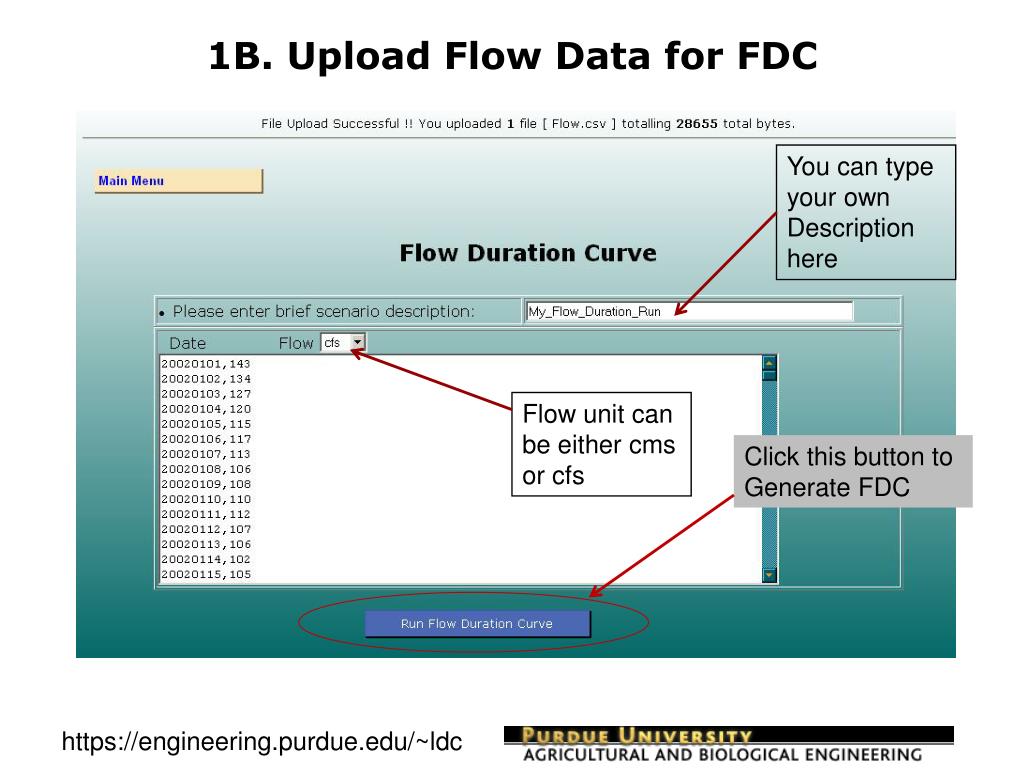

  15. 1B. Upload Flow Data for FDC You can type your own Description here Flow unit can be either cms or cfs Click this button to Generate FDC

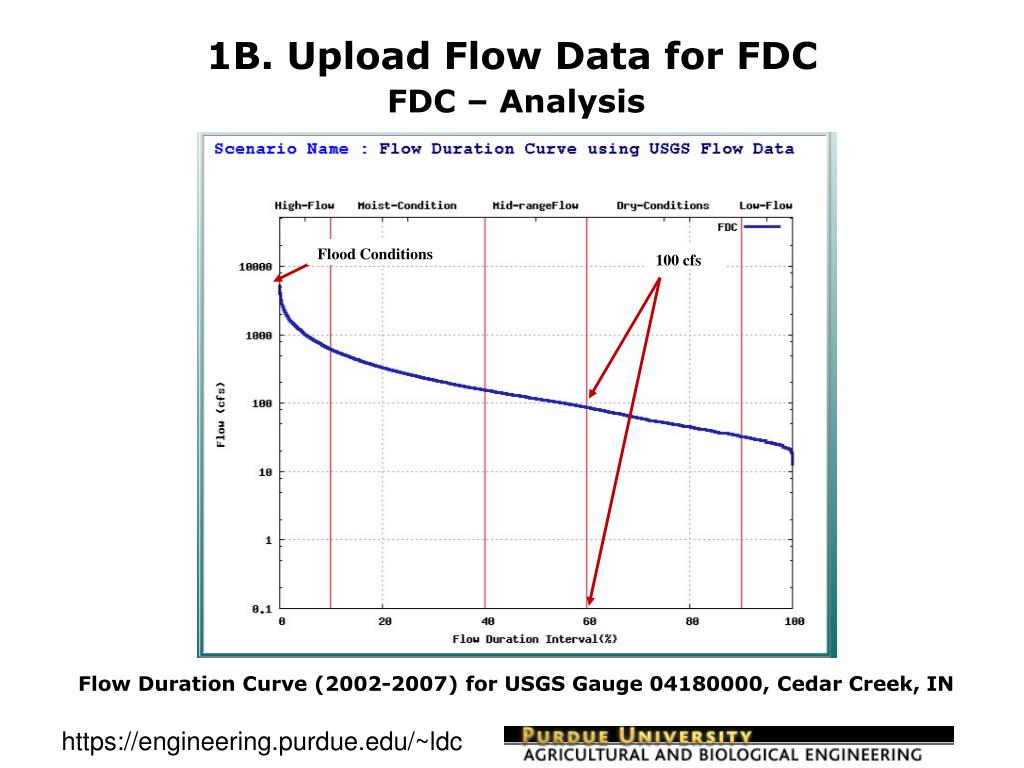

  16. 1B. Upload Flow Data for FDC FDC – Analysis Flood Conditions 100 cfs Flow Duration Curve (2002-2007) for USGS Gauge 04180000, Cedar Creek, IN

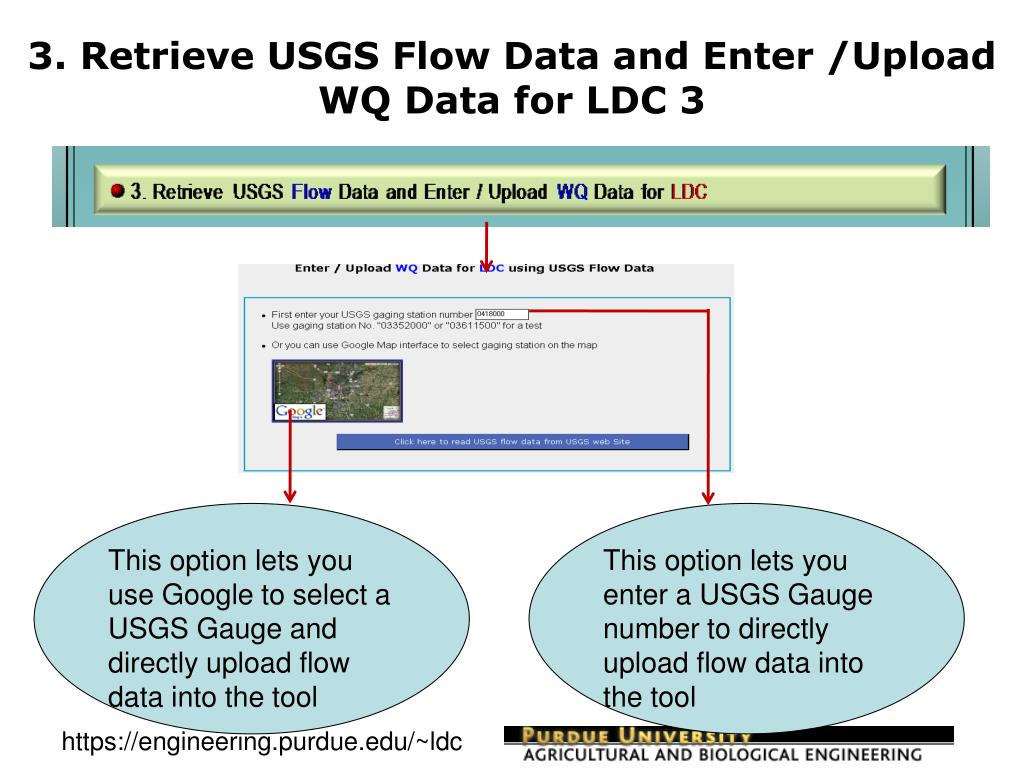

  17. 3. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC 3 This option lets you use Google to select a USGS Gauge and directly upload flow data into the tool This option lets you enter a USGS Gauge number to directly upload flow data into the tool

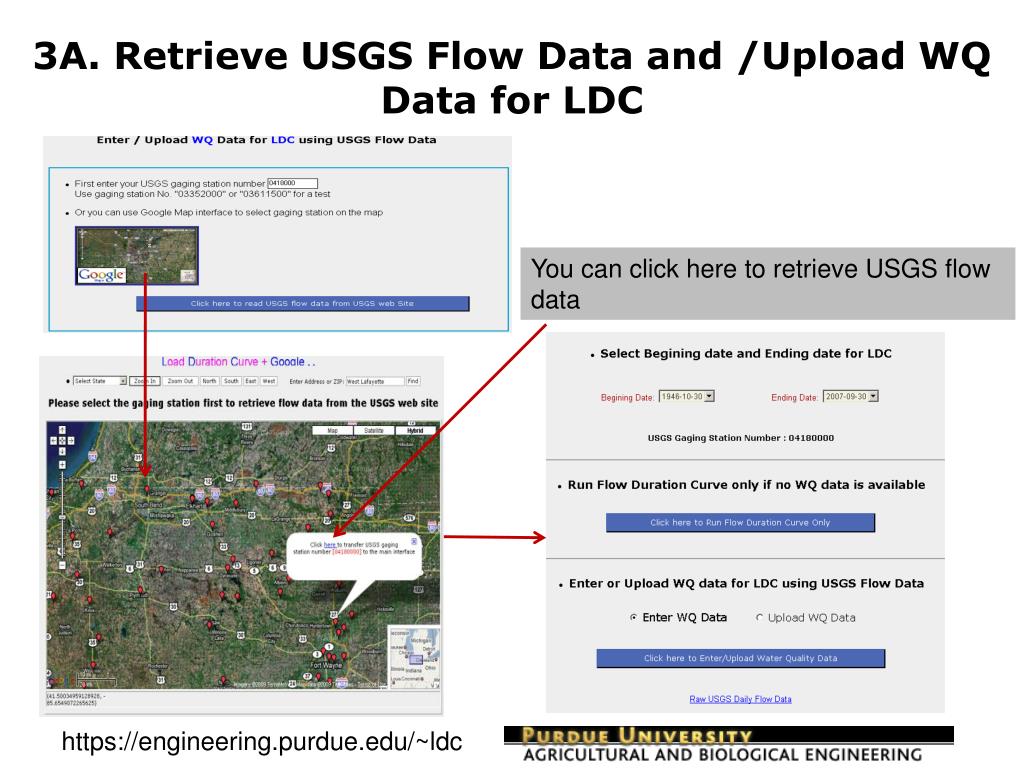

  18. 3A. Retrieve USGS Flow Data and /Upload WQ Data for LDC You can click here to retrieve USGS flow data

  19. 3A. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC 3 Select beginning and Ending dates Click this button to Generate FDC only

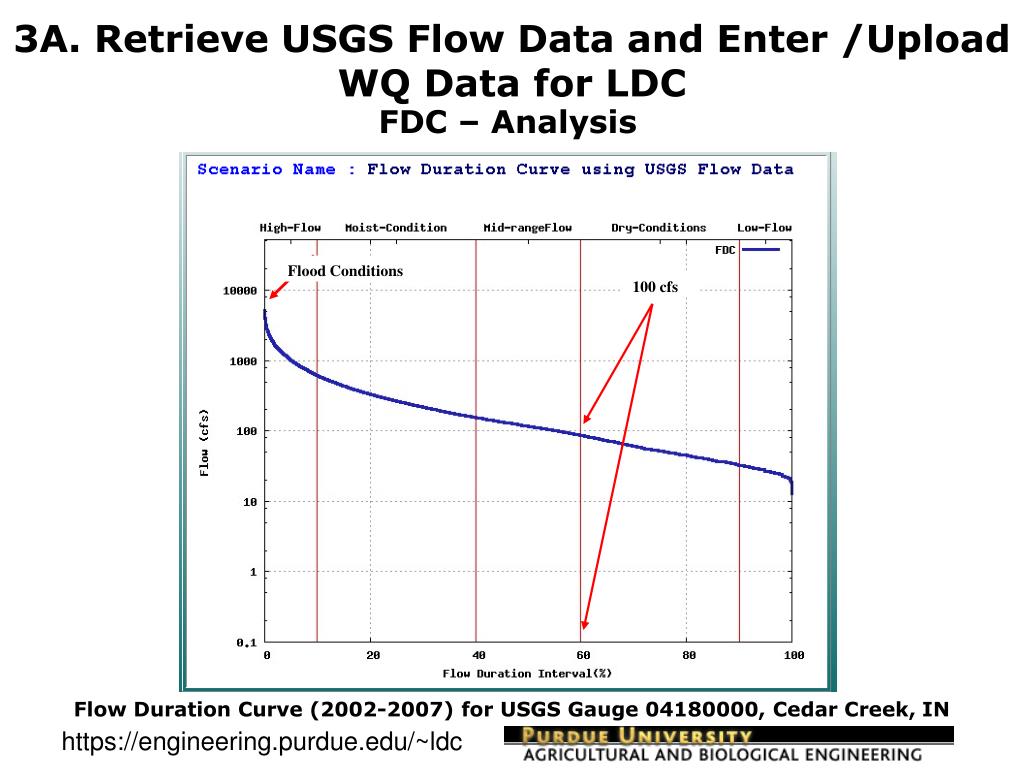

  20. 3A. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC FDC – Analysis Flood Conditions 100 cfs Flow Duration Curve (2002-2007) for USGS Gauge 04180000, Cedar Creek, IN

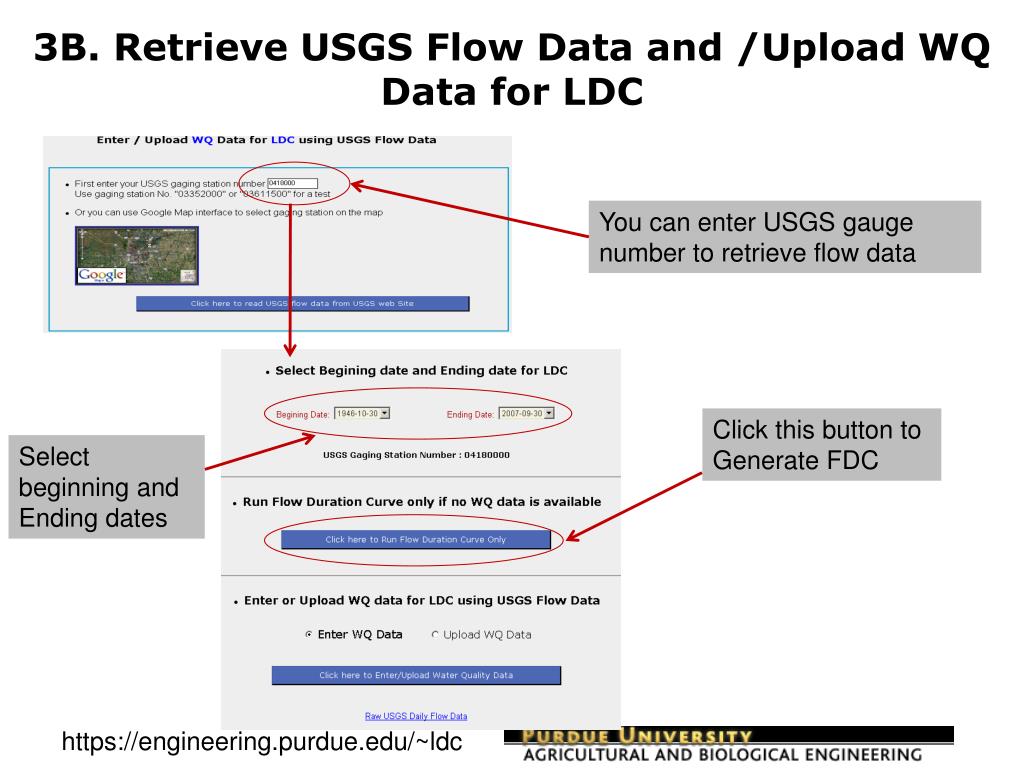

  21. 3B. Retrieve USGS Flow Data and /Upload WQ Data for LDC You can enter USGS gauge number to retrieve flow data Click this button to Generate FDC Select beginning and Ending dates

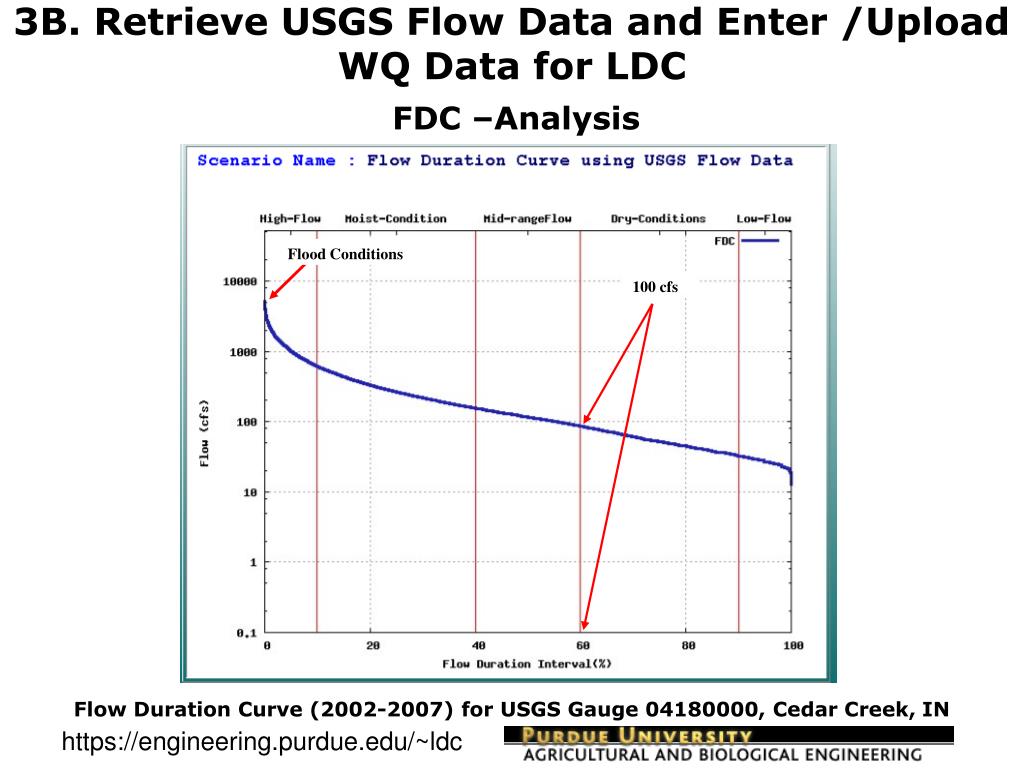

  22. 3B. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC FDC –Analysis Flood Conditions 100 cfs Flow Duration Curve (2002-2007) for USGS Gauge 04180000, Cedar Creek, IN

  23. 2. Enter / Upload Flow and WQ Data for LDC This option lets you enter your own flow and WQ data directly on the spreadsheet This option lets you upload your own flow and WQ data from an existing file

  24. 2A. Enter / Upload Flow and WQ Data for LDC You can type your own description here You can type water quality pollutant name here WQ unit can be ppm, ppb or count/100ml Flow unit can be either cms or cfs Date should be in yyyymmdd format You can enter WQ standard or criteria value Clicking this button will create the FDC and LDC

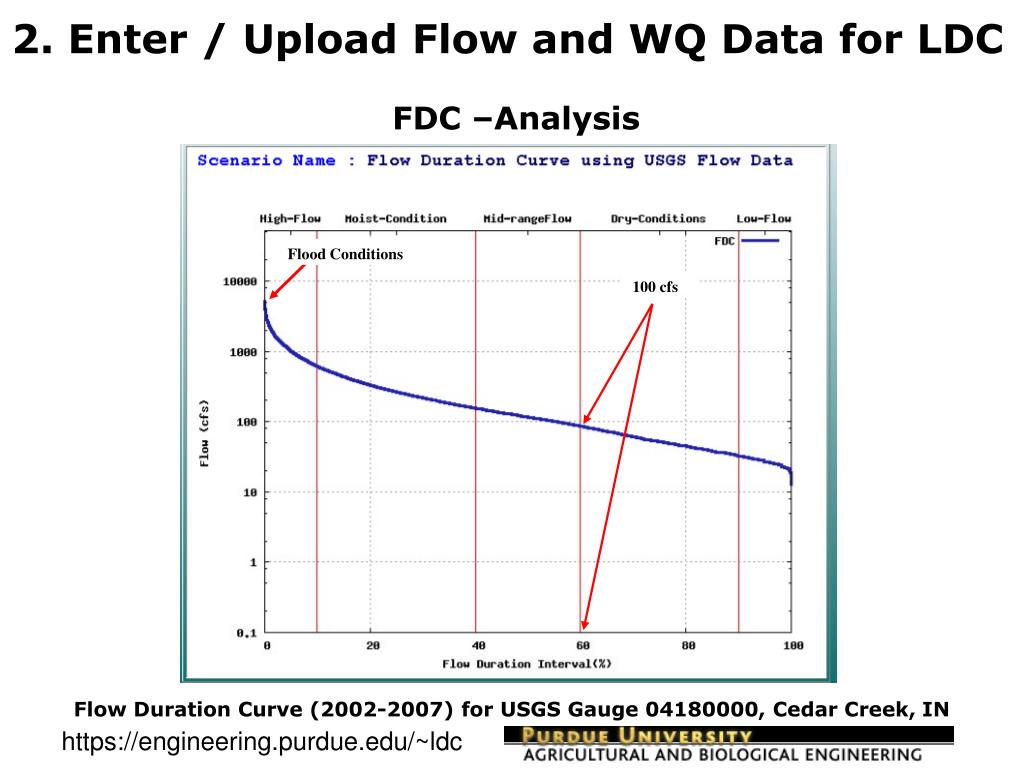

  25. 2. Enter / Upload Flow and WQ Data for LDC FDC –Analysis Flood Conditions 100 cfs Flow Duration Curve (2002-2007) for USGS Gauge 04180000, Cedar Creek, IN

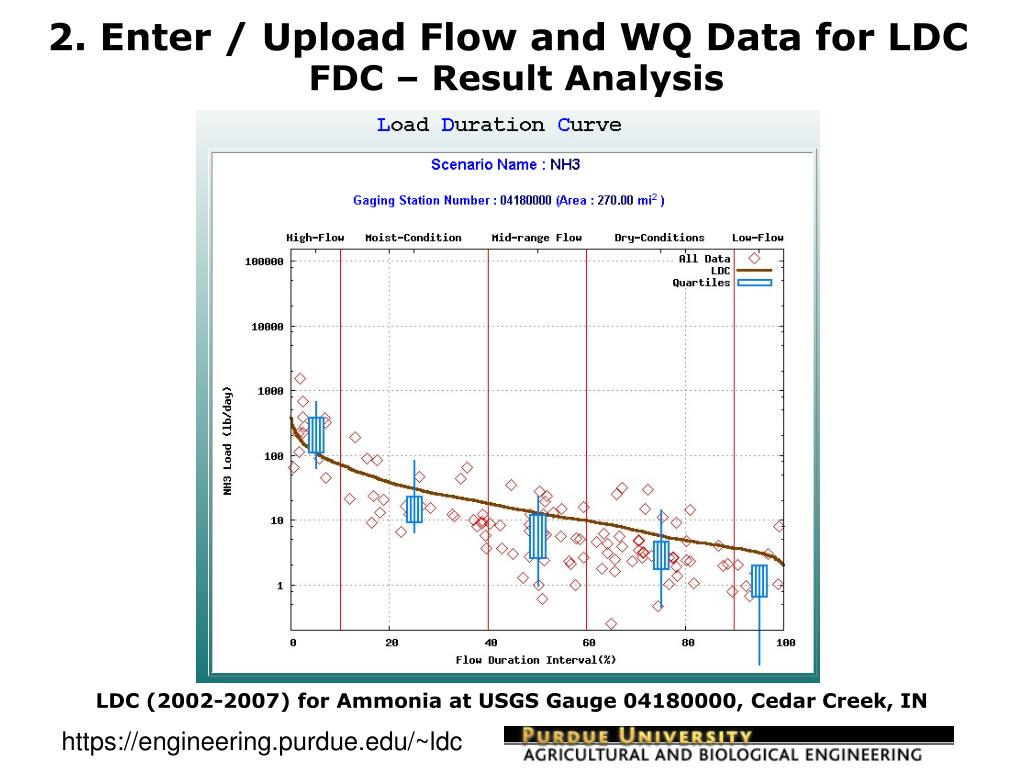

  26. 2. Enter / Upload Flow and WQ Data for LDC FDC – Result Analysis LDC (2002-2007) for Ammonia at USGS Gauge 04180000, Cedar Creek, IN

  27. 2. Enter / Upload Flow and WQ Data for LDC FDC – Result Analysis WQ Target (0.10 ppm) Target Concentration Graph for Ammonia at USGS Gauge 04180000, Cedar Creek,

  28. 2. Enter / Upload Flow and WQ Data for LDC FDC – Result Analysis You can download the dataset by Clicking on this button

  29. 2B. Enter / Upload Flow and WQ Data for LDC

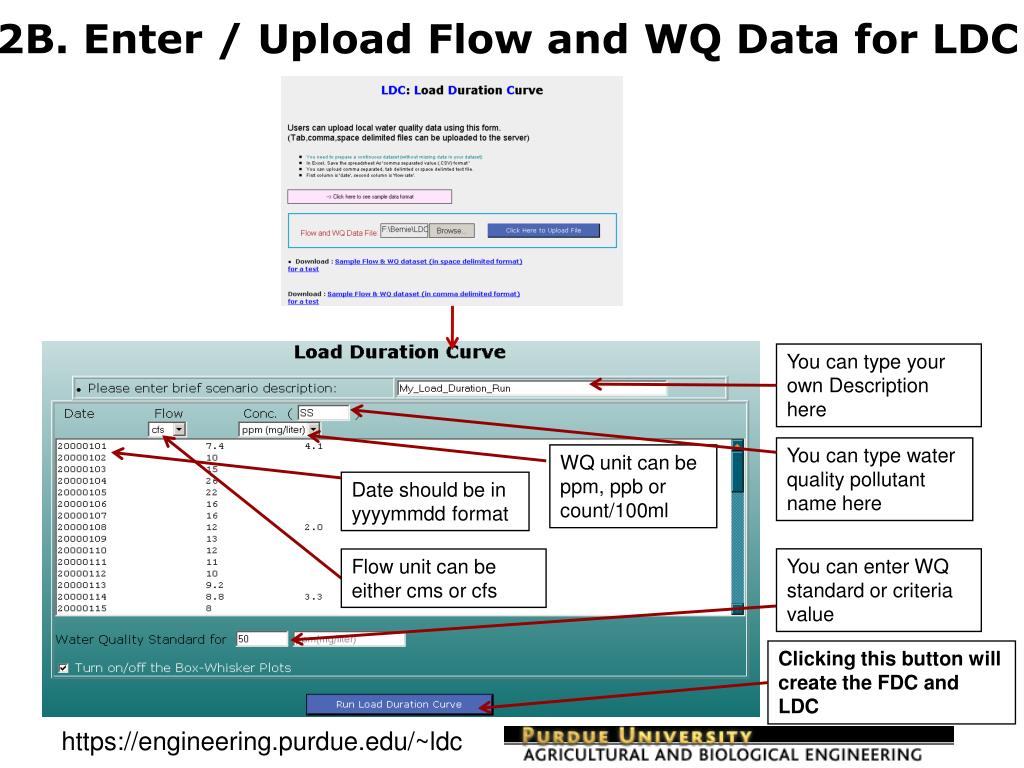

  30. 2B. Enter / Upload Flow and WQ Data for LDC You can type your own Description here You can type water quality pollutant name here WQ unit can be ppm, ppb or count/100ml Date should be in yyyymmdd format You can enter WQ standard or criteria value Flow unit can be either cms or cfs Clicking this button will create the FDC and LDC

  31. 2. Enter / Upload Flow and WQ Data for LDC FDC – Result Analysis LDC (2002-2007) for Ammonia at USGS Gauge 04180000, Cedar Creek, IN

  32. 2. Enter / Upload Flow and WQ Data for LDC FDC – Result Analysis WQ Target (0.10 ppm) Target Concentration Graph for Ammonia at USGS Gauge 04180000, Cedar Creek,

  33. 3. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC This option lets you use Google to select a USGS Gauge and directly upload flow data into the tool This option lets you enter a USGS Gauge number to directly upload flow data into the tool

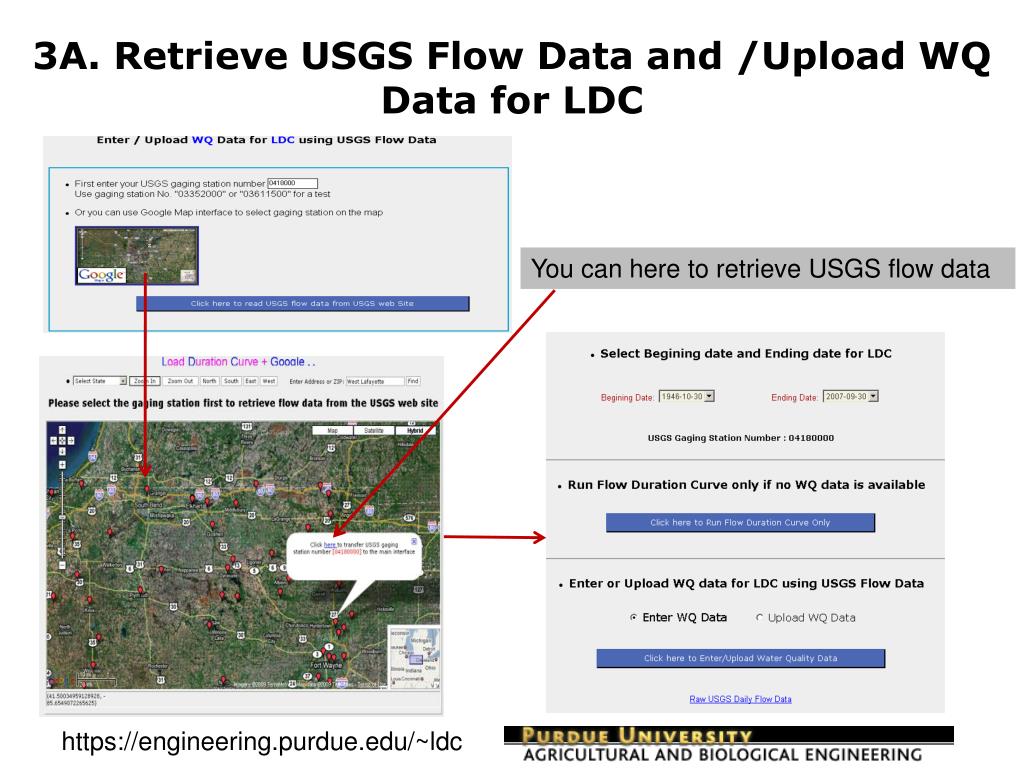

  34. 3A. Retrieve USGS Flow Data and /Upload WQ Data for LDC You can here to retrieve USGS flow data

  35. 3A. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC You can type your own Description here Flow unit can be either cms or cfs Select beginning and Ending dates WQ unit can be ppm, ppb or count/100ml You can type water quality pollutant name here You can enter WQ standard value Click this button to Generate LDC

  36. 3A. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC Select beginning and Ending dates Click this button to Generate LDC

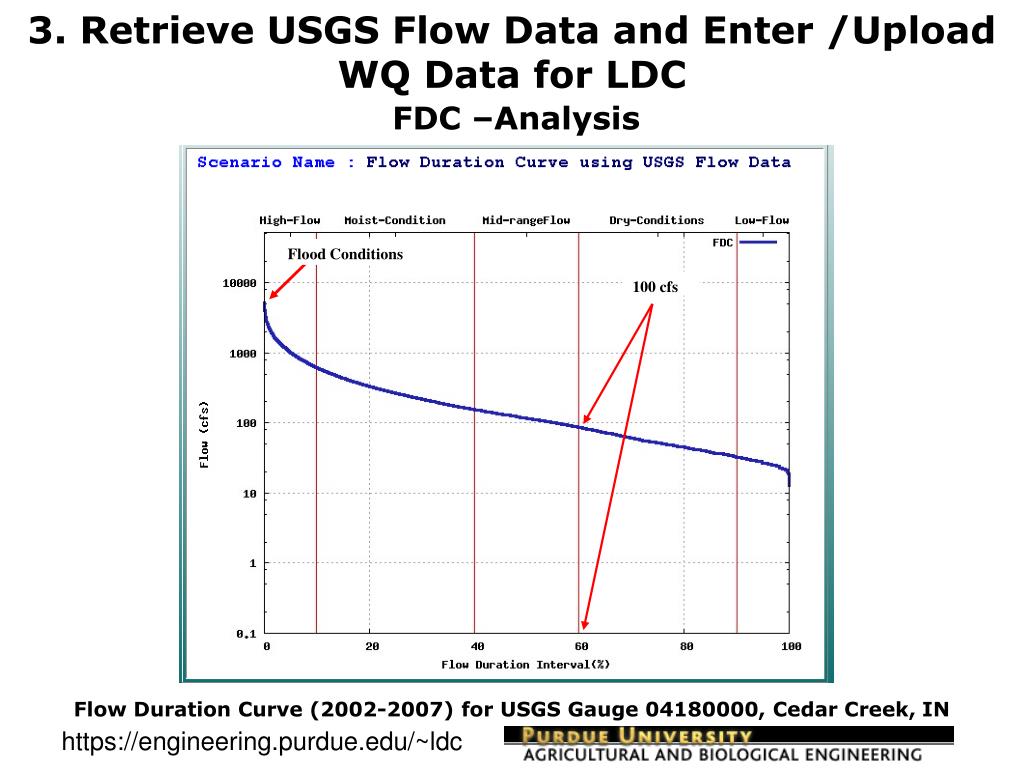

  37. 3. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC FDC –Analysis Flood Conditions 100 cfs Flow Duration Curve (2002-2007) for USGS Gauge 04180000, Cedar Creek, IN

  38. 3. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC FDC – Result Analysis LDC (2002-2007) for Ammonia at USGS Gauge 04180000, Cedar Creek, IN

  39. 3. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC FDC – Result Analysis WQ Target (0.10 ppm) Target Concentration Graph for Ammonia at USGS Gauge 04180000, Cedar Creek,

  40. 3. Retrieve USGS Flow Data and Enter /Upload WQ Data for LDC FDC – Result Analysis You can download the dataset by Clicking on this button

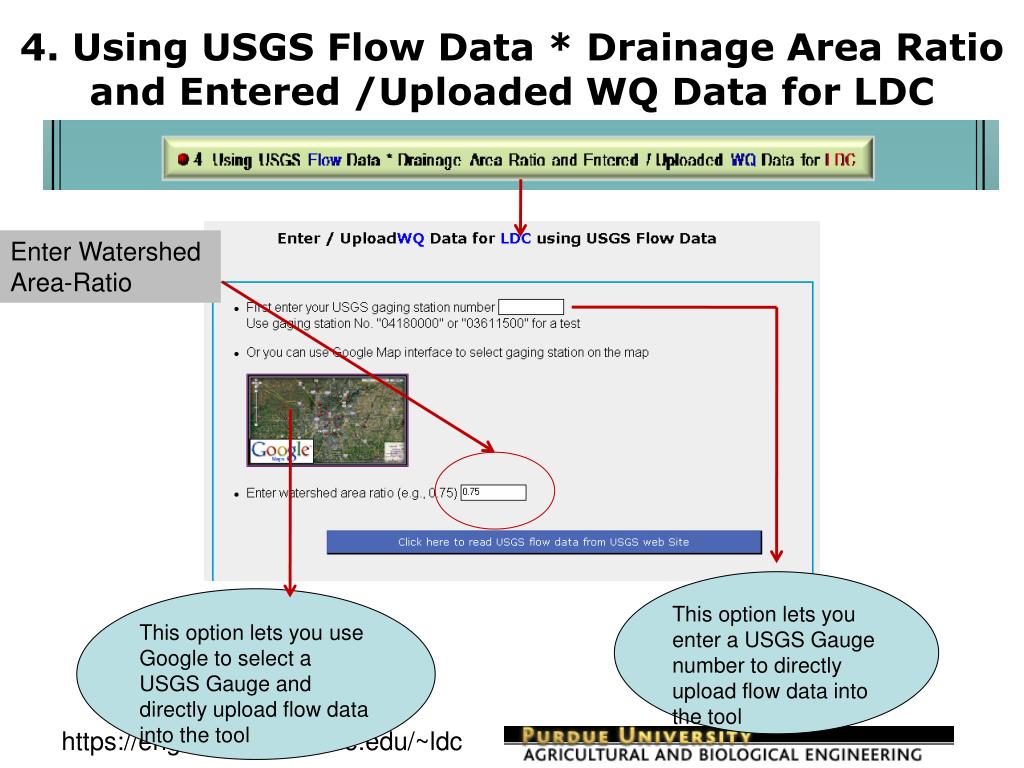

  41. 4. Using USGS Flow Data * Drainage Area Ratio and Entered /Uploaded WQ Data for LDC Enter Watershed Area-Ratio This option lets you enter a USGS Gauge number to directly upload flow data into the tool This option lets you use Google to select a USGS Gauge and directly upload flow data into the tool

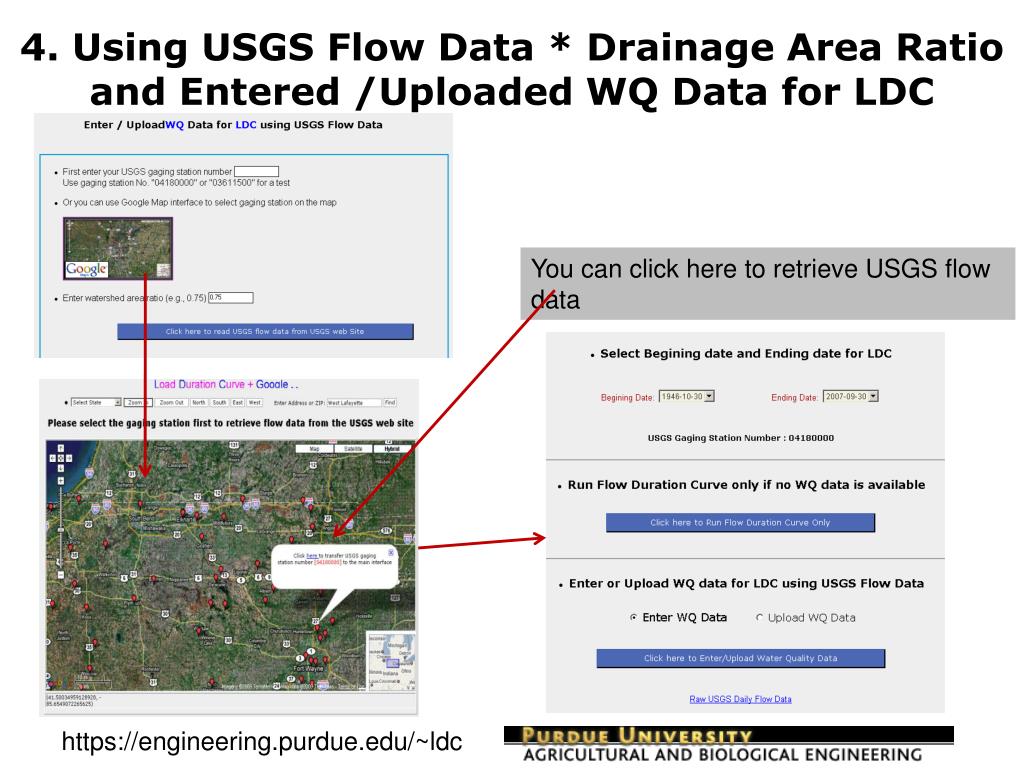

  42. 4. Using USGS Flow Data * Drainage Area Ratio and Entered /Uploaded WQ Data for LDC You can click here to retrieve USGS flow data

  43. 4. Using USGS Flow Data * Drainage Area Ratio and Entered /Uploaded WQ Data for LDC You can type your own Description here Flow unit can be either cms or cfs Select beginning and Ending dates WQ unit can be ppm, ppb or count/100ml You can type water quality pollutant name here You can enter WQ standard value Click this button to Generate LDC

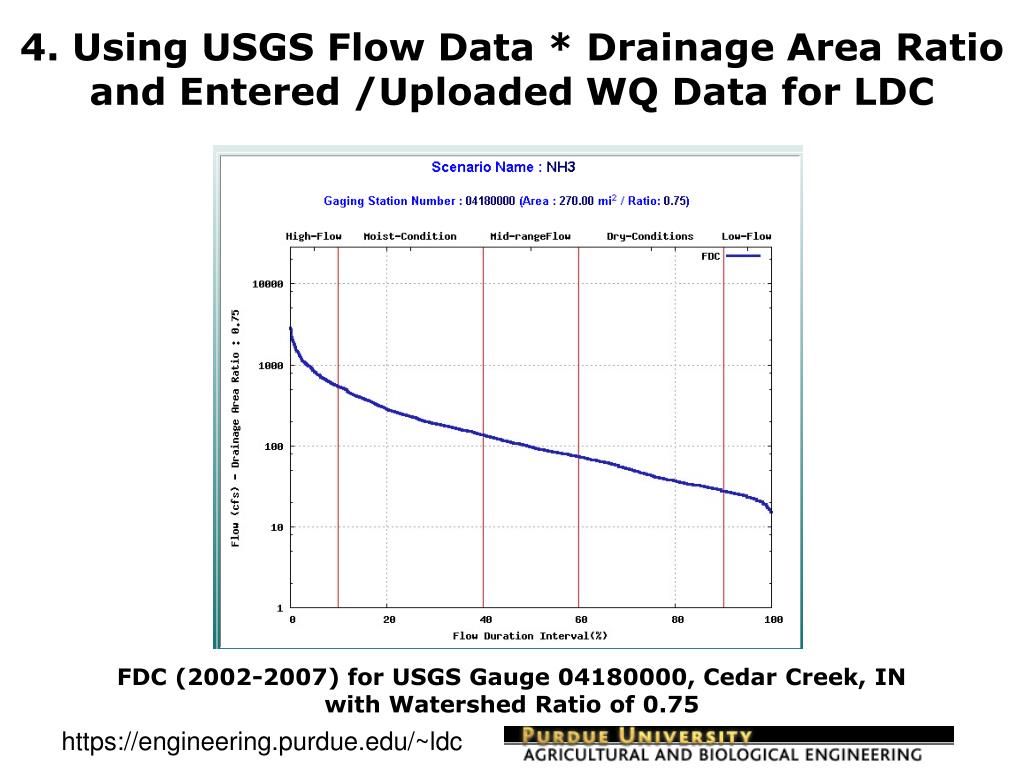

  44. 4. Using USGS Flow Data * Drainage Area Ratio and Entered /Uploaded WQ Data for LDC FDC (2002-2007) for USGS Gauge 04180000, Cedar Creek, IN with Watershed Ratio of 0.75

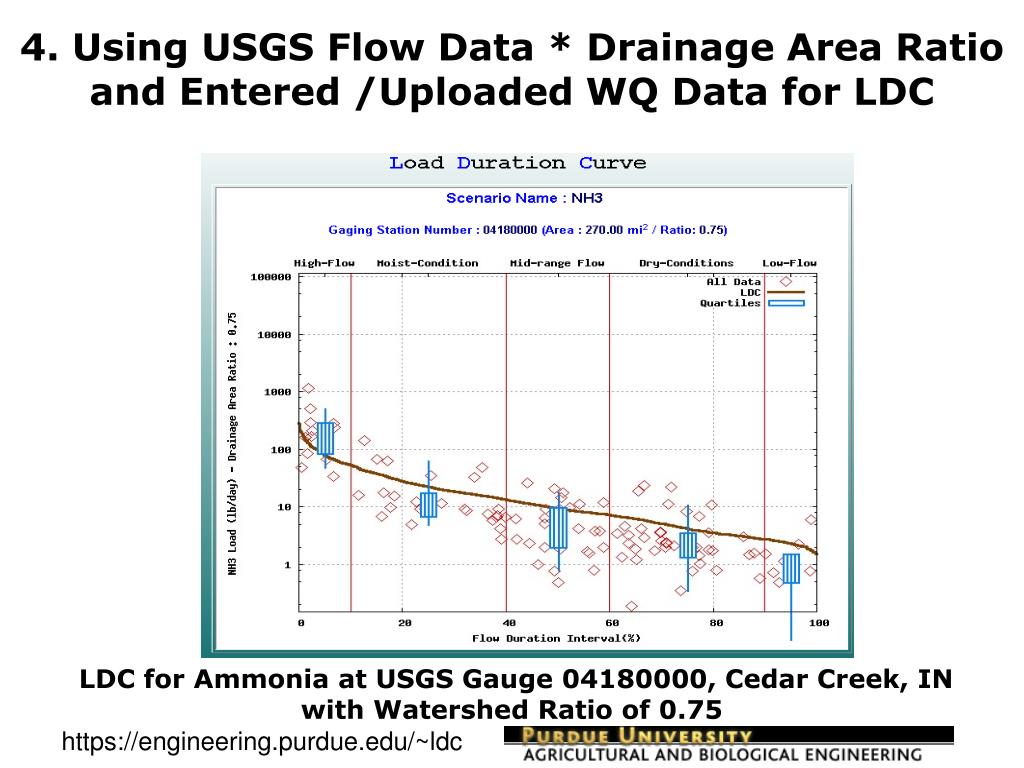

  45. 4. Using USGS Flow Data * Drainage Area Ratio and Entered /Uploaded WQ Data for LDC LDC for Ammonia at USGS Gauge 04180000, Cedar Creek, IN with Watershed Ratio of 0.75

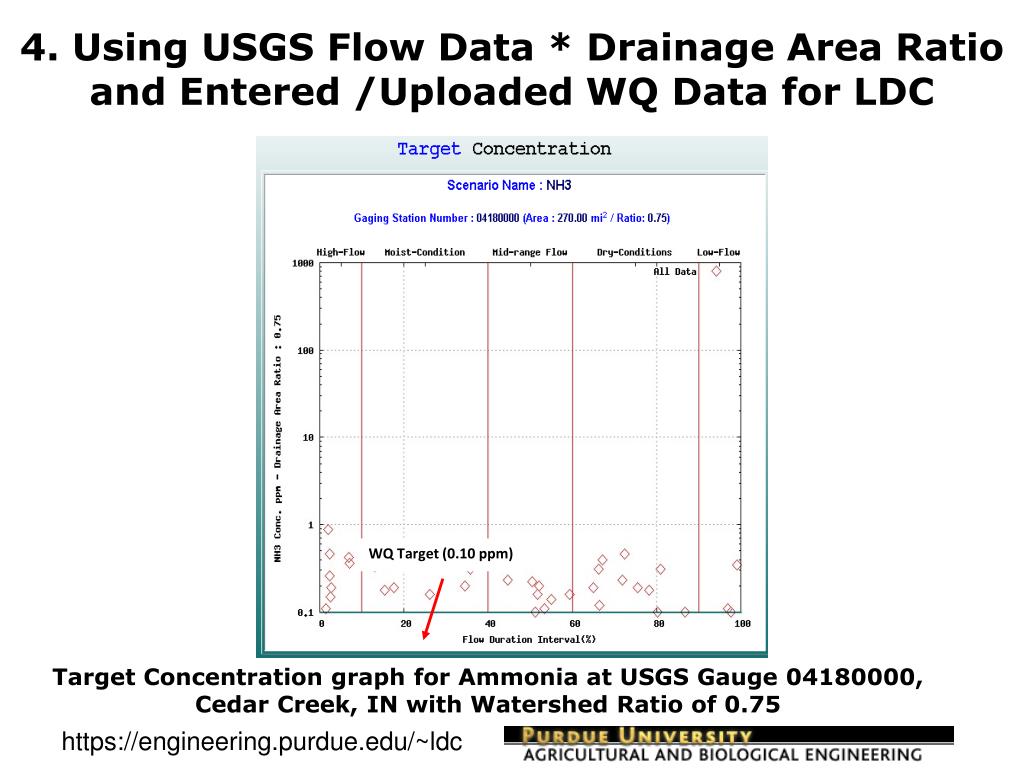

  46. 4. Using USGS Flow Data * Drainage Area Ratio and Entered /Uploaded WQ Data for LDC WQ Target (0.10 ppm) Target Concentration graph for Ammonia at USGS Gauge 04180000, Cedar Creek, IN with Watershed Ratio of 0.75

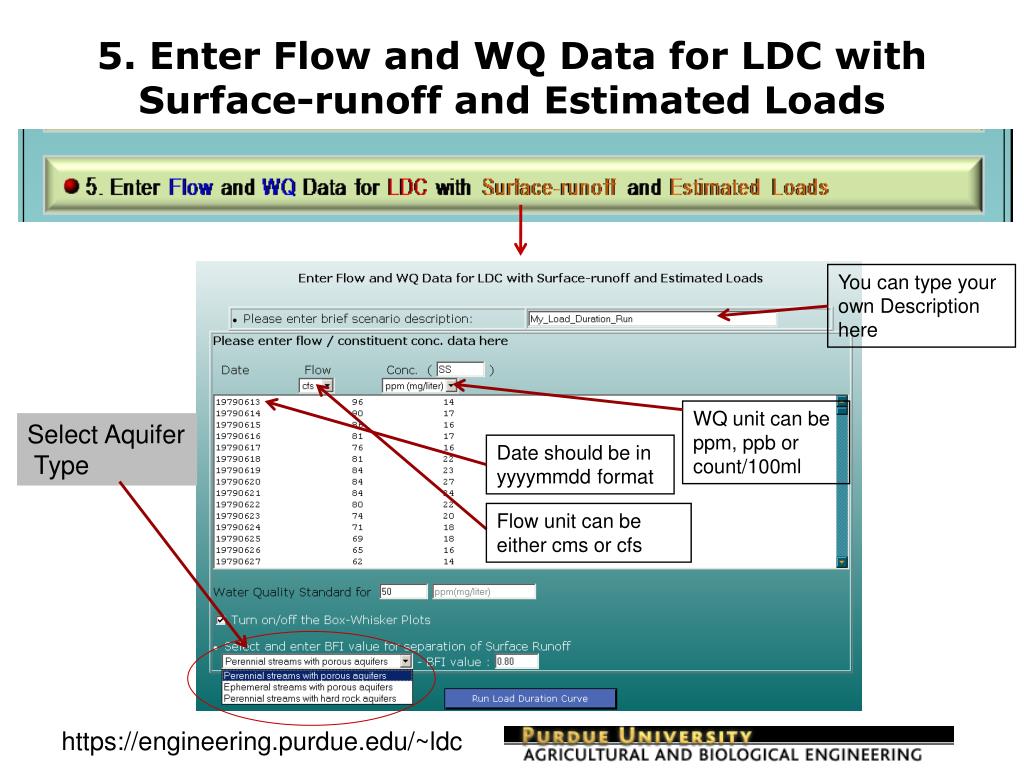

  47. 5. Enter Flow and WQ Data for LDC with Surface-runoff and Estimated Loads You can type your own Description here WQ unit can be ppm, ppb or count/100ml Select Aquifer Type Date should be in yyyymmdd format Flow unit can be either cms or cfs

  48. 5. Enter Flow and WQ Data for LDC with Surface-runoff and Estimated Loads

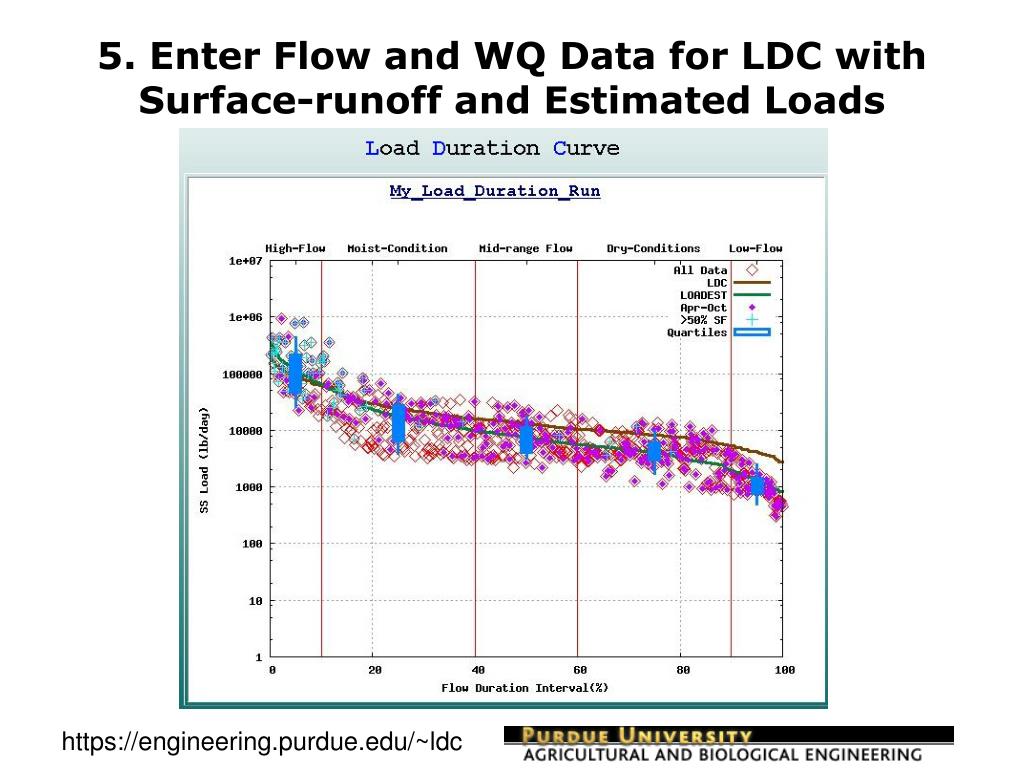

  49. 5. Enter Flow and WQ Data for LDC with Surface-runoff and Estimated Loads
