Chapter 8 Periodic Properties of the Elements

Chemistry: A Molecular Approach , 1 st Ed. Nivaldo Tro. Chapter 8 Periodic Properties of the Elements. Roy Kennedy Massachusetts Bay Community College Wellesley Hills, MA. 2007, Prentice Hall. Mendeleev. order elements by atomic mass saw a repeating pattern of properties

ferrol
Télécharger la présentation

Chapter 8 Periodic Properties of the Elements

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chemistry: A Molecular Approach, 1st Ed.Nivaldo Tro Chapter 8Periodic Properties of the Elements Roy Kennedy Massachusetts Bay Community College Wellesley Hills, MA 2007, Prentice Hall

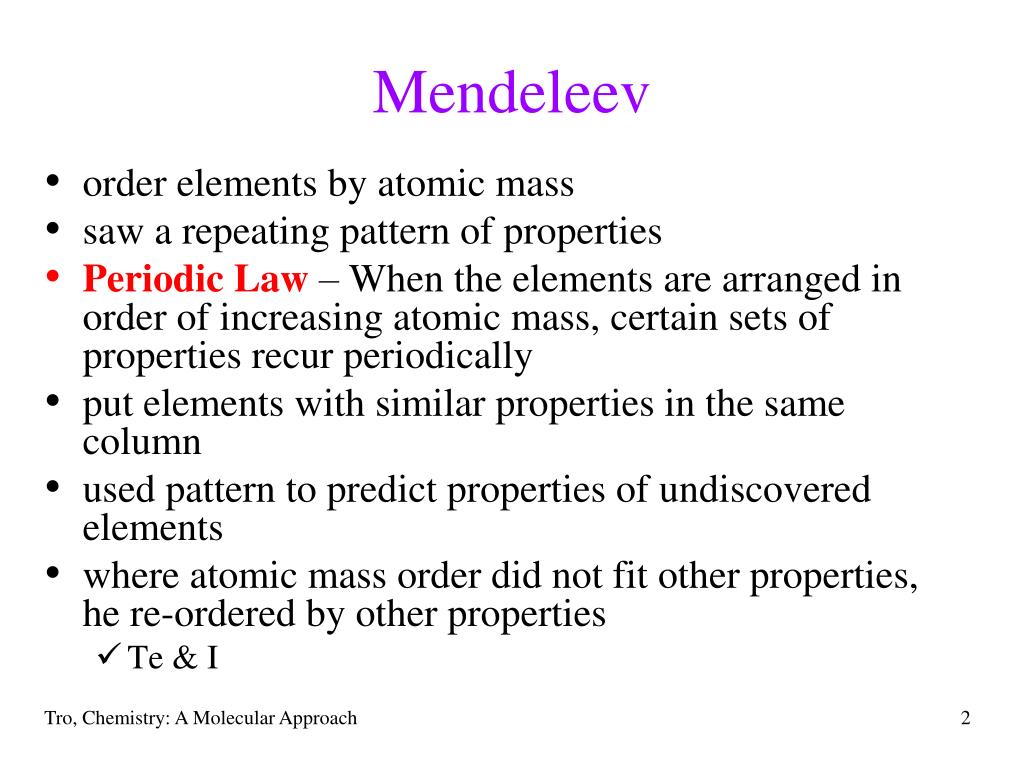

  2. Mendeleev • order elements by atomic mass • saw a repeating pattern of properties • Periodic Law – When the elements are arranged in order of increasing atomic mass, certain sets of properties recur periodically • put elements with similar properties in the same column • used pattern to predict properties of undiscovered elements • where atomic mass order did not fit other properties, he re-ordered by other properties • Te & I Tro, Chemistry: A Molecular Approach

  3. nm H2O a/b H 1 H2 m Li2O b 7 LiH m/nmBeO a/b 9 BeH2 nm B2O3 a 11 ( BH3)n nm CO2 a 12 CH4 nm N2O5 a 14 NH3 nm 19 HF Li Be B C N O F m Na2O b 23 NaH m MgO b 24MgH2 nm P4O10 a 31 PH3 nm SO3 a 32 H2S nm Cl2O7 a 35.5 HCl Na Mg Al Si P S Cl Periodic Pattern nm O2 16 H2O m Al2O3 a/b 27 (AlH3) nm/mSiO2 a 28 SiH4 m = metal, nm = nonmetal, m/nm = metalloid a = acidic oxide, b = basic oxide, a/b = amphoteric oxide Tro, Chemistry: A Molecular Approach

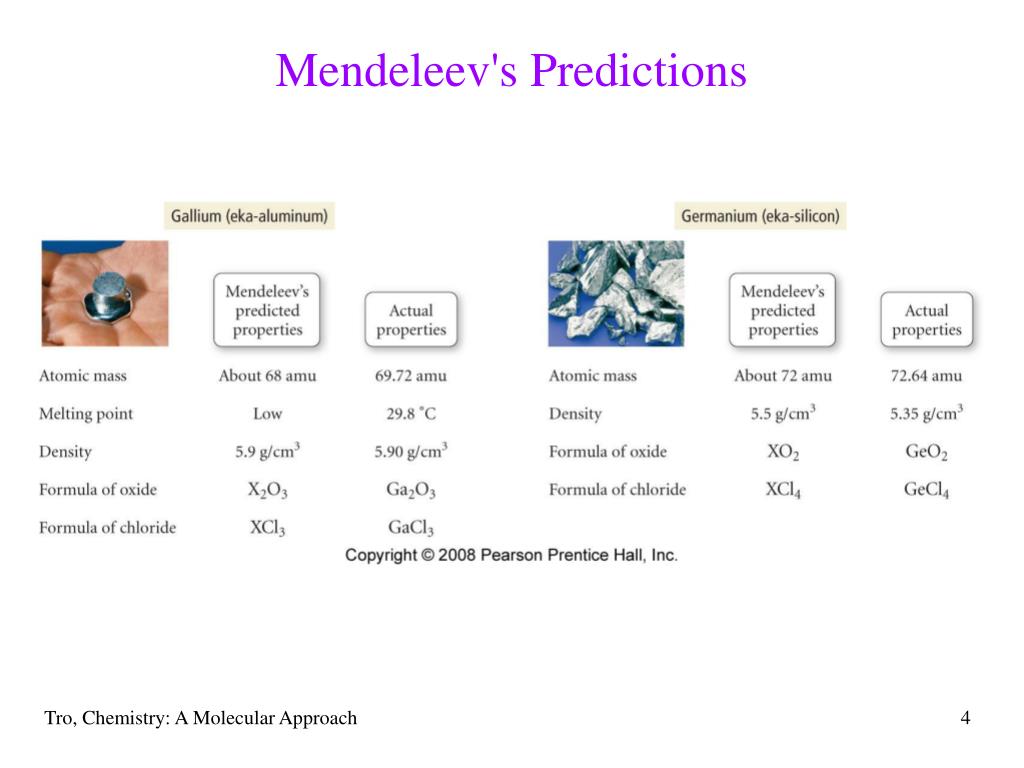

  4. Mendeleev's Predictions Tro, Chemistry: A Molecular Approach

  5. What vs. Why • Mendeleev’s Periodic Law allows us to predict what the properties of an element will be based on its position on the table • it doesn’t explain why the pattern exists • Quantum Mechanics is a theory that explains why the periodic trends in the properties exist Tro, Chemistry: A Molecular Approach

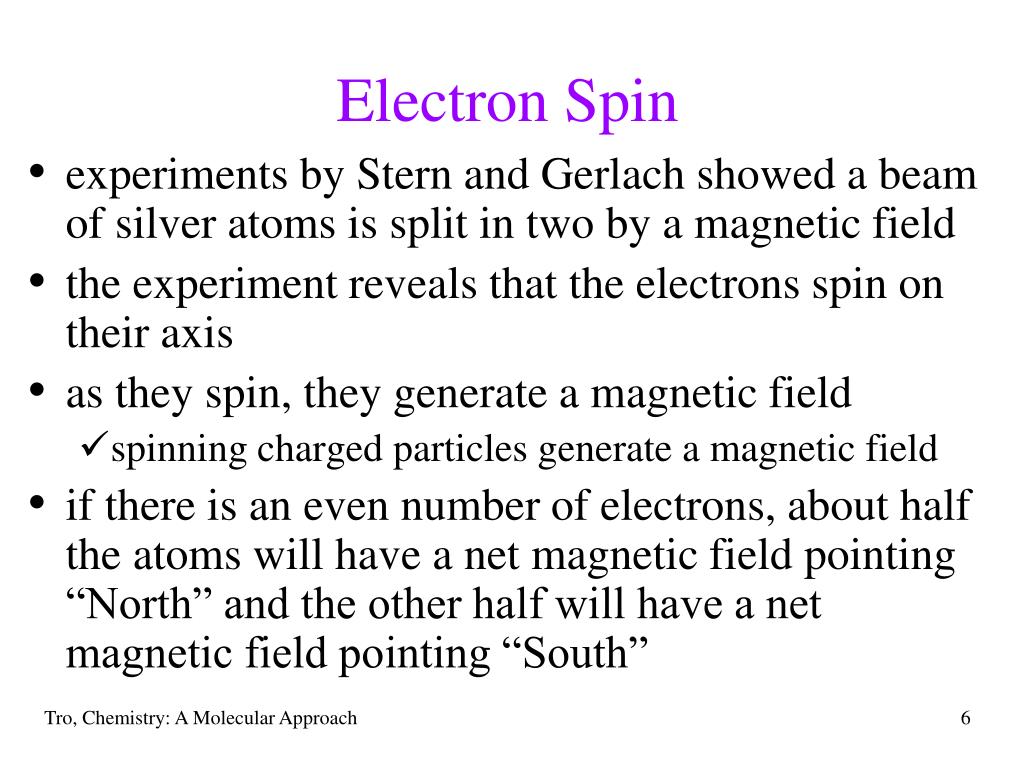

  6. Electron Spin • experiments by Stern and Gerlach showed a beam of silver atoms is split in two by a magnetic field • the experiment reveals that the electrons spin on their axis • as they spin, they generate a magnetic field • spinning charged particles generate a magnetic field • if there is an even number of electrons, about half the atoms will have a net magnetic field pointing “North” and the other half will have a net magnetic field pointing “South” Tro, Chemistry: A Molecular Approach

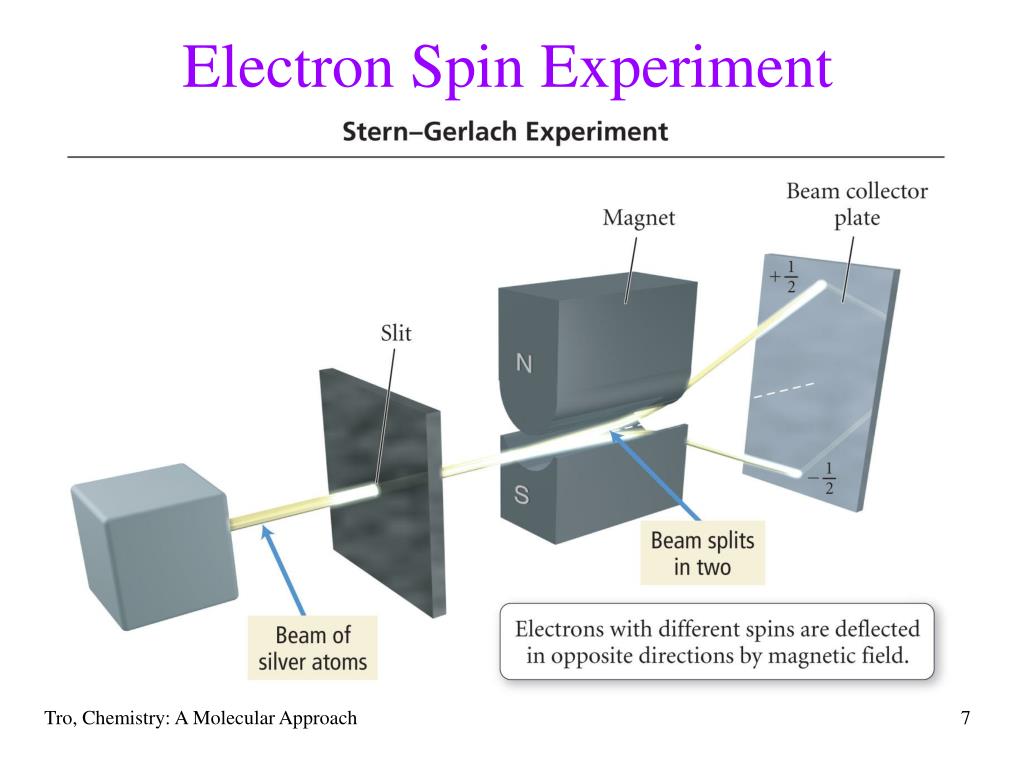

  7. Electron Spin Experiment Tro, Chemistry: A Molecular Approach

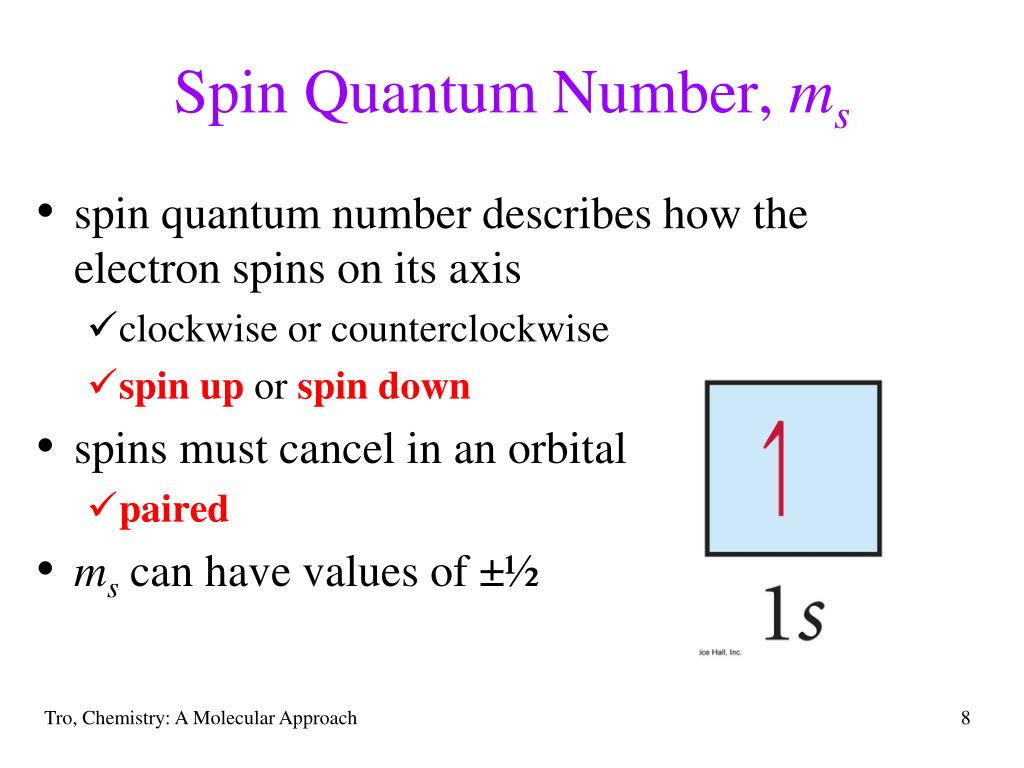

  8. Spin Quantum Number, ms • spin quantum number describes how the electron spins on its axis • clockwise or counterclockwise • spin up or spin down • spins must cancel in an orbital • paired • mscan have values of ±½ Tro, Chemistry: A Molecular Approach

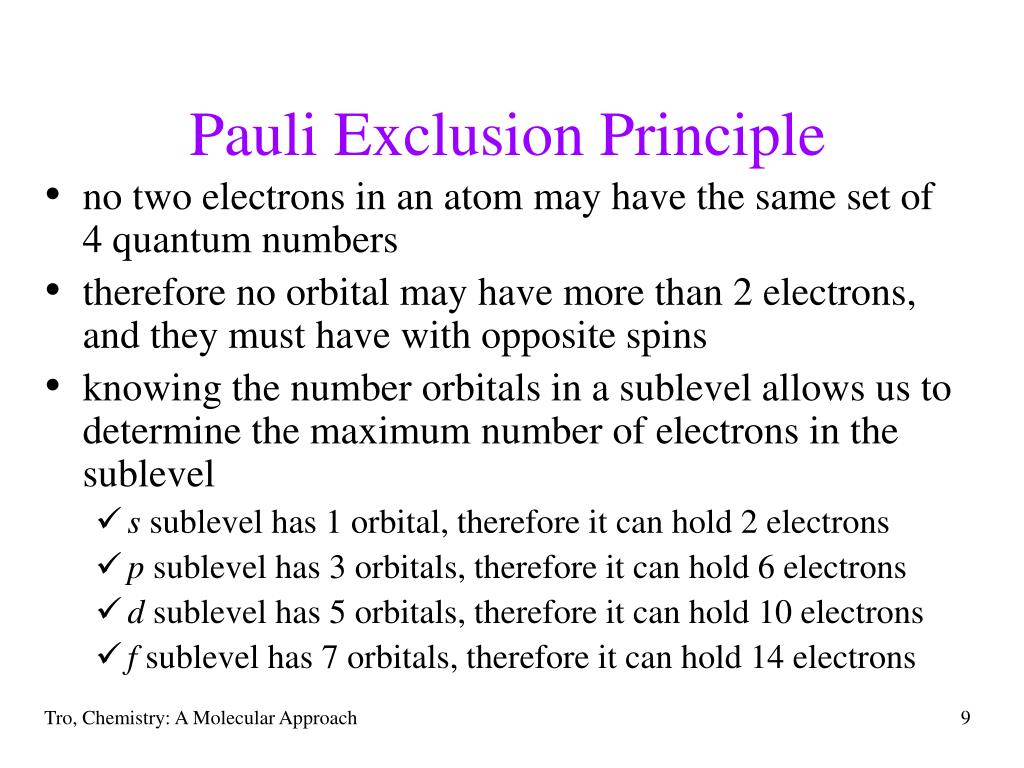

  9. Pauli Exclusion Principle • no two electrons in an atom may have the same set of 4 quantum numbers • therefore no orbital may have more than 2 electrons, and they must have with opposite spins • knowing the number orbitals in a sublevel allows us to determine the maximum number of electrons in the sublevel • s sublevel has 1 orbital, therefore it can hold 2 electrons • p sublevel has 3 orbitals, therefore it can hold 6 electrons • d sublevel has 5 orbitals, therefore it can hold 10 electrons • f sublevel has 7 orbitals, therefore it can hold 14 electrons Tro, Chemistry: A Molecular Approach

  10. Allowed Quantum Numbers Tro, Chemistry: A Molecular Approach

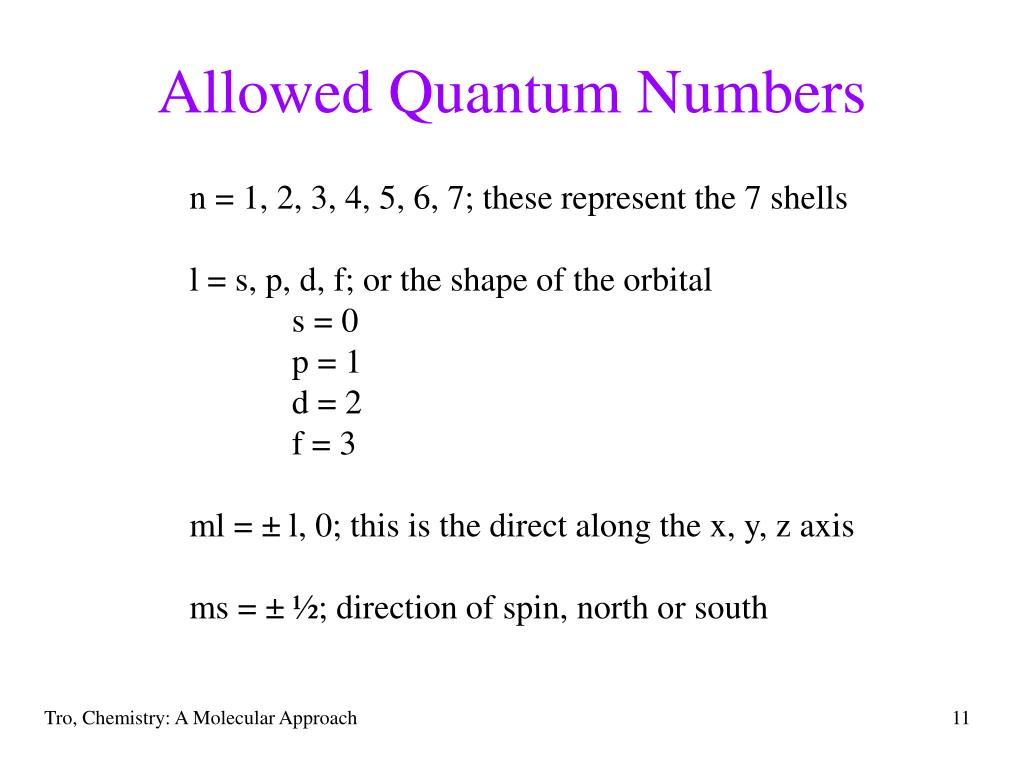

  11. Allowed Quantum Numbers n = 1, 2, 3, 4, 5, 6, 7; these represent the 7 shells l = s, p, d, f; or the shape of the orbital s = 0 p = 1 d = 2 f = 3 ml = ± l, 0; this is the direct along the x, y, z axis ms = ± ½; direction of spin, north or south Tro, Chemistry: A Molecular Approach

  12. Quantum Numbers of Helium’s Electrons • helium has two electrons • both electrons are in the first energy level • both electrons are in the s orbital of the first energy level • since they are in the same orbital, they must have opposite spins Tro, Chemistry: A Molecular Approach

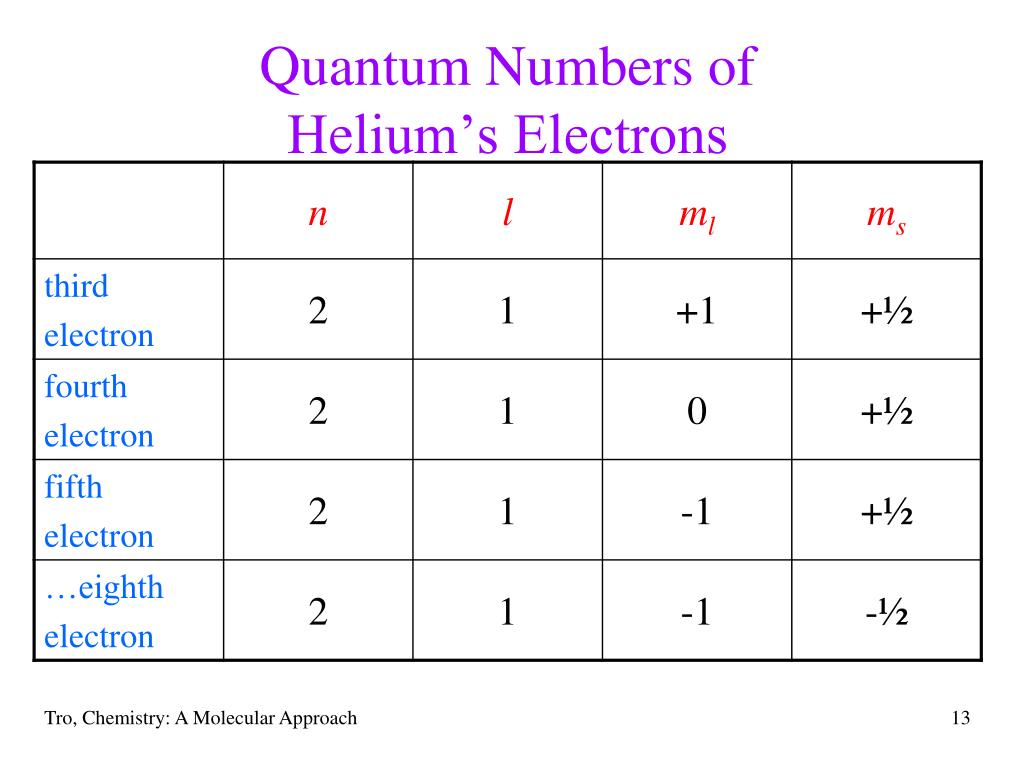

  13. Quantum Numbers of Helium’s Electrons Tro, Chemistry: A Molecular Approach

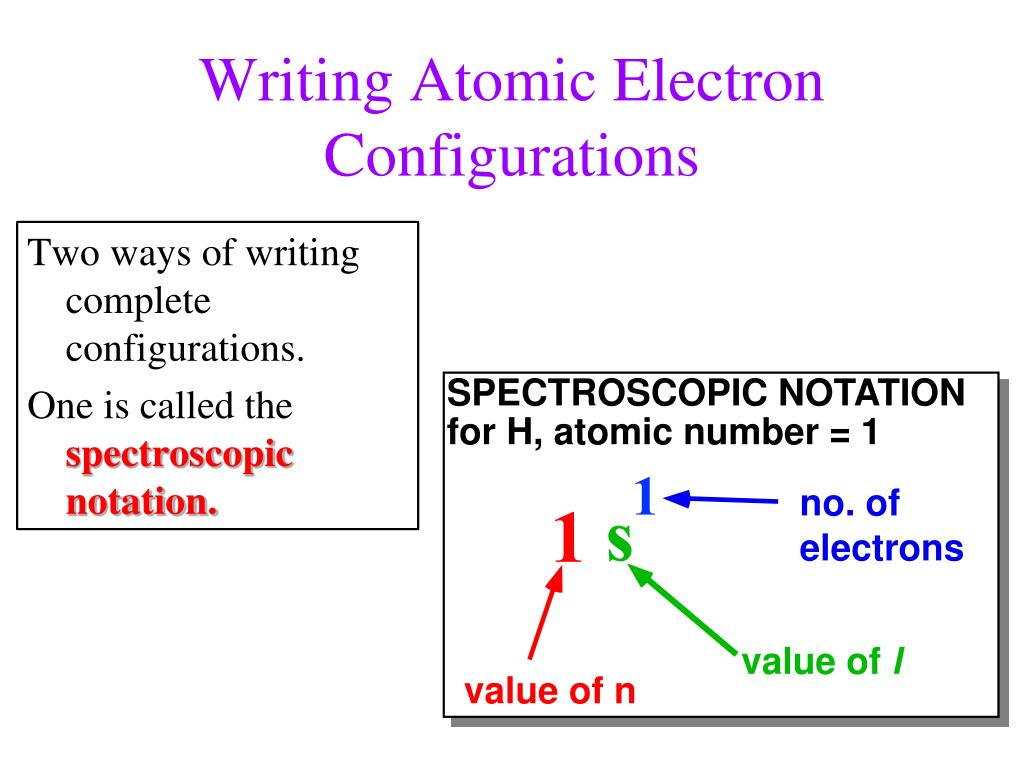

  14. SPECTROSCOPIC NOTATION for H, atomic number = 1 1 no. of s 1 electrons value of l value of n Writing Atomic Electron Configurations Two ways of writing complete configurations. One is called the spectroscopic notation.

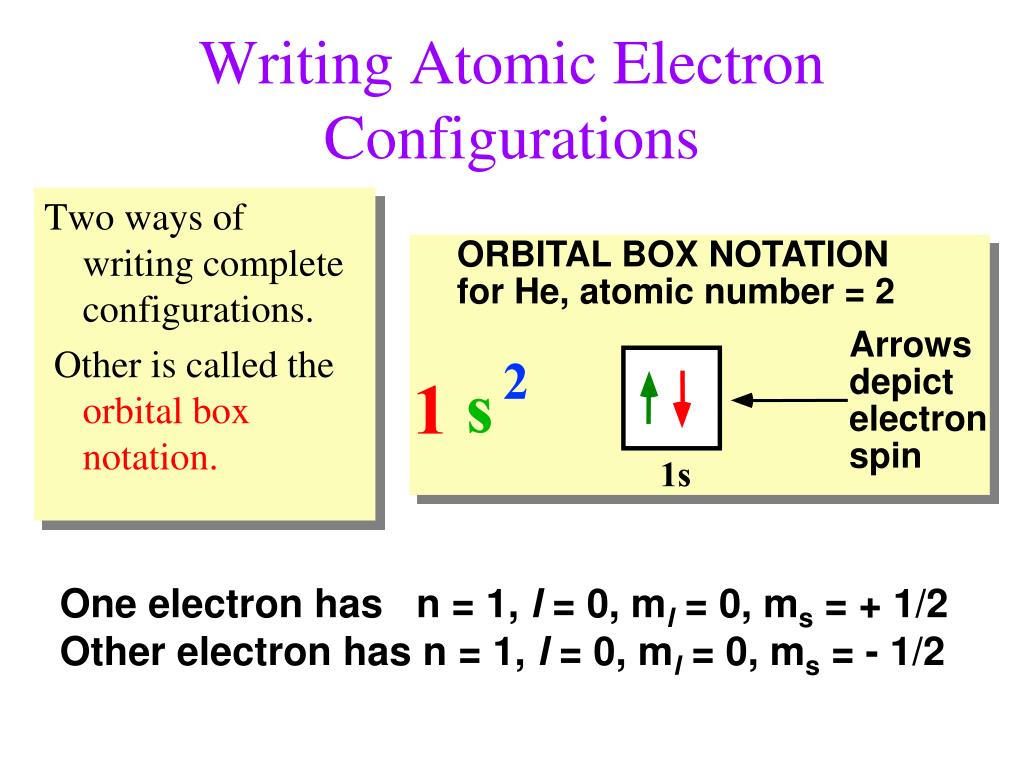

  15. ORBITAL BOX NOTATION for He, atomic number = 2 Arrows 2 depict s 1 electron spin 1s Writing Atomic Electron Configurations Two ways of writing complete configurations. Other is called the orbital box notation. One electron has n = 1, l = 0, ml = 0, ms = + 1/2 Other electron has n = 1, l = 0, ml = 0, ms = - 1/2

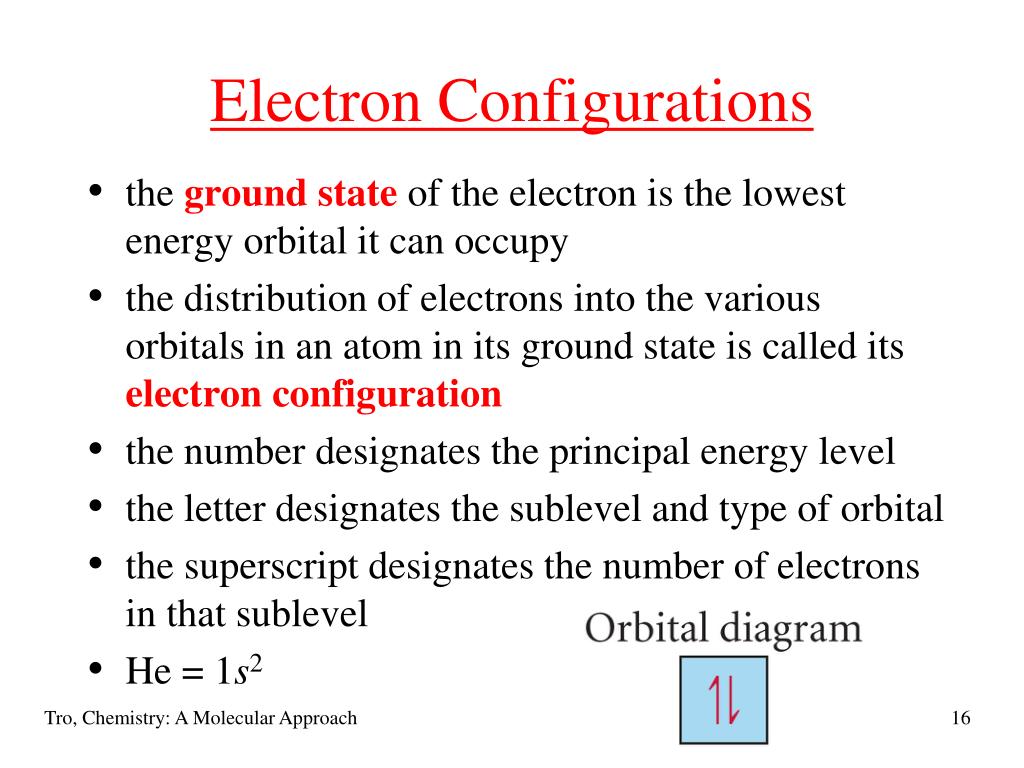

  16. Electron Configurations • the ground state of the electron is the lowest energy orbital it can occupy • the distribution of electrons into the various orbitals in an atom in its ground state is called its electron configuration • the number designates the principal energy level • the letter designates the sublevel and type of orbital • the superscript designates the number of electrons in that sublevel • He = 1s2 Tro, Chemistry: A Molecular Approach

  17. unoccupied orbital orbital with 1 electron orbital with 2 electrons Orbital Diagrams • we often represent an orbital as a square and the electrons in that orbital as arrows • the direction of the arrow represents the spin of the electron Tro, Chemistry: A Molecular Approach

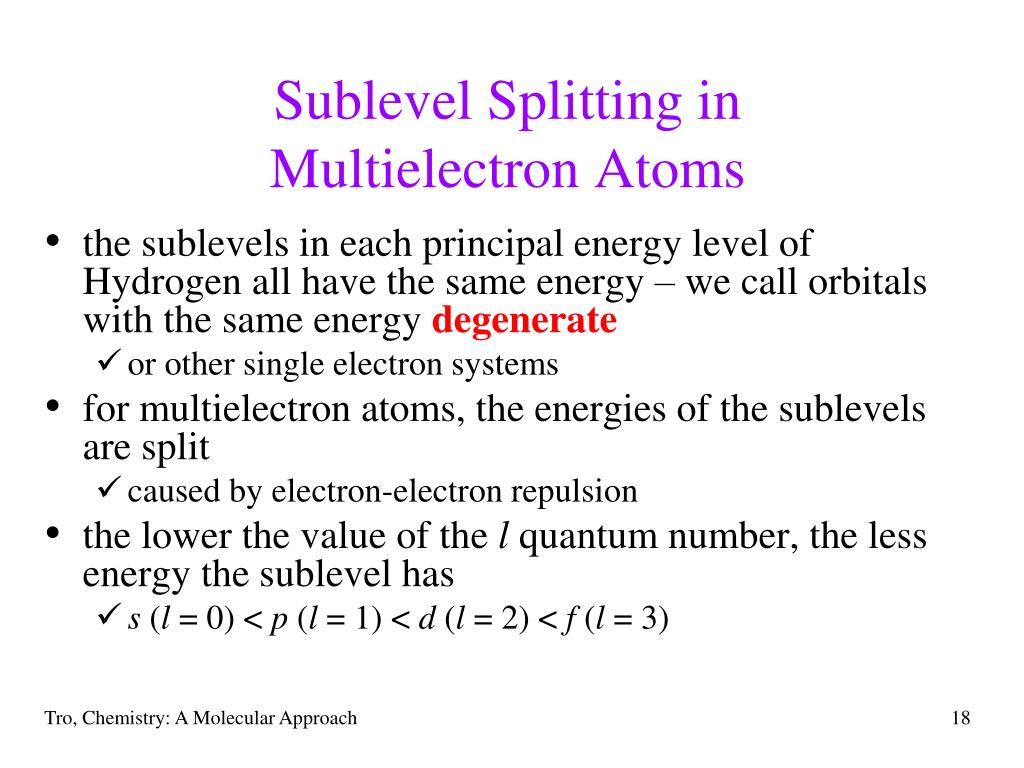

  18. Sublevel Splitting in Multielectron Atoms • the sublevels in each principal energy level of Hydrogen all have the same energy – we call orbitals with the same energy degenerate • or other single electron systems • for multielectron atoms, the energies of the sublevels are split • caused by electron-electron repulsion • the lower the value of the l quantum number, the less energy the sublevel has • s (l = 0) < p (l = 1) < d (l = 2) < f (l = 3) Tro, Chemistry: A Molecular Approach

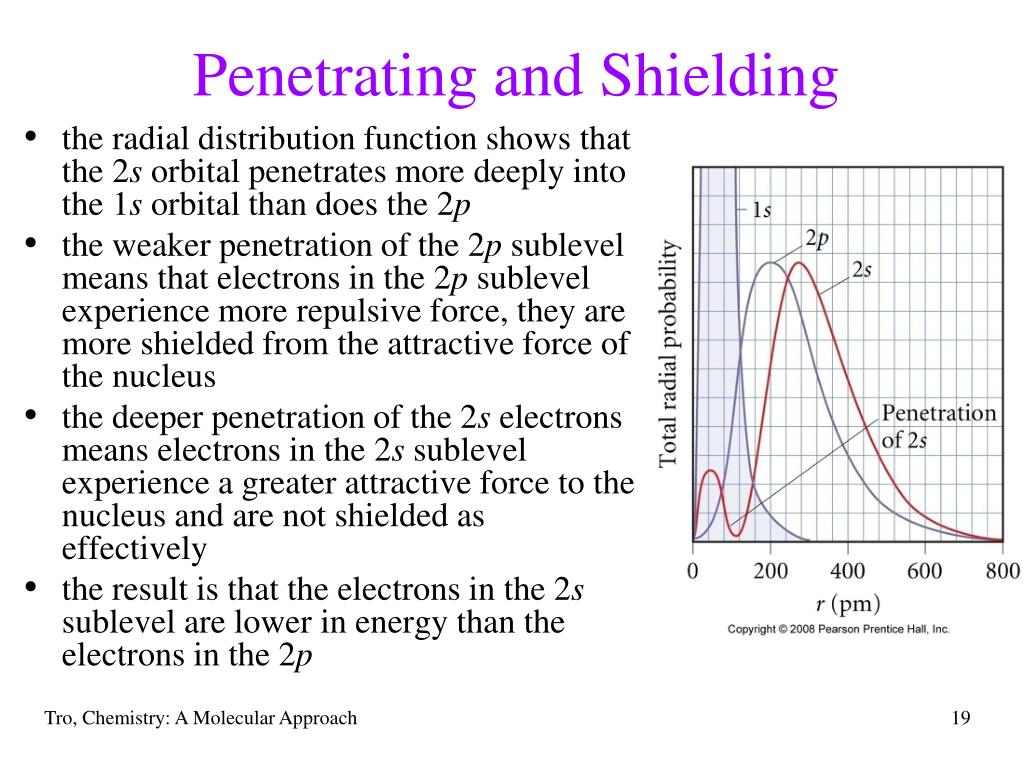

  19. Penetrating and Shielding • the radial distribution function shows that the 2s orbital penetrates more deeply into the 1s orbital than does the 2p • the weaker penetration of the 2p sublevel means that electrons in the 2p sublevel experience more repulsive force, they are more shielded from the attractive force of the nucleus • the deeper penetration of the 2s electrons means electrons in the 2s sublevel experience a greater attractive force to the nucleus and are not shielded as effectively • the result is that the electrons in the 2s sublevel are lower in energy than the electrons in the 2p Tro, Chemistry: A Molecular Approach

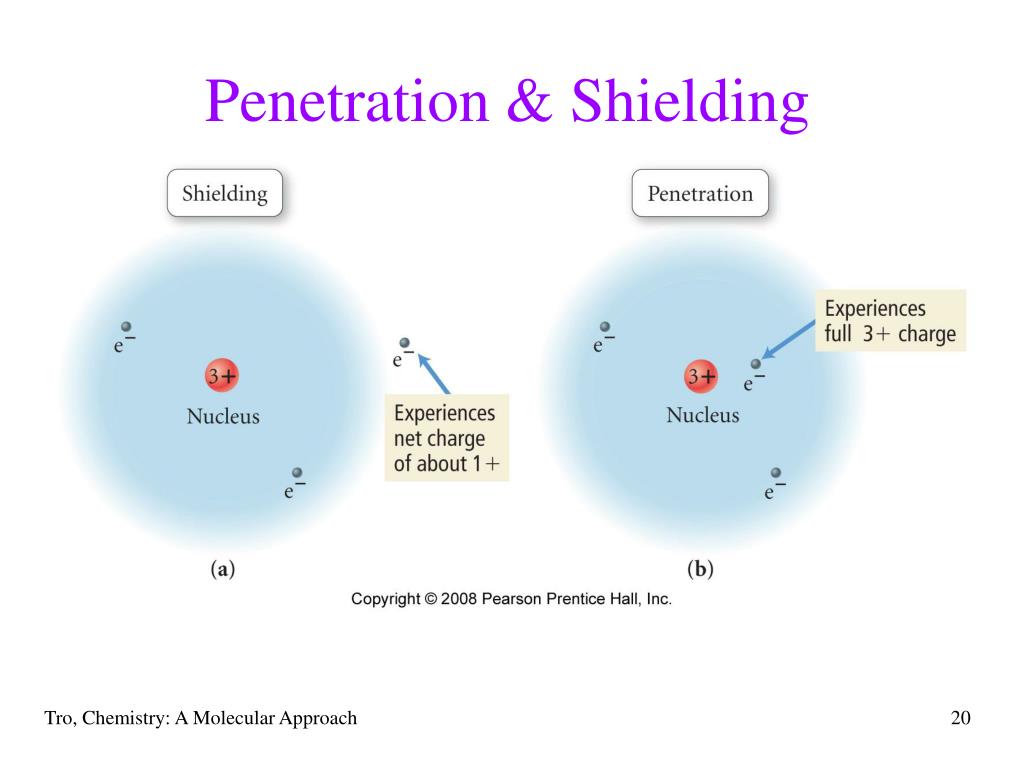

  20. Penetration & Shielding Tro, Chemistry: A Molecular Approach

  21. Shielding Effect animation Tro, Chemistry: A Molecular Approach

  22. 6d 7s 5f 6p 5d 6s 4f 5p 4d 5s 4p 3d 4s 3p 3s 2p 2s 1s Energy • Notice the following: • because of penetration, sublevels within an energy level are not degenerate • penetration of the 4th and higher energy levels is so strong that their s sublevel is lower in energy than the d sublevel of the previous energy level • the energy difference between levels becomes smaller for higher energy levels

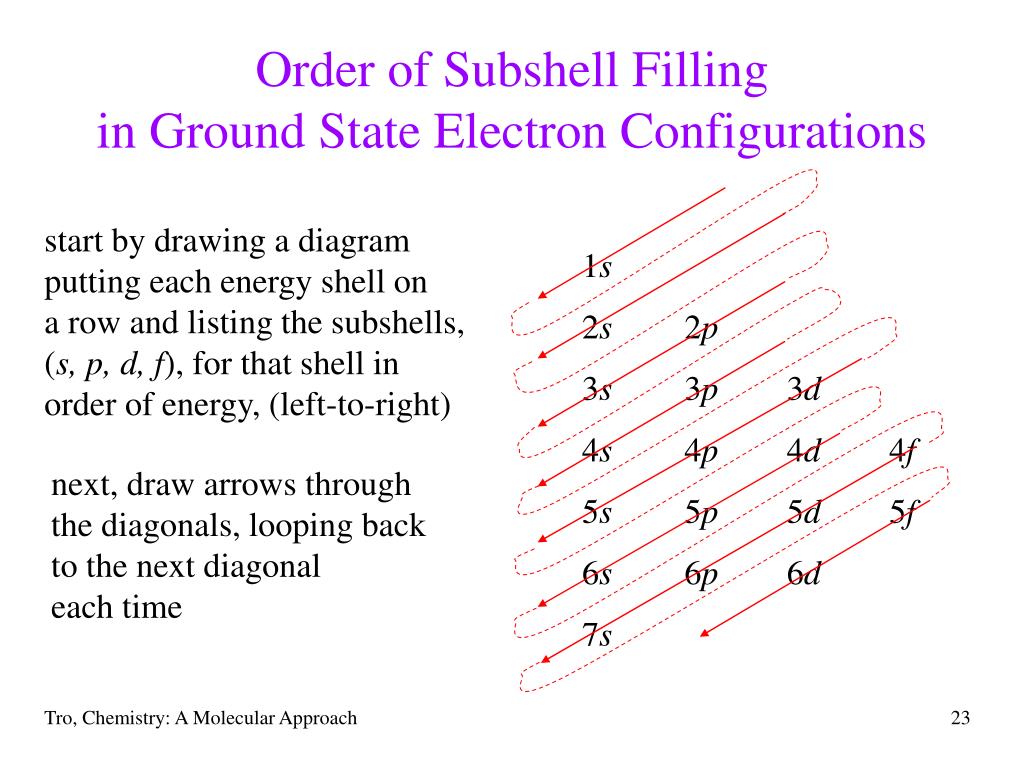

  23. Order of Subshell Fillingin Ground State Electron Configurations start by drawing a diagram putting each energy shell on a row and listing the subshells, (s, p, d, f), for that shell in order of energy, (left-to-right) 1s 2s 2p 3s 3p 3d 4s 4p 4d 4f 5s 5p 5d 5f 6s 6p 6d 7s next, draw arrows through the diagonals, looping back to the next diagonal each time Tro, Chemistry: A Molecular Approach

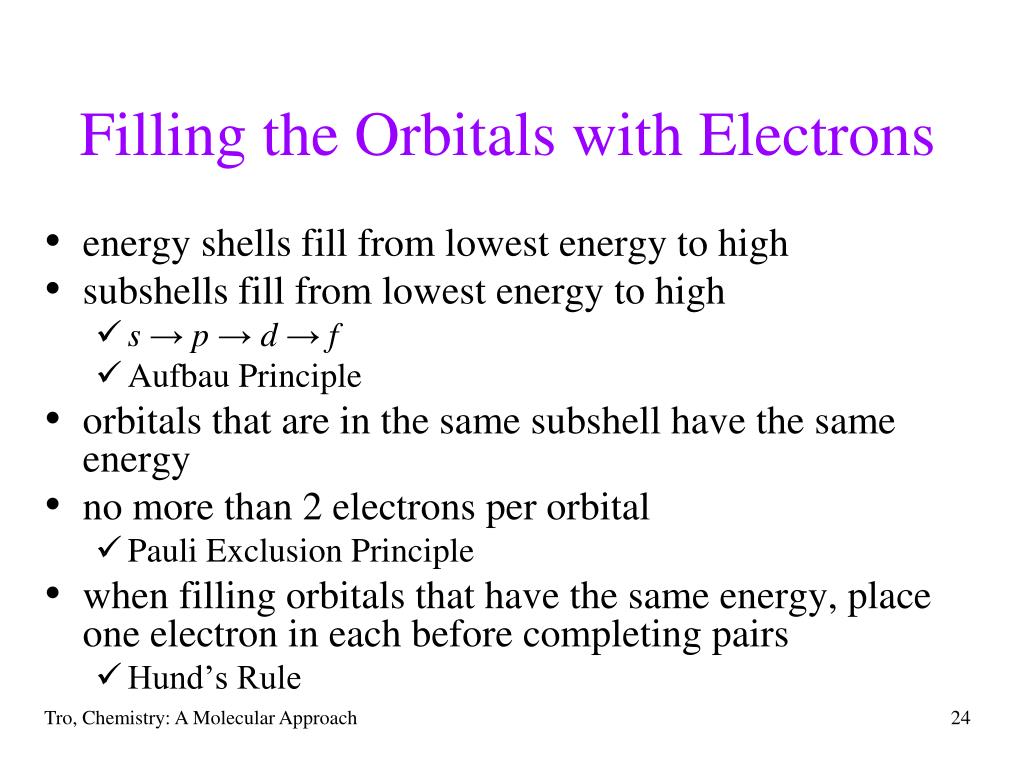

  24. Filling the Orbitals with Electrons • energy shells fill from lowest energy to high • subshells fill from lowest energy to high • s → p → d → f • Aufbau Principle • orbitals that are in the same subshell have the same energy • no more than 2 electrons per orbital • Pauli Exclusion Principle • when filling orbitals that have the same energy, place one electron in each before completing pairs • Hund’s Rule Tro, Chemistry: A Molecular Approach

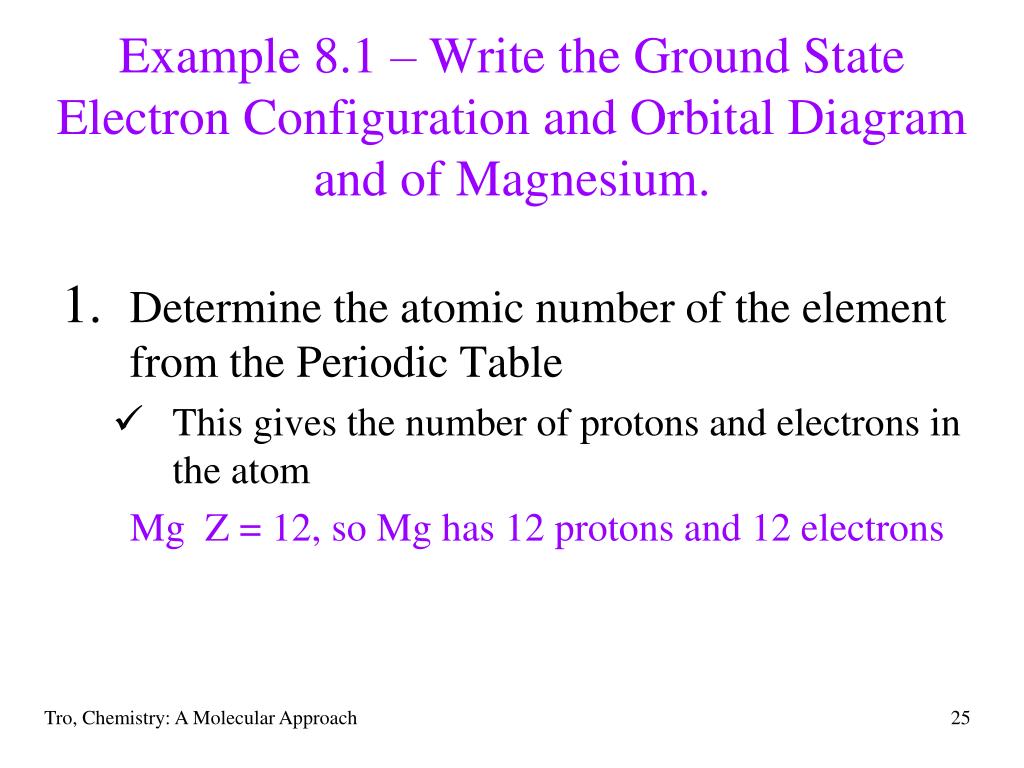

  25. Example 8.1 – Write the Ground State Electron Configuration and Orbital Diagram and of Magnesium. • Determine the atomic number of the element from the Periodic Table • This gives the number of protons and electrons in the atom Mg Z = 12, so Mg has 12 protons and 12 electrons Tro, Chemistry: A Molecular Approach

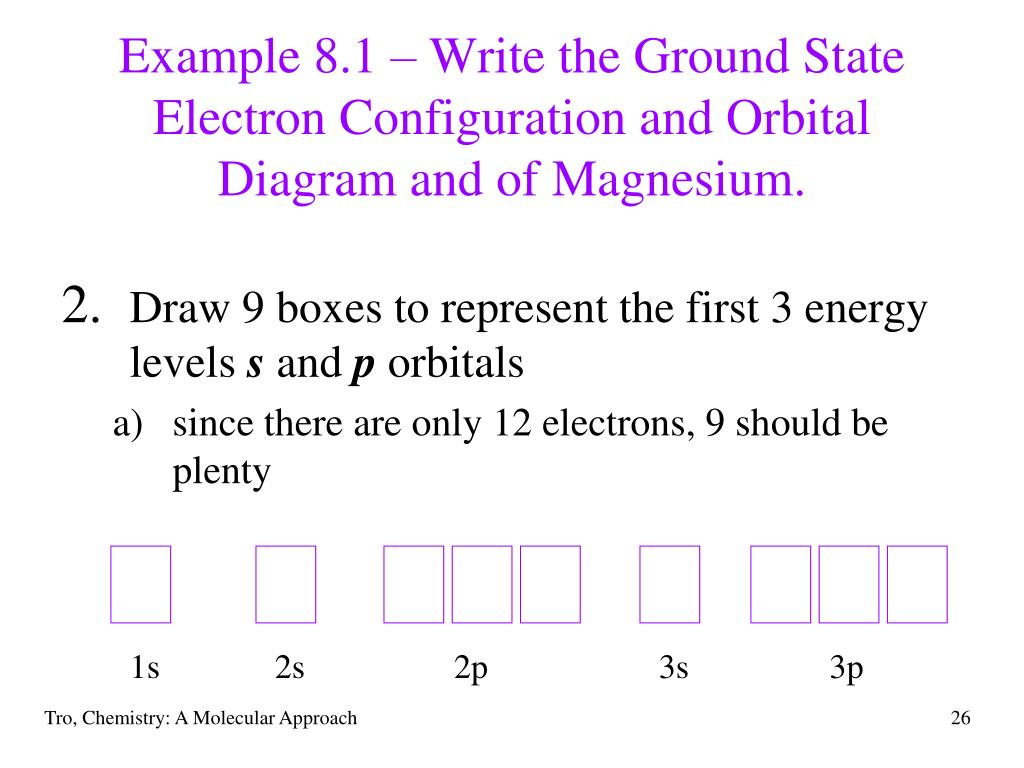

  26. 1s 2s 2p 3s 3p Example 8.1 – Write the Ground State Electron Configuration and Orbital Diagram and of Magnesium. • Draw 9 boxes to represent the first 3 energy levels sandp orbitals • since there are only 12 electrons, 9 should be plenty Tro, Chemistry: A Molecular Approach

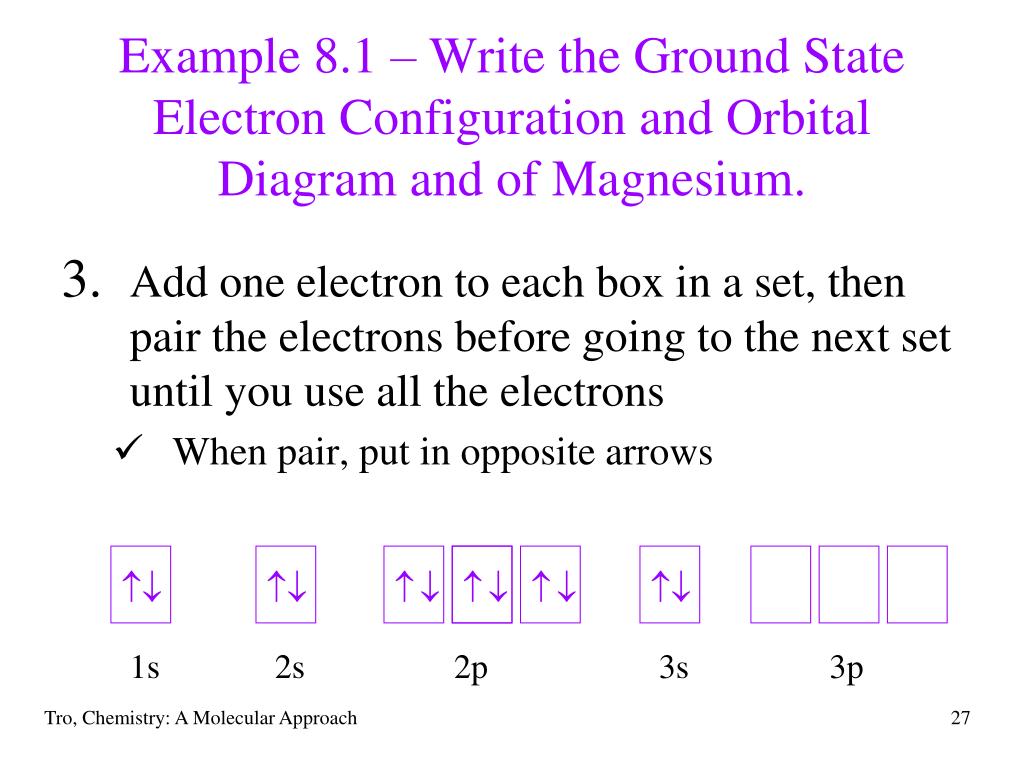

  27. Example 8.1 – Write the Ground State Electron Configuration and Orbital Diagram and of Magnesium. • Add one electron to each box in a set, then pair the electrons before going to the next set until you use all the electrons • When pair, put in opposite arrows          1s 2s 2p 3s 3p Tro, Chemistry: A Molecular Approach

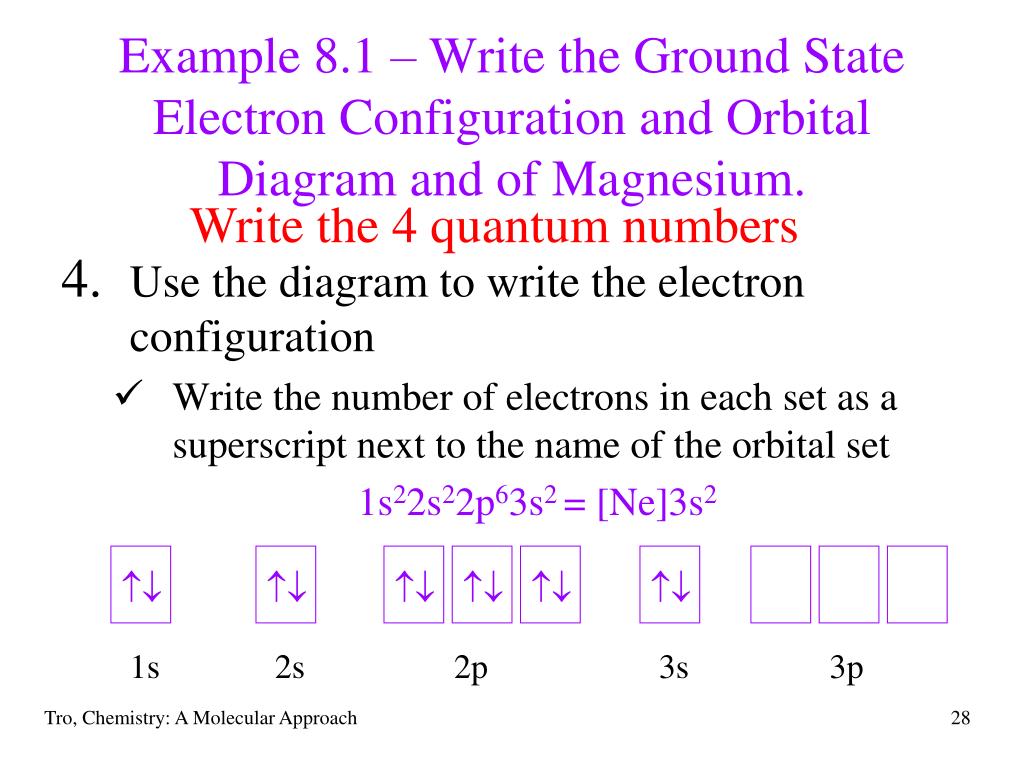

  28.  1s  2s  2p    3s 3p Example 8.1 – Write the Ground State Electron Configuration and Orbital Diagram and of Magnesium. Write the 4 quantum numbers • Use the diagram to write the electron configuration • Write the number of electrons in each set as a superscript next to the name of the orbital set 1s22s22p63s2 = [Ne]3s2 Tro, Chemistry: A Molecular Approach

  29. Valence Electrons • the electrons in all the subshells with the highest principal energy shell are called the valence electrons • electrons in lower energy shells are called core electrons • chemists have observed that one of the most important factors in the way an atom behaves, both chemically and physically, is the number of valence electrons Tro, Chemistry: A Molecular Approach

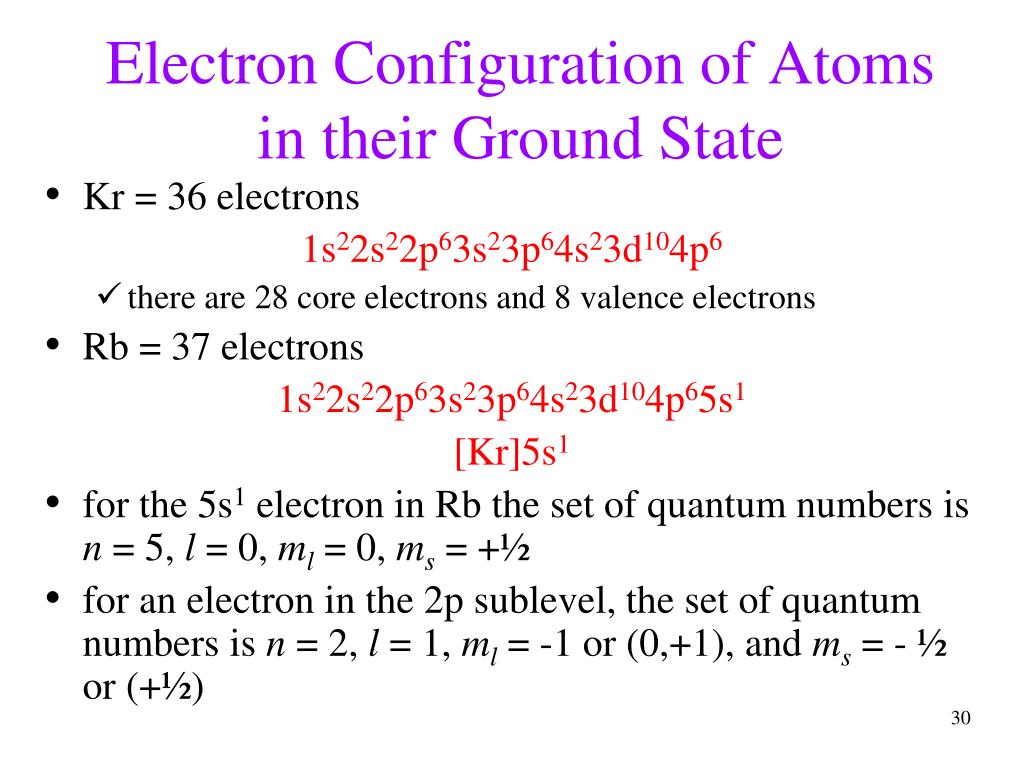

  30. Electron Configuration of Atoms in their Ground State • Kr = 36 electrons 1s22s22p63s23p64s23d104p6 • there are 28 core electrons and 8 valence electrons • Rb = 37 electrons 1s22s22p63s23p64s23d104p65s1 [Kr]5s1 • for the 5s1 electron in Rb the set of quantum numbers is n = 5, l = 0, ml = 0, ms = +½ • for an electron in the 2p sublevel, the set of quantum numbers is n = 2, l = 1, ml = -1 or (0,+1), and ms = - ½ or (+½)

  31. Electrons and Quantum Numbers • Write the 4 quantum numbers for: • Se • Ag • Cf-247 Tro, Chemistry: A Molecular Approach

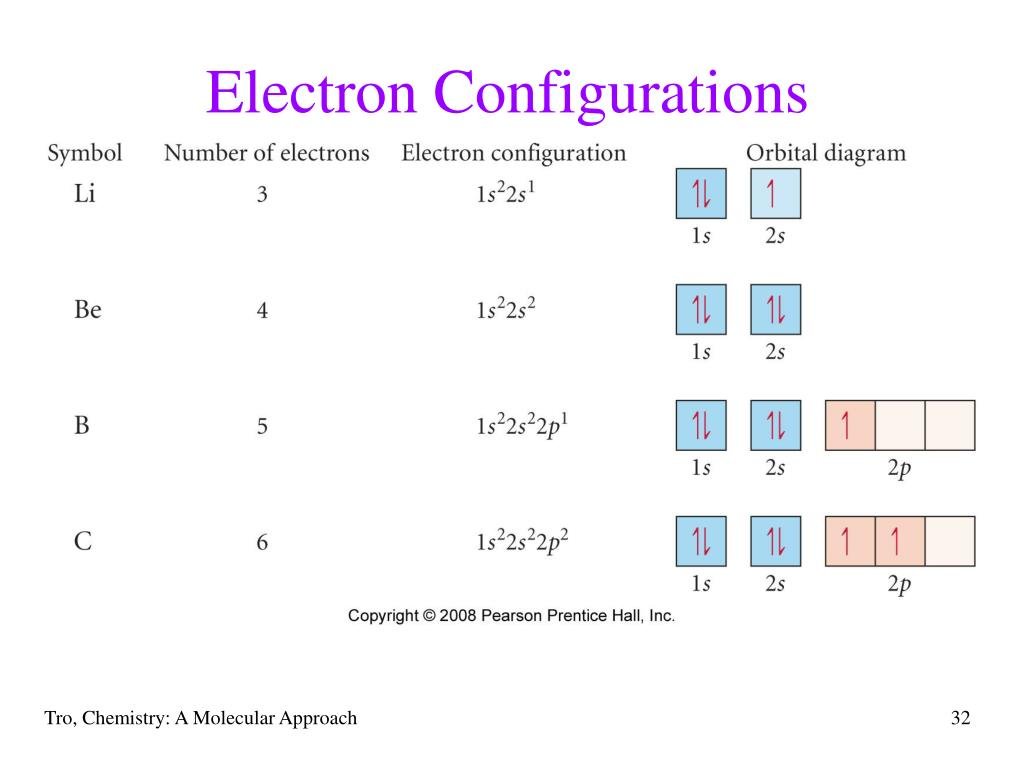

  32. Electron Configurations Tro, Chemistry: A Molecular Approach

  33. Electron Configuration & the Periodic Table • the Group number corresponds to the number of valence electrons • the length of each “block” is the maximum number of electrons the sublevel can hold • the Period number corresponds to the principal energy level of the valence electrons Tro, Chemistry: A Molecular Approach

  34. Tro, Chemistry: A Molecular Approach

  35. s1 s2 p1 p2 p3 p4 p5 p6 s2 1 2 3 4 5 6 7 d1 d2d3 d4 d5 d6 d7 d8 d9 d10 f2 f3 f4 f5 f6 f7 f8 f9 f10 f11 f12 f13 f14 f14d1 Tro, Chemistry: A Molecular Approach

  36. Electron Configuration fromthe Periodic Table 8A 1A 1 2 3 4 5 6 7 3A 4A 5A 6A 7A 2A Ne P 3s2 3p3 P = [Ne]3s23p3 P has 5 valence electrons Tro, Chemistry: A Molecular Approach

  37. 4s 3d 6s 4f Transition Elements • for the d block metals, the principal energy level is one less than valence shell • one less than the Period number • sometimes s electron “promoted” to d sublevel Zn Z = 30, Period 4, Group 2B [Ar]4s23d10 • for the f block metals, the principal energy level is two less than valence shell • two less than the Period number they really belong to • sometimes d electron in configuration Eu Z = 63, Period 6 [Xe]6s24f 7

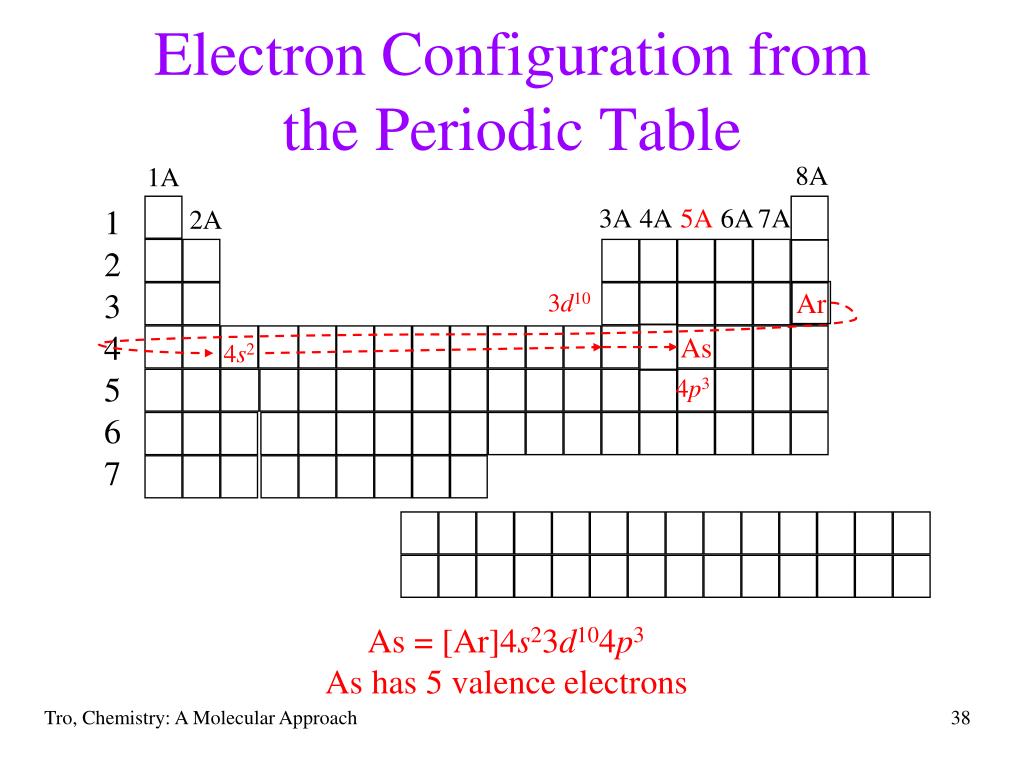

  38. Electron Configuration fromthe Periodic Table 8A 1A 1 2 3 4 5 6 7 3A 4A 5A 6A 7A 2A 3d10 Ar As 4s2 4p3 As = [Ar]4s23d104p3 As has 5 valence electrons Tro, Chemistry: A Molecular Approach

  39. Practice – Use the Periodic Table to write the short electron configuration and orbital diagram for each of the following • Na (at. no. 11) • Te (at. no. 52) • Tc (at. no. 43) Tro, Chemistry: A Molecular Approach

  40. Practice – Use the Periodic Table to write the short electron configuration and orbital diagram for each of the following • Na (at. no. 11) [Ne]3s1 • Te (at. no. 52) [Kr]5s24d105p4 • Tc (at. no. 43) [Kr]5s24d5 3s 5s 5p 4d 5s 4d Tro, Chemistry: A Molecular Approach

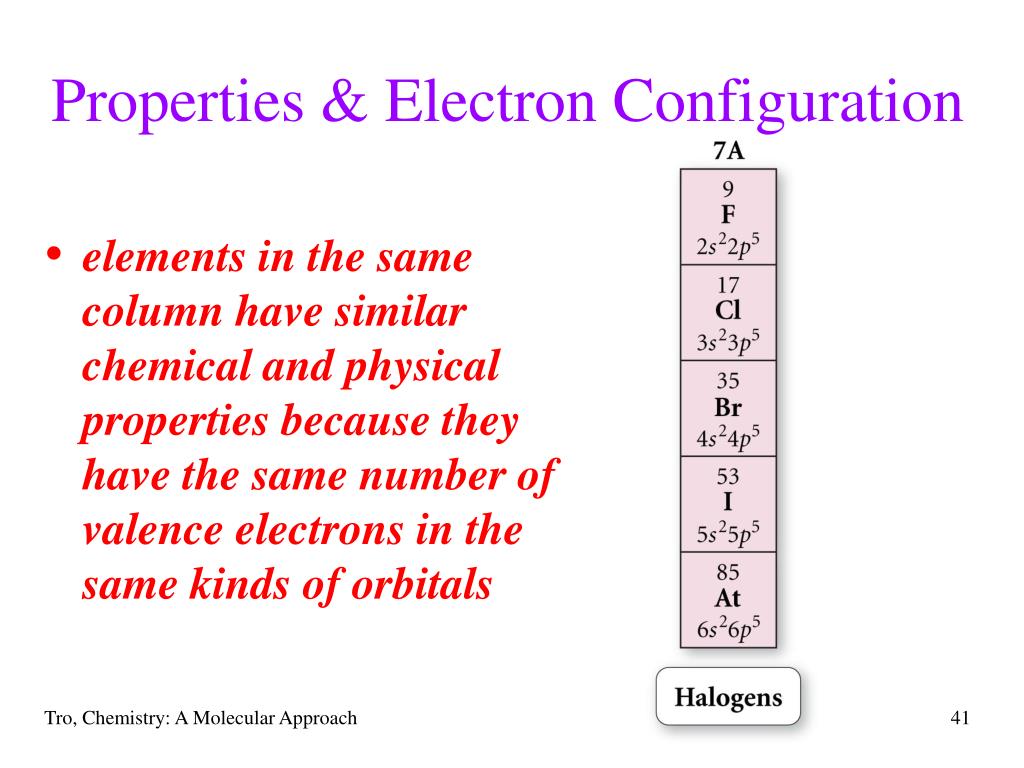

  41. Properties & Electron Configuration • elements in the same column have similar chemical and physical properties because they have the same number of valence electrons in the same kinds of orbitals Tro, Chemistry: A Molecular Approach

  42. Electron Configuration & Element Properties • the number of valence electrons largely determines the behavior of an element • chemical and some physical • since the number of valence electrons follows a Periodic pattern, the properties of the elements should also be periodic • quantum mechanical calculations show that 8 valence electrons should result in a very unreactive atom, an atom that is very stable – and the noble gases, that have 8 valence electrons are all very stable and unreactive • conversely, elements that have either one more or one less electron should be very reactive – and the halogens are the most reactive nonmetals and alkali metals the most reactive metals • as a group Tro, Chemistry: A Molecular Approach

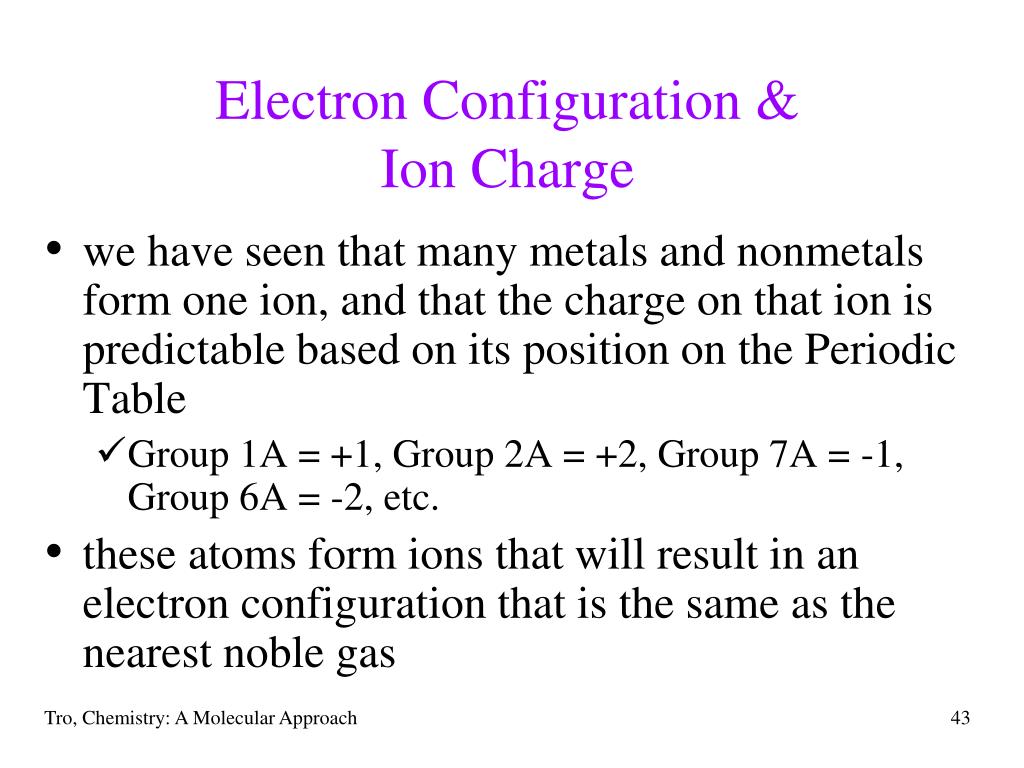

  43. Electron Configuration &Ion Charge • we have seen that many metals and nonmetals form one ion, and that the charge on that ion is predictable based on its position on the Periodic Table • Group 1A = +1, Group 2A = +2, Group 7A = -1, Group 6A = -2, etc. • these atoms form ions that will result in an electron configuration that is the same as the nearest noble gas Tro, Chemistry: A Molecular Approach

  44. Tro, Chemistry: A Molecular Approach

  45. Electron Configuration of Anions in their Ground State • anions are formed when atoms gain enough electrons to have 8 valence electrons • filling the s and p sublevels of the valence shell • the sulfur atom has 6 valence electrons S atom = 1s22s22p63s23p4 • in order to have 8 valence electrons, it must gain 2 more S2- anion = 1s22s22p63s23p6 Tro, Chemistry: A Molecular Approach

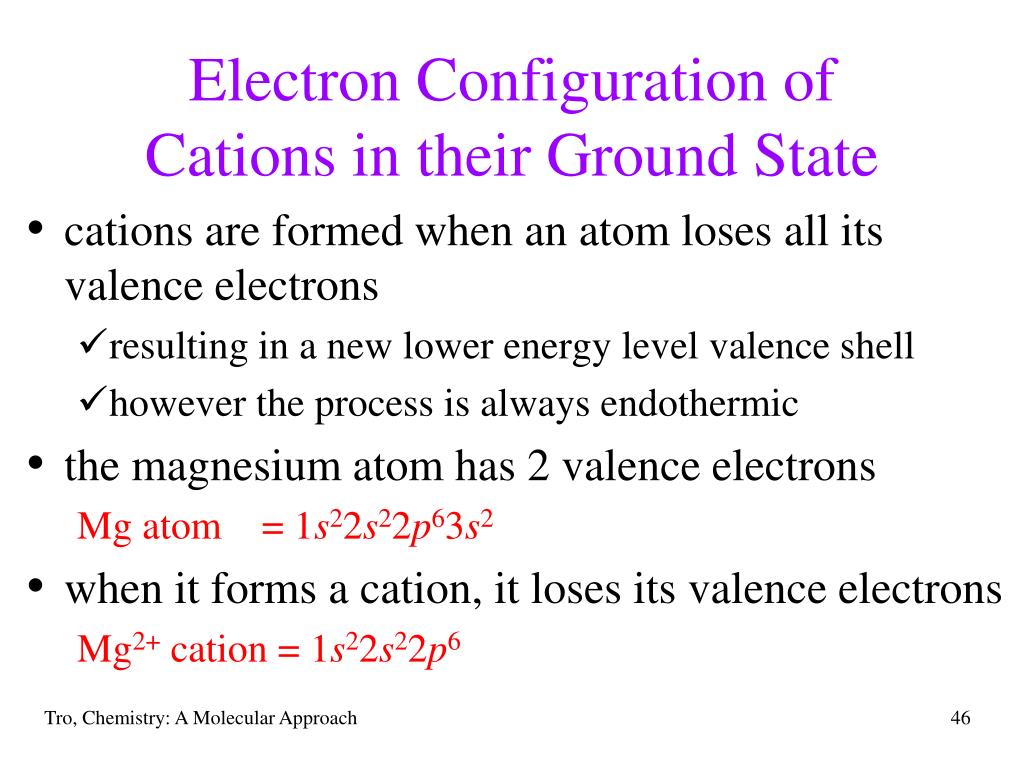

  46. Electron Configuration of Cations in their Ground State • cations are formed when an atom loses all its valence electrons • resulting in a new lower energy level valence shell • however the process is always endothermic • the magnesium atom has 2 valence electrons Mg atom = 1s22s22p63s2 • when it forms a cation, it loses its valence electrons Mg2+ cation = 1s22s22p6 Tro, Chemistry: A Molecular Approach

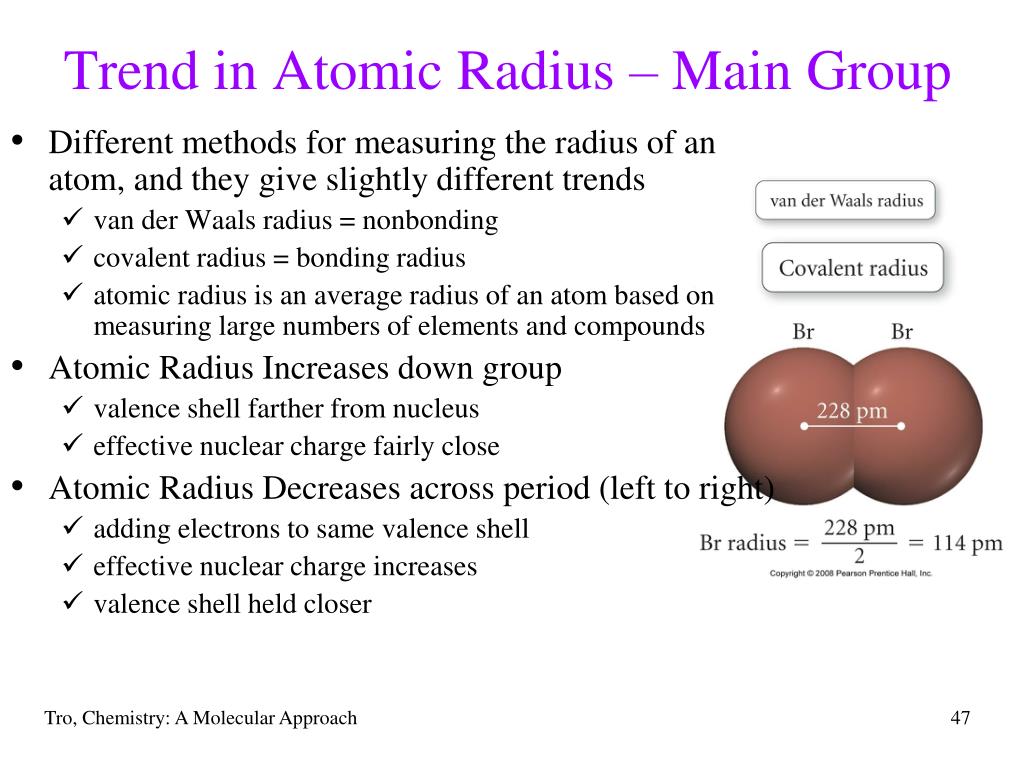

  47. Trend in Atomic Radius – Main Group • Different methods for measuring the radius of an atom, and they give slightly different trends • van der Waals radius = nonbonding • covalent radius = bonding radius • atomic radius is an average radius of an atom based on measuring large numbers of elements and compounds • Atomic Radius Increases down group • valence shell farther from nucleus • effective nuclear charge fairly close • Atomic Radius Decreases across period (left to right) • adding electrons to same valence shell • effective nuclear charge increases • valence shell held closer Tro, Chemistry: A Molecular Approach

  48. Effective Nuclear Charge • in a multi-electron system, electrons are simultaneously attracted to the nucleus and repelled by each other • outer electrons are shieldedfrom full strength of nucleus • screening effect • effective nuclear charge is net positive charge that is attracting a particular electron • Z is nuclear charge, S is electrons in lower energy levels • electrons in same energy level contribute to screening, but very little • effective nuclear charge on sublevels trend,s > p > d > f Zeffective= Z - S Tro, Chemistry: A Molecular Approach

  49. Screening & Effective Nuclear Charge

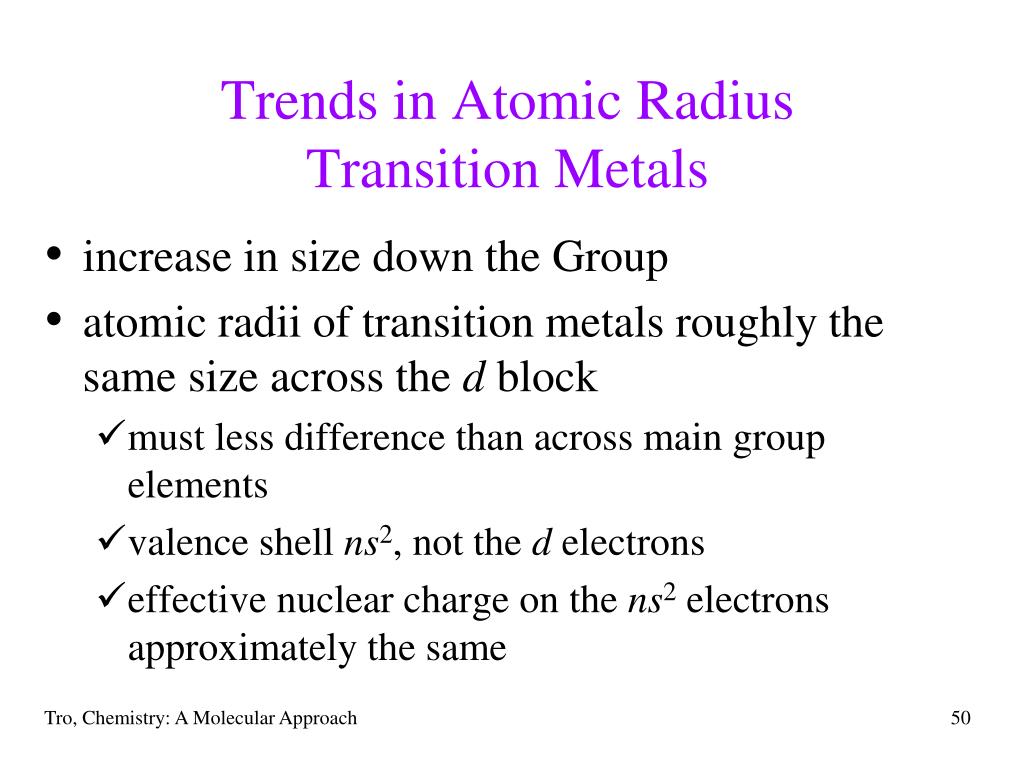

  50. Trends in Atomic RadiusTransition Metals • increase in size down the Group • atomic radii of transition metals roughly the same size across the d block • must less difference than across main group elements • valence shell ns2, not the d electrons • effective nuclear charge on the ns2 electrons approximately the same Tro, Chemistry: A Molecular Approach
