Cisco NX-OS Data Center Features

1. Cisco NX-OS Data Center Features Jack Ross CCIE #16728

2. Agenda • Brief Hardware Overview • Software Versions • NX-OS Layer 2 • NX-OS Layer 3 • FabricPath • Virtual Device Contexts (VDC’s) • Fiber Channel Over Ethernet (FCoE) • Overlay Transport Virtualization (OTV) • Virtual Port Channels (vPC’s)

3. Nexus 7000 Overview Nexus 7000/7700 – Typically DC core or aggregation – High performance, density, & availability – Unified I/O FCoEswitch but not a FC switch – Redundant Power, Line Cards and Supervisors

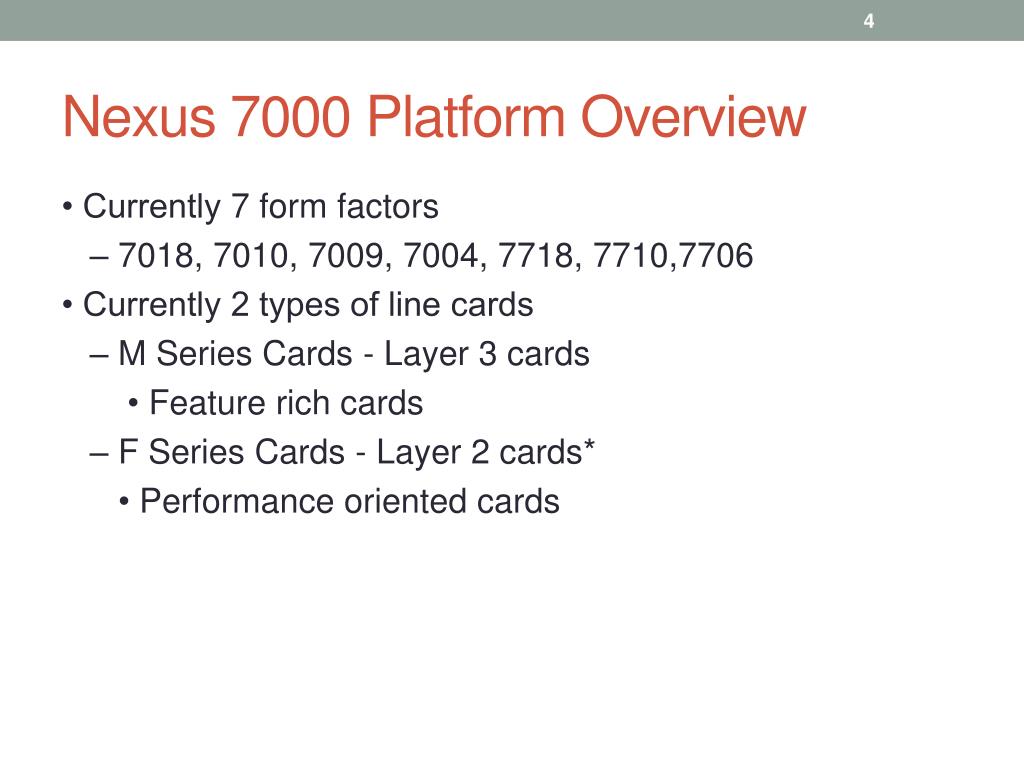

4. Nexus 7000 Platform Overview • Currently 7 form factors – 7018, 7010, 7009, 7004, 7718, 7710,7706 • Currently 2 types of line cards – M Series Cards - Layer 3 cards • Feature rich cards – F Series Cards - Layer 2 cards* • Performance oriented cards

5. Line Card Features • M Series Specific – Layer 3 Routing – FEX – OTV – TrustSec • F Series Specific – FabricPath – vPC+ – FCoE

6. Nexus 5000 Overview Nexus 5000/5500 – Typically End of Row (EoR) aggregation or Top of Rack (ToR) access – Typically Layer 2 but can do limited Layer 3 with add on daughter card in the 5500 Series Unified I/O – Both FCoE and native FC switching – Redundant power but not supervisors

7. Nexus 5000 Platform Overview • Currently 2 Generations – 1st Gen - Nexus 5000 – 5010 & 5020 – 2nd Gen - Nexus 5500 – 5548 & 5596 • Mainly layer 2 switching – 5500 can support L3 add-in card • Supports Unified I/O – Both FCoE Forwarder (FCF) and native FC switching • 5500 supports Unified Ports (UP models) – Ports can run as Ethernet or native Fibre Channel – Ethernet ports allocated at port 1 and counts up – Fibre Channel ports allocated at last port and counts down – Requires a reboot to re-allocate port’s role (like UCS FI)

8. Nexus 2000 • Fabric Extender (FEX) • Acts as a remote line card of 7K or 5K chassis • All management performed on Parent Switch – No console or VTY ports on FEX – NX-OS automatically downloaded from Parent • No local switching – Essentially a VN-Tag/802.1BR switch, not an Ethernet switch – Traffic between local ports on FEX must flow “north” via uplink to Parent and then “south” back down – Can impact design decision of platform placement

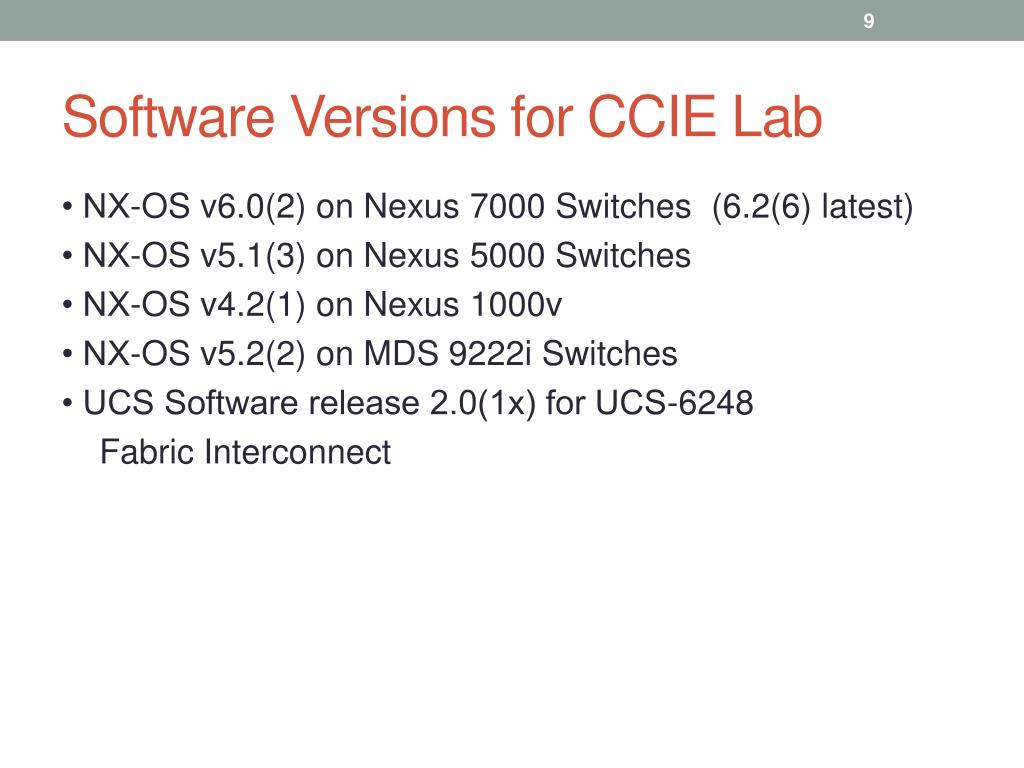

9. Software Versions for CCIE Lab • NX-OS v6.0(2) on Nexus 7000 Switches (6.2(6) latest) • NX-OS v5.1(3) on Nexus 5000 Switches • NX-OS v4.2(1) on Nexus 1000v • NX-OS v5.2(2) on MDS 9222i Switches • UCS Software release 2.0(1x) for UCS-6248 Fabric Interconnect

10. Nexus NX-OS Basics Nexus at its core is a Layer 2/3 Switch Similar in many aspects to Catalyst IOS – VLANs, Trunking, VTP, Rapid PVST, MST, EtherChannel, PVLANs, UDLD, FHRPs, IGPs, BGP, etc. Key new features beyond Catalyst IOS – FEX, vPC, Fabric Path, OTV, FC Switching, FCoE, etc

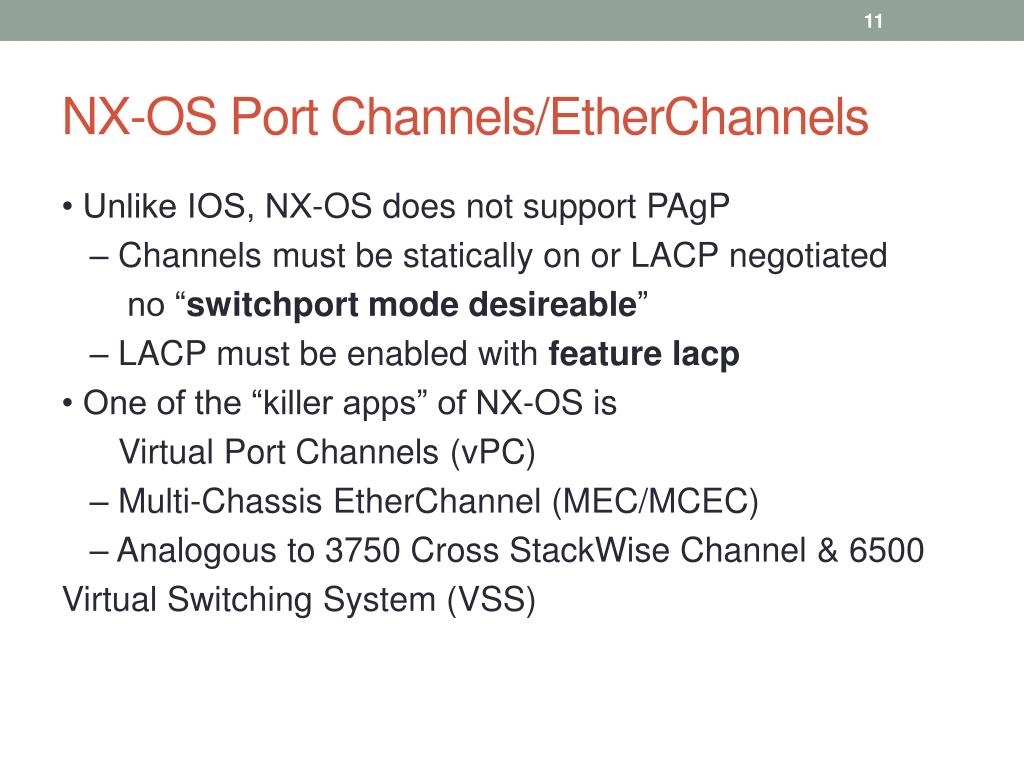

11. NX-OS Port Channels/EtherChannels • Unlike IOS, NX-OS does not support PAgP – Channels must be statically on or LACP negotiated no “switchport mode desireable” – LACP must be enabled with feature lacp • One of the “killer apps” of NX-OS is Virtual Port Channels (vPC) – Multi-Chassis EtherChannel (MEC/MCEC) – Analogous to 3750 Cross StackWise Channel & 6500 Virtual Switching System (VSS)

12. NX-OS Spanning Tree • Unlike IOS, NX-OS does not support legacy CST/PVST+ – Default STP mode is Rapid-PVST+ – i.e. per-VLAN, but uses 802.1w Rapid STP – Also supports 802.1s Multiple Spanning Tree (MST) • NX-OS defines three STP port types – spanning-tree port-type [normal | edge | network]

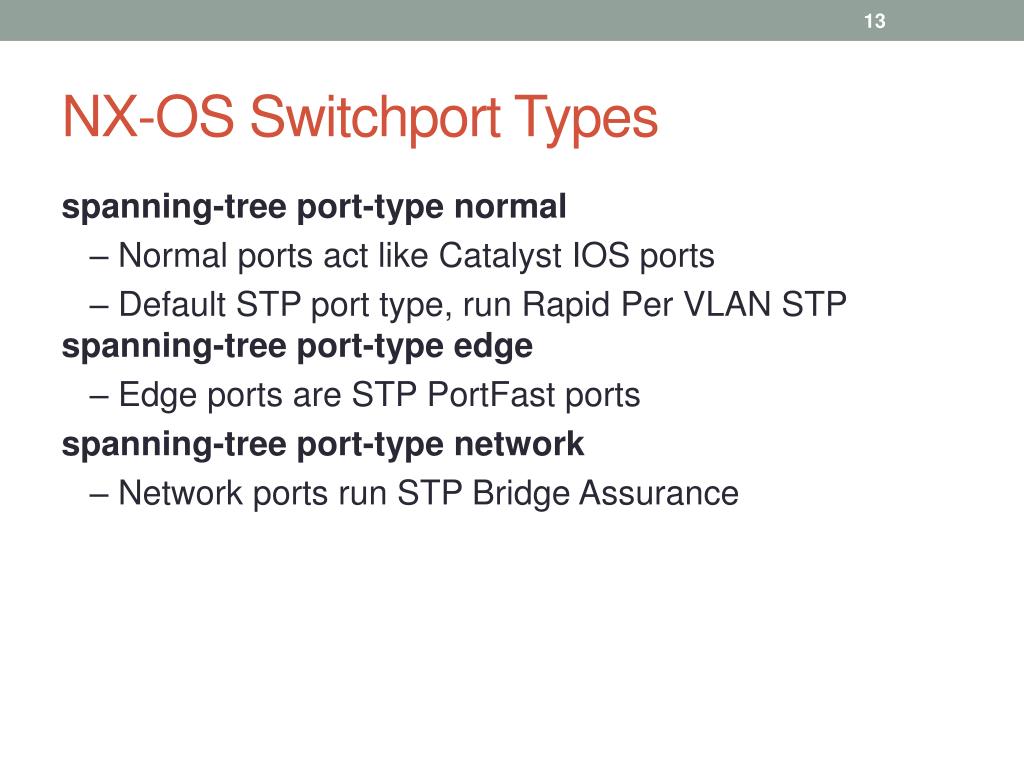

13. NX-OS Switchport Types spanning-tree port-type normal – Normal ports act like Catalyst IOS ports – Default STP port type, run Rapid Per VLAN STP spanning-tree port-type edge – Edge ports are STP PortFast ports spanning-tree port-type network – Network ports run STP Bridge Assurance

14. Bridge Assurance • All STP Network Ports send BPDUs regardless of STP port state – Legacy 802.1d only sends BPDUs from Root Bridge downstream – Primary goal is to protect against unidirectional links – BPDU becomes a bidirectional keepalive – Replaces LoopGuard functionality • Secondary result is same functional effect as VTP Pruning – VLANs stop forwarding on trunk links that you do not receive BPDUs for that VLAN in • Enabled on interfaces with spanning-tree port type network

15. Bridge Assurance Diagram switchport trunk allowed vlan

16. NX-OS Layer 3 Like Catalyst IOS, NX-OS supports… – Native layer 3 routed interfaces I.e. no switchport Switched Virtual Interfaces (SVIs) • I.e. VLAN interfaces • Must be enabled with feature interface-vlan

17. NX-OS Routing Protocols • Like IOS, NX-OS supports routing with… – Static routing – RIPv2 & RIPng – EIGRP & EIGRPv6 – OSPF & OSPFv3 – IS-IS – BGP – Policy Routing – No network command in IGP’s, activated on link • Not all protocols use the same license

18. NX-OS VRF • Like IOS, NX-OS Virtual Routing & Forwarding Instances are used to create separate logical routing tables – Layer 3 interfaces in different VRFs cannot exchange traffic by default • NX-OS VRFs behave slightly different than IOS, as… – All layer 3 interfaces are automatically in VRF table “default” – MGMT0 is automatically in vrf “management” – VRFs are defined as vrf context – Static routes are defined under the vrf context – Dynamic routing is VRF aware, but configured under the same process – Exec mode routing-context vrfcan change the default VRF for verifications

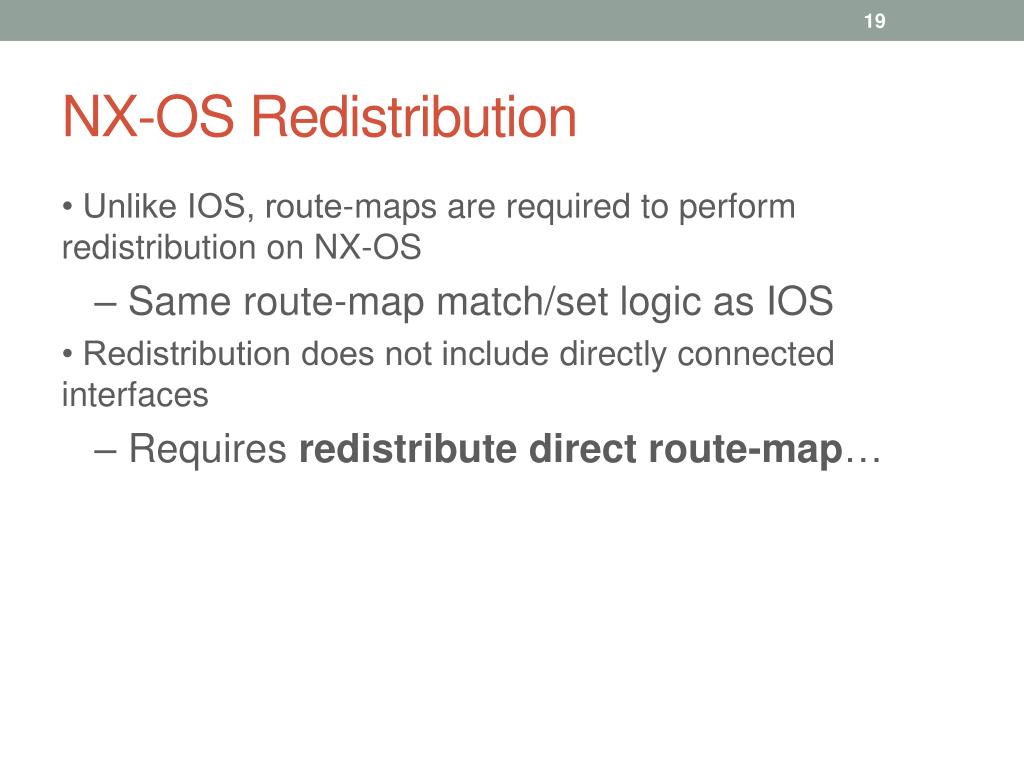

19. NX-OS Redistribution • Unlike IOS, route-maps are required to perform redistribution on NX-OS – Same route-map match/set logic as IOS • Redistribution does not include directly connected interfaces – Requires redistribute direct route-map…

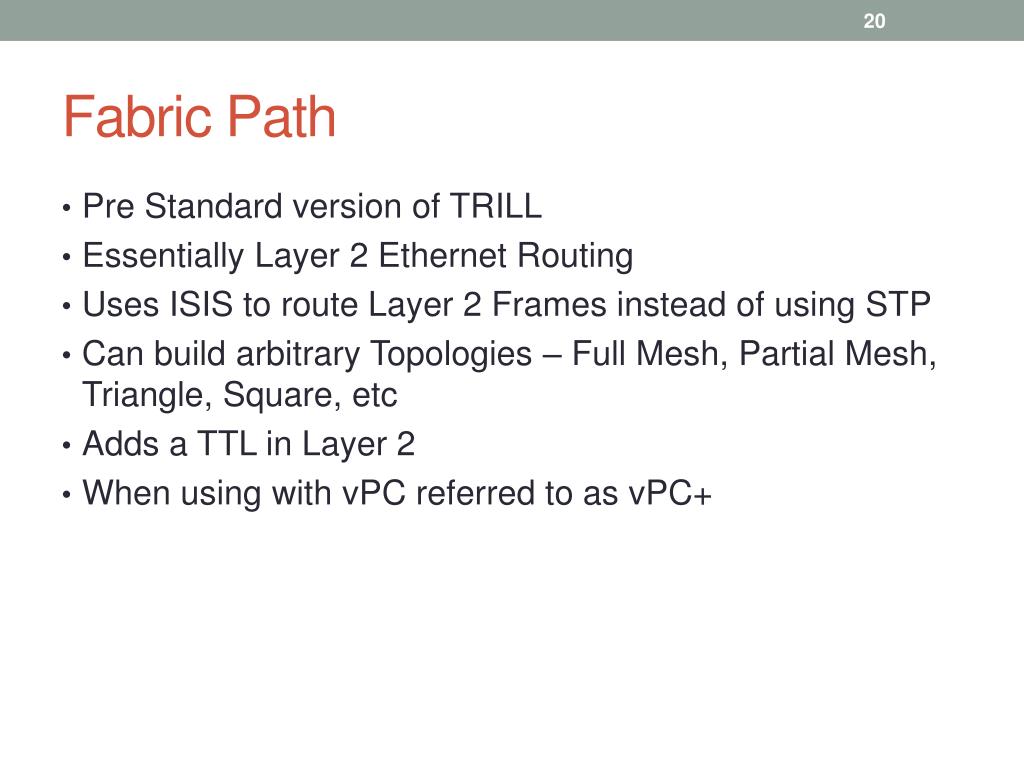

20. Fabric Path • Pre Standard version of TRILL • Essentially Layer 2 Ethernet Routing • Uses ISIS to route Layer 2 Frames instead of using STP • Can build arbitrary Topologies – Full Mesh, Partial Mesh, Triangle, Square, etc • Adds a TTL in Layer 2 • When using with vPC referred to as vPC+

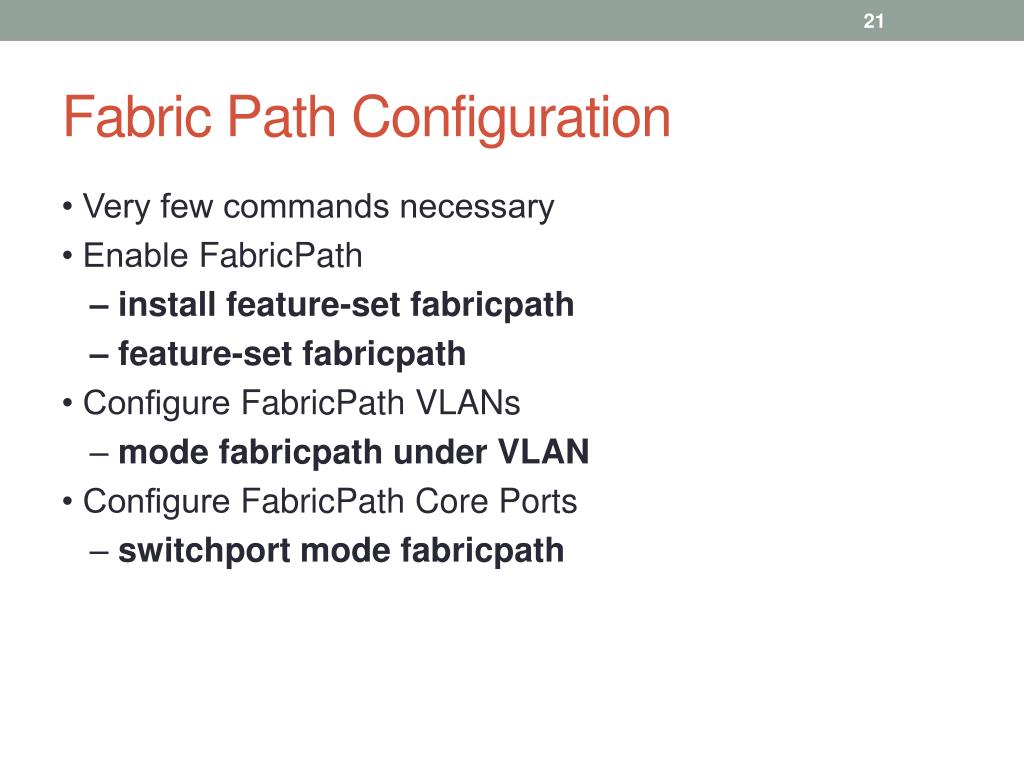

21. Fabric Path Configuration • Very few commands necessary • Enable FabricPath – install feature-set fabricpath – feature-set fabricpath • Configure FabricPath VLANs – mode fabricpath under VLAN • Configure FabricPath Core Ports – switchport mode fabricpath

22. Virtual Device Contexts (VDC) VDCs used to virtualize physical hardware of Nexus 7000 – Loosely analogous to SDRs in IOS XR or Contexts in ASA • VDCs also virtualize control plane protocols of Nexus 7000 – Not analogous to VLANs or VRFs in IOS – Separate control plane per VDC • VLAN 40 in VDC 1 is not VLAN 40 in VDC 2 • OSPF PID 20 in VDC 1 is not OSPF PID 20 in VDC 2

23. Why VDC’s? Multiple logical roles per physical chassis – E.g. Core & Aggregation/Distribution on same box Multi-Tenancy – E.g. VDCs as a managed service to customers Test Lab Environment for later Production Use Required for certain features – FCoE/Storage

24. VDC Caveats Some features can’t co-exist in same VDC – OTV and VLAN interfaces (SVIs) – F2 cards and M1/F1 – FCoE requires its own “Storage” VDC Hardware and Software version dependent, check the release notes

25. VDC Maximums • 4 VDCs per chassis with SUP 1 • 4+1 VDCs per chassis with SUP 2 • 8+1 VDCs per chassis with SUP 2E* • No internal cross VDC communication – E.g. no route leaking like in VRFs – Physical cable can be used to connect VDCs

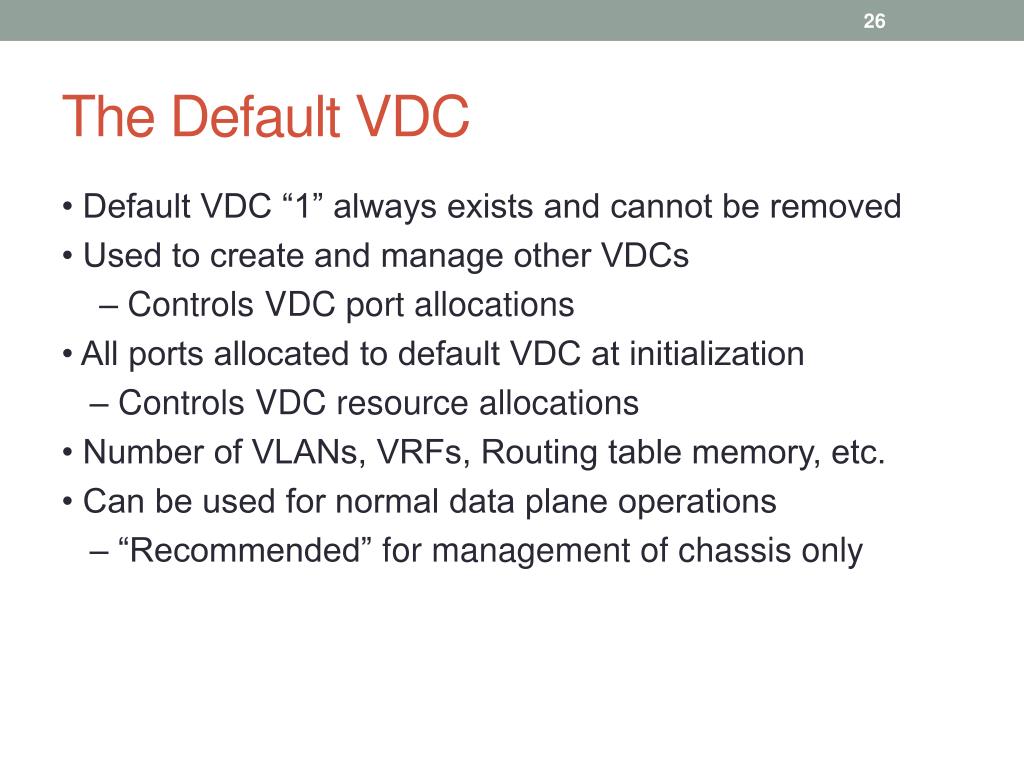

26. The Default VDC • Default VDC “1” always exists and cannot be removed • Used to create and manage other VDCs – Controls VDC port allocations • All ports allocated to default VDC at initialization – Controls VDC resource allocations • Number of VLANs, VRFs, Routing table memory, etc. • Can be used for normal data plane operations – “Recommended” for management of chassis only

27. Default VDC Tasks Some tasks can only be performed in the default VDC – VDC creation/deletion/suspend – Resource allocation – interfaces, memory, MAC’s – NX-OS Upgrade across all VDCs – ISSU or EPLD Upgrade – Ethanalyzer captures – control plane traffic – Feature-set installation for Nexus 2000, FabricPath, FCoE – Control Plane Policing (CoPP) – Port Channel load balancing hash – Hardware IDS check control – ACL Capture feature enable – System-Wide QoS

28. Converged Ethernet or FCoE • Lots of terms that essentially mean the same thing – Unified Fabric – Unified Wire – Converged Ethernet – Converged Enhanced Ethernet – Data Center Ethernet – Data Center Bridging • What they all really mean… – You are running the physical framing for both Ethernet and Fibre Channel over the same physical links

29. FCoE Terms • FCoE Initialization Protocol (FIP) • FCoE Forwarder (FCF) • ENode – End Device • Virtual Fibre Channel (VFC) Interface

30. FC, FCoE, FCIP and iSCSI

31. How FCoE Works • FCoEreplaces layer 1 & 2 transport for FC • All upper layer FC services remain – Domain IDs, FSPF, FCNS, FLOGI, Zoning. • New FCoE Initialization Protocol (FIP) to negotiate between Fabric and Node – Fabric is the FCF – Node is the ENode

32. FCoE Control and Data Planes • FIP is the control plane of FCoE • FCoE is the actual data plane • FIP – New EtherType 0x8914 – Used to discover FCFs and perform FLOGI _ UCS C when FCoE turned on uses LLDP to begin negotiation • FCoE – New Ethertype 0x8906 – Min length of 2240 bytes, FC has larger payload • Implies Jumbo Frames are required

33. OTV Basics • Overlay Transport Virtualization (OTV) – Layer 2 VPN over IPv4 • Specifically OTV is… – IPv4/IPv6 over Ethernet… over MPLS… over GRE… over IPv4…

34. OTV vs. other Layer 2 DCI’s Layer 2 DCI is needed for Virtual Machine Workload Mobility i.e. VMware VMotion • Many possible options for L2 DCI – Dark Fiber (CWDM/DWDM) – Layer 2 Transport Protocol (L2TPv3) – Any Transport over MPLS (AToM) – Virtual Private LAN Services (VPLS) – Bridging over GRE – Spanning Tree Bridge Group • These options can be used for DCI, but OTV was made for DCI – Optimizes ARP flooding over DCI – Demarc of the STP domain – Can overlay multiple VLANs without complicated design – Allows multiple edge routers without complicated design

35. OTV Terms • OTV Edge Device – Edge router(s) running OTV • Authoritative Edge Device (AED) – Active edge router for a particular VLAN – Allows multiple redundant edge routers while preventing loops • Extend VLANs – VLAN being bridged over OTV • Site VLAN – Internal VLAN used to elect AED

36. OTV Terms Continued • Site Identifier – Unique ID per DC site, shared between AEDs • Internal Interface – Layer 2 interface where traffic to be encapsulated is received • Overlay Interface – The logical OTV tunnel interface that performs the OTV encapsulation • OTV Join Interface – The Layer 3 physical link or port-channel that you use to route upstream towards the DCI

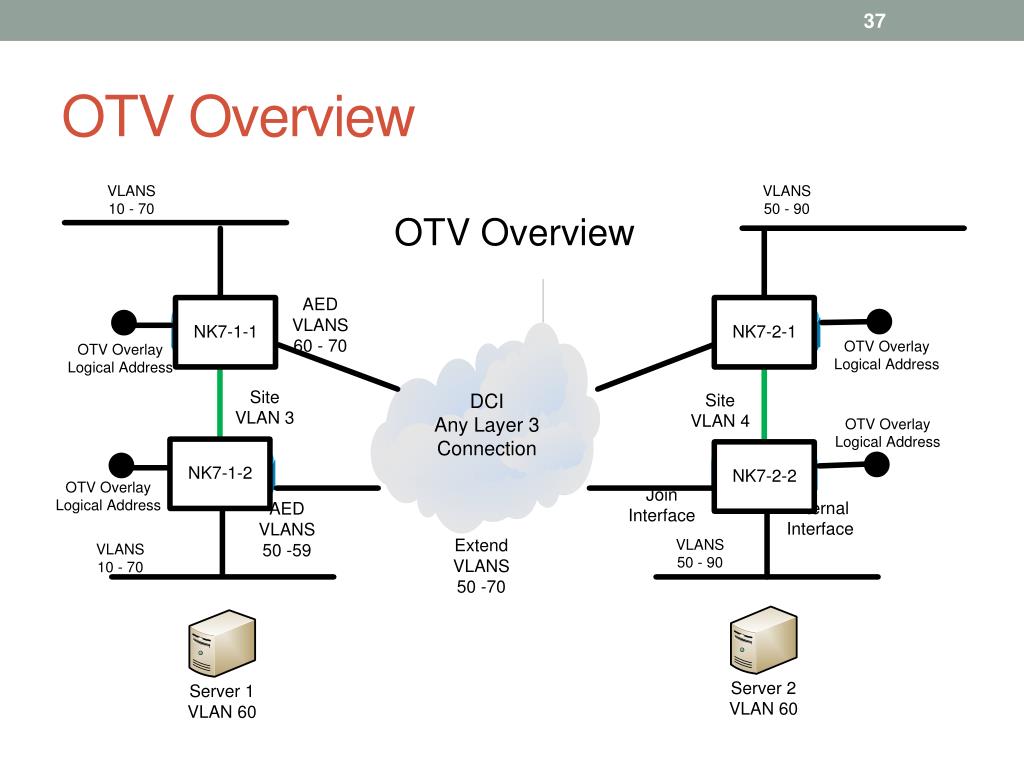

37. OTV Overview

38. OTV Control Plane • Uses IS-IS to advertises MAC addresses between AEDs – Is it’s own transport and extensible • ISIS Encapsulated as Control Group Multicast – IS-IS over Ethernet over MPLS over GRE over IPv4 Multicast – Implies that DCI must support ASM Multicast

39. OTV Data Plane • Uses both Unicast and Multicast Transport • Multicast Control Group – Multicast or Broadcast Control Plane Protocols – E.g. ARP, OSPF, EIGRP, etc. • Unicast Data – Normal Unicast is encapsulated as Unicast between AEDs • Multicast Data Group – Multicast Data flows are encapsulated as SSM Multicast – Implies AEDs use IGMPv3 for (S,G) Joins

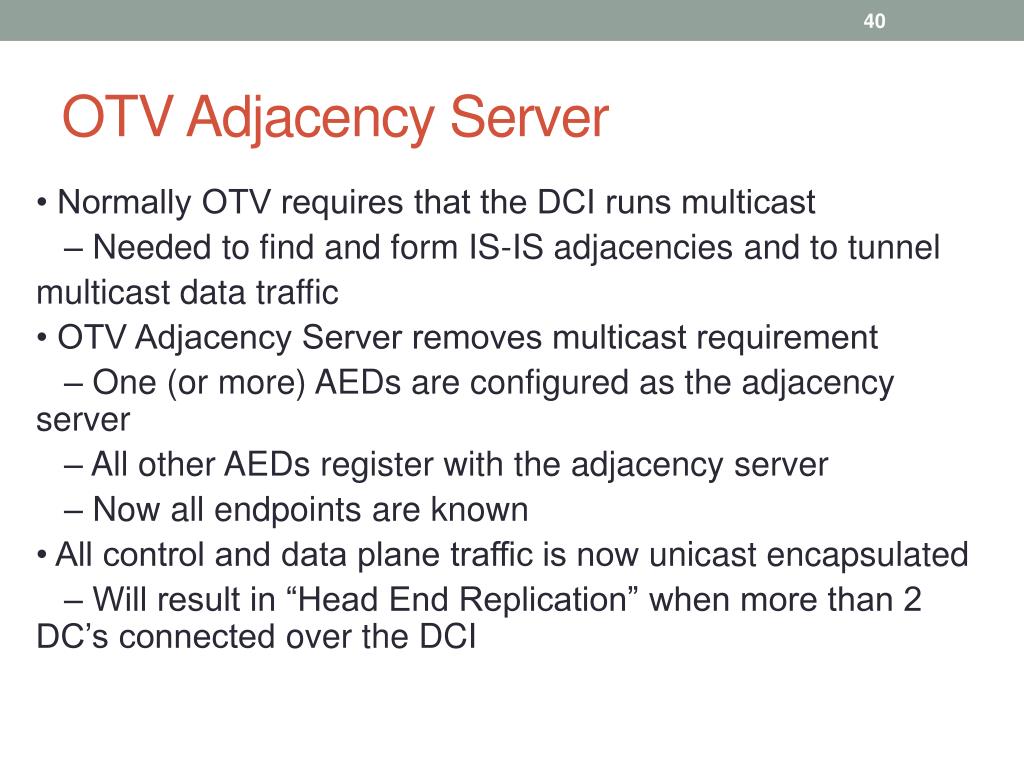

40. OTV Adjacency Server • Normally OTV requires that the DCI runs multicast – Needed to find and form IS-IS adjacencies and to tunnel multicast data traffic • OTV Adjacency Server removes multicast requirement – One (or more) AEDs are configured as the adjacency server – All other AEDs register with the adjacency server – Now all endpoints are known • All control and data plane traffic is now unicast encapsulated – Will result in “Head End Replication” when more than 2 DC’s connected over the DCI

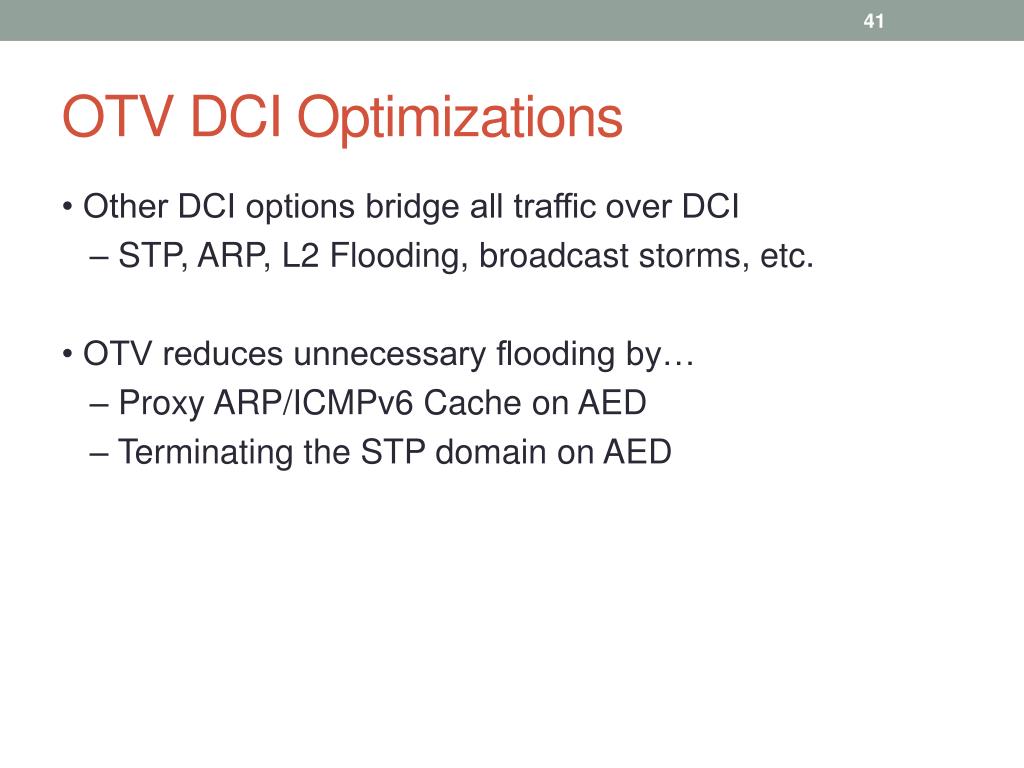

41. OTV DCI Optimizations • Other DCI options bridge all traffic over DCI – STP, ARP, L2 Flooding, broadcast storms, etc. • OTV reduces unnecessary flooding by… – Proxy ARP/ICMPv6 Cache on AED – Terminating the STP domain on AED

42. vPC Port Channels – Port Channels, EtherChannels, & NIC Teaming/Bonding terms used interchangeably – Regardless of vendor, 802.3ad (LACP) refers to Port Channeling • Used to aggregate bandwidth of multiple links between devices – E.g. 4 x physical 1GigE links form a 4GigE logical Port Channel • Appears as one logical link from STP’s perspective – Avoids active/standby and allows active/active

43. vPC Port Channels • Data flows are load balanced between member links – Single flow cannot exceed BW of any physical member link • E.g. increases lanes on the highway but not the speed limit • Does not perform LFI like PPP Multilink • Flows are load balanced based on L2, L3, & L4 header information – SRC/DST VLAN, MAC, IP, & TCP/UDP Port • Default is SRC/DST L3 for IPv4/IPv6 and SRC/DST MAC for non IP – Can result in over/under subscribed links

44. Port Channels • Port Channeling was original between only 2 devices – 1 downstream device & 1 upstream device • E.g. end host to Catalyst 3550 via 2 x FE links – Increases BW but still has single point of failure • Multi Chassis EtherChannel (MCEC/MEC) is between 3 devices – 1 downstream device & 2 upstream devices • E.g. end host to 2 x Catalyst 3750s via 2 x GigE links – Increases BW and resiliency – Logically appears the same as a 2 device Port Channel

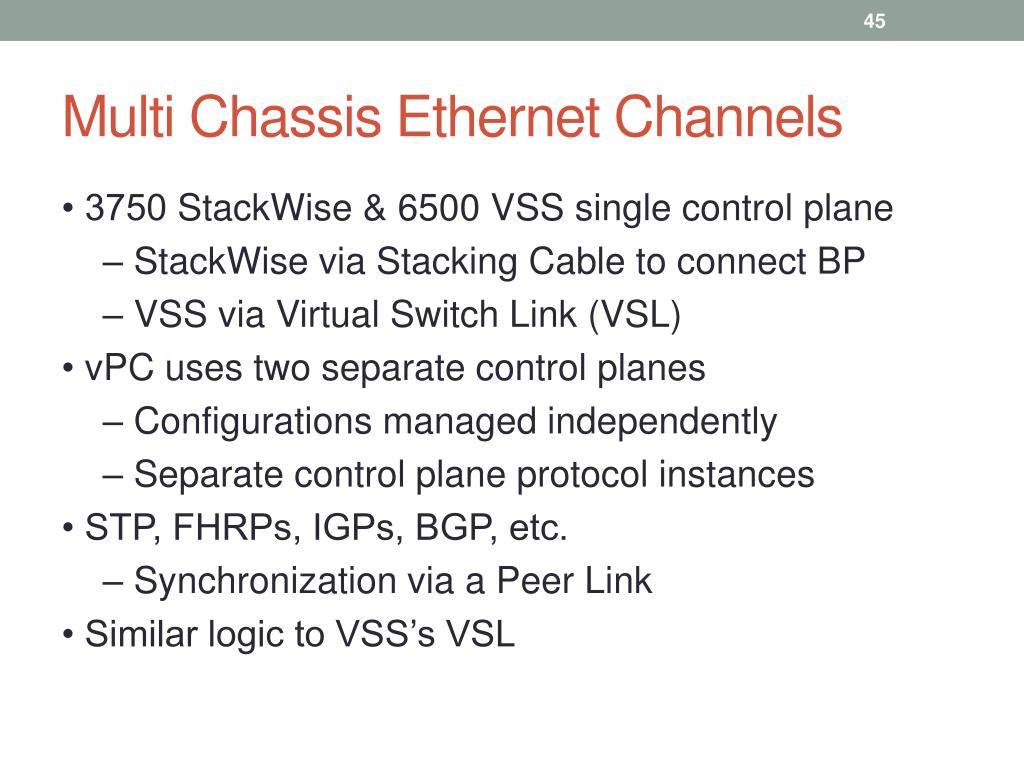

45. Multi Chassis Ethernet Channels • 3750 StackWise & 6500 VSS single control plane – StackWise via Stacking Cable to connect BP – VSS via Virtual Switch Link (VSL) • vPC uses two separate control planes – Configurations managed independently – Separate control plane protocol instances • STP, FHRPs, IGPs, BGP, etc. – Synchronization via a Peer Link • Similar logic to VSS’s VSL

46. vPC Peer Switches • vPC made up of 2 physical switches – The vPC Peers • vPC Peers each have… – vPC Peer Link – vPC Peer Keepalive Link – vPC Member Ports

47. vPC Overview

48. vPC Peer Link • Layer 2 trunk link used to sync control plane between vPC peers – CAM table, ARP cache, IGMP Snooping DB, etc. – Uses Cisco Fabric Service over Ethernet (CFSoE) protocol – Used to elect a vPC Primary and vPC Secondary Role • Normally not used for the data plane – Peer Link generally much lower BW than aggregate of vPCMember Ports – If Peer Link used in the data plane, it is the bottleneck

49. vPC Peer Keepalive • Layer 3 link used as heartbeat in the control plane – Used to prevent active/active or “Split Brain” vPC Roles – Not used in the vPC data plane – Uses unicast UDP port 3200 • Peer Keepalive Link can be… – Mgmt0 port • Back to back or over routed infrastructure • Ideally in an isolated VRF

50. vPC Member Ports • Data plane port channel towards downstream neighbor • Each vPC Peer has at least one member port per vPC – Can be more, up to hardware platform limits • From perspective of downstream neighbor, upstream vPC Peers are one switch – Physical result is a triangle – Logical result is a point-to-point Port Channel with no STP blocking ports
