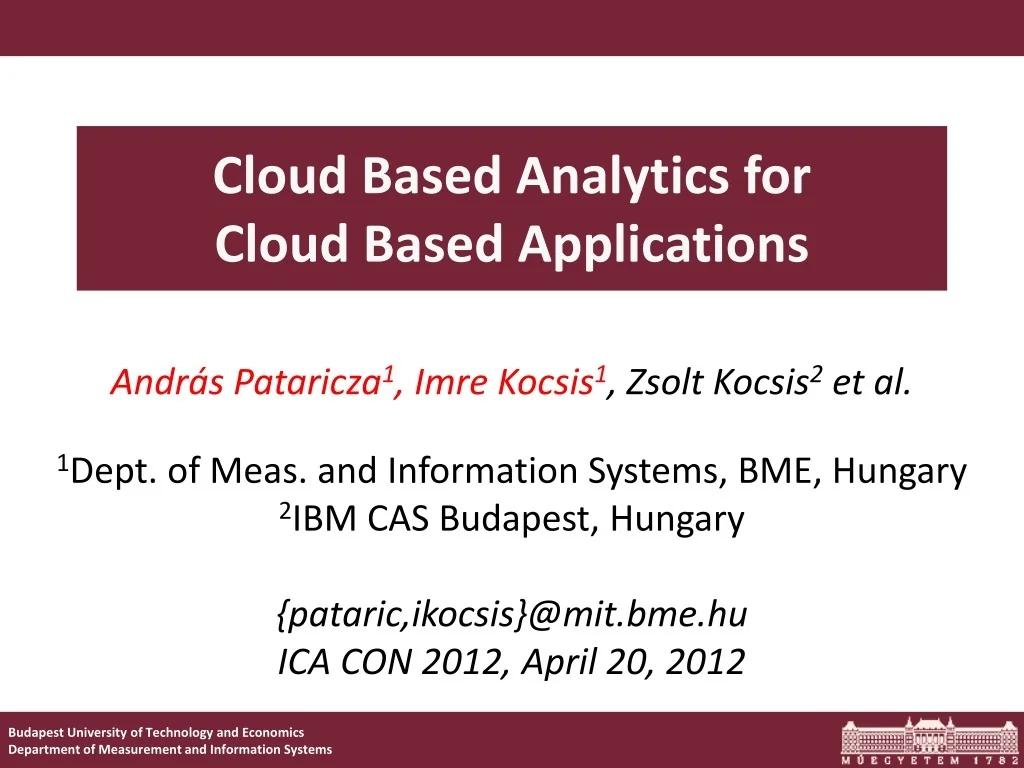

  1. Cloud Based Analytics forCloud Based Applications András Pataricza1, Imre Kocsis1, Zsolt Kocsis2 et al. 1Dept. of Meas. and Information Systems, BME, Hungary 2IBM CAS Budapest, Hungary {pataric,ikocsis}@mit.bme.hu ICA CON 2012, April 20, 2012

  2. Clouds for demanding applications? Standard infrastructure vs demanding application?

  3. Clouds for demanding applications? Extra-functional reqs: throughput, timeliness, availability „Small problems” have high impact (soft real time) Virtual Desktop Infrastructure Telecommunications

  4. Experimental setup N.B.: VMware R&D published similar (March 2012)

  5. IT EDA is Big Data! Which determine the QoS? Hypervizor (host + VMs), OS, application, ...

  6. IT EDA is Big Data! High availabilty, rare faults Rare events: granularity AND long horizon Searching for outliers

  7. Rare events: lot of sand, a few pellets Typically sand: gold mining ≠ data mining

  8. Visual analytics = causal insight Computing power use = CPU use × CPU clock rate (const.) Should be pure proportional Correlation coefficient: 0.99998477434137 Well-visible, but numerically suppressed Origin???

  9. Visual analytics Noisy… High frequency components dominate But they correlate (93%!) YOU DON’T SEE IT

  10. Dangers in a standard cloud for demanding apps?

  11. Impacts of resource sharing? Self-induced Parasitic influence

  12. Short transient faults – long recovery As if you unplug your desktop for a second... 30 sec service outage 120 sec SLA violation 8 sec platform overload

  13. Deterministic (?!) run-time in the public cloud... Performance outage intolerable by overcapacity Variance tolerable by overcapacity

  14. The noisy neighbour problem Logic „fence” Tenant Neighbor Hypervisor

  15. Tenant-side measurability and observability Tenant Neighbor Hypervisor

  16. Let’s try it at user level

  17. Monitoring, prediction and reaction Michael: Now we can hurry Michael:Don’t worry, we have spare resources Fast detection, Spare resources Fast reaction (actual) Mystery shopper:There is an obstacle across the road

  18. The mistery shopper concept • Basic logic as with benchmarks, but... • Metric req: • same interference-sensitivities as the service • same resource-sensitivities as the service • representative for types of services • Runtime req: • Non-intrusiveness (instead of saturation) • Long running (rare events) • (Low specific impact on service) Not trivially feasible... but everything else impossible Example: short computation bursts sampling available CPU for longer computation

  19. Indirect platform & QoS observability 1. Connect 3. Infer (qualitatively) Works without the application! 2. Observe The „classic” approach: deploy, run/test, observe, analyze The „classic” approach: deploy, run/test, observe, analyze The „classic” approach: deploy, run/test, observe, analyze Observability problems (if present) bypassed

  20. Mystery shopper & service QoS Application failure Main application Fast detection Reaction time window Reaction time window VM internal fault Noisy neighbour fault Mystery shopper

  21. Summary • Technical • SLA coverage needed for all aspects • Missing guarantees can be (somewhat) compensated • Cheap computing power -> redundancy • „Double” autonomic computing • Cloud level – provider • Application level – user • Methodology • Visual exploratory data for insight • Algorithmic analysis for proofs and evaluation • Fault-tolerance design patterns revisited • Cheap redundancy in the cloud
