  1. Overview SURFnet6 Niels den Otter SURFnet EVN-NREN Meeting Amsterdam October 12, 2005

  2. SURFnet • Provides the Dutch National Research Network • Not for profit company, 55 employees • 100% subsidiary of Stichting SURF • 170 connected organizations, 750.000 users • Infrastructure services: • innovation paid for by government • cost effective exploitation for higher education and research

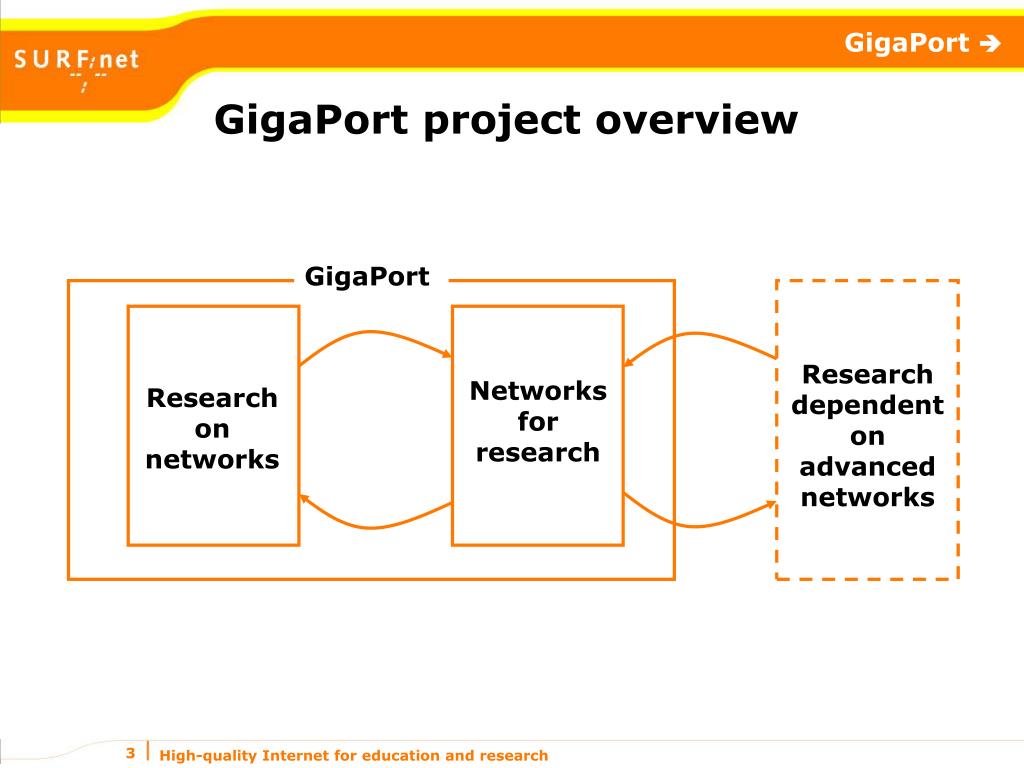

  3. GigaPort Research dependent on advanced networks Networks for research Research on networks GigaPort project overview

  4. Timelines SURFnet6

  5. SURFnet6 overview • A hybrid optical and packet switching infrastructure • Based on SURFnet-owned managed dark fiber all the way to the customers premises • Native IPv4, IPv6 and Light Path Provisioning over a single transmission infrastructure • Managed via a single control plane • Network nodes reduced from 20 routed locations to 2 routed locations Paving the way to a ubiquitous and scalable Services Grid

  6. SURFnet’s Industry Partner • Leader of the consortium • Optical equipment • Ethernet equipment • Network management equipment • Routing equipment • Installation services • Maintenance services

  7. SURFnet6 DWDM on dark fiber

  8. SURFnet6: IP network implementation SURFnet6 Core Routers Avici SSR External IP connectivity Avici SSR Avici SSR Avici SSR 10 GE Nortel OM 5000 10 GE Nortel OME 6500 Nortel OM 5000 Nortel OME 6500 SURFnet6 Common Photonic Layer Nortel OM 5000 1 GE Nortel OME 6500 Nortel Passport 8600 10 Gigabit Ethernet Customer CPE 1 Gigabit Ethernet Customer Nortel OME 6500 Nortel OME 6500 10 GE CPE 1 GE SURFnet infrastructure Non-SURFnet

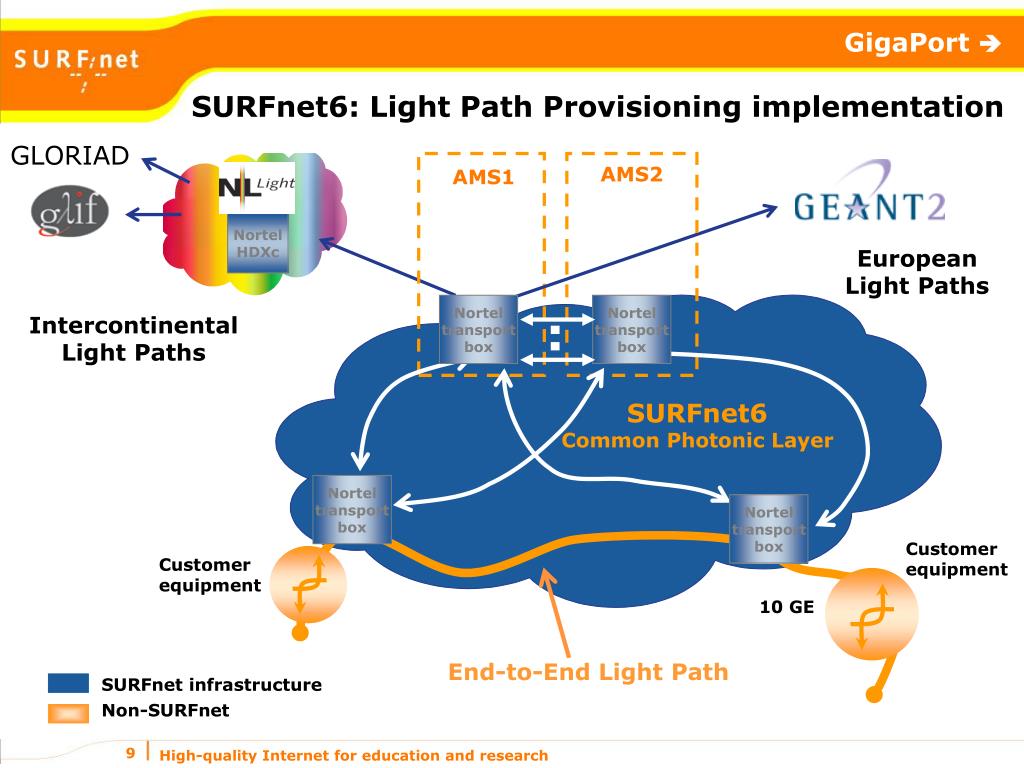

  9. SURFnet6: Light Path Provisioning implementation GLORIAD AMS2 AMS1 Nortel HDXc European Light Paths Nortel transport box Nortel transport box Intercontinental Light Paths .. SURFnet6 Common Photonic Layer Nortel transport box Nortel transport box Customer equipment Customer equipment 10GE End user End-to-End Light Path SURFnet infrastructure End user Non-SURFnet

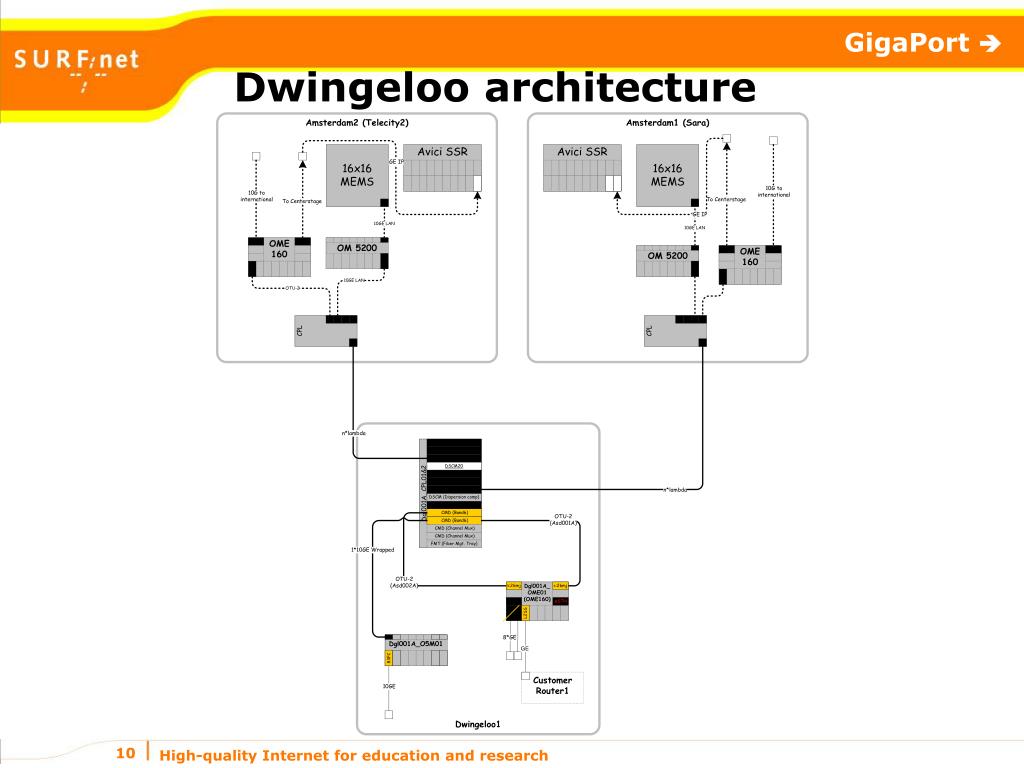

  10. Dwingeloo architecture

  11. Lightpaths • A lightpath is an end-to-end transmission path with fixed characteristics • Characteristics of a lightpath: Flexible, reliable, secure, economical and high-speed (up to 10 Gbit/s) • Lightpaths are not constrained by traditional framing, routing, and transport technologies • The network is becoming an integral part of the scientific instrument: Lightpaths are the building blocks

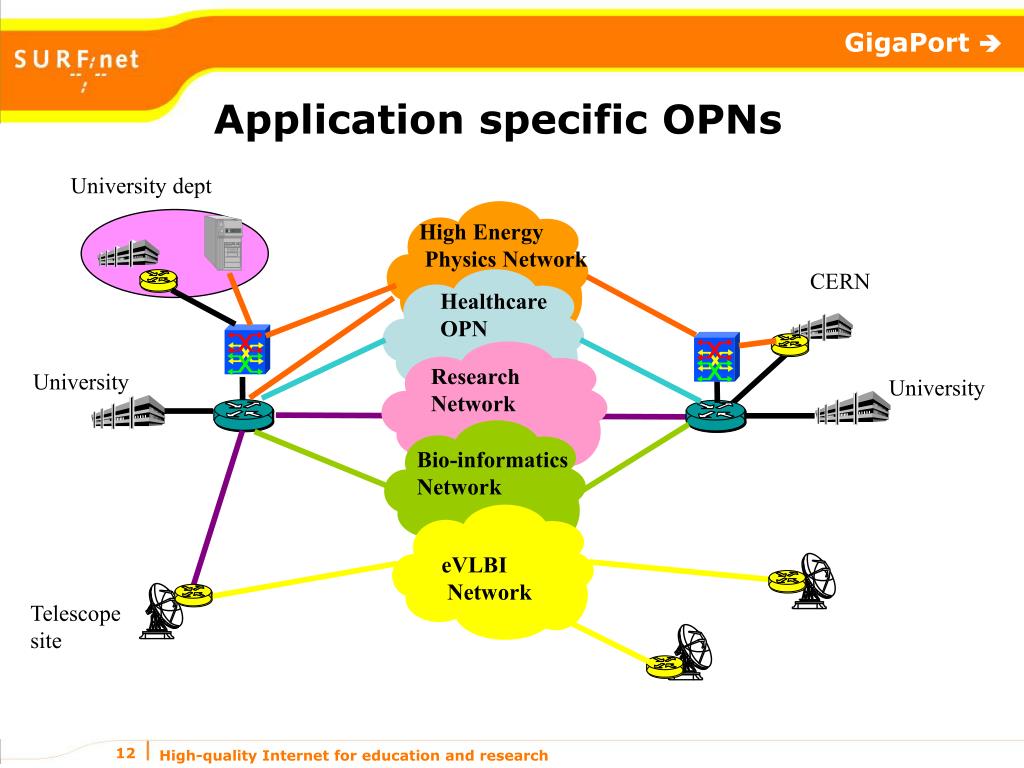

  12. Application specific OPNs University dept High Energy Physics Network CERN Healthcare OPN Research Network University University Bio-informatics Network eVLBI Network Telescope site

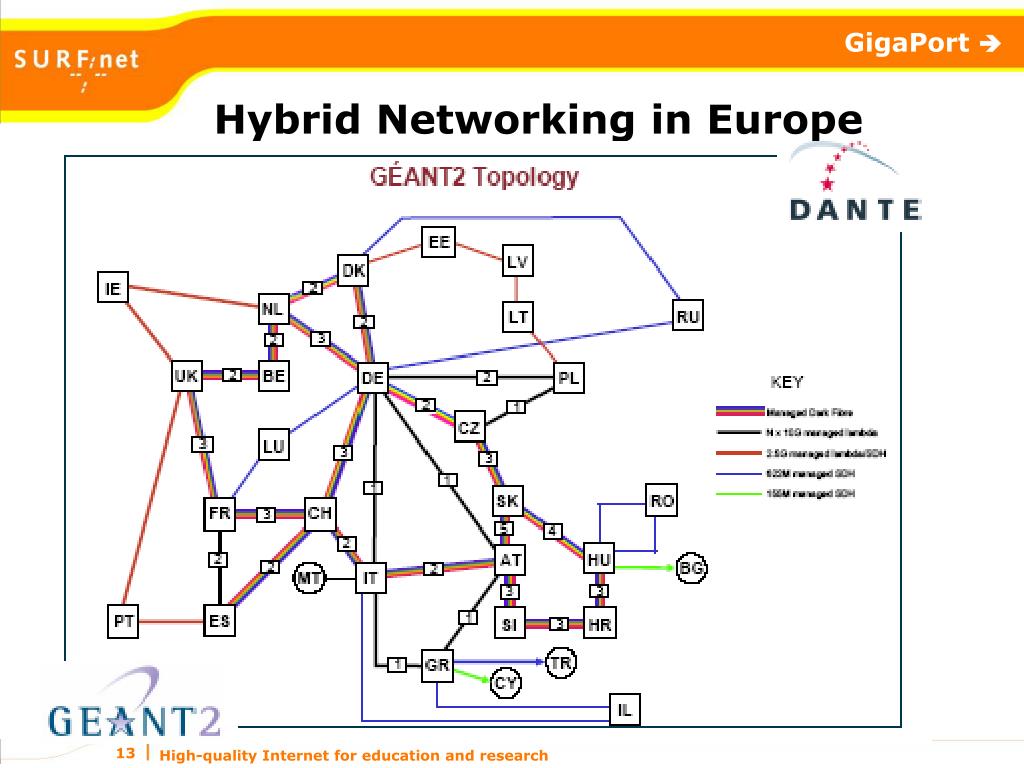

  13. Hybrid Networking in Europe

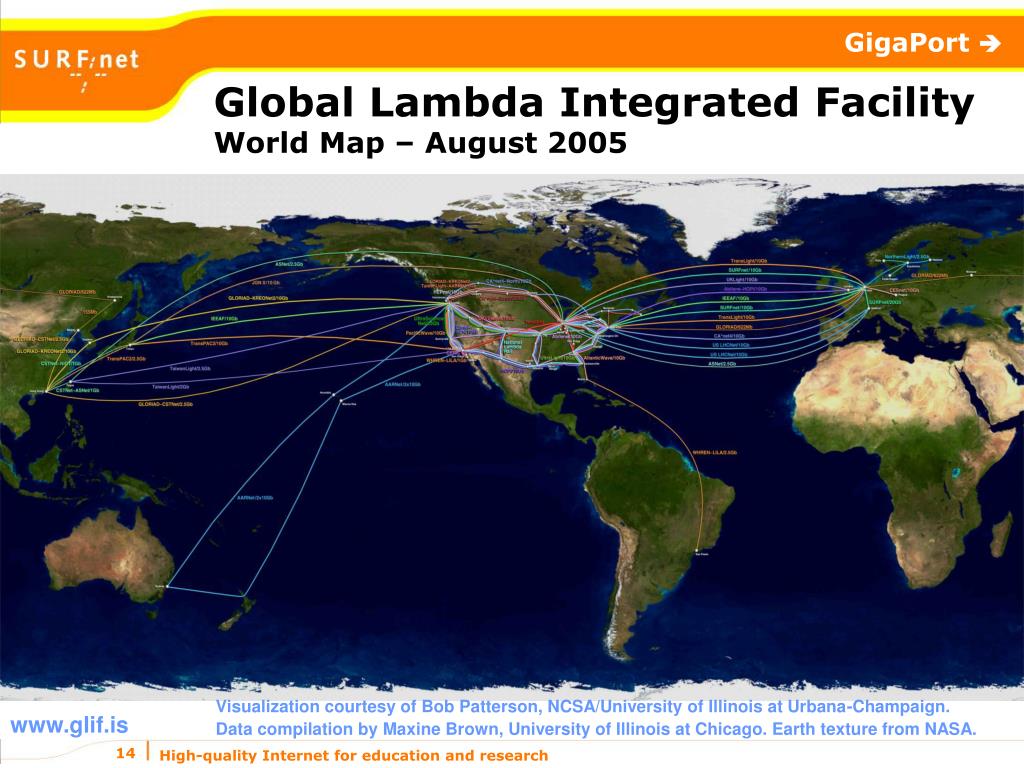

  14. Global Lambda Integrated FacilityWorld Map – August 2005 Visualization courtesy of Bob Patterson, NCSA/University of Illinois at Urbana-Champaign. Data compilation by Maxine Brown, University of Illinois at Chicago. Earth texture from NASA. www.glif.is

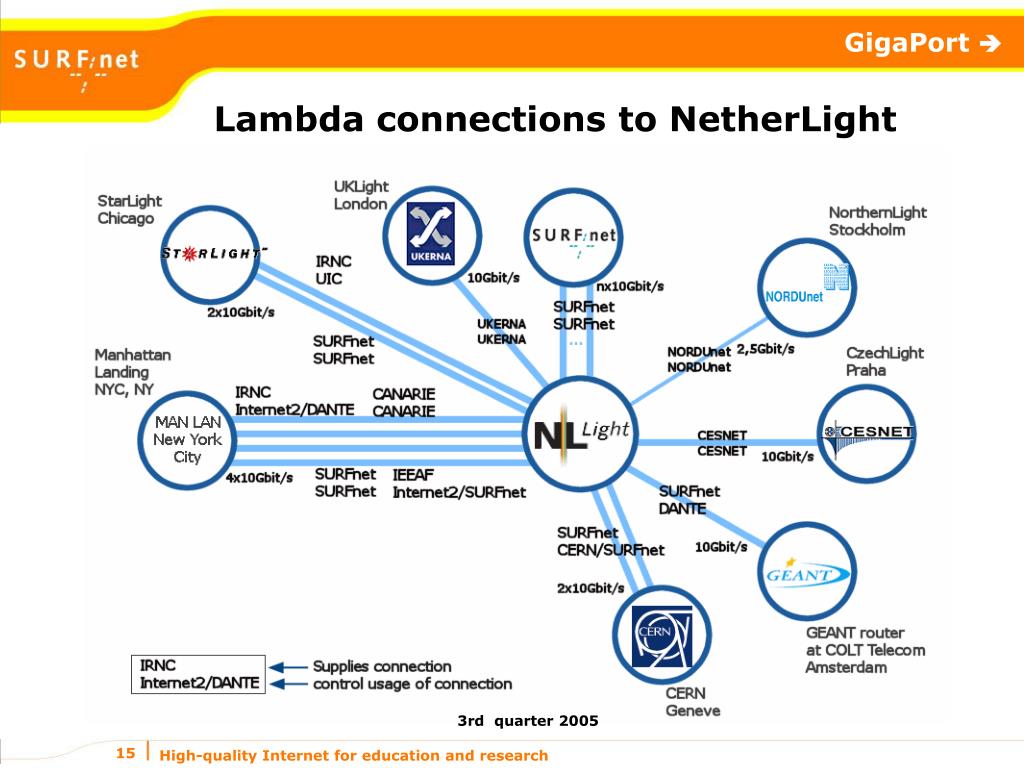

  15. Lambda connections to NetherLight 3rd quarter 2005

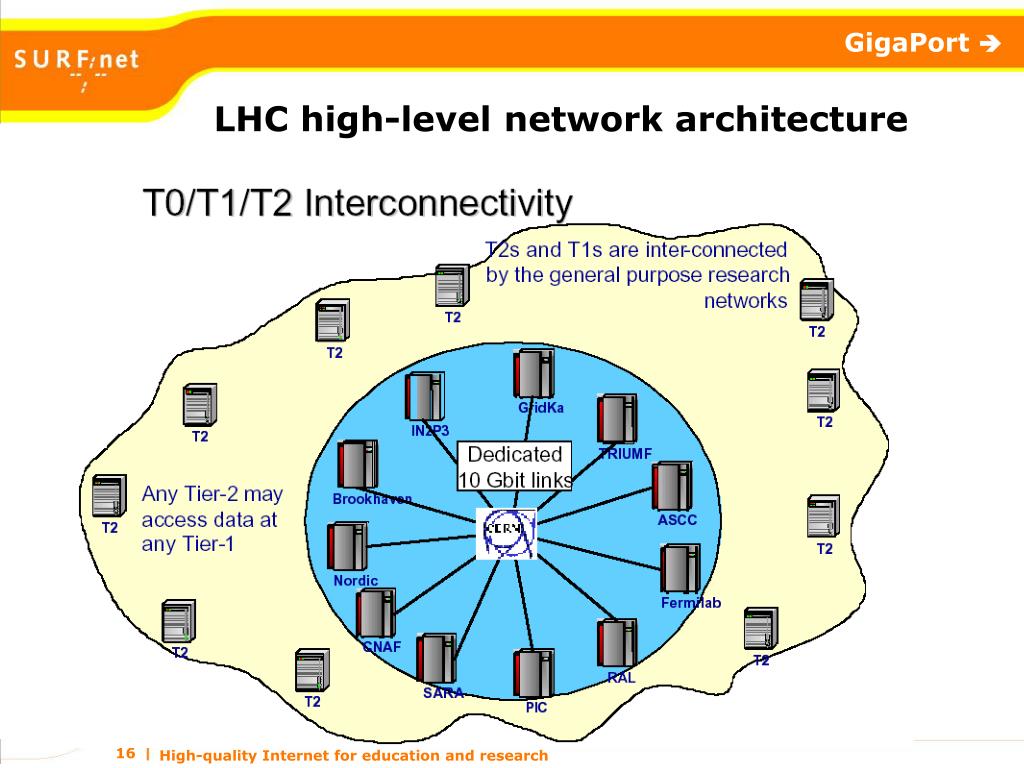

  16. LHC high-level network architecture

  17. e-VLBI

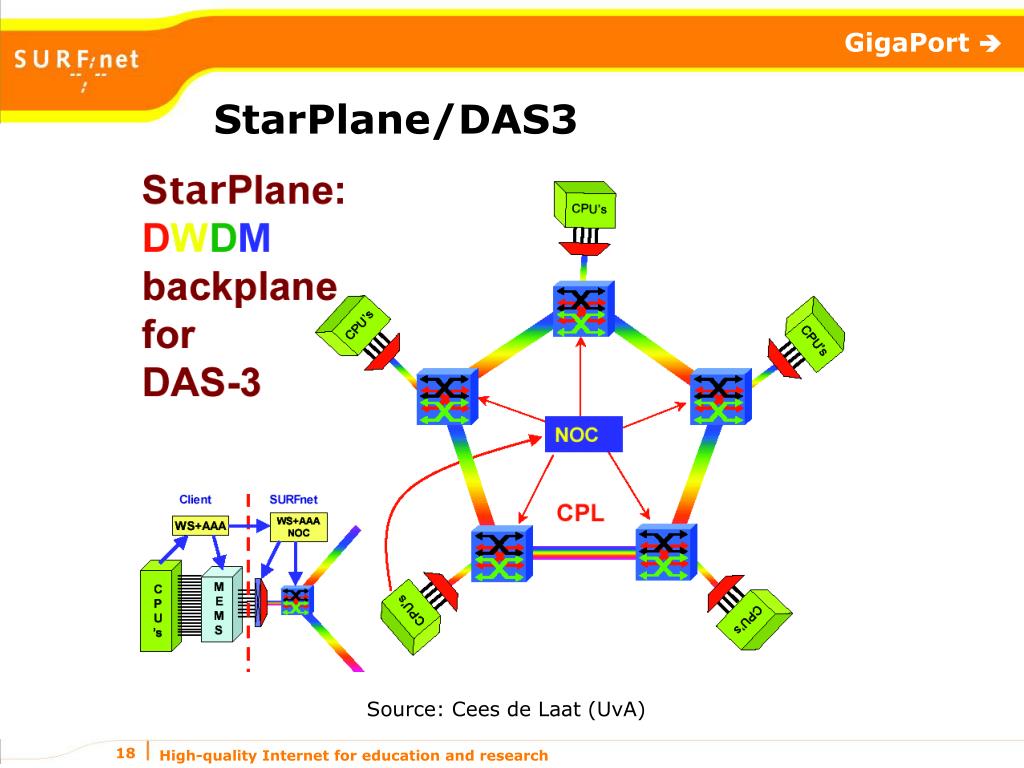

  18. StarPlane/DAS3 Source: Cees de Laat (UvA)

  19. Key Themes • A hybrid optical and packet switching infrastructure, economies of scale • Hybrid LANs on Campus • SURFnet-owned managed dark fiber all the way to all institutes, enabling full use of the hybrid network • Optical technology is rapidly evolving • Lightpath technologies: • Static today (OPNs) • Work with Grid community on dynamic and inter-domain aspects, and see how far we can go

  20. Thank you http://www.surfnet.nl/ http://www.gigaport.nl/
