  1. Space Internetworking Services Overview Robert C. Durst Director, Space Internetworking Services Area Consultative Committee for Space Data Systems durst@mitre.org +1 703 983-7535

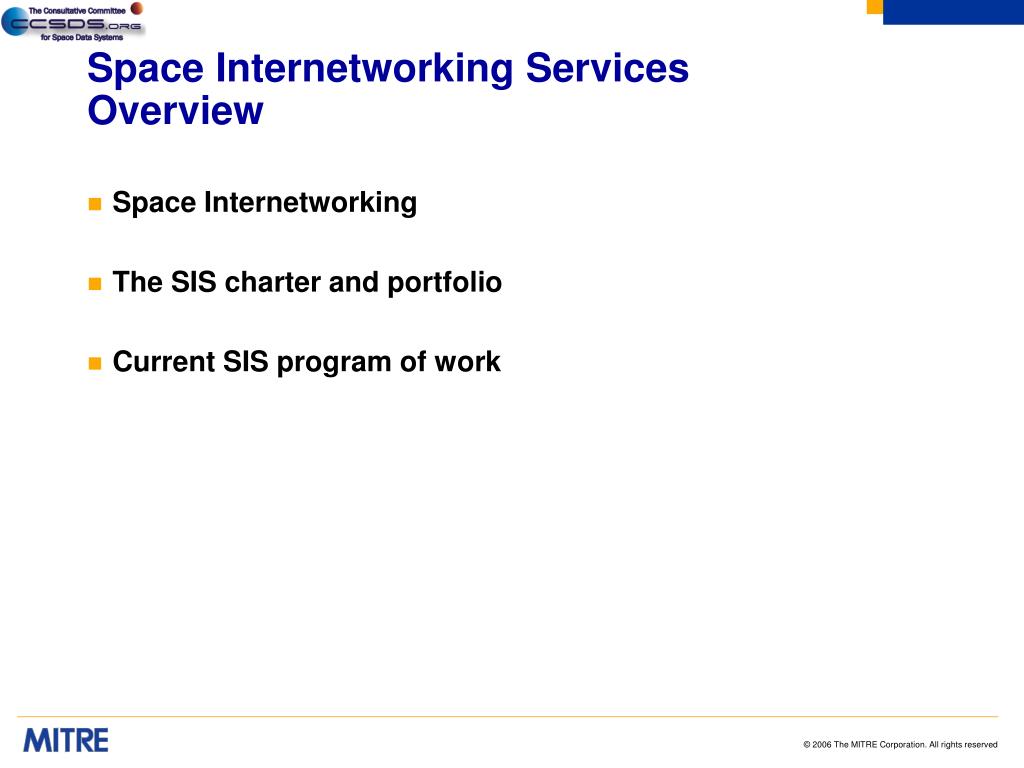

  2. Space Internetworking Services Overview • Space Internetworking • The SIS charter and portfolio • Current SIS program of work

  3. Spacecraft Onboard Interface Services Space Internetworking Services Mission Operations and Information Management Services Space Link Services Systems Engineering Cross Support Services CCSDS Engineering Steering Group Technical Areas

  4. Conventional Internetworking • Richly connected • Continuous availability • Error free • Negligible delay • Symmetric channels • High data rates

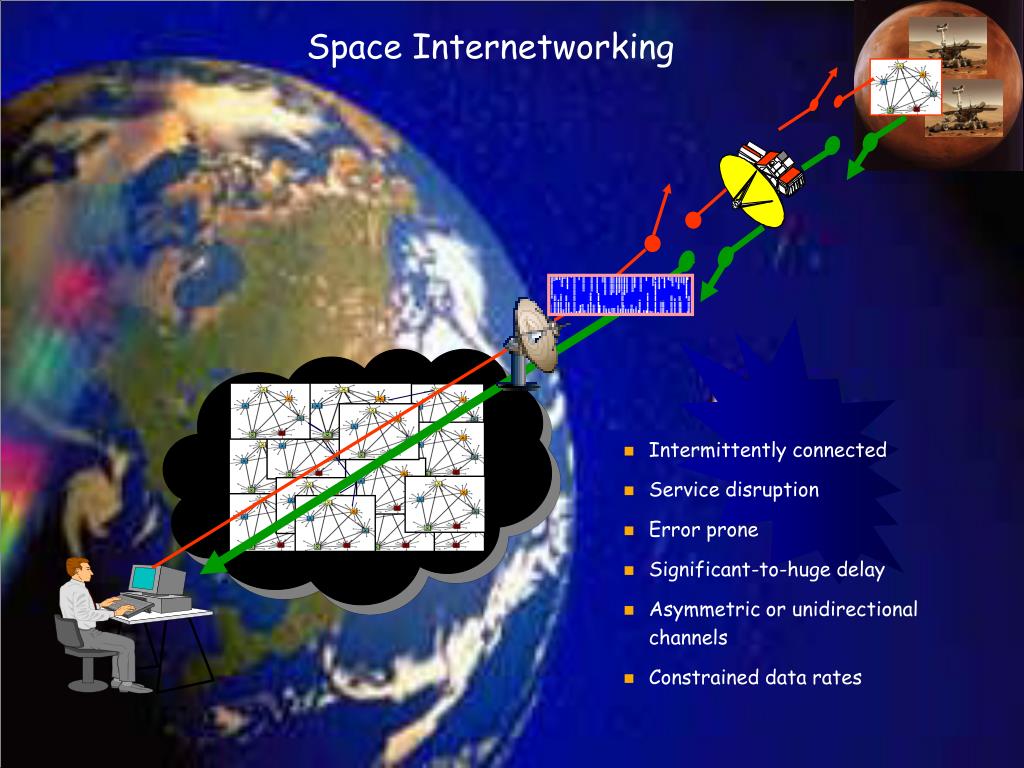

  5. Space Internetworking • Intermittently connected • Service disruption • Error prone • Significant-to-huge delay • Asymmetric or unidirectional channels • Constrained data rates

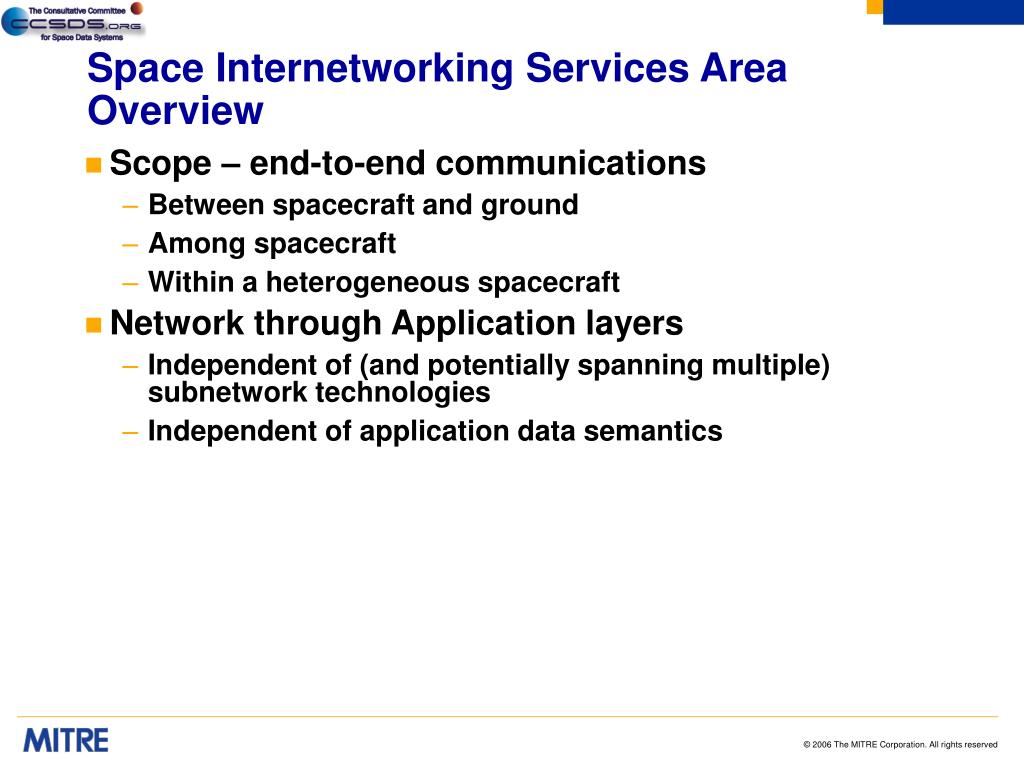

  6. Space Internetworking Services AreaOverview • Scope – end-to-end communications • Between spacecraft and ground • Among spacecraft • Within a heterogeneous spacecraft • Network through Application layers • Independent of (and potentially spanning multiple) subnetwork technologies • Independent of application data semantics

  7. The Current SIS Portfolio CFDP UCE AMS Key Mgt RSVP FTP/SCPS-FP VOIP* L7 RTP* DTN (Bundling) L5 TCP/UDP/SCPS-TP LTP L4 SCPS-SP (Security Protocol) IPSec* Space Packet Protocol SCPS-NP (Space Network Protocol) Internet Protocol (IPv4/IPv6)* L3 Mobile IP Link Mgt Draft/Concept paper Robust Header Compression (ROHC)* Experimental protocol Standards track: draft/Revisions (pink) CCSDS Final Recommendation IP over CCSDS Link* L2 Standardized through IETF

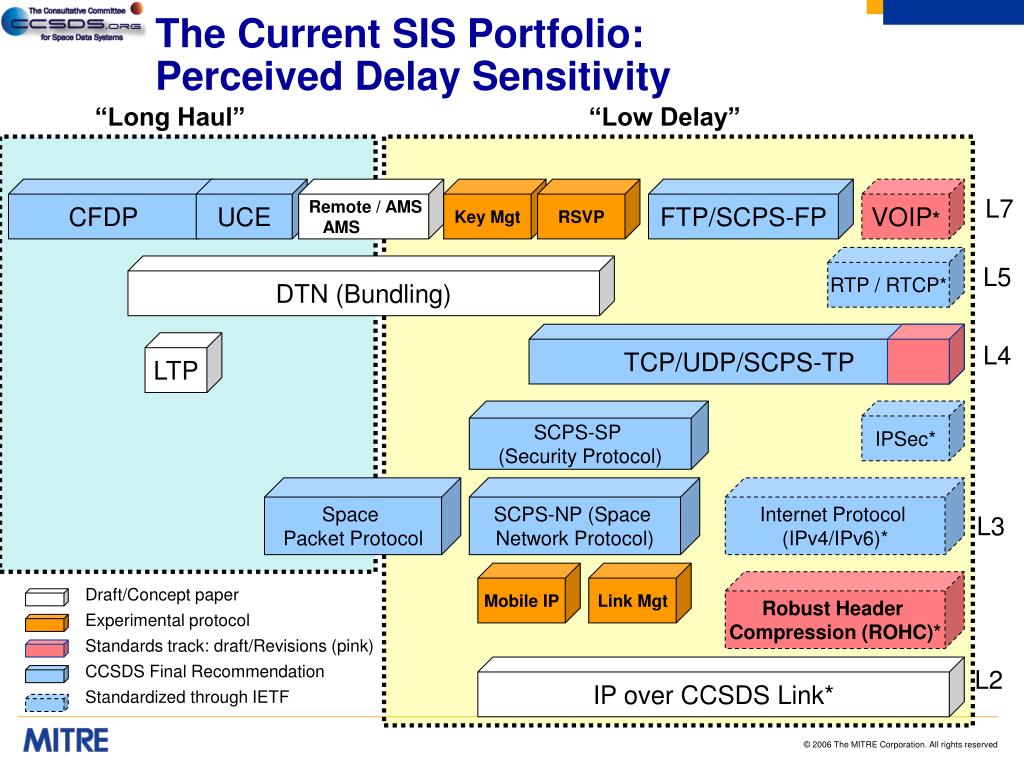

  8. The Current SIS Portfolio: Perceived Delay Sensitivity “Long Haul” “Low Delay” CFDP UCE Remote / AMS AMS Key Mgt RSVP FTP/SCPS-FP VOIP* L7 RTP / RTCP* DTN (Bundling) L5 TCP/UDP/SCPS-TP LTP L4 SCPS-SP (Security Protocol) IPSec* Space Packet Protocol SCPS-NP (Space Network Protocol) Internet Protocol (IPv4/IPv6)* L3 Mobile IP Link Mgt Draft/Concept paper Robust Header Compression (ROHC)* Experimental protocol Standards track: draft/Revisions (pink) CCSDS Final Recommendation IP over CCSDS Link* L2 Standardized through IETF

  9. The Current SIS Portfolio: Interactivity “Non-Chatty” “Interactive” CFDP UCE Remote / AMS AMS Key Mgt RSVP FTP/SCPS-FP VOIP* L7 RTP / RTCP* DTN (Bundling) L5 UDP TCP/SCPS-TP LTP L4 SCPS-SP (Security Protocol) IPSec* Space Packet Protocol SCPS-NP (Space Network Protocol) Internet Protocol (IPv4/IPv6)* L3 Mobile IP Link Mgt Draft/Concept paper Robust Header Compression (ROHC)* Experimental protocol Standards track: draft/Revisions (pink) CCSDS Final Recommendation IP over CCSDS Link* L2 Standardized through IETF

  10. The Current SIS Portfolio: Directionality “Unidirectionally-capable” “Bidirectional” CFDP UCE Remote / AMS AMS Key Mgt RSVP FTP/SCPS-FP VOIP* L7 RTP / RTCP* DTN (Bundling) L5 UDP TCP/SCPS-TP LTP L4 SCPS-SP (Security Protocol) IPSec* Space Packet Protocol SCPS-NP (Space Network Protocol) Internet Protocol (IPv4/IPv6)* L3 Mobile IP Link Mgt Draft/Concept paper Robust Header Compression (ROHC)* Experimental protocol Standards track: draft/Revisions (pink) CCSDS Final Recommendation IP over CCSDS Link* L2 Standardized through IETF
