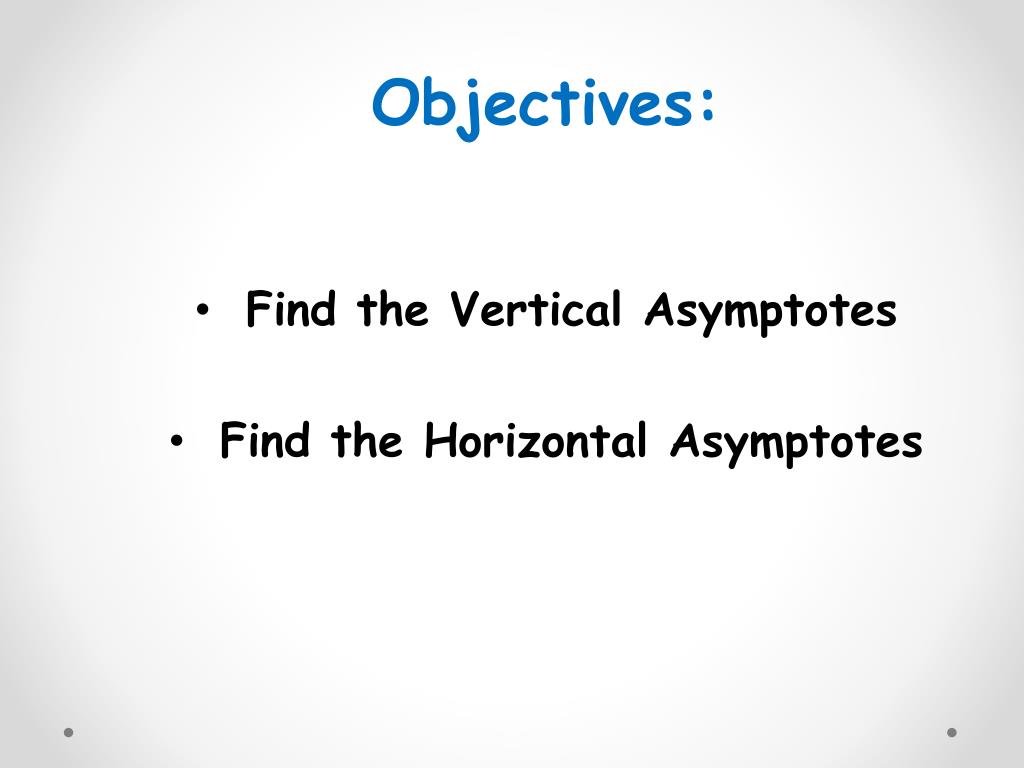

Functions. AII.7 e 2009. Objectives: Find the Vertical Asymptotes Find the Horizontal Asymptotes. Rational Functions . A rational function f ( x ) is a function that can be written as . where p ( x ) and q ( x ) are polynomial functions and q ( x ) 0 .

Télécharger la présentation
## Functions

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

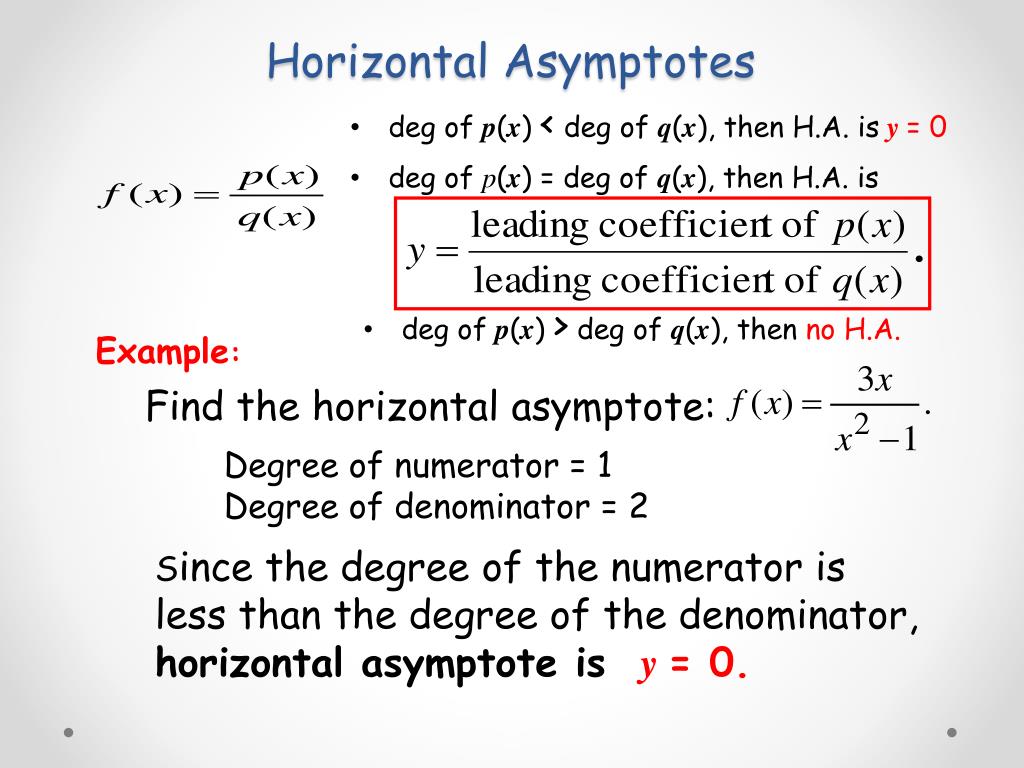

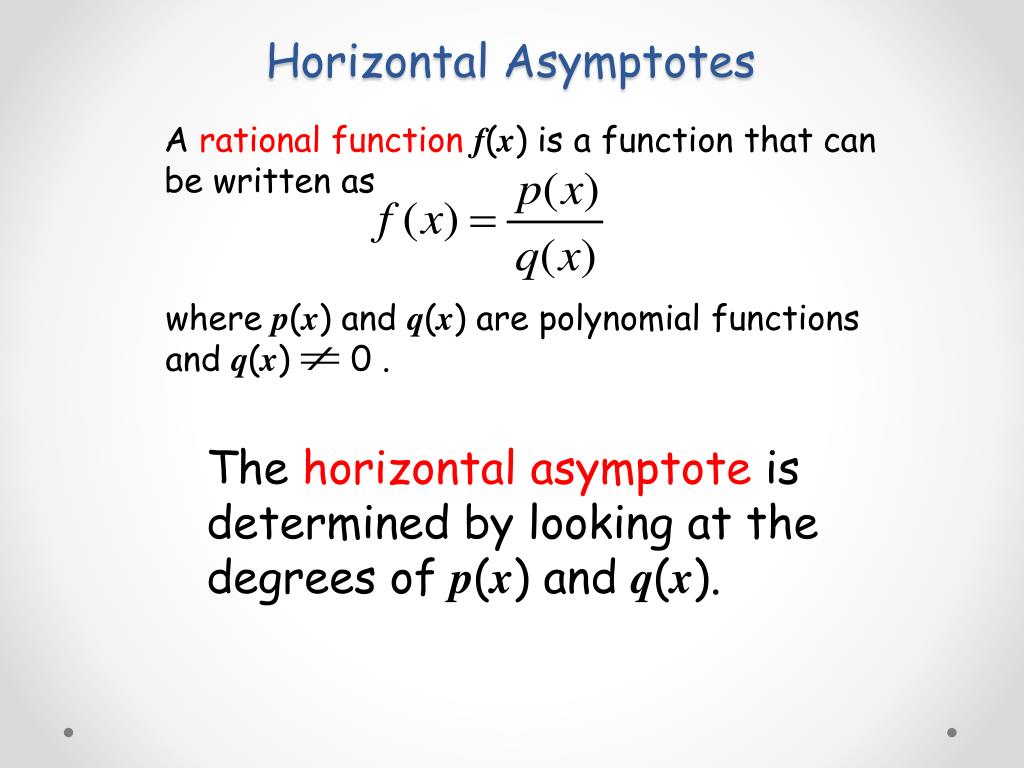

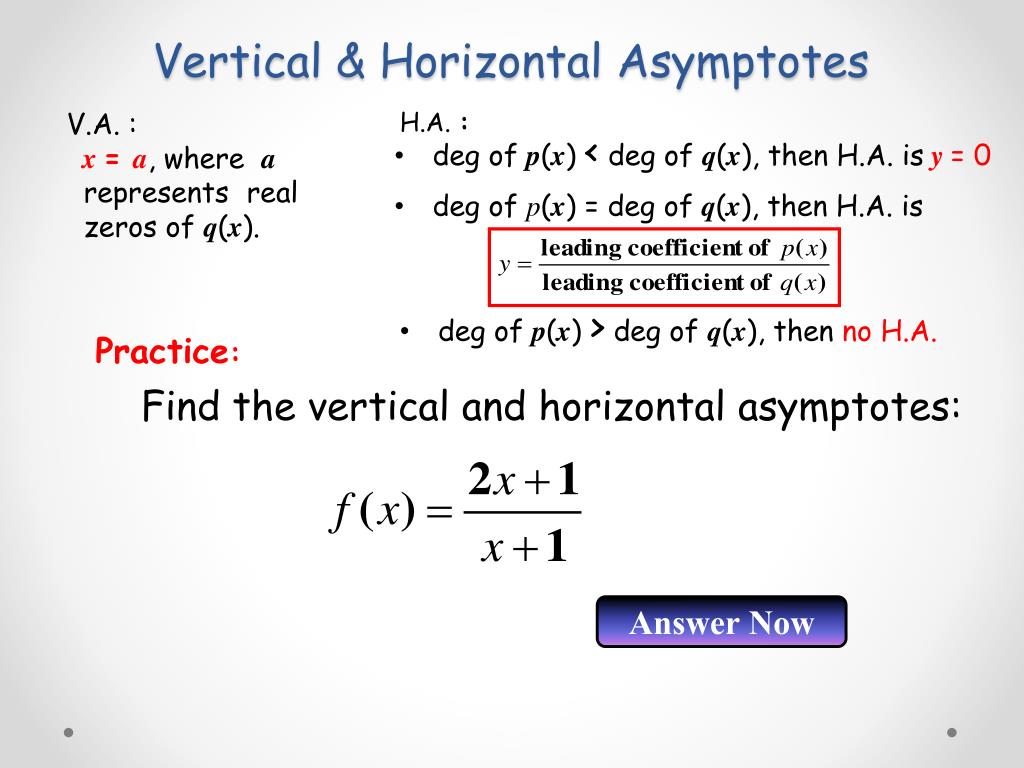

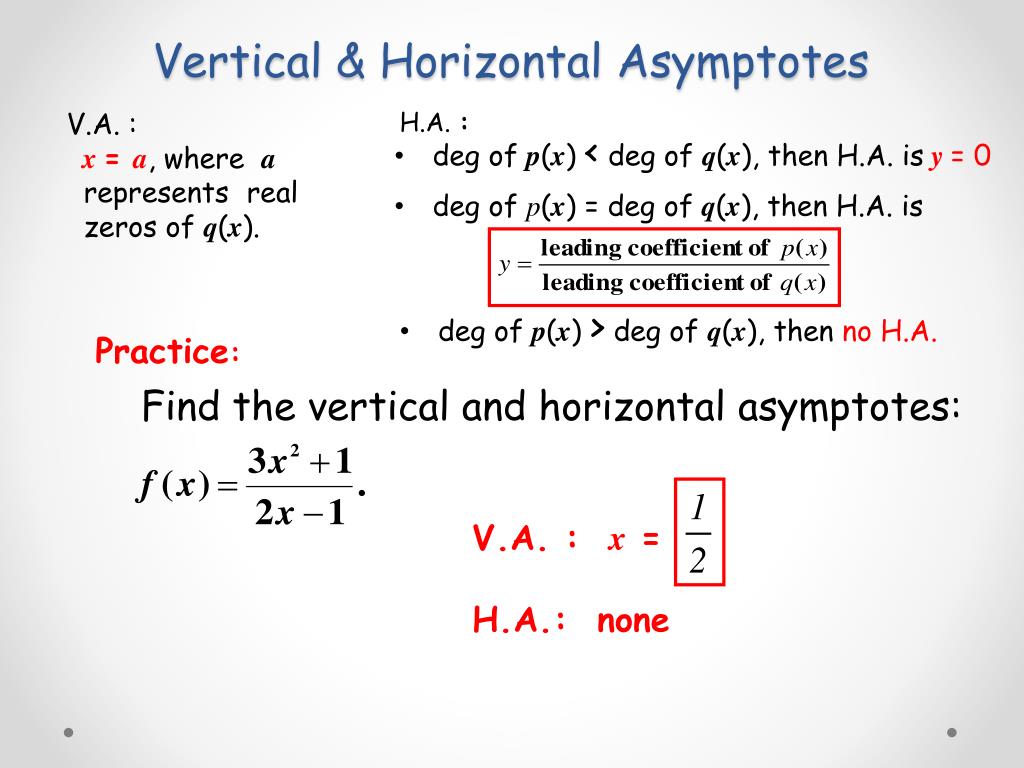

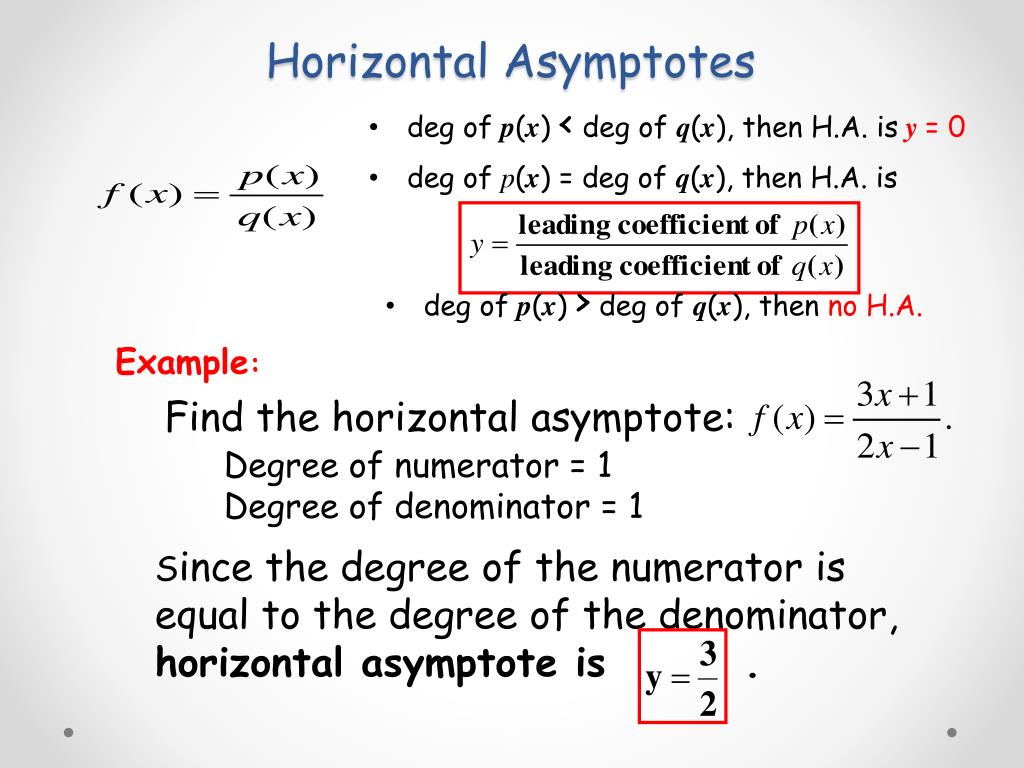

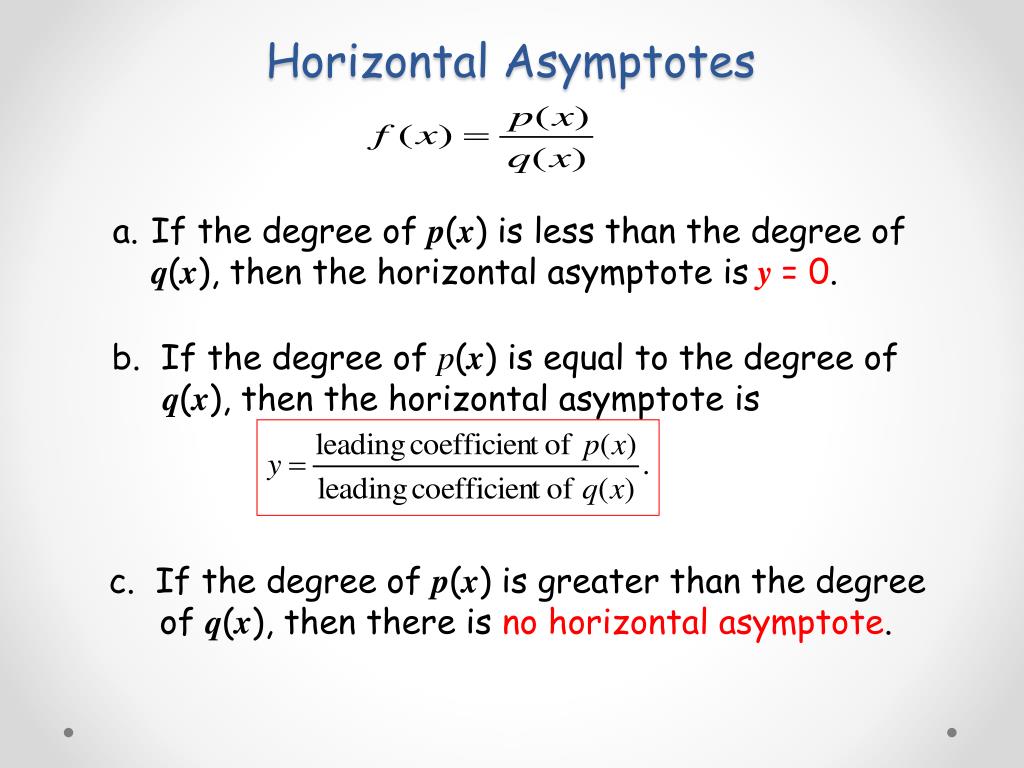

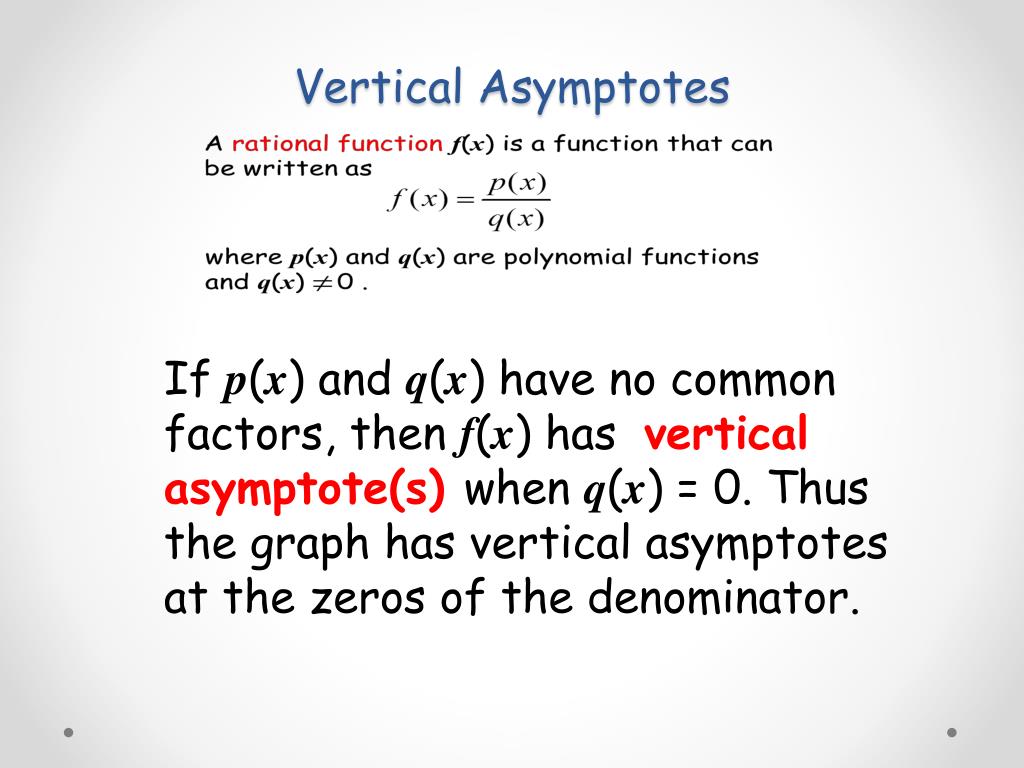

**Functions**AII.7 e 2009**Objectives:**Find the Vertical Asymptotes Find the Horizontal Asymptotes**Rational Functions**A rational function f(x) is a function that can be written as where p(x) and q(x) are polynomial functions and q(x) 0 . A rational function can have more than one vertical asymptote, but it can have at most one horizontal asymptote.**Vertical Asymptotes**If p(x) and q(x) have no common factors, then f(x) has vertical asymptote(s) when q(x) = 0. Thus the graph has vertical asymptotes at the zeros of the denominator.**Vertical Asymptotes**V.A. is x = a, where a represents real zeros of q(x). Example: Find the vertical asymptote of Since the zeros are 1 and -1. Thus the vertical asymptotes are x = 1 and x = -1.**Horizontal Asymptotes**A rational function f(x) is a function that can be written as where p(x) and q(x) are polynomial functions and q(x) 0 . The horizontal asymptote is determined by looking at the degrees of p(x) and q(x).**Horizontal Asymptotes**If the degree of p(x) is less than the degree of q(x), then the horizontal asymptote isy = 0. b. If the degree of p(x) is equal to the degree of q(x), then the horizontal asymptote is c. If the degree of p(x) is greater than the degree of q(x), then there is no horizontal asymptote.**Horizontal Asymptotes**• deg of p(x) < deg of q(x), then H.A. isy = 0 • deg of p(x) = deg of q(x), then H.A. is • deg of p(x) > deg of q(x), then no H.A. Example: Find the horizontal asymptote: Degree of numerator = 1 Degree of denominator = 2 Since the degree of the numerator is less than the degree of the denominator, horizontal asymptote isy = 0.**Horizontal Asymptotes**• deg of p(x) < deg of q(x), then H.A. isy = 0 • deg of p(x) = deg of q(x), then H.A. is • deg of p(x) > deg of q(x), then no H.A. Example: Find the horizontal asymptote: Degree of numerator = 1 Degree of denominator = 1 Since the degree of the numerator is equal to the degree of the denominator, horizontal asymptote is.**Horizontal Asymptotes**• deg of p(x) < deg of q(x), then H.A. isy = 0 • deg of p(x) = deg of q(x), then H.A. is • deg of p(x) > deg of q(x), then no H.A. Example: Find the horizontal asymptote: Degree of numerator = 2 Degree of denominator = 1 Since the degree of the numerator is greater than the degree of the denominator, there is nohorizontal asymptote.**Vertical & Horizontal Asymptotes**Answer Now • deg of p(x) < deg of q(x), then H.A. isy = 0 V.A. : x = a, where a represents real zeros of q(x). H.A. : • deg of p(x) = deg of q(x), then H.A. is • deg of p(x) > deg of q(x), then no H.A. Practice: Find the vertical and horizontal asymptotes:**Vertical & Horizontal Asymptotes**H.A. : V.A. : x = a, where a represents real zeros of q(x). • deg of p(x) < deg of q(x), then H.A. isy = 0 • deg of p(x) = deg of q(x), then H.A. is • deg of p(x) > deg of q(x), then no H.A. Practice: Find the vertical and horizontal asymptotes: V.A. : x = H.A.: none**Vertical & Horizontal Asymptotes**Answer Now • deg of p(x) < deg of q(x), then H.A. isy = 0 V.A. : x = a, where a represents real zeros of q(x). H.A. : • deg of p(x) = deg of q(x), then H.A. is • deg of p(x) > deg of q(x), then no H.A. Practice: Find the vertical and horizontal asymptotes:**Vertical & Horizontal Asymptotes**• deg of p(x) < deg of q(x), then H.A. isy = 0 V.A. : x = a, where a represents real zeros of q(x). H.A. : • deg of p(x) = deg of q(x), then H.A. is • deg of p(x) > deg of q(x), then no H.A. Practice: Find the vertical and horizontal asymptotes: V.A. : none H.A.: y = 0 is not factorable and thus has no real roots.**Vertical & Horizontal Asymptotes**Answer Now • deg of p(x) < deg of q(x), then H.A. isy = 0 V.A. : x = a, where a represents real zeros of q(x). H.A. : • deg of p(x) = deg of q(x), then H.A. is • deg of p(x) > deg of q(x), then no H.A. Practice: Find the vertical and horizontal asymptotes:**Vertical & Horizontal Asymptotes**• deg of p(x) < deg of q(x), then H.A. isy = 0 V.A. : x = a, where a represents real zeros of q(x). H.A. : • deg of p(x) = deg of q(x), then H.A. is • deg of p(x) > deg of q(x), then no H.A. Practice: Find the vertical and horizontal asymptotes: V.A. : x = -1 H.A.: y = 2
