  1. Enable Cloud with Virtual Application Networks Transforming Delivery of Applications to Users Mike Banic, VP Marketing, HP Networking

  2. Cloud Application Delivery Expectations Over Just Over 3 months 50% 1% To deploy a new application from data center to user Of smartphones consume 50% of mobile data Workloads will be virtualized by the end of 2012 COMPLEXITY OF THE INFRASTRUCTURE PRIVATE, PUBLIC AND INDEPENDENT CLOUDS DYNAMIC AND MOBILE SERVICE CONSUMPTION

  3. Legacy Networks Slow Application Deployment I need a video streaming VM My virtual machine is ready Rack 3, server 5 VLAN 10, 10 Mbps Are you ready yet? System Admin Time in Weeks … Which server are those VMs on? Which subnets? How much bandwidth? I need to start scripting OK. Ready to connect. Network Admin

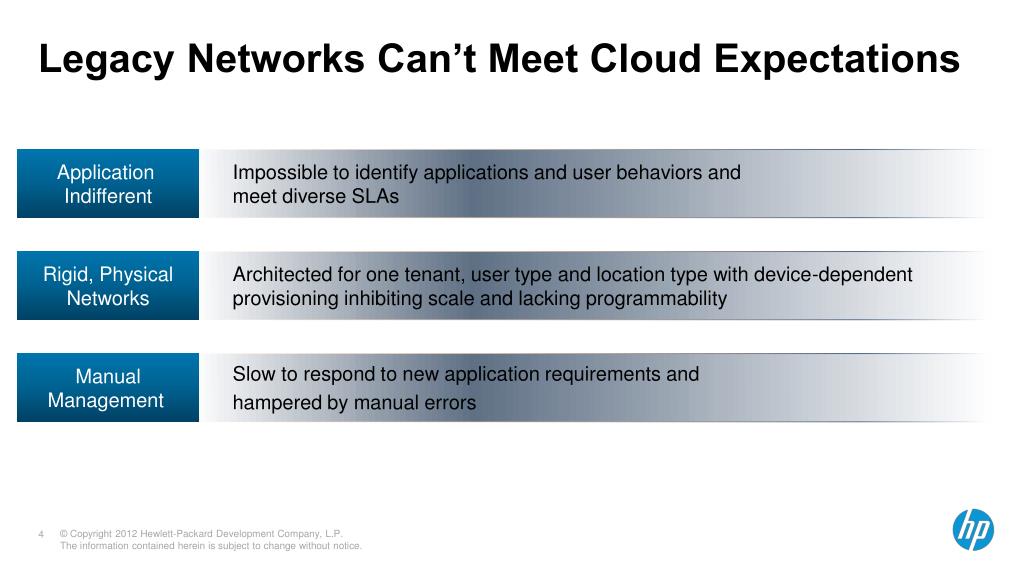

  4. Legacy Networks Can’t Meet Cloud Expectations Application Indifferent Impossible to identify applications and user behaviors and meet diverse SLAs Rigid, PhysicalNetworks Architected for one tenant, user type and location type with device-dependent provisioning inhibiting scale and lacking programmability Manual Management Slow to respond to new application requirements and hampered by manual errors

  5. Introducing Virtual Application Networks Delivering New Cloud Network Functionality Extend the cloud from the data center to user in campus and branch locations Tune the physical network to meet delivery requirements of applications Reduce time to deploy cloud applications from weeks to minutes

  6. Virtual Application Networks for Cloud Deliver Application Characterization Characterize the application to create consistency, reliability & repeatability across the entire network infrastructure Network Virtualization Virtualize & program the infrastructure to create multitenant, on-demand, topology & device-independent provisioning AutomatedOrchestration Orchestrate based on templates, including user SLA and policy, to enable dynamic application delivery

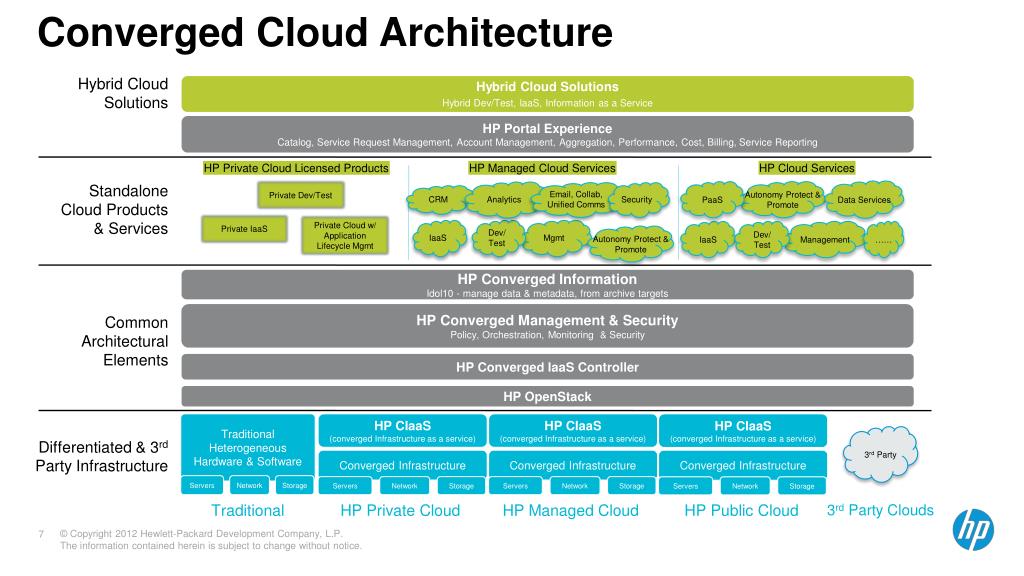

  7. Converged Cloud Architecture Hybrid Cloud Solutions Hybrid Cloud Solutions Hybrid Dev/Test, IaaS, Information as a Service HP Portal Experience Catalog, Service Request Management, Account Management, Aggregation, Performance, Cost, Billing, Service Reporting HP Private Cloud Licensed Products HP Managed Cloud Services HP Cloud Services Standalone Cloud Products & Services Data Services Private Dev/Test PaaS Autonomy Protect & Promote Analytics Email, Collab, Unified Comms Security Private IaaS Private Cloud w/ Application Lifecycle Mgmt CRM IaaS Dev/ Test Management …… Autonomy Protect & Promote IaaS Dev/ Test Mgmt HP Converged Information Idol10 - manage data & metadata, from archive targets HP Converged Management & Security Policy, Orchestration, Monitoring & Security Common Architectural Elements HP Converged IaaS Controller HP OpenStack Traditional Heterogeneous Hardware & Software HP CIaaS (converged Infrastructure as a service) HP CIaaS (converged Infrastructure as a service) HP CIaaS (converged Infrastructure as a service) 3rd Party Differentiated & 3rd Party Infrastructure Converged Infrastructure Servers Network Storage Servers Network Storage Traditional HP Private Cloud HP Managed Cloud HP Public Cloud 3rd Party Clouds Converged Infrastructure Converged Infrastructure Servers Servers Network Network Storage Storage

  8. HP Converged Infrastructure for Cloud Best-in-Class Networking in a Converged Infrastructure Storage Servers Converged Infrastructure FlexNetwork Architecture Power and cooling HP Proprietary and Confidential Management software

  9. FlexNetwork Architecture Industry’s only architecture converging data center, campus, branch

  10. Virtual Application Networks Building on FlexNetwork Architecture

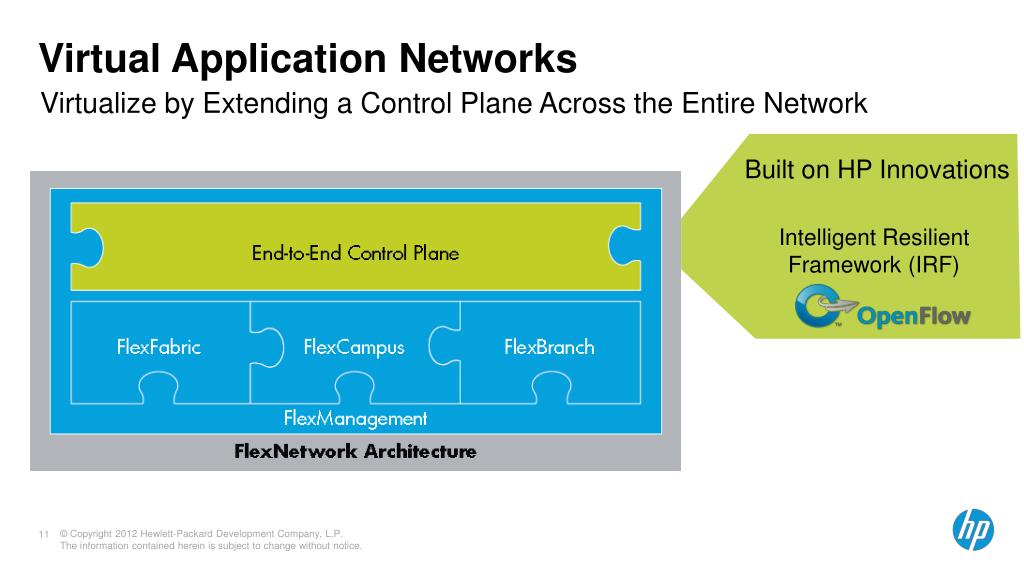

  11. Virtual Application Networks Virtualize by Extending a Control Plane Across the Entire Network Built on HP Innovations Intelligent Resilient Framework (IRF)

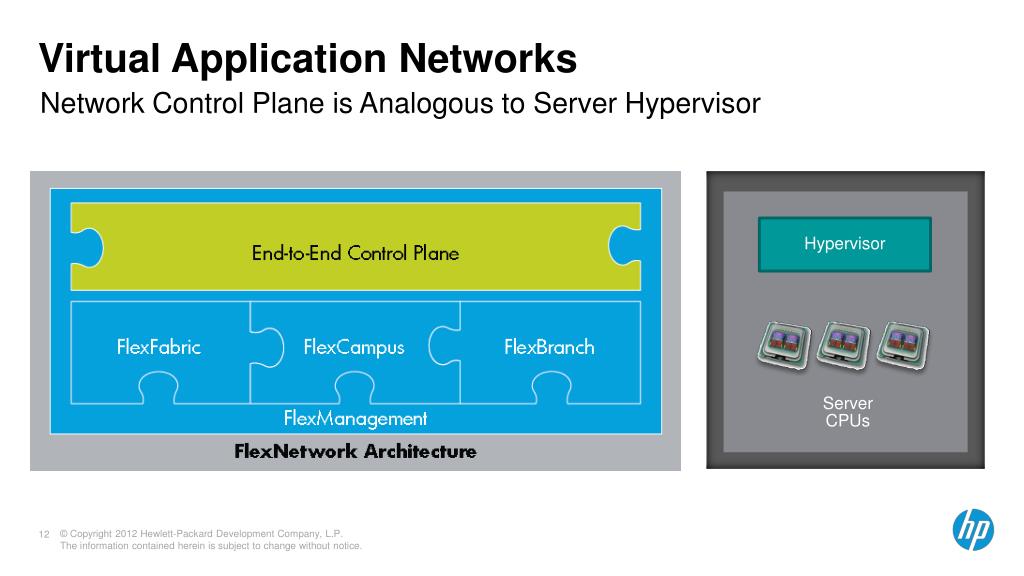

  12. Virtual Application Networks Network Control Plane is Analogous to Server Hypervisor Hypervisor Server CPUs

  13. Creating Virtual Application Networks IMC Virtual Application Network Manager Module Virtual Application Networks • Characterize Applications • Virtualize the network • Automate Orchestration

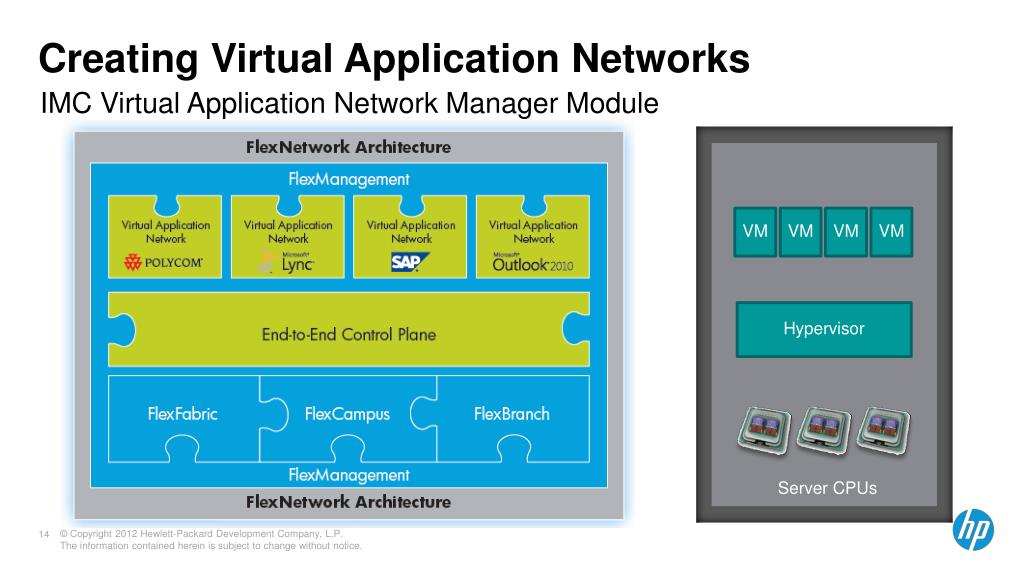

  14. Creating Virtual Application Networks IMC Virtual Application Network Manager Module VM VM VM VM Hypervisor Server CPUs

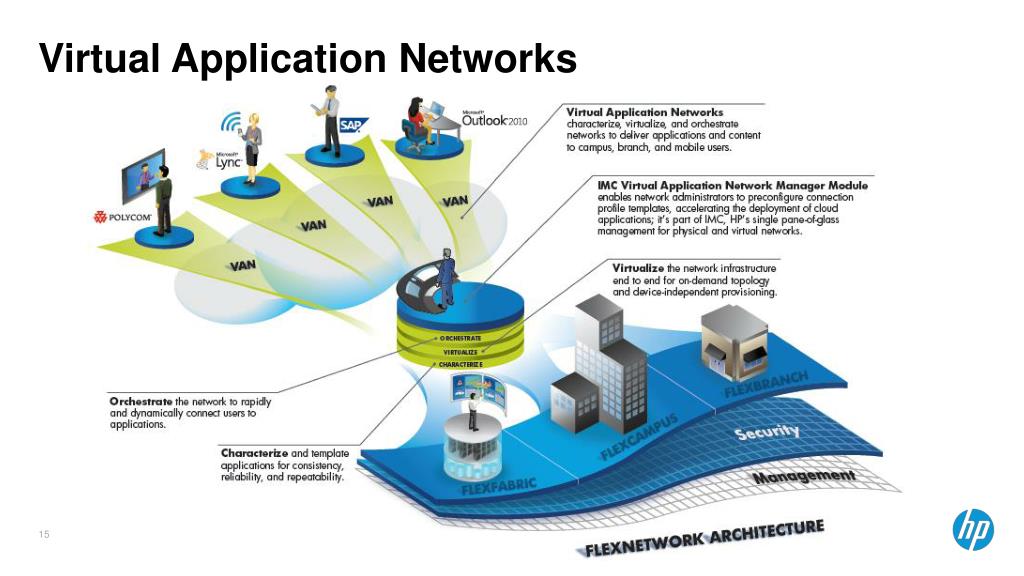

  15. Virtual Application Networks

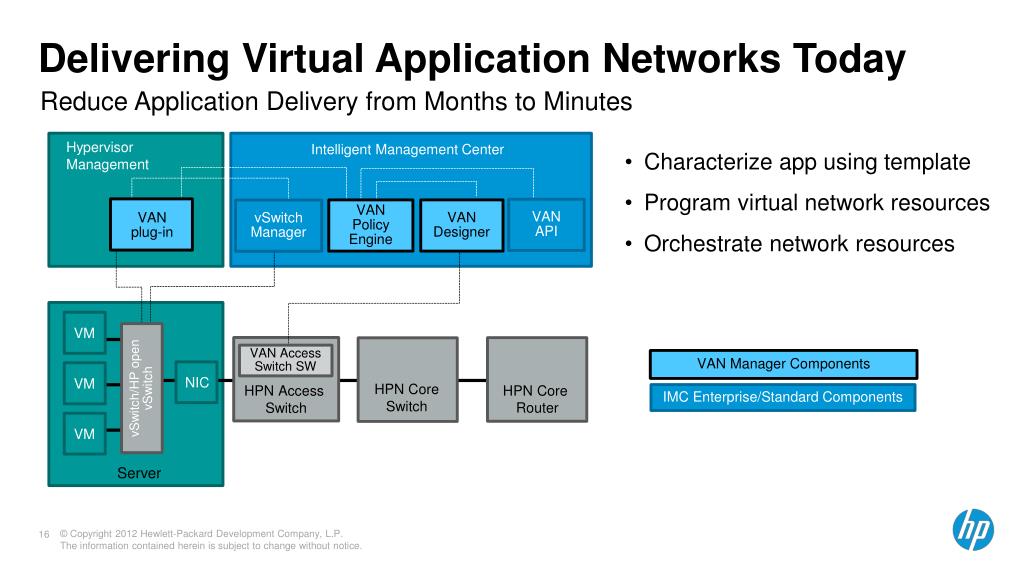

  16. Delivering Virtual Application Networks Today Reduce Application Delivery from Months to Minutes Hypervisor Management • Characterize app using template • Program virtual network resources • Orchestrate network resources Intelligent Management Center VAN API VAN Policy Engine VAN Designer vSwitch Manager VANplug-in VM VAN Access Switch SW VAN Manager Components HPN Data Center Fabric vSwitch/HP open vSwitch NIC VM HPN CoreSwitch HPN Core Router HPN Access Switch IMC Enterprise/Standard Components VM Server

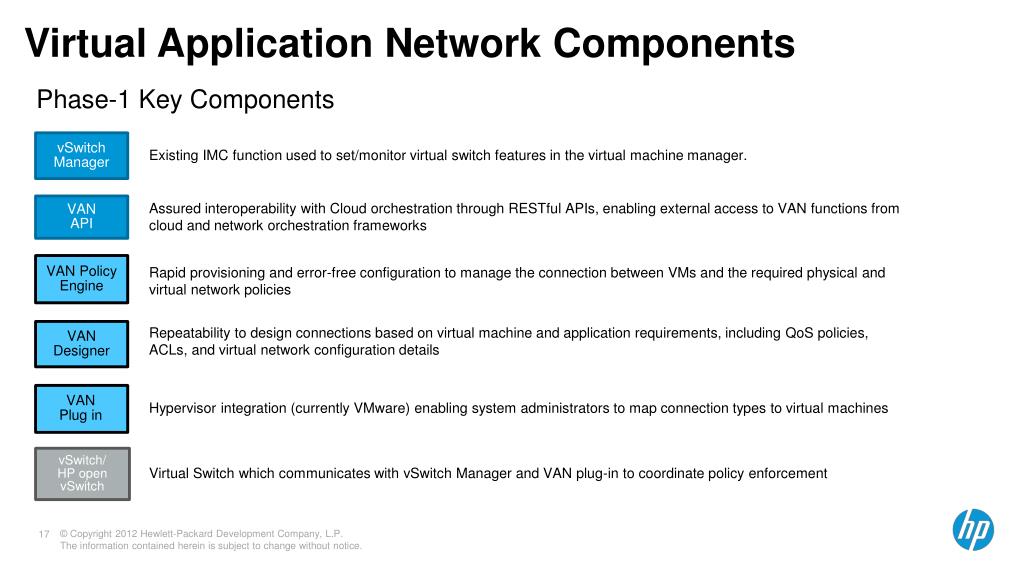

  17. Virtual Application Network Components Phase-1 Key Components vSwitch Manager Existing IMC function used to set/monitor virtual switch features in the virtual machine manager. Assured interoperability with Cloud orchestration through RESTful APIs, enabling external access to VAN functions from cloud and network orchestration frameworks VAN API VAN Policy Engine Rapid provisioning and error-free configuration to manage the connection between VMs and the required physical and virtual network policies Repeatability to design connections based on virtual machine and application requirements, including QoS policies, ACLs, and virtual network configuration details VAN Designer Hypervisor integration (currently VMware) enabling system administrators to map connection types to virtual machines VAN Plug in vSwitch/HP open vSwitch Virtual Switch which communicates with vSwitch Manager and VAN plug-in to coordinate policy enforcement

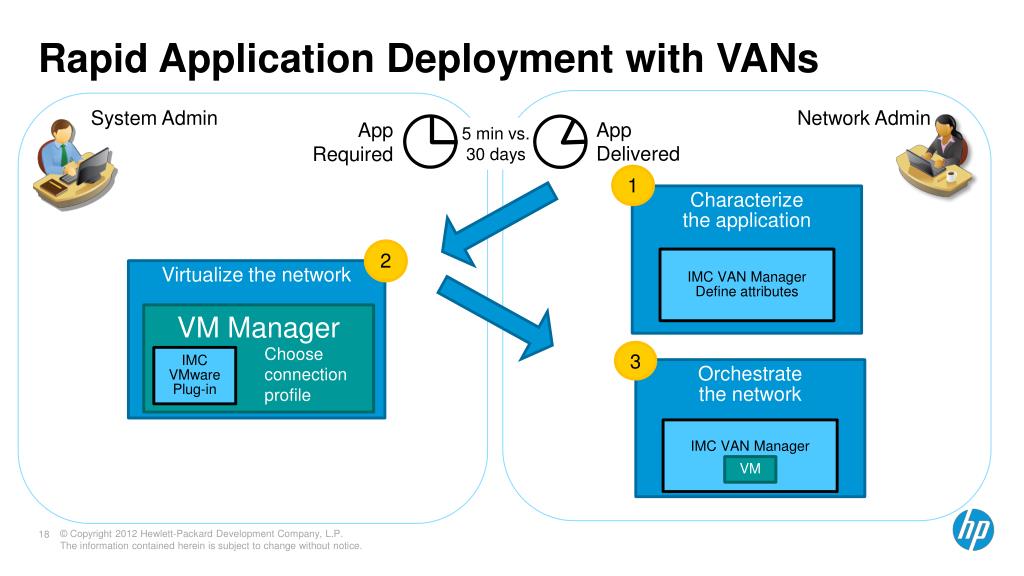

  18. Rapid Application Deployment with VANs System Admin Network Admin AppDelivered AppRequired 5 min vs. 30 days 1 Characterize the application 2 IMC VAN Manager Define attributes Virtualize the network VM Manager Choose connection profile 3 IMC VMware Plug-in Orchestrate the network IMC VAN Manager VM

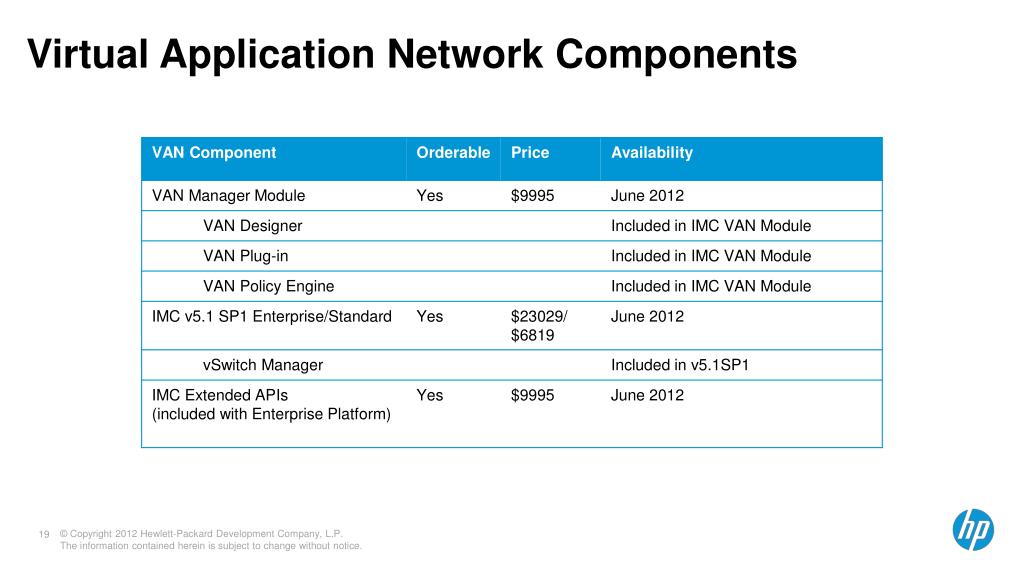

  19. Virtual Application Network Components

  20. Enable Cloud with Virtual Application Networks Delivering New Applications in Minutes versus Weeks Tune network to the application delivery requirements Virtualize the network end to end, from application to user Enable IT to manage the network with policies rather than CLI, scripts Single pane-of-glass management for the physical and virtual network Ensure choice with open, standards-based approach
