Presentation Transcript

  1. LDC borstplätering www.ldc-brushplating.com

  2. LDC borstplätering LDC Portable Electroplating Cold process: used at roomtemperature, no stress or adjustmentsbecause of termal distorsion. To tolerance: normaly no machining required Quick metal build-up: 0,05 mm in 10-15 min. Plating: on all conductive materials, castiron, stainless, mild steel, copper, chromeetc Densedeposits: no or verylittleporosity in mostcoatings Many differens metals: nickel, gold, silver, copper, cobolt, zinc and alloys. Excellent bonding: molecular bonding results in very god adhesion, all coatingscan be machined, ground or polished. Mobile equipment: the repair can be done on site www.ldc-brushplating.com

  3. LDC borstplätering • Retainingrings, part of generator for powerstation, silverplated. www.ldc-brushplating.com

  4. LDC borstplätering • Retainingrings, part of generator for powerstation, silverplated. www.ldc-brushplating.com

  5. LDC borstplätering Bus bar, contact rods for the power generating industry, gold and silver coated contact-surfaces for increased conductivity. www.ldc-brushplating.com

  6. LDC borstplätering On-site plating job, shafts to be restored www.ldc-brushplating.com

  7. LDC borstplätering • Electric rotor with bad / worn bearing / seal areas repaired to original size. www.ldc-brushplating.com

  8. LDC borstplätering • Electric rotor with bad / worn bearing / seal areas repaired to original size. www.ldc-brushplating.com

  9. LDC borstplätering • Endcover of cast iron or Aluminium with worn /mismachined bearing seat corrected by LDC nickel. www.ldc-brushplating.com

  10. LDC borstplätering • Worn shaft on a turbine wing in power plant, to be repaired. www.ldc-brushplating.com

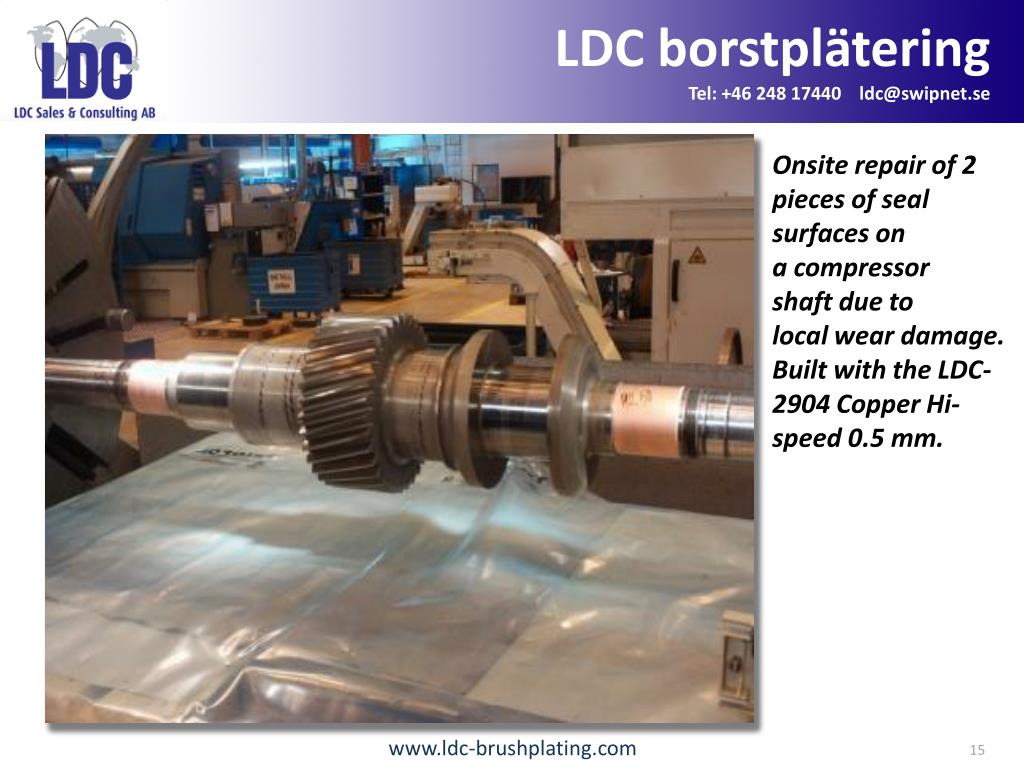

  11. LDC borstpläteringTel: +46 248 17440 ldc@swipnet.se Onsite repair of 2  pieces of seal  surfaces on a compressor  shaft due to  local wear damage.Built with the LDC-2904 Copper Hi-speed 0.5 mm. www.ldc-brushplating.com

  12. LDC borstpläteringTel: +46 248 17440 ldc@swipnet.se Finished compressor  shaft to its original dimensions,  with a hard, dense  top layer of the LDC-2874 Nickel Tungsten. With a hardness of 58 Hrc www.ldc-brushplating.com

  13. LDC borstplätering • Bearing journals and sealareas can be repaired on a Turboshaft • Highly polished cylinders with damages is corrected by LDC plating www.ldc-brushplating.com

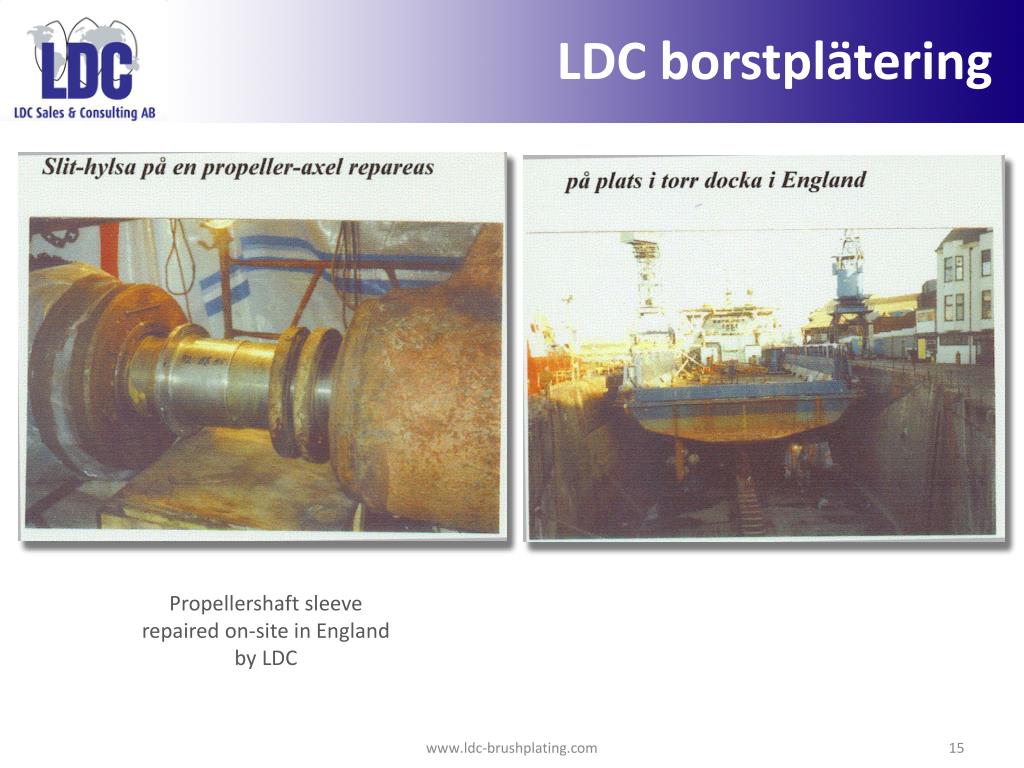

  14. LDC borstplätering • Propellershaft sleeve repaired on-site in England by LDC www.ldc-brushplating.com

  15. LDC borstplätering • Documented view of enlarged LDC-2807 Nickel layer, as part of quality control. www.ldc-brushplating.com

  16. LDC borstplätering • Typical document of approval for LDC in Sweden. www.ldc-brushplating.com
