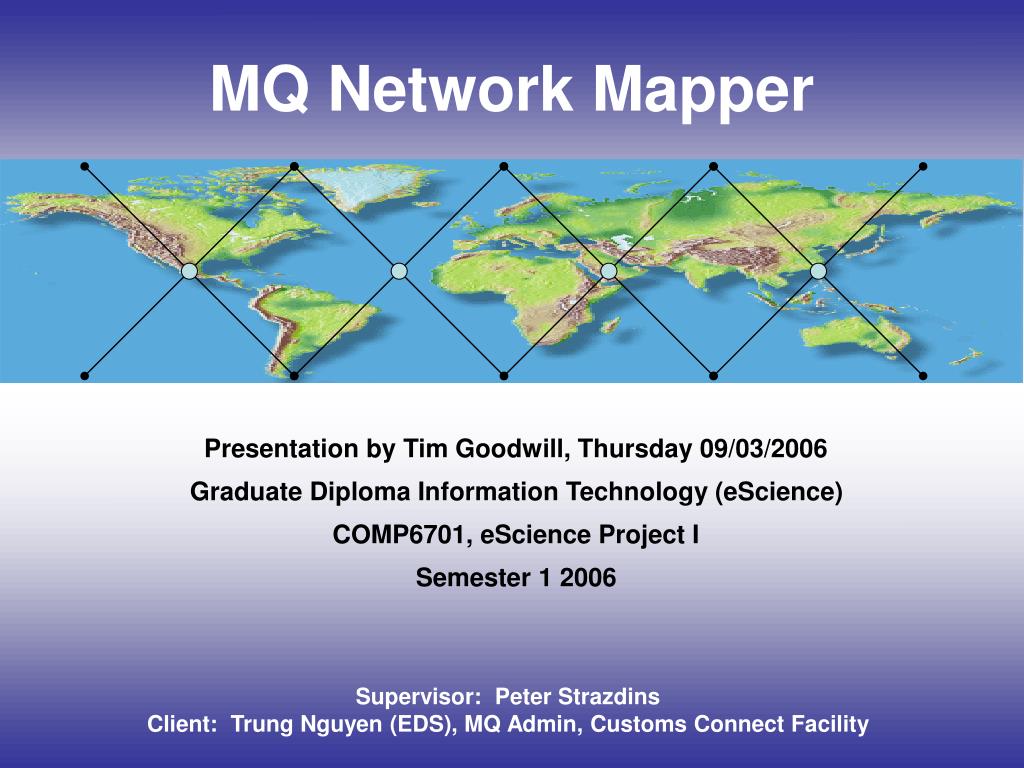

  1. MQ Network Mapper Supervisor: Peter Strazdins Client: Trung Nguyen (EDS), MQ Admin, Customs Connect Facility Presentation by Tim Goodwill, Thursday 09/03/2006 Graduate Diploma Information Technology (eScience) COMP6701, eScience Project I Semester 1 2006

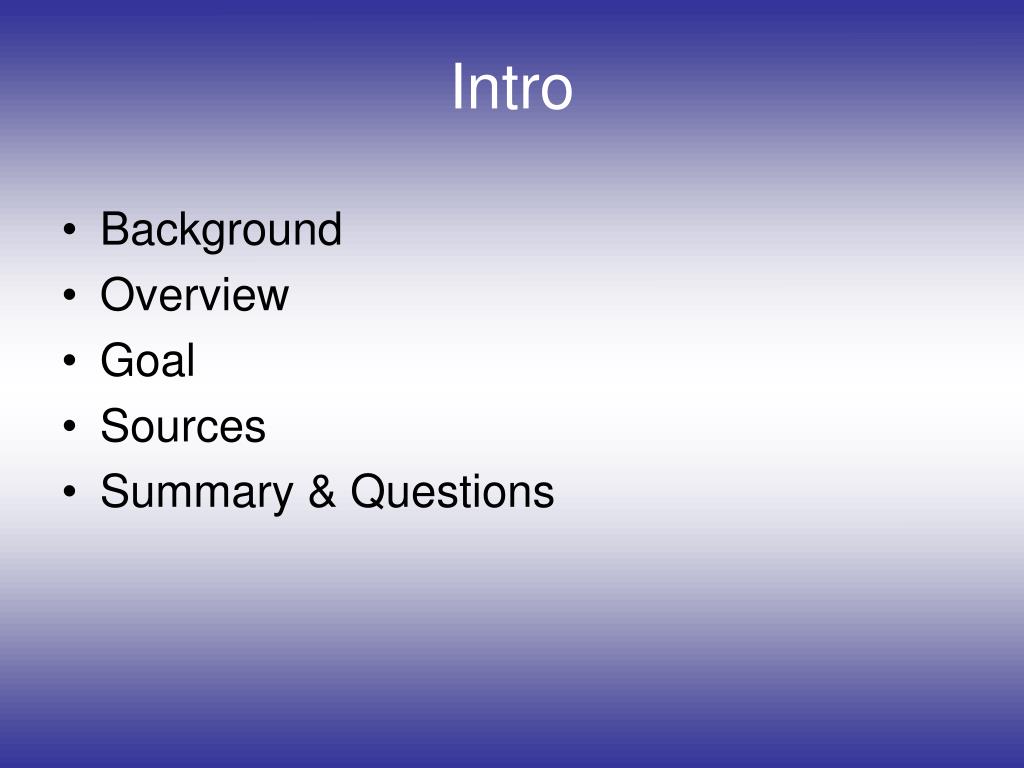

  2. Intro • Background • Overview • Goal • Sources • Summary & Questions

  3. Background Websphere MQ is used in every major industry in many countries around the world, and is the pseudo-standard for program-to-program communication in the Financial industry.

  4. Background The MQ Network: Websphere MQ is IBM’s middleware for commercial messaging and queuing – a method of program-to-program communication. Websphere MQ programs use a consistent API across all platforms

  5. Background The MQ Network: Each remote system has its own queue manager with its own queues. The queue manager transfers messages to other queue managers via channels using existing network facilities, such as TCP/IP, SNA, SPX.

  6. Background The MQ Network:

  7. Overview Introducing – ‘HyperTree’

  8. Overview

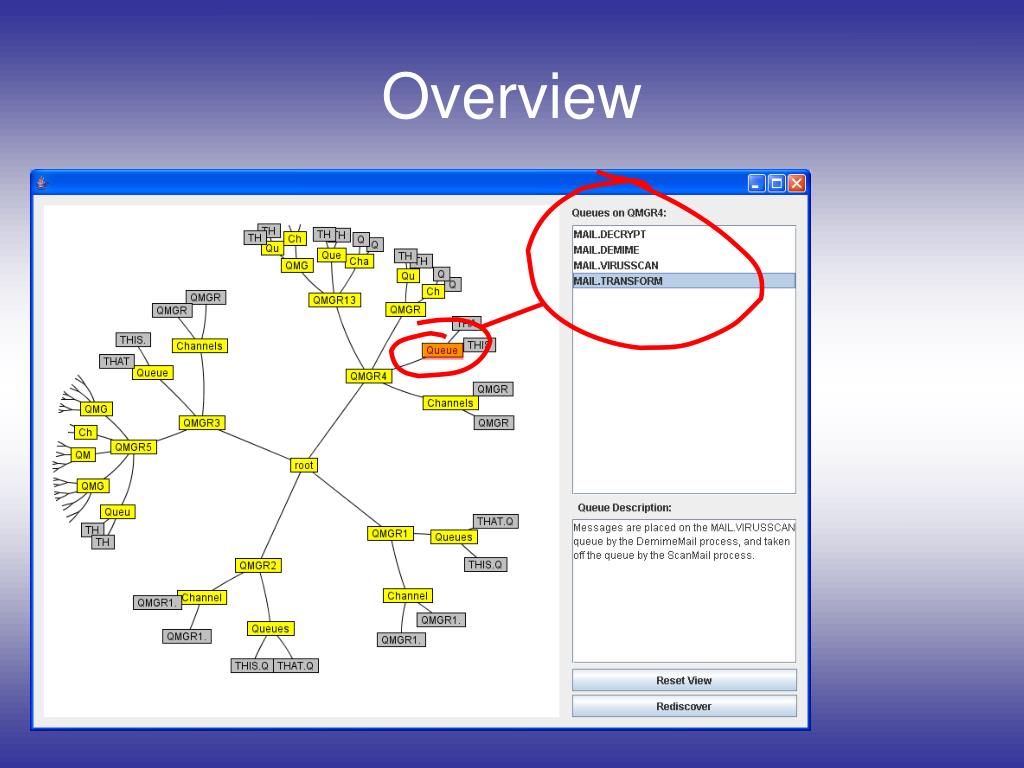

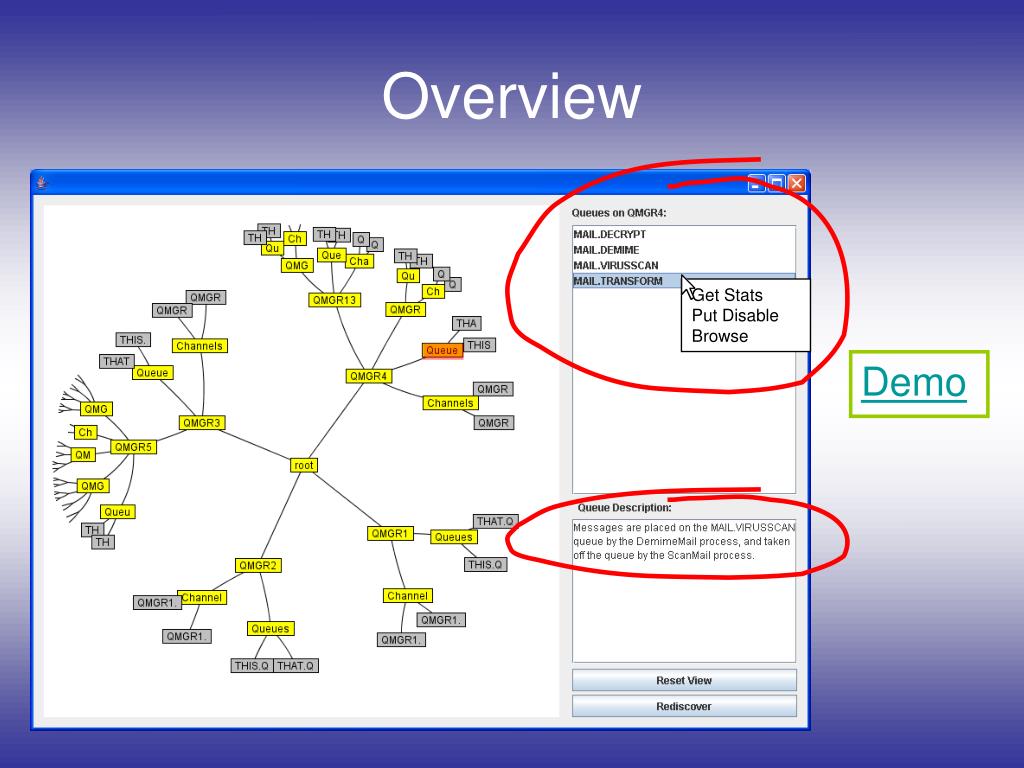

  9. Overview Demo Get Stats Put Disable Browse

  10. Goal • Portable • Out-of the box • Auto Discovery • At-a-glance-monitoring • Easily accessible diagnostic information

  11. Timetable

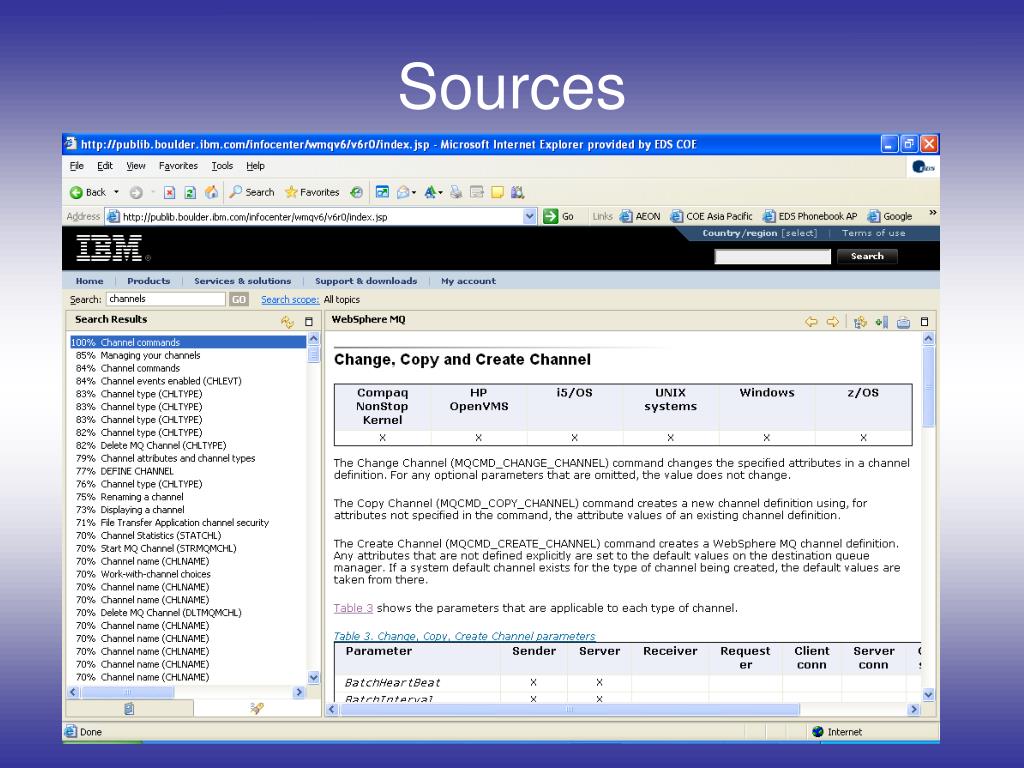

  12. Sources

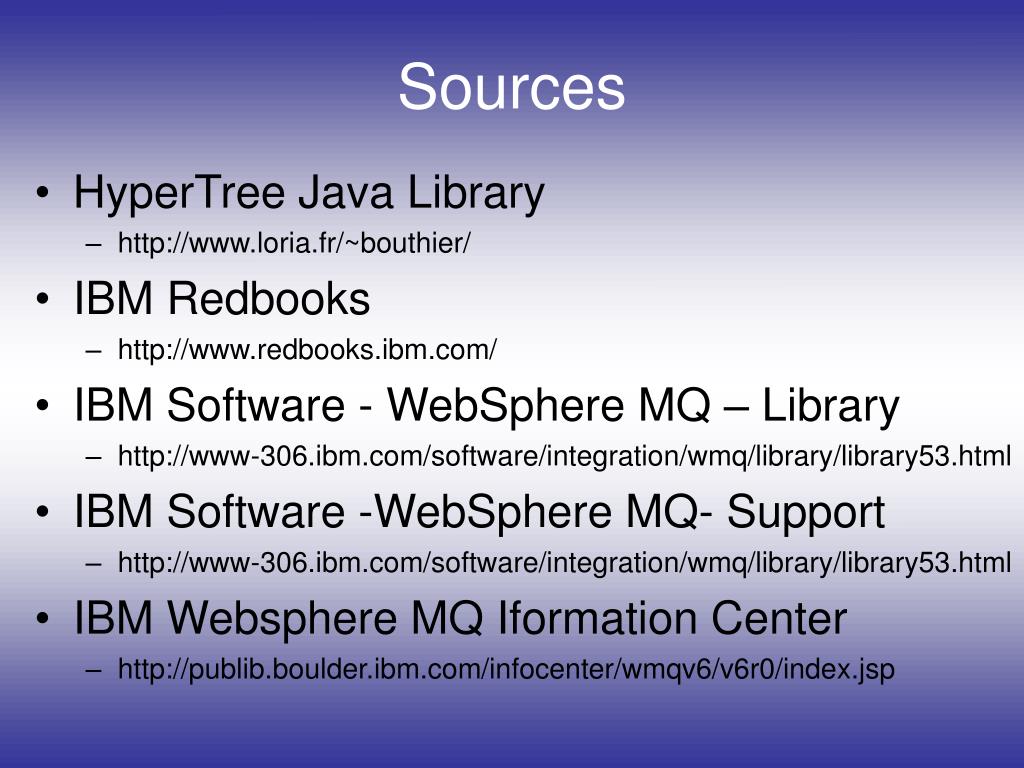

  13. Sources • HyperTree Java Library • http://www.loria.fr/~bouthier/ • IBM Redbooks • http://www.redbooks.ibm.com/ • IBM Software - WebSphere MQ – Library • http://www-306.ibm.com/software/integration/wmq/library/library53.html • IBM Software -WebSphere MQ- Support • http://www-306.ibm.com/software/integration/wmq/library/library53.html • IBM Websphere MQ Iformation Center • http://publib.boulder.ibm.com/infocenter/wmqv6/v6r0/index.jsp

  14. Summary • MQ – Ubiquitous in the Financial industry • May be vast, complex networks • HyperTree – Hyperbolic tree structure • Challenges: • Data handling - HyperTree • Websphere MQ ‘PCF’ Commands • Portable, easily deployable, diagnostic
