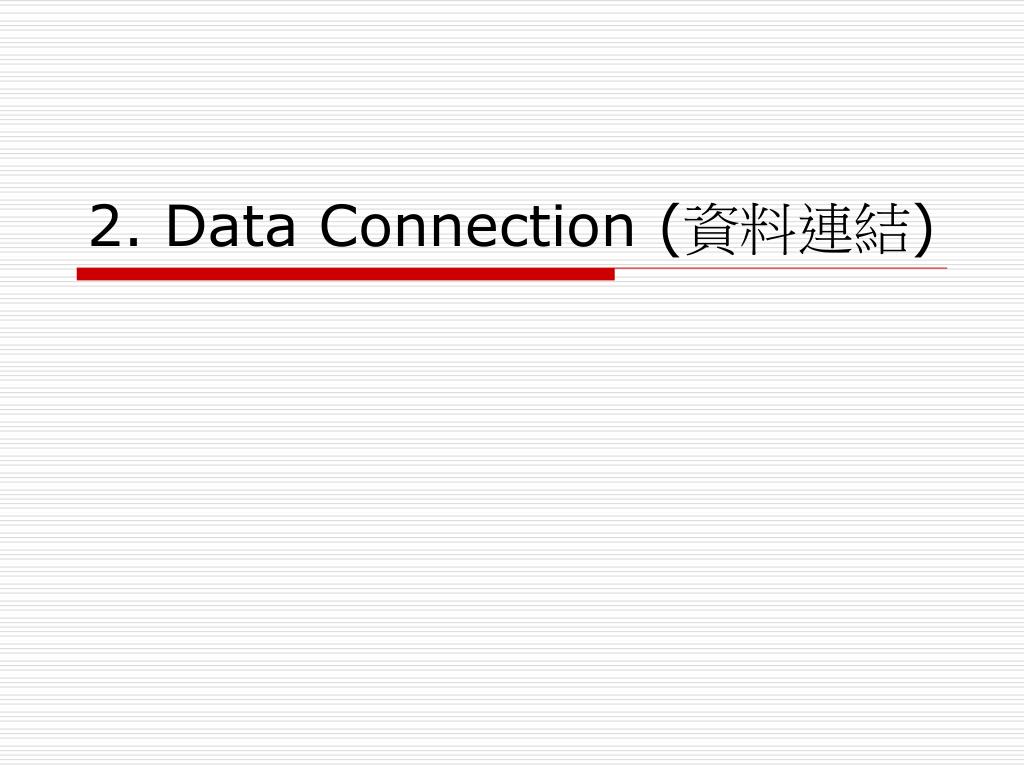

  1. 2. Data Connection (資料連結)

  2. Name Space (命名空間) • 不同資料庫的連結有不同的命名空間 • 建立資料連結前需要先匯入命名空間 • SQL server: • System.Data and System.Data.SqlClient • ODBC: • System.Data and System.DataOdbc • OLE: • System.Data and System.Data.OleDb • Oracle: • System.Data and System.Data.OracleClient

  3. Example (範例) \Ch17\Connection_01_Access.aspx 01:<%@ Page Language="VB" %> 02:<%@ Import Namespace="System.Data" %> 03:<%@ Import Namespace="System.Data.OleDb" %> 04:<script runat="server"> 05: Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) 06: Dim objConn As New OleDbConnection() 07: objConn.ConnectionString = "Provider=Microsoft.Jet. OLEDB.4.0;" & "Data Source=" & _ Server.MapPath("~/App_Data/Friend.mdb") 08: objConn.Open() 09: objConn.Close() 10: End Sub 11:</script>

  4. Establish connection (建立資料連結) • 兩種語法,以 OLE DB連接法為例 • Dim objConn As New OleDbConnection() • Dim objConn As New OleDbConnection(connectionString) • ConnectionString

  5. Example (範例) – OLE DB <%@ Page Language="VB" %> <%@ Import Namespace="System.Data" %> <%@ Import Namespace="System.Data.OleDb" %> <script runat="server"> Sub Page_Load(sender As Object, e As System.EventArgs) Dim objConn As New OleDbConnection() objConn.ConnectionString = "Provider=Microsoft.Jet.OLEDB.4.0;" & _ "Data Source=" & Server.MapPath("~/App_Data/Friend.mdb") objConn.Open() objConn.Close() End Sub </script>

  6. Example (範例) – SQL Server <%@ Page Language="VB" %> <%@ Import Namespace="System.Data" %> <%@ Import Namespace="System.Data.SqlClient" %> <script runat="server"> Sub Page_Load(sender As Object, e As System.EventArgs) Dim objConn As New SqlConnection() objConn.ConnectionString = "Data Source=localhost;" & _ "Integrated Security=SSPI;Initial Catalog=Friend" objConn.Open() objConn.Close() End Sub </script>

  7. web.config • 連結資料庫100次,要寫100次連結程式? • 把連結方式寫在web.config即可 • Web.config (課本CH11.7) • 在程式所在的資料夾,放入web.config,程式中所需的資訊就可以從web.config中抓取

  8. Example (範例) – web.config <?xml version="1.0" encoding="utf-8"?> <configuration> <connectionStrings> <add name="OLEDB_Friend" providerName="System.Data. OleDb" connectionString="Provider=Microsoft.Jet.OLEDB. 4.0;Data Source=C:\Inetpub\wwwroot\App_Data\ Friend.mdb" /> <add name="OLEDB_Price" providerName="System.Data. OleDb" connectionString="Provider=Microsoft.Jet.OLEDB. 4.0;Data Source=C:\Inetpub\wwwroot\App_Data\ Price.mdb" /> </connectionStrings> </configuration>

  9. Example (範例) <%@ Page Language="VB" %> <%@ Import Namespace="System.Data" %> <%@ Import Namespace="System.Data.OleDb" %> <script runat="server"> Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) '取得 web.config 組態檔的資料連接設定 Dim setting As ConnectionStringSettings = _ConfigurationManager.ConnectionStrings("OLEDB_Friend") '建立 Connection 物件 Dim objConn As New OleDbConnection() objConn.ConnectionString = setting.ConnectionString '開啟資料連接 objConn.Open() '關閉資料連接 objConn.Close() End Sub </script>

  10. Tips (提示) • 如何讓範例在VS 2005環境下執行 • Copy範例檔到d: (eg: d:\ch17) • Copy web.config到 範例檔目錄 (eg: copy web.config  d:\ch17) • Copy 資料庫到d: (eg: d:\app_data) • 修改web.config的資料庫聯結 (eg: c:\Inetpub\wwwroot  d:\app_data)

  11. Command • Command物件 • 用來執行SQL 命令 • Insert, update, select, delete • 宣告方式 (以OLEDB連結法為例) • Dim objCmd As New OleDbCommand() • Dim objCmd As New OleDbCommand(sql) • Dim objCmd As New OleDbCommand(sql, connection) • Dim objCmd As New OleDbCommand(sql, connection, transaction)

  12. Example (範例) <%@ Page Language="VB" %> <%@ Import Namespace="System.Data" %> <%@ Import Namespace="System.Data.OleDb" %> <script runat="server"> Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) '取得 web.config 組態檔的資料連接設定 Dim setting As ConnectionStringSettings = _ ConfigurationManager.ConnectionStrings("OLEDB_Friend") '建立資料連接 Dim objConn As New OleDbConnection() objConn.ConnectionString = setting.ConnectionString '開啟資料連接 objConn.Open() '使用 Command 物件執行 SQL 命令 Dim strSQL As String = "Delete From 擇友俱樂部 Where 姓名='幻影小雨貓'" Dim objCmd As New OleDbCommand(strSQL, objConn) objCmd.ExecuteNonQuery() '關閉資料連接 objConn.Close() End Sub </script>

  13. Command 物件的屬性 • CommandText="…" • 取得想要執行的SQL 命令 • Eg: objCmd.CommandText=“delete from 擇友俱樂部”where 姓名=‘xxx’” • CommandTimeout=n • 設定逾期時間 • CommandType="{StoredProcedure|TableDirect|Text}" • 設定commandText所代表的意義 • Connection=… • 設定執行所需的資料連結 • Parameters • 傳遞參數 • Transaction=… • 設定”交易”
