  1. InSync Adaptive Traffic Signal Technology Real-Time Artificial IntelligenceDelivering Real-World Results Reggie Chandra, PhD, PE, PTOE 10/6/11 1

  2. How does InSync work? 10/6/11 2

  3. Local Optimizer Analog to DIGITAL Global Optimizer 10/6/11 3

  4. Analog to DIGITAL State machine 10/6/11 4

  5. A E B F C G D H Patented 10/6/11 5

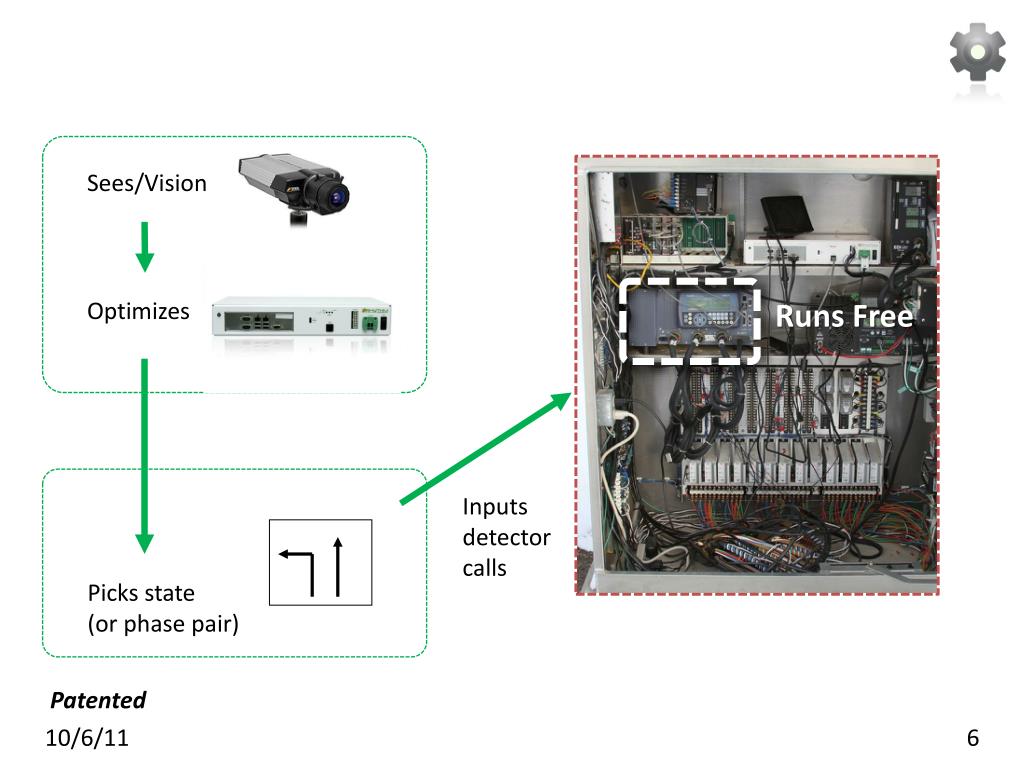

  6. Sees/Vision Runs Free Optimizes Inputs detector calls Picks state(or phase pair) Patented 10/6/11 6

  7. Twisted pair of copper Fiber Wireless 10/6/11 7

  8. InSync:FUSION 10/6/11 8

  9. 10/6/11 9

  10. Global optimizer coordinates progression Time Northbound Distance 10/6/11 10 Patented

  11. Global optimizer coordinates progression Southbound Northbound 1 10/6/11 11 Patented

  12. Global optimizer coordinates progression Southbound Northbound 1 10/6/11 12 Patented

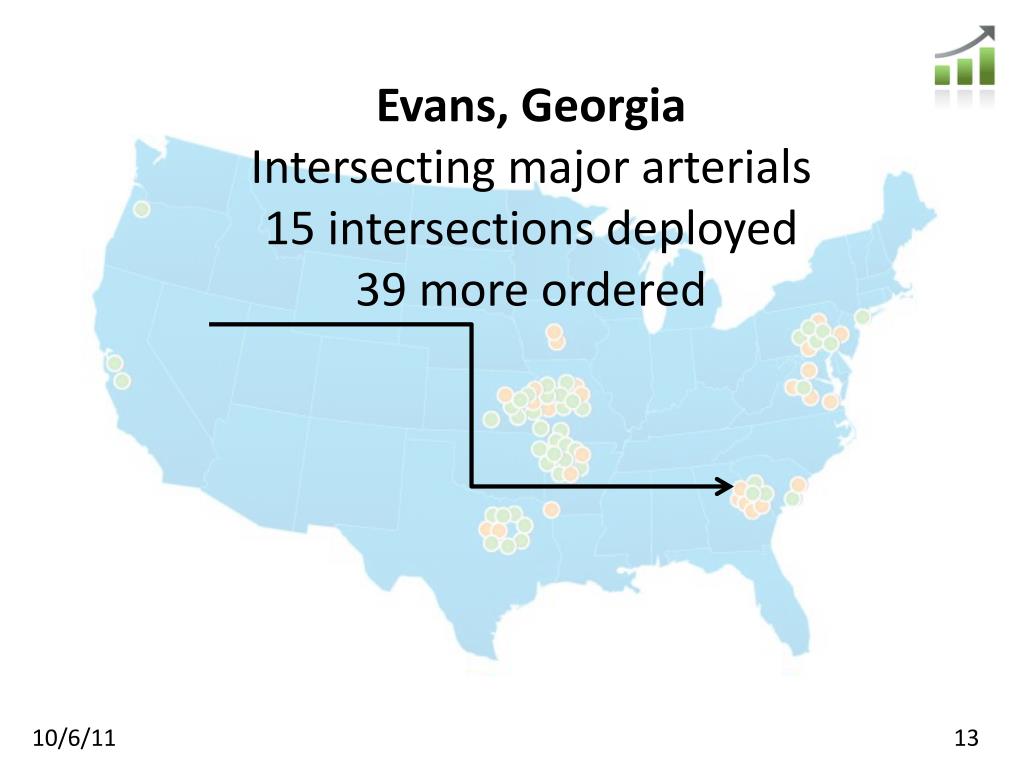

  13. Evans, Georgia Intersecting major arterials 15 intersections deployed 39 more ordered 10/6/11 13

  14. 10/6/11 14

  15. [Facts] Delay reduction Washington Road Corridor, Evans, Georgia 10/6/11 15

  16. [Facts] Stop reduction Washington Road Corridor, Evans, Georgia 10/6/11 16

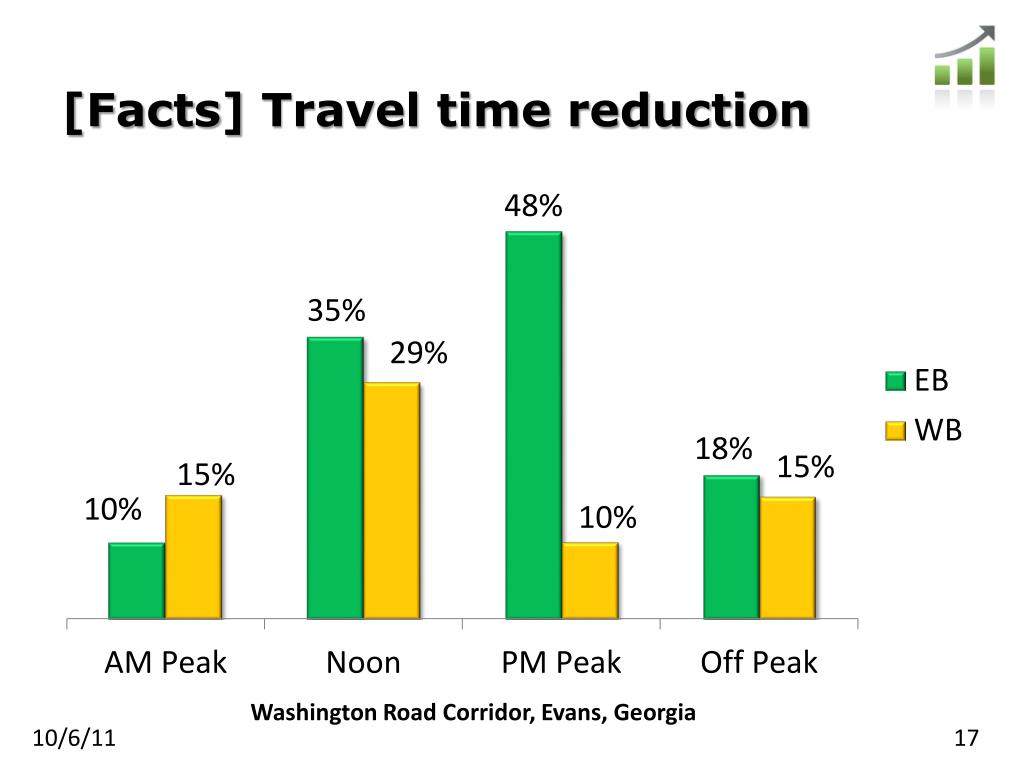

  17. [Facts] Travel time reduction Washington Road Corridor, Evans, Georgia 10/6/11 17

  18. [Facts] Fuel usage reduction Washington Road Corridor, Evans, Georgia 10/6/11 18

  19. [Facts] Emissions reduction Washington Road Corridor, Evans, Georgia 10/6/11 19

  20. [Fact] InSync customers are very satisfied, just ask • “It was amazing to see the transformation in the road in mere minutes.” Matt Schlachter, P.E., Director, Columbia County Board of Commissioners 10/6/11 20

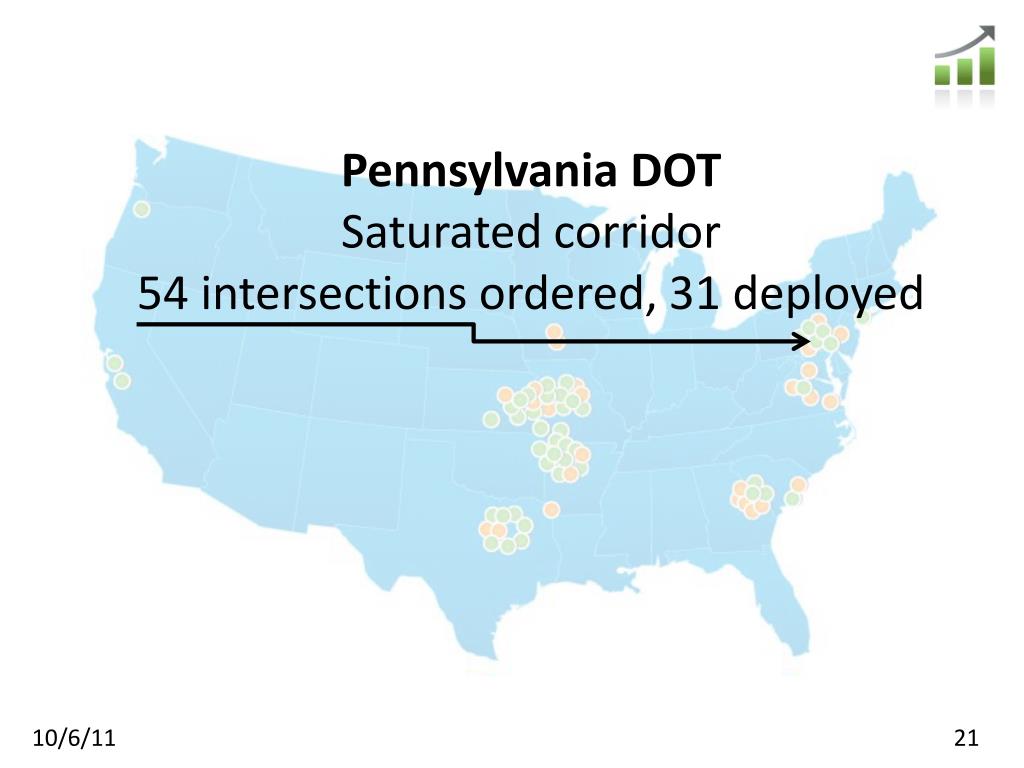

  21. Pennsylvania DOT Saturated corridor 54 intersections ordered, 31 deployed 10/6/11 21

  22. [Fact] All motorists benefit “The InSync system was able to Provide lower travel times and less delay … While clearing queues for the side street approaches and left turn movements more efficiently than the closed loop system. “ Source:Pennoni Associates Inc. regarding PA Route 202 10/6/11 22

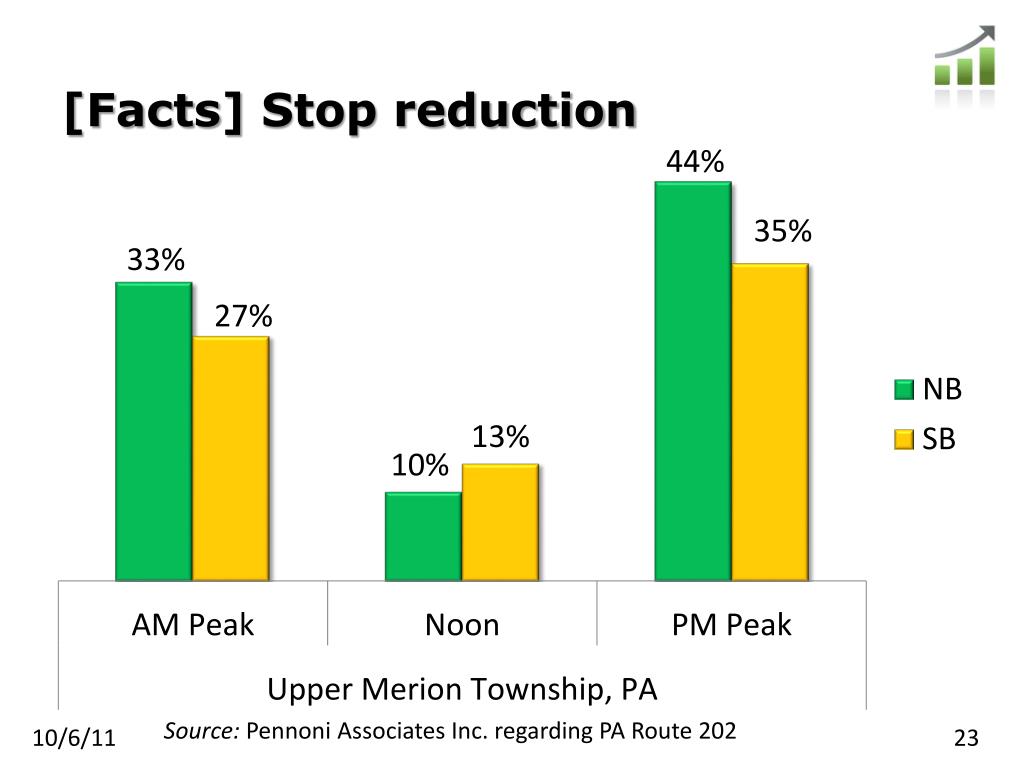

  23. [Facts] Stop reduction Source:Pennoni Associates Inc. regarding PA Route 202 10/6/11 23

  24. [Facts] Delay reduction Source:Pennoni Associates Inc. regarding PA Route 202 10/6/11 24

  25. [Facts] Average speed increase Source:Pennoni Associates Inc. regarding PA Route 202 10/6/11 25

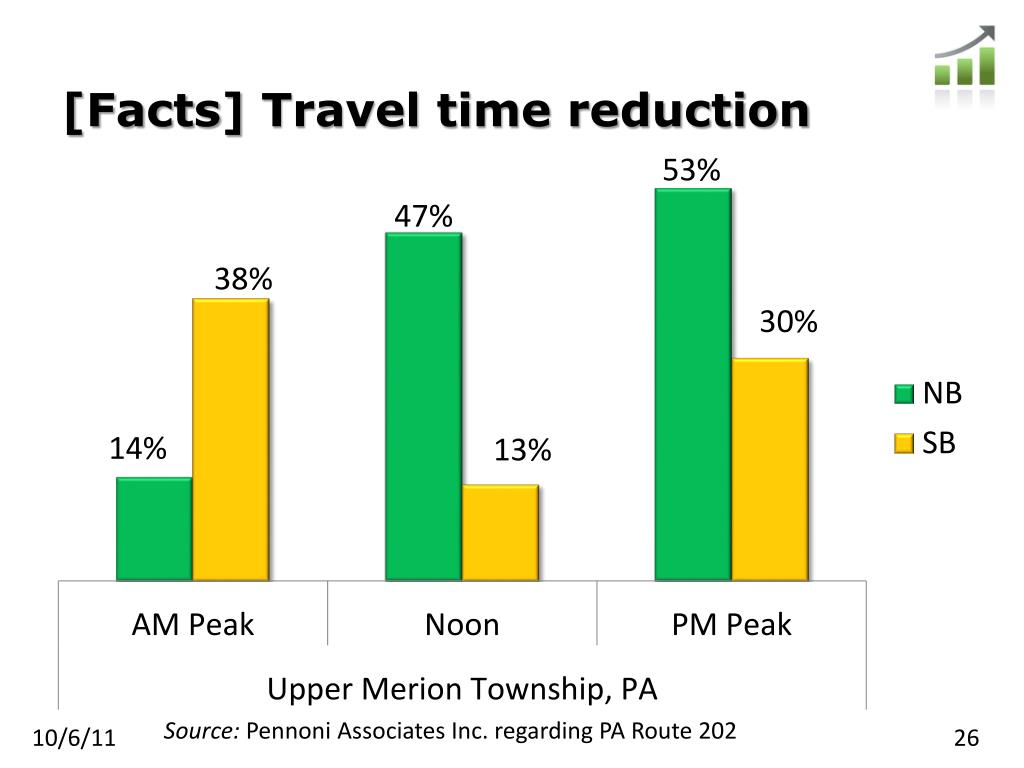

  26. [Facts] Travel time reduction Source:Pennoni Associates Inc. regarding PA Route 202 10/6/11 26

  27. [Fact] InSync customers are very satisfied, just ask • “We got rave reviews about InSync not only from public officials, but also from motorists.” Ashwin Patel, Traffic Engineer, PennDOT 10/6/11 27

  28. Salinas, California Substantial pedestrian traffic 5 intersections deployed, 7 more scheduled 10/6/11 28

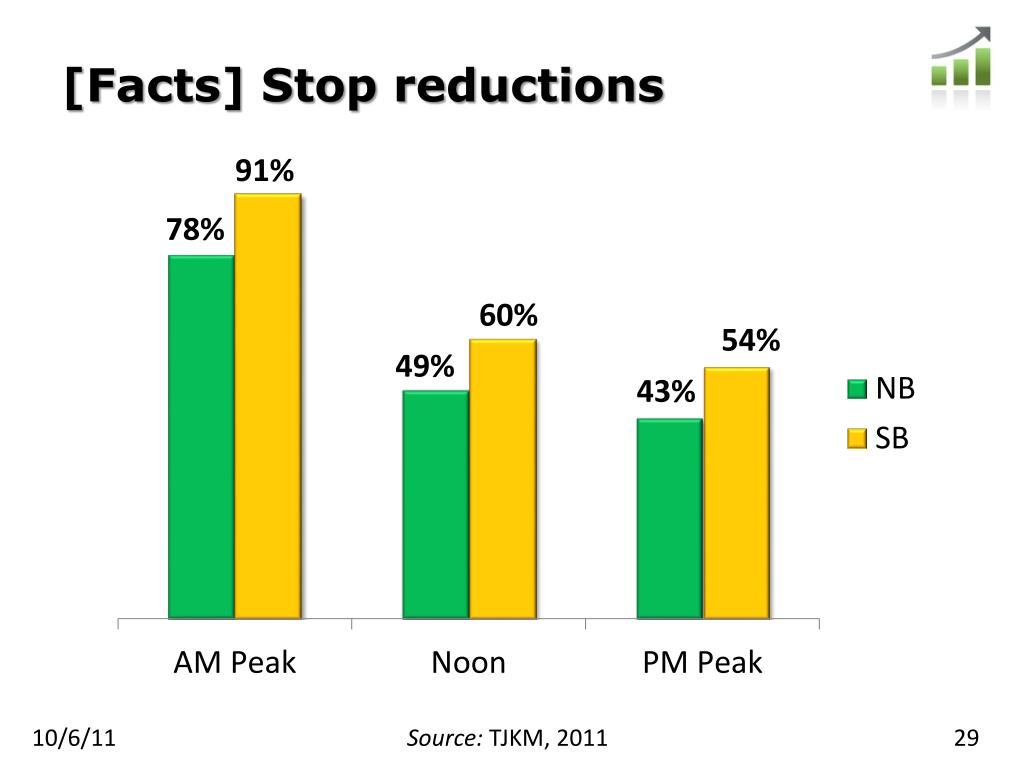

  29. [Facts] Stop reductions 10/6/11 29 Source: TJKM, 2011

  30. [Facts] Delay reduction 10/6/11 30 Source: TJKM, 2011

  31. [Facts] Travel time reductions 10/6/11 31 Source: TJKM, 2011

  32. [Facts] Average speed increase 10/6/11 32 Source: TJKM, 2011

  33. “We see significant improvementsin terms of increased average speed, reduction in average number of stops etc.” Vishnu Gandluru Traffic Engineer TJKM [Fact] InSync customers are very satisfied, just ask 10/6/11 33

  34. “The InSync system isperforming really well, and has exceeded our expectations.” Jose Saucedo Traffic Engineer City of Salinas [Fact] InSync customers are very satisfied, just ask 10/6/11 34

  35. Questions and Answers RhythmTraffic.com 10/6/11 35
