LDAP: Bind and Modify

1. LDAP: Bind and Modify CNS 4650 Fall 2004 Rev. 2

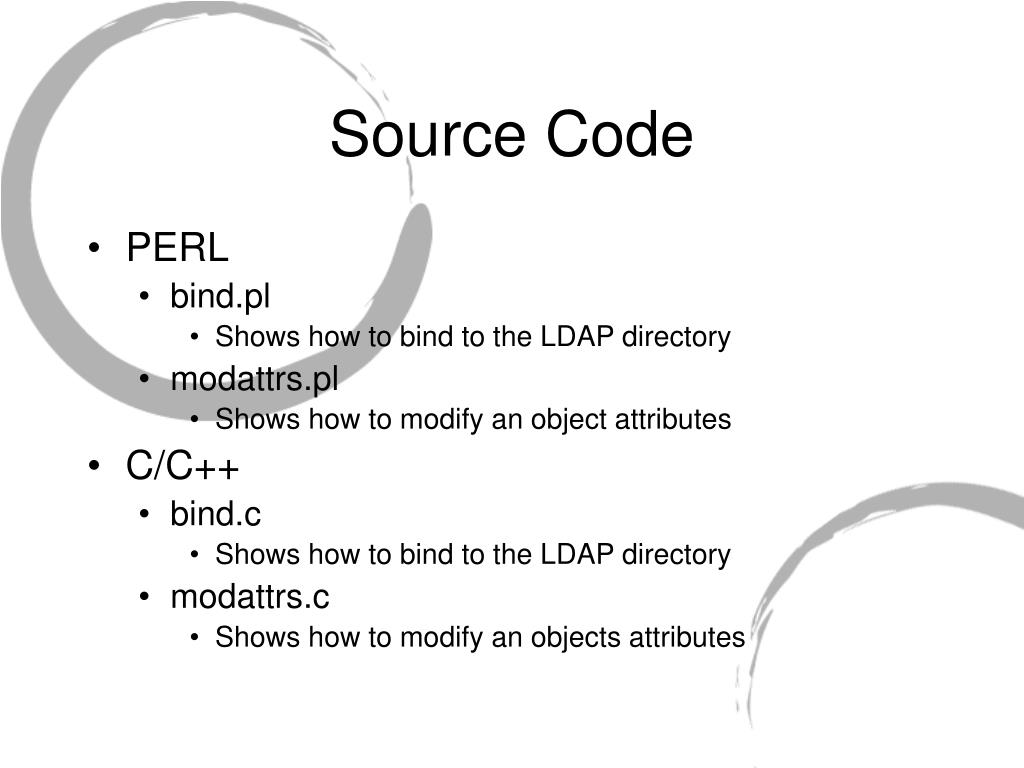

2. Source Code • PERL • bind.pl • Shows how to bind to the LDAP directory • modattrs.pl • Shows how to modify an object attributes • C/C++ • bind.c • Shows how to bind to the LDAP directory • modattrs.c • Shows how to modify an objects attributes

3. Libraries and Includes • Same apply for search • PERL • use Net::LDAP • C/C++ • #include <ldap.h> • Compiler flag for gcc ‘-lldap’

4. Initialize LDAP Connection • PERL • new Net::LDAP($server, $port); • C/C++ • ldap_init( MY_HOST, MY_PORT )

5. C/C++ LDAP Options • Call ldap_set_option() prior to ldap_init() • Found in ldap.h • ldap_set_option( LDAP *ld, int option, LDAP_CONST void *invalue); • Options listed in ldap.h (lines 81-157) • #define LDAP_OPT_API_INFO 0x0000 • #define LDAP_OPT_DESC 0x0001 /* deprecated */ • #define LDAP_OPT_DEREF 0x0002 • #define LDAP_OPT_SIZELIMIT 0x0003 • #define LDAP_OPT_TIMELIMIT 0x0004 • #define LDAP_OPT_REFERRALS 0x0008 • #define LDAP_OPT_RESTART 0x0009 • /* 0x0a - 0x10 not defined by current draft */ • #define LDAP_OPT_PROTOCOL_VERSION 0x0011 • #define LDAP_OPT_SERVER_CONTROLS 0x0012 • #define LDAP_OPT_CLIENT_CONTROLS 0x0013 • /* 0x14 not defined by current draft */ • #define LDAP_OPT_API_FEATURE_INFO 0x0015

6. C/C++ LDAP Options • Most often used • LDAP_OPT_PROTOCOL_VERSION • Used to force LDAPv3 • LDAP_OPT_SIZELIMIT • Used to limit number of returns • Pass NULL in for LDAP handle (first value) • Second Value is constant from ldap.h • Example: LDAP_OPT_PROTOCOL_VERSION • Third is value to set the option • Example: for LDAP_OPT_PROTOCOL_VERSION you would pass in ‘3’

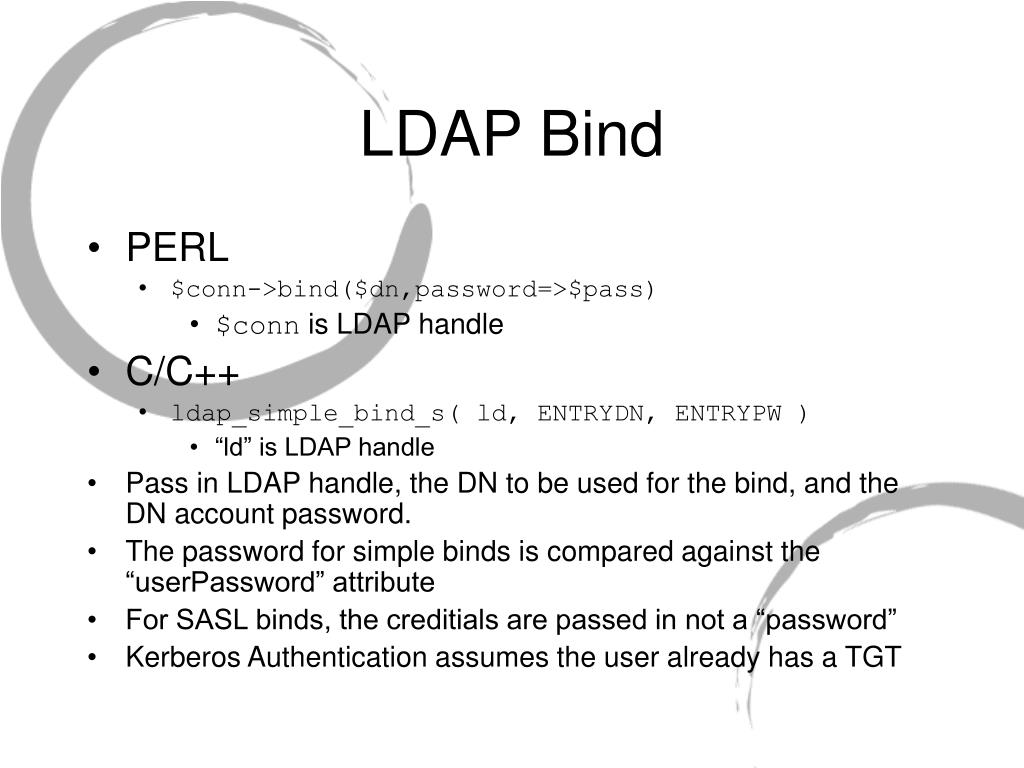

7. LDAP Bind • PERL • $conn->bind($dn,password=>$pass) • $conn is LDAP handle • C/C++ • ldap_simple_bind_s( ld, ENTRYDN, ENTRYPW ) • “ld” is LDAP handle • Pass in LDAP handle, the DN to be used for the bind, and the DN account password. • The password for simple binds is compared against the “userPassword” attribute • For SASL binds, the creditials are passed in not a “password” • Kerberos Authentication assumes the user already has a TGT

8. LDAP Unbind • PERL • $conn->unbind; • $conn is the LDAP handle • C/C++ • ldap_unbind( ld ); • “ld” is the LDAP handle

9. Modify an Entry • PERL • $conn->modify($dn, replace => { ”sn" => “doe” } ); • $conn is the LDAP Handle • Call modify() • First value is the DN of the object you wish to modify • Second value is the name of the attribute and the new value

10. Modify an Entry • Create LDAPMod structure for each attribute (or you can reuse) • Create an Array of LDAPMods’, one greater than you need (the array is zero based) • The final value will be NULL LDAPMod mod0, *mods[ 2 ];

11. LDAPMod typedef struct ldapmod { int mod_op; #define LDAP_MOD_ADD (0x0000) #define LDAP_MOD_DELETE (0x0001) #define LDAP_MOD_REPLACE (0x0002) #define LDAP_MOD_BVALUES (0x0080) char *mod_type; union mod_vals_u { char **modv_strvals; struct berval **modv_bvals; } mod_vals; #define mod_values mod_vals.modv_strvals #define mod_bvalues mod_vals.modv_bvals } LDAPMod;

12. Modify an Entry • Populate the LDAPMod mod_op • Populate the mod_type with the name of the attribute you wish to modify • Example is “sn” mod0.mod_op = LDAP_MOD_REPLACE; mod0.mod_type = ”sn";

13. Modify an Entry • Populate the value for the attribute mod0.mod_values = vals;

14. Modify an Entry • Place the LDAPMod struct in the LDAPMod array • Place a NULL in the last array slot of LDAPMod mods[ 0 ] = &mod0; mods[ 1 ] = NULL;

15. Modify an Entry • First value “ld” is the LDAP handle • Second value is the DN of the entry • Third value is the LDAPMod array ldap_modify_s( ld, ENTRYDN, mods )
