  1. testo Saveris TrainingMonitoring system testo Saveris for market introduction 2008 testo Saveris

  2. Present market situation • testo Saveris system overview Table of Contents Training testo Saveris • Introduction • Target Groups and Applications • testo Saveris Hardware Part 1 • Live: First commissioning basic system • testo Saveris Hardware Part 2 • testo Saveris Software • Alarm functions • Main Competitors • Marketing and Sales Support • Use of the Sales Academy • Adjustment software and Webaccess • In-depth knowledge technology • Live introduction: adding Routers, Ethernet probes and Converters • Live: practice adding Routers and Ethernet probes • Live introduction: Software and Alarm • Live: practice Software and Alarm testo Saveris

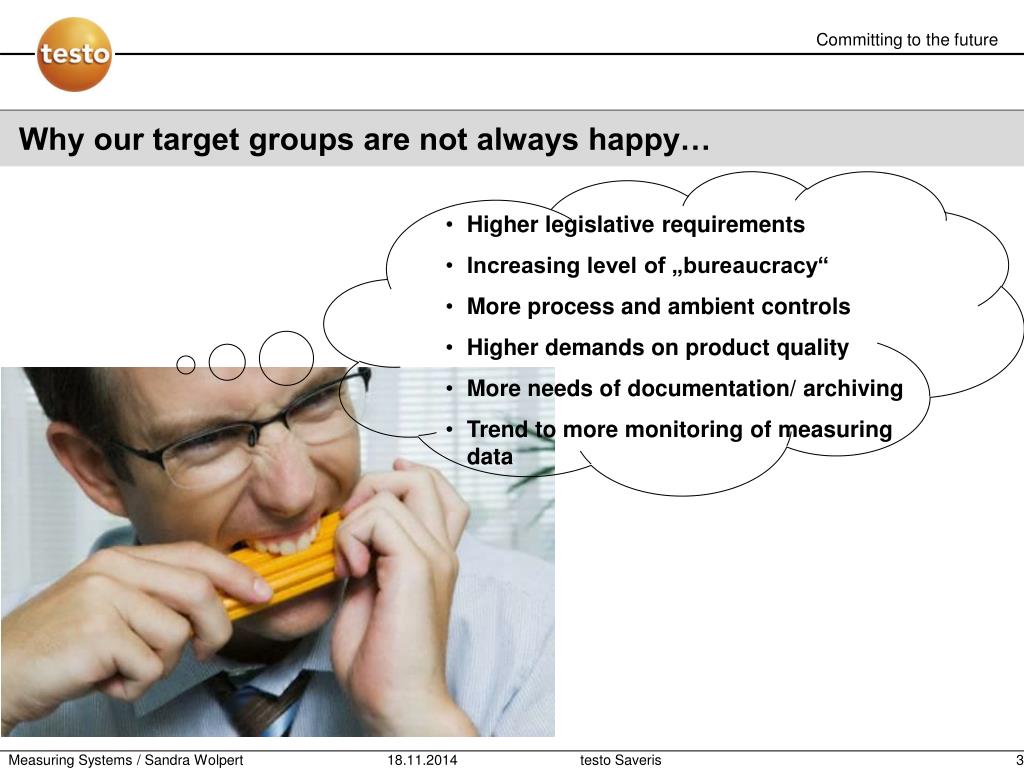

  3. Why our target groups are not always happy… • Higher legislative requirements • Increasing level of „bureaucracy“ • More process and ambient controls • Higher demands on product quality • More needs of documentation/ archiving • Trend to more monitoring of measuring data testo Saveris

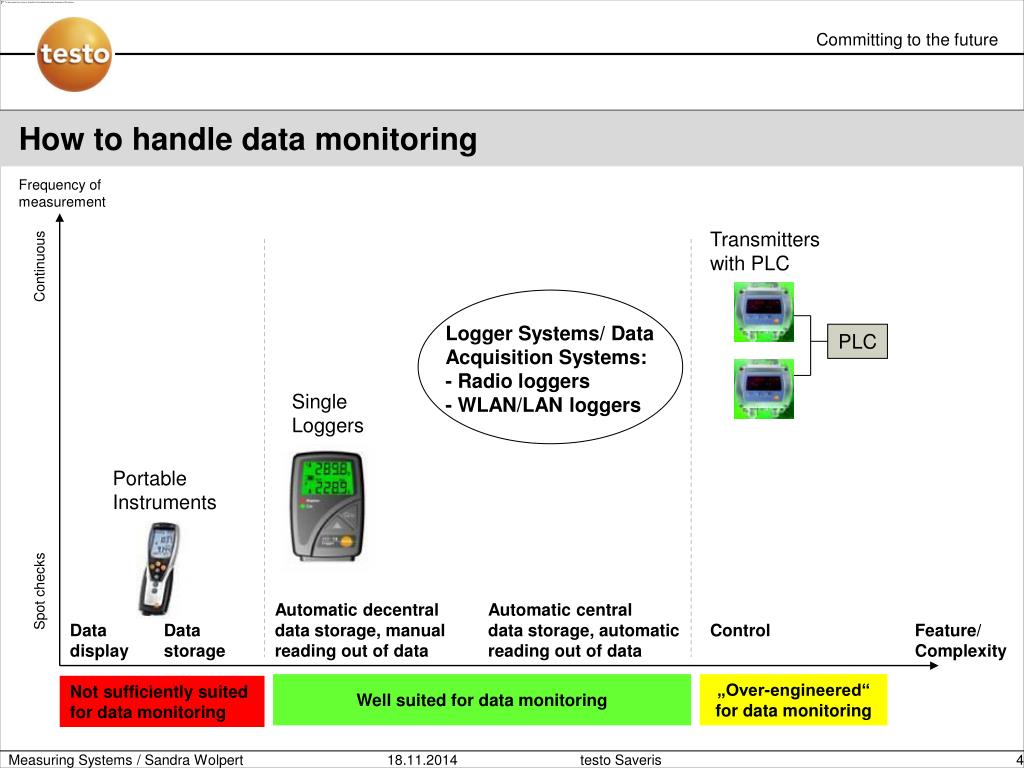

  4. How to handle data monitoring Frequency of measurement Transmitters with PLC Continuous Logger Systems/ Data Acquisition Systems:- Radio loggers- WLAN/LAN loggers PLC SingleLoggers Portable Instruments Spot checks Automatic decentral data storage, manual reading out of data Automatic central data storage, automatic reading out of data Data display Data storage Control Feature/ Complexity Well suited for data monitoring „Over-engineered“ for data monitoring Not sufficiently suited for data monitoring testo Saveris

  5. System overview of testo Saveris Saveris radio probes Radio probes with internal and external sensors (partly several ones), temperature and humidity measurement, optionally with display. In free field radio distance approx. 300m for 868MHz frequency, approx. 100m for 2,4 GHz frequency, in buildings dependent on constructive circumstances. Security through bidirectional radio transmission („dialogue instead of monologue“). Saveris Base for automatic central data storage and alarming (also without running PC) and for transmission of data to PC. Saveris Software for documentation and for system configuration. Optionally integration into network (Client-Server). USB orEthernet radio Ethernet Saveris Router for optimizing and prolongating radio distance in case of difficult constructive circumstances. Saveris Ethernet probes Ethernet probes with internal and external sensors (partly several ones), temperature and humidity measurement, with display. Ideal for bridging long distances. testo Saveris

  6. Benefits of the measuring system testo Saveris • Automatic central data storage • No manual reading out or re-programmation • Numerous probes tailored to applications • Flexible combination of radio probes and Ethernet probes • Easy-to-use installation/ configuration/ operation • High data security • Continuous documentation of measuring data,incl. automatically generated PDF reports • Operation and alarm also without running PC • Instant alarming via Base (LED, relay), Email, optionally SMS Efficient Time and money saving Easy Safe testo Saveris

  7. How testo Saveris provides “High data security” • Bi-directional radio transmission -> Base and probes only communicate with themselves, Base demands probe values until signal received, “Dialogue instead of monologue” • Storage capacity in testo Saveris Base and in probes (necessary if radio transmission between Base and probes interrupted) • Battery-powered radio probes(independent from power network) • Emergency battery in testo Saveris Base (in case of electrical power blackout emergency signal is sent out) • Alarm not only if critical values are exceeded, but also in case of low battery and disturbed radio transmission testo Saveris

  8. Tabel of Contents training testo Saveris • Food Markets • Production/ QA Food • Small Food Producers / Kitchens • Production/ QA General • R&D, Science & Education • Facility Climate (museums, archives,...) • Pharmacies • Engineering Services • Production/ QA Pharma • Introduction • Target Groups and Applications • testo Saveris Hardware Part 1 • Live: First commissioning basic system • testo Saveris Hardware Part 2 • testo Saveris Software • Alarm functions • Main Competitors • Marketing and Sales Support • Use of the Sales Academy • Adjustment software and Webaccess • In-depth knowledge technology • Live introduction: adding Routers, Ethernet probes and Converters • Live: practice adding Routers and Ethernet probes • Live introduction: Software and Alarm • Live: practice Software and Alarm testo Saveris

  9. Testo Saveris – Target group „Food Markets“ Target group needs Meeting the needs with testo Saveris Easy HACCP bureaucracy Measuring data monitoring automated by testo Saveris We need to comply with HACCP We could lose our good image because of spoilt products Headquarters want the quality data available Monitoring of cold chain via temperature measurement in cooling chambers in the storage room, in the supermarket and in showcases Complete documentation acc. to law is guaranteed Availability of quality data for Headquarters testo Saveris

  10. Testo Saveris – Target group „Production/ QA Food“ Target group needs Meeting the needs with testo Saveris Switch on and forget HACCP bureaucracy – automated by testo Saveris We have to control sensitive products and processes We have to maintain a high quality level to avoid image loss We have to comply with HACCP Monitoring of cold chain in storage rooms Climate control in production area and in processes Complete documentation acc. to law is guaranteed testo Saveris

  11. Testo Saveris – Target group „Small food producers“/ „Kitchens“ Target group needs Meeting the needs with testo Saveris More time for business Cold chain – automatically controlled by testo Saveris I‘m afraid of the food inspector I could lose my good image because of spoilt products Monitoring of cold chain via temperature measurement in cooling chambers and showcases Monitoring of defined temperatures in restaurants and kitchens Complete documentation acc. to law is guaranteed testo Saveris

  12. Testo Saveris – Target group „Production/ QA General“ Target group needs Meeting the needs with testo Saveris Central measuring data monitoring Automated by testo Saveris We have to collect the quality data Reducing efforts by high automation Monitoring of climate data in production areas, storage rooms and climate chambers Temperature control in refrigerators/ heat treatment chambers testo Saveris

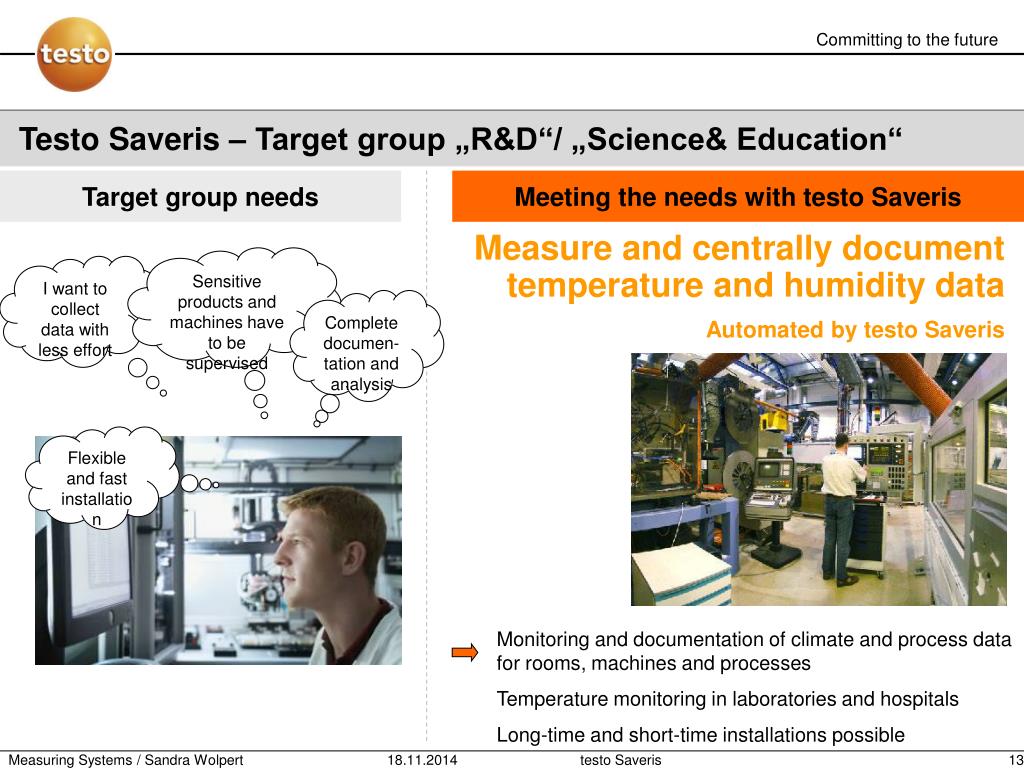

  13. Testo Saveris – Target group „R&D“/ „Science& Education“ Target group needs Meeting the needs with testo Saveris Measure and centrally document temperature and humidity data Automated by testo Saveris Sensitive products and machines have to be supervised I want to collect data with less effort Complete documen-tation and analysis Flexible and fast installation Monitoring and documentation of climate and process data for rooms, machines and processes Temperature monitoring in laboratories and hospitals Long-time and short-time installations possible testo Saveris

  14. Testo Saveris – Target group „Facility Climate (Museums/Archives...)“ Target group needs Meeting the needs with testo Saveris Measure room climate and docu-ment centrally - Automated by testo Saveris The owner and insurance company require docu-mentation in case of damages Safe climate conditions for sensitive and expensive inventory No interven-tion into museum infrastructure Long-term monitoring and central documentation of climate parameters in museums, archives, libraries, office buildings, server rooms testo Saveris

  15. Testo Saveris – Target group „Pharmacies“ (=big, certified pharmacies, esp. in hospitals) Target group needs Meeting the needs with testo Saveris Switch on and forget Temperature documentation – automated by testo Saveris No hassle with docu-mentation Comply with regulations, especially concerning blood bottles No temperature damages for medicine Temperature monitoring and documentation of medicine refrigerators and of medicine stockrooms Comply with regulations (often stricter for blood bottles than for other medicine) testo Saveris

  16. Testo Saveris – Target group „Engineering Services“ Target group needs Meeting the needs with testo Saveris The easy and flexible solution for monitoring measurement data- Automated by testo Saveris I want a flexible system for checking plant performance Quick installation is essential Long-term or short-term temperature monitoring Performance analysis of VAC systems testo Saveris

  17. Testo Saveris – Target group „Production/ QA Pharmaceutical“ Target group needs Meeting the needs with testo Saveris We have to fulfill the validation process safe and fast We have to stick to a defined process and documentation Reducing efforts by high automation Monitoring or validation of temperature or climate data compared to target values Comply to the legislation, often 21 CFR Part 11 (CFR version of testo Saveris will follow) testo Saveris

  18. Table of Contents Training testo Saveris • Monitoring the cold chain • Monitoring the storage climate • Monitoring the production climate • Monitoring the facility climate • Monitoring the clean room climate • Monitoring the climate in conditioning cabinets and chambers • Monitoring the temperature in cooling cabinets and incubators • Monitoring the climate in R&D processes • Analysis of VAC systems • Introduction • Target Groups and Applications • testo Saveris Hardware Part 1 • Live: First commissioning basic system • testo Saveris Hardware Part 2 • testo Saveris Software • Alarm functions • Main Competitors • Marketing and Sales Support • Use of the Sales Academy • Adjustment software and Webaccess • In-depth knowledge technology • Live introduction: adding Routers, Ethernet probes and Converters • Live: practice adding Routers and Ethernet probes • Live introduction: Software and Alarm • Live: practice Software and Alarm testo Saveris

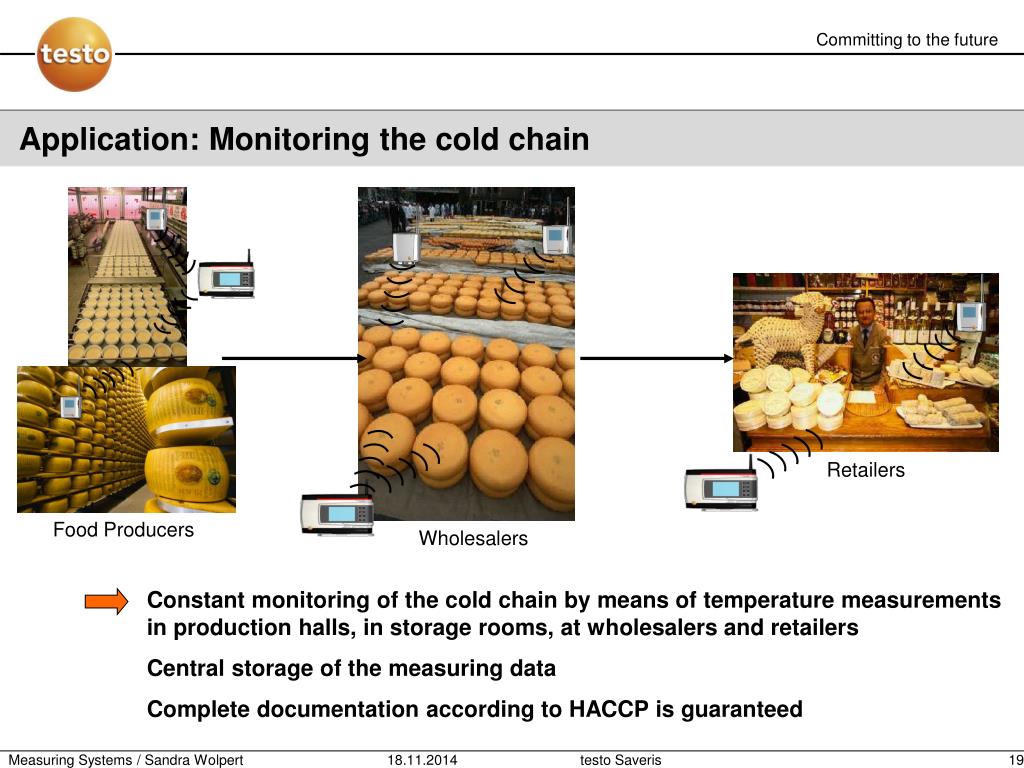

  19. Application: Monitoring the cold chain Retailers Food Producers Wholesalers Constant monitoring of the cold chain by means of temperature measurements in production halls, in storage rooms, at wholesalers and retailers Central storage of the measuring data Complete documentation according to HACCP is guaranteed testo Saveris

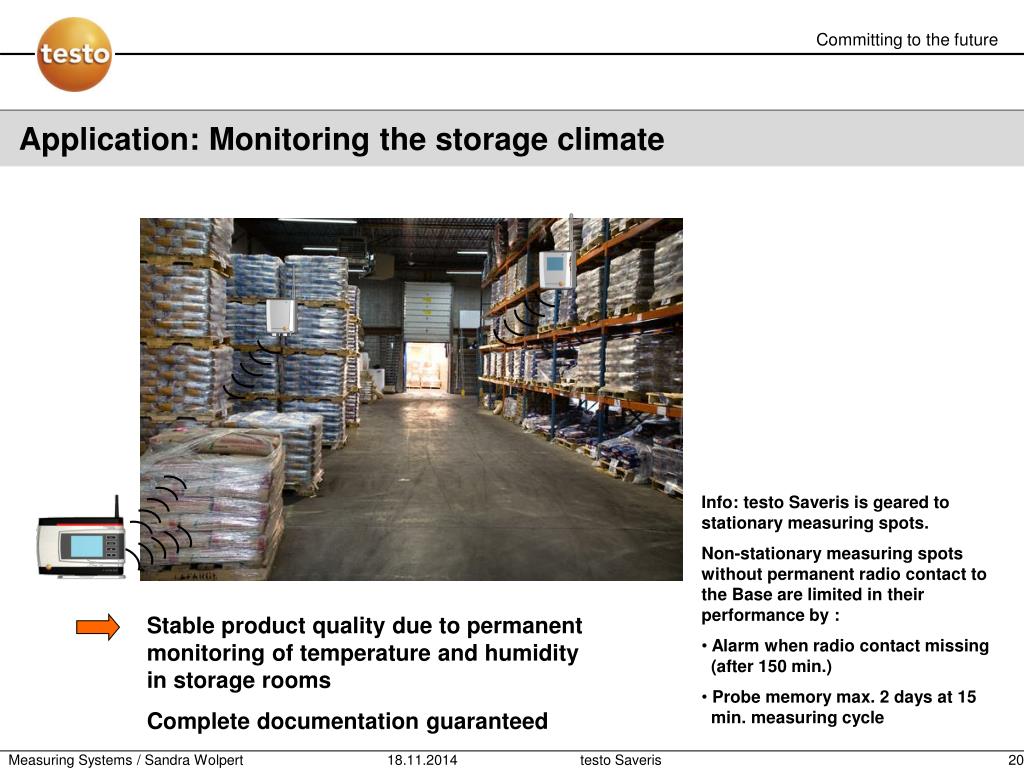

  20. Application: Monitoring the storage climate • Info: testo Saveris is geared to stationary measuring spots. • Non-stationary measuring spots without permanent radio contact to the Base are limited in their performance by : • Alarm when radio contact missing (after 150 min.) • Probe memory max. 2 days at 15 min. measuring cycle Stable product quality due to permanent monitoring of temperature and humidity in storage rooms Complete documentation guaranteed testo Saveris

  21. Application: Monitoring the production climate Climate control in the production process and production ambience Reduced monitoring effort due to high automization Complete documentation guaranteed testo Saveris

  22. Application: Monitoring the facility climate Automated monitoring of the facility climate in offices, museums and archives Adherence to the comfort climate in offices Protection of sensitive and valuable objects in museums and archives testo Saveris

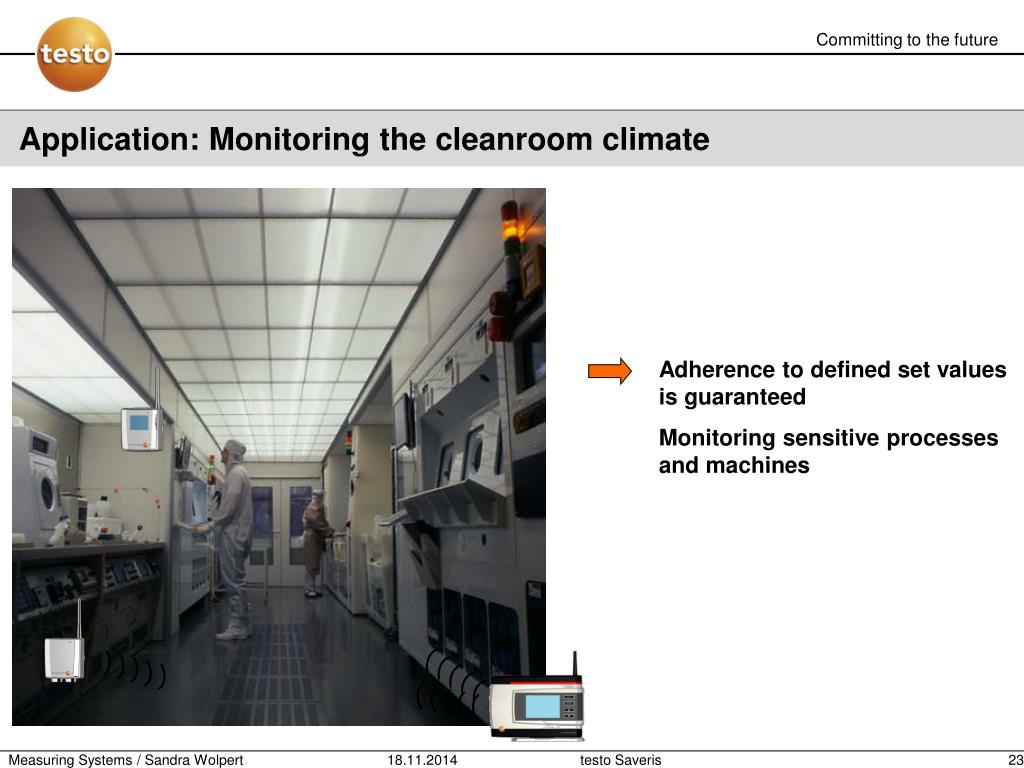

  23. Application: Monitoring the cleanroom climate Adherence to defined set values is guaranteed Monitoring sensitive processes and machines testo Saveris

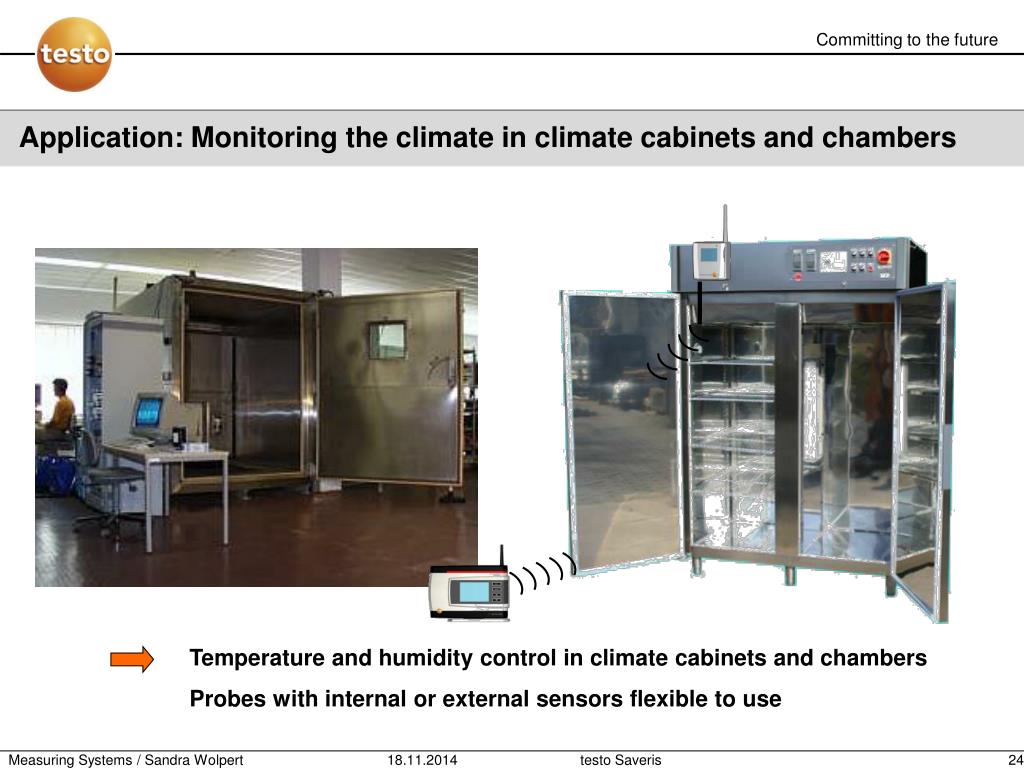

  24. Application: Monitoring the climate in climate cabinets and chambers Temperature and humidity control in climate cabinets and chambers Probes with internal or external sensors flexible to use testo Saveris

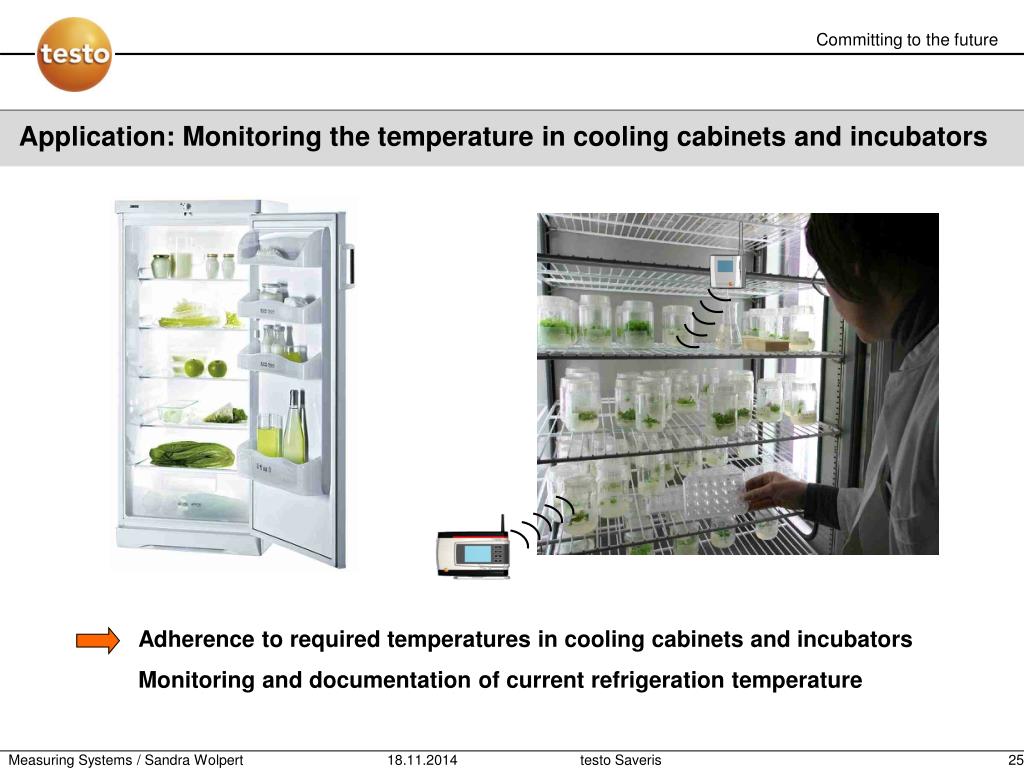

  25. Application: Monitoring the temperature in cooling cabinets and incubators Adherence to required temperatures in cooling cabinets and incubators Monitoring and documentation of current refrigeration temperature testo Saveris

  26. Application: Monitoring the climate in R&D processes Monitoring and documentation of climate and process data in R&D processes Guaranty of constant climate conditions in laboratories Suitable for short and long series of measurement testo Saveris

  27. Application: Analysis of VAC systems Checking the performance of VAC systems during commissioning Operating analysis for plant optimization Monitoring long or short periods testo Saveris

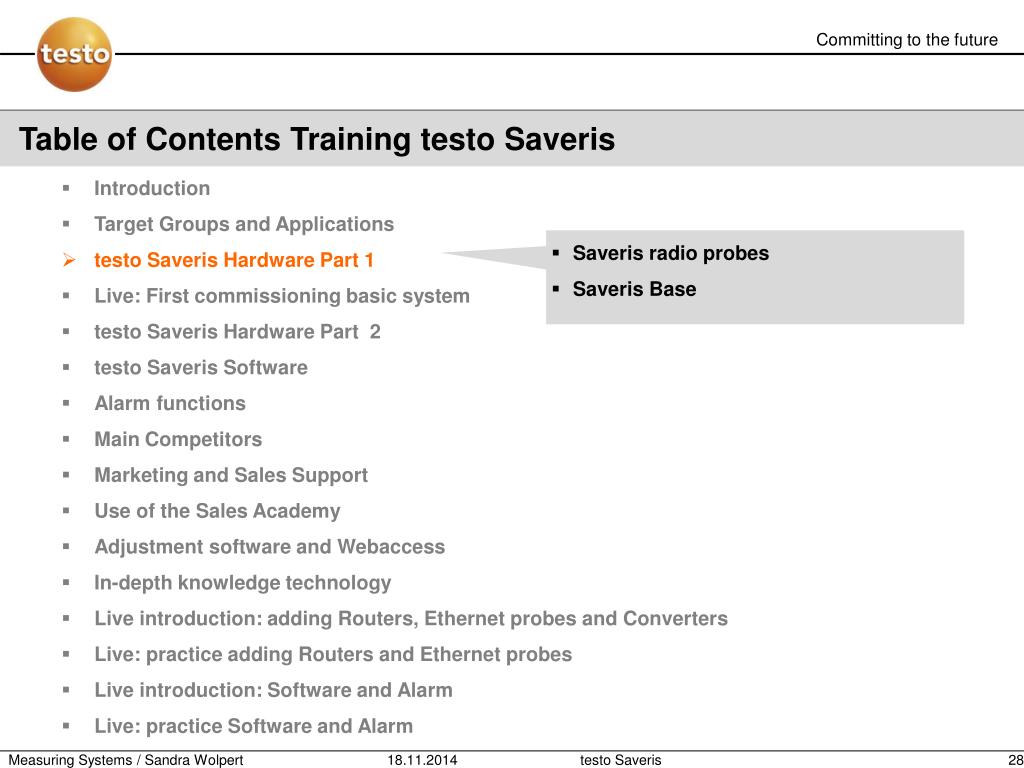

  28. Saveris radio probes • Saveris Base Table of Contents Training testo Saveris • Introduction • Target Groups and Applications • testo Saveris Hardware Part 1 • Live: First commissioning basic system • testo Saveris Hardware Part 2 • testo Saveris Software • Alarm functions • Main Competitors • Marketing and Sales Support • Use of the Sales Academy • Adjustment software and Webaccess • In-depth knowledge technology • Live introduction: adding Routers, Ethernet probes and Converters • Live: practice adding Routers and Ethernet probes • Live introduction: Software and Alarm • Live: practice Software and Alarm testo Saveris

  29. testo Saveris radio probes Radiowith or without display, battery powered Radio antenna Display (optional) with measuring data and battery/ transmission information • T1 (D) = NTC internal • T2 (D) = NTC int./ ext./ door contact • T3 (D) = 2x TE external • Pt (D) = Pt100 external • H3 (D) = 3%rF internal Radio frequency 868 MHz for EU and some other countries Radio frequency 2,4 GHz for further countries Internal or external sensors testo Saveris

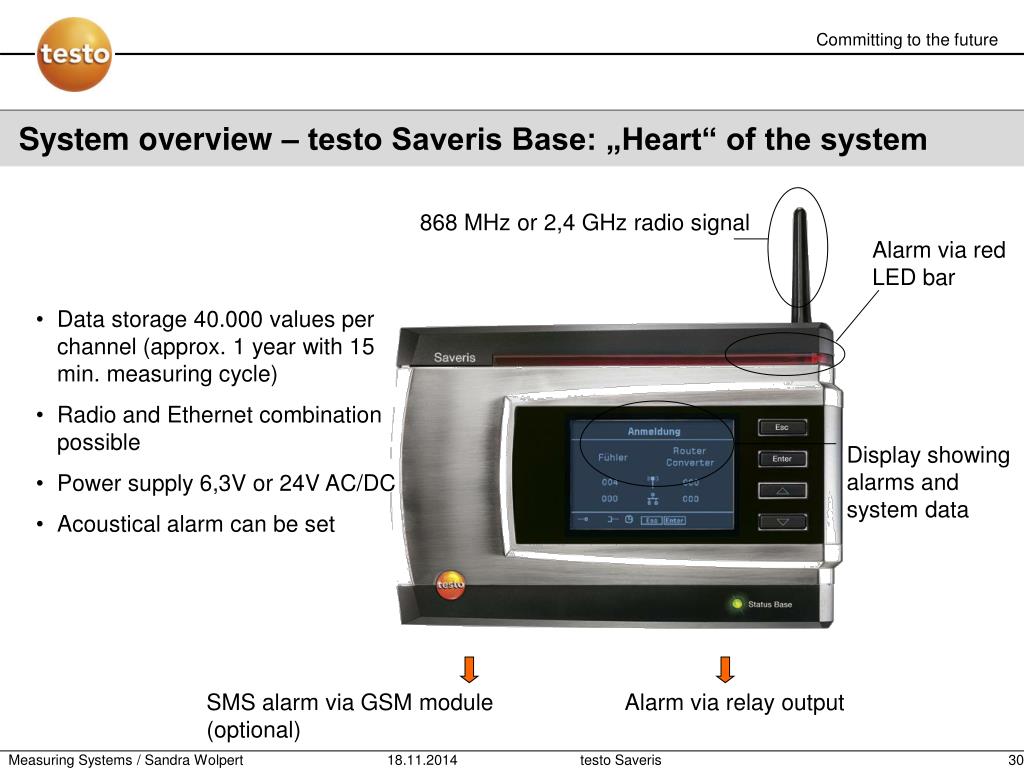

  30. System overview – testo Saveris Base: „Heart“ of the system 868 MHz or 2,4 GHz radio signal Alarm via red LED bar • Data storage 40.000 values per channel (approx. 1 year with 15 min. measuring cycle) • Radio and Ethernet combination possible • Power supply 6,3V or 24V AC/DC • Acoustical alarm can be set Display showing alarms and system data SMS alarm via GSM module (optional) Alarm via relay output testo Saveris

  31. Display of the testo Saveris Base Information regarding network address, charge of battery and level of database • Information about GSM • display of new alarms • display of alarm details • system information • system information and components login • query if login completed testo Saveris

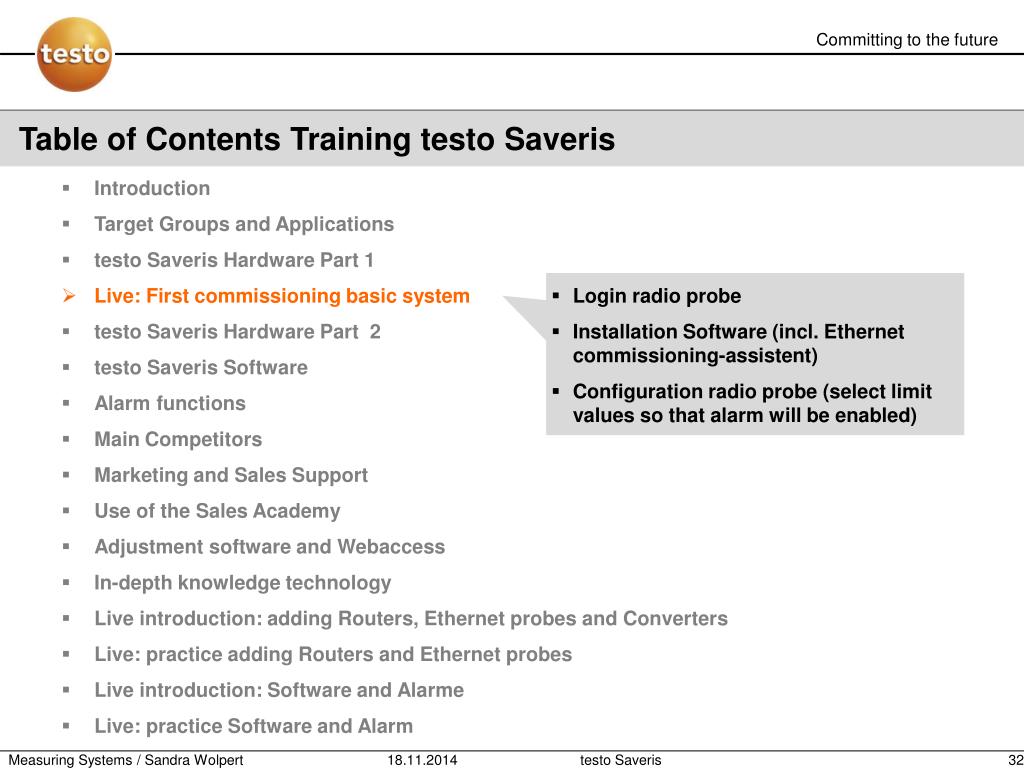

  32. Table of Contents Training testo Saveris • Login radio probe • Installation Software (incl. Ethernet commissioning-assistent) • Configuration radio probe (select limit values so that alarm will be enabled) • Introduction • Target Groups and Applications • testo Saveris Hardware Part 1 • Live: First commissioning basic system • testo Saveris Hardware Part 2 • testo Saveris Software • Alarm functions • Main Competitors • Marketing and Sales Support • Use of the Sales Academy • Adjustment software and Webaccess • In-depth knowledge technology • Live introduction: adding Routers, Ethernet probes and Converters • Live: practice adding Routers and Ethernet probes • Live introduction: Software and Alarme • Live: practice Software and Alarm testo Saveris

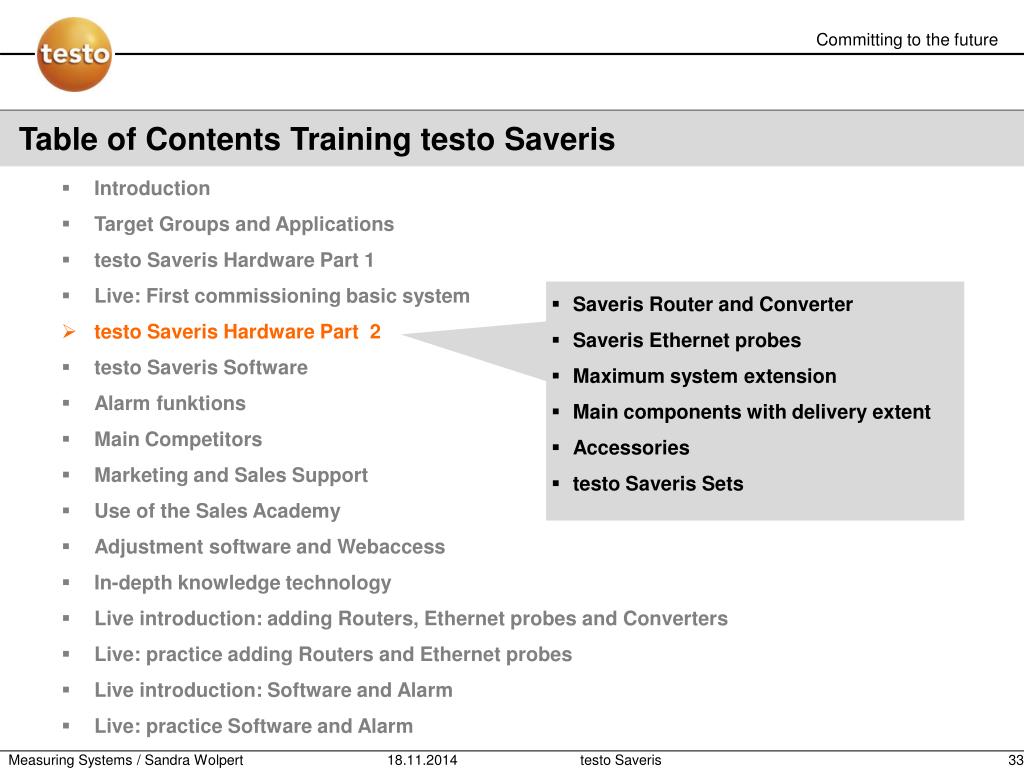

  33. Table of Contents Training testo Saveris • Introduction • Target Groups and Applications • testo Saveris Hardware Part 1 • Live: First commissioning basic system • testo Saveris Hardware Part 2 • testo Saveris Software • Alarm funktions • Main Competitors • Marketing and Sales Support • Use of the Sales Academy • Adjustment software and Webaccess • In-depth knowledge technology • Live introduction: adding Routers, Ethernet probes and Converters • Live: practice adding Routers and Ethernet probes • Live introduction: Software and Alarm • Live: practice Software and Alarm • Saveris Router and Converter • Saveris Ethernet probes • Maximum system extension • Main components with delivery extent • Accessories • testo Saveris Sets testo Saveris

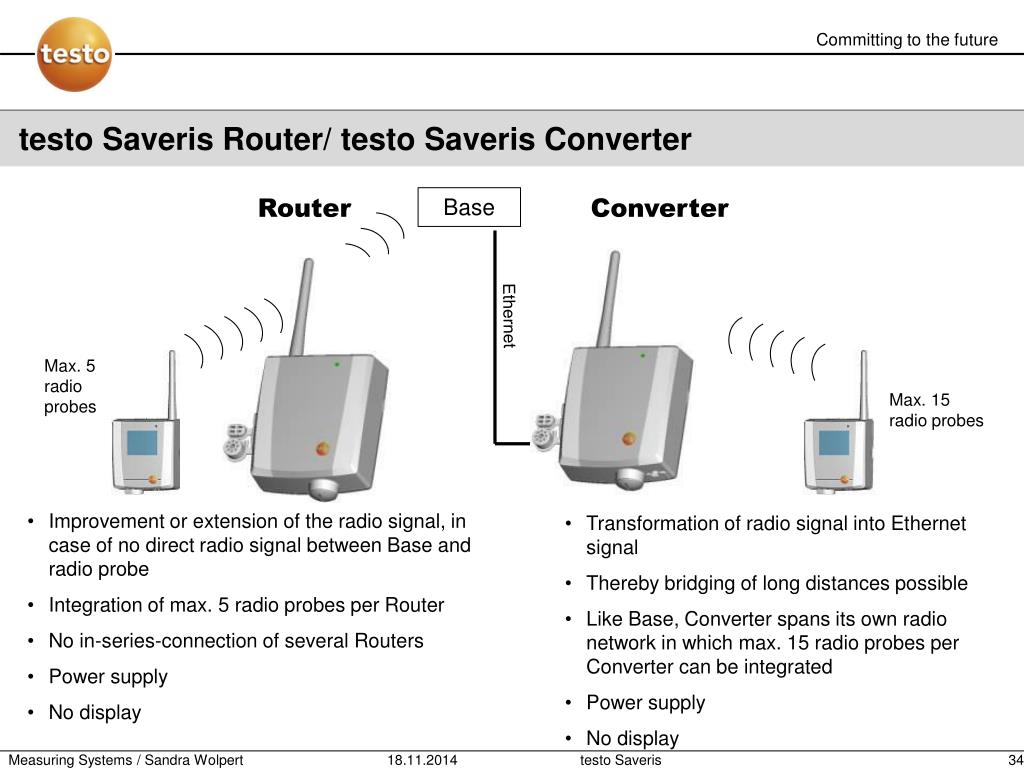

  34. testo Saveris Router/ testo Saveris Converter Router Base Converter Ethernet Max. 5 radio probes Max. 15 radio probes • Improvement or extension of the radio signal, in case of no direct radio signal between Base and radio probe • Integration of max. 5 radio probes per Router • No in-series-connection of several Routers • Power supply • No display • Transformation of radio signal into Ethernet signal • Thereby bridging of long distances possible • Like Base, Converter spans its own radio network in which max. 15 radio probes per Converter can be integrated • Power supply • No display testo Saveris

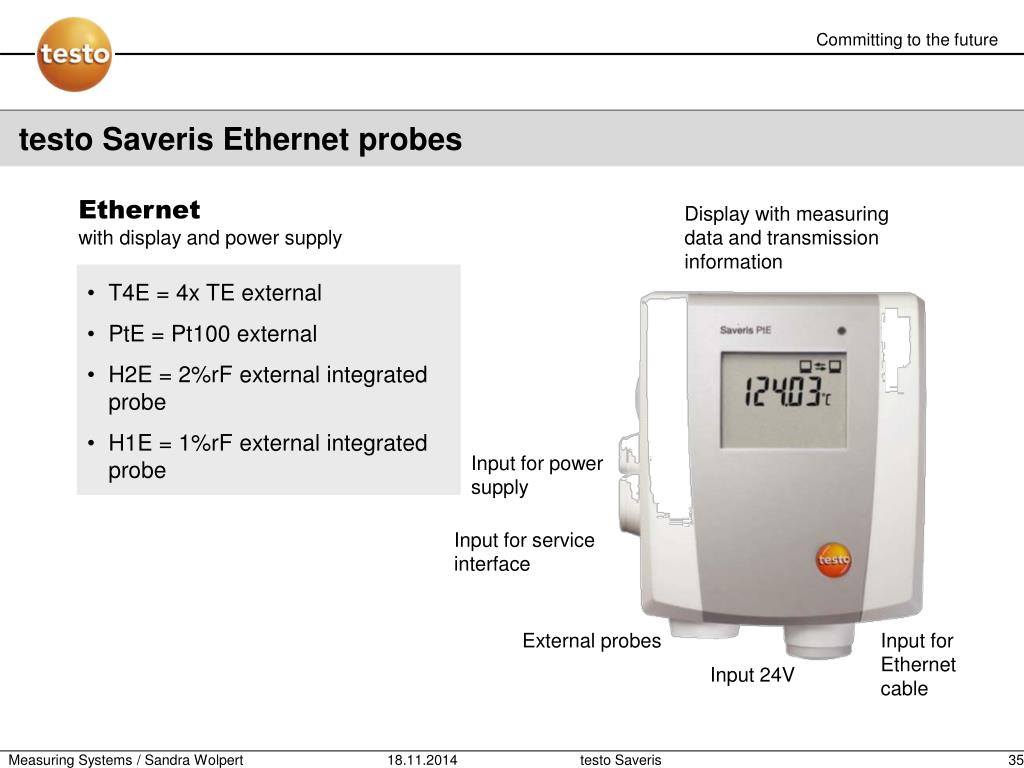

  35. testo Saveris Ethernet probes Ethernetwith display and power supply Display with measuring data and transmission information • T4E = 4x TE external • PtE = Pt100 external • H2E = 2%rF external integrated probe • H1E = 1%rF external integrated probe Input for power supply Input for service interface External probes Input for Ethernet cable Input 24V testo Saveris

  36. System overview – maximum system extension System extension A Saveris system can be extended to a very large system.Up to 150 probes can be connected and various combinations of components are possible.For the single components there are the following numerical limits:Number directly connected radio probes: max. 15Number directly connected Ethernet probes: max. 150Number Routers: max. 15 à max. 5 probesNumber Converters: max. 10 à max. 15 probes Note The maximum total quantity of probes administrable via a Base is 150, independent from the way they are connected. When using multi-channel probes please take into consideration that max. 254 channels will be available. testo Saveris

  37. testo Saveris components with delivery extent Delivery WITH Wall mounting Stand USB-cable Alkali Manganese batteries Wall mounting Wall mounting Delivery WITHOUT Power mains (because customer himself can connect to 24V) GSM-aerial (because customer can use own aerial) Ethernet-cable (due to great variety of types and lengths) Energizer batteries (especially for deep freezing applications, sold separately) Power mains (because customer himself can connect to 24V) testo Saveris

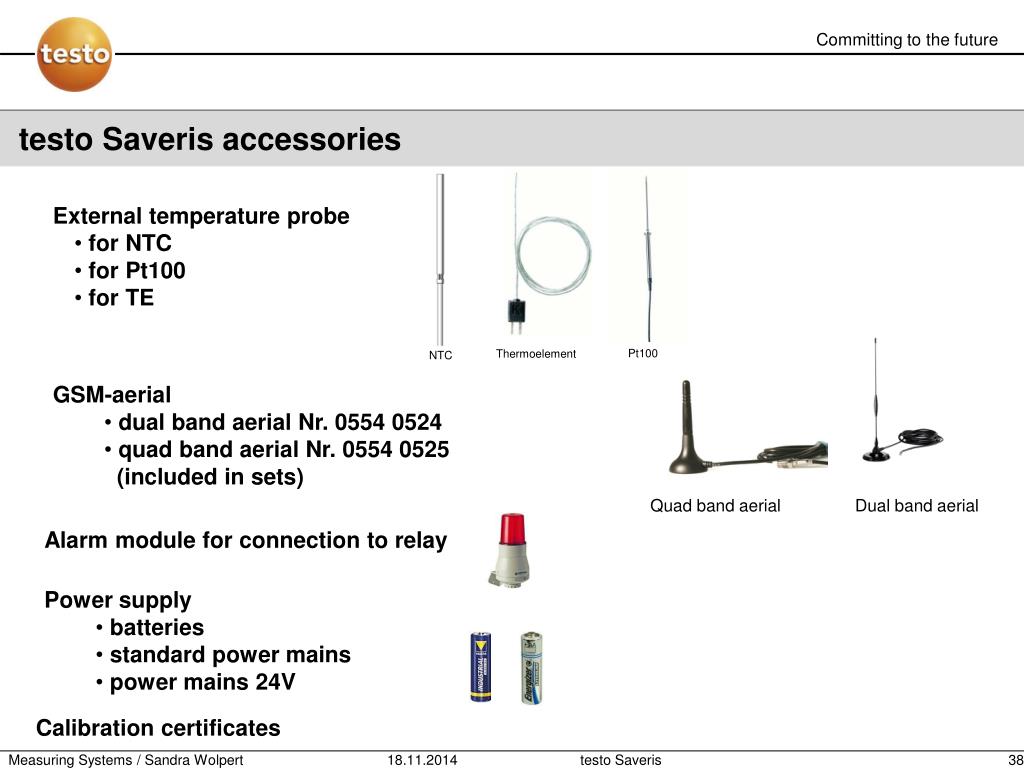

  38. Pt100 Thermoelement NTC Quad band aerial Dual band aerial testo Saveris accessories • External temperature probe • for NTC • for Pt100 • for TE • GSM-aerial • dual band aerial Nr. 0554 0524 • quad band aerial Nr. 0554 0525 (included in sets) Alarm module for connection to relay • Power supply • batteries • standard power mains • power mains 24V Calibration certificates testo Saveris

  39. Testo Saveris sets (incl. power mains and partially GSM aerial) Set 1 + + 3x NTC internal without display SBE Software Set 2 + + + 5x NTC internal with display Router SBE Software Set 3 (base with GSM module for SMS alarm, aerial incl.) + + + 5x NTC internal with display Router SBE Software testo Saveris

  40. Table of Contents Training testo Saveris • Installation software/ driver • Ethernet commissioning-assistent • testo Saveris commissioning-assistent • Differences SBE <-> PROF • PROF Menu point „Data“ • PROF Menu point „Alarm settings“ • PROF Menu point „System“ • PROF Menu point „Reporting“ • Introduction • Target Groups and Applications • testo Saveris Hardware Part 1 • Live: First commissioning basic system • testo Saveris Hardware Part 2 • testo Saveris Software • Alarm functions • Main Competitors • Marketing and Sales Support • Use of the Sales Academy • Adjustment software and Webaccess • In-depth knowledge technology • Live introduction: adding Routers, Ethernet probes and Converters • Live: practice adding Routers and Ethernet probes • Live introduction: Software and Alarm • Live: practice Software and Alarm testo Saveris

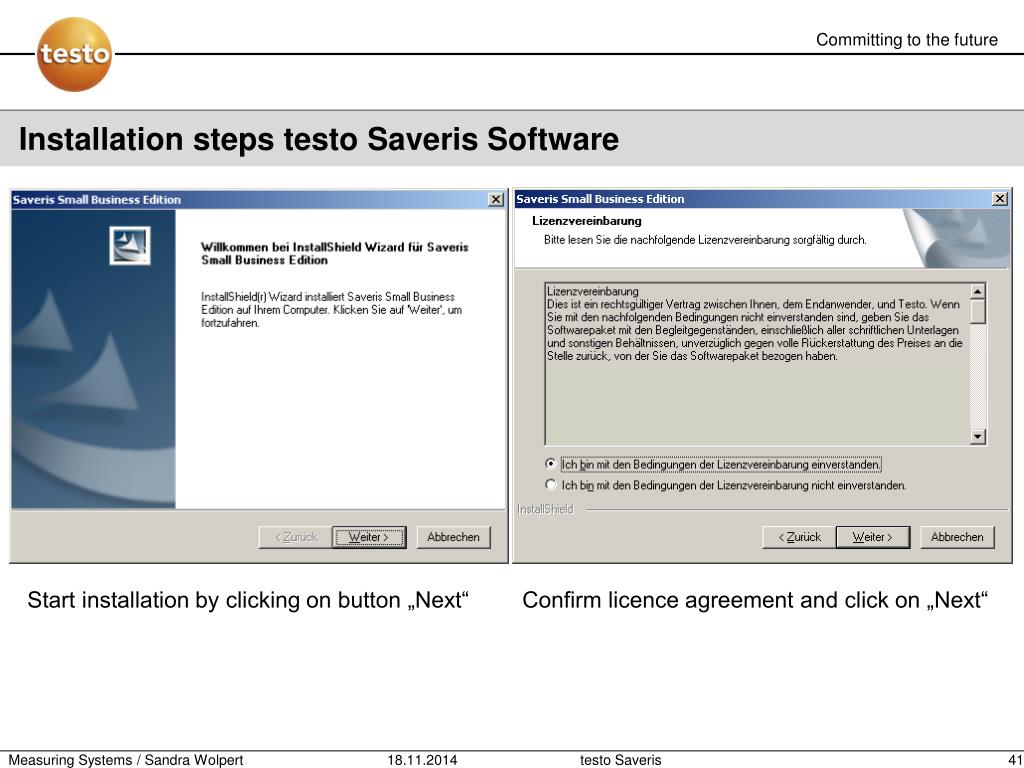

  41. Installation steps testo Saveris Software Start installation by clicking on button „Next“ Confirm licence agreement and click on „Next“ testo Saveris

  42. Installation steps testo Saveris Software Select directory for software installation and click on „Next“ Select directory, where reports and data files should be archived and click on „Next“ testo Saveris

  43. Installation steps testo Saveris Software Wait... Automatic installation of the SQL-Server testo Saveris

  44. Installation steps testo Saveris Software PROF only Automatic installation of the SQL-Server Select name for the Saveris server (PC name) and click on „Next“ testo Saveris

  45. Installation steps testo Saveris Software Confirm reboot and click on „Complete“. Installation is finished after reboot. testo Saveris

  46. Ethernet Commissioning-Assistent Ethernet commissioning-assistent only necessary, if IP-address-allocation at the customer does not work via DHCP server (please see login of Ethernet probes) Specify IP-address of component („automatic“ is recommended) Enter IP-address of Saveris Base manually testo Saveris

  47. testo Saveris Commissioning-Assistent First site of assistent The assistent serves for the first commissioning and for subsequent login / logoff of probes Synchronization of date and time with PC GSM module only: Enter PIN and SMS Centre-No. of SIM Card (please see as well in-depth knowledge technology) testo Saveris

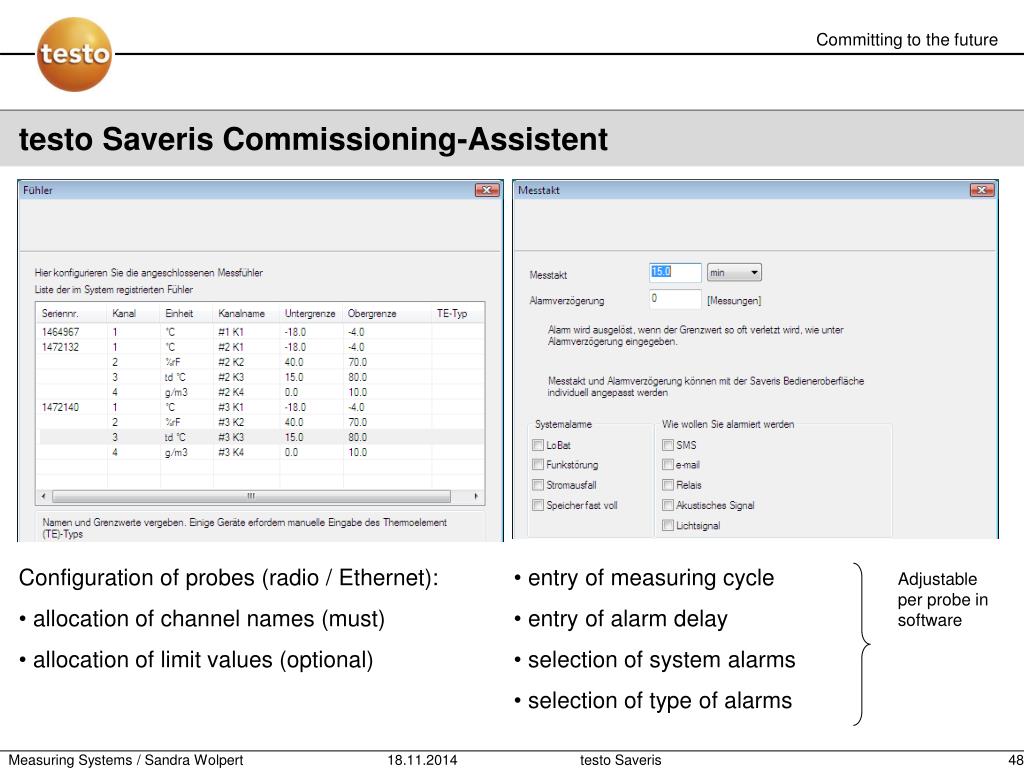

  48. testo Saveris Commissioning-Assistent • Configuration of probes (radio / Ethernet): • allocation of channel names (must) • allocation of limit values (optional) • entry of measuring cycle • entry of alarm delay • selection of system alarms • selection of type of alarms Adjustable per probe in software testo Saveris

  49. testo Saveris Commissioning-Assistent • Allocation of radio probes to • Base • Converter • Router • Subsequently connection categories can be changed here (not in software). Connection type „direct“ • GSM module only: • Entry of number to be alarmed • Extend standard message with personal text testo Saveris

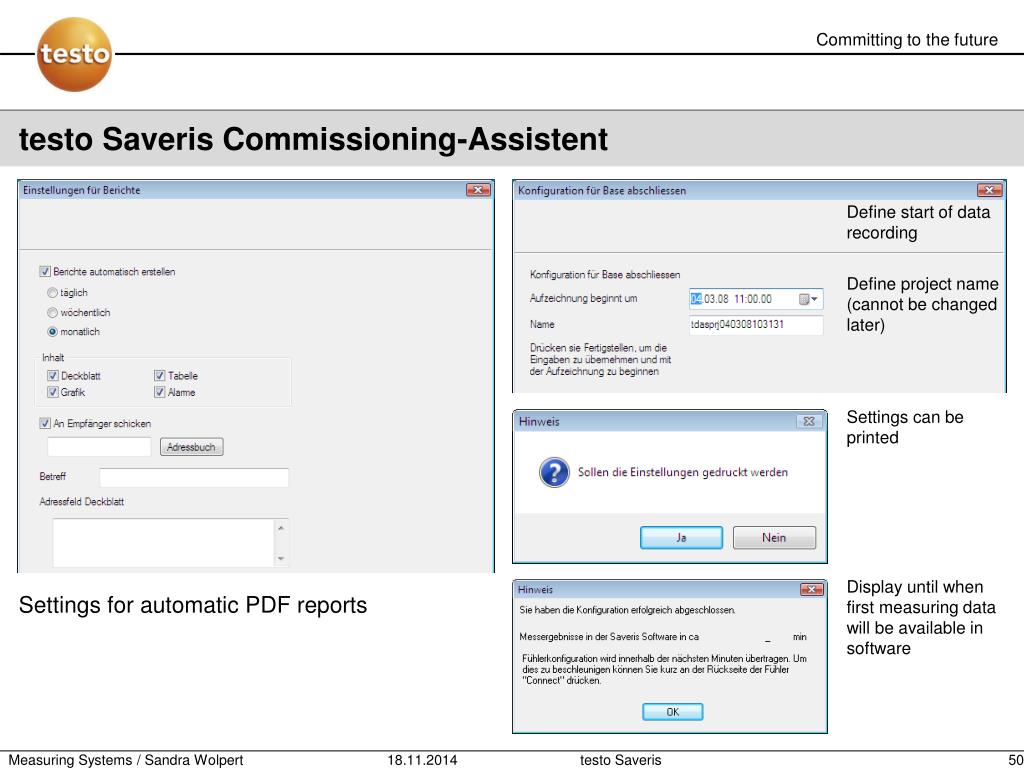

  50. testo Saveris Commissioning-Assistent Define start of data recording Define project name (cannot be changed later) Settings can be printed Display until when first measuring data will be available in software Settings for automatic PDF reports testo Saveris
