4.3 Function Rules, Tables, and Graphs

4.3 Function Rules, Tables, and Graphs. Standard: SWBAT understand relation and a function; determine if a given relation defines a function. Mini Quiz 35. 1. Is this relation a function: {(5, 3), (-2, 3), (5, 3), (4, 3)}? Explain. 2. Find the domain and range of the relation in problem 1.

forrest-velasquez
Télécharger la présentation

4.3 Function Rules, Tables, and Graphs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 4.3 Function Rules, Tables, and Graphs Standard: SWBAT understand relation and a function; determine if a given relation defines a function

  2. Mini Quiz 35 1. Is this relation a function: {(5, 3), (-2, 3), (5, 3), (4, 3)}? Explain. 2. Find the domain and range of the relation in problem 1. 3. Is this relation a function? Explain.

  3. Quick Review 1. How do you find the domain and the range? Domain are the x’s, Range are the y’s 2. How do you tell if a relation is a function? “Every x has only oney”. Check if x repeats/the vertical line test. 3. a) Is this a function? Why? {(3, 0), (-2, 1), (0, -1), (-3, 2)} Yes, x doesn’t repeat. b) Find the domain and range. Domain: 3, -2, 0, -3 Range: 0, 1, -1,2 4. a) Is the table a function? Why? No, x repeats and you get two different y b) Find the domain and range. Domain: -3, 6, 8 Range: -5, 7, 4, -2

  4. Evaluating a Function Rule The notation f(x) is the same as y (i.e. f(x) = y) 1. Evaluate f(x) = -3x – 10 for the domain {6} f(6) = -3(6) – 10 f(6) = -18 – 10 f(6) = -28

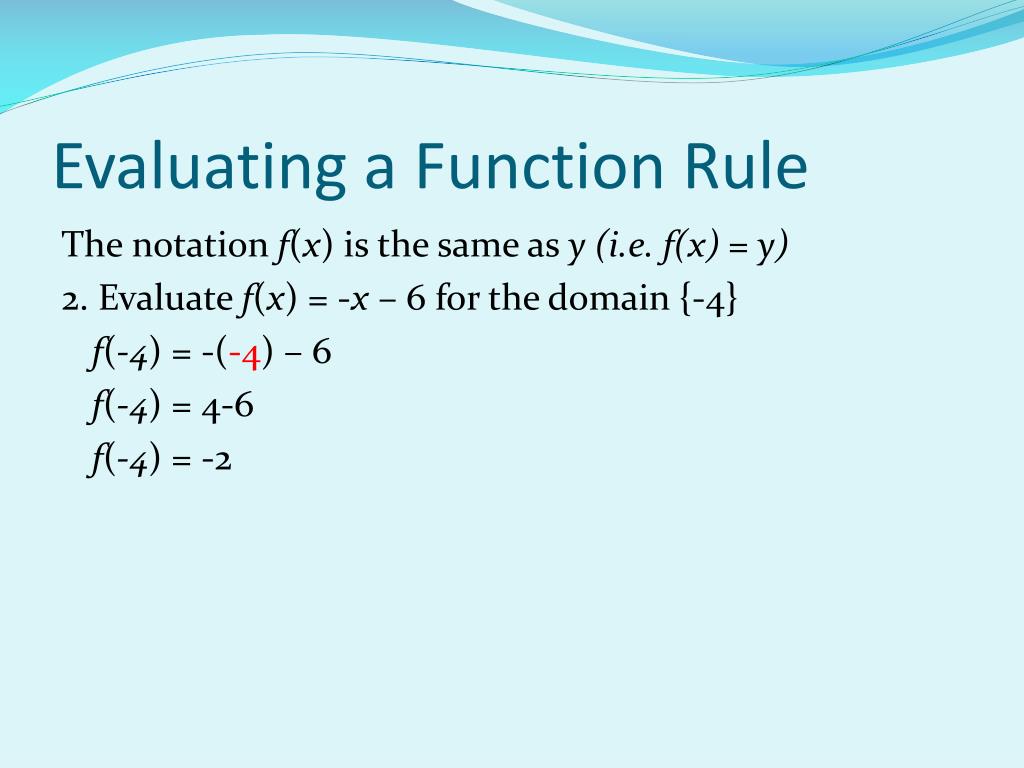

  5. Evaluating a Function Rule The notation f(x) is the same as y (i.e. f(x) = y) 2. Evaluate f(x) = -x – 6 for the domain {-4} f(-4) = -(-4) – 6 f(-4) = 4-6 f(-4) = -2

  6. Evaluating a Function Rule The notation f(x) is the same as y (i.e. f(x) = y) 3. Evaluate f(x) = x – 10 for the domain {-2} f(-2) = (-2) – 10 f(-2) = -1 – 10 f(-2) = -11

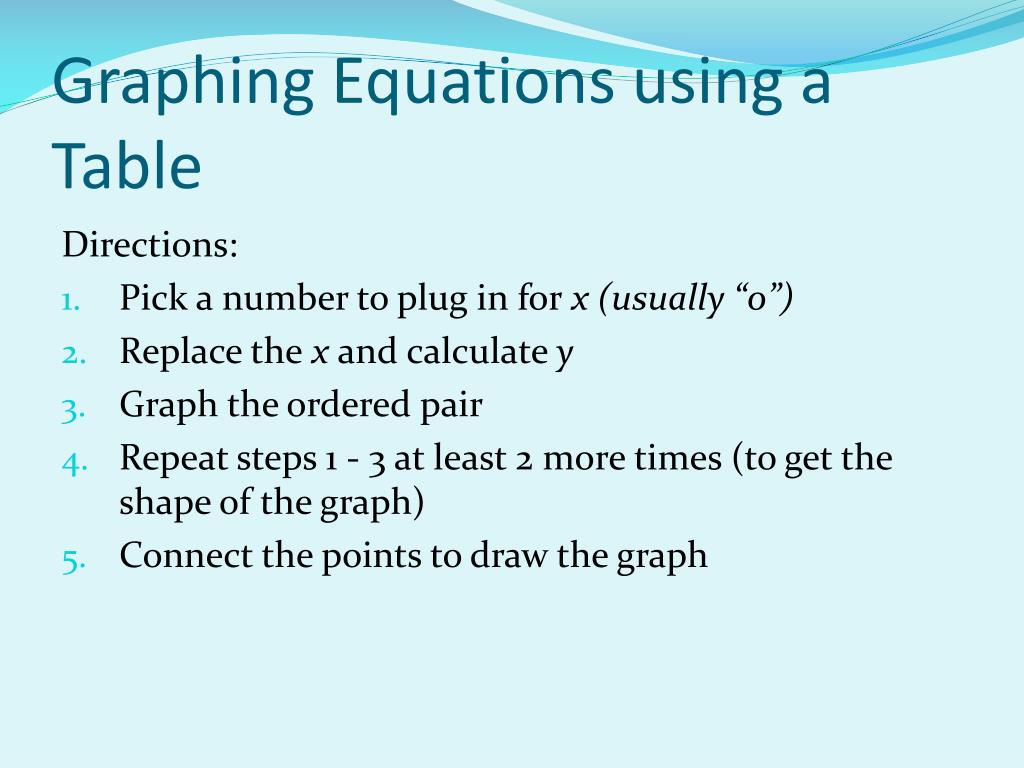

  7. Graphing Equations using a Table Directions: • Pick a number to plug in for x (usually “0”) • Replace the x and calculate y • Graph the ordered pair • Repeat steps 1 - 3 at least 2 more times (to get the shape of the graph) • Connect the points to draw the graph

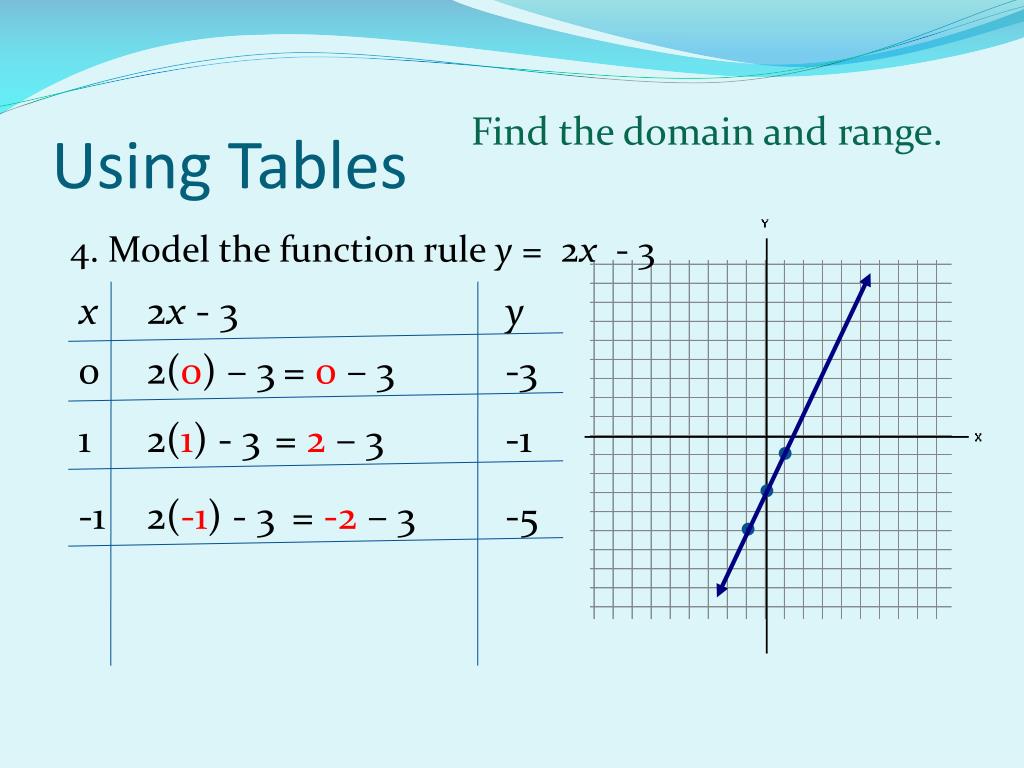

  8. Using Tables Find the domain and range. 4. Model the function rule y = 2x - 3 x 2x - 3 y 0 2(0) – 3 = 0 – 3 -3 1 2(1) - 3 = 2 – 3 -1 -1 2(-1) - 3 = -2 – 3 -5

  9. Using Tables Find the domain and range. 5. Model the function rule f(x) = - 2x + 5 x -2x + 5 f(x)

  10. Using Tables Find the domain and range. 6. Model the function rule y = - x + 1 - x + 1 x y

  11. Domain and Relations Graph the function and determine the domain and range. 7. y = |x|

  12. Domain and Relations Graph the function and determine the domain and range. 8. f(x) =

  13. Wrap Up • Evaluating Function • Using a Table to Graph • Determining Domain and Function • Determining Domain and Range HW: P. 190 #1-17 odd, 21, 25, 61-67 all DLUQ: What do you need to make to graph a function?
