Position Vectors

Position Vectors. The position vector r is defined as a fixed vector which locates a point in space relative to another point. r = x i + y j + z k. z. zk. P(x,y,z). r AB A = from point B = to point r OA =r A. r. yj. y. O. xi. x. Position Vectors. r A + r = r B

fox
Télécharger la présentation

Position Vectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Position Vectors The position vector r is defined as a fixed vector which locates a point in space relative to another point. r = xi + yj + zk z zk P(x,y,z) rAB A = from point B = to point rOA=rA r yj y O xi x

  2. Position Vectors rA+ r = rB r= rB- rA=(xBi+yBj+zBk)-(xAi+yAj+zAk) r= (xB-xA)i+(yB-yA)j+(zB-zA)k z B(xB,yB,zB) r A(xA,yA,zA) rB y rA O x

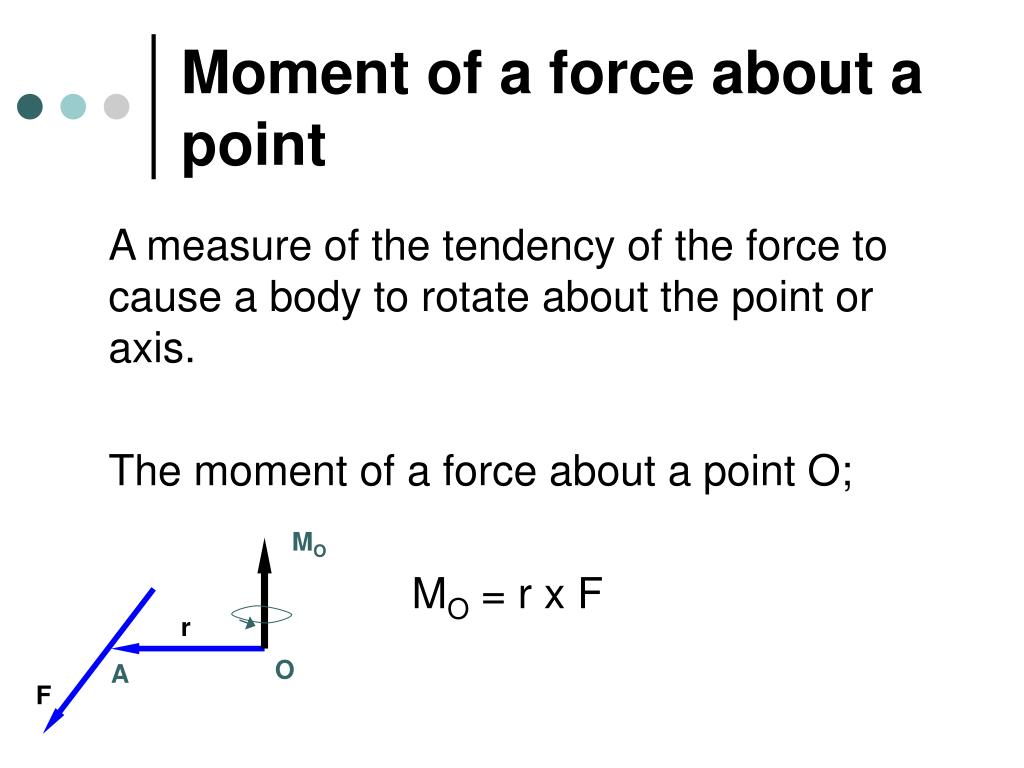

  3. Moment of a force about a point A measure of the tendency of the force to cause a body to rotate about the point or axis. The moment of a force about a point O; MO = r x F MO r O A F

  4. Moment of a force about a point MO = rFsinθ = F (rsinθ) = Fd MO d r θ r O A F Mx My Mz

  5. Moment of a force about a line In order to find the projected component of the moment about an axis. a Mo Ma F r a’

  6. Moment of a force about a line as a Cartesian vector;

  7. Example The magnitude of the force shown in the figure is 140 N. Determine; • The moment of F about point D. • The moment of F about a line joining D and A. • The angle btw. BG & DG. z G(2,0,3) A(0,6,0) y D(4,0,2) E(2,0,2) F C B(4,6,0) x

  8. Moment of a Couple A couple consists of two forces of equal magnitude having parallel lines of action but opposite directions. F d F Moment of couple

  9. Example Add couples whose forces act along diagonal of the rectangular prism. z 10 N 5 N 5 N y 5 10 10 N x

  10. Equivalent Force Systems • Translation of a force to a parallel position • Resultant of a force system • Distributed force systems

  11. Translation of a force to a parallel position A force can be moved to any parallel position provided that a couple moment of the correct orientation and size is simultaneously provided. z F=6i+3j+6k Replace this force by an equivalent force system at point P? A(2,1,10) P(6,10,12) y x

  12. Resultant of a force system Any force system can be replaced by any point by a single force and a single couple moment. MC:couple moments

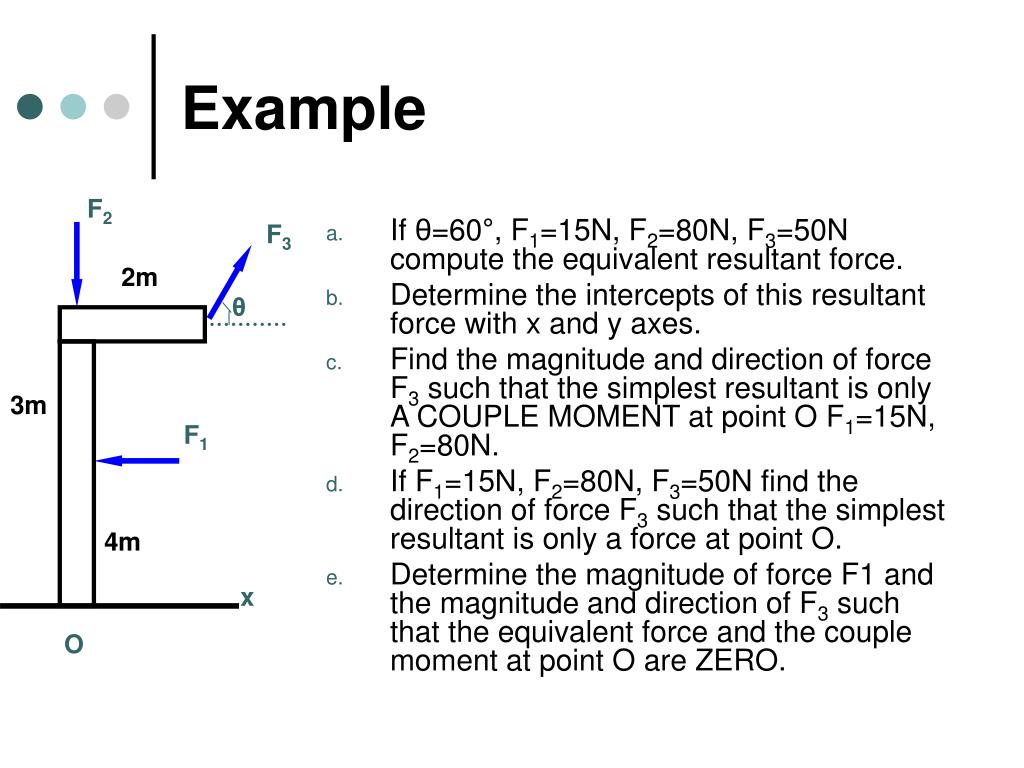

  13. Example F2 • If θ=60°, F1=15N, F2=80N, F3=50N compute the equivalent resultant force. • Determine the intercepts of this resultant force with x and y axes. • Find the magnitude and direction of force F3 such that the simplest resultant is only A COUPLE MOMENT at point O F1=15N, F2=80N. • If F1=15N, F2=80N, F3=50N find the direction of force F3 such that the simplest resultant is only a force at point O. • Determine the magnitude of force F1 and the magnitude and direction of F3 such that the equivalent force and the couple moment at point O are ZERO. F3 2m θ 3m F1 4m x O

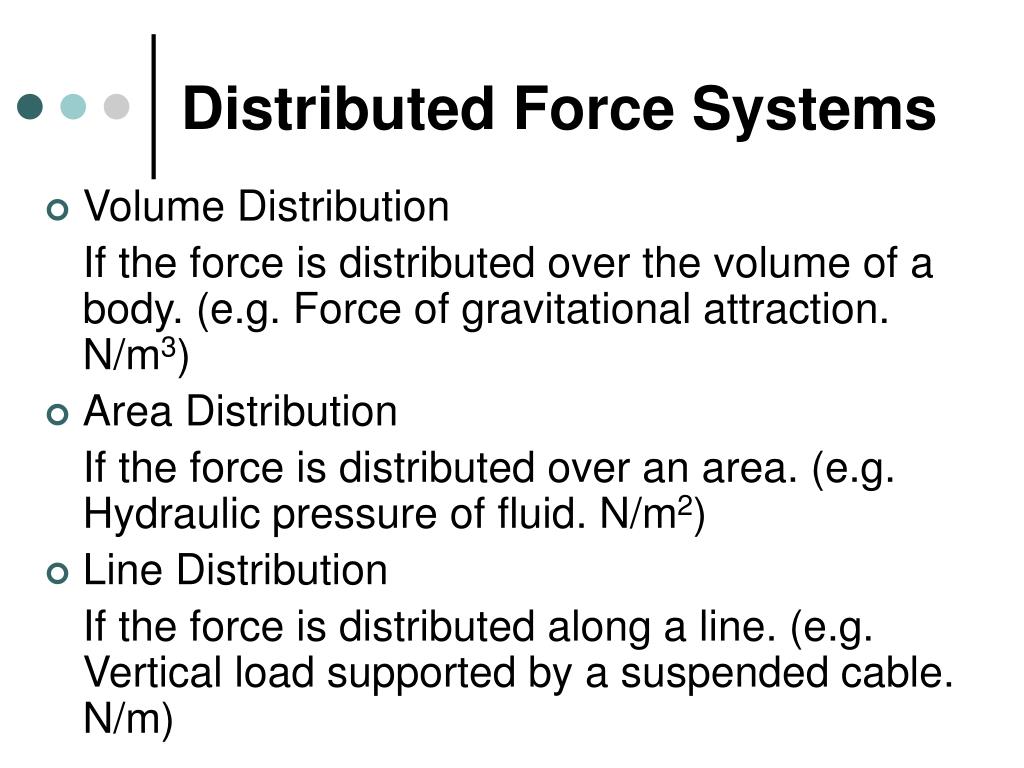

  14. Distributed Force Systems • Volume Distribution If the force is distributed over the volume of a body. (e.g. Force of gravitational attraction. N/m3) • Area Distribution If the force is distributed over an area. (e.g. Hydraulic pressure of fluid. N/m2) • Line Distribution If the force is distributed along a line. (e.g. Vertical load supported by a suspended cable. N/m)

  15. Center of a Geometry • Center of Mass • Center of Gravity • Centroid

  16. Line Force Distribution w: load intensity (N/m) y w(x) x FR x

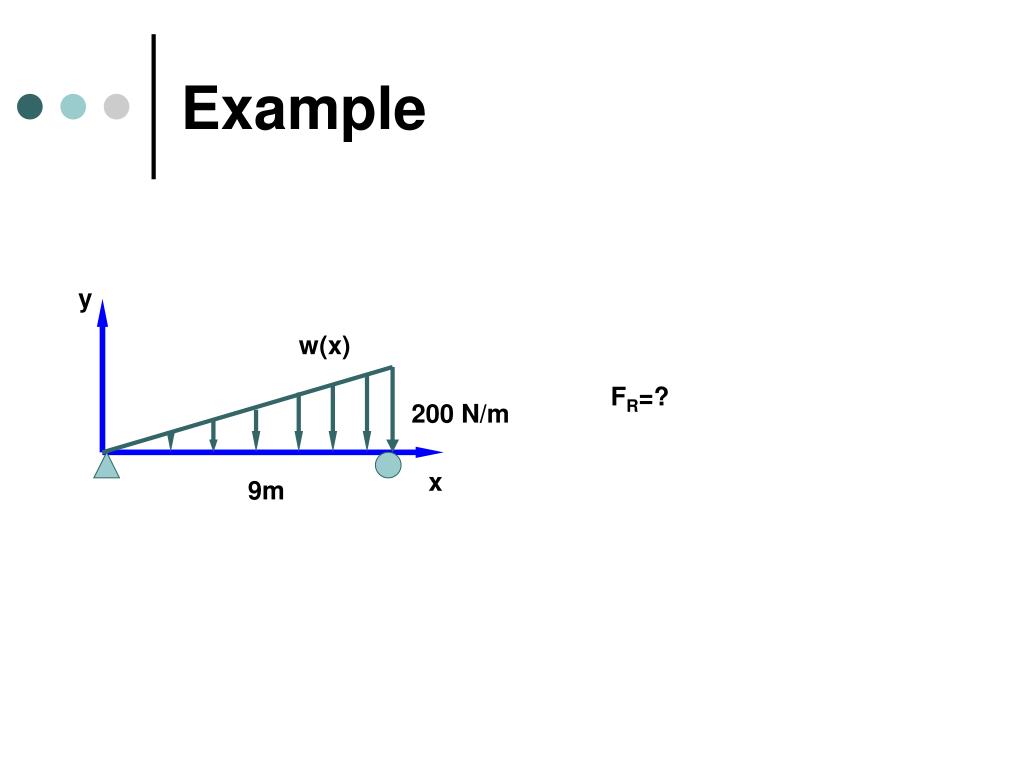

  17. Example y w(x) FR=? 200 N/m x 9m
