CH 22-2. Review -- how electric and magnetic fields are created. Any charged particle creates an electric field at all points in space around it.

Télécharger la présentation

## CH 22-2

E N D

### Presentation Transcript

1. CH 22-2

2. Review -- how electric and magnetic fields are created Any charged particle creates an electric field at all points in space around it. A moving charged particle creates a magnetic field at certain points in space around it. (B=0 at points along the axis of the velocity of the particle.)

3. The force of a magnetic field on a charged particle

4. The force of a magnetic field on a charged particle The magnetic force is perpendicular to BOTH the velocity vector and the magnetic field vector and is given by the right hand rule (for a proton).

5. Right-hand Rule for Magnetic Force Point your fingers of your right hand in the direction of the velocity so that when you rotate your hand toward the magnetic field; then your thumb points in the direction of the magnetic force on a proton. (The force on an electron is in the opposite direction, or use your left hand.)

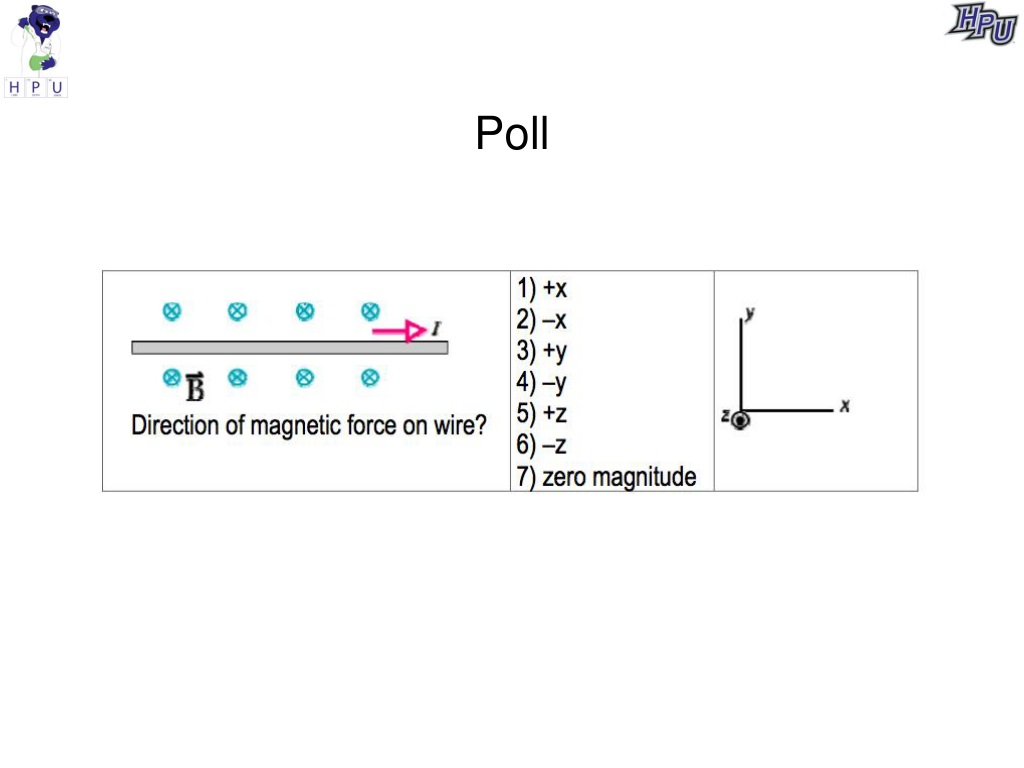

6. Poll

7. Poll

8. Poll

9. Poll

10. Uniform circular motionof a charged particle in a magnetic field Net force on an object in uniform circular motion has a magnitude

11. Crossed electric and magnetic fields                                               

12. Velocity Selector                                               

13. Poll

14. Poll

15. Poll

16. Poll
