  1. Built-in Solutions Safe fluid wastedisposalforchemicallaboratories Dave Withee Withee Works LLC Tel: 920.737.8477 Suite 104, 1540 Capitol Drive Green Bay, WI 54303dwithee@witheeworks.com

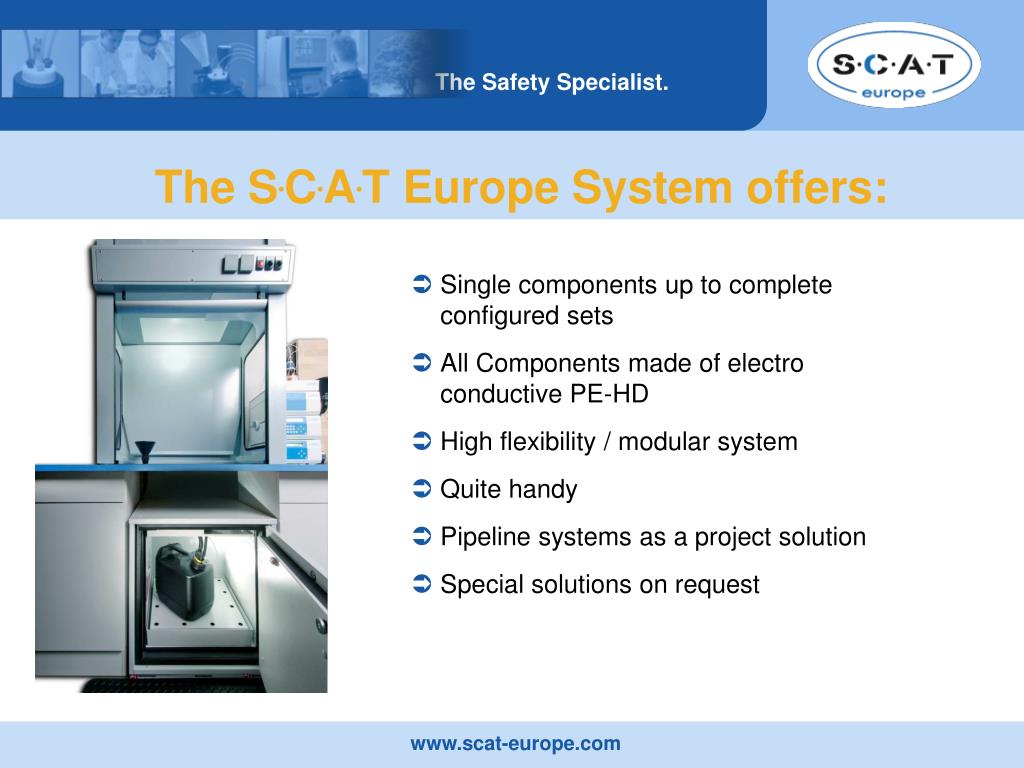

  2. The S•C•A•T Europe System offers: • Single components up to complete configured sets • All Components made of electro conductive PE-HD • High flexibility / modular system • Quite handy • Pipeline systems as a project solution • Special solutions on request

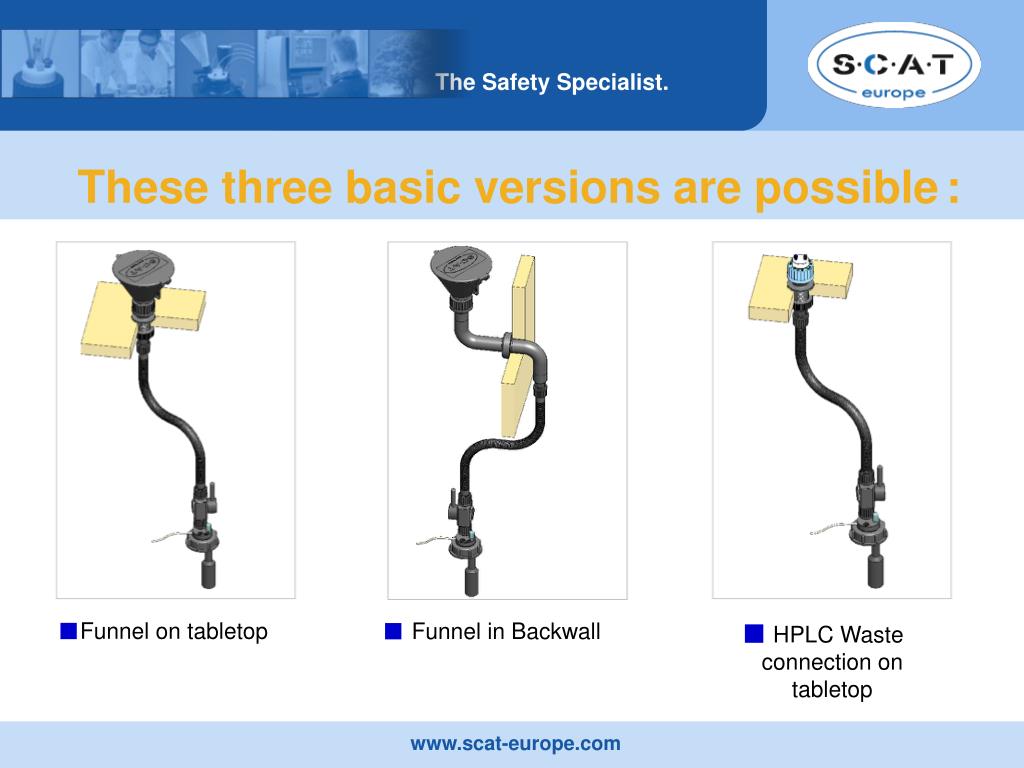

  3. These three basic versions are possible: • Funnel on tabletop ■Funnel in Backwall ■ HPLC Waste connection on tabletop

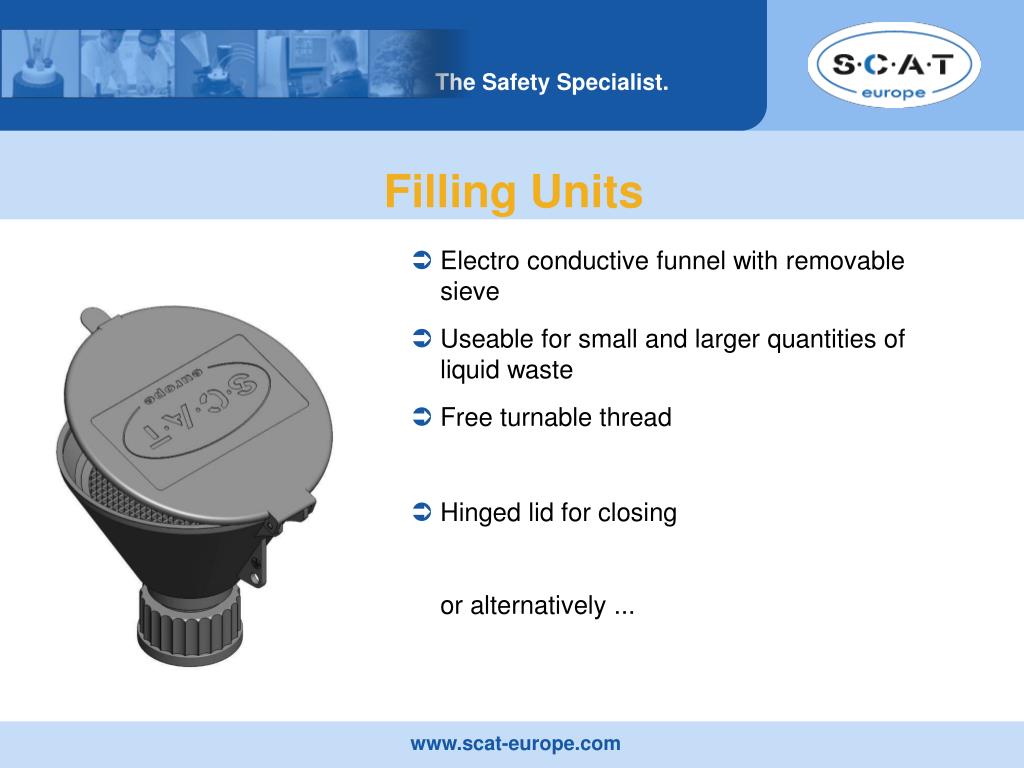

  4. Filling Units • Electro conductive funnel with removable sieve • Useable for small and larger quantities of liquid waste • Free turnable thread • Hinged lid for closing or alternatively ...

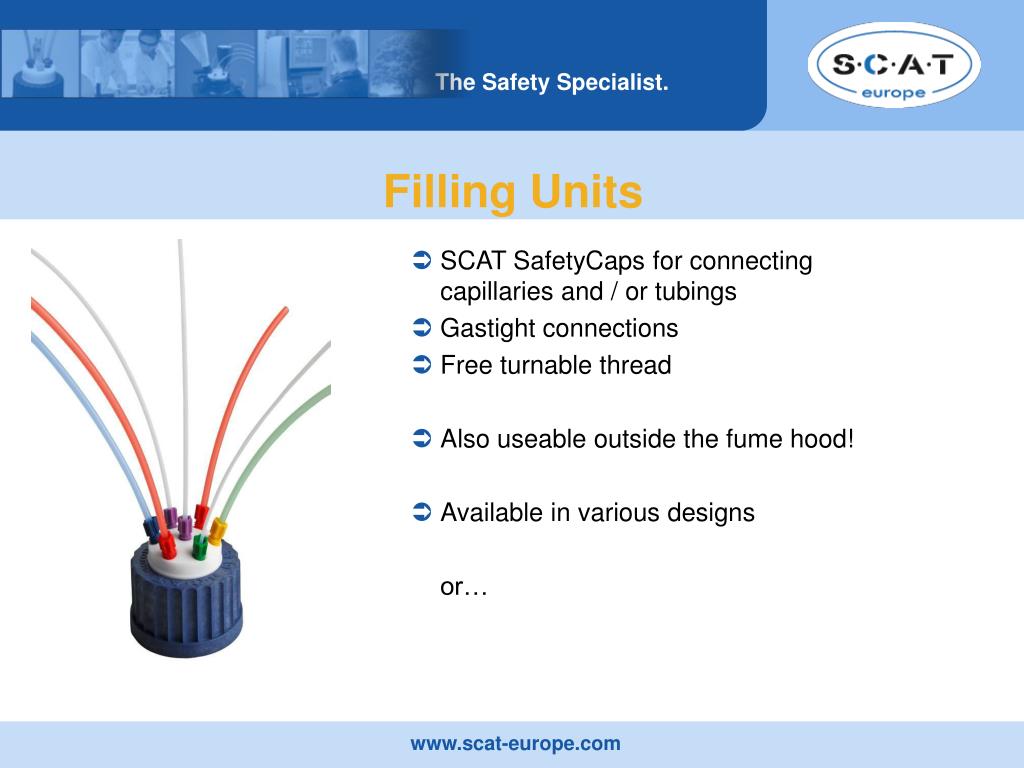

  5. Filling Units • SCAT SafetyCaps for connecting capillaries and / or tubings • Gastight connections • Free turnable thread • Also useable outside the fume hood! • Available in various designs or…

  6. Filling Units • Useage of an adapter to connect multiple SafetyCaps on one desktop mount • In this way, several HPLC systems are collectable in one waste system

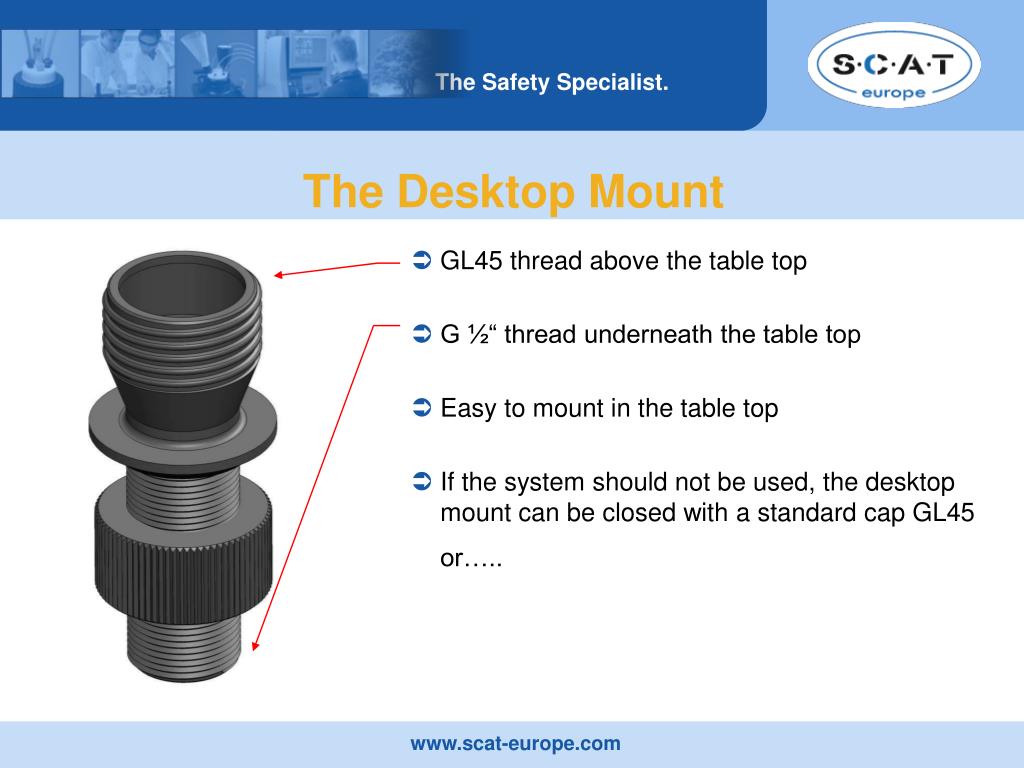

  7. The Desktop Mount • GL45 thread above the table top • G ½“ thread underneath the table top • Easy to mount in the table top • If the system should not be used, the desktop mount can be closed with a standard cap GL45 or…..

  8. The backwall mount • GL45 thread in the backwall • G ½“ thread behind the backwall • More free space on the table top • If the system should not be used, the desktop mount can be closed with a standard cap GL45 • The connection to a tubing will be build by an adapter (G1/2“ to GL25) for both mount parts

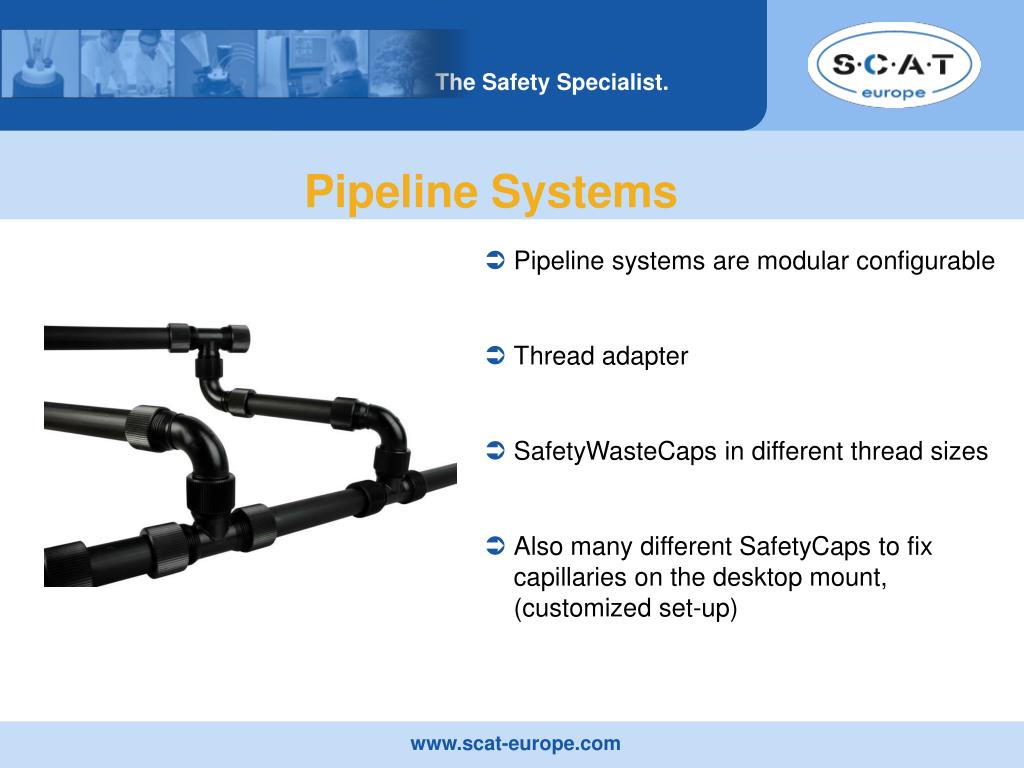

  9. Pipeline Systems • Pipeline systems are modular configurable • Thread adapter • SafetyWasteCaps in different thread sizes • Also many different SafetyCaps to fix capillaries on the desktop mount, (customized set-up)

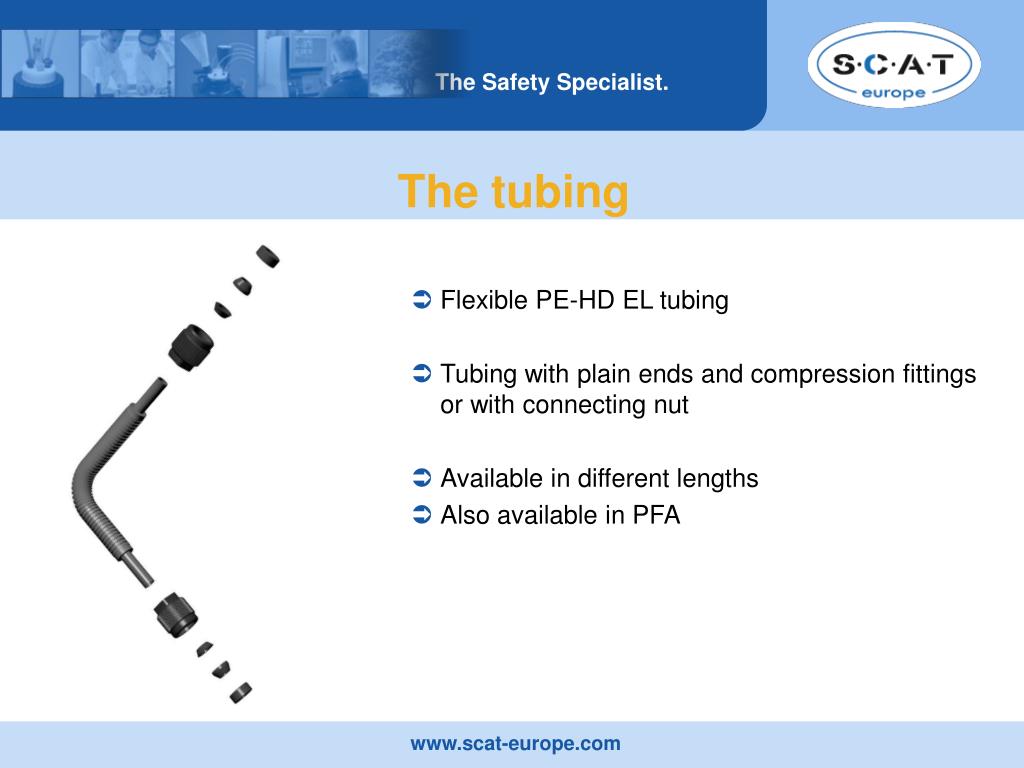

  10. The tubing • Flexible PE-HD EL tubing • Tubing with plain ends and compression fittings or with connecting nut • Available in different lengths • Also available in PFA

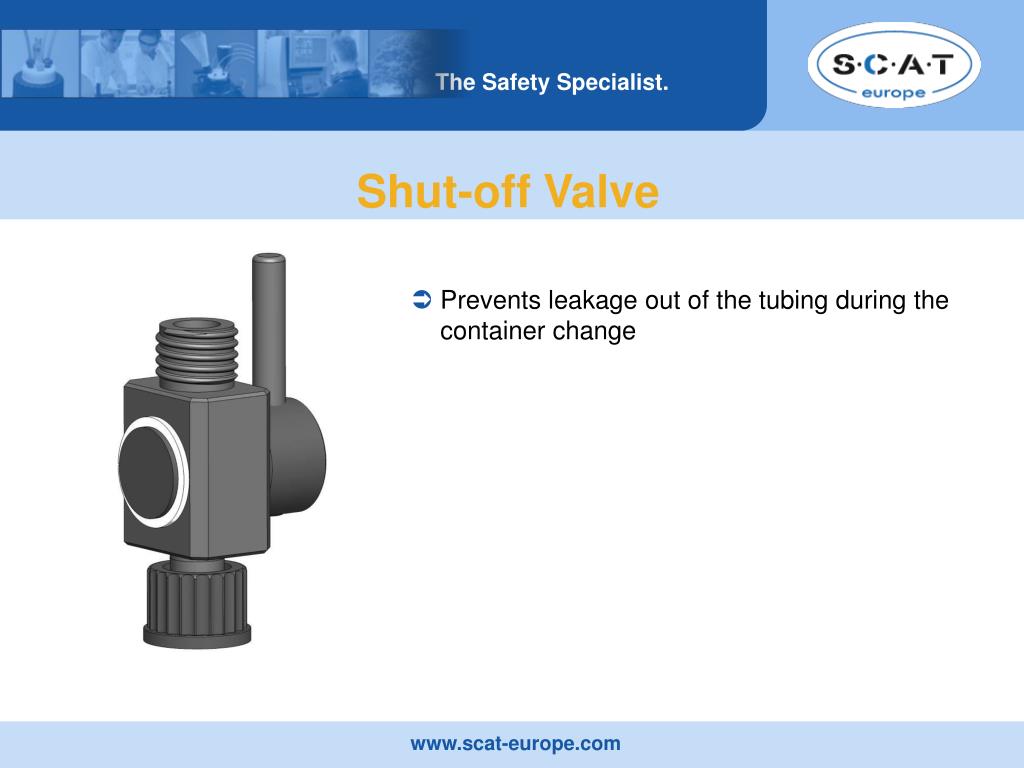

  11. Shut-off Valve • Prevents leakage out of the tubing during the container change

  12. Low CeilingValve • Angle to reduce the installation height, in the case that the container is inside a safety cupboard • prevent the collision between the tubing and saftey cupboard

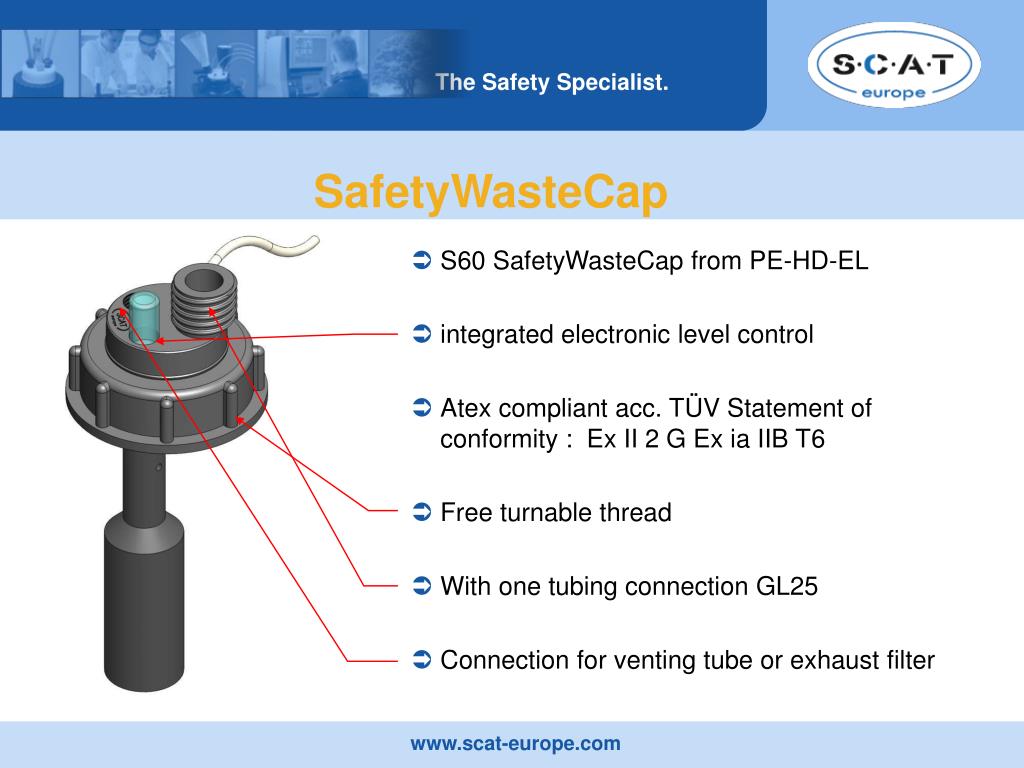

  13. SafetyWasteCap • S60 SafetyWasteCap from PE-HD-EL • integrated electronic level control • Atex compliant acc. TÜV Statement of conformity : Ex II 2 G Ex ia IIB T6 • Free turnable thread • With one tubing connection GL25 • Connection for venting tube or exhaust filter

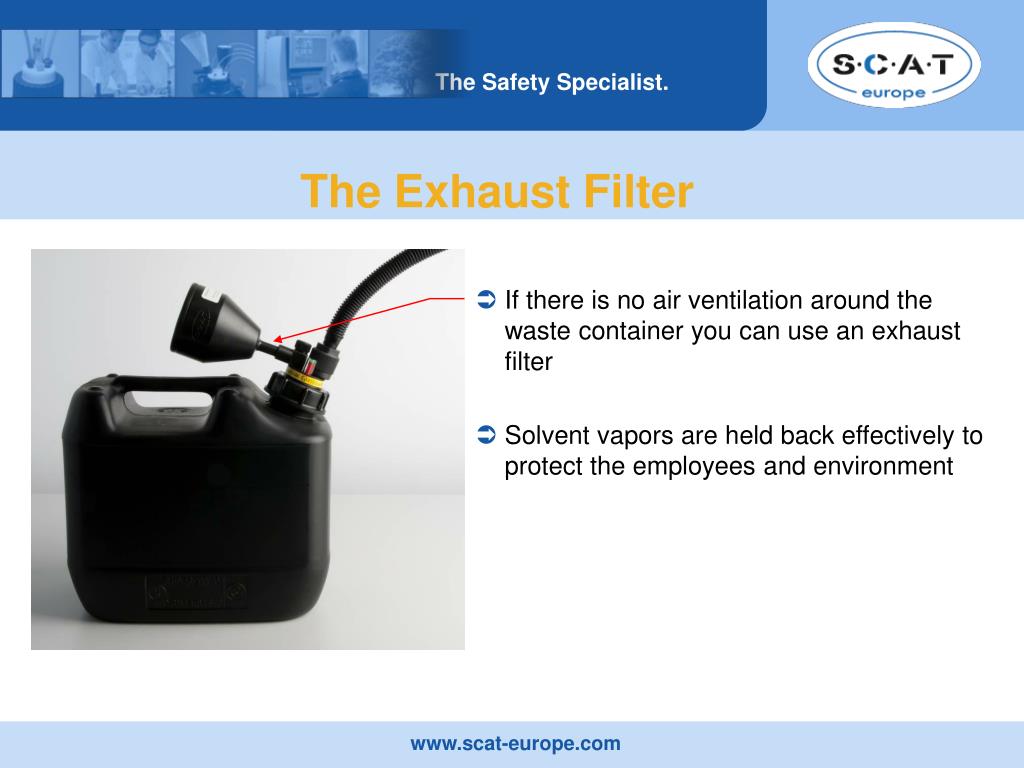

  14. The Exhaust Filter • If there is no air ventilation around the waste container you can use an exhaust filter • Solvent vapors are held back effectively to protect the employees and environment

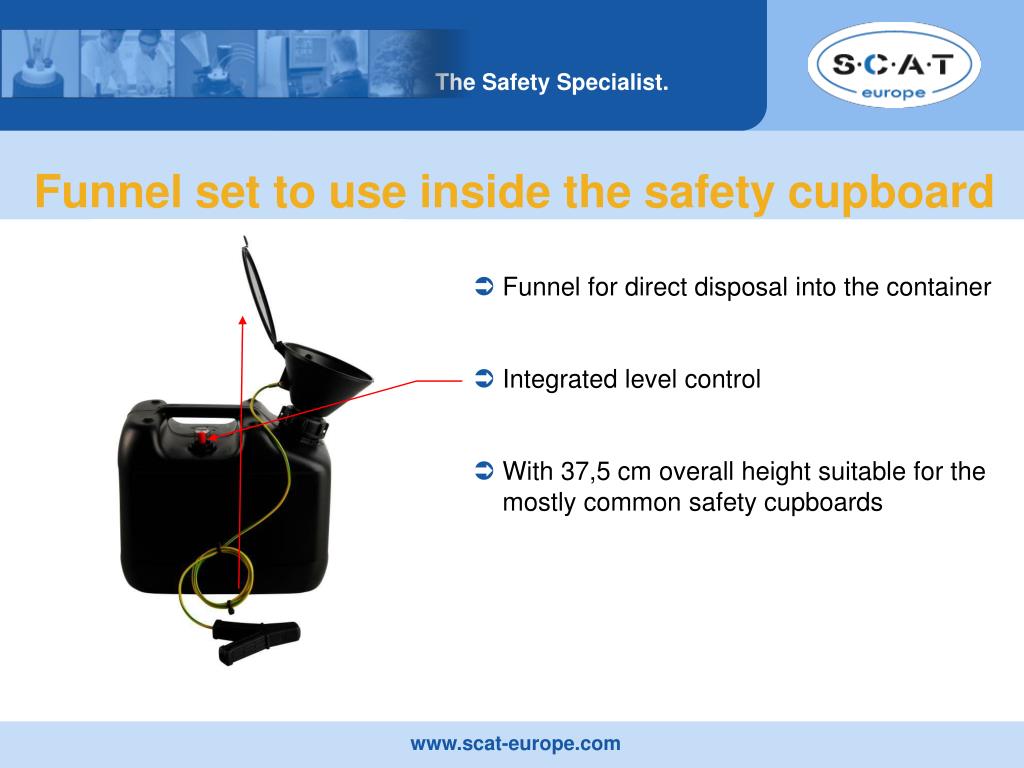

  15. Funnel set to use inside the safety cupboard • Funnel for direct disposal into the container • Integrated level control • With 37,5 cm overall height suitable for the mostly common safety cupboards

  16. I protect myself. With SCAT Safety Products. Thank you very much for your attention If you havequestions, pleasecontact: Dave WitheeCell920.737.8477 dwithee@witheeworks.com
