  1. Simple Harmonic Motion An Introduction

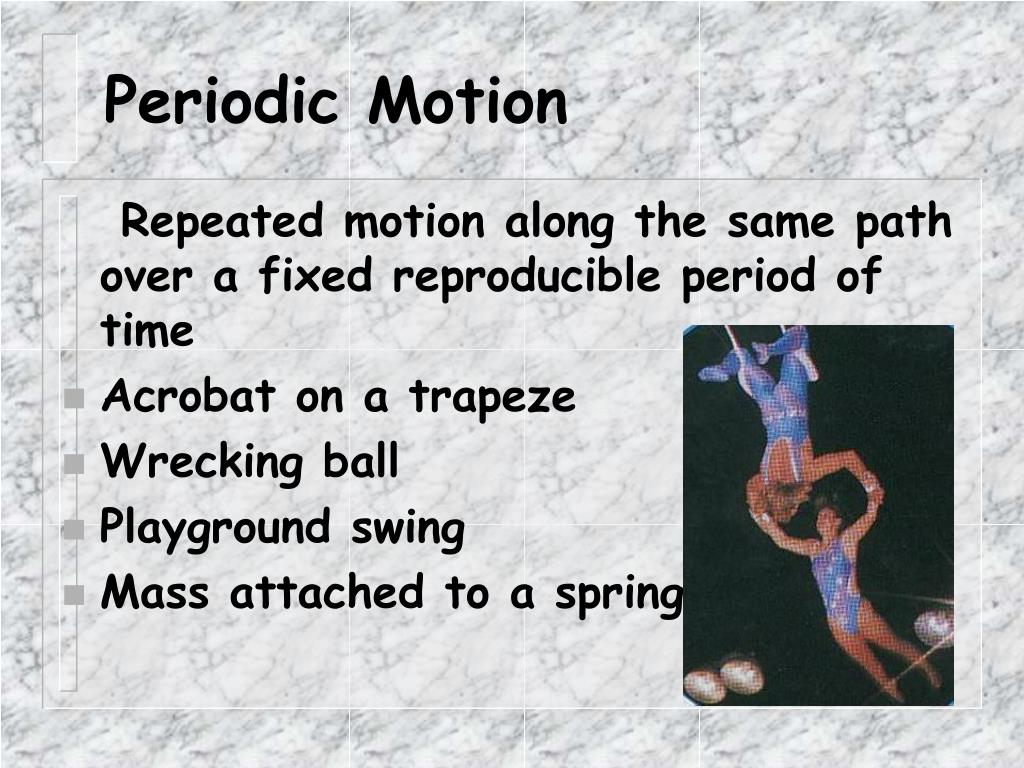

  2. Periodic Motion Repeated motion along the same path over a fixed reproducible period of time • Acrobat on a trapeze • Wrecking ball • Playground swing • Mass attached to a spring

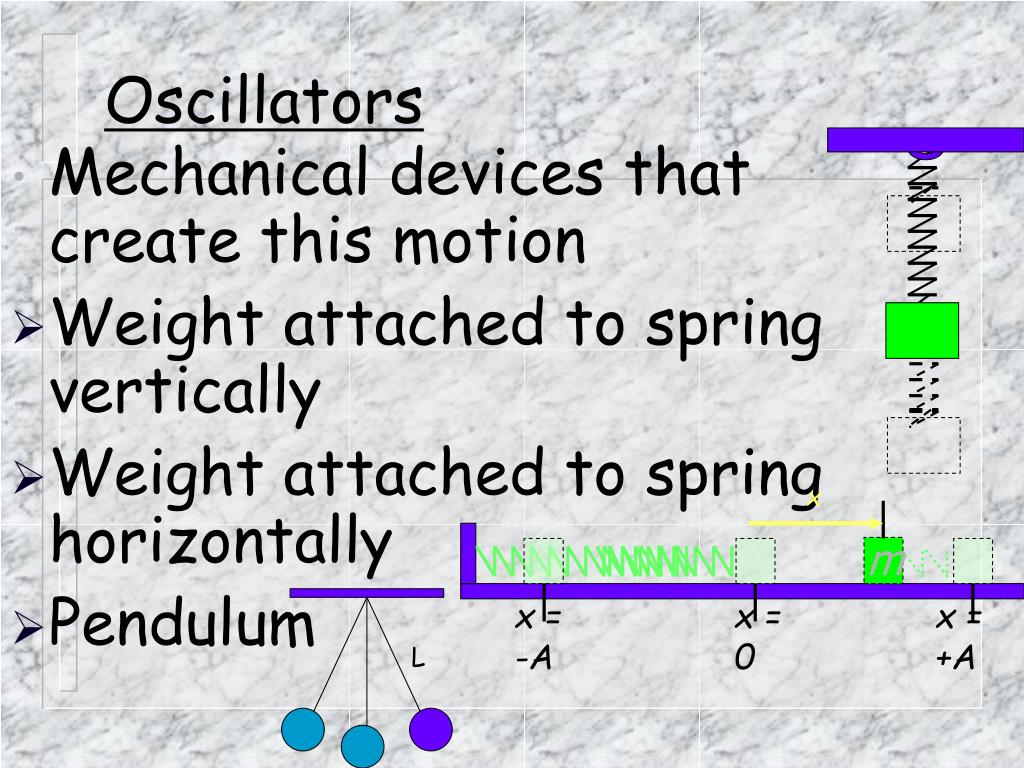

  3. x m L x = -A x = 0 x = +A Oscillators • Mechanical devices that create this motion • Weight attached to spring vertically • Weight attached to spring horizontally • Pendulum

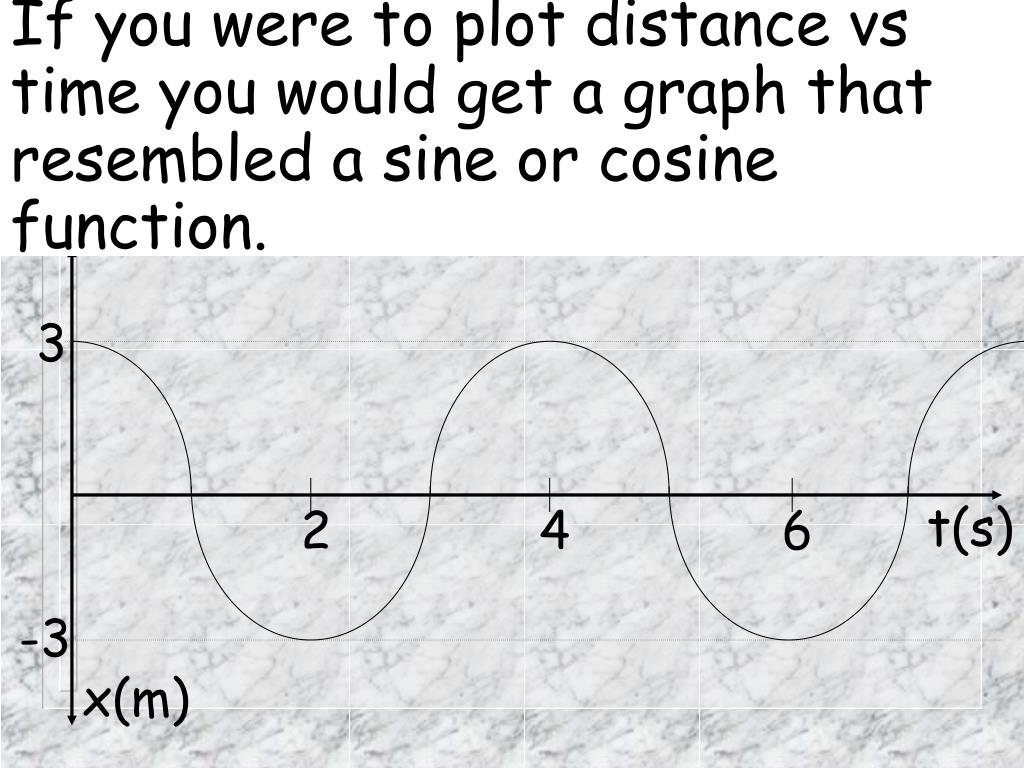

  4. If you were to plot distance vs time you would get a graph that resembled a sine or cosine function. 3 t(s) 2 4 6 -3 x(m)

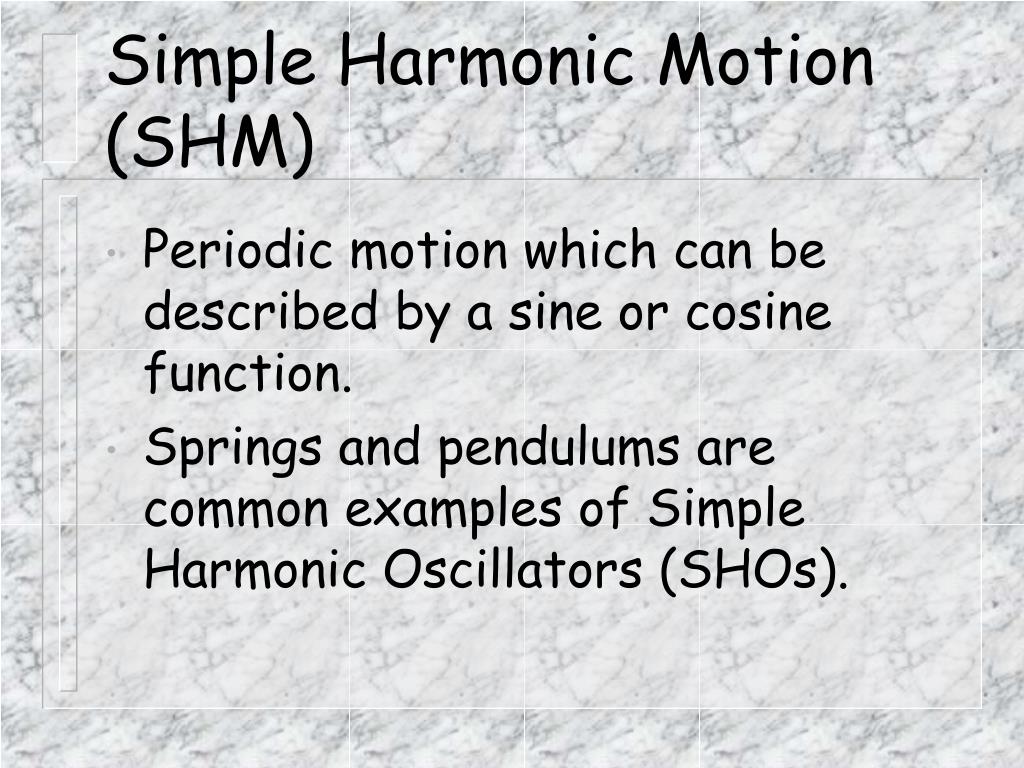

  5. Simple Harmonic Motion (SHM) • Periodic motion which can be described by a sine or cosine function. • Springs and pendulums are common examples of Simple Harmonic Oscillators (SHOs).

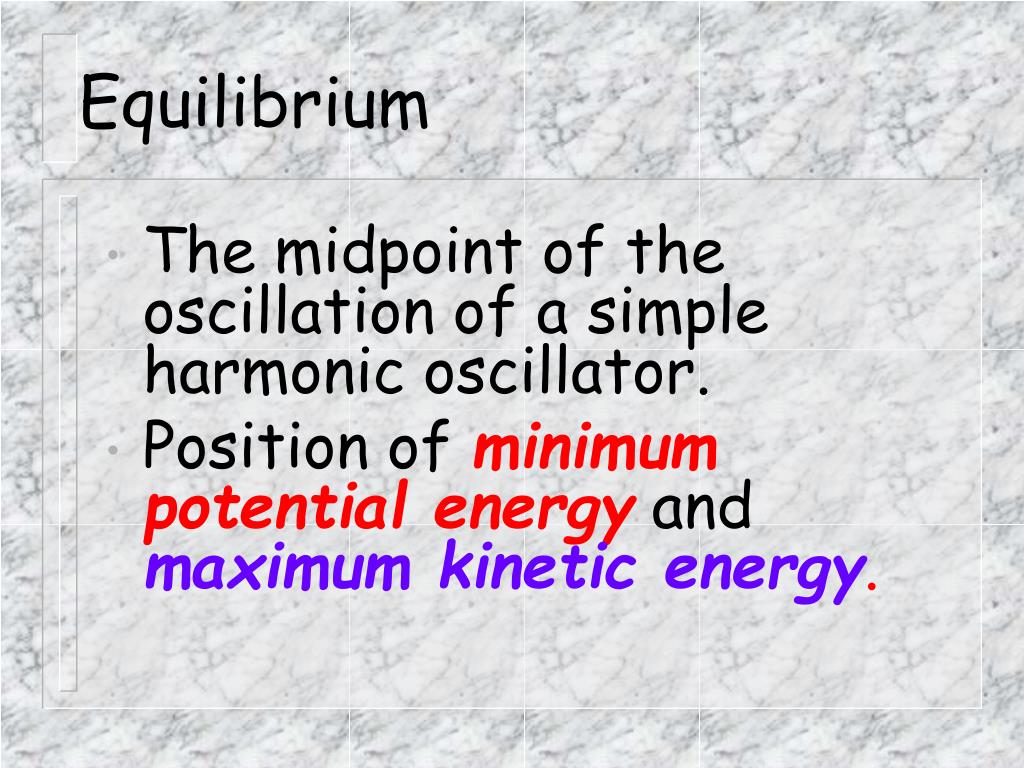

  6. Equilibrium • The midpoint of the oscillation of a simple harmonic oscillator. • Position of minimum potential energy and maximum kinetic energy.

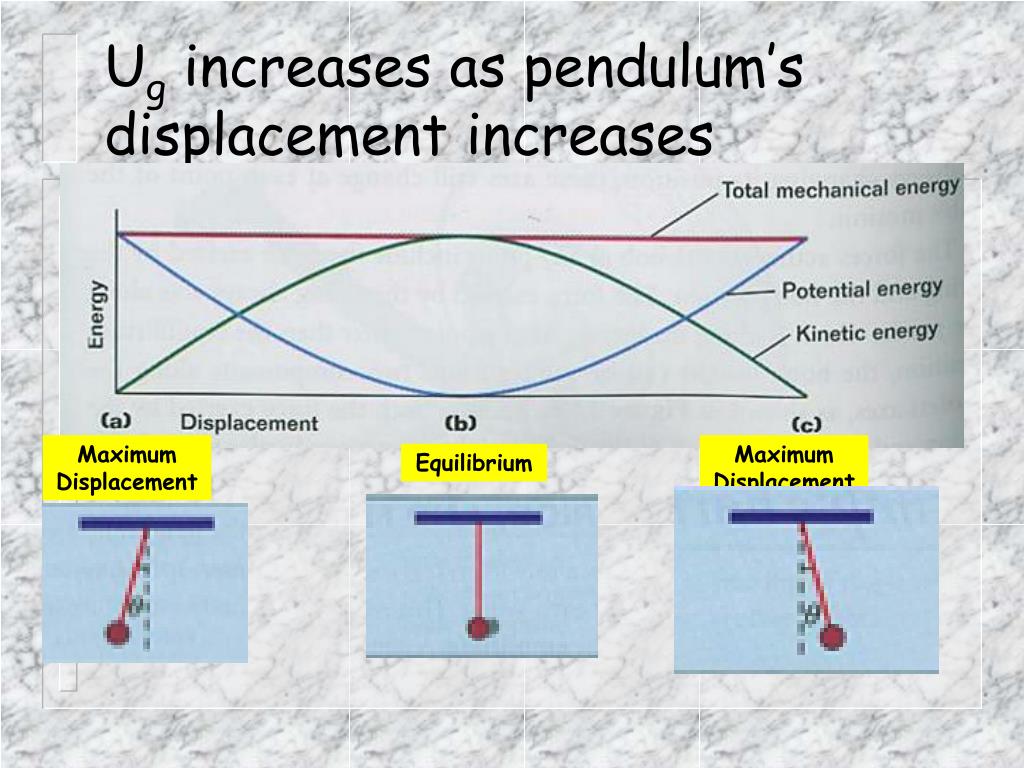

  7. Ug increases as pendulum’s displacement increases Maximum Displacement Maximum Displacement Equilibrium

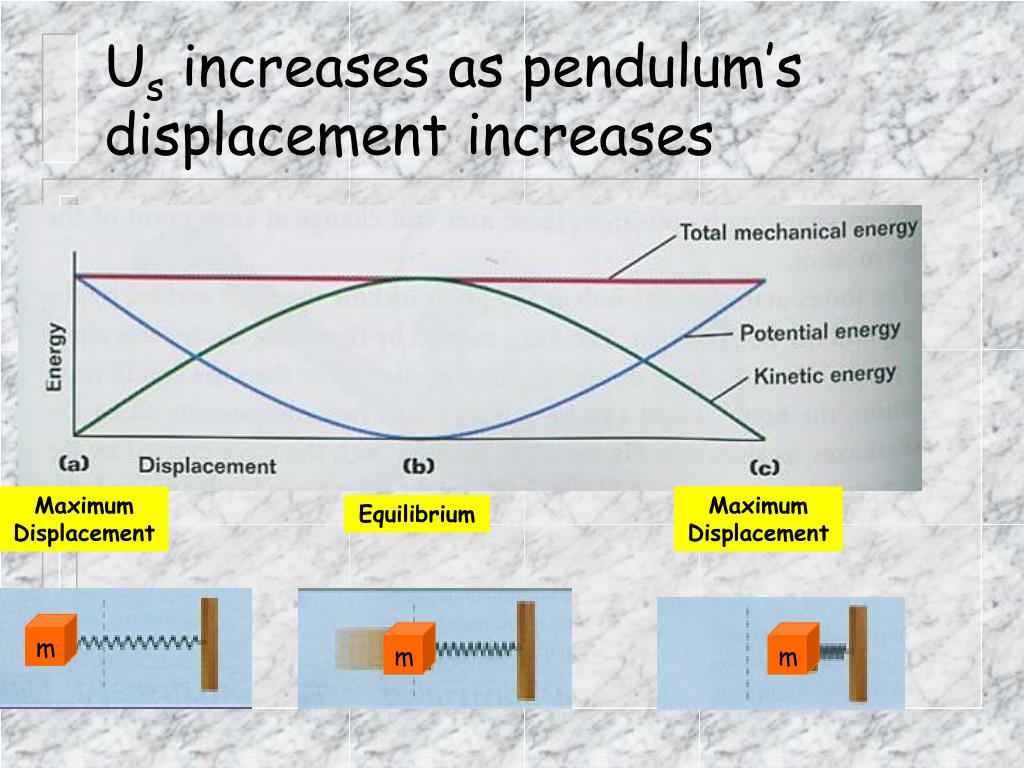

  8. Us increases as pendulum’s displacement increases Maximum Displacement Maximum Displacement Equilibrium m m m

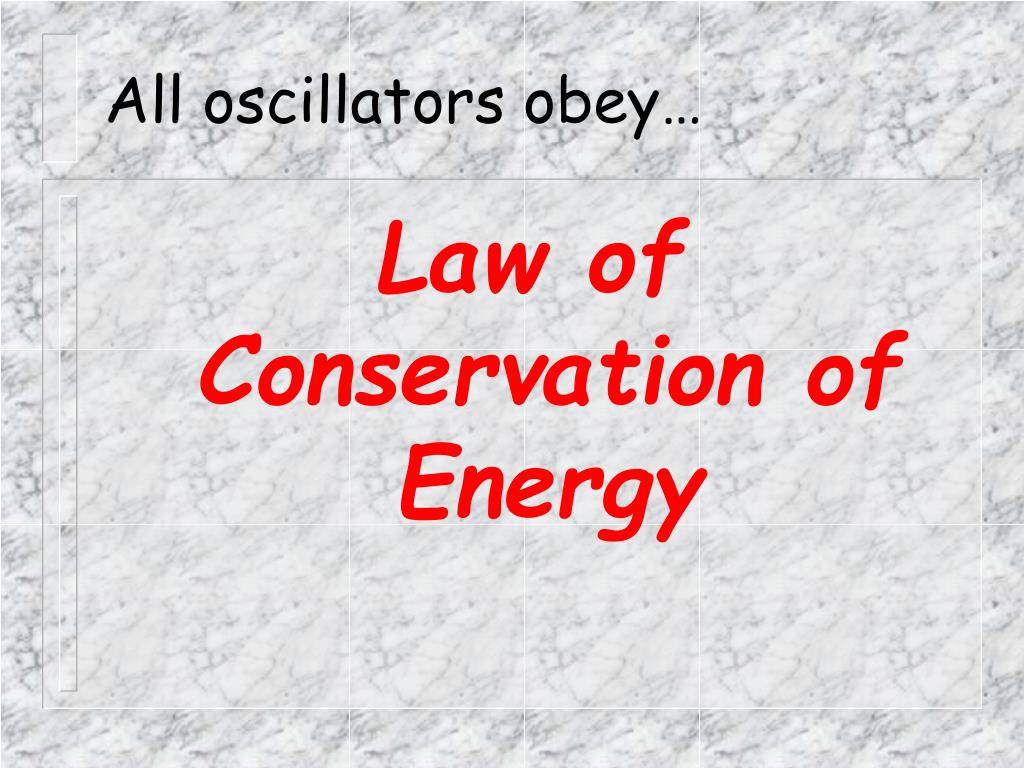

  9. All oscillators obey… Law of Conservation of Energy

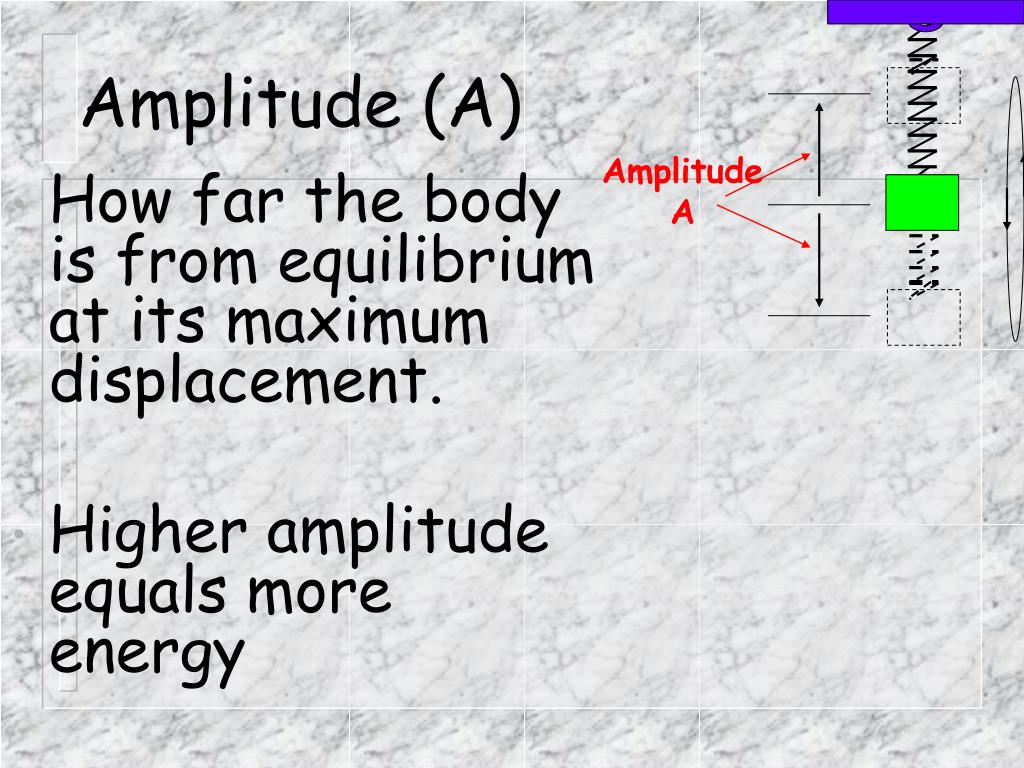

  10. Amplitude A Amplitude (A) • How far the body is from equilibrium at its maximum displacement. • Higher amplitude equals more energy

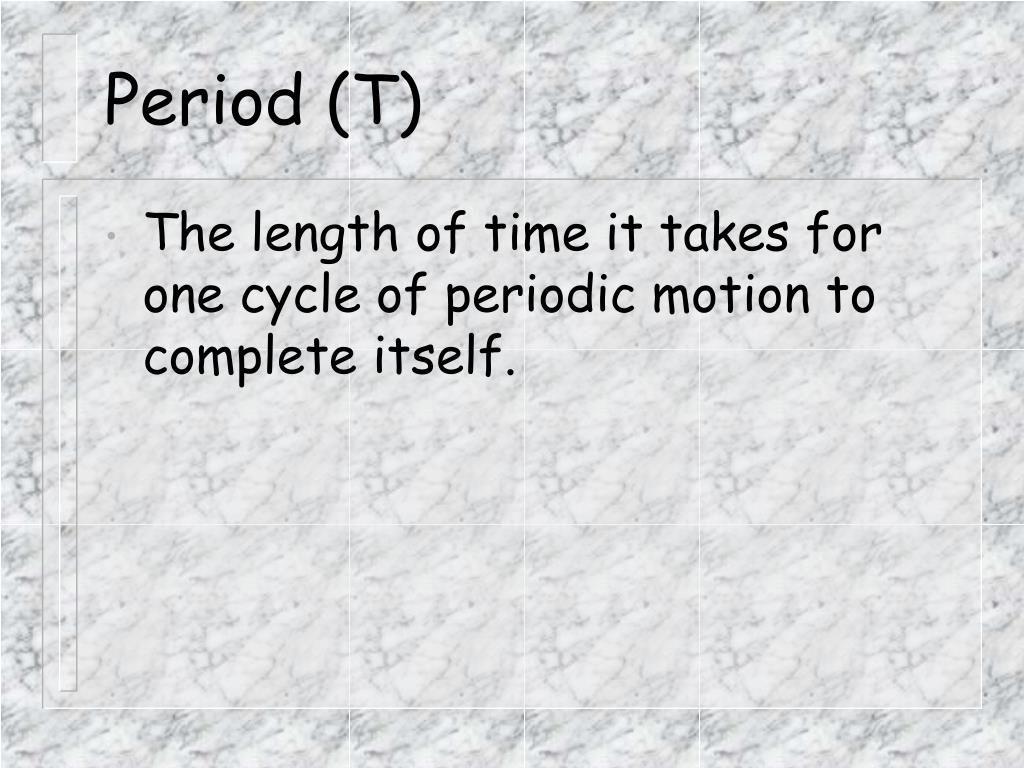

  11. Period (T) • The length of time it takes for one cycle of periodic motion to complete itself.

  12. Frequency (f): • How fast the oscillation is occurring. • Frequency is inversely related to period. • f = 1/T • The units of frequency is the Hertz (Hz) where 1 Hz = 1 s-1.

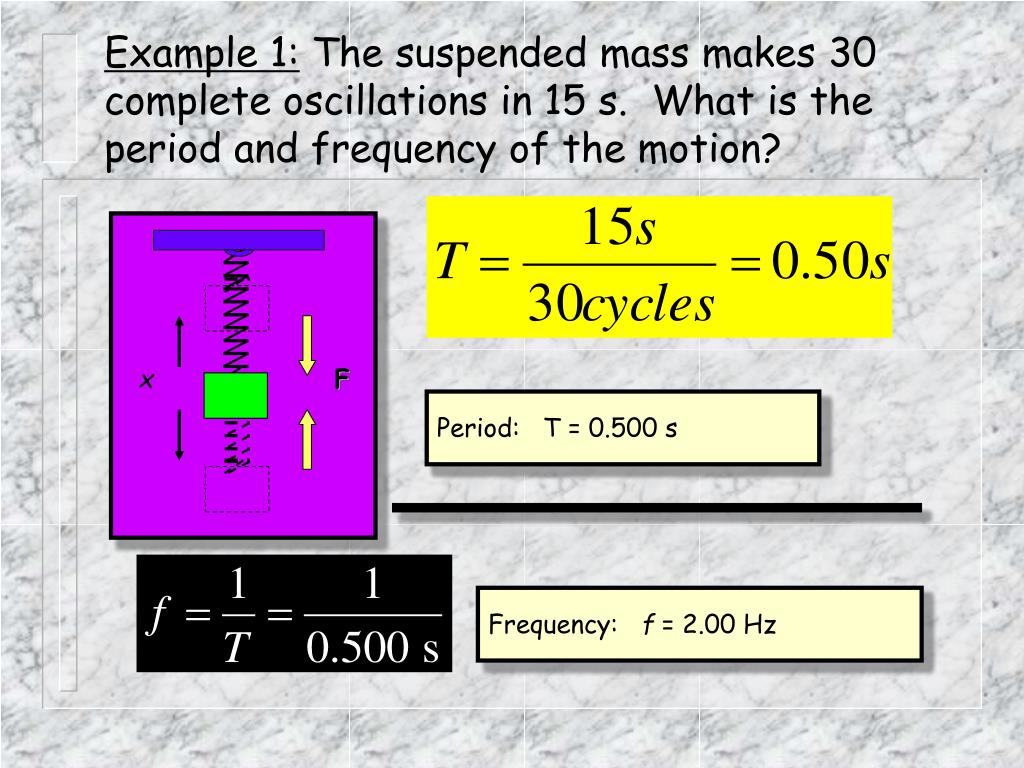

  13. x F Example 1:The suspended mass makes 30 complete oscillations in 15 s. What is the period and frequency of the motion? Period: T = 0.500 s Frequency: f = 2.00 Hz

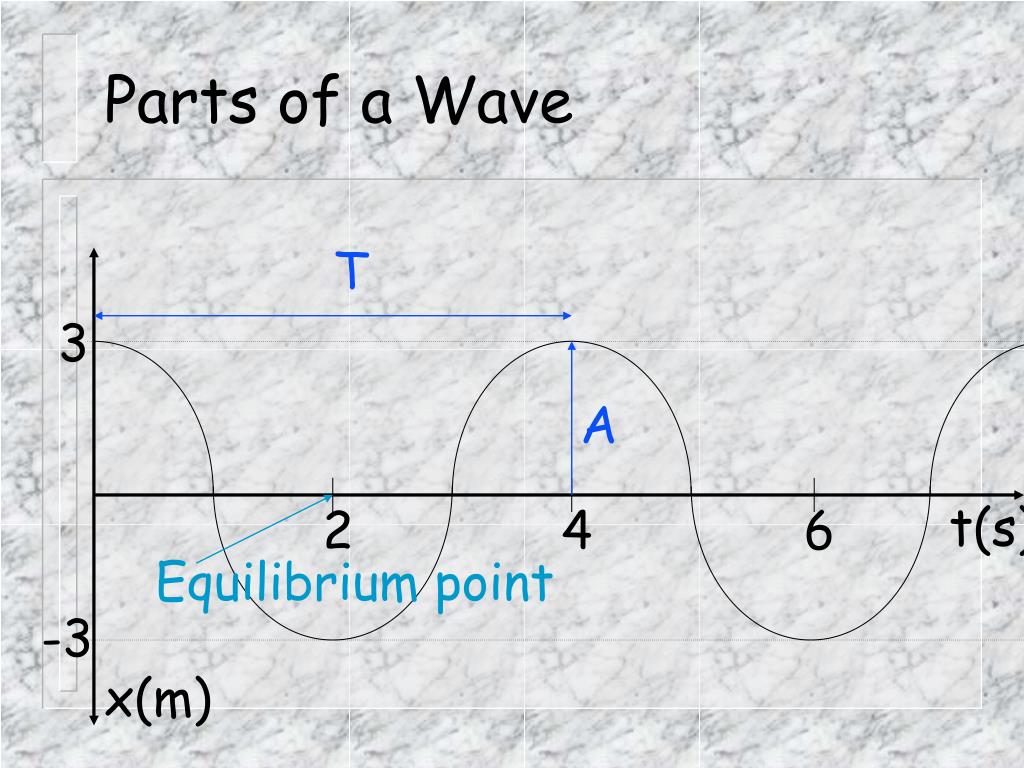

  14. T A Equilibrium point Parts of a Wave 3 t(s) 2 4 6 -3 x(m)

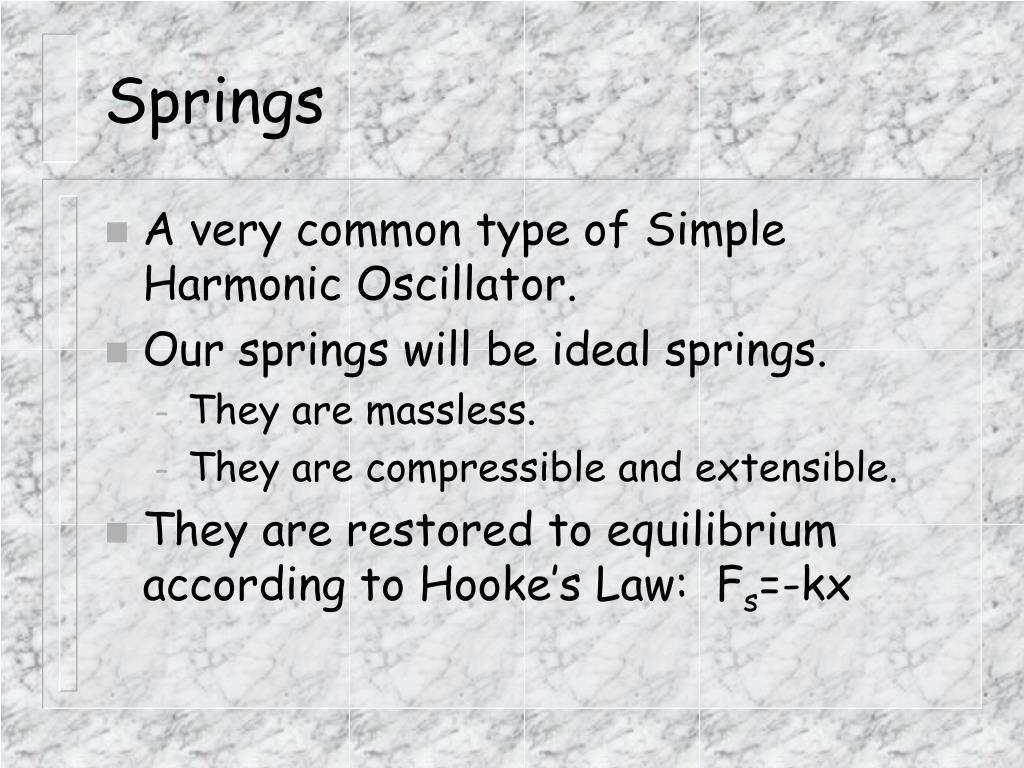

  15. Springs • A very common type of Simple Harmonic Oscillator. • Our springs will be ideal springs. • They are massless. • They are compressible and extensible. • They are restored to equilibrium according to Hooke’s Law: Fs=-kx

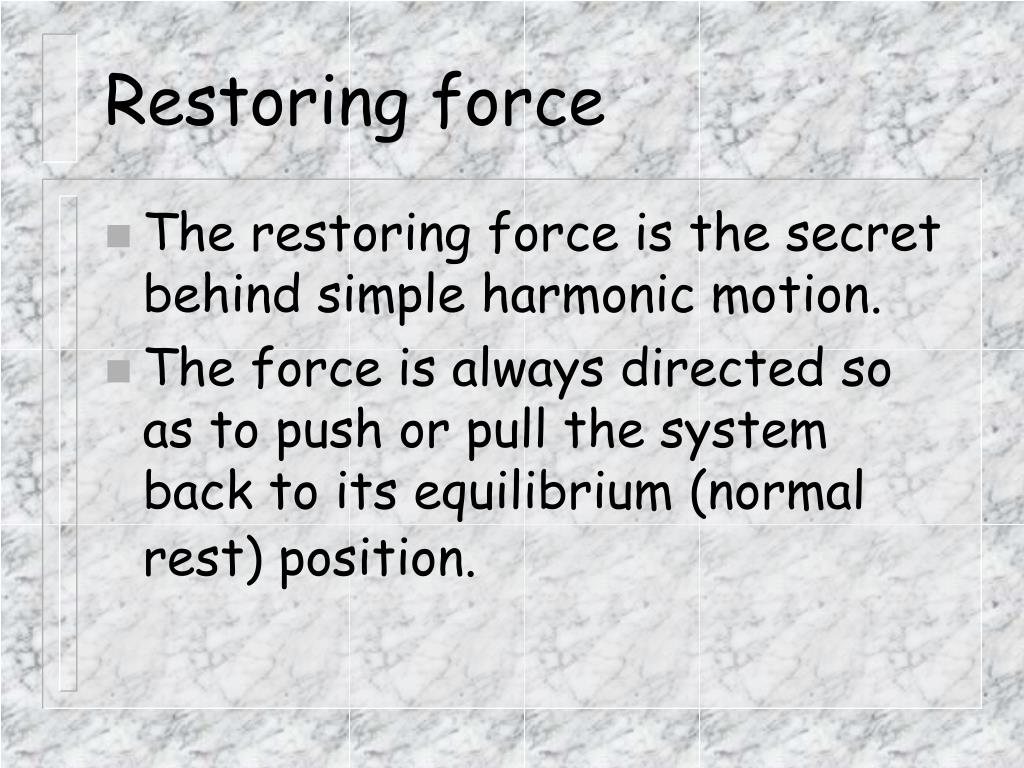

  16. Restoring force • The restoring force is the secret behind simple harmonic motion. • The force is always directed so as to push or pull the system back to its equilibrium (normal rest) position.

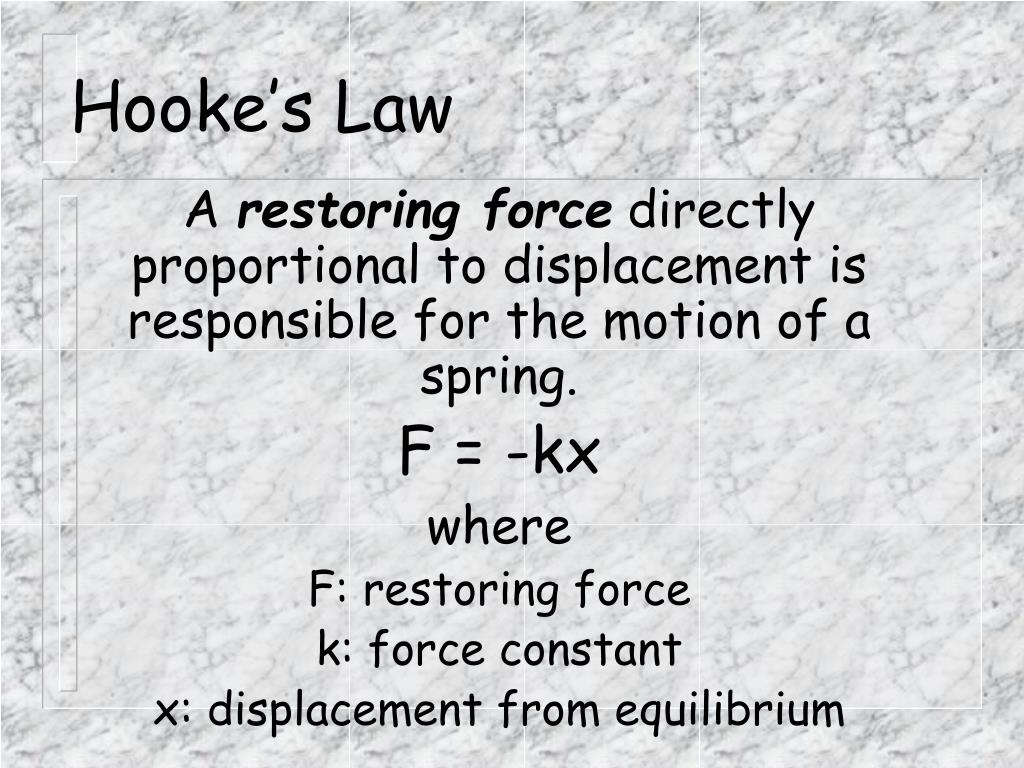

  17. Hooke’s Law A restoring force directly proportional to displacement is responsible for the motion of a spring. F = -kx where F: restoring force k: force constant x: displacement from equilibrium

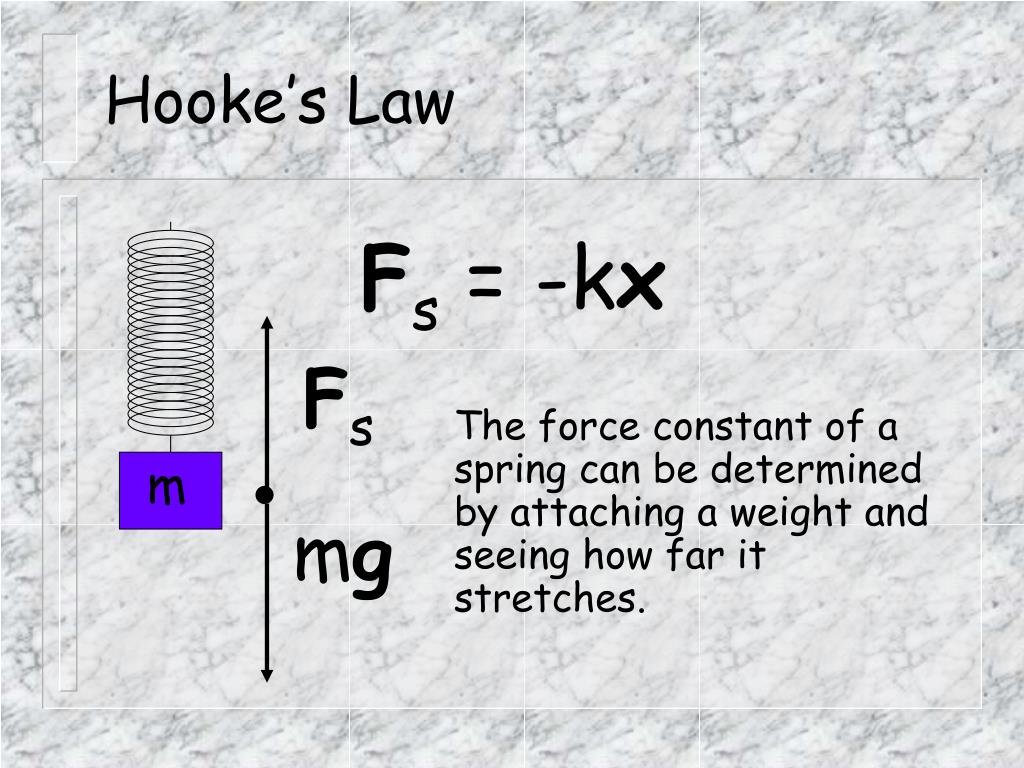

  18. Fs m mg Hooke’s Law The force constant of a spring can be determined by attaching a weight and seeing how far it stretches. Fs = -kx

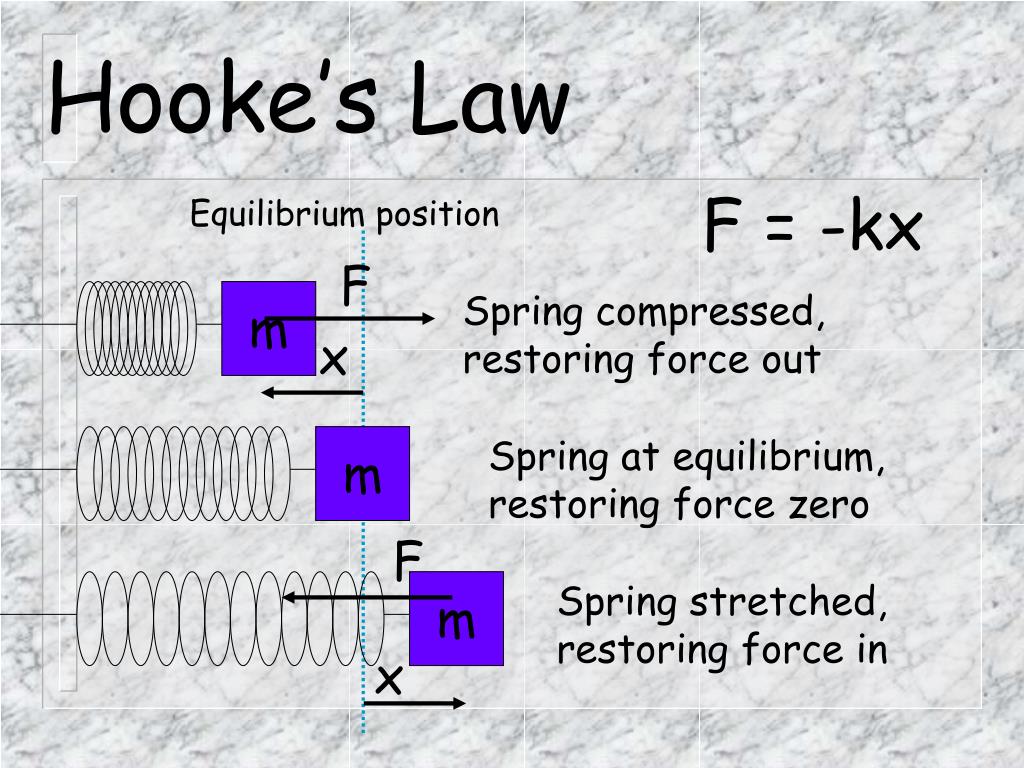

  19. x m F m F x m Hooke’s Law F = -kx Equilibrium position Spring compressed, restoring force out Spring at equilibrium, restoring force zero Spring stretched, restoring force in

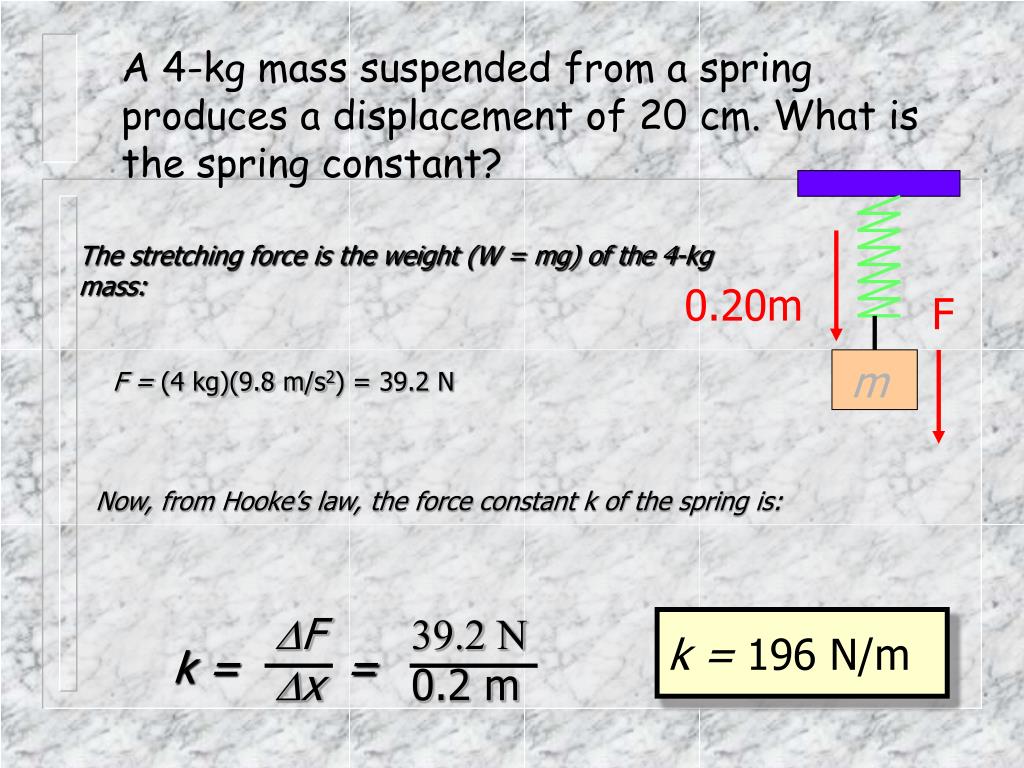

  20. 0.20m F m DF Dx 39.2 N 0.2 m k = = A 4-kg mass suspended from a spring produces a displacement of 20 cm. What is the spring constant? The stretching force is the weight (W = mg) of the 4-kg mass: F = (4 kg)(9.8 m/s2) = 39.2 N Now, from Hooke’s law, the force constant k of the spring is: k = 196 N/m

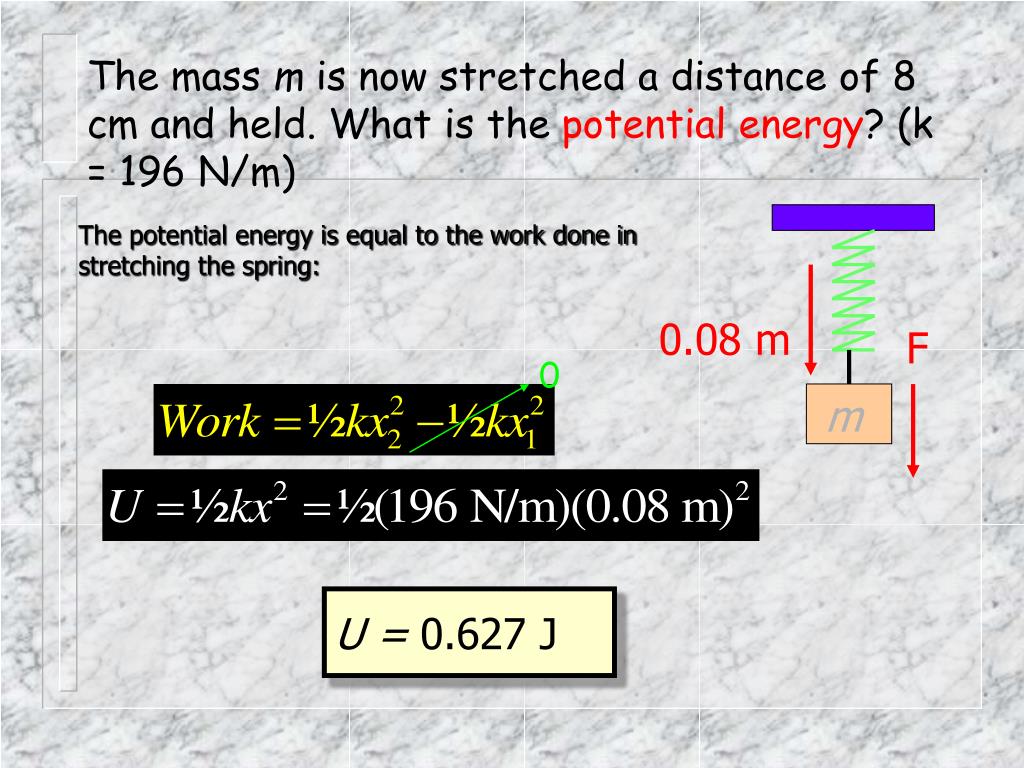

  21. 0.08 m F 0 m The mass m is now stretched a distance of 8 cm and held. What is the potential energy? (k = 196 N/m) The potential energy is equal to the work done in stretching the spring: U = 0.627 J

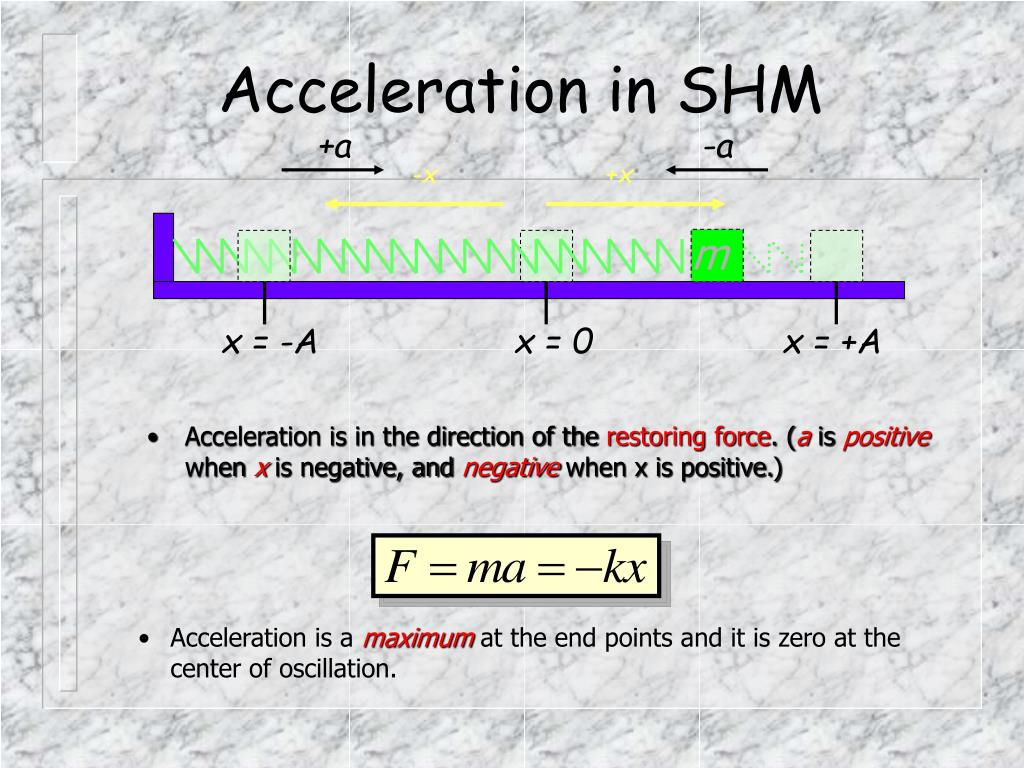

  22. +a -a -x +x m x = -A x = 0 x = +A Acceleration in SHM • Acceleration is in the direction of the restoring force. (a ispositive when x is negative, and negative when x is positive.) • Acceleration is a maximum at the end points and it is zero at the center of oscillation.

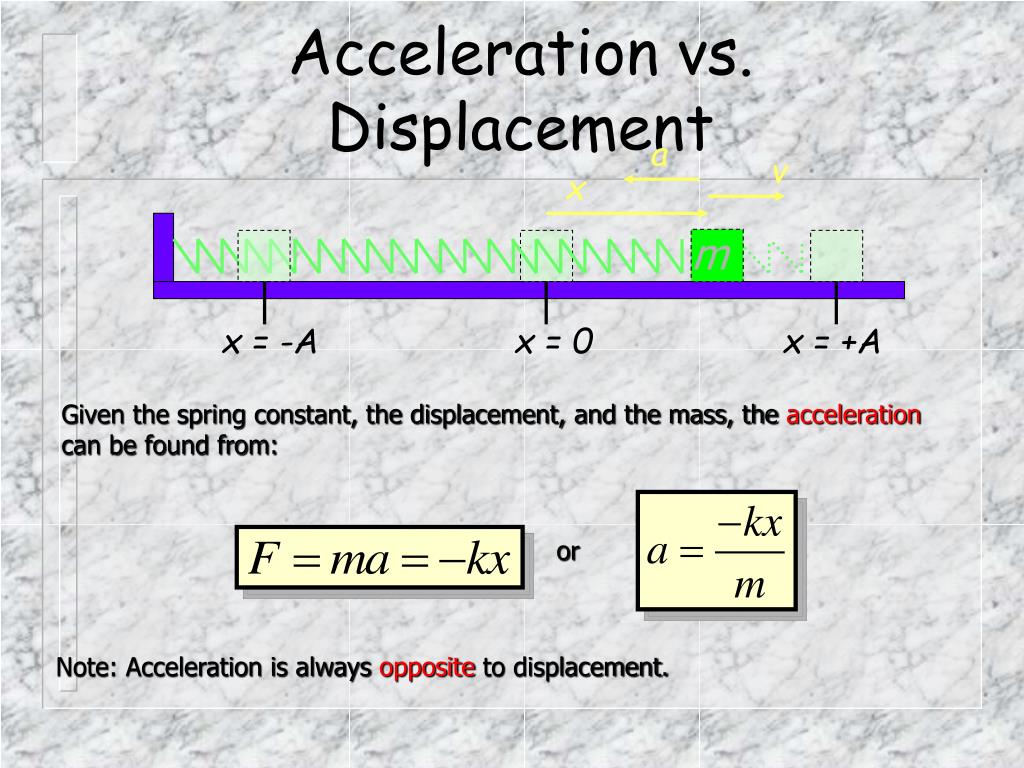

  23. a v x m x = -A x = 0 x = +A Acceleration vs. Displacement Given the spring constant, the displacement, and the mass, the acceleration can be found from: or Note: Acceleration is always oppositeto displacement.

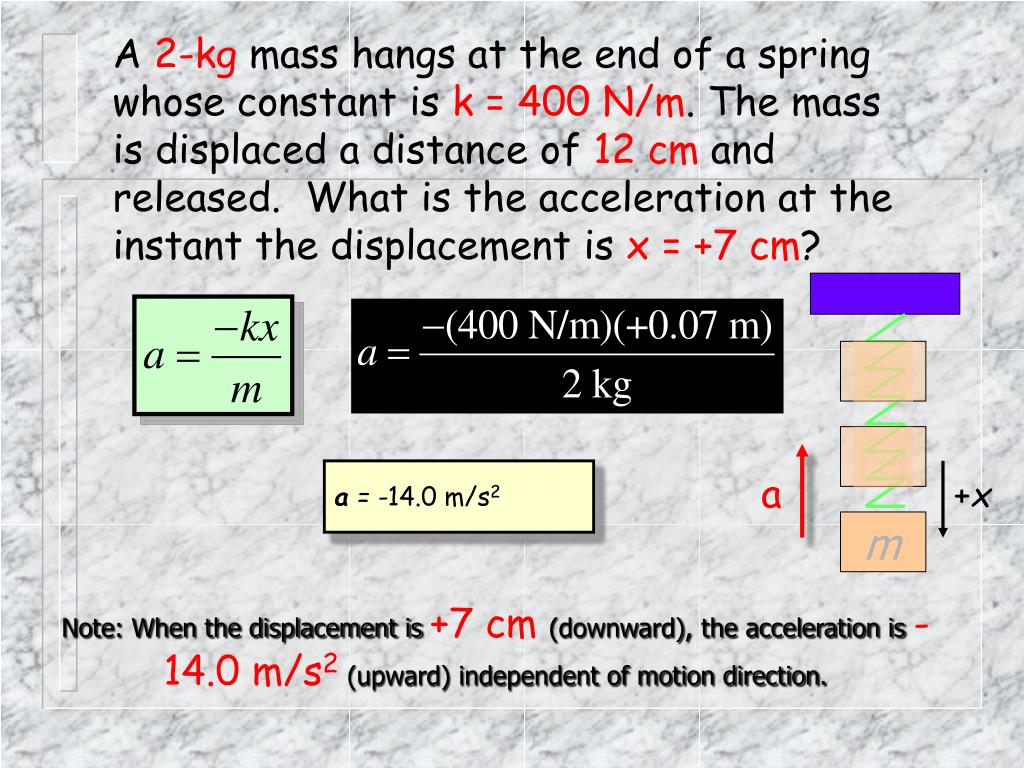

  24. a +x m A 2-kg mass hangs at the end of a spring whose constant is k = 400 N/m. The mass is displaced a distance of 12 cm and released. What is the acceleration at the instant the displacement is x = +7 cm? a = -14.0 m/s2 Note: When the displacement is +7 cm (downward), the acceleration is -14.0 m/s2 (upward) independent of motion direction.

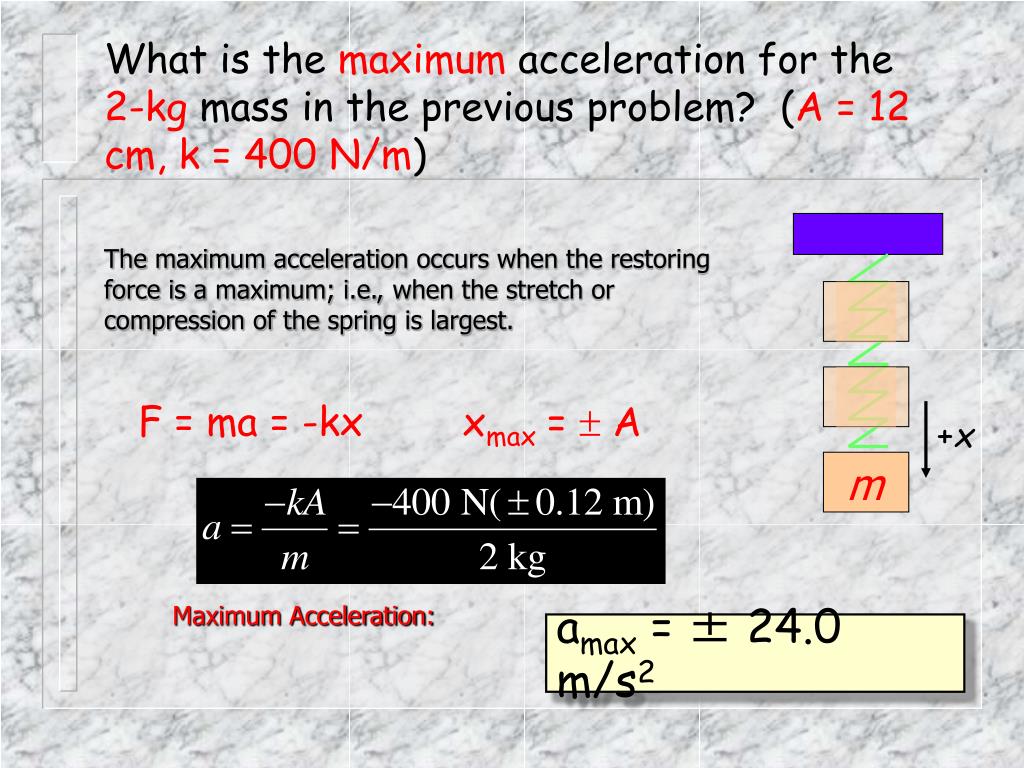

  25. +x m What is the maximumacceleration for the 2-kg mass in the previous problem? (A = 12 cm, k = 400 N/m) The maximum acceleration occurs when the restoring force is a maximum; i.e., when the stretch or compression of the spring is largest. xmax=  A F = ma = -kx Maximum Acceleration: amax = ± 24.0 m/s2

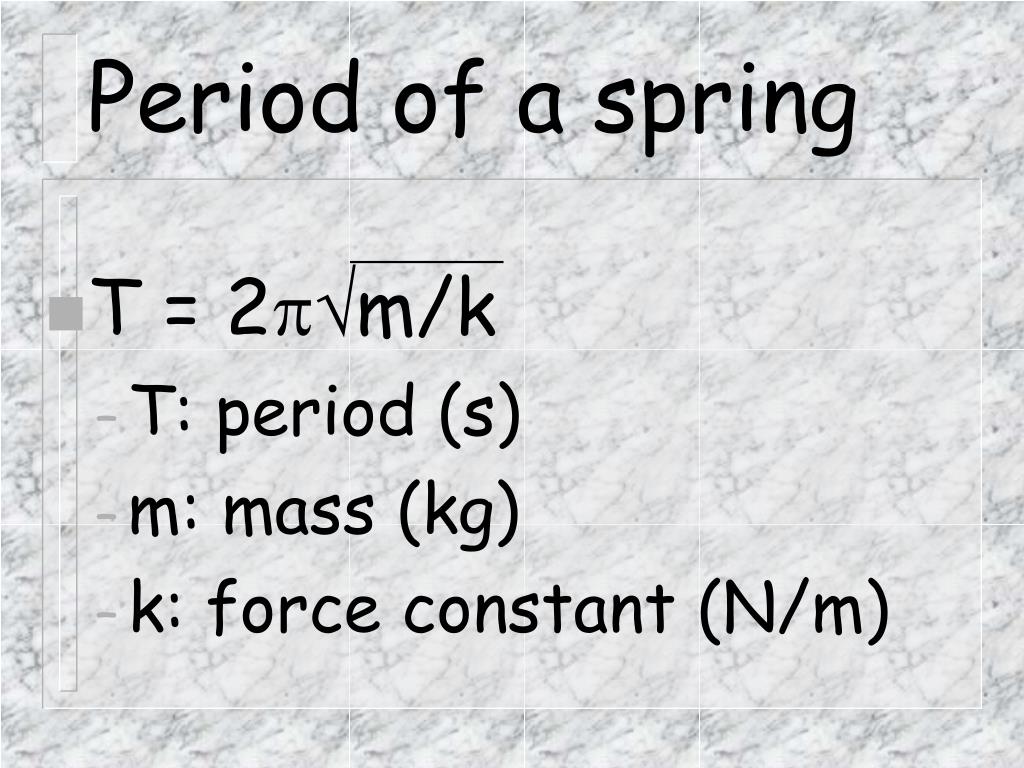

  26. Period of a spring • T = 2m/k • T: period (s) • m: mass (kg) • k: force constant (N/m)

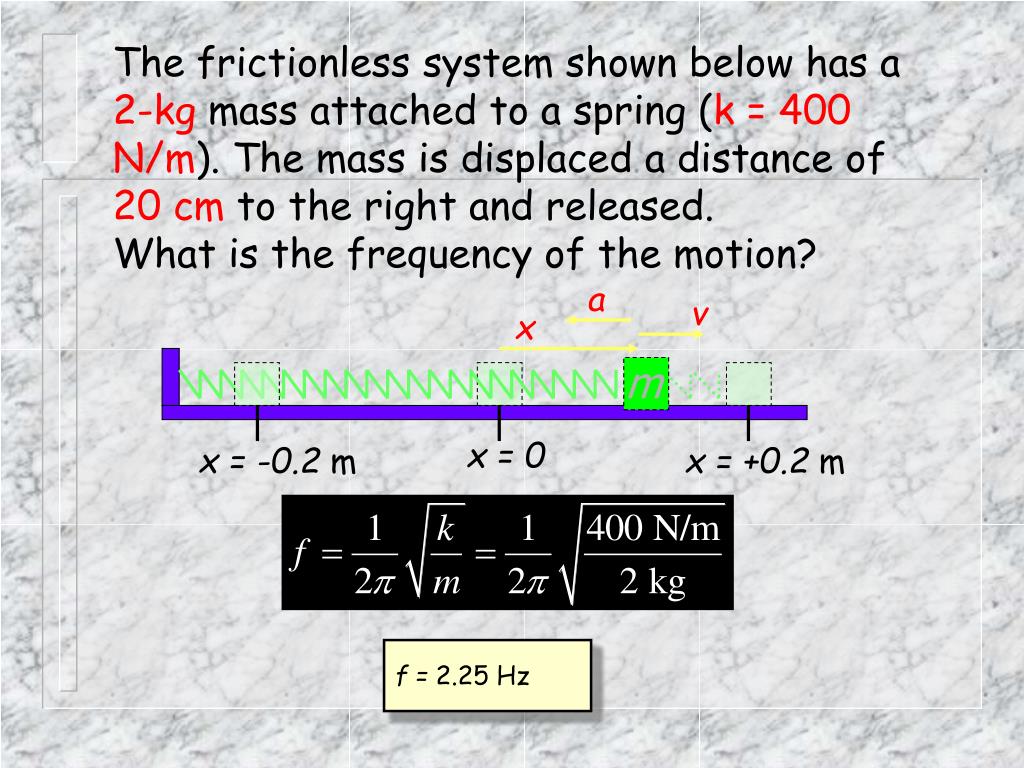

  27. m a v x x = 0 x = -0.2 m x = +0.2 m The frictionless system shown below has a 2-kg mass attached to a spring (k = 400 N/m). The mass is displaced a distance of 20 cm to the right and released.What is the frequency of the motion? f = 2.25 Hz

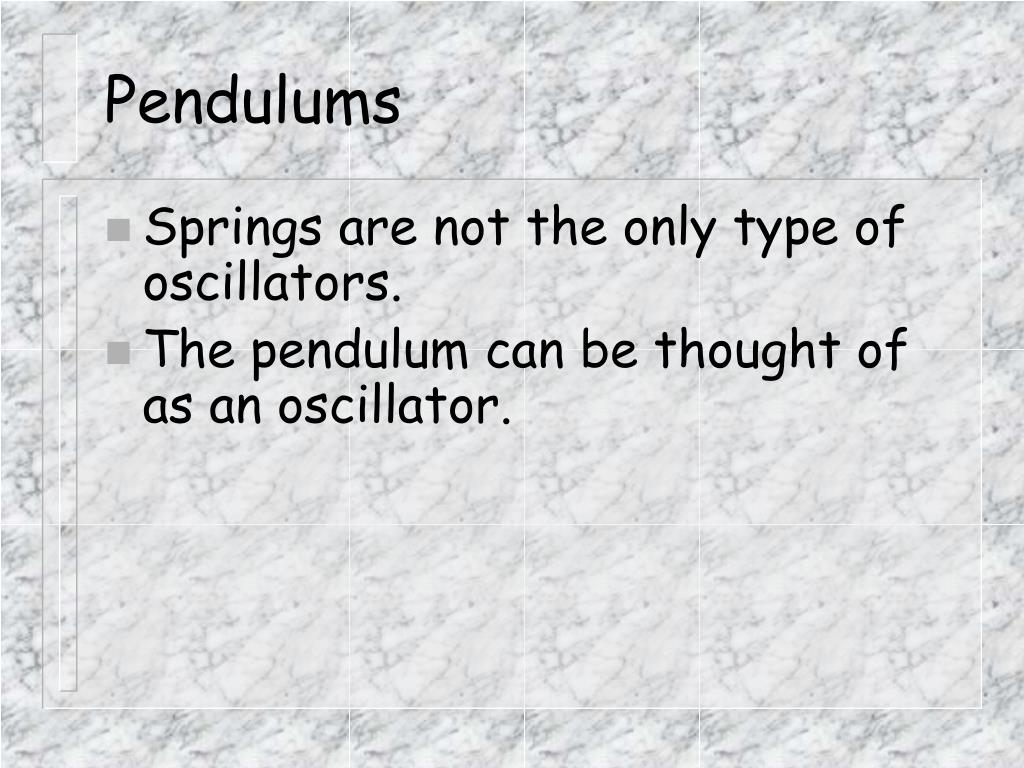

  28. Pendulums • Springs are not the only type of oscillators. • The pendulum can be thought of as an oscillator.

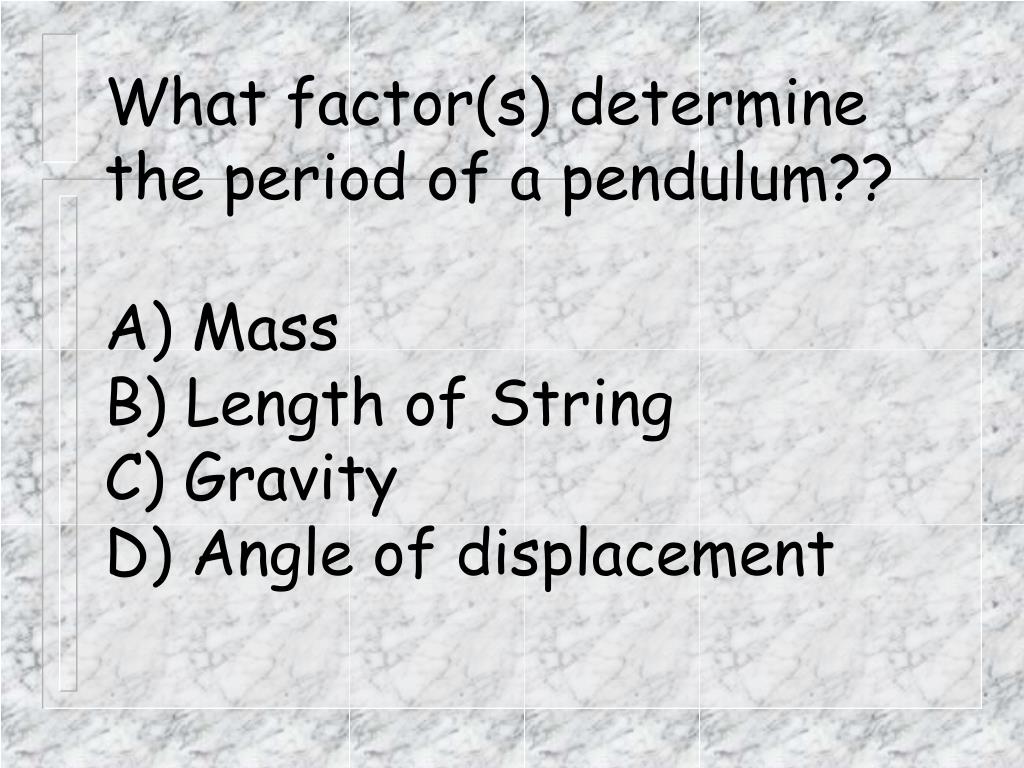

  29. What factor(s) determine the period of a pendulum??A) MassB) Length of StringC) GravityD) Angle of displacement

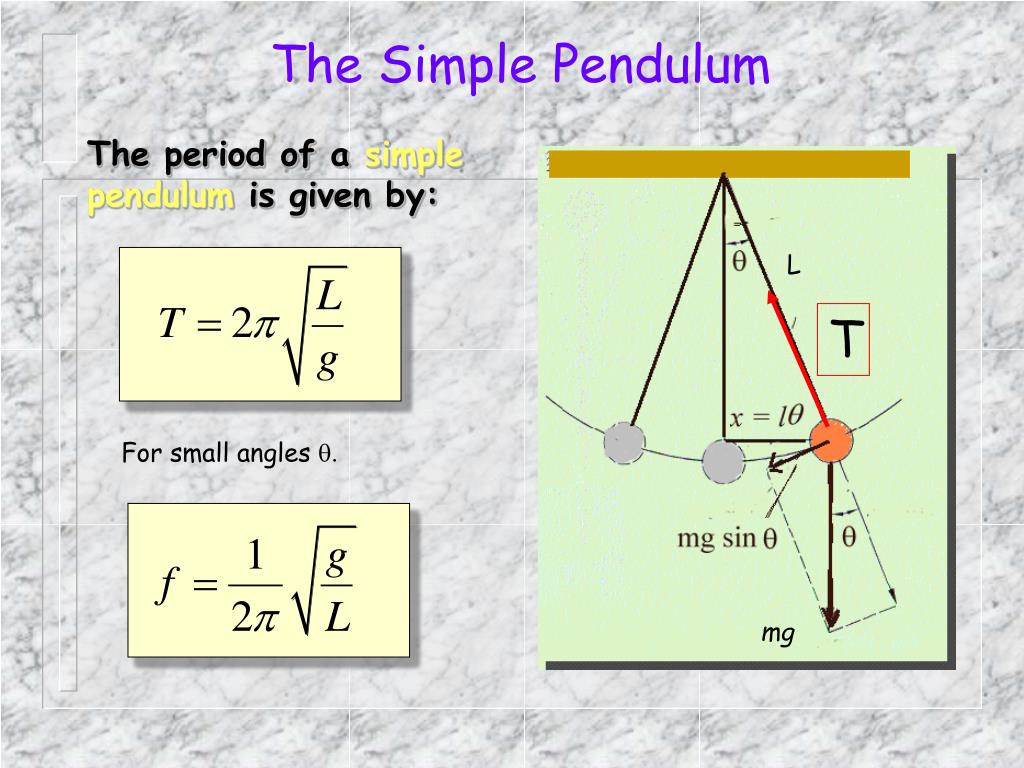

  30. L T mg The Simple Pendulum The period of a simple pendulum is given by: For small angles q.

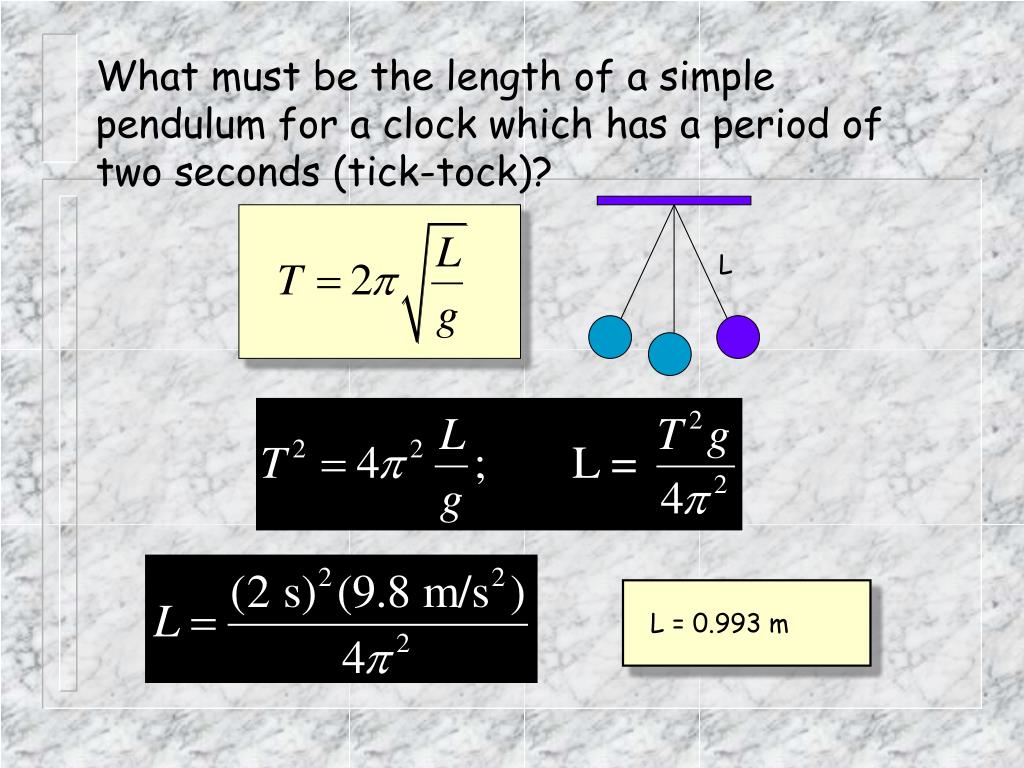

  31. L L = 0.993 m What must be the length of a simple pendulum for a clock which has a period of two seconds (tick-tock)?
