  1. DNA Self-Assembly Robert Schweller Northwestern University Speaking of Science talk Buena Vista University February 28, 2005

  2. Outline • Importance of DNA Self-Assembly • Synthesis of Nanostructures • DNA Computing • Tile Self-Assembly • DNA Word Design

  3. Smart Bricks

  4. TILE Wang Tiles

  5. TILE

  6. TILE G C A T C G C G T A G C

  7. TILE G C A T C G C G T A G C

  8. TILE

  9. TILE

  10. Super Small Circuits, Built Autonomously

  11. Molecular-scale pattern for a RAM memory with demultiplexed addressing (Winfree, 2003)

  12. DNA Computers + Output! Computer Program Input

  13. DNA Computers + Output! Computer Program Input Program

  14. DNA Computers + Output! Computer Program Input + Input Program

  15. DNA Computers + Output! Computer Program Input + Output! Input Program

  16. Outline • Importance of DNA Self-Assembly • Tile Self-Assembly (Generalized Models) • Tile Complexity • Shape Verification • Error Resistance • DNA Word Design

  17. Tile Model of Self-Assembly (Rothemund, Winfree STOC 2000) Tile System: t : temperature, positive integer G: glue function T: tileset s: seed tile

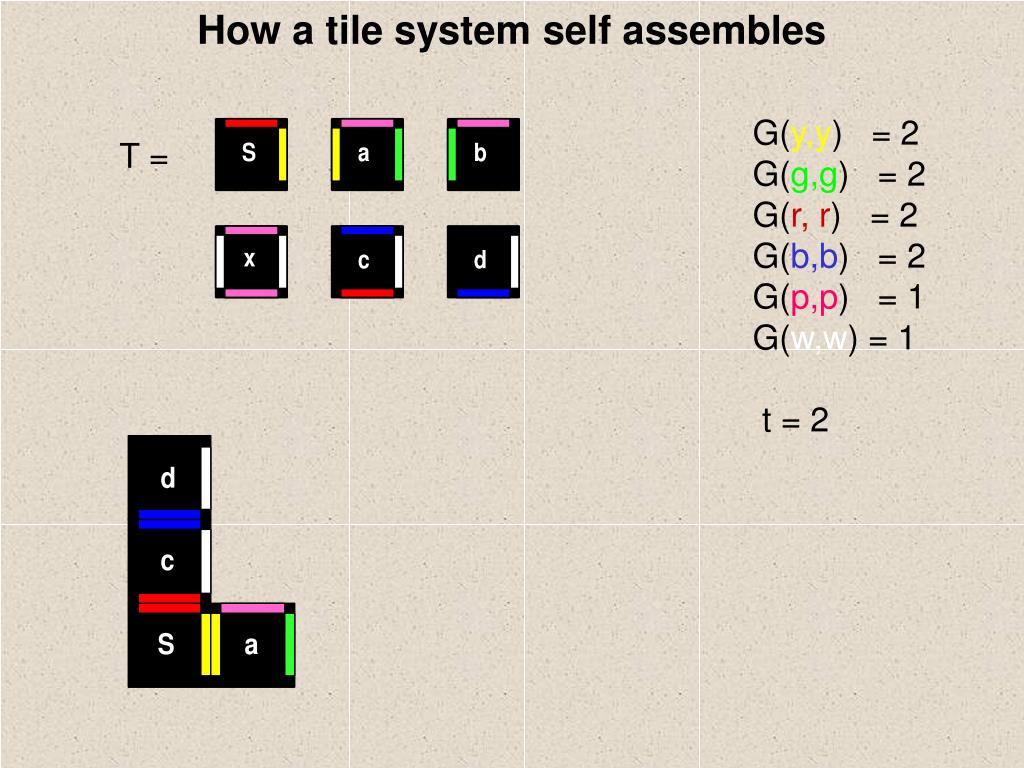

  18. How a tile system self assembles G(y,y) = 2 G(g,g) = 2 G(r, r) = 2 G(b,b) = 2 G(p,p) = 1 G(w,w) = 1 t = 2 T =

  19. How a tile system self assembles G(y,y) = 2 G(g,g) = 2 G(r, r) = 2 G(b,b) = 2 G(p,p) = 1 G(w,w) = 1 t = 2 T =

  20. How a tile system self assembles G(y,y) = 2 G(g,g) = 2 G(r, r) = 2 G(b,b) = 2 G(p,p) = 1 G(w,w) = 1 t = 2 T =

  21. How a tile system self assembles G(y,y) = 2 G(g,g) = 2 G(r, r) = 2 G(b,b) = 2 G(p,p) = 1 G(w,w) = 1 t = 2 T =

  22. How a tile system self assembles G(y,y) = 2 G(g,g) = 2 G(r, r) = 2 G(b,b) = 2 G(p,p) = 1 G(w,w) = 1 t = 2 T =

  23. How a tile system self assembles G(y,y) = 2 G(g,g) = 2 G(r, r) = 2 G(b,b) = 2 G(p,p) = 1 G(w,w) = 1 t = 2 T =

  24. How a tile system self assembles G(y,y) = 2 G(g,g) = 2 G(r, r) = 2 G(b,b) = 2 G(p,p) = 1 G(w,w) = 1 t = 2 T =

  25. How a tile system self assembles G(y,y) = 2 G(g,g) = 2 G(r, r) = 2 G(b,b) = 2 G(p,p) = 1 G(w,w) = 1 t = 2 T =

  26. How a tile system self assembles G(y,y) = 2 G(g,g) = 2 G(r, r) = 2 G(b,b) = 2 G(p,p) = 1 G(w,w) = 1 t = 2 T =

  27. New Models • Multiple Temperature Model • temperature may go up and down • Flexible Glue Model • Remove the restriction that G(x, y) = 0 for x!=y • Multiple Tile Model • tiles may cluster together before being added • Unique Shape Model • unique shape vs. unique supertile

  28. New Models • Multiple Temperature Model • temperature may go up and down • Flexible Glue Model • Remove the restriction that G(x, y) = 0 for x!=y • Multiple Tile Model • tiles may cluster together before being added • Unique Shape Model • unique shape vs. unique supertile

  29. New Models • Multiple Temperature Model • temperature may go up and down • Flexible Glue Model • Remove the restriction that G(x, y) = 0 for x!=y • Multiple Tile Model • tiles may cluster together before being added • Unique Shape Model • unique shape vs. unique supertile

  30. New Models • Multiple Temperature Model • temperature may go up and down • Flexible Glue Model • Remove the restriction that G(x, y) = 0 for x!=y • Multiple Tile Model • tiles may cluster together before being added • Unique Shape Model • unique shape vs. unique supertile

  31. Focus • Multiple Temperature Model • Adjust temperature during assembly • Flexible Glue Model • Remove the restriction that G(x, y) = 0 for x!=y Goal: Reduce Tile Complexity

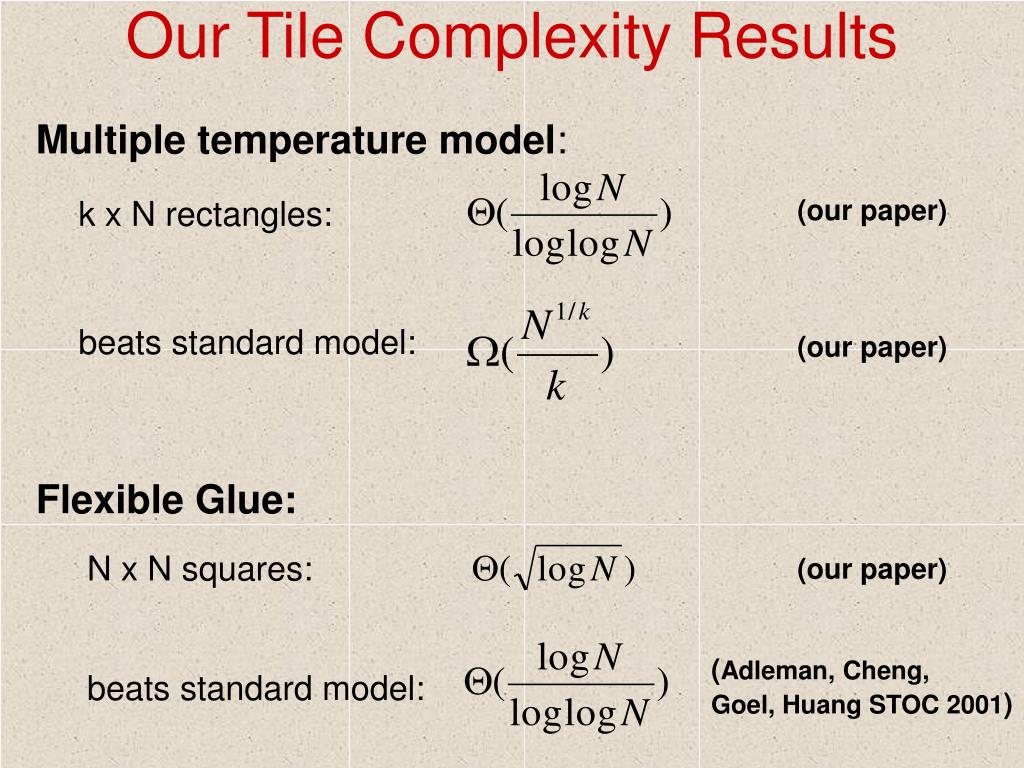

  32. Our Tile Complexity Results Multiple temperature model: (our paper) k x N rectangles: beats standard model: (our paper) Flexible Glue: N x N squares: (our paper) (Adleman, Cheng, Goel, Huang STOC 2001) beats standard model:

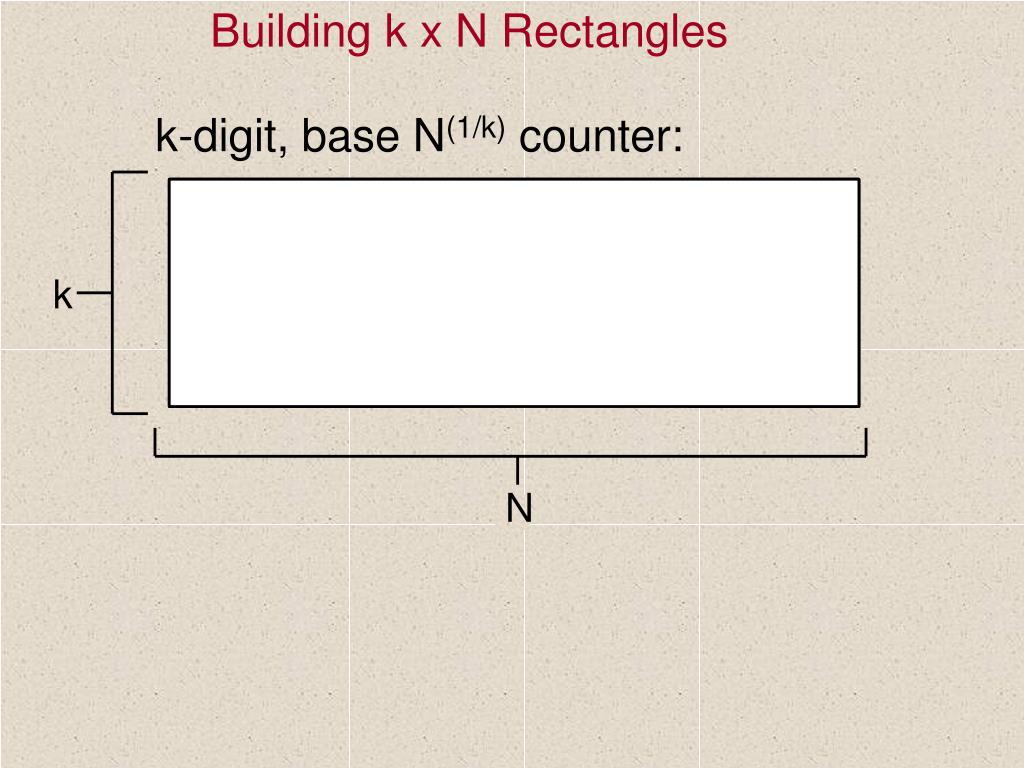

  33. Building k x N Rectangles k-digit, base N(1/k) counter: k N

  34. Building k x N Rectangles k-digit, base N(1/k) counter: k N Tile Complexity:

  35. Build a 4 x 256 rectangle: t = 2 S3 0 S2 0 S1 0 S g g g p C0 C1 C2 C3 S

  36. Build a 4 x 256 rectangle: t = 2 S3 0 g S2 0 0 1 2 3 0 0 g S1 0 S g g g p C0 C1 C2 C3 0 S3 0 S2 0 0 S1 g g p S C1 C2 C3

  37. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 g S1 0 S g g g p C0 C1 C2 C3 S3 0 0 S2 0 0 S1 0 0 p S C1 C2 C3

  38. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 g S1 0 S g g g p C0 C1 C2 C3 S3 0 0 S2 0 0 g g S1 0 0 0 1 S C1 C2 C3

  39. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 g S1 0 S g g g p C0 C1 C2 C3 S3 0 0 0 0 S2 0 0 0 0 S1 0 0 0 1 p S C1 C2 C3 C0 C1 C2 C3

  40. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 1 2 g S1 0 S g g g p 2 3 C0 C1 C2 C3 S3 0 0 0 0 0 0 S2 0 0 0 0 0 0 S1 0 0 0 1 1 1 p S C1 C2 C3 C0 C1 C2 C3

  41. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 1 2 g S1 0 p r S P R g g g p 3 0 2 3 p r C0 C1 C2 C3 S3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 S2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 S1 0 0 0 1 1 1 1 2 2 2 2 3 3 3 p S C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3

  42. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 1 2 g S1 0 p r S P R g g g p 3 0 2 3 p r C0 C1 C2 C3 S3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 S2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 S1 0 0 0 1 1 1 1 2 2 2 2 3 3 3 P S C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3

  43. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 1 2 g S1 0 p r S P R g g g p 3 0 2 3 p r C0 C1 C2 C3 S3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 S2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 S1 0 0 0 1 1 1 1 2 2 2 2 3 3 3 P S C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3

  44. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 1 2 g S1 0 p r S P R g g g p 3 0 2 3 p r C0 C1 C2 C3 S3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 S2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 S1 0 0 0 1 1 1 1 2 2 2 2 3 3 3 P R S C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3

  45. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 1 2 g S1 0 p r S P R g g g p 3 0 2 3 p r C0 C1 C2 C3 S3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 S2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 S1 0 0 0 1 1 1 1 2 2 2 2 3 3 3 P R … S C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2

  46. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 1 2 g S1 0 p r S P R g g g p 3 0 2 3 p r C0 C1 C2 C3 S3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 S2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 … S1 0 0 0 1 1 1 1 2 2 2 2 3 3 3 P R 0 0 S C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2

  47. Build a 4 x 256 rectangle: t = 2 g g 0 1 0 1 S3 0 p r g S2 0 0 1 2 3 0 0 1 2 g S1 0 p r S P R g g g p 3 0 2 3 p r C0 C1 C2 C3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 P 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 P 3 3 P R 0 0 0 1 1 1 1 2 2 2 2 3 3 3 P C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3 C0 C1 C2 C3
