Understanding Omnipolar, Bipolar, and Unipolar Sensors

This overview explores the functionality of three types of sensors: omnipolar, bipolar, and unipolar. Omnipolar sensors activate with either a north or south magnetic field and turn off when the field is removed. Bipolar sensors have two distinct operating points and latch on when a threshold is met but turn off with an opposite magnetic field. Unipolar sensors detect only one polarity, typically activating with a south magnetic field. Learn more about each sensor's operation and applications through provided resources.

gabby
Télécharger la présentation

Understanding Omnipolar, Bipolar, and Unipolar Sensors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

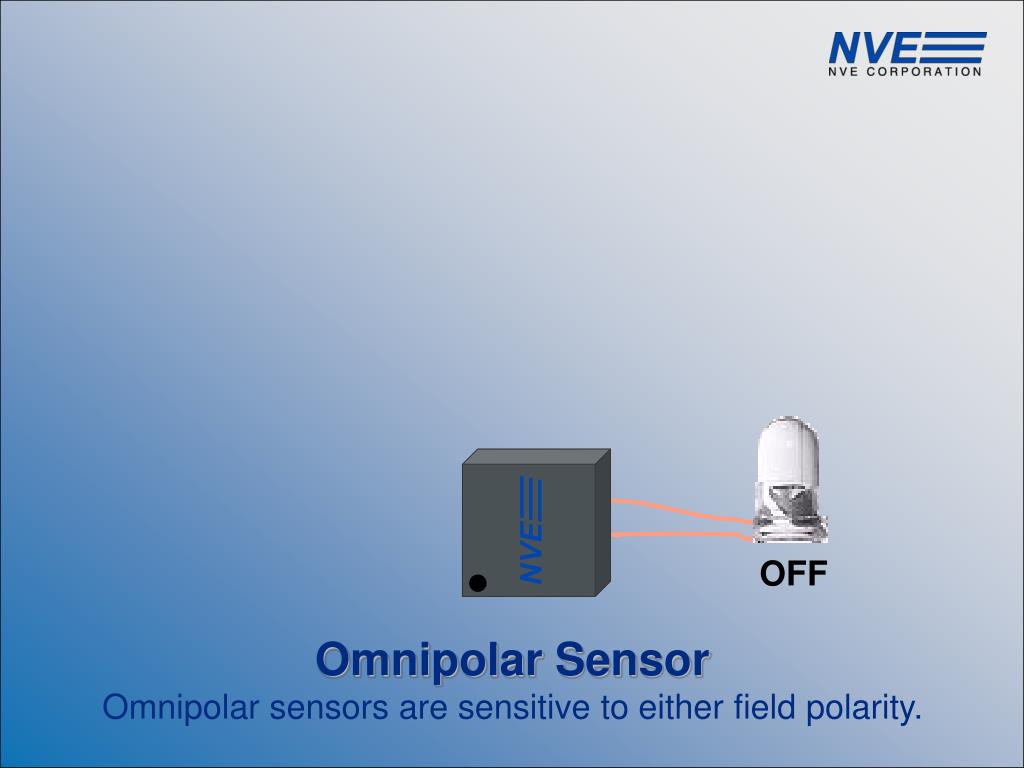

  1. OFF Omnipolar SensorOmnipolar sensors are sensitive to either field polarity.

  2. N S ON OFF Omnipolar SensorA north or south field turns the sensor ON.

  3. N S OFF Omnipolar SensorA north or south field turns the sensor ON.

  4. OFF Omnipolar SensorThe sensor turns OFF when the field is removed.

  5. S N ON OFF Omnipolar SensorAn opposite field also turns the sensor ON.

  6. OFF Omnipolar Sensor

  7. OFF Bipolar SensorBipolar sensors have opposite operate and release points.

  8. N S ON OFF Bipolar SensorA south field above a threshold latches the sensor ON.

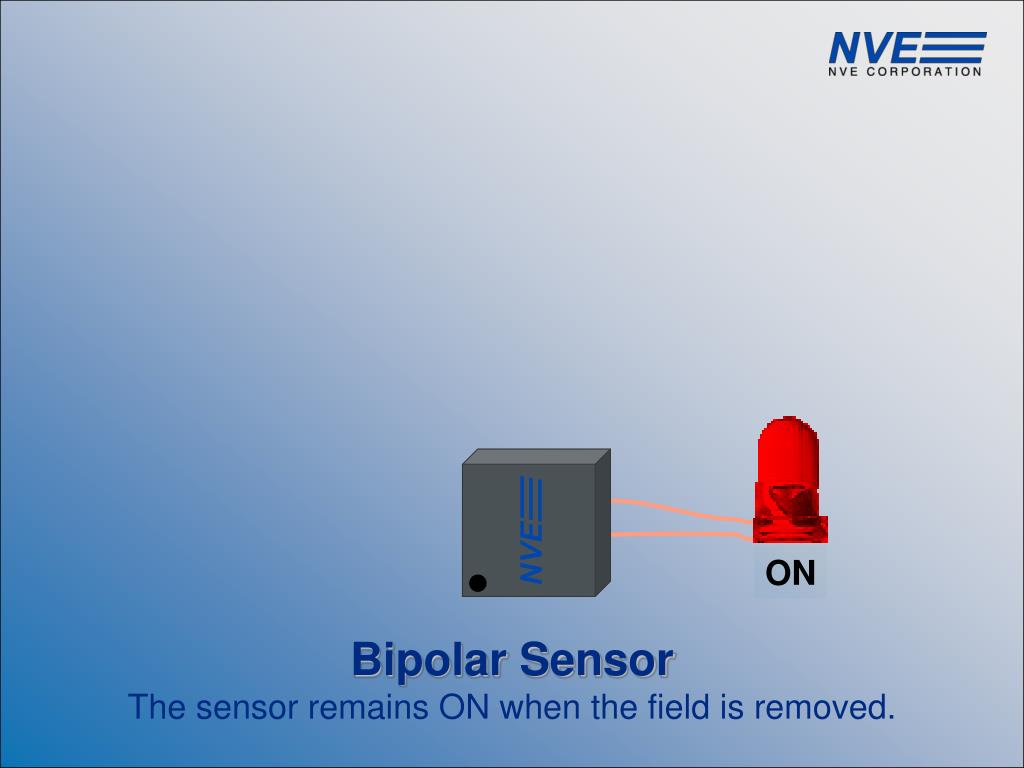

  9. ON Bipolar SensorThe sensor remains ON when the field is removed.

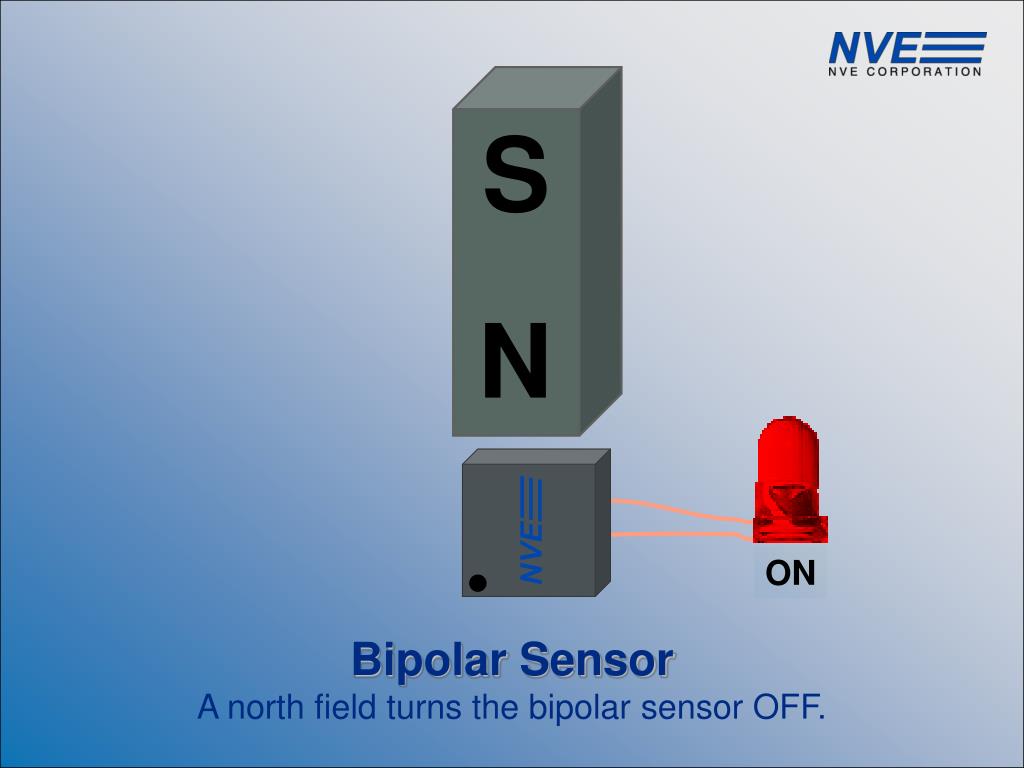

  10. S N ON Bipolar SensorA north field turns the bipolar sensor OFF.

  11. S N OFF Bipolar SensorA north field turns the bipolar sensor OFF.

  12. OFF Bipolar SensorA north field turns the bipolar sensor OFF.

  13. OFF . Unipolar SensorUnipolar sensors are sensitive to only one polarity.

  14. N S ON OFF . Unipolar SensorA south field above a threshold turns the sensor ON.

  15. OFF Unipolar SensorA south field above a threshold turns the sensor ON.

  16. S N OFF Unipolar SensorUnipolar sensors are insensitive to north fields.

  17. Links for more information: • Digital Sensor Webpage • Other PowerPoint slideshows • E-mail NVE Sensor Sales
