  1. SMTP PROTOCOL CONFIGURATION AND MANAGEMENT Chapter 8

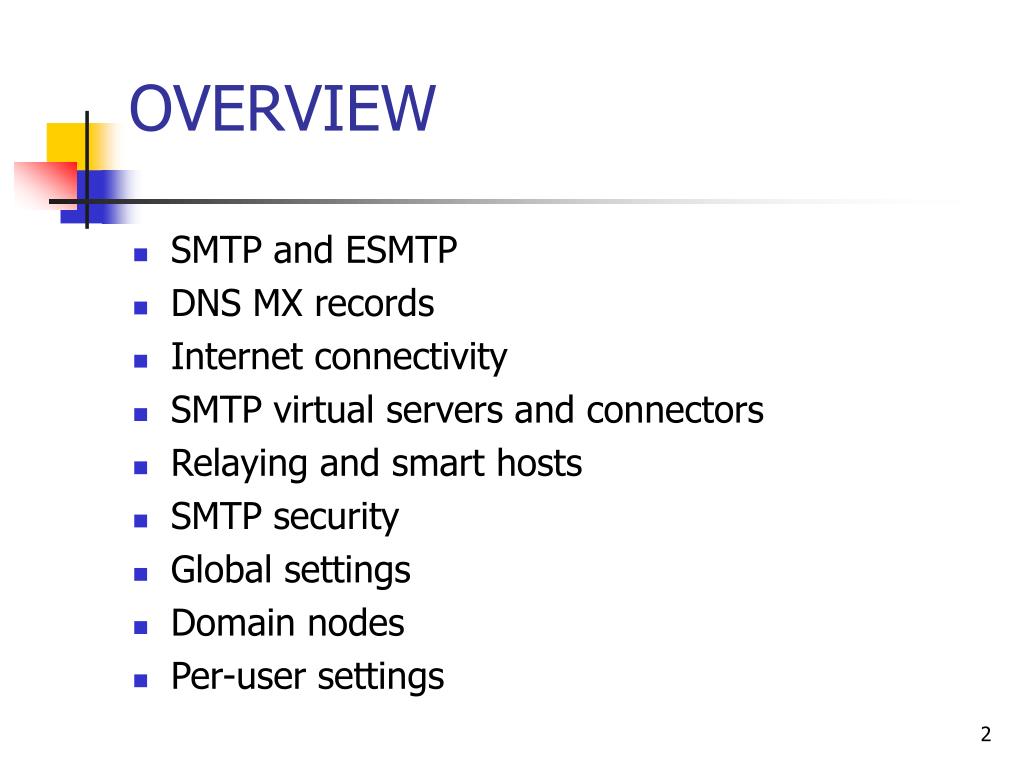

  2. OVERVIEW • SMTP and ESMTP • DNS MX records • Internet connectivity • SMTP virtual servers and connectors • Relaying and smart hosts • SMTP security • Global settings • Domain nodes • Per-user settings

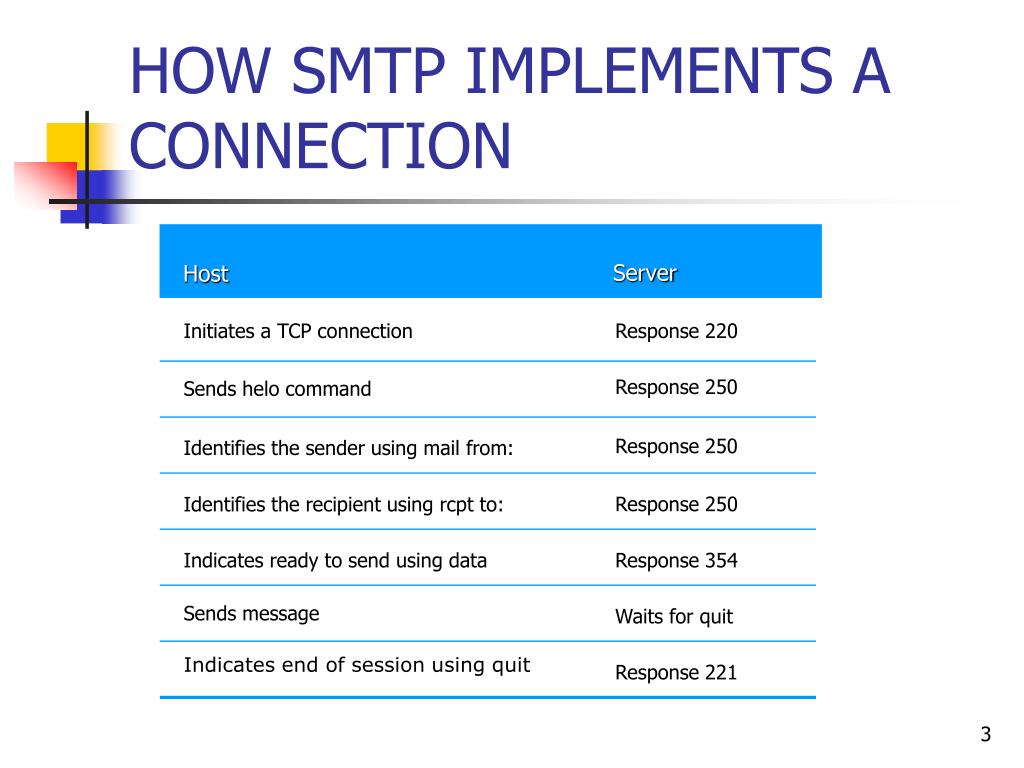

  3. HOW SMTP IMPLEMENTS A CONNECTION Server Host Initiates a TCP connection Response 220 Response 250 Sends helo command Response 250 Identifies the sender using mail from: Response 250 Identifies the recipient using rcpt to: Indicates ready to send using data Response 354 Sends message Waits for quit Indicates end of session using quit Response 221

  4. HOW ESMTP IMPLEMENTS A CONNECTION • Host sends ehlo instead of helo • If server supports ESMTP it returns response 250 • If server does not support ESMTP it returns response 500 • ESMTP session very similar to SMTP session

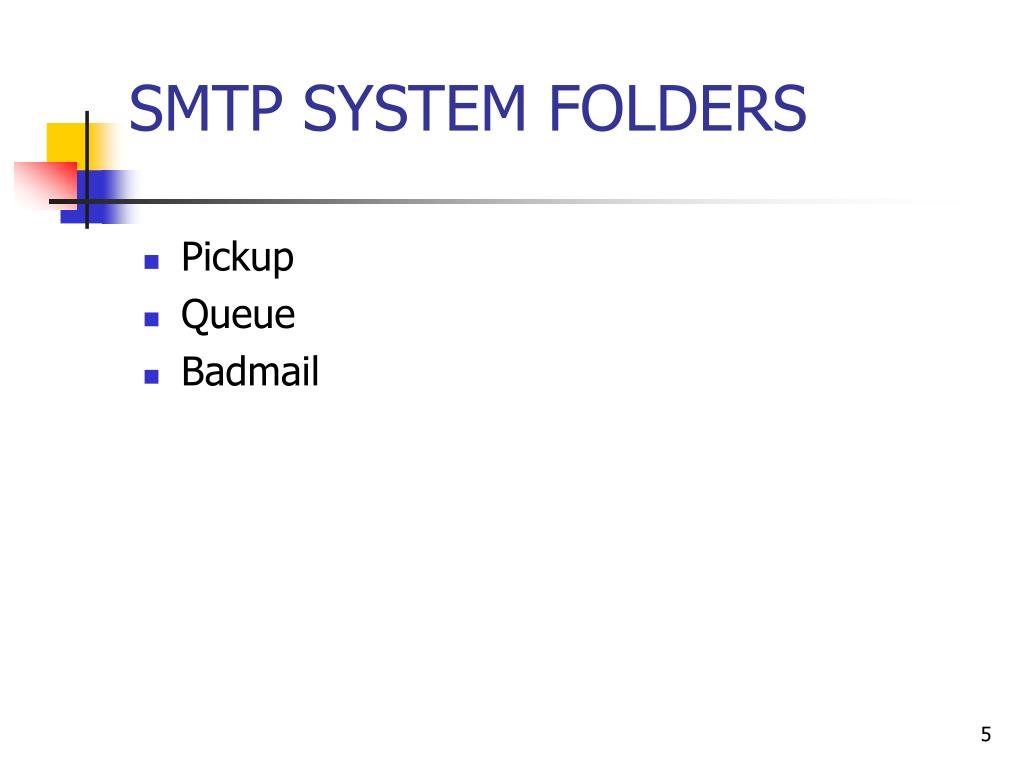

  5. SMTP SYSTEM FOLDERS • Pickup • Queue • Badmail

  6. CONFIGURING MX RECORDS • Managing your own DNS: • Single namespace • Multiple namespaces • Internet service provider (ISP) manages your DNS: • Nonpersistent connection • Permanent connection

  7. CONFIGURING INTERNET CONNECTIVITY • Configuring SMTP virtual servers • Creating and configuring an SMTP Connector • Configuring an SMTP policy for a domain • Configuring per-user settings

  8. DEMONSTRATION: CREATING AND CONFIGURING AN ADDITIONAL SMTP VIRTUAL SERVER

  9. DEMONSTRATION: CREATING AN SMTP CONNECTOR

  10. DEMONSTRATION: CONFIGURING AN SMTP CONNECTOR • Limiting the scope • Configuring the credentials • Configuring to only receive e-mail • Configuring to only send e-mail • Configuring Internet message formats • Configuring message delivery parameters

  11. SMTP RELAYS • SMTP virtual server configured to use a smart host • SMTP virtual server forwards unresolved messages to a smart host • SMTP virtual server configured as a relay host

  12. SMTP RELAYS (CONT.) • SMTP virtual server configured to limit the servers that can relay e-mail messages • SMTP Connector configured to use a smart host • Configuring domains to which you want to relay messages

  13. SMTP VIRTUAL SERVER CONFIGURED TO USE A SMART HOST • Virtual servers forward all outbound mail to a smart host • Virtual server does not resolve the SMTP domain name • Entry and exit point for all Internet messages • Entry and exit point for messages to a foreign messaging system

  14. SMTP VIRTUAL SERVER CONFIGURED TO USE A SMART HOST (CONT.) • Helps manage Internet message traffic • Provides dial-up solutions • Clients do not need permanent connections to the Exchange server

  15. SMTP VIRTUAL SERVER FORWARDS UNRESOLVED MESSAGES TO A SMART HOST • Forward all unresolved SMTP messages from Exchange to a smart host • Other SMTP messaging systems in addition to Exchange • Smart host cannot resolve the recipient’s name; message returned with a nondelivery report (NDR)

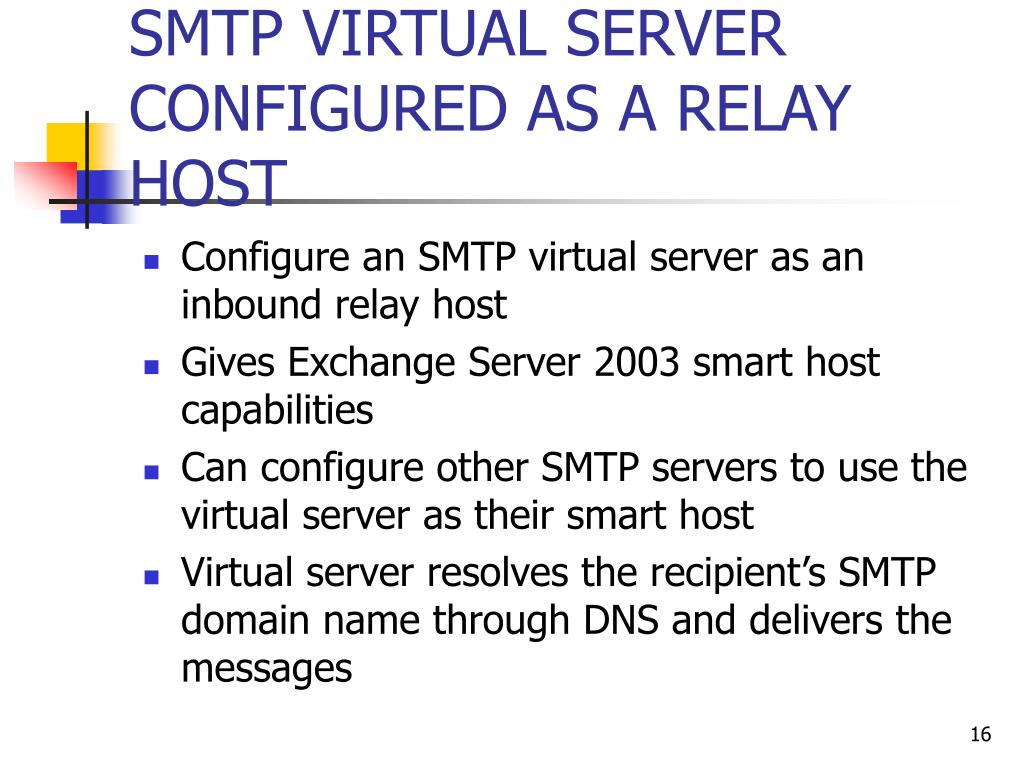

  16. SMTP VIRTUAL SERVER CONFIGURED AS A RELAY HOST • Configure an SMTP virtual server as an inbound relay host • Gives Exchange Server 2003 smart host capabilities • Can configure other SMTP servers to use the virtual server as their smart host • Virtual server resolves the recipient’s SMTP domain name through DNS and delivers the messages

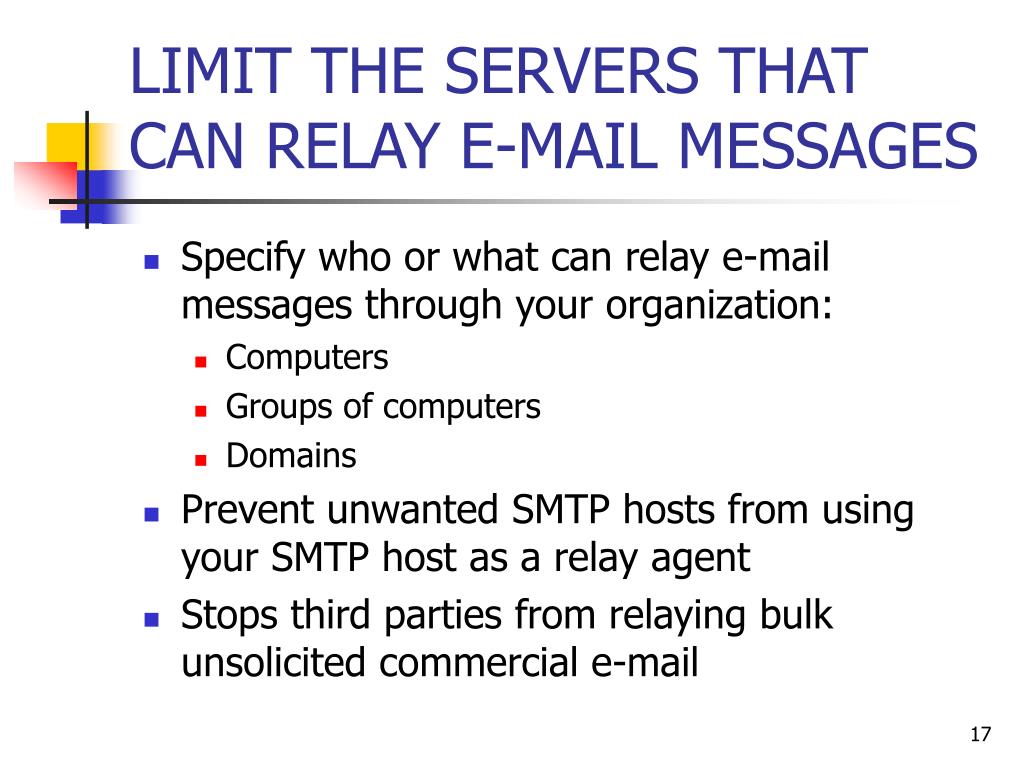

  17. LIMIT THE SERVERS THAT CAN RELAY E-MAIL MESSAGES • Specify who or what can relay e-mail messages through your organization: • Computers • Groups of computers • Domains • Prevent unwanted SMTP hosts from using your SMTP host as a relay agent • Stops third parties from relaying bulk unsolicited commercial e-mail

  18. SMTP CONNECTOR CONFIGURED TO USE A SMART HOST • By default SMTP Connector uses DNS • Can configure connector to forward all outbound mail to a smart host • Typically SMTP configuration done on connector rather than virtual server

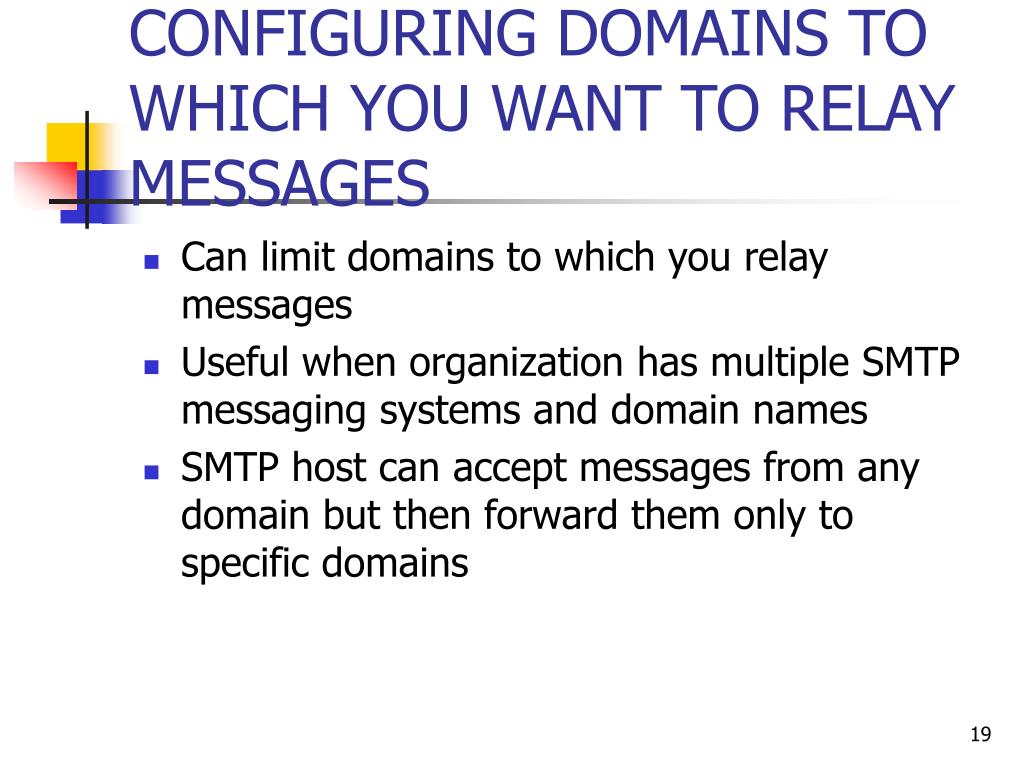

  19. CONFIGURING DOMAINS TO WHICH YOU WANT TO RELAY MESSAGES • Can limit domains to which you relay messages • Useful when organization has multiple SMTP messaging systems and domain names • SMTP host can accept messages from any domain but then forward them only to specific domains

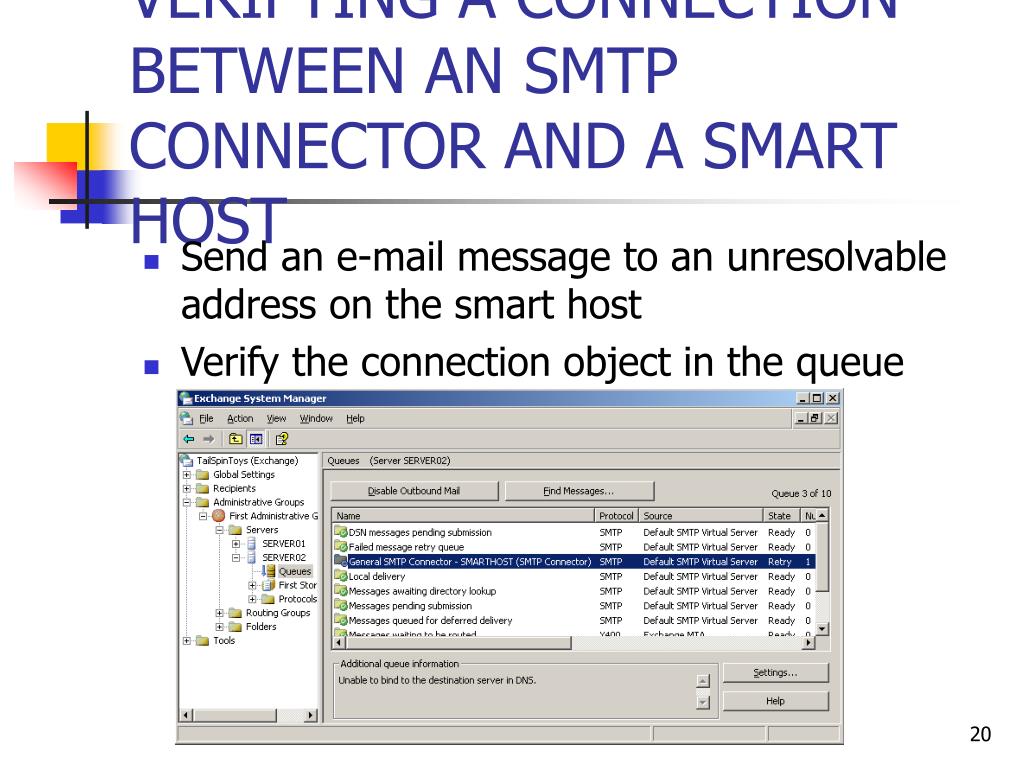

  20. VERIFYING A CONNECTION BETWEEN AN SMTP CONNECTOR AND A SMART HOST • Send an e-mail message to an unresolvable address on the smart host • Verify the connection object in the queue

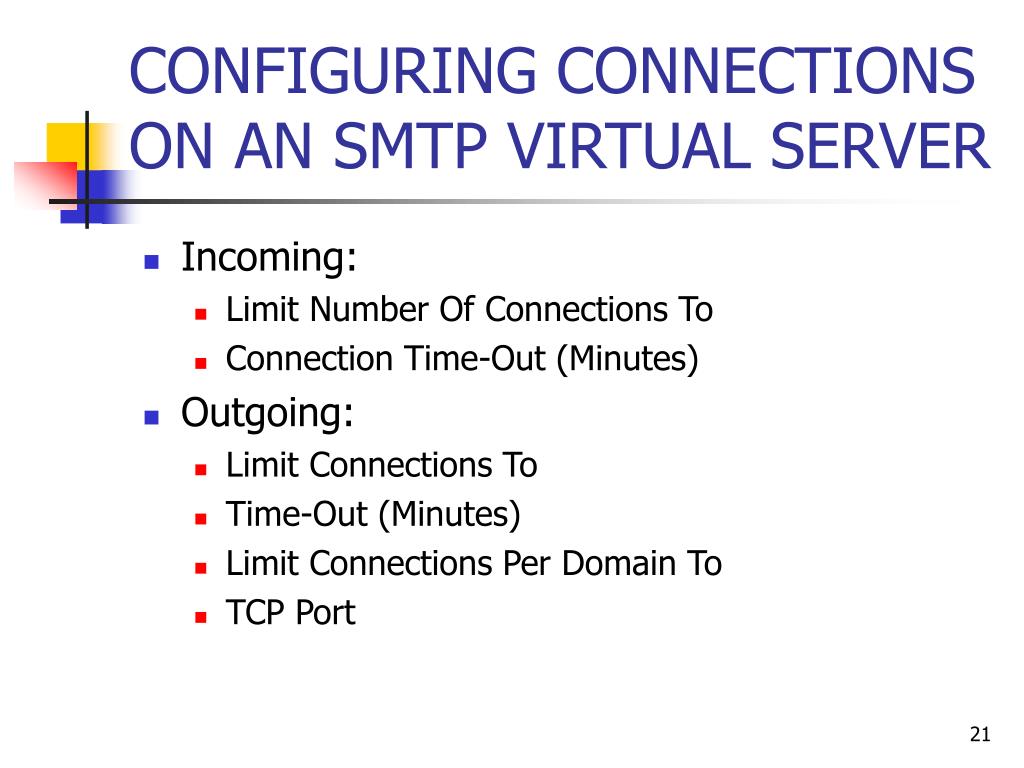

  21. CONFIGURING CONNECTIONS ON AN SMTP VIRTUAL SERVER • Incoming: • Limit Number Of Connections To • Connection Time-Out (Minutes) • Outgoing: • Limit Connections To • Time-Out (Minutes) • Limit Connections Per Domain To • TCP Port

  22. SMTP SECURITY • Authentication • Encryption • Reverse DNS lookup

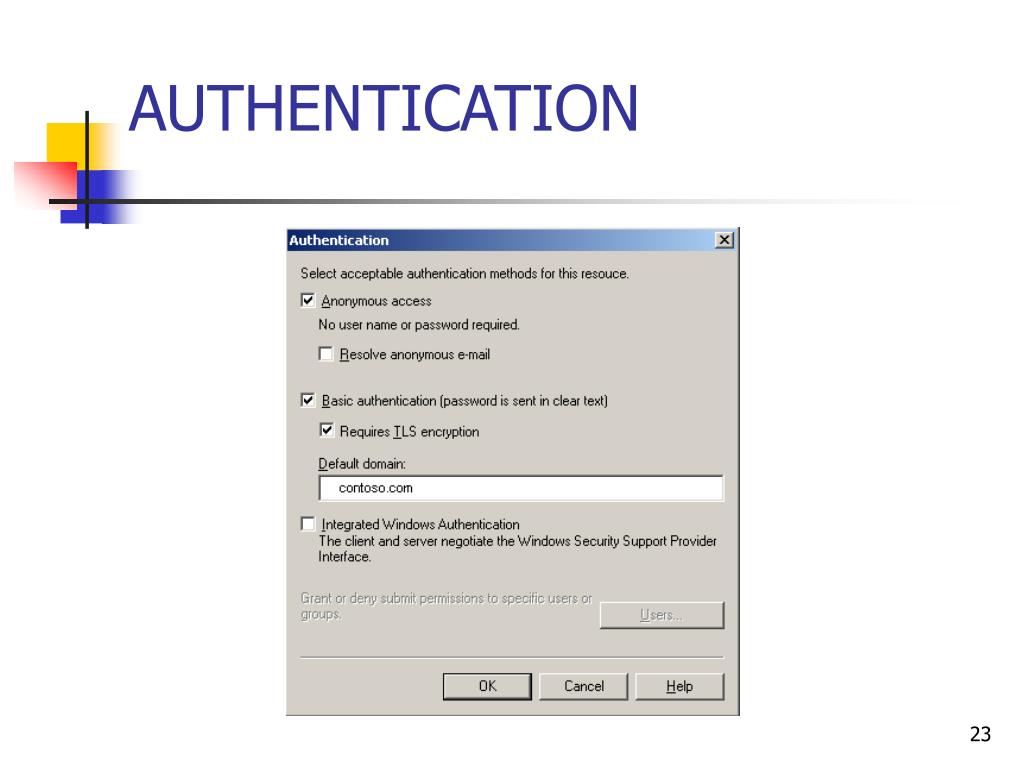

  23. AUTHENTICATION

  24. ENCRYPTION

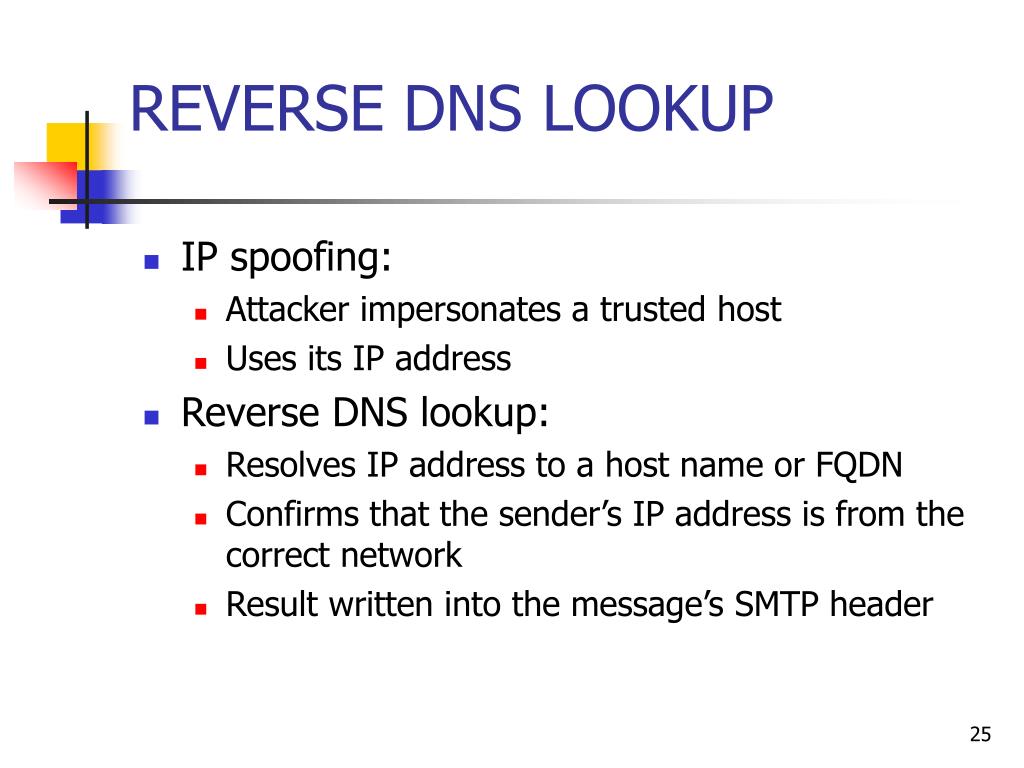

  25. REVERSE DNS LOOKUP • IP spoofing: • Attacker impersonates a trusted host • Uses its IP address • Reverse DNS lookup: • Resolves IP address to a host name or FQDN • Confirms that the sender’s IP address is from the correct network • Result written into the message’s SMTP header

  26. RESTRICTING INTERNET E-MAIL

  27. RELAYING • Permits mail for another organization to be forwarded • Disabled by default • Required for interfacing with other SMTP mail systems • Required to allow IMAP4 and POP3 clients to send mail

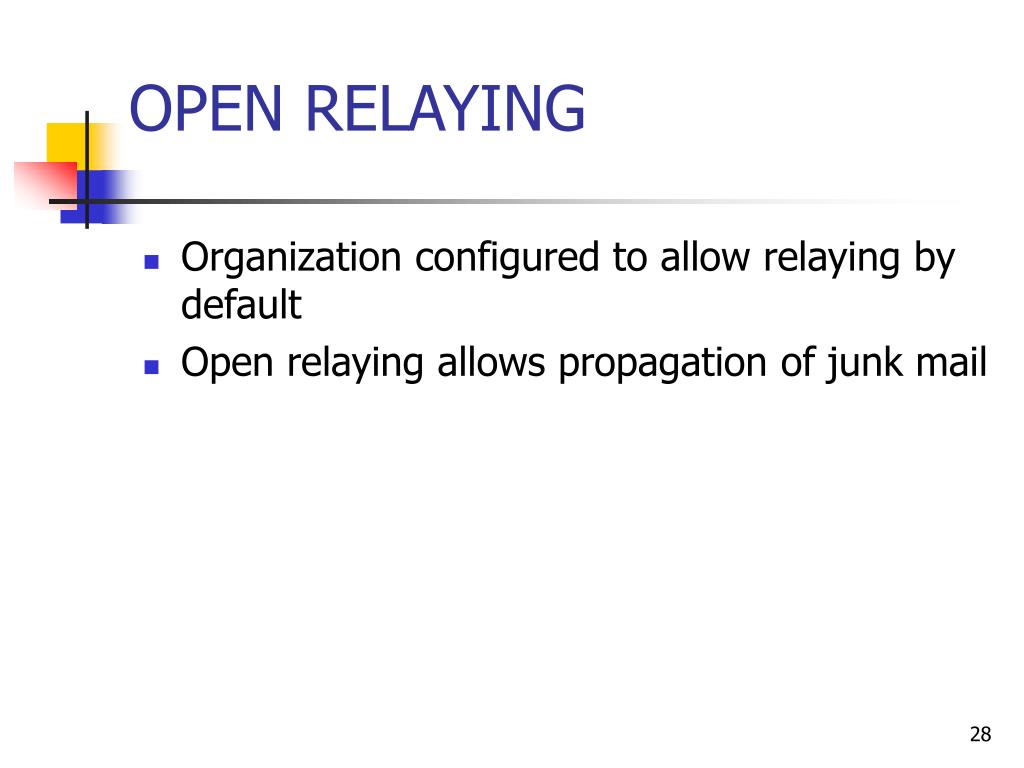

  28. OPEN RELAYING • Organization configured to allow relaying by default • Open relaying allows propagation of junk mail

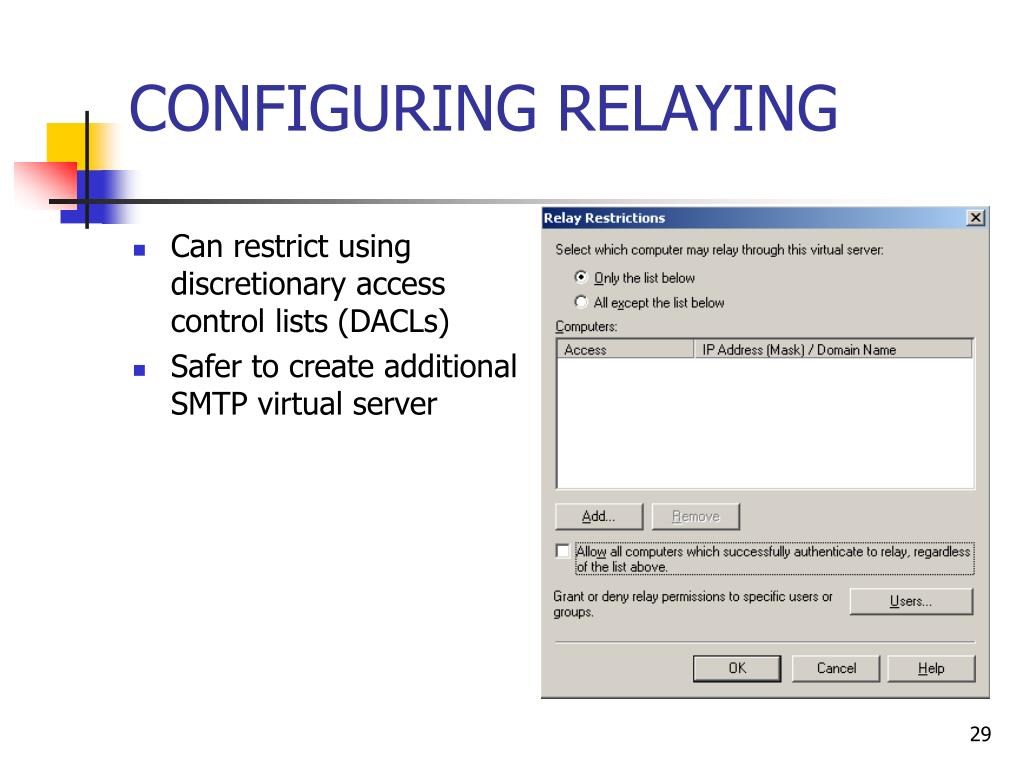

  29. CONFIGURING RELAYING • Can restrict using discretionary access control lists (DACLs) • Safer to create additional SMTP virtual server

  30. RETRIEVING E-MAIL FROM AN ISP • Typically over a nonpersistent connection • Configure the on-demand dial-up connection in Routing and Remote Access Service • Configure ISP’s Exchange server as smart host • Pull e-mail by using the turn or etrn command • Advanced tab of SMTP Connector’s Properties dialog box • Request ETRN/TURN when sending messages

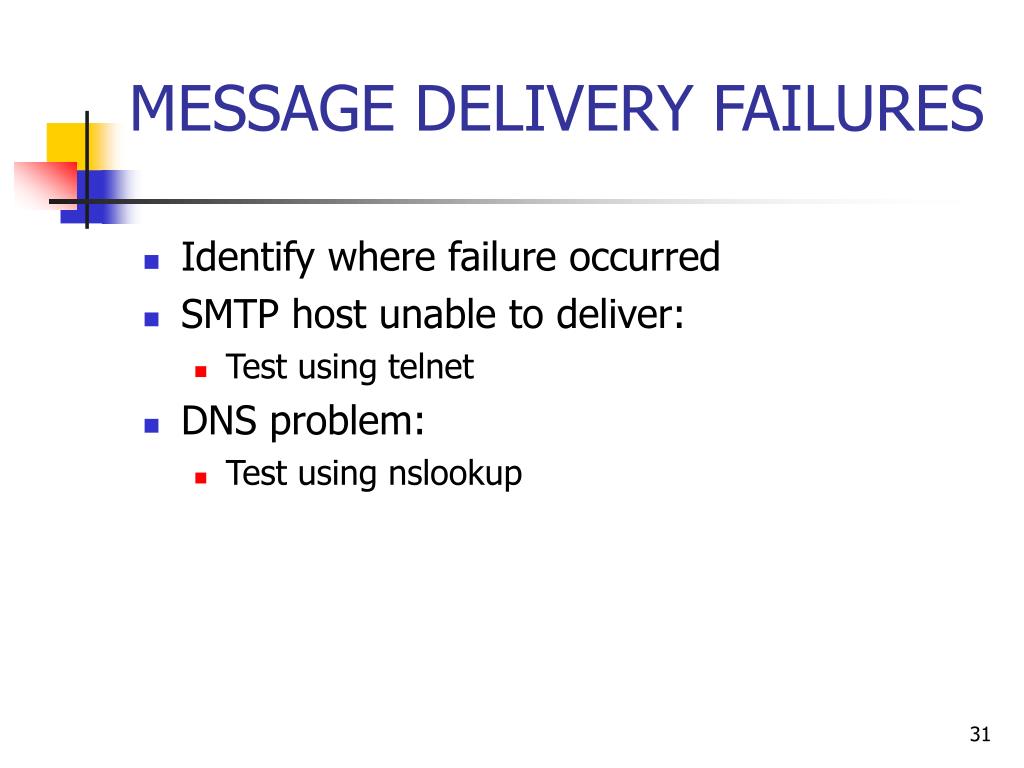

  31. MESSAGE DELIVERY FAILURES • Identify where failure occurred • SMTP host unable to deliver: • Test using telnet • DNS problem: • Test using nslookup

  32. OTHER SMTP MESSAGING SYSTEMS • If connectors do not exist: • Obtain third-party gateways • Use Microsoft Exchange 5.5 connectors • Microsoft Mail: • Configure Exchange 2000 Server for directory synchronization

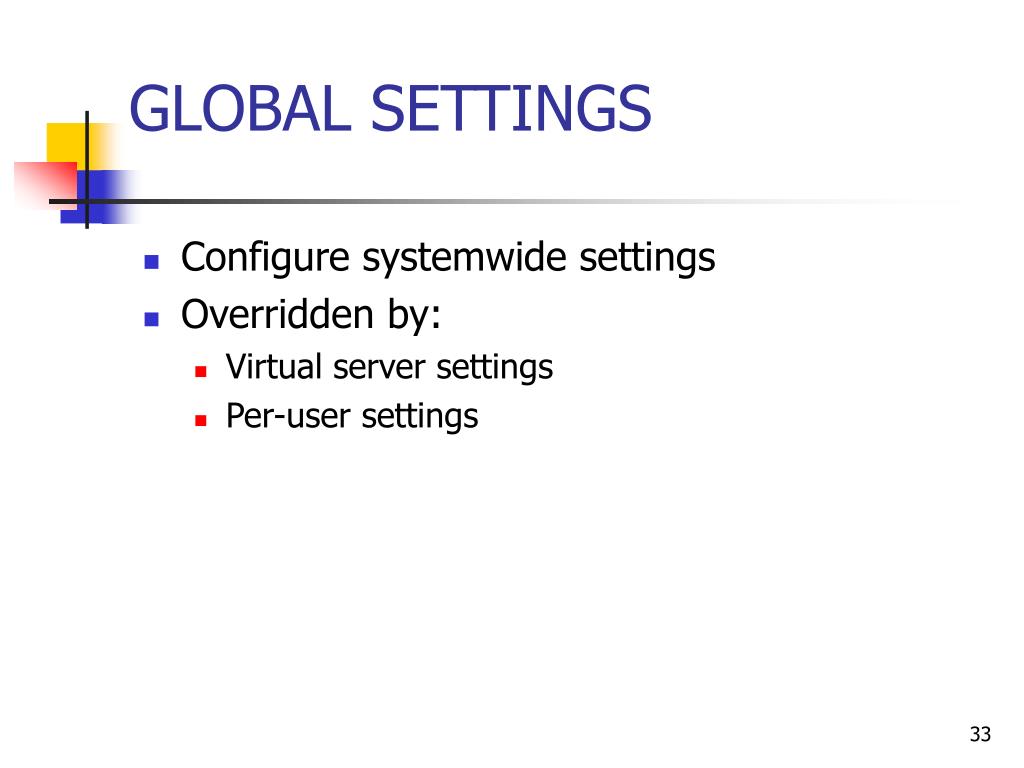

  33. GLOBAL SETTINGS • Configure systemwide settings • Overridden by: • Virtual server settings • Per-user settings

  34. SMTP POLICY ON A DOMAIN NODE • Does not create a new domain • Used when sending messages in a format suitable for another domain • Can be used to send mail to a partner organization • Can be used for interdomain mail within the same forest

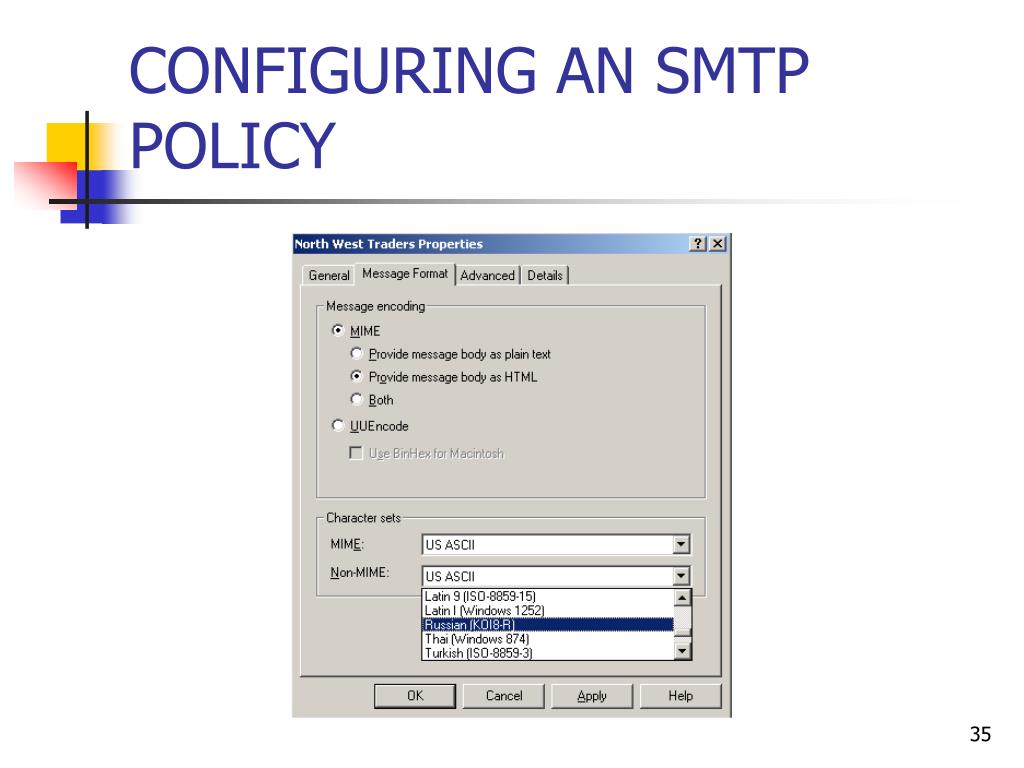

  35. CONFIGURING AN SMTP POLICY

  36. MAILBOX DEFAULTS • Mailbox defaults apply to all mailboxes • Per-user settings apply to individual mailboxes • Widely used to prevent bottlenecks in the Exchange routing engine • Message size limits can apply to inbound or outbound messages • Recipient limits apply to all messages

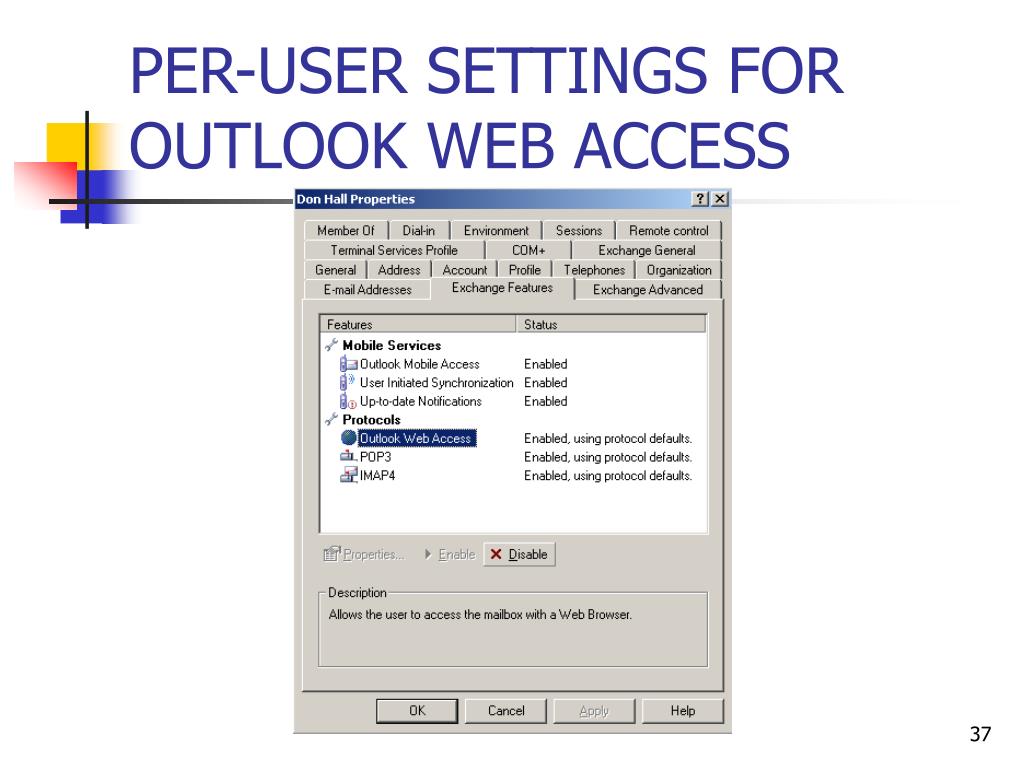

  37. PER-USER SETTINGS FOR OUTLOOK WEB ACCESS

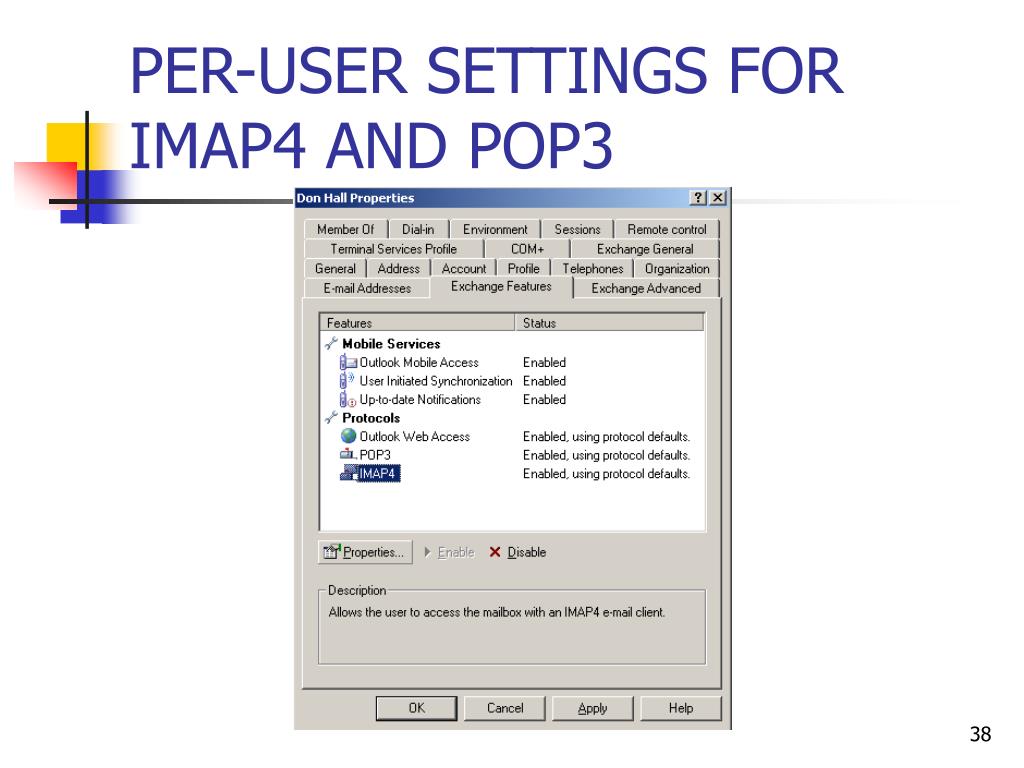

  38. PER-USER SETTINGS FOR IMAP4 AND POP3

  39. SUMMARY • How SMTP and ESMTP work • Identifying Exchange servers and connecting to the Internet • SMTP virtual servers, connectors, relays, and smart hosts • Security: authentication, encryption, reverse DNS lookup • Global settings and SMTP policies • Per-user settings
