  1. Sparc Enterprise Mx000 firmware upgrade UniONE I&C 시스템 기술지원 팀

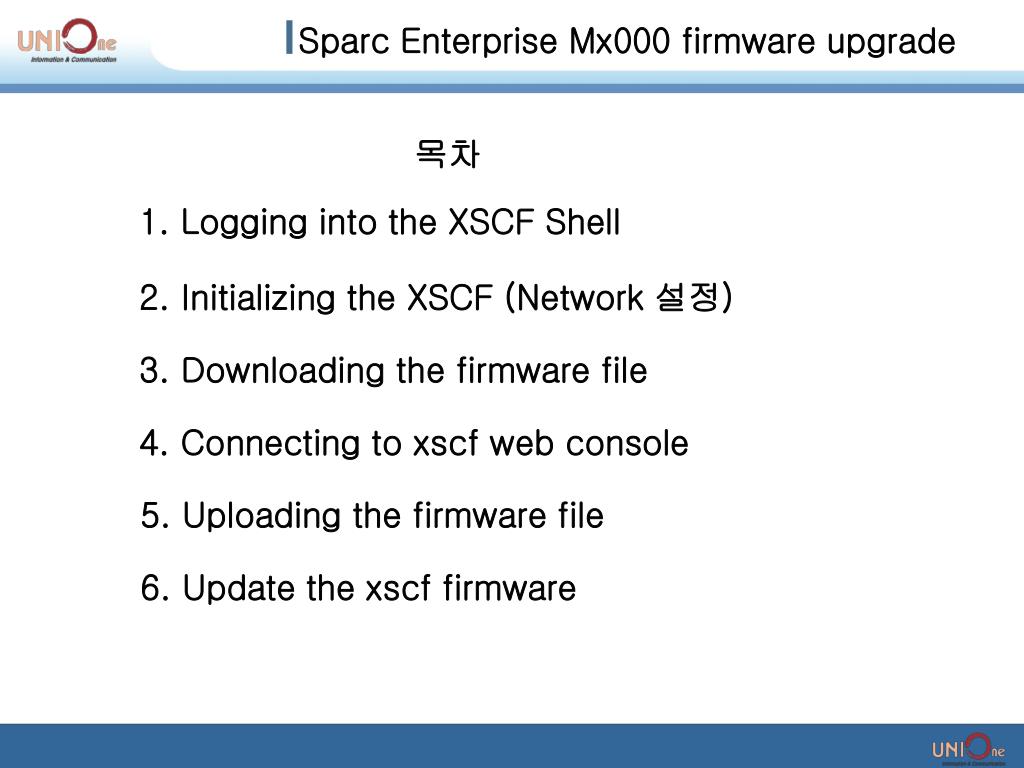

  2. Sparc Enterprise Mx000 firmware upgrade 목차 1. Logging into the XSCF Shell 2. Initializing the XSCF (Network 설정) 3. Downloading the firmware file 4. Connecting to xscf web console 5. Uploading the firmware file 6. Update the xscf firmware

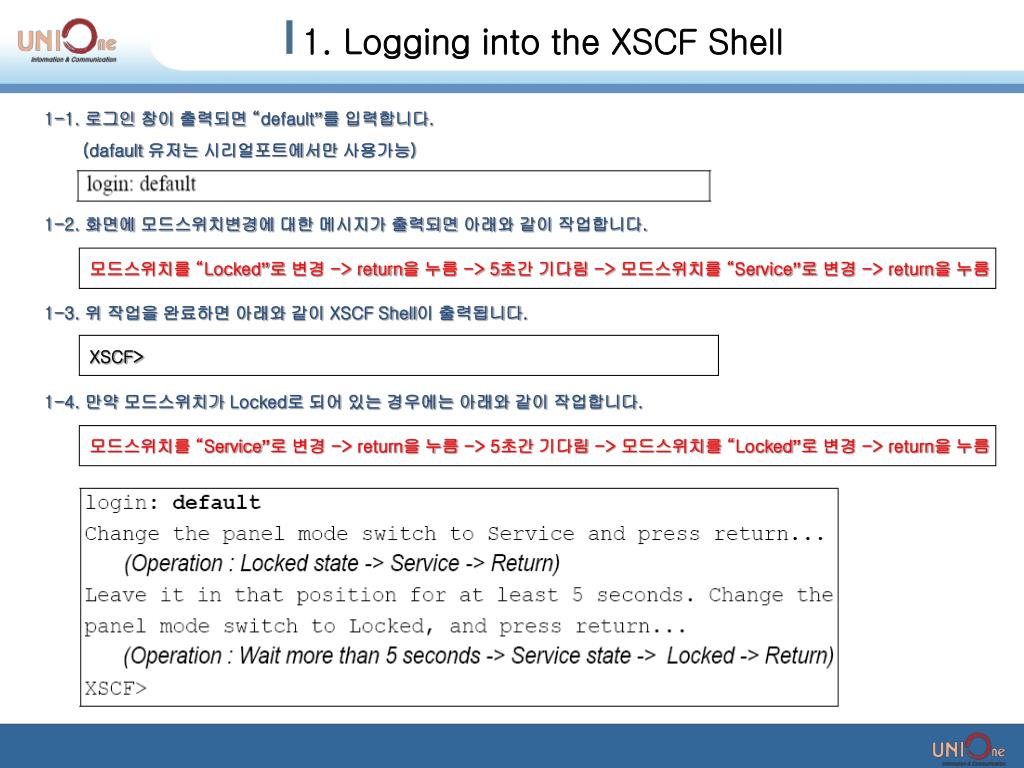

  3. 1. Logging into the XSCF Shell 1-1. 로그인 창이 출력되면 “default”를 입력합니다. (dafault 유저는 시리얼포트에서만 사용가능) 1-2. 화면에 모드스위치변경에 대한 메시지가 출력되면 아래와 같이 작업합니다. 모드스위치를 “Locked”로 변경 -> return을 누름 -> 5초간 기다림 -> 모드스위치를 “Service”로 변경 -> return을 누름 1-3. 위 작업을 완료하면 아래와 같이 XSCF Shell이 출력됩니다. XSCF> 1-4. 만약 모드스위치가 Locked로 되어 있는 경우에는 아래와 같이 작업합니다. 모드스위치를 “Service”로 변경 -> return을 누름 -> 5초간 기다림 -> 모드스위치를 “Locked”로 변경 -> return을 누름

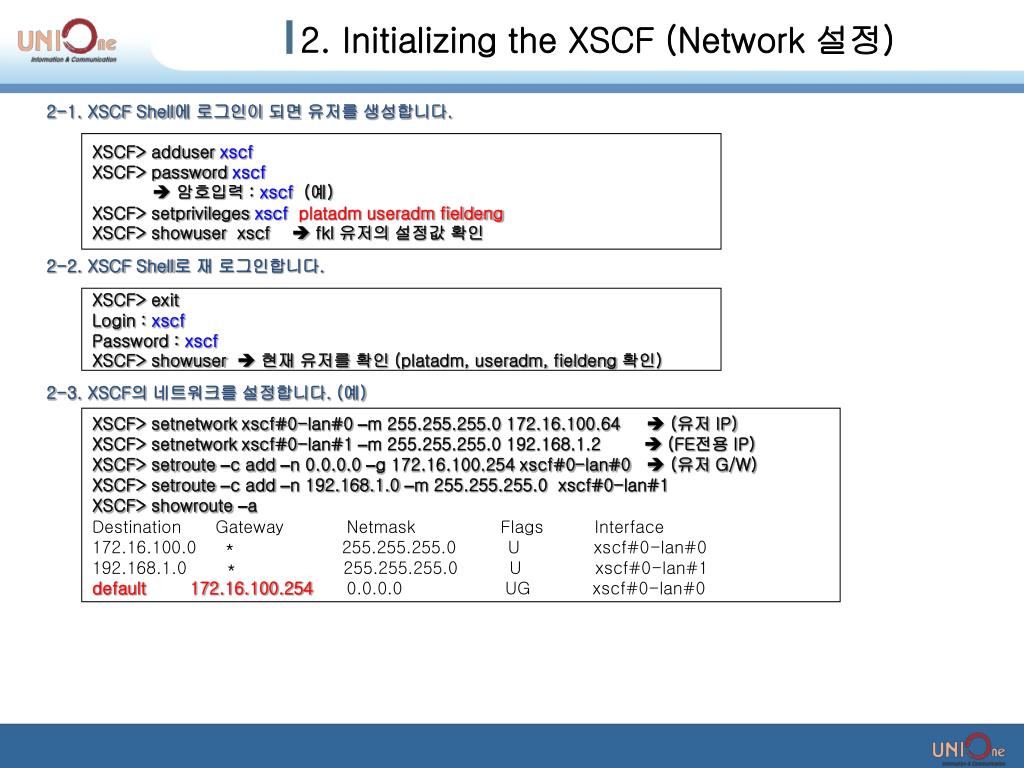

  4. 2. Initializing the XSCF (Network 설정) 2-1. XSCF Shell에 로그인이 되면 유저를 생성합니다. XSCF> adduser xscf XSCF> password xscf  암호입력 : xscf (예) XSCF> setprivileges xscf platadm useradm fieldeng XSCF> showuser xscf  fkl 유저의 설정값 확인 2-2. XSCF Shell로 재 로그인합니다. XSCF> exit Login : xscf Password : xscf XSCF> showuser  현재 유저를 확인 (platadm, useradm, fieldeng 확인) 2-3. XSCF의 네트워크를 설정합니다. (예) XSCF> setnetwork xscf#0-lan#0 –m 255.255.255.0 172.16.100.64  (유저 IP) XSCF> setnetwork xscf#0-lan#1 –m 255.255.255.0 192.168.1.2  (FE전용 IP) XSCF> setroute –c add –n 0.0.0.0 –g 172.16.100.254 xscf#0-lan#0  (유저 G/W) XSCF> setroute –c add –n 192.168.1.0 –m 255.255.255.0 xscf#0-lan#1 XSCF> showroute –a Destination Gateway Netmask Flags Interface 172.16.100.0 * 255.255.255.0 U xscf#0-lan#0 192.168.1.0 * 255.255.255.0 U xscf#0-lan#1 default 172.16.100.254 0.0.0.0 UG xscf#0-lan#0

  5. 2. Initializing the XSCF (Network 설정) 2-4. XSCF의 네트워크 인터페이스의 정보를 확인합니다. XSCF> shownetwork –a  모든 인터페이스 정보확인 XSCF> shownetwork xscf#0-lan1  XSCFU#0의 LAN1의 정보를 확인 xscf#0-lan#1 Link encap:Ethernet HWaddr 00:0A:48:09:C9:0E inet addr:192.168.1.2Bcast: 192.168.1.255 Mask:255.255.255.0 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:54424 errors:0 dropped:0 overruns:0 frame:0 TX packets:14369 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:20241827 (19.3 MiB) TX bytes:2089769 (1.9 MiB) Base address:0xe000 2-5. Telnet을 활성화합니다. XSCF> settelnet –c enable XSCF> showtelnet Telnet status: enabled 2-6. 네트워크 설정값을 적용합니다. XSCF> applynetwork The following network settings will be applied: xscf#0 hostname :xscf0 DNS domain name :com ~ 생략 ~ The XSCF will be reset. Continue? [y|n] :y

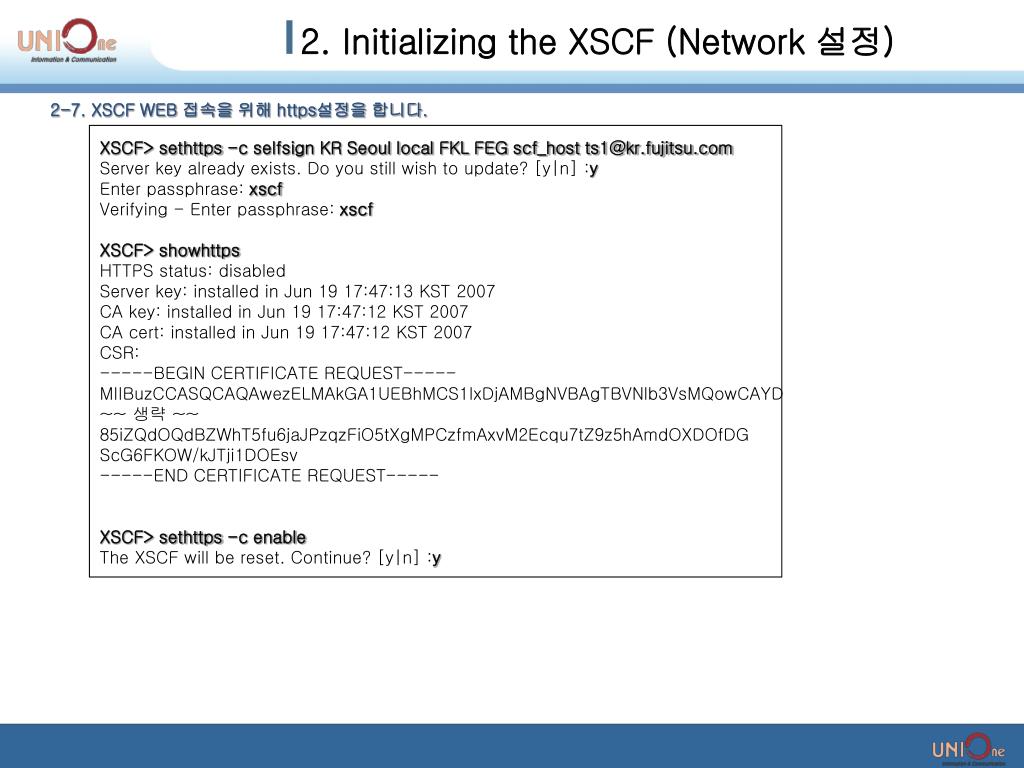

  6. 2. Initializing the XSCF (Network 설정) 2-7. XSCF WEB 접속을 위해 https설정을 합니다. XSCF> sethttps -c selfsign KR Seoul local FKL FEG scf_host ts1@kr.fujitsu.com Server key already exists. Do you still wish to update? [y|n] :y Enter passphrase: xscf Verifying - Enter passphrase: xscf XSCF> showhttps HTTPS status: disabled Server key: installed in Jun 19 17:47:13 KST 2007 CA key: installed in Jun 19 17:47:12 KST 2007 CA cert: installed in Jun 19 17:47:12 KST 2007 CSR: -----BEGIN CERTIFICATE REQUEST----- MIIBuzCCASQCAQAwezELMAkGA1UEBhMCS1IxDjAMBgNVBAgTBVNlb3VsMQowCAYD ~~ 생략 ~~ 85iZQdOQdBZWhT5fu6jaJPzqzFiO5tXgMPCzfmAxvM2Ecqu7tZ9z5hAmdOXDOfDG ScG6FKOW/kJTji1DOEsv -----END CERTIFICATE REQUEST----- XSCF> sethttps -c enable The XSCF will be reset. Continue? [y|n] :y

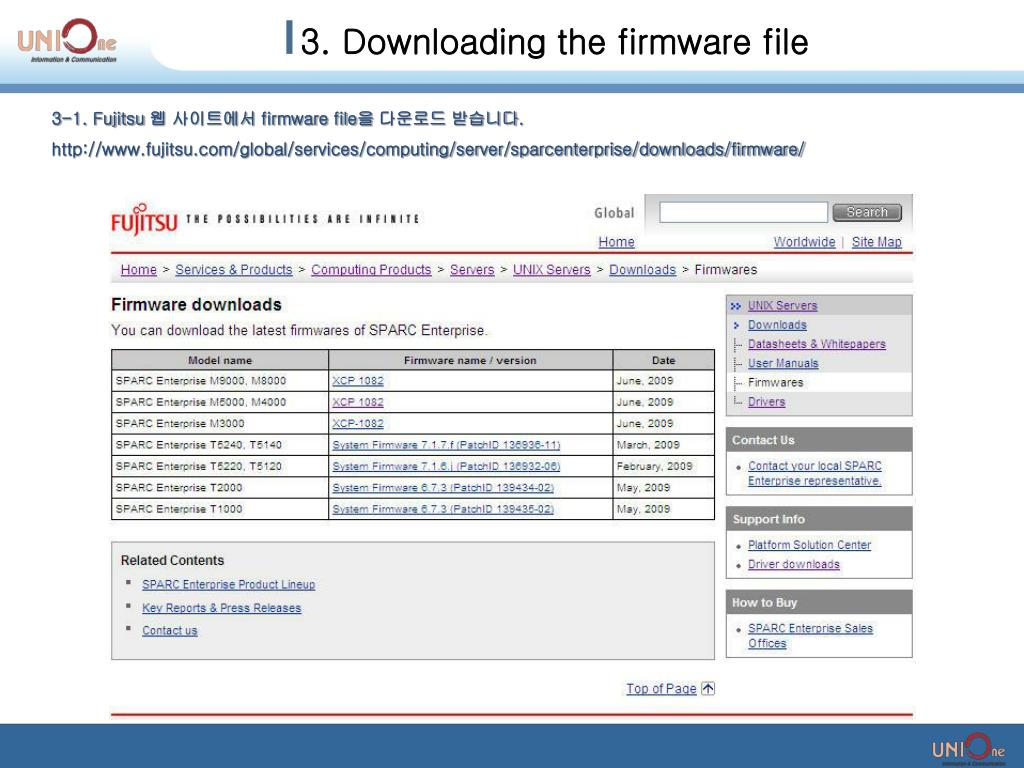

  7. 3. Downloading the firmware file 3-1. Fujitsu 웹 사이트에서 firmware file을 다운로드 받습니다. http://www.fujitsu.com/global/services/computing/server/sparcenterprise/downloads/firmware/

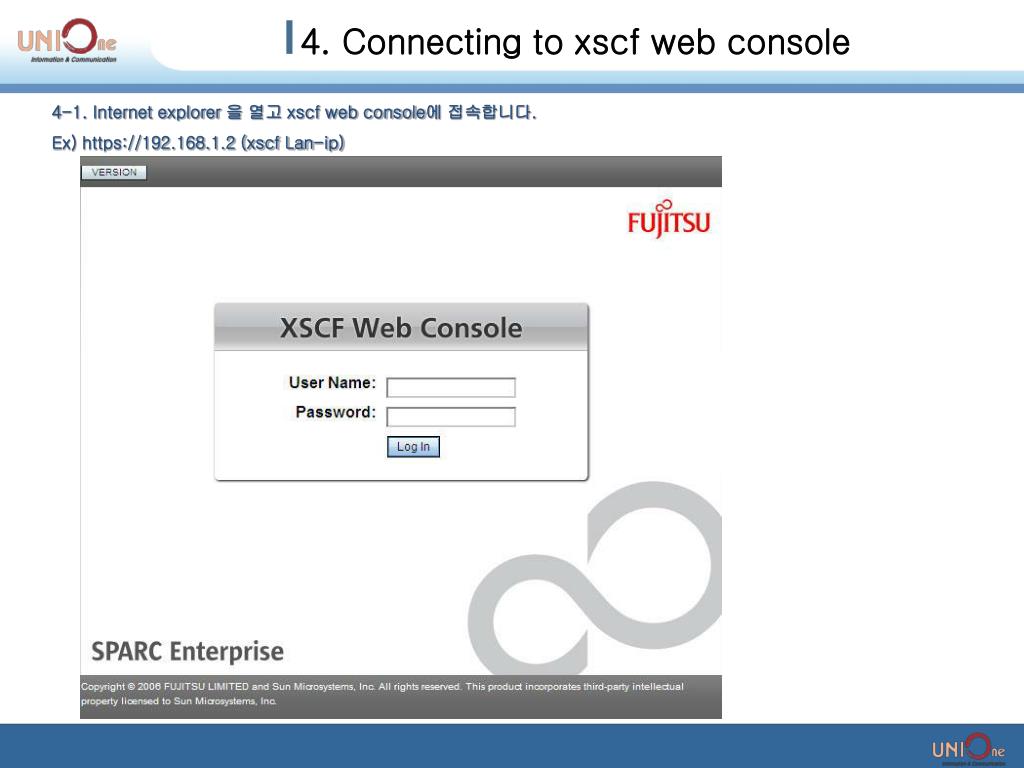

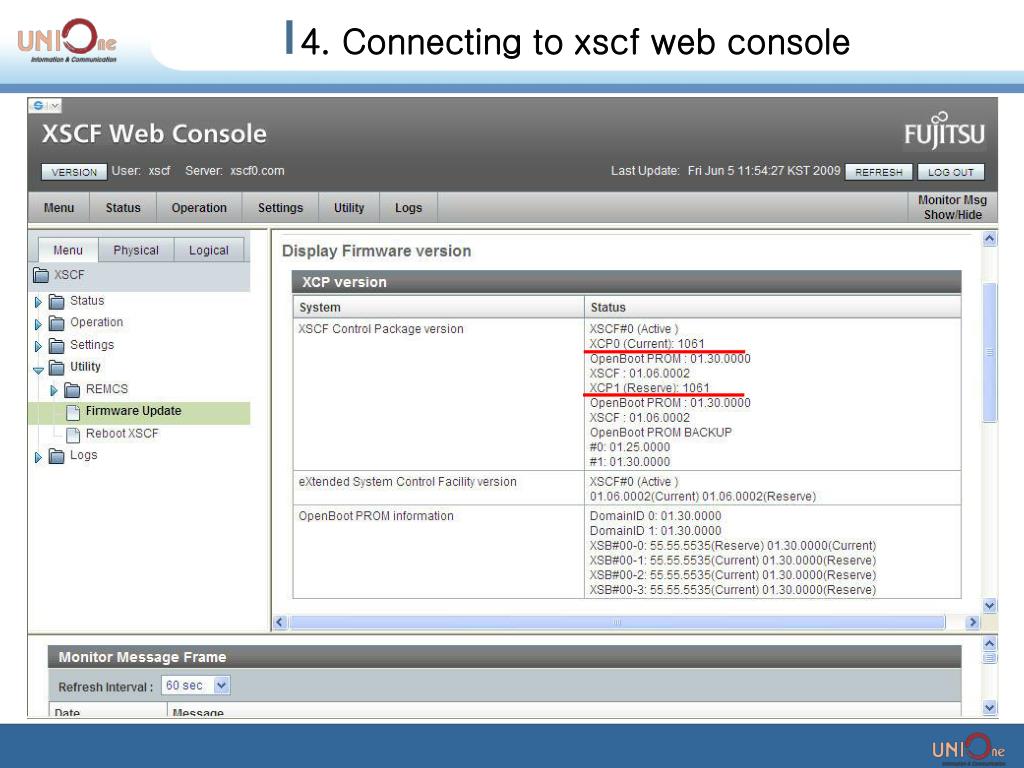

  8. 4. Connecting to xscf web console 4-1. Internet explorer 을 열고 xscf web console에 접속합니다. Ex) https://192.168.1.2 (xscf Lan-ip)

  9. 4. Connecting to xscf web console

  10. 5. Uploading the firmware file 5-1. XCP Import Menu를 통해서 firmware file을 xscf에 업로드 합니다.

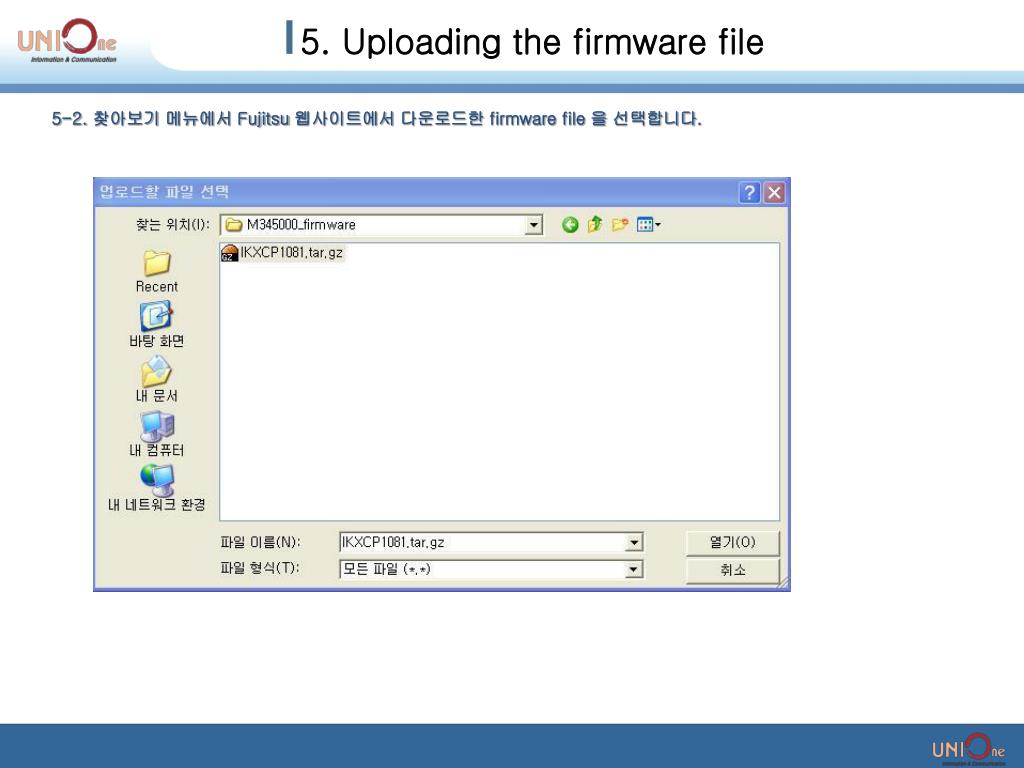

  11. 5. Uploading the firmware file 5-2. 찾아보기 메뉴에서 Fujitsu 웹사이트에서 다운로드한 firmware file 을 선택합니다.

  12. 5. Uploading the firmware file 5-3. file을 선택하고 업로드를 합니다.

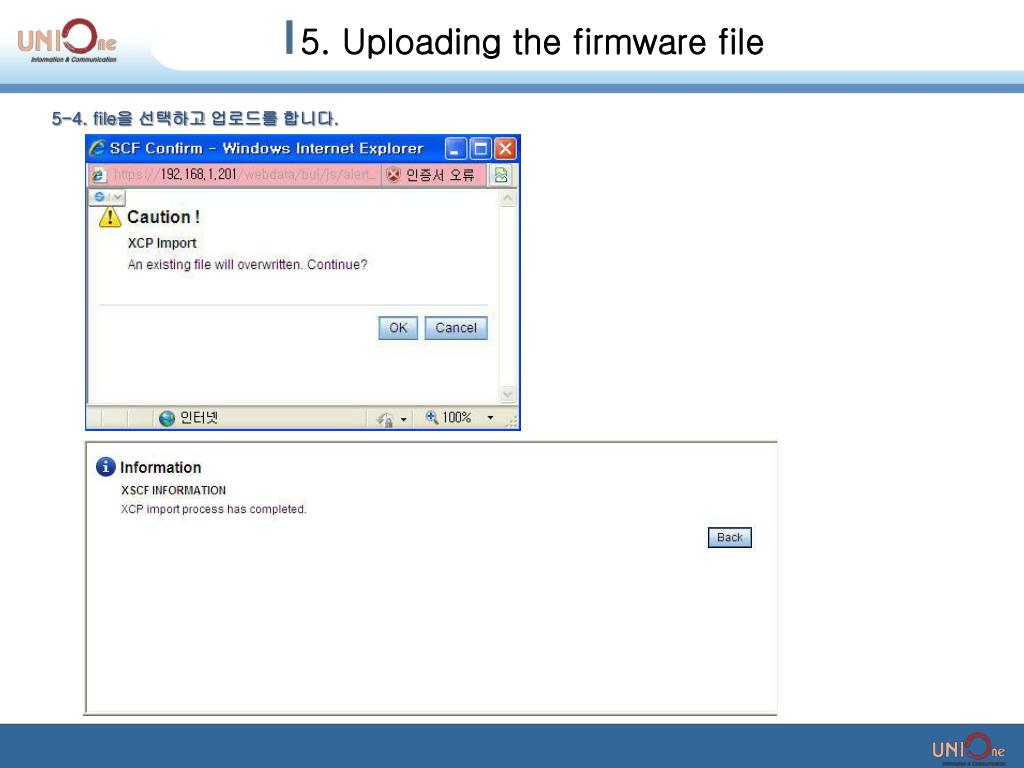

  13. 5. Uploading the firmware file 5-4. file을 선택하고 업로드를 합니다.

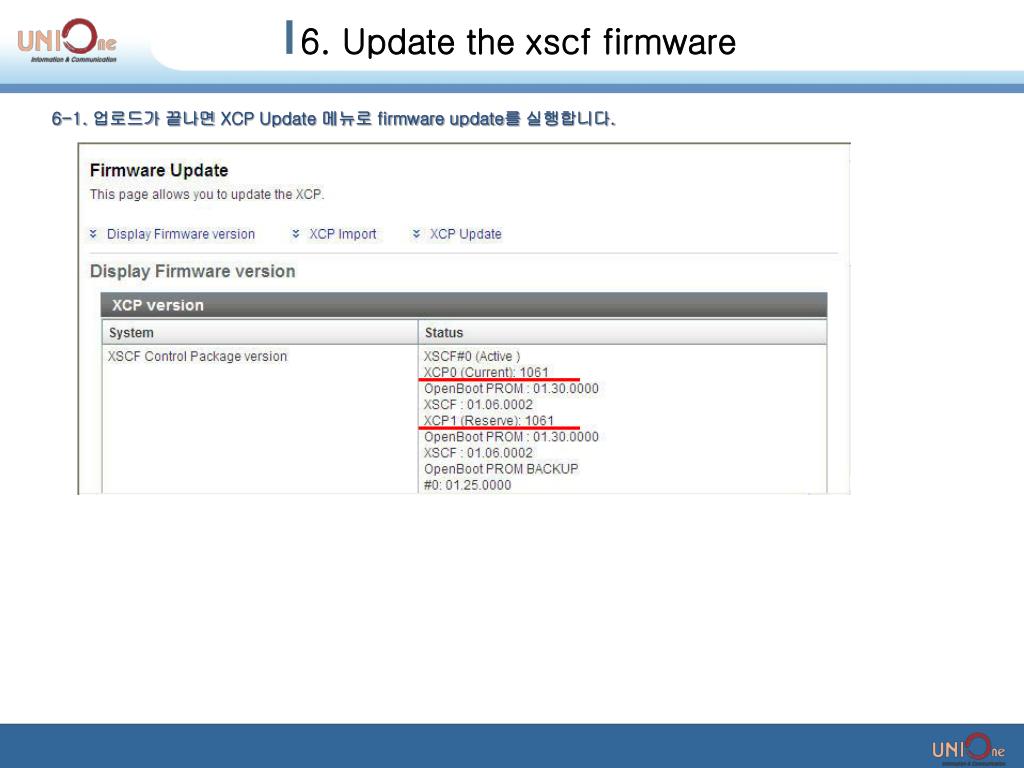

  14. 6. Update the xscf firmware 6-1. 업로드가 끝나면 XCP Update 메뉴로 firmware update를 실행합니다.

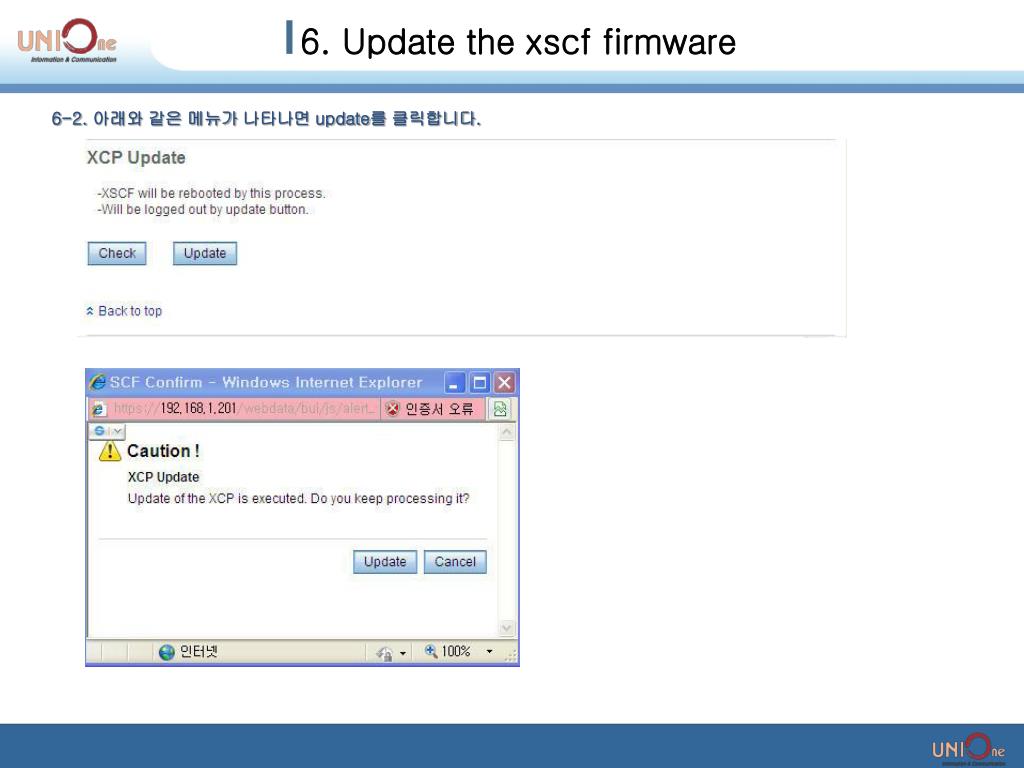

  15. 6. Update the xscf firmware 6-2. 아래와 같은 메뉴가 나타나면 update를 클릭합니다.

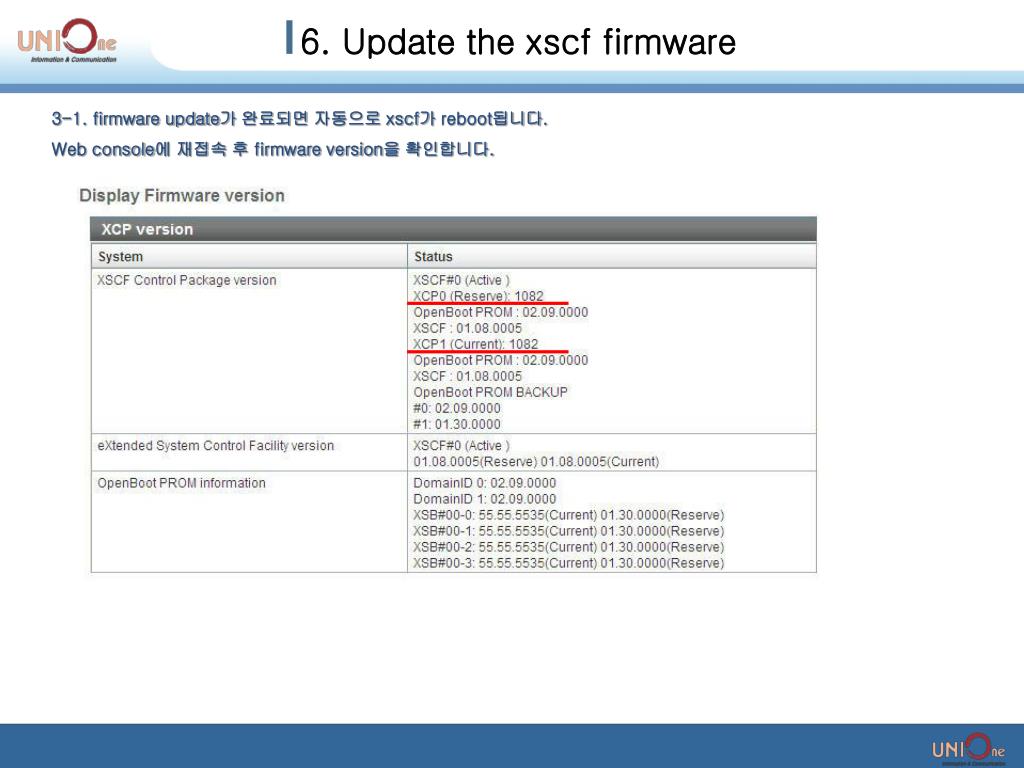

  16. 6. Update the xscf firmware 3-1. firmware update가 완료되면 자동으로 xscf가 reboot됩니다. Web console에 재접속 후 firmware version을 확인합니다.

  17. Sparc Enterprise Mx000 firmware upgrade 17 17
