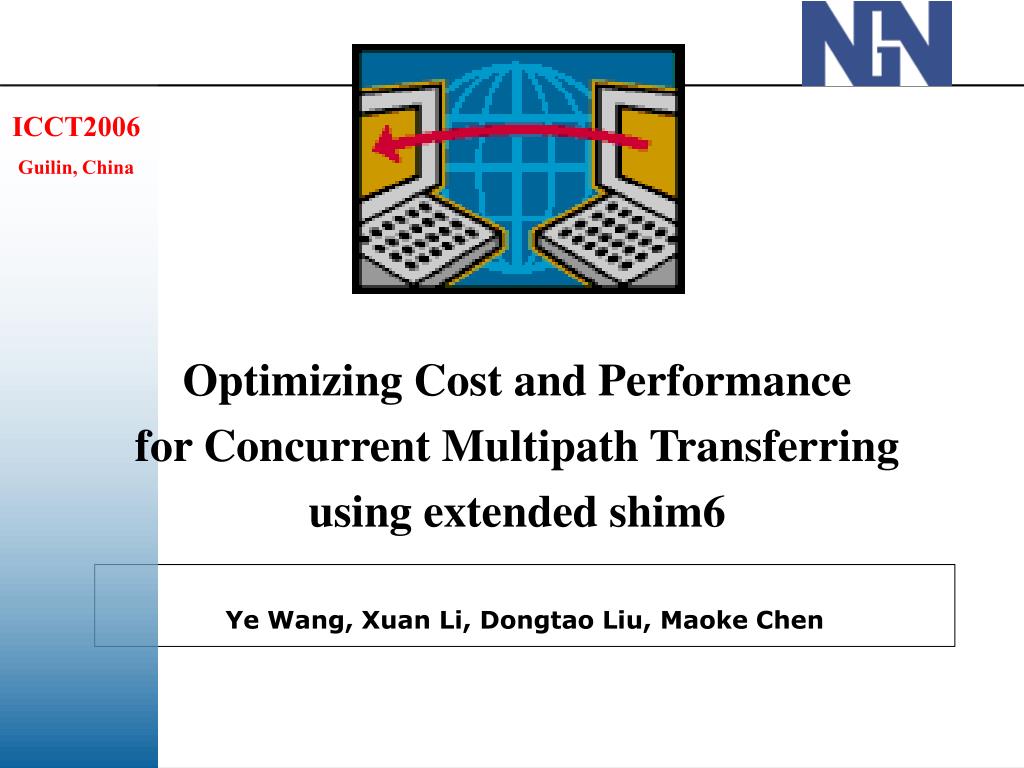

  1. Ye Wang, Xuan Li, Dongtao Liu, Maoke Chen ICCT2006 Guilin, China Optimizing Cost and Performance for Concurrent Multipath Transferring using extended shim6

  2. Content • Introduction • CMT, shim6, traffic optimization • Modeling, Analysis, and Algorithm • lower cost when performance satisfied • higher performance when cost restricted • cost-performance tradeoff (higher NPR) • Simulation Results • Conclusion & Future Work ICCT2006

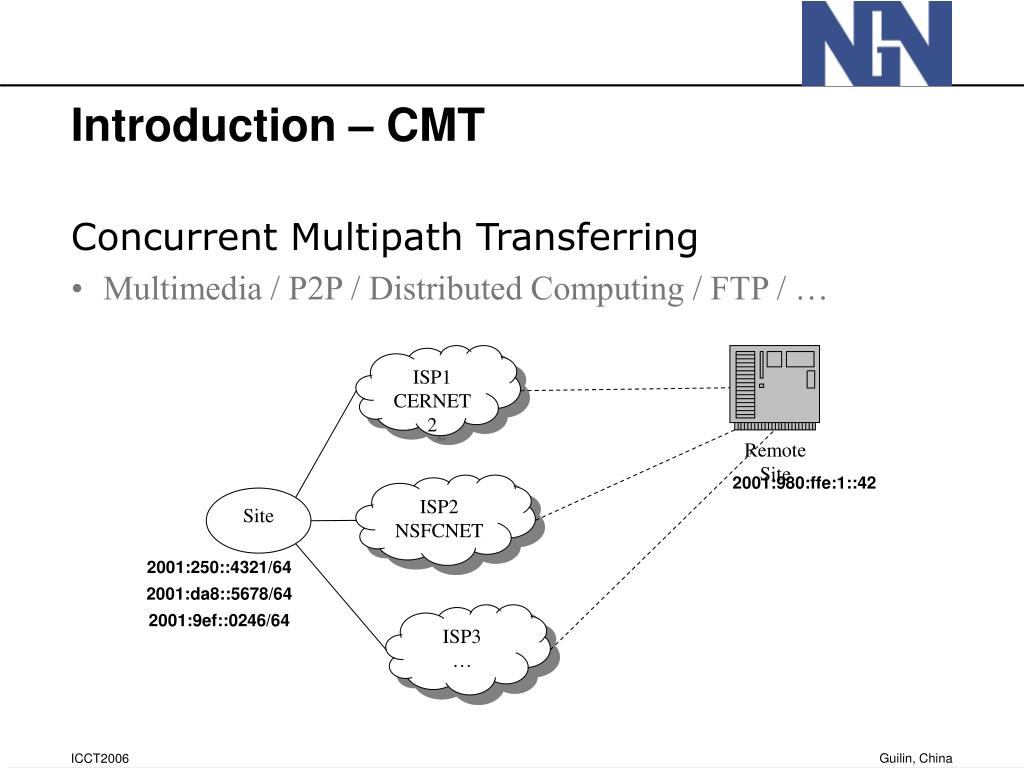

  3. ISP1 CERNET2 Remote Site ISP2 NSFCNET Site ISP3 … Introduction – CMT • Concurrent Multipath Transferring • Multimedia / P2P / Distributed Computing / FTP / … 2001:980:ffe:1::42 2001:250::4321/64 2001:da8::5678/64 2001:9ef::0246/64 ICCT2006

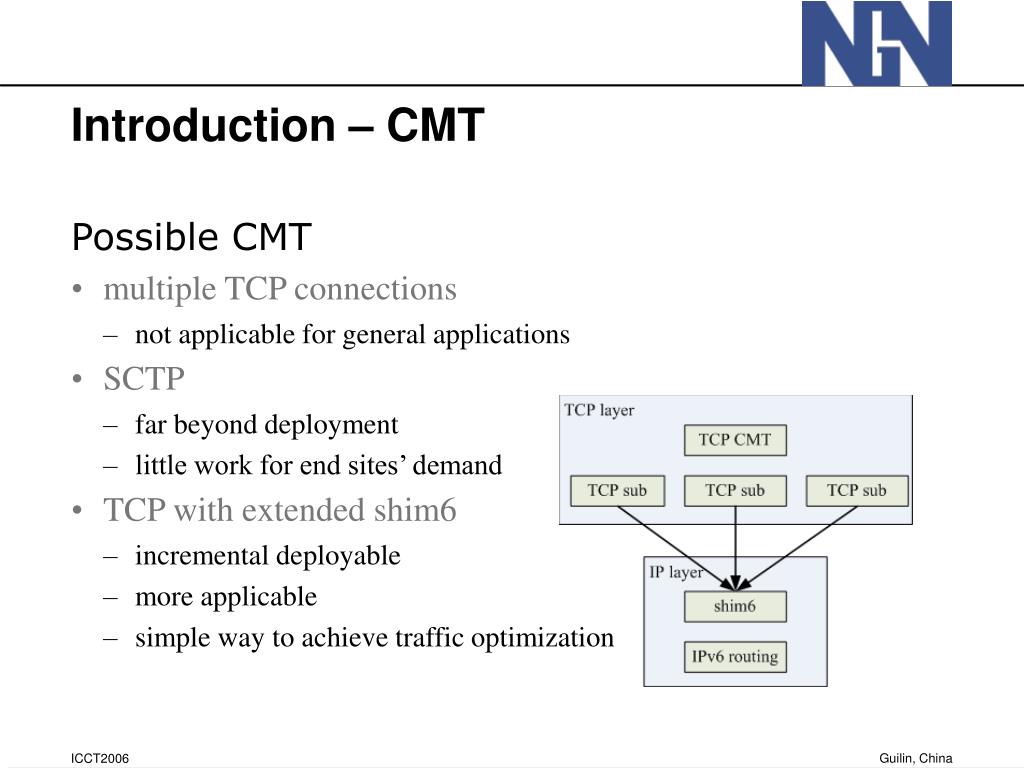

  4. Introduction – CMT • Possible CMT • multiple TCP connections • not applicable for general applications • SCTP • far beyond deployment • little work for end sites’ demand • TCP with extended shim6 • incremental deployable • more applicable • simple way to achieve traffic optimization ICCT2006

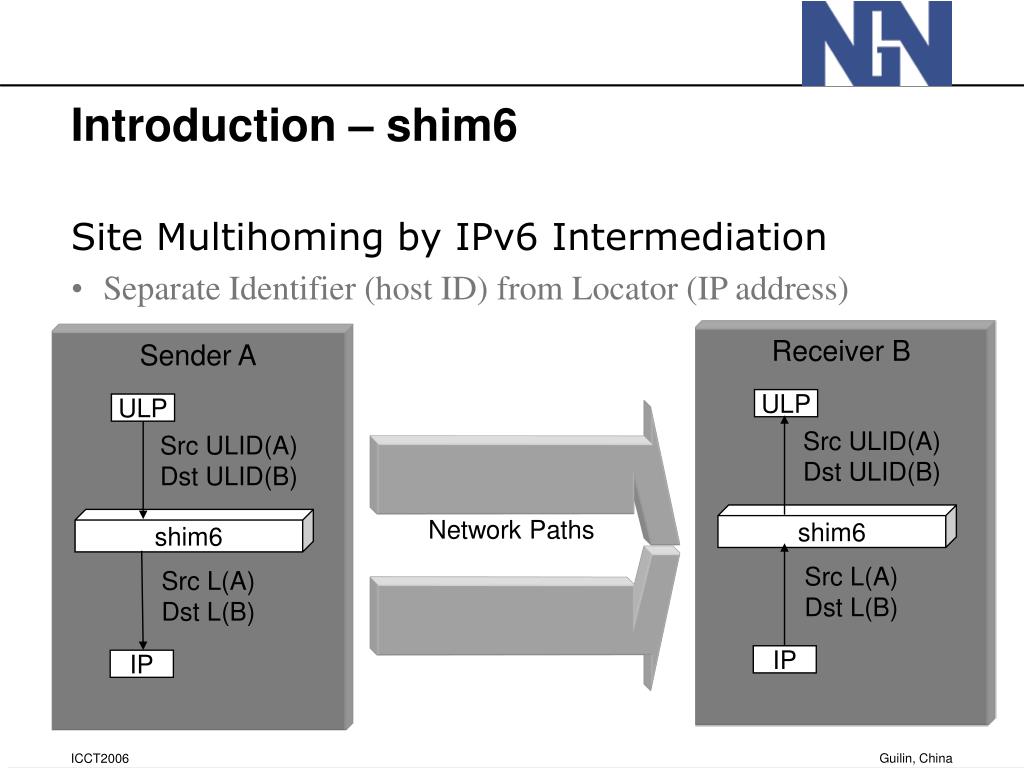

  5. Introduction – shim6 • Site Multihoming by IPv6 Intermediation • Separate Identifier (host ID) from Locator (IP address) Receiver B Sender A ULP ULP Src ULID(A) Dst ULID(B) Src ULID(A) Dst ULID(B) shim6 Network Paths shim6 Src L(A) Dst L(B) Src L(A) Dst L(B) IP IP ICCT2006

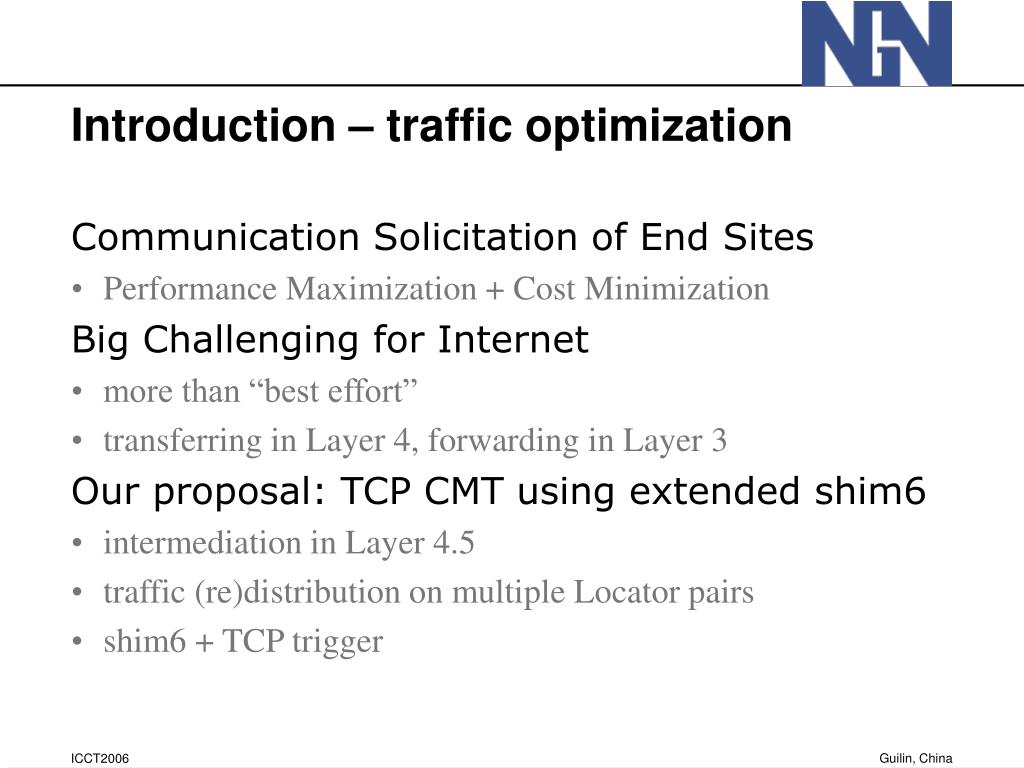

  6. Introduction – traffic optimization • Communication Solicitation of End Sites • Performance Maximization + Cost Minimization • Big Challenging for Internet • more than “best effort” • transferring in Layer 4, forwarding in Layer 3 • Our proposal: TCP CMT using extended shim6 • intermediation in Layer 4.5 • traffic (re)distribution on multiple Locator pairs • shim6 + TCP trigger ICCT2006

  7. Introduction – traffic optimization • Related Works • Augmenting TCP • TCP-Reno, AQM/ECN, RED, XCP, VCP, etc. • SCTP: Stream Control Transmission Protocol • much more powerful than TCP • aim at better QoS for general purpose transferring • Smart routing • distribute traffic “optimally” in Layer 3 • long-term mechanism • gateway-side traffic control ICCT2006

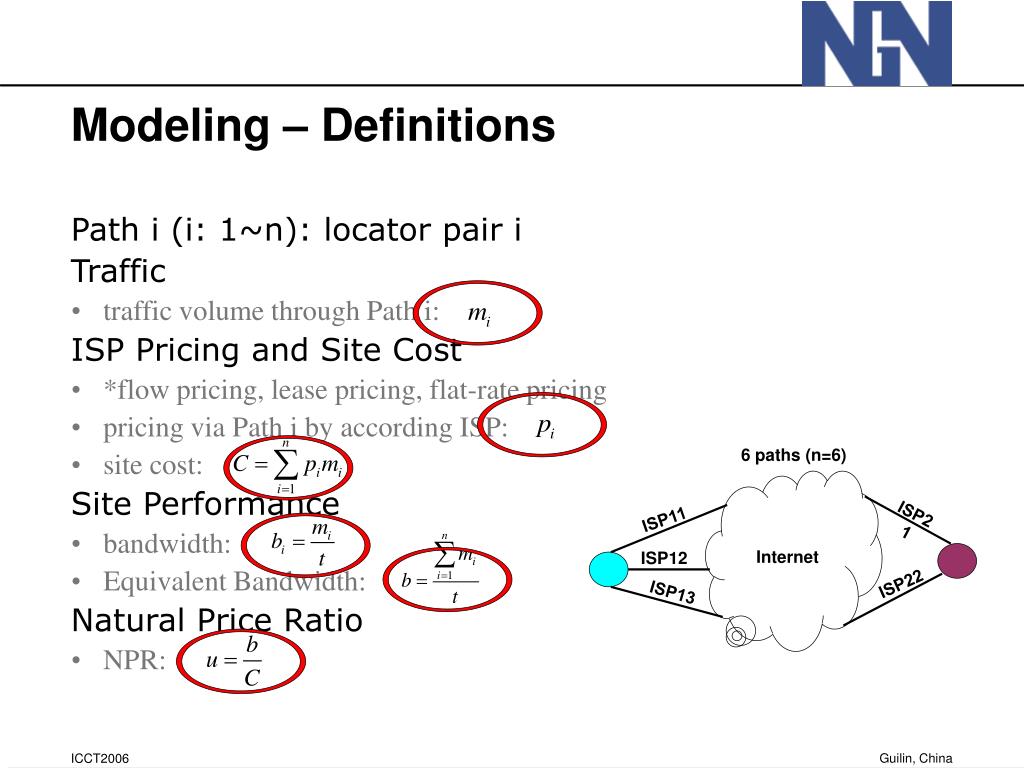

  8. Modeling – Definitions • Path i (i: 1~n): locator pair i • Traffic • traffic volume through Path i: • ISP Pricing and Site Cost • *flow pricing, lease pricing, flat-rate pricing • pricing via Path i by according ISP: • site cost: • Site Performance • bandwidth: • Equivalent Bandwidth: • Natural Price Ratio • NPR: 6 paths (n=6) Internet ISP21 ISP11 ISP12 ISP22 ISP13 ICCT2006

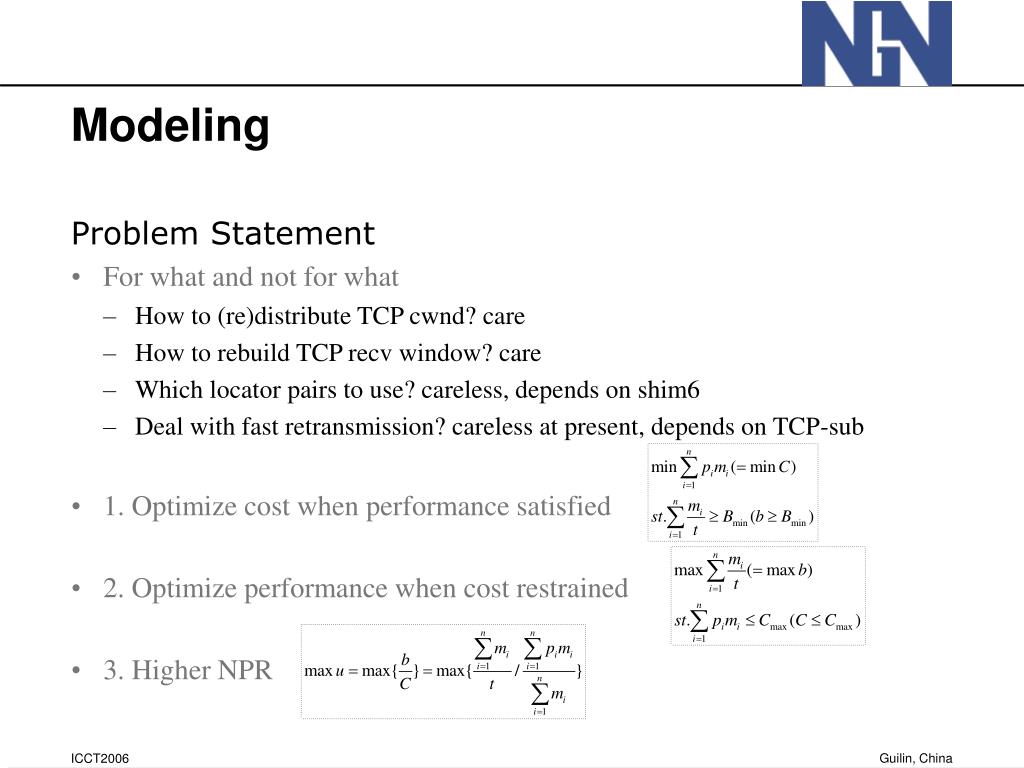

  9. Modeling • Problem Statement • For what and not for what • How to (re)distribute TCP cwnd? care • How to rebuild TCP recv window? care • Which locator pairs to use? careless, depends on shim6 • Deal with fast retransmission? careless at present, depends on TCP-sub • 1. Optimize cost when performance satisfied • 2. Optimize performance when cost restrained • 3. Higher NPR ICCT2006

  10. Analysis Typical demands for “at-least” bandwidth or “at-most” cost A simple metric of how well the traffic is distributed Cost NPR “Cost max” EB Cost “optimal point” “EB min” Goal: enhance performance and minimize cost ICCT2006

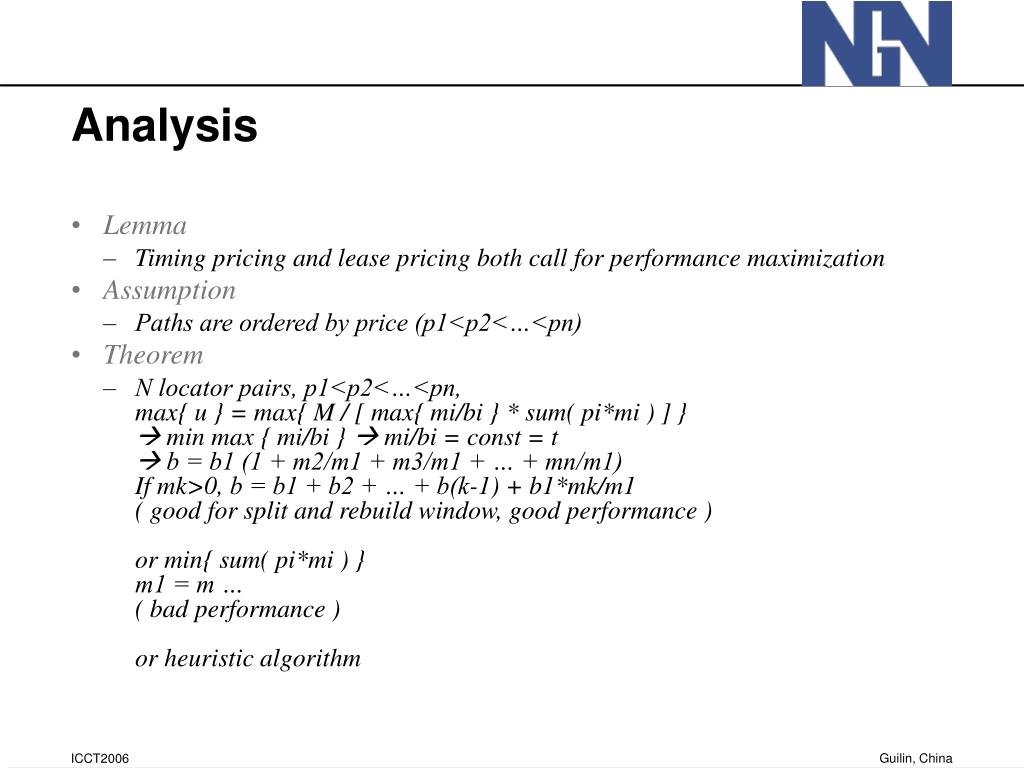

  11. Analysis • Lemma • Timing pricing and lease pricing both call for performance maximization • Assumption • Paths are ordered by price (p1<p2<…<pn) • Theorem • N locator pairs, p1<p2<…<pn, max{ u } = max{ M / [ max{ mi/bi } * sum( pi*mi ) ] }  min max { mi/bi }  mi/bi = const = t b = b1 (1 + m2/m1 + m3/m1 + … + mn/m1)If mk>0, b = b1 + b2 + … + b(k-1) + b1*mk/m1( good for split and rebuild window, good performance )or min{ sum( pi*mi ) }m1 = m …( bad performance )or heuristic algorithm ICCT2006

  12. Algorithms – 1 • Lower cost when performance satisfied • b(i)  m(i) / t (i = 1..N); • B  Bmin; i  1; • if B > b(i), then m(i)  b(i) * t; else m(i)  B * t, end; • B  B – b(i), i  i + 1 • if i <= n goto 3); else end. ICCT2006

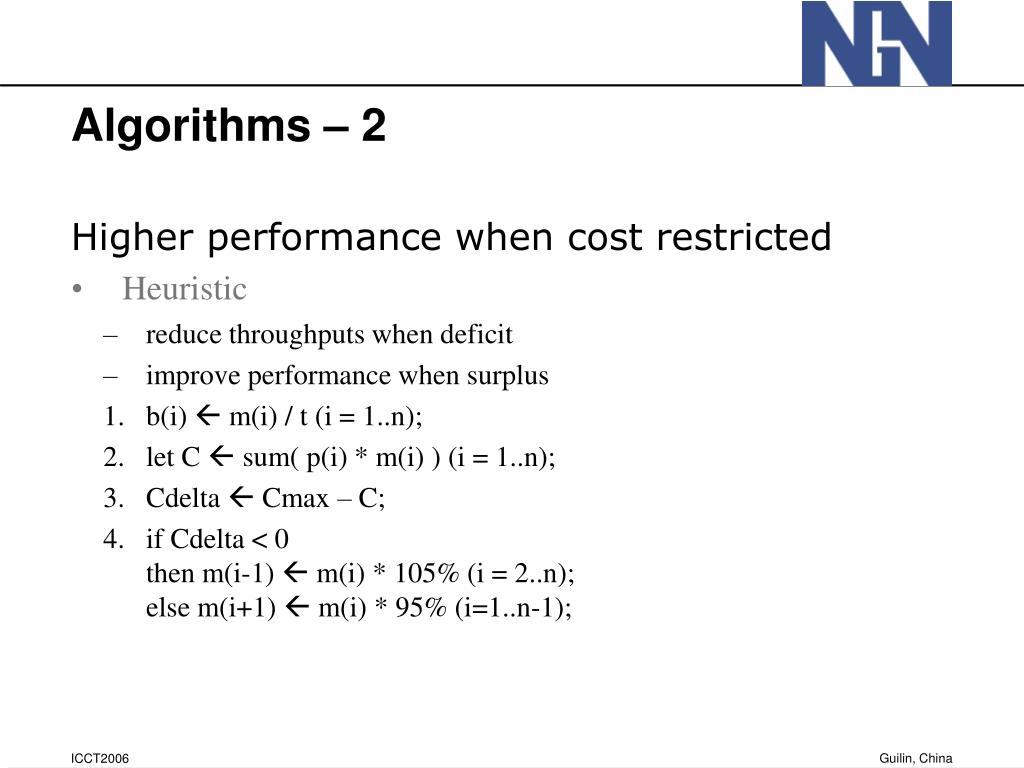

  13. Algorithms – 2 • Higher performance when cost restricted • Heuristic • reduce throughputs when deficit • improve performance when surplus • b(i)  m(i) / t (i = 1..n); • let C  sum( p(i) * m(i) ) (i = 1..n); • Cdelta  Cmax – C; • if Cdelta < 0 then m(i-1)  m(i) * 105% (i = 2..n); else m(i+1)  m(i) * 95% (i=1..n-1); ICCT2006

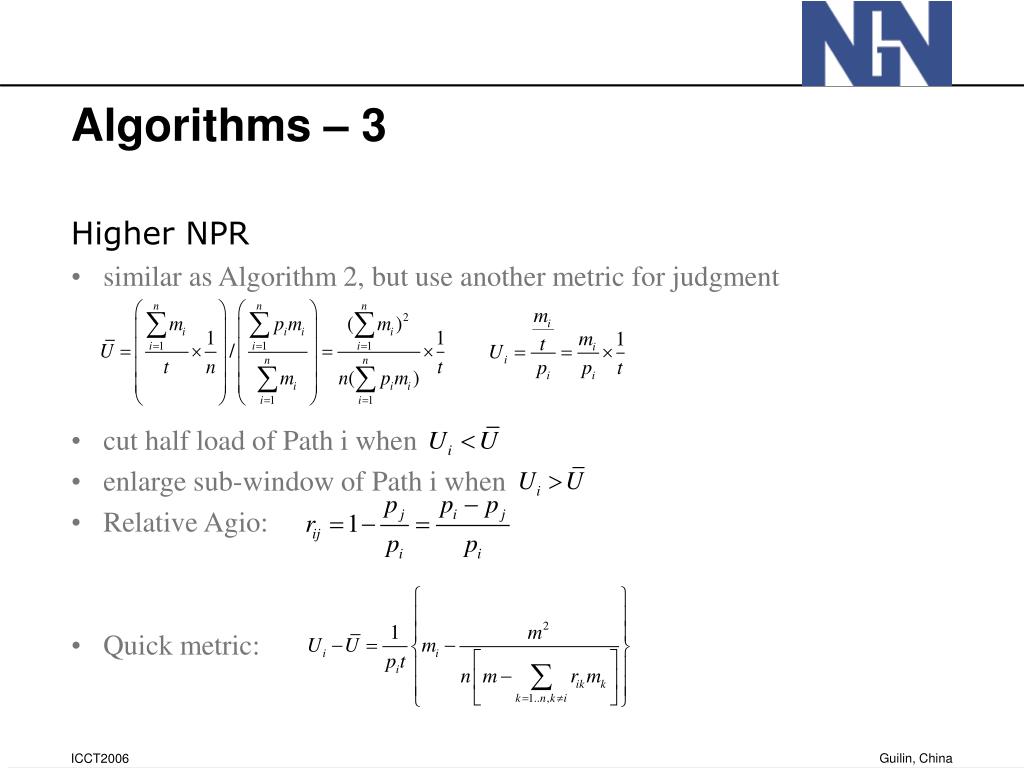

  14. Algorithms – 3 • Higher NPR • similar as Algorithm 2, but use another metric for judgment • cut half load of Path i when • enlarge sub-window of Path i when • Relative Agio: • Quick metric: ICCT2006

  15. ISP1 CERNET2 Remote Site ISP2 NSFCNET Site ISP3 … Simulation Results • Simulation in ns-2 • modified TCP agent + multiple modified IP agents • network topology: 3-ISP multihoming (+ N paths) • over 1000 runs ICCT2006

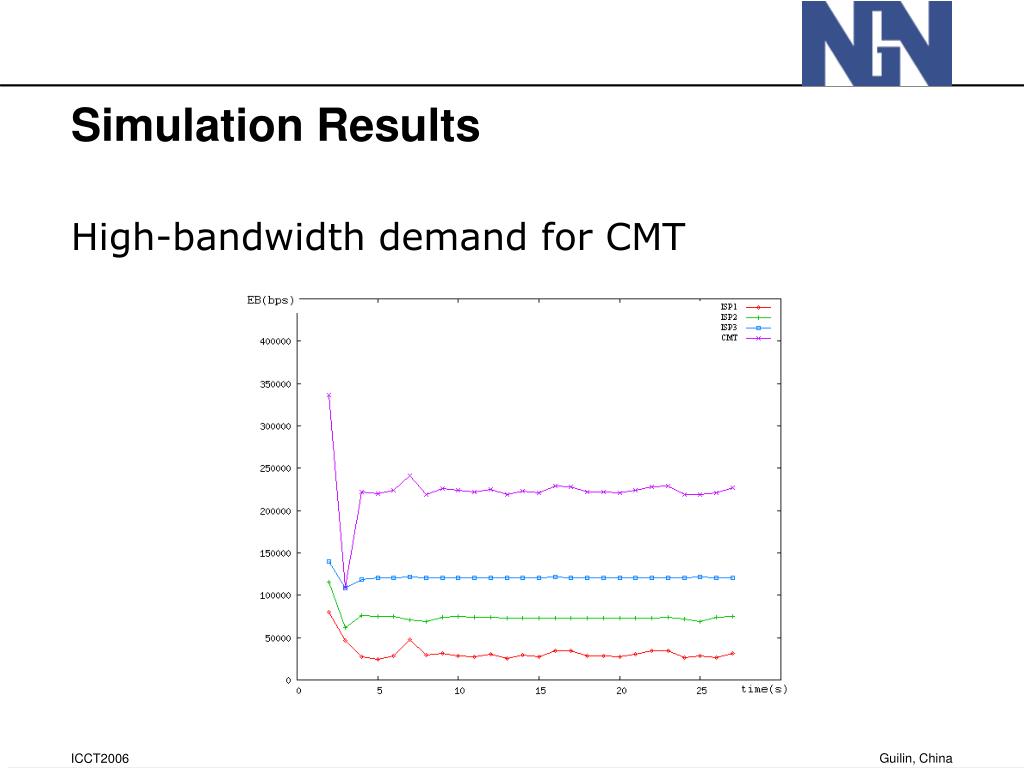

  16. Simulation Results • High-bandwidth demand for CMT ICCT2006

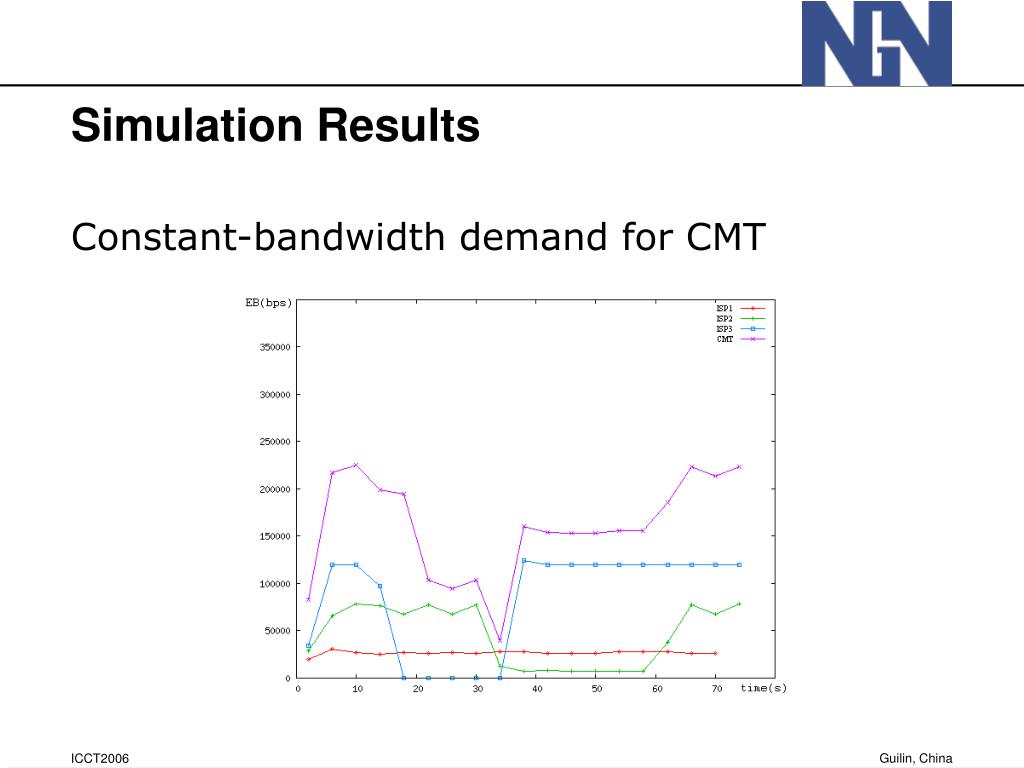

  17. Simulation Results • Constant-bandwidth demand for CMT ICCT2006

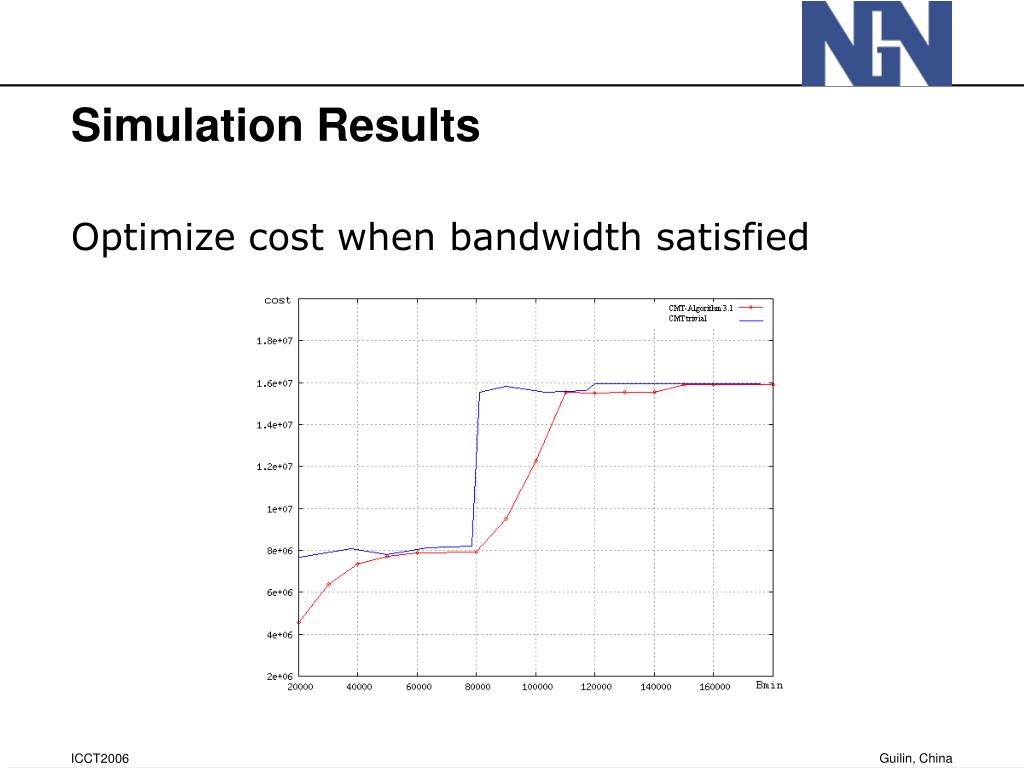

  18. Simulation Results • Optimize cost when bandwidth satisfied ICCT2006

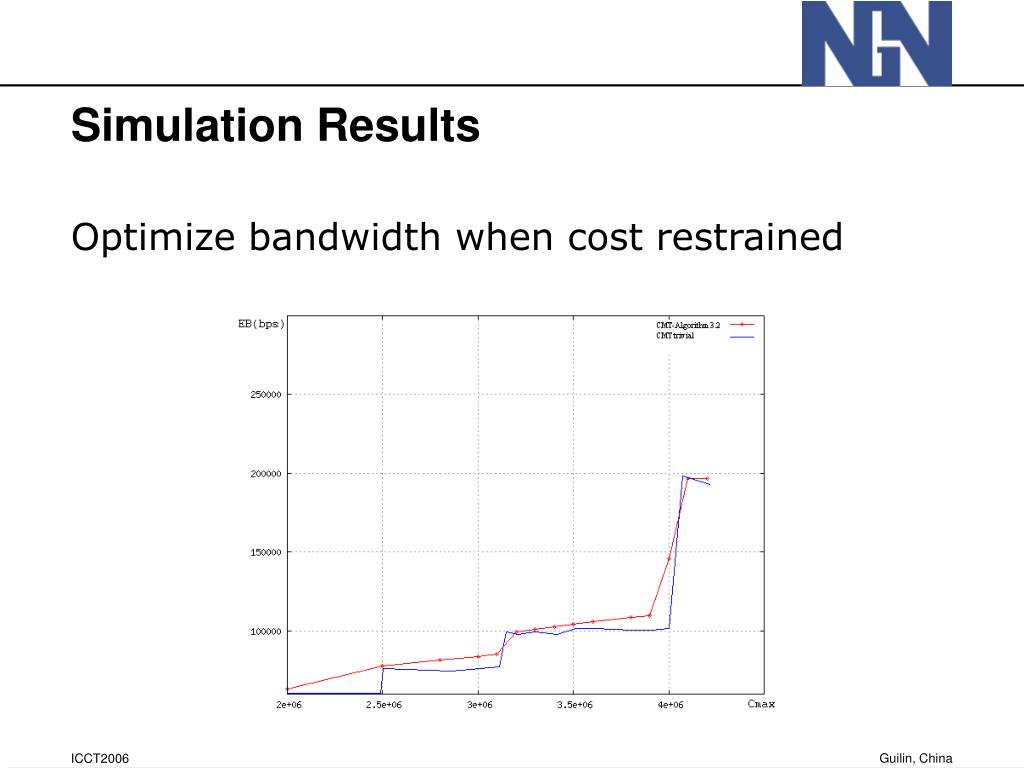

  19. Simulation Results • Optimize bandwidth when cost restrained ICCT2006

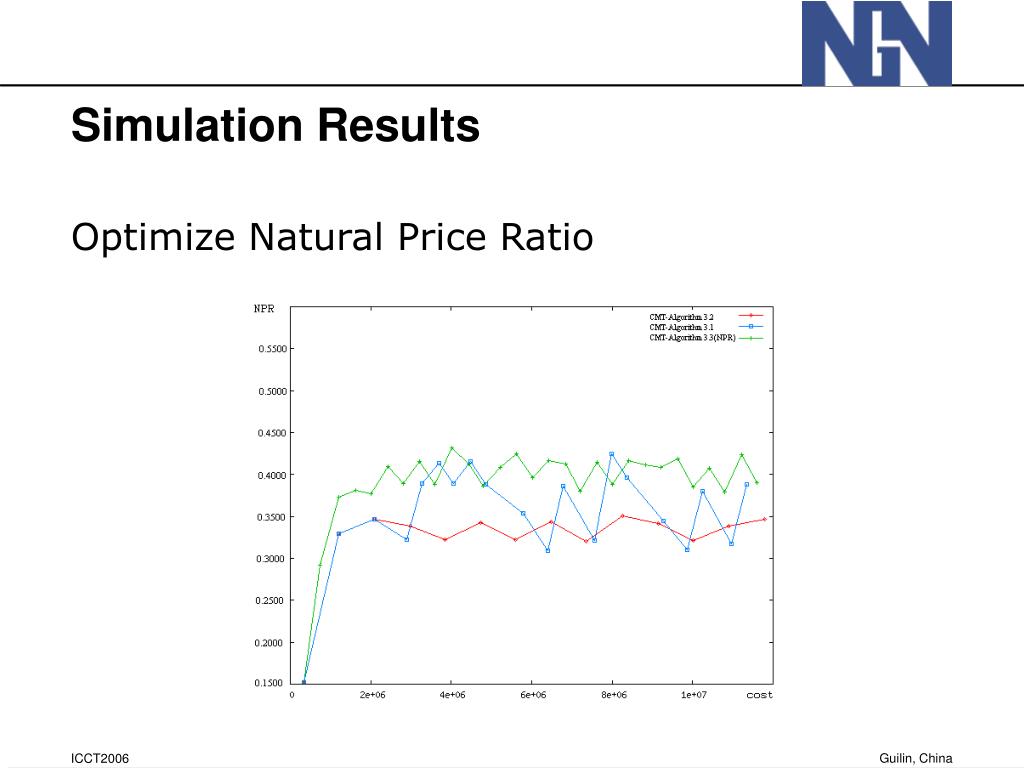

  20. Simulation Results • Optimize Natural Price Ratio ICCT2006

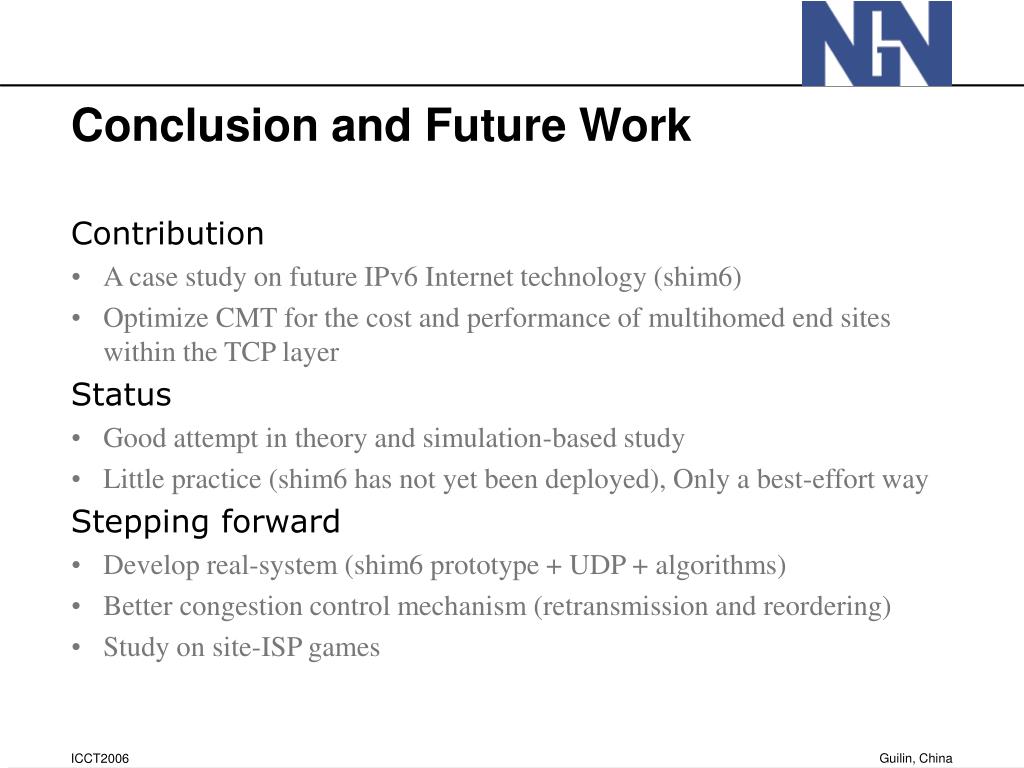

  21. Conclusion and Future Work • Contribution • A case study on future IPv6 Internet technology (shim6) • Optimize CMT for the cost and performance of multihomed end sites within the TCP layer • Status • Good attempt in theory and simulation-based study • Little practice (shim6 has not yet been deployed), Only a best-effort way • Stepping forward • Develop real-system (shim6 prototype + UDP + algorithms) • Better congestion control mechanism (retransmission and reordering) • Study on site-ISP games ICCT2006

  22. Ye Wang, Xuan Li, Dongtao Liu, Maoke Chen Thank you!
