  1. Chapter 13Replica Management in Grids 13.1 Motivation 13.2 Replica Architecture 13.3 Grid Replica Access Protocol (GRAP) 13.4 Handling Multiple Partitioning 13.5 Summary 13.6 Bibliographical Notes 13.7 Exercises

  2. Replica Management in Grids • Grid databases operate in data-intensive complex distributed applications • Data is replicated among few sites for quick access • Various replica management protocols e.g. ROWA, primary copy, quorum-based protocols etc., are proposed for distributed databases • Replica control protocols must manage replicated data properly to ensure consistency of replicated copies of the data • This chapter deals with write transactions in replicated grid environment D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

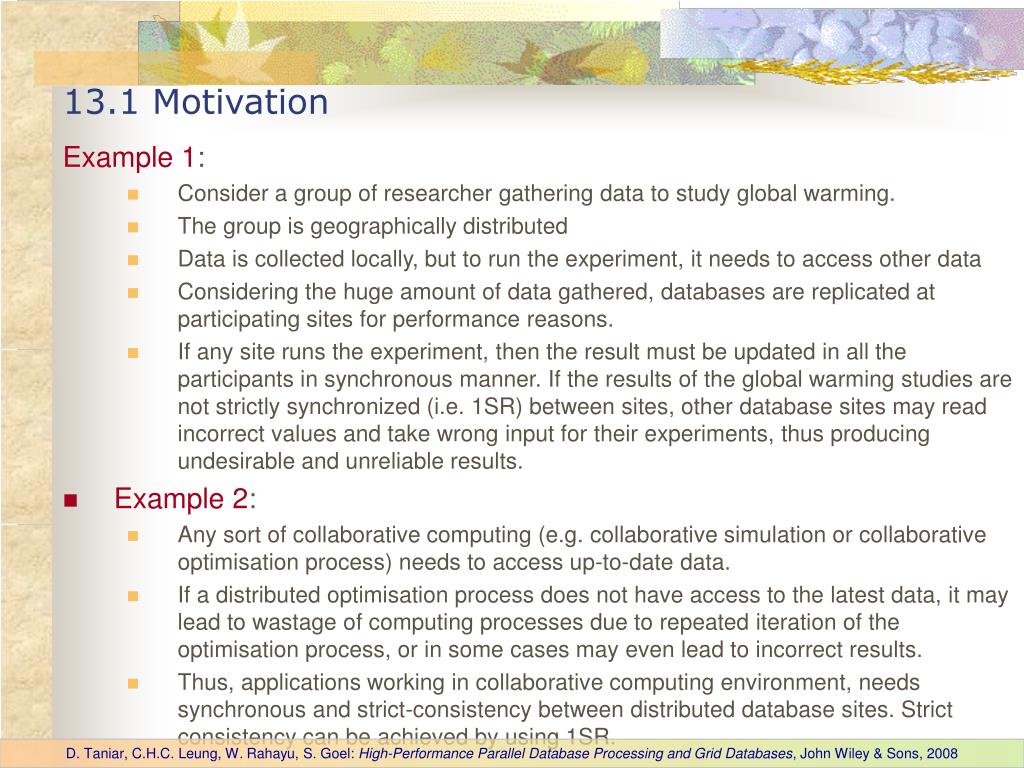

  3. 13.1 Motivation Example 1: • Consider a group of researcher gathering data to study global warming. • The group is geographically distributed • Data is collected locally, but to run the experiment, it needs to access other data • Considering the huge amount of data gathered, databases are replicated at participating sites for performance reasons. • If any site runs the experiment, then the result must be updated in all the participants in synchronous manner. If the results of the global warming studies are not strictly synchronized (i.e. 1SR) between sites, other database sites may read incorrect values and take wrong input for their experiments, thus producing undesirable and unreliable results. • Example 2: • Any sort of collaborative computing (e.g. collaborative simulation or collaborative optimisation process) needs to access up-to-date data. • If a distributed optimisation process does not have access to the latest data, it may lead to wastage of computing processes due to repeated iteration of the optimisation process, or in some cases may even lead to incorrect results. • Thus, applications working in collaborative computing environment, needs synchronous and strict-consistency between distributed database sites. Strict consistency can be achieved by using 1SR. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

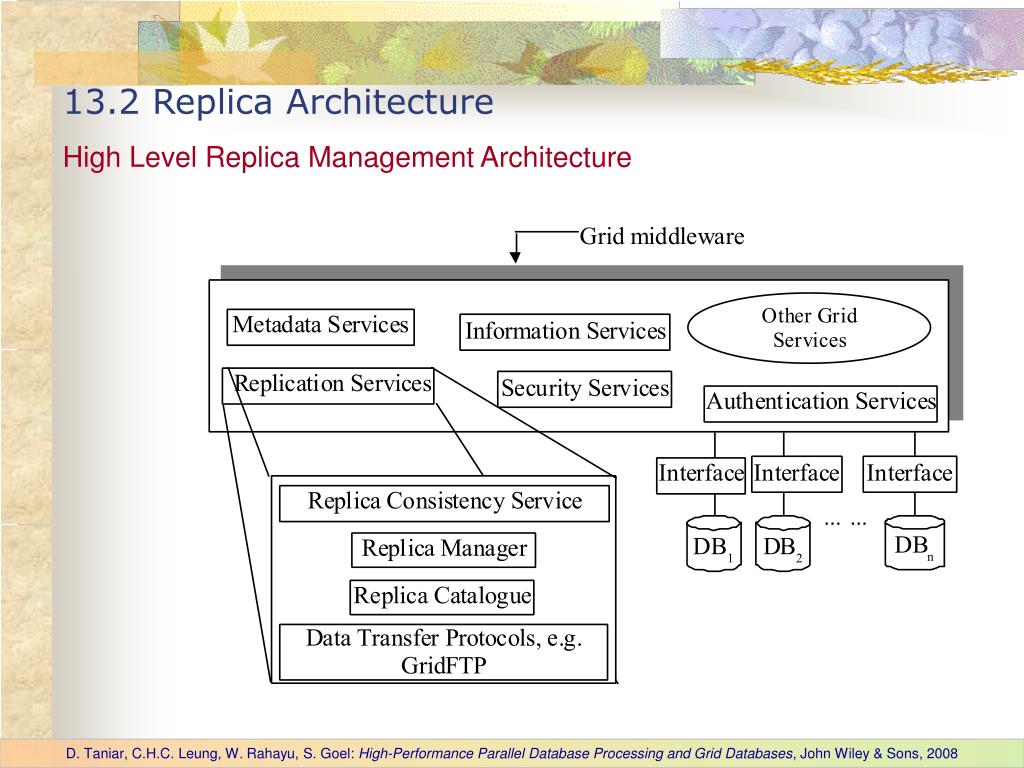

  4. 13.2 Replica Architecture High Level Replica Management Architecture D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  5. 13.2 Replica Architecture (Cont’d) • Most of the research in replica control has focused on read-only queries • Hence only lower three layers: data transfer protocol, replica catalogue and replica manager would be sufficient for replica management • Only the lower 3 services are not sufficient to maintain the correctness of data in presence of write transactions • Note: synchronization and replica control is used interchangeably D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

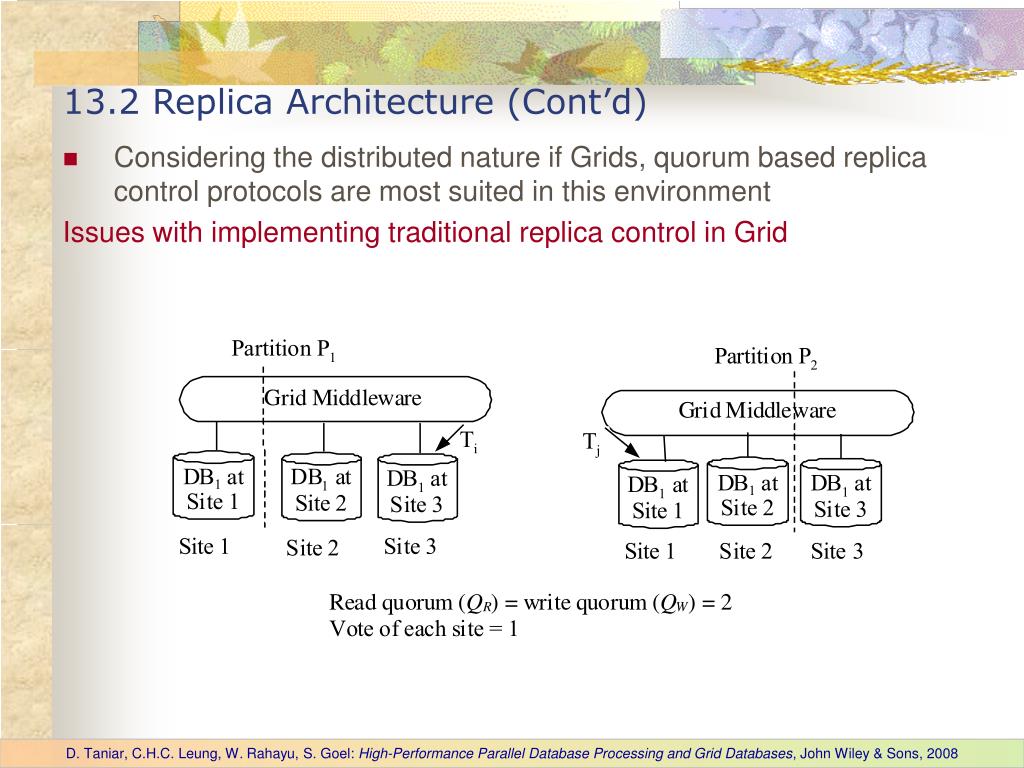

  6. 13.2 Replica Architecture (Cont’d) • Considering the distributed nature if Grids, quorum based replica control protocols are most suited in this environment Issues with implementing traditional replica control in Grid D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  7. 13.2 Replica Architecture (Cont’d) • Say, database DB1 is replicated at 3 sites, Site 1, 2 and 3 • Say, the network is partitioned as {site 1} in one partition and {site 2, site 3} in the other partition (Partition P1 in the figure) • Transaction Ti which modifies an object in DB1 is submitted at site 3 • Write quorum of 2 can be obtained from site 2 and 3 • Updated data object must also be written at 2 sites to satisfy write quorum • Say both site initially decide to commit and hence the global decision was made. But due to local constraints Site 2 decides to abort Ti’s sub-transaction. This unwanted scenario could have been identified should the global DBMS was present. But it is not possible in Grid DBMS to identify such a scenario due to autonomy of sites D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  8. 13.2 Replica Architecture (Cont’d) • This leaves site 2 with stale data • Now, let’s say that Partition P1 is repaired and Partition P2 occurs with {site 1, site 2} in one partition and {site 3} in another • A Transaction Tj arrives at site 1 and reads the same data object • Quorum can be obtained from sites 1 and 2 • Unfortunately both replicas have stale copy of data • Thus, we see that autonomy can lead to inconsistent database state D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  9. 13.3 Grid Replica Access Protocol (GRAP) • The problem discussed earlier cannot be solved at individual site level but must need input from the middleware • Metadata service from the middleware is used • Metadata service stores information physical database sites connected to the Grid • It also store the mapping details of logical to physical database • A pointer in metadata service is added that will point to the latest replica of data • Pointer is of the form timestamp.site_id (TS.SID) • Timestamp points to the latest copy and site_id points to the site that stores this replica • At least one site must have the latest copy • Grid Replica Access Protocol (GRAP) ensures consistency of data in autonomous and heterogeneous Grid database environment D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  10. 13.3 GRAP (Cont’d) • Following points are highlighted • Part of the distributed transaction (at local site) may decide to abort autonomously • TS.SID is updated only if the write quorum could be obtained • Local DB site is able to manage timestamps via the interface to Grid Read Transaction Operation for GRAP • GRAP is based on quorum consensus protocol • QR is the read quorum and QW is write quorum • Majority consensus is used, that is both (2QW) and (QR+QW) should be greater than total vote for the replica D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

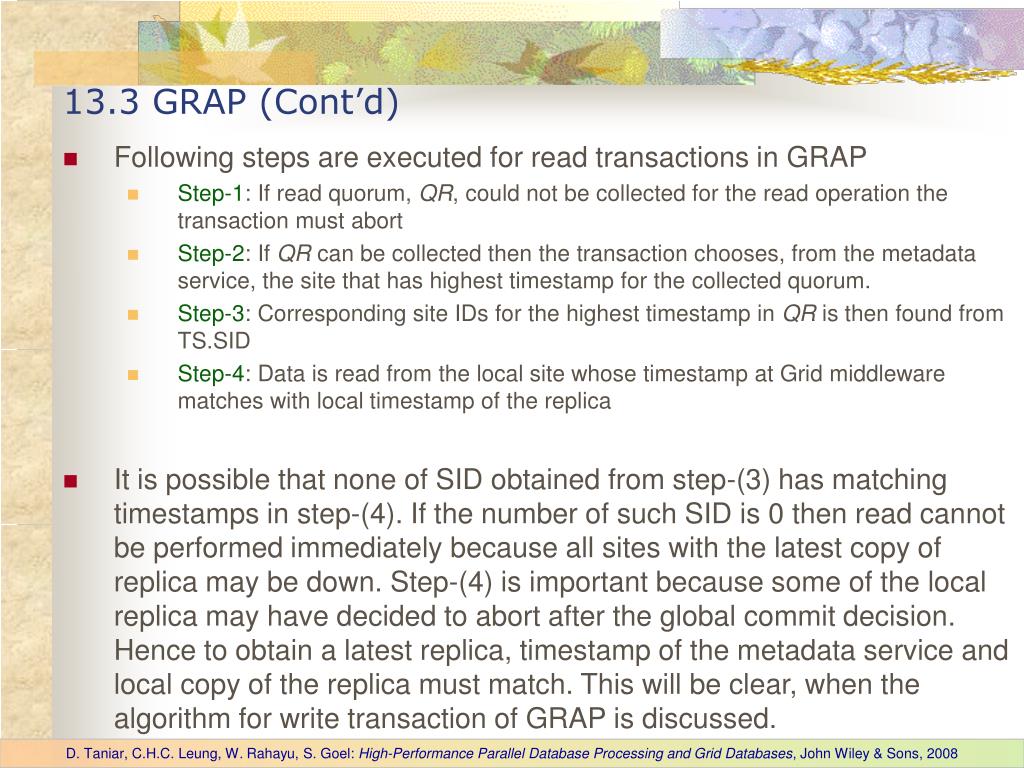

  11. 13.3 GRAP (Cont’d) • Following steps are executed for read transactions in GRAP • Step-1: If read quorum, QR, could not be collected for the read operation the transaction must abort • Step-2: If QR can be collected then the transaction chooses, from the metadata service, the site that has highest timestamp for the collected quorum. • Step-3: Corresponding site IDs for the highest timestamp in QR is then found from TS.SID • Step-4: Data is read from the local site whose timestamp at Grid middleware matches with local timestamp of the replica • It is possible that none of SID obtained from step-(3) has matching timestamps in step-(4). If the number of such SID is 0 then read cannot be performed immediately because all sites with the latest copy of replica may be down. Step-(4) is important because some of the local replica may have decided to abort after the global commit decision. Hence to obtain a latest replica, timestamp of the metadata service and local copy of the replica must match. This will be clear, when the algorithm for write transaction of GRAP is discussed. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  12. 13.3 GRAP (Cont’d) • GRAP algorithm for read transaction D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

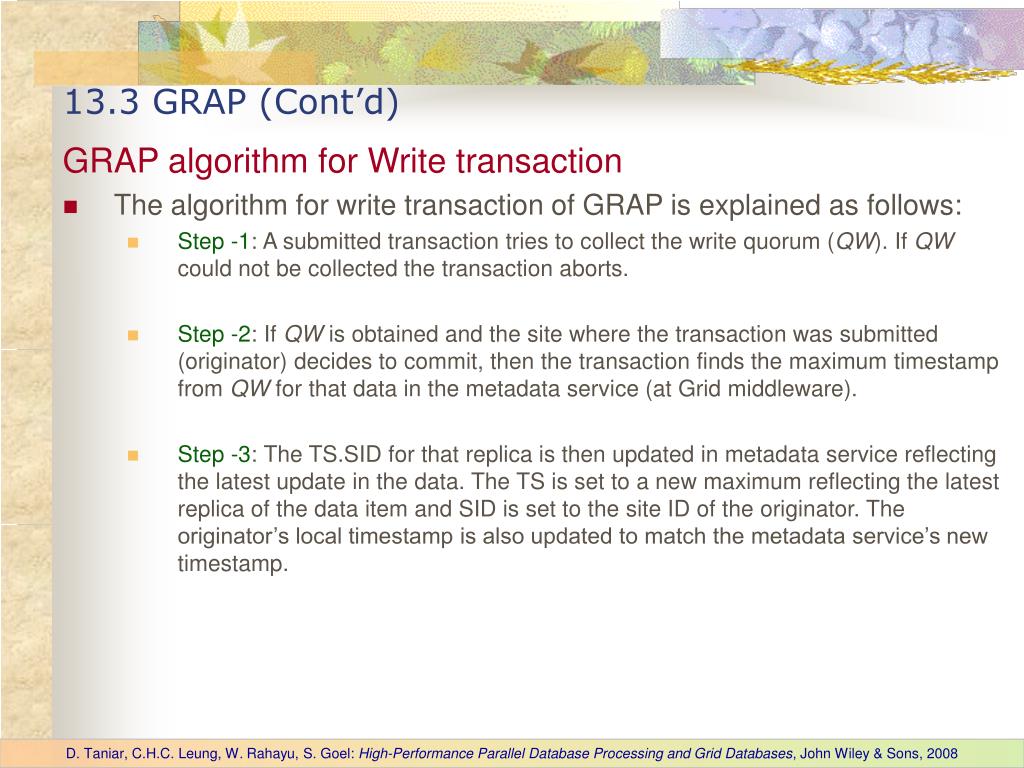

  13. 13.3 GRAP (Cont’d) GRAP algorithm for Write transaction • The algorithm for write transaction of GRAP is explained as follows: • Step -1: A submitted transaction tries to collect the write quorum (QW). If QW could not be collected the transaction aborts. • Step -2: If QW is obtained and the site where the transaction was submitted (originator) decides to commit, then the transaction finds the maximum timestamp from QW for that data in the metadata service (at Grid middleware). • Step -3: The TS.SID for that replica is then updated in metadata service reflecting the latest update in the data. The TS is set to a new maximum reflecting the latest replica of the data item and SID is set to the site ID of the originator. The originator’s local timestamp is also updated to match the metadata service’s new timestamp. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  14. 13.3 GRAP (Cont’d) • Step 4: Other sites (participants) in the quorum must also be monitored for their final decisions, as due to autonomy restrictions, the commitment of the coordinator does not mean participants’ commitment. The following two cases are possible: • Step 4A: If the participant decides to commit: The TS.SID is updated in normal way, i.e. the TS will be set to the maximum timestamp decided by the metadata service for the originator, and the SID will be the site ID of the corresponding participant. The timestamp is updated at both locations, at Grid middleware’s metadata service as well as at the local participating site’s replica. • Step 4B: If the participant decides to abort: Due to any local conflict if the participant decides to abort it must be handled so that the replica is not corrupted. In this case the timestamp (TS of TS.SID) of middleware’s metadata service is still updated as usual to reflect that the update of one of the replicas has taken place, but SID is updated to point to the originator site instead of pointing to the participant (which decided to abort). The local timestamp of the replica is also not updated. This helps the read transactions to avoid reading stale data in future (as discussed in step-(4) of reading transaction algorithm, that metadata’s timestamp and local replica’s timestamp must match). D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  15. 13.3 GRAP (Cont’d) • Step-(4b) helps the quorum-based system to operate correctly, even if some of the replica decides to abort, with the help of the TS.SID pointer • The quorum at Grid level is still valid because the timestamp at the metadata service has been updated to reflect successful completion of the transaction at the Grid • Thus the metadata information of the site that had to abort its local transaction, points the latest replica at the originator of the transaction and not to participant site itself. This is the reason why, though the site may have participated in the quorum but it may still not have any matching timestamps in step-(4) of read transaction. Thus if the participant aborts its subtransaction, the SID will point to the site having the latest replica, typically the originator. The transaction can successfully complete only if at least the originator commits successfully. If the originator aborts, then one participant cannot point to the other participant, because other participants may abort later due to local conflict. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  16. 13.3 GRAP (Cont’d) • GRAP algorithm for write transaction D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

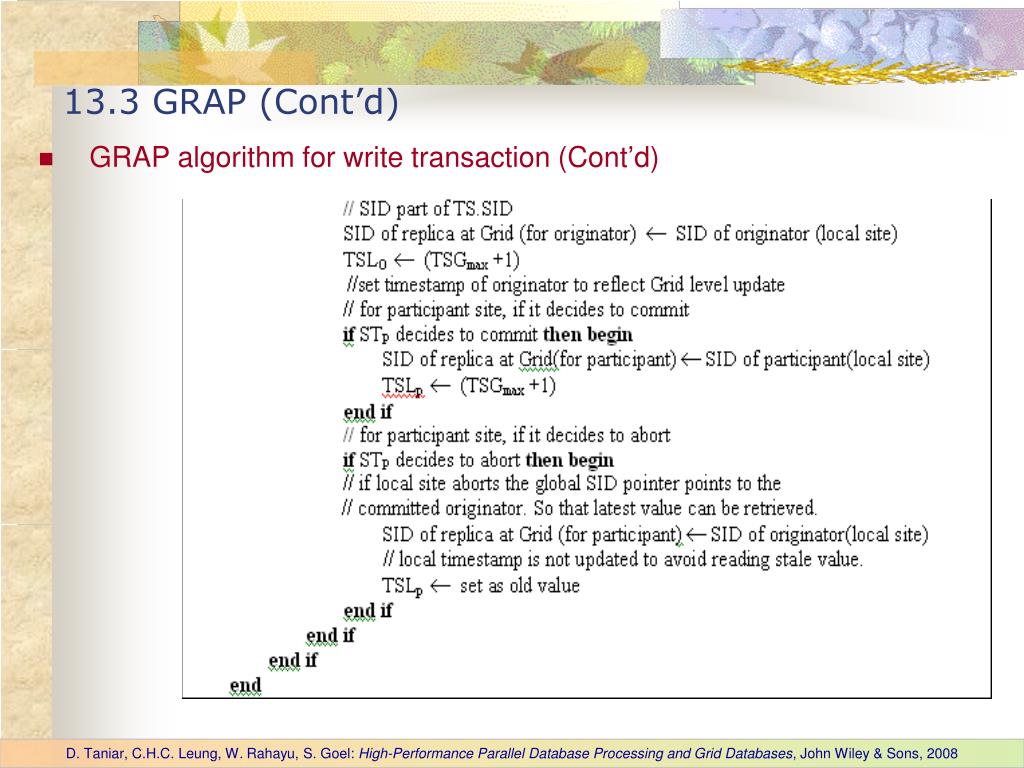

  17. 13.3 GRAP (Cont’d) • GRAP algorithm for write transaction (Cont’d) D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  18. 13.3 GRAP (Cont’d) Revisiting the example • Same scenario as the previous example is discussed to show how GRAP avoids reading stale data Replicated database with GRAP protocol D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  19. 13.3 GRAP (Cont’d) • Say, timestamp for all replicas are 0 in the beginning and the site IDs are 1,2,3… etc. • A transaction, Ti, arrives at site 3 to write a data item. After obtaining the write quorum (step (1) of write transaction of GRAP), site 3 decides to commit but site 2 decides to abort their respective cohorts. • Since the quorum was obtained, the timestamp at Grid level, TS, will be increased to reflect the latest replica of the data (step (2) of write transaction of GRAP). • Since site 3 has decided to commit, the local timestamp will also be increased to match the Grid TS and the SID is set to 3 (same as site ID). This confirms that cohort of the transaction at site 3 is already committed (step (3) and (4a) of write transaction of GRAP). D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  20. 13.3 GRAP (Cont’d) • Thus the (TS.SID, local timestamp) for site 3 is (1.3, 1). This indicates that the maximum timestamp TS at Grid middleware and local timestamp are same (i.e. 1) and hence the latest replica could be found at the same site • But as site 2 decided to abort its part of the transaction, the local timestamp is not changed and the SID points to the originator of the transaction (step (4b) of write transaction of GRAP), i.e. site 3. • Now, say P1 is repaired and partitioning P2 occurs. • Tj arrives during P2. Tj can obtain the read quorum (QR), as site 1 and site 2 are available (step (1) of read transaction of GRAP). • The maximum timestamp at Grid level is 1 and it belongs to site 2 (step (2) of read transaction of GRAP). But site-2 has stale data. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

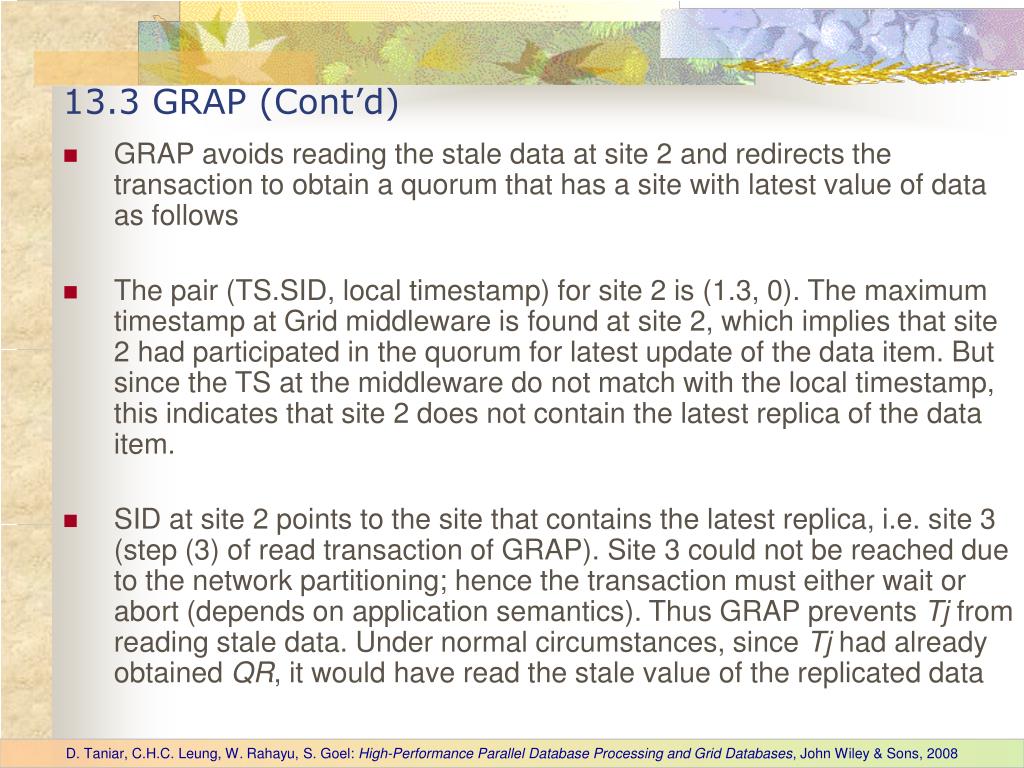

  21. 13.3 GRAP (Cont’d) • GRAP avoids reading the stale data at site 2 and redirects the transaction to obtain a quorum that has a site with latest value of data as follows • The pair (TS.SID, local timestamp) for site 2 is (1.3, 0). The maximum timestamp at Grid middleware is found at site 2, which implies that site 2 had participated in the quorum for latest update of the data item. But since the TS at the middleware do not match with the local timestamp, this indicates that site 2 does not contain the latest replica of the data item. • SID at site 2 points to the site that contains the latest replica, i.e. site 3 (step (3) of read transaction of GRAP). Site 3 could not be reached due to the network partitioning; hence the transaction must either wait or abort (depends on application semantics). Thus GRAP prevents Tj from reading stale data. Under normal circumstances, since Tj had already obtained QR, it would have read the stale value of the replicated data D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

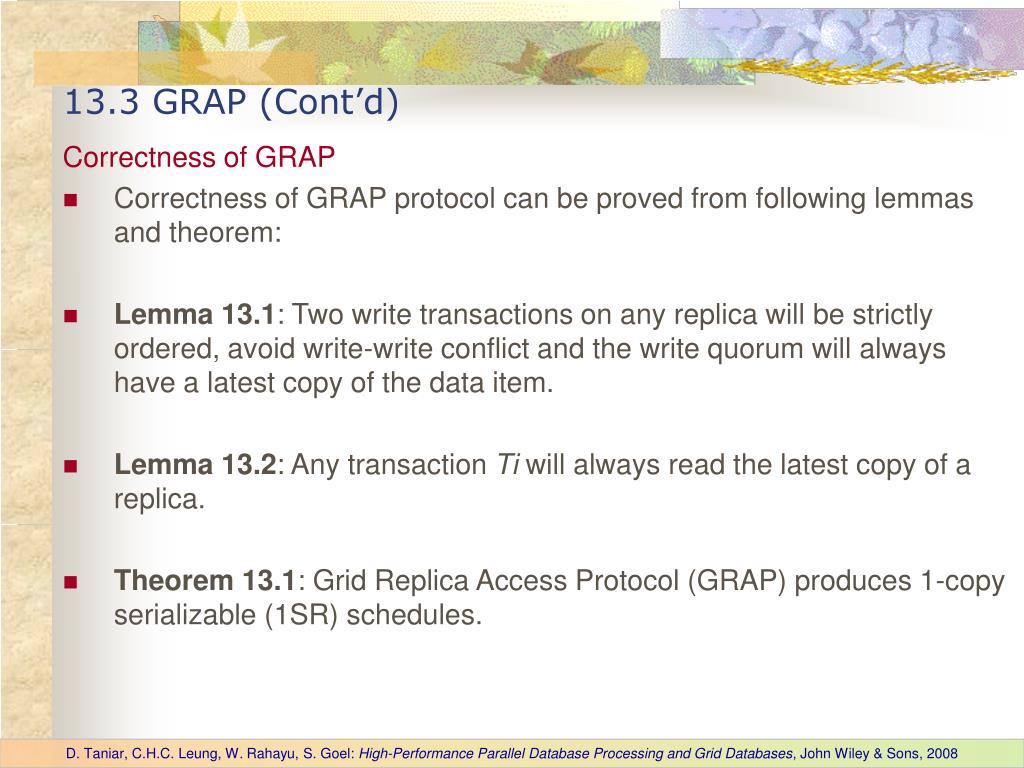

  22. 13.3 GRAP (Cont’d) Correctness of GRAP • Correctness of GRAP protocol can be proved from following lemmas and theorem: • Lemma 13.1: Two write transactions on any replica will be strictly ordered, avoid write-write conflict and the write quorum will always have a latest copy of the data item. • Lemma 13.2: Any transaction Ti will always read the latest copy of a replica. • Theorem 13.1: Grid Replica Access Protocol (GRAP) produces 1-copy serializable (1SR) schedules. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  23. 13.4 Handling Multiple Partitioning • Network partitioning is a phenomenon which prevents communication between two sets of sites in a distributed architecture • Considering the global nature of grids, network failure may occur, which will lead to network partitioning • Network partitioning limits execution of transactions in replicated databases because quorum may not be obtained • ROWA and ROWA-A protocols cannot handle network partitioning • Primary copy protocol can only handle network partitioning if the primary copy is in the partition • Quorum-based protocols can best handle network partitioning, but only simple network partitioning (2 partitions) • Majority consensus based quorums cannot handle multiple network partitioning because in case of multiple network partitioning, basic quorum rules, QR + QW > Q and 2QW > Q, cannot be satisfied. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  24. 13.4 Handling Multiple Partitioning (Cont’d) Contingency GRAP • To handle multiple partitioning, the concept of contingency quorum is introduced • If network partitioning is detected and normal quorum can not be obtained GRAP collects a contingency quorum (Contingency GRAP) • Any partition needs to have at least one up-to-date copy of the data to serve the transaction D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

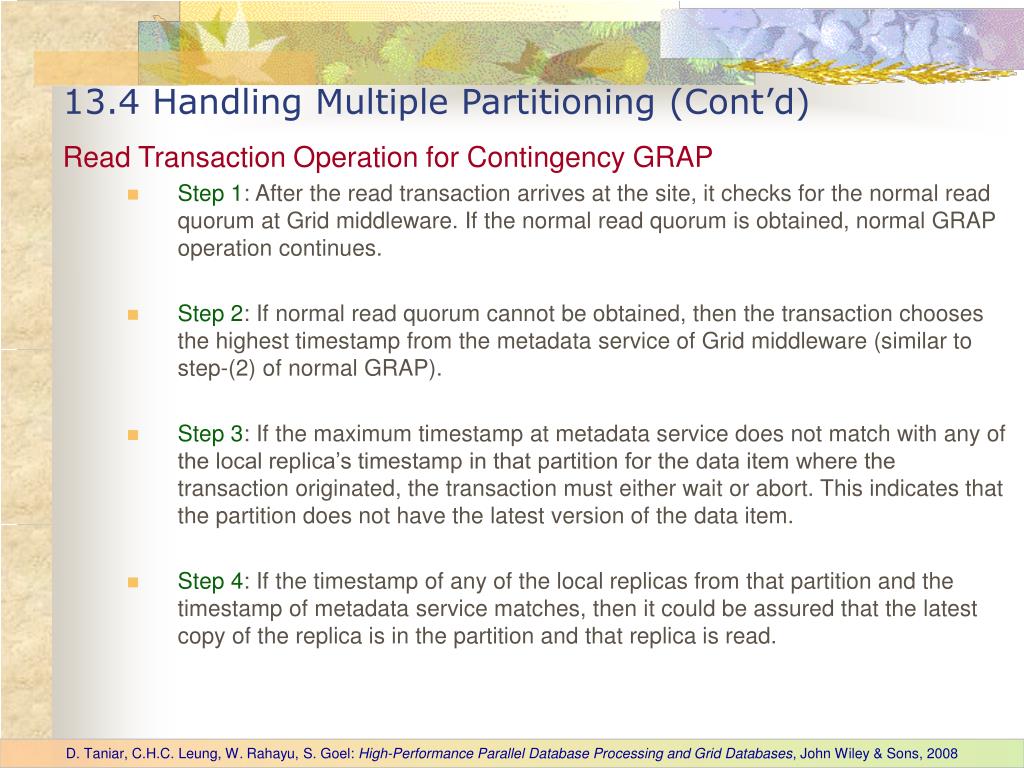

  25. 13.4 Handling Multiple Partitioning (Cont’d) Read Transaction Operation for Contingency GRAP • Step 1: After the read transaction arrives at the site, it checks for the normal read quorum at Grid middleware. If the normal read quorum is obtained, normal GRAP operation continues. • Step 2: If normal read quorum cannot be obtained, then the transaction chooses the highest timestamp from the metadata service of Grid middleware (similar to step-(2) of normal GRAP). • Step 3: If the maximum timestamp at metadata service does not match with any of the local replica’s timestamp in that partition for the data item where the transaction originated, the transaction must either wait or abort. This indicates that the partition does not have the latest version of the data item. • Step 4: If the timestamp of any of the local replicas from that partition and the timestamp of metadata service matches, then it could be assured that the latest copy of the replica is in the partition and that replica is read. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  26. 13.4 Handling Multiple Partitioning (Cont’d) Write Transaction Operation for Contingency GRAP • Contingency GRAP allows the transaction to write fewer number of sites than required in the quorum and maintains a log to guarantee consistency of data • Following steps are followed: • Step 1: The transaction first tries to collect the normal write quorum, if obtained, normal GRAP continues. If a normal quorum could not be obtained, then Contingency GRAP starts • Step 2: Contingency GRAP chooses the highest timestamp from the metadata service and checks it against the sites in the partition. If the metadata service’s timestamp cannot find any matching timestamp in the partition, then the write transaction has to abort or wait till the partition is repaired (this is an application dependant decision). This implies that the latest copy of the data is not in the partition and hence the transaction cannot write the data until the partition is fixed or the quorum is obtained. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

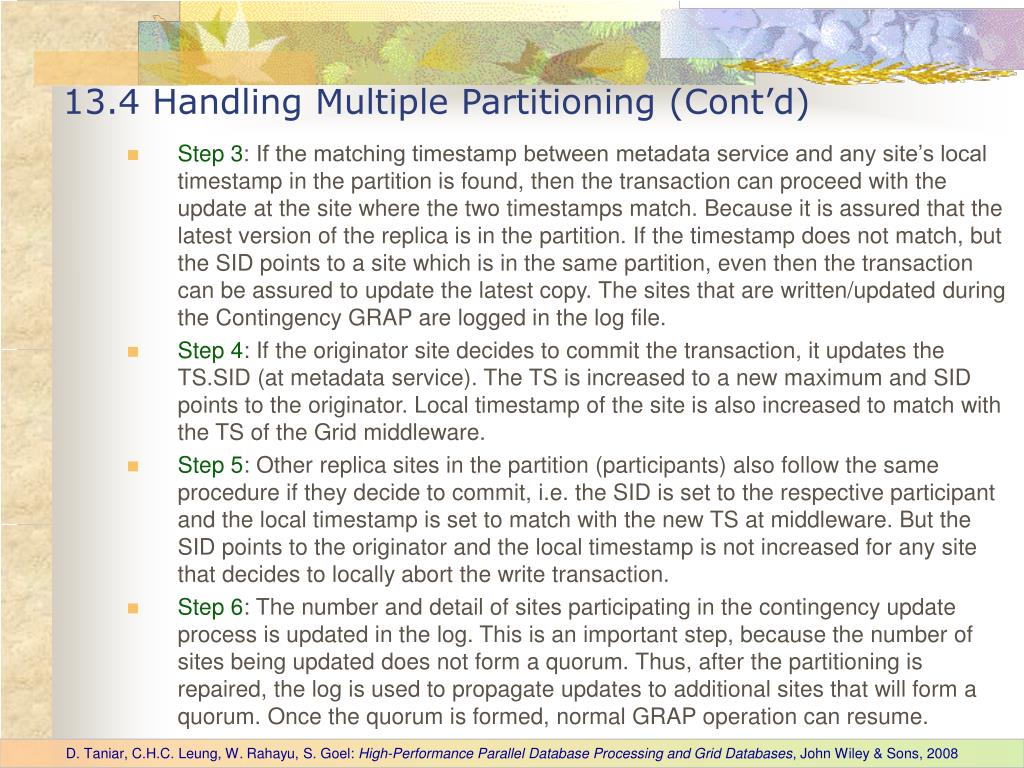

  27. 13.4 Handling Multiple Partitioning (Cont’d) • Step 3: If the matching timestamp between metadata service and any site’s local timestamp in the partition is found, then the transaction can proceed with the update at the site where the two timestamps match. Because it is assured that the latest version of the replica is in the partition. If the timestamp does not match, but the SID points to a site which is in the same partition, even then the transaction can be assured to update the latest copy. The sites that are written/updated during the Contingency GRAP are logged in the log file. • Step 4: If the originator site decides to commit the transaction, it updates the TS.SID (at metadata service). The TS is increased to a new maximum and SID points to the originator. Local timestamp of the site is also increased to match with the TS of the Grid middleware. • Step 5: Other replica sites in the partition (participants) also follow the same procedure if they decide to commit, i.e. the SID is set to the respective participant and the local timestamp is set to match with the new TS at middleware. But the SID points to the originator and the local timestamp is not increased for any site that decides to locally abort the write transaction. • Step 6: The number and detail of sites participating in the contingency update process is updated in the log. This is an important step, because the number of sites being updated does not form a quorum. Thus, after the partitioning is repaired, the log is used to propagate updates to additional sites that will form a quorum. Once the quorum is formed, normal GRAP operation can resume. D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  28. 13.4 Handling Multiple Partitioning (Cont’d) • Comparison of Replica Management Protocols D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

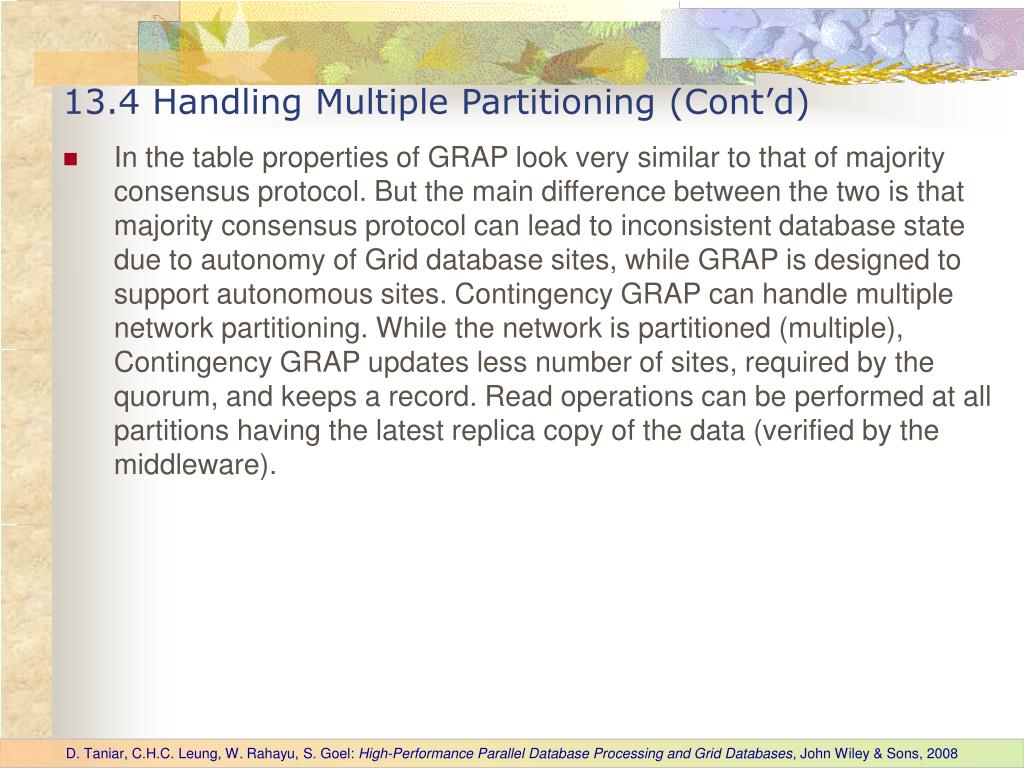

  29. 13.4 Handling Multiple Partitioning (Cont’d) • In the table properties of GRAP look very similar to that of majority consensus protocol. But the main difference between the two is that majority consensus protocol can lead to inconsistent database state due to autonomy of Grid database sites, while GRAP is designed to support autonomous sites. Contingency GRAP can handle multiple network partitioning. While the network is partitioned (multiple), Contingency GRAP updates less number of sites, required by the quorum, and keeps a record. Read operations can be performed at all partitions having the latest replica copy of the data (verified by the middleware). D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

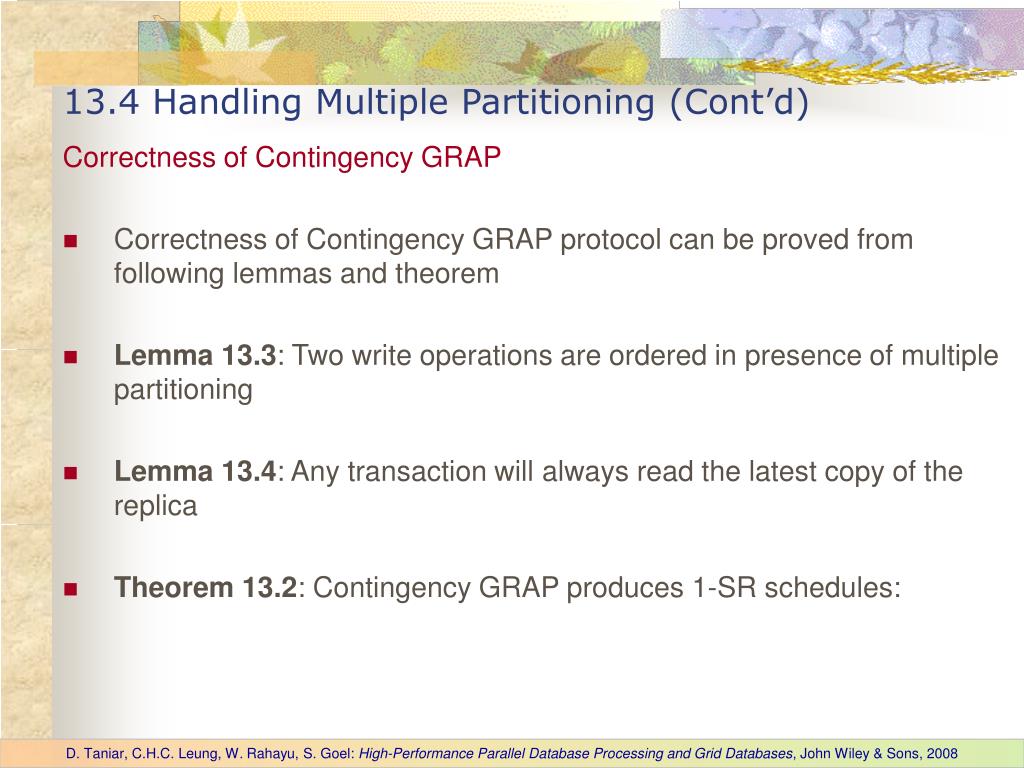

  30. 13.4 Handling Multiple Partitioning (Cont’d) Correctness of Contingency GRAP • Correctness of Contingency GRAP protocol can be proved from following lemmas and theorem • Lemma 13.3: Two write operations are ordered in presence of multiple partitioning • Lemma 13.4: Any transaction will always read the latest copy of the replica • Theorem 13.2: Contingency GRAP produces 1-SR schedules: D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  31. 13.5 Summary • Replica synchronization protocol is studied in presence of write transactions • A replica synchronisation protocol for an autonomous Grid environment is introduced. Due to autonomy of sites, participants can revert the global decision due to local conflicts. GRAP protocol ensures that a transaction reads the latest version of the data item • Contingency GRAP protocol is used to sustain multiple network partitioning. Looking at the global nature of Grids, it is important to address multiple network partitioning issues D. Taniar, C.H.C. Leung, W. Rahayu, S. Goel: High-Performance Parallel Database Processing and Grid Databases, John Wiley & Sons, 2008

  32. Continue to Chapter 14…
