  1. EventWave: Programming Model and Runtime Support forTightly-Coupled Elastic Cloud Applications Wei-Chiu Chuang, Bo Sang, Sunghwan Yoo, Rui Gu, Charles Killian, Milind Kulkarni

  2. Motivation clients world building building room room server room room # clients Response time Time

  3. Motivation Scale up clients Elasticity is hard server # clients Response time Time

  4. Objectives A programming model which supports: • Statefulcomputation Transparent elasticity Simple sequential semantics

  5. Related Work MapReduce [Dean et. al. OSDI ‘04] stateless No simple sequential semantics Data Flow Dryad [Isard et. al. EuroSys ‘07] No Stateful Computation No transparent elasticity CIEL [Murray et. al. NSDI ‘11] Live Migration of Virtual Machines [Clark et. al. NSDI ‘05] Does not change scale: “split”/”merge” state Zephyr [Elmore et. al. SIGMOD ‘11] Live Migration Transactional, reconcile conflicts Orleans [Bykov et. al. SoCC ‘11] Scalable programming model

  6. Event Driven Systems client Event queue server Event 1 commits Event 2 commits Event 3 commits 1 2 3 • Typical event driven systems are not scalable.

  7. Context • Scalability comes from parallelism • Partition program state into `contexts` • An event accesses one or more contexts • Events accessing disjoint contexts can run in parallel world world building building building room room room Contexts enable implicit parallelism hallway room room

  8. EventWave Event 1 commits Event 1 finishes • Stateful • Sequential semantics • Parallelism Context 1 Event 2 commits Event 2 finishes Context 2 3 2 1 Context 3 Event 3 finishes Enforce sequential ordering Event 2 can not commit until Event 1 commits Event 3 commits

  9. Access Multiple Contexts • A player can move from one room to another • Remove it from source room • Insert it into destination room An event may access multiple contexts world Player list building building Room 1 Room 2 room room Bob Bob Alice Bob room room

  10. Access Multiple Contexts • Must ensure • Sequential semantics • parallelism To be scalable, events can not access contexts arbitrarily Event 2 can’t start before event 1 finishes 2 1 Context 1 Event 2 commits Context 2 Event 1 finishes Context 3

  11. Hierarchical Contexts • Contexts are not completely independent • The world has many buildings • A building has many rooms world Building<1> Building<2> Room<1> Room<1> Room<2> Room<2>

  12. Wave of Events • Must access contexts from top to bottom The hierarchical access enables parallelism world Building<1> Building<2> Room<1> Room<1> Room<2> Room<2>

  13. Wave of Events • Move a player from room 1 to room 2 world Building<1> Building<2> Room<1> Room<1> Room<2> Room<2>

  14. Wave of Events Allow the next event to access Building<1> world Building<1> Building<2> Room<1> Room<1> Room<2> Room<2>

  15. Wave of Events world Building<1> Building<2> Enter Room<1> Room<1> Room<1> Room<2> Room<2>

  16. Wave of Events world Building<1> Building<2> Remove player Release exclusive access Room<1> Room<1> Room<2> Room<2>

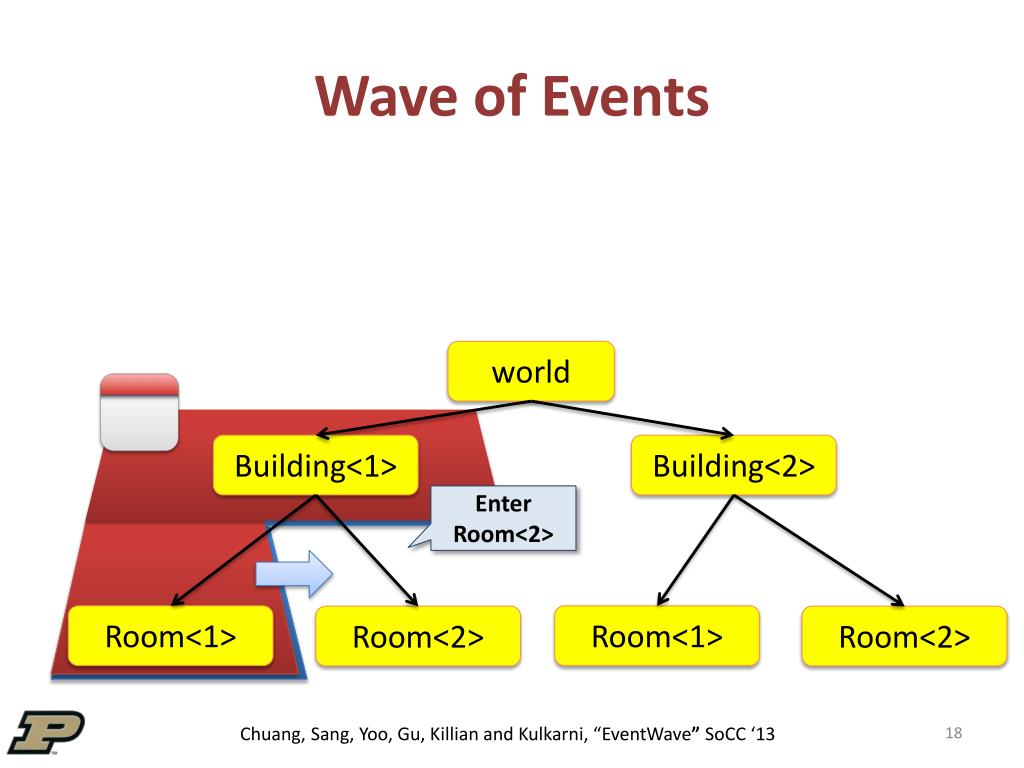

  17. Wave of Events world Building<1> Building<2> Enter Room<2> Room<1> Room<1> Room<2> Room<2>

  18. Wave of Events world Event finishes, releasing all contexts Building<1> Building<2> Insert player Room<1> Room<1> Room<2> Room<2>

  19. Wave of Events world Building<1> Building<2> Room<1> Room<1> Room<2> Room<2>

  20. Wave of Events Event commits, releasing snapshot world Building<1> Building<2> Room<1> Room<1> Room<2> Room<2>

  21. Distributed Execution • Scale more by executing events across multiple nodes • Map contexts • Head node world Head node Building<1> Building<2> Room<1> Room<3> Room<2> Room<4>

  22. Distributed Execution • Logical Node: a set of physical nodes Server Logical Node Client Logical Node #1 Client Logical Node #2

  23. Distributed Execution

  24. Elasticity Request nodes from cloud scheduler Update context mapping world Building<2> Building<1> Room<1> Room<1> Room<2> Room<2>

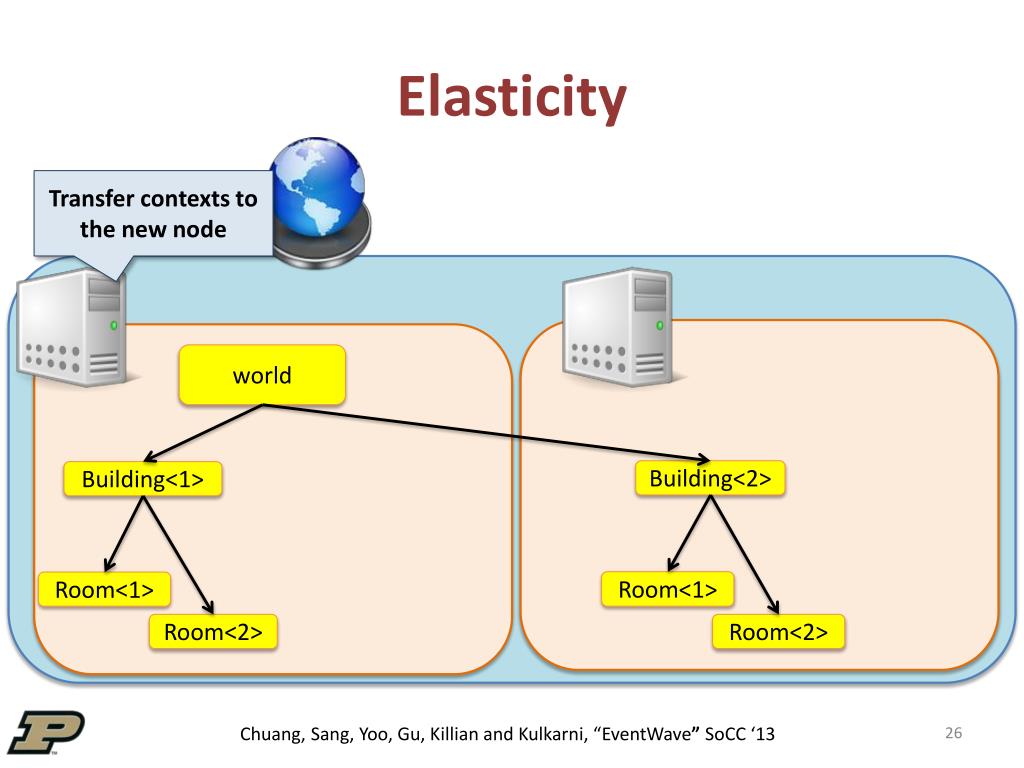

  25. Elasticity Transfer contexts to the new node world Building<2> Building<1> Room<1> Room<1> Room<2> Room<2>

  26. Evaluation In the paper Key-value store Does it scale? • Microbechmarks • Scalability What is the cost of migration? • Microbechmarks • Migration latency Case study • Multi-player game server

  27. Microbenchmark-Scalability Setup • One logical node, fixed context mapping • EC2 Small Instances • 1 vCPU, 1.7GB RAM, 160 GB local disk • Distribute 160 contexts to physical nodes Measures • Throughput

  28. Microbenchmark-Scalability Takeaway: Throughput grows w.r.t. # of nodes P: workload

  29. Microbenchmark-Migration Latency Setup • 2 x 8-core 2.0 GHz Xeon, 8GB RAM • 1Gb Ethernet connection Scale does not change

  30. Microbenchmark-Migration Latency Migrate a 100MB context The migration event commits Measure • Throughput of events Finished events must wait for migration event

  31. Multi-player Game Server Setup • Server logical node • 1 x Extra Large Instance (head) • 64 x Small Instances • Client logical nodes • 128 clients on 16 EC2 Small Instances Measure • Latency

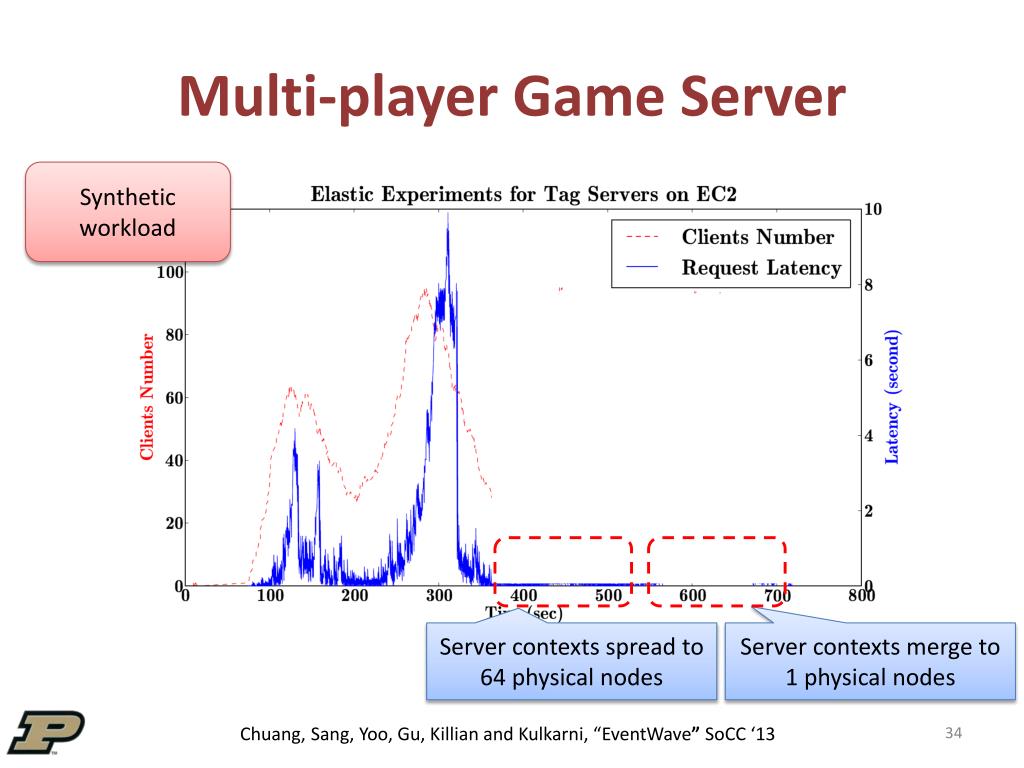

  32. Multi-player Game Server Synthetic workload Server contexts spread to 64 physical nodes Server contexts merge to 1 physical nodes

  33. Conclusion • Elasticity is crucial for cloud applications. • Our programming model enables transparent elasticity for tightly-coupled applications • Case studies show EventWave is efficient http://www.macesystems.org

  34. Backups

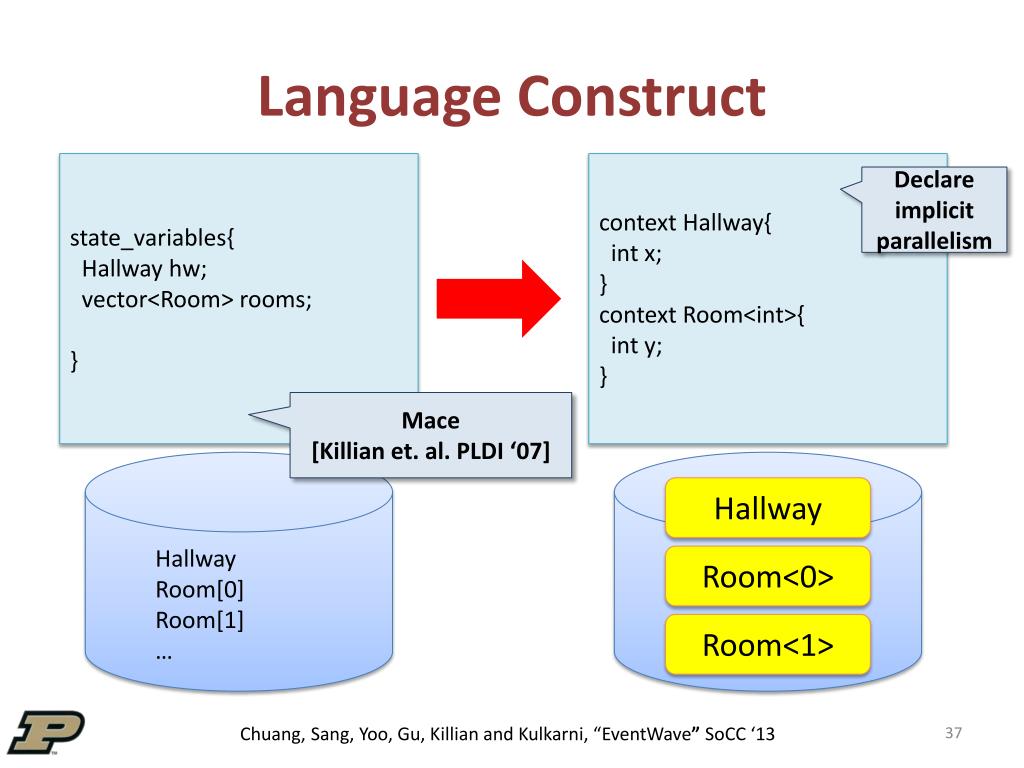

  35. Language Construct state_variables{ Hallway hw; vector<Room> rooms; } context Hallway{ int x; } context Room<int>{ inty; } Declare implicit parallelism Mace [Killian et. al. PLDI ‘07] Hallway Hallway Room[0] Room[1] … Room<0> Room<1>

  36. Event Handler upcall deliver(Message m){ } Annotation Specify what context to access Message(roomID = 2) upcall[Room<m.roomID>]deliver(Message m){ } Context Room<2>

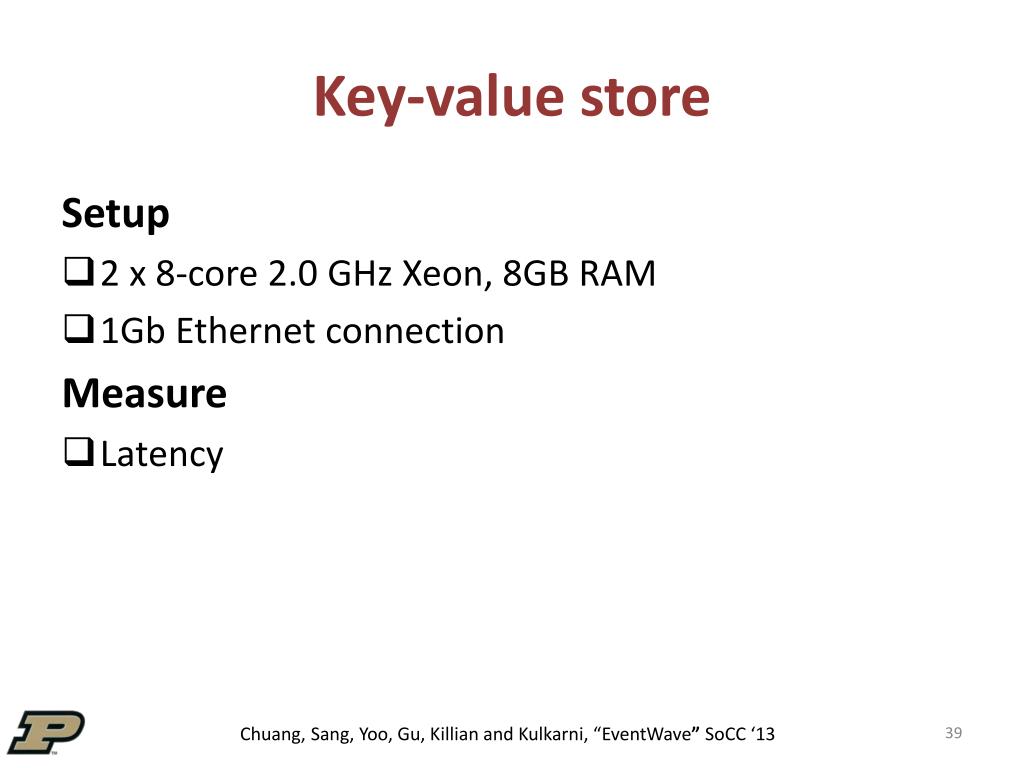

  37. Key-value store Setup • 2 x 8-core 2.0 GHz Xeon, 8GB RAM • 1Gb Ethernet connection Measure • Latency

  38. Key-value store

  39. Microbenchmark-Migration Latency Setup • 2 x 8-core 2.0 GHz Xeon, 8GB RAM • 1Gb Ethernet connection Scale does not change Context

  40. Context Migration Update context-node mapping Head Event 3 goes to the new node 1 3 M Event 1 goes to the old node Old node Copy context state New node Replicate context state
