  1. 3G Monitor

  2. 3G Camera

  3. Contents 3G Camera's Application Scenes 3G camera's business mode 3G camera Function Features 3G CameraTechnical parameters

  4. What is 3G Monitor Monitor 3G (WCDMA standard) is a network based on WCDMA technology whichhas automatically receive video call wireless camera communications equipment.            Empowered by the latest 3G technology, Mobile Cam is capable of receiving video phone calls automatically. Users can dial the Mobile Cam from any WCDMA handset supporting video phone calls, and view the picture with sound captured by the Mobile Cam anytime, anywhere. After host authentication, you can watch real-time images captured and, listen to the received voice.

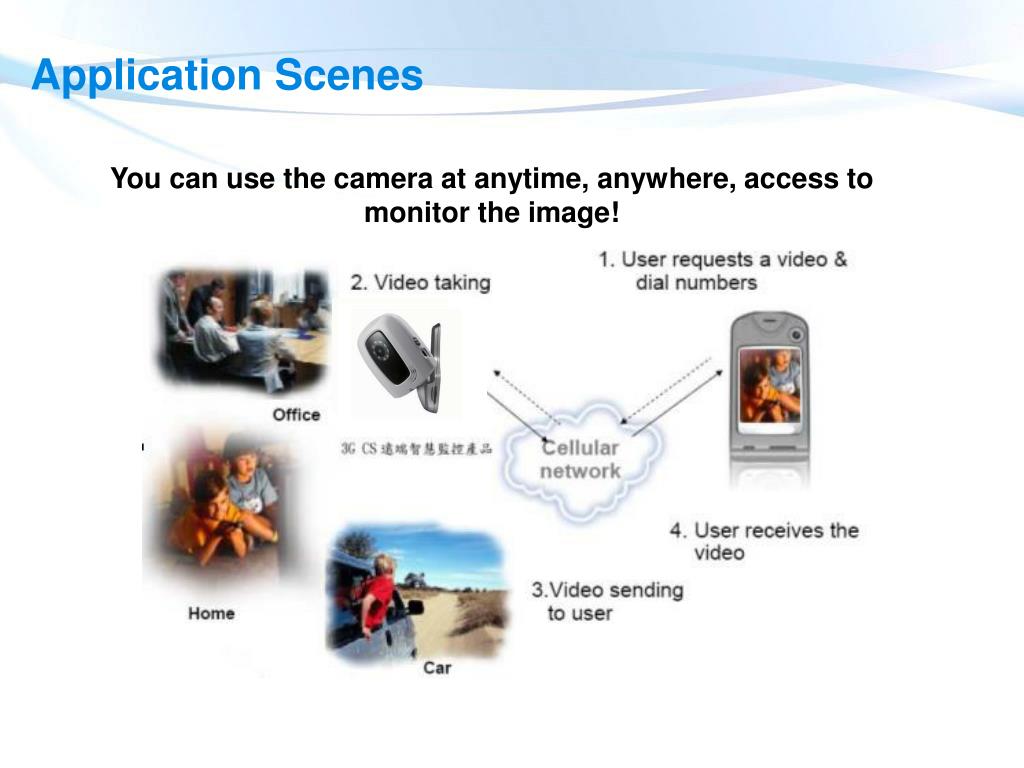

  5. Application Scenes You can use the cameraat anytime, anywhere, access to monitor the image!

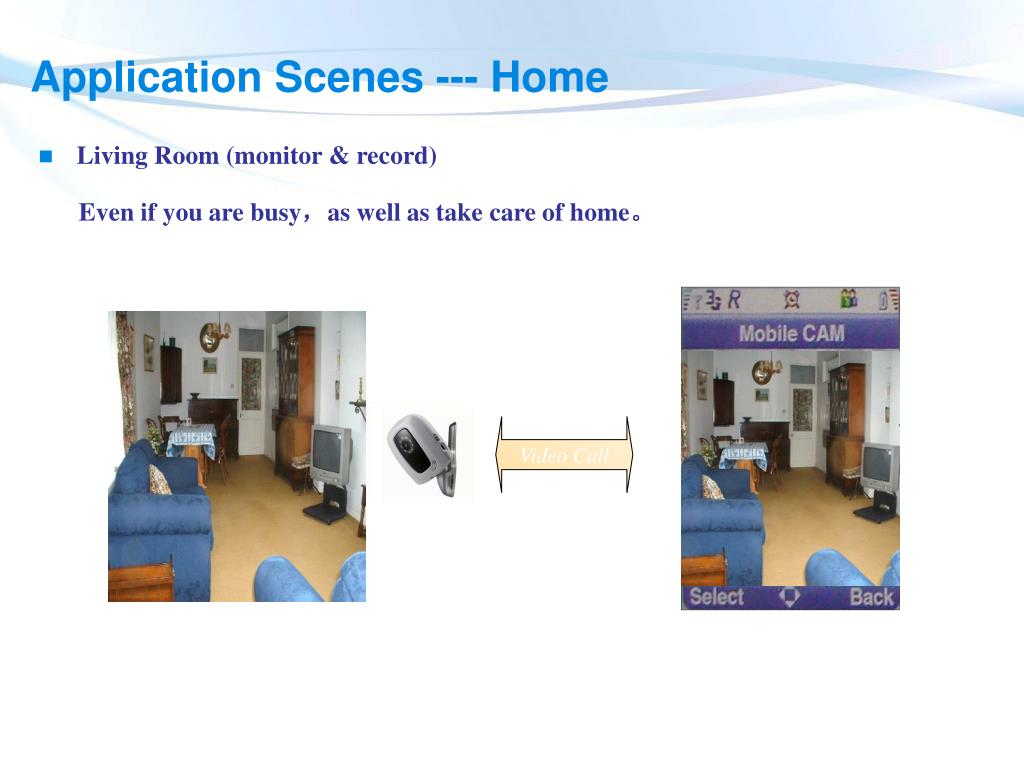

  6. Application Scenes --- Home • Living Room (monitor & record) Even if you are busy，as well as take care of home。 Video Call

  7. Application Scenes --- home • Baby room You can take care of your baby at any time Operate Simply, even the elderly can be easy to use, Close communication with the grandson.. Video Call

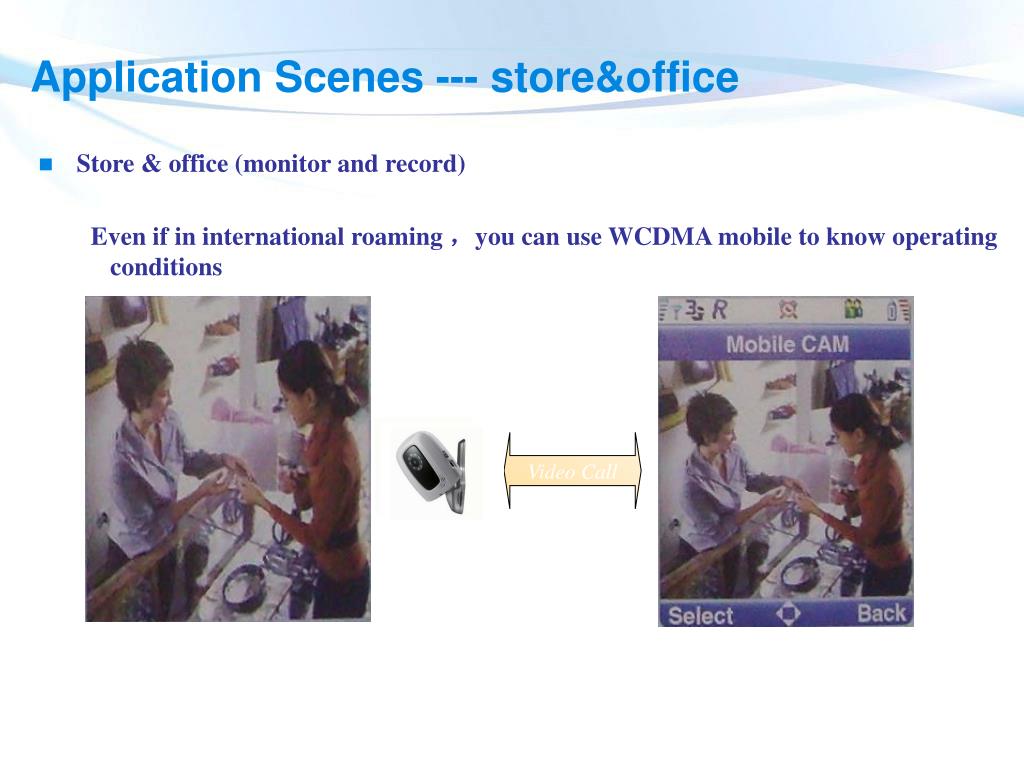

  8. Application Scenes --- store&office • Store & office (monitorand record) Even if in international roaming ，you can use WCDMAmobile to know operating conditions Video Call

  9. Application Scenes --- store&office • Store & office (IR Mode monitor) Infrared spotlight will be turned on when infrared mode is set "on" If the switch of infrared mode is set “on”, when light is weak, the Mobile Cam SST-CX will shut down daylight mode and start infrared mode automatically. Even if the night is dark,it can achieve to monitor. Video Call

  10. 3G camera SST-CX Specification 1.This product uses USIM card, supporting WCDMA 3G network 2. Matching CMOS camera and infrared led, it supports wireless video monitoring in 24 hours 3.You can send SMS to control camera remotely and check anywhere secretly and safely 4. Multimode alarm: Camera can send alarm messages by SMS, video call, voice call 5. Sensor detection: Max 15 wireless alarm sensors can be added. 6.Support to record the alarming image to the camera 7. Up to 10 telephone numbers can be pre-stored in the system 8. Wireless remote control: it can arm ,disarm or send emergency alarm 9. Special Camera: 300,000 pixel CMOS camera. 10. Easy installation: Wireless connection. The product can be installed at any place you wanted. 11. Built-in Lithium battery: Rechargeable battery ensuring operation in case of external power failure 12. Real-time video: you can call the video phone to check the image of monitoring area anytime and anywhere. 13. Application: taking care of the elders and children, in house, school, monitoring shop, bus, ship, and train etc.

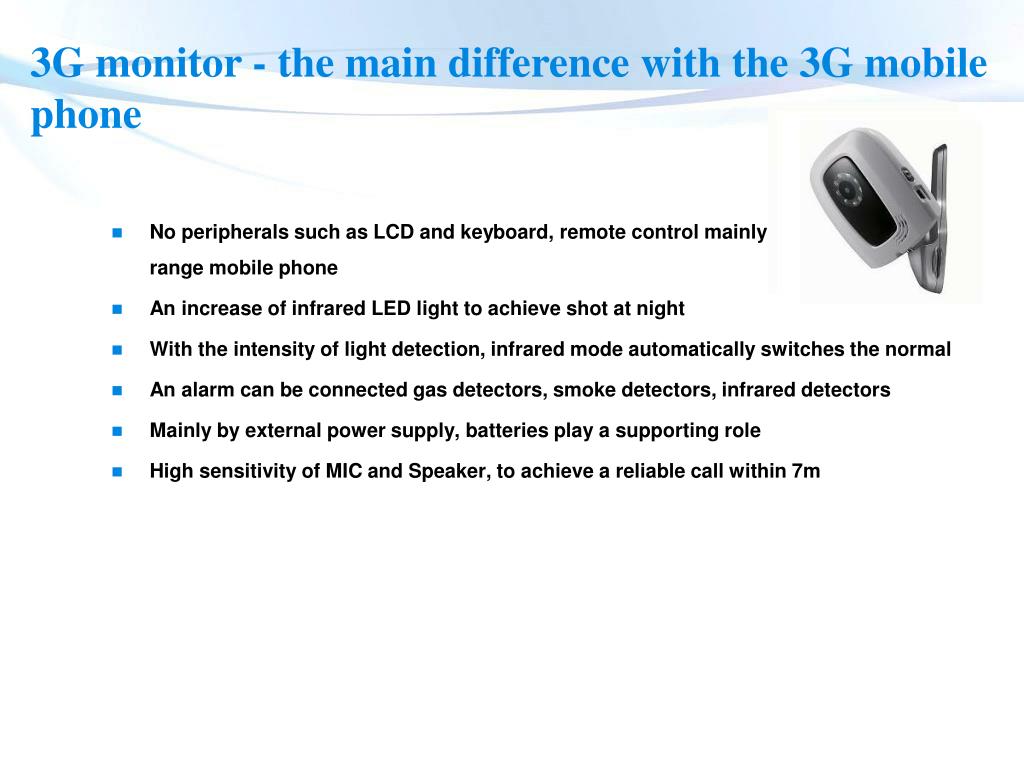

  11. No peripherals such as LCD and keyboard, remote control mainly go through long-range mobile phone An increase of infrared LED light to achieve shot at night With the intensity of light detection, infrared mode automatically switches the normal An alarm can be connected gas detectors, smoke detectors, infrared detectors Mainly by external power supply, batteries play a supporting role High sensitivity of MIC and Speaker, to achieve a reliable call within 7m 3G monitor - the main difference with the 3G mobile phone

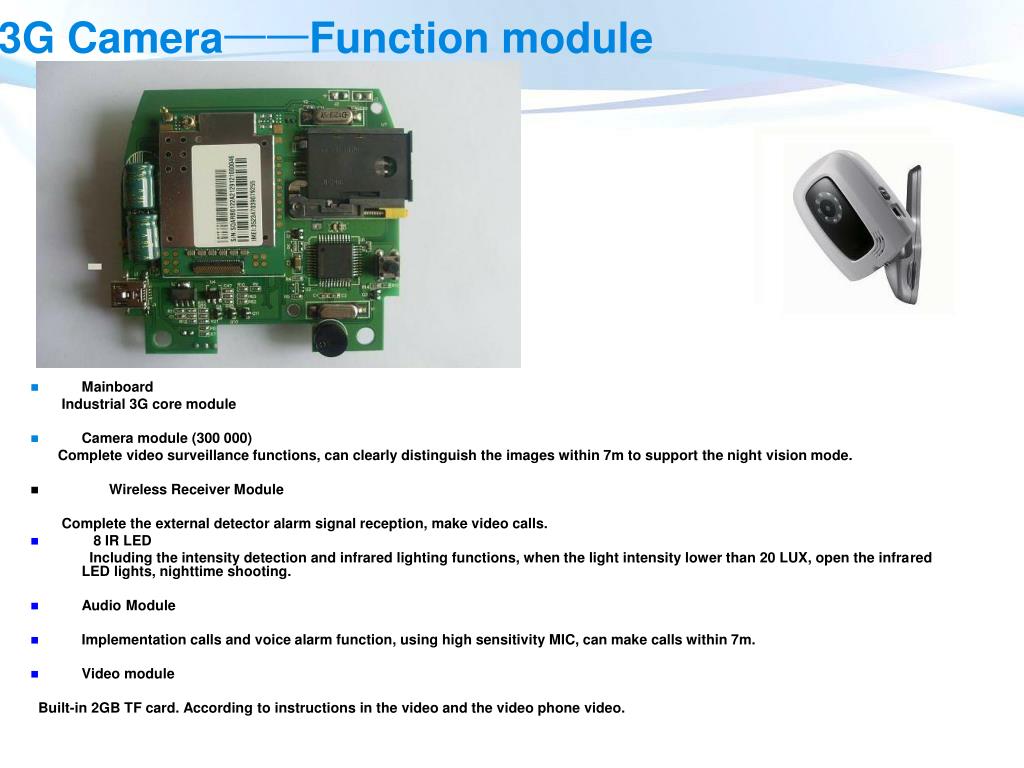

  12. 3G Camera——Function module Mainboard Industrial 3G core module Camera module (300 000)  Complete video surveillance functions, can clearly distinguish the images within 7m to support the night vision mode. Wireless Receiver Module Complete the external detector alarm signal reception, make video calls. 8 IR LED Including the intensity detection and infrared lighting functions, when the light intensity lower than 20 LUX, open the infrared LED lights, nighttime shooting. Audio Module Implementation calls and voice alarm function, using high sensitivity MIC, can make calls within 7m. Video module   Built-in 2GB TF card. According to instructions in the video and the video phone video.

  13. 3GCamera——Remote Control • Press “1” key to zoom-ou • Press “2” key to zoom-in • Press “3” key to increase camerabrightness • Press “4” key to reduce camera brightness • Press “5” key to change the picture direction

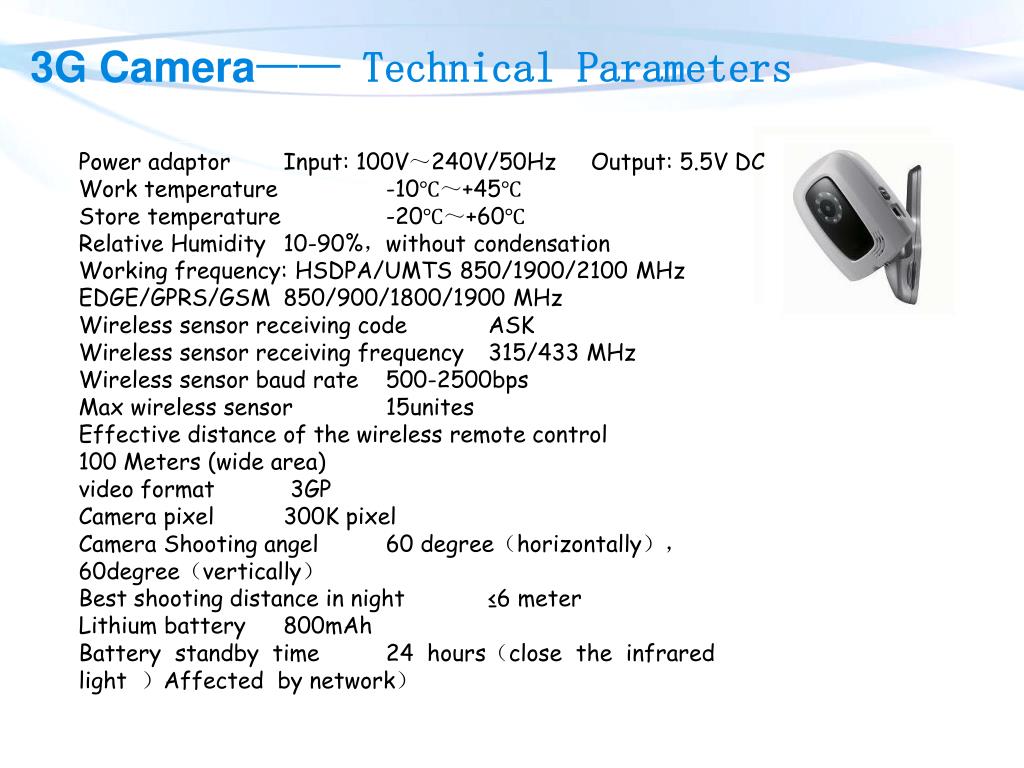

  14. 3G Camera—— Technical Parameters Power adaptor Input: 100V～240V/50Hz Output: 5.5V DC Work temperature -10℃～+45℃ Store temperature -20℃～+60℃ Relative Humidity 10-90%，without condensation Working frequency: HSDPA/UMTS850/1900/2100 MHz EDGE/GPRS/GSM 850/900/1800/1900 MHz Wireless sensor receiving code ASK Wireless sensor receiving frequency 315/433 MHz Wireless sensor baud rate 500-2500bps Max wireless sensor 15unites Effective distance of the wireless remote control 100 Meters (wide area) video format 3GP Camera pixel 300K pixel Camera Shooting angel 60 degree（horizontally），60degree（vertically） Best shooting distance in night ≤6 meter Lithium battery 800mAh Battery standby time 24 hours（close the infrared light ）Affected by network）

  15. 3G Camera——Schematic diagram of external alarm accessories door magnet glass break sensor gas sensor PIR Sensor smoke sensor ))))))))))))－433M wireless connection－)))))))))))) ))))))))))))- 433M wireless connection－)))))))))))))))) )))))))))))))))))))))))) )))))))))

  16. 3G Camera——Schematic diagram ofMotion detection function ))))))))))))- Motion detection－))))))))))))))))
