Transition Spirals

Transition Spirals. Provide steady rate of change of curvature R at TC =  R at SC = 5729.578/D Circular curve is shorter Circular curve is set back Spiral starts much further back Critical design factor – L s. Length of Spiral. Chosen based on: Speed Ability to steer Driver reactions

garth-guy
Télécharger la présentation

Transition Spirals

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

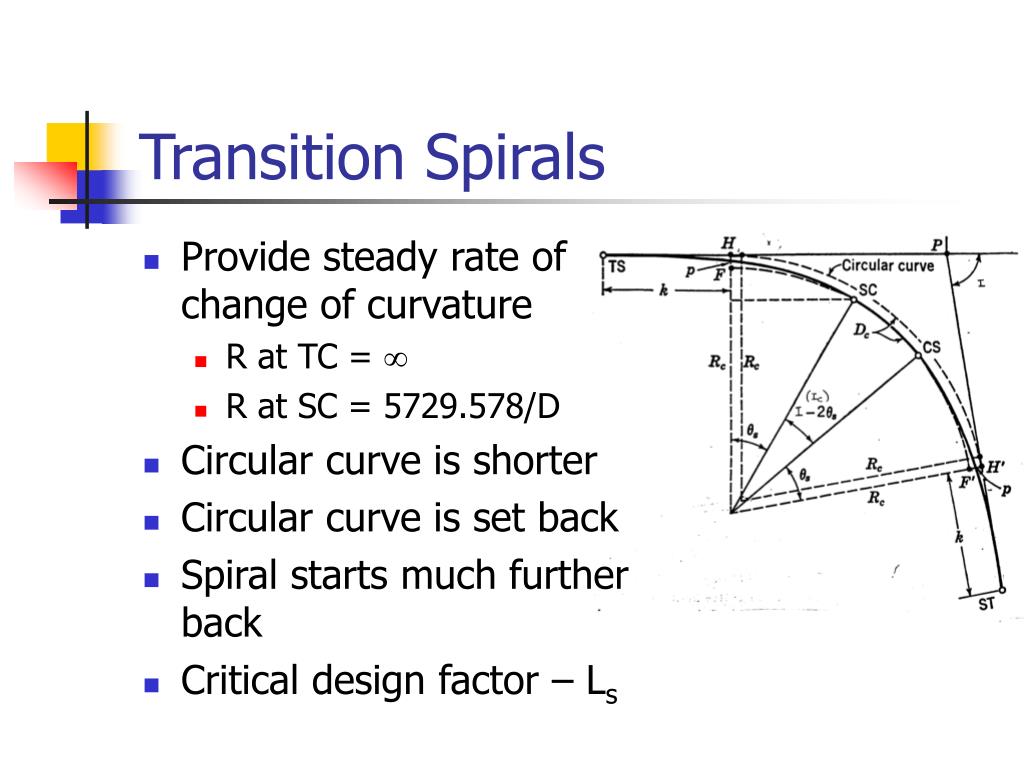

  1. Transition Spirals • Provide steady rate of change of curvature • R at TC =  • R at SC = 5729.578/D • Circular curve is shorter • Circular curve is set back • Spiral starts much further back • Critical design factor – Ls

  2. Length of Spiral • Chosen based on: • Speed • Ability to steer • Driver reactions • AASHTO Empirical Formula

  3. Length of Spiral • Ls < 100 – no spiral necessary? • Example: • Interstate Highway: V = 75 mph • Degree of Curvature: D = 4° • Drivers capable of steering,but trucks may tip: C = 2

  4. Spiral Geometry

  5. Spiral Example Given D = 4°, Ls = 450’, I = 40°

  6. Spiral Staking • Establish TS, ST • TS = PT-Ts ST = PT+Ts • Establish SC • Follow tangent for L.T., establish SPI • Turn s to find tangent at SC • Measure S.T. to set SC • Establish CS • Ic = I-2 s • Transit at SC, sight SPI, plunge, turn Ic/2 to sight along L.C. • Measure 2Rsin(Ic/2) to set CS

  7. Spiral Staking • Transit at TS,sight on PI • Determine chord lengths, L • Say TS = 78+24, Ls = 450’, SC = 82+74, s = 3° • Determine L, , for Sta 79, 80, 81, 82, 82+74
