  1. X3D Extensible 3D (X3D) Part 1: Architecture and base components

  2. X3DArchitecture and base components • Lighting component • Texturing component • Interpolation component • Pointing device sensor component --presented by fred--

  3. Lighting Component • Definition • how light sources are defined and positioned as well as how lights effect the rendered image --presented by fred--

  4. Lighting Component • Abstract types --presented by fred--

  5. Lighting Component • Node reference • DirectionalLight • PointLight • SpotLight --presented by fred--

  6. Lighting Component • DirectionalLight --presented by fred--

  7. Lighting Component • PointLight • ps. 1/max(attenuation[0] + attenuation[1]×r + attenuation[2]×r2, 1) --presented by fred--

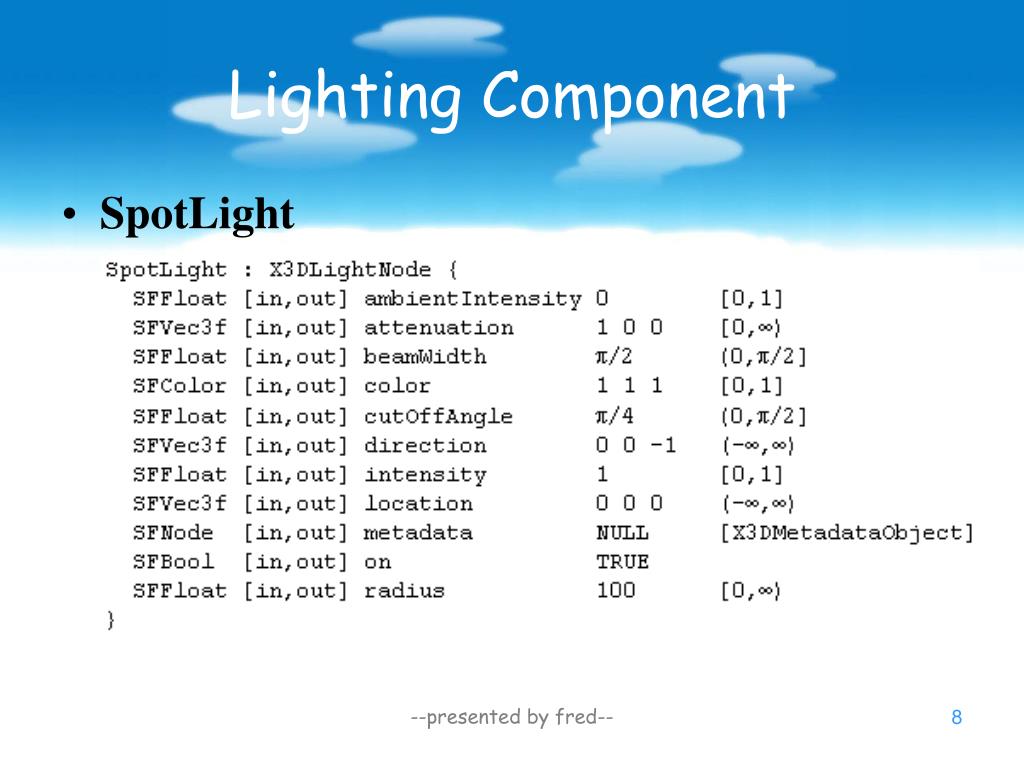

  8. Lighting Component • SpotLight --presented by fred--

  9. Lighting Component • SpotLight • ps. --presented by fred--

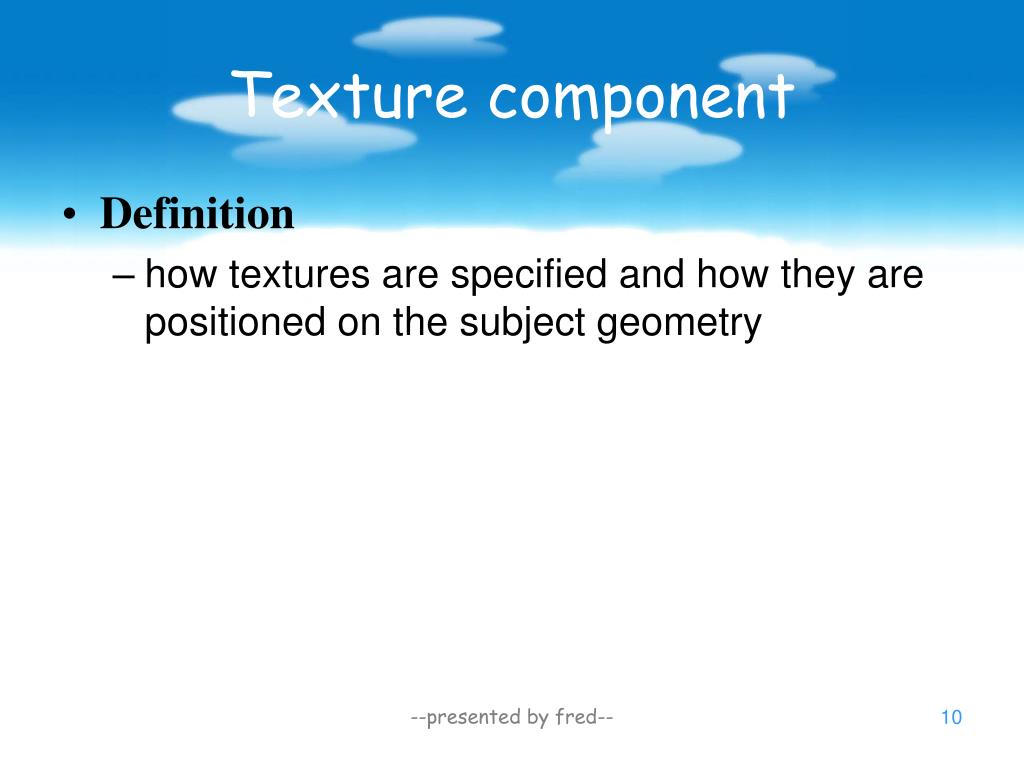

  10. Texture component • Definition • how textures are specified and how they are positioned on the subject geometry --presented by fred--

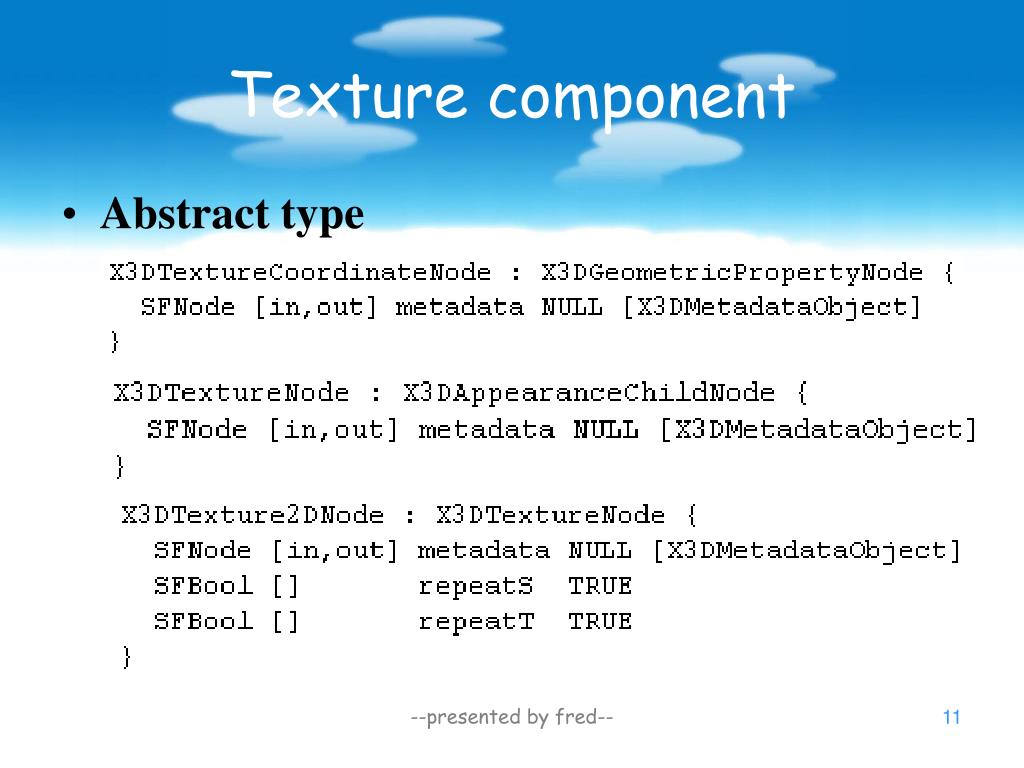

  11. Texture component • Abstract type --presented by fred--

  12. Texture component --presented by fred--

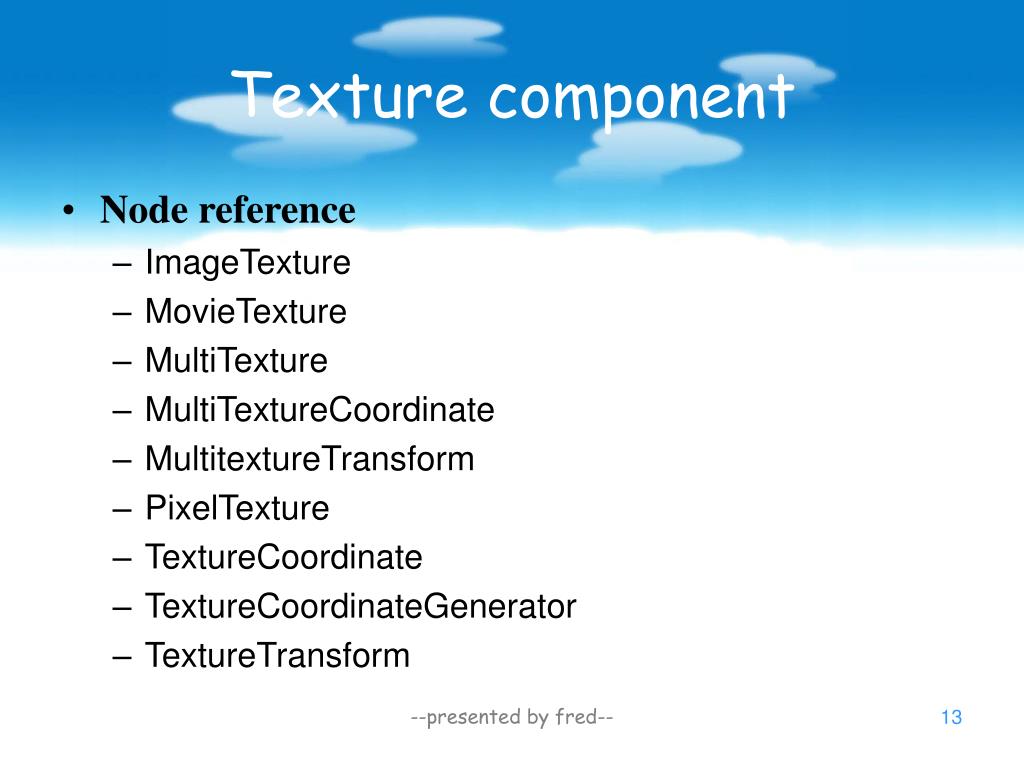

  13. Texture component • Node reference • ImageTexture • MovieTexture • MultiTexture • MultiTextureCoordinate • MultitextureTransform • PixelTexture • TextureCoordinate • TextureCoordinateGenerator • TextureTransform --presented by fred--

  14. Texture component • ImageTexture --presented by fred--

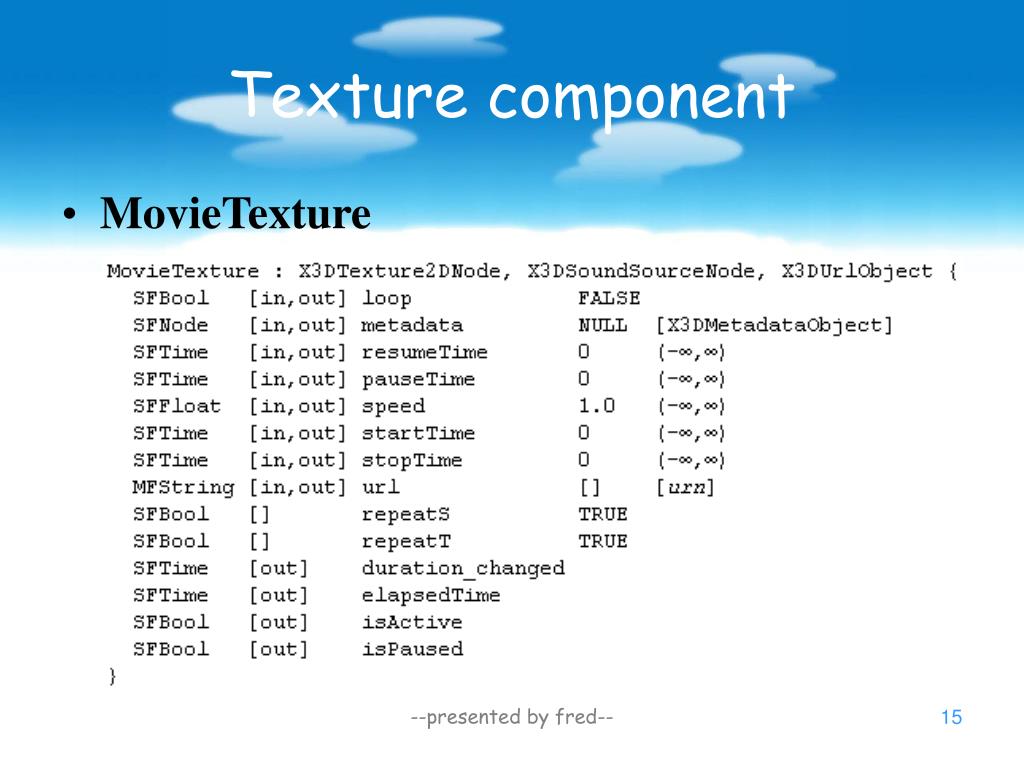

  15. Texture component • MovieTexture --presented by fred--

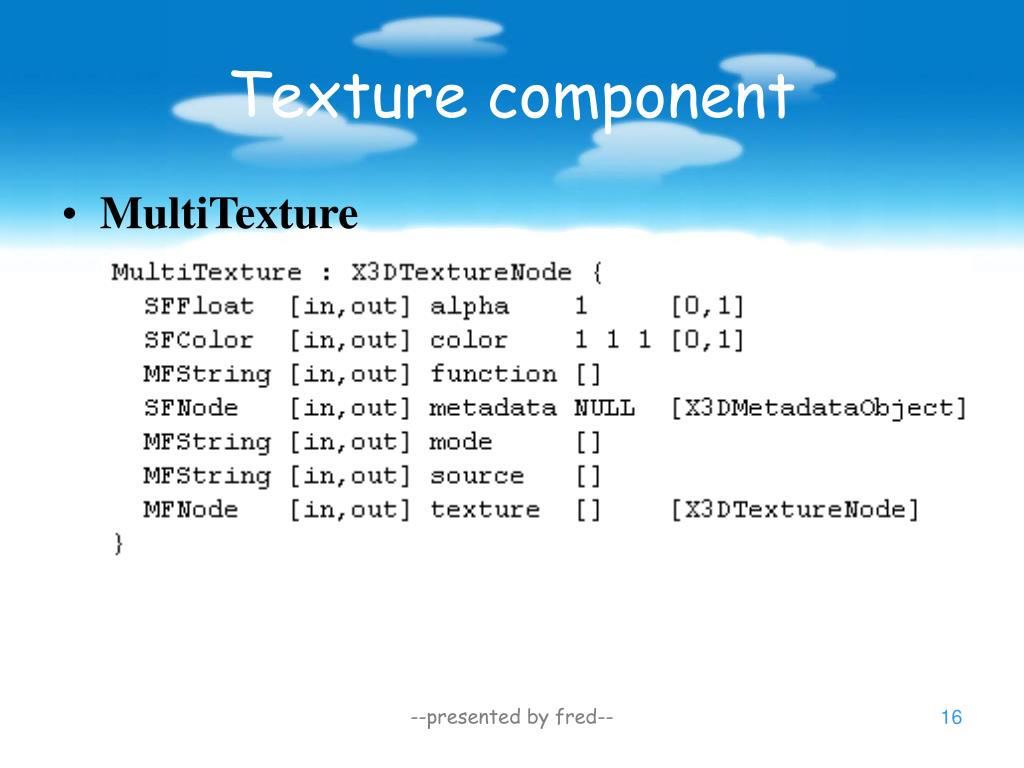

  16. Texture component • MultiTexture --presented by fred--

  17. Texture component • PixelTexture --presented by fred--

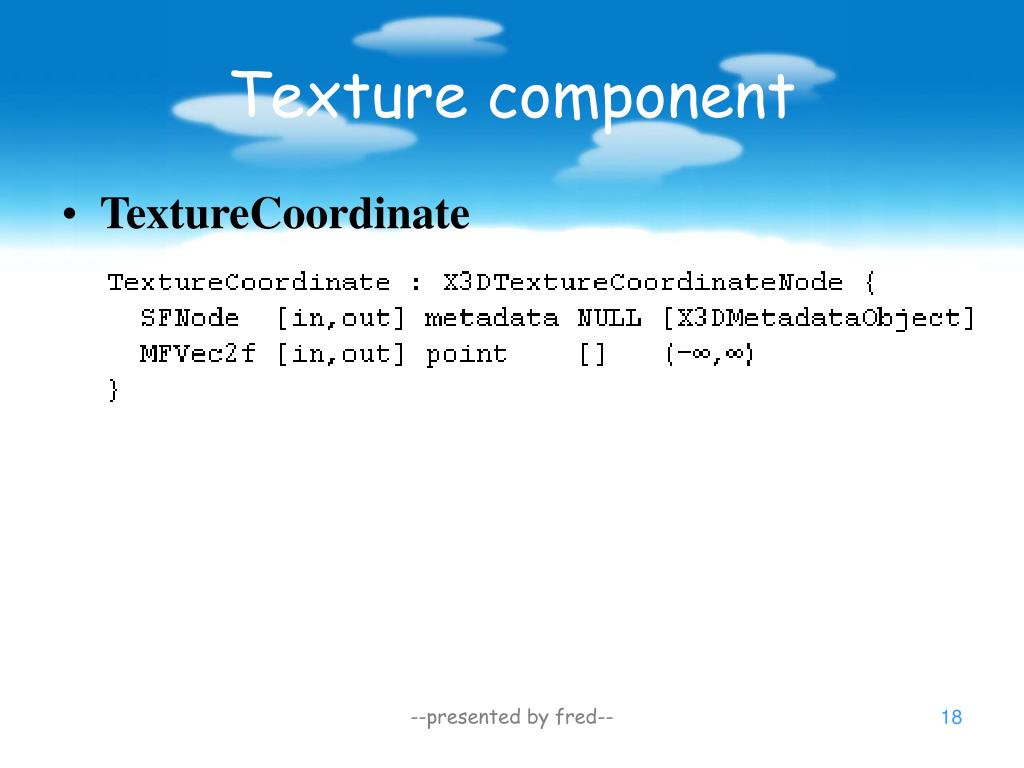

  18. Texture component • TextureCoordinate --presented by fred--

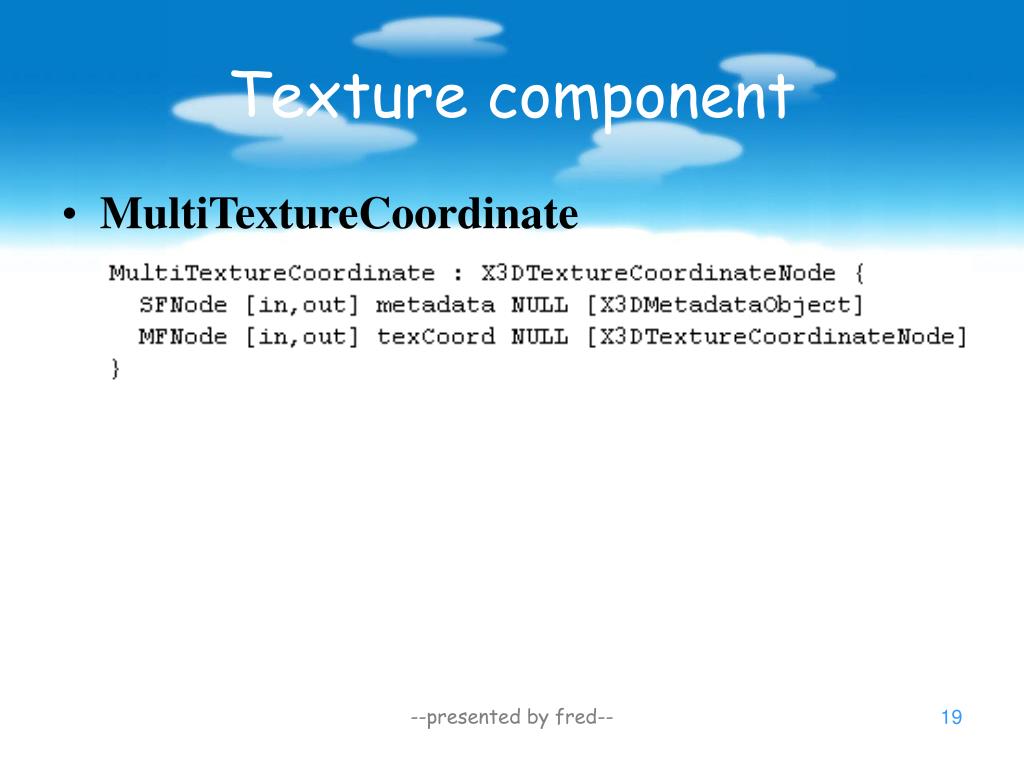

  19. Texture component • MultiTextureCoordinate --presented by fred--

  20. Texture component • TextureCoordinateGenerator --presented by fred--

  21. Texture component • TextureTransform --presented by fred--

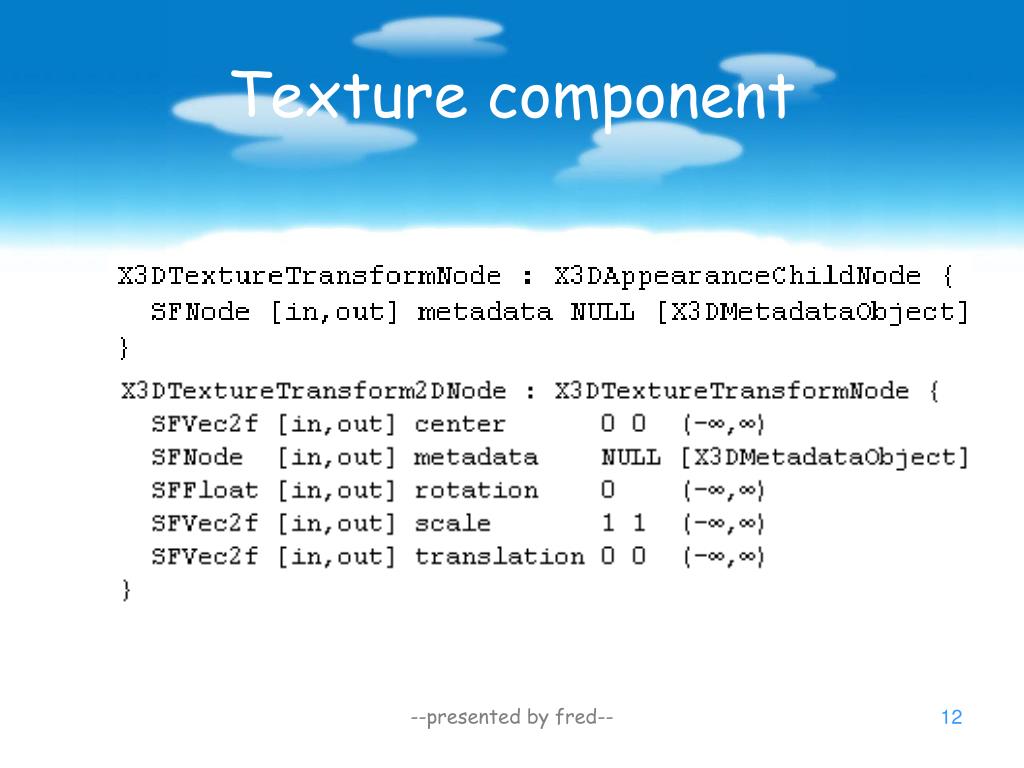

  22. Texture component • MultiTextureTransform --presented by fred--

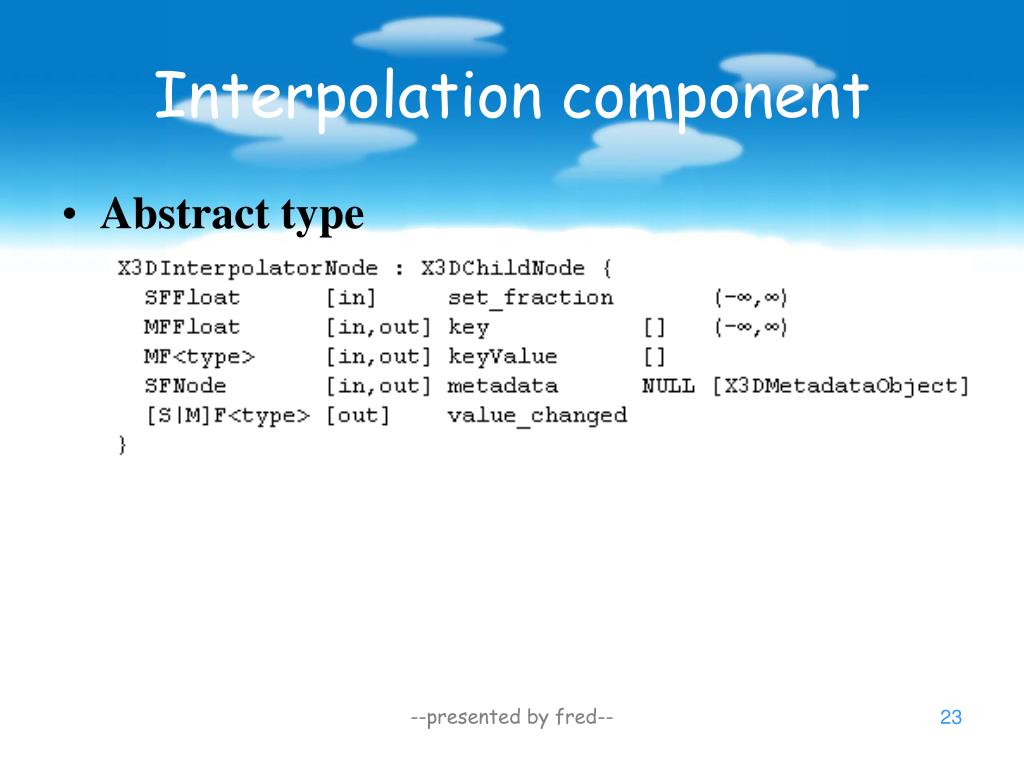

  23. Interpolation component • Abstract type --presented by fred--

  24. Interpolation component • Node referecne • ColorInterpolator • CoordinateInterpolator • CoordinateInterpolator2D • NormalInterpolator • OrientationInterpolator • PositionInterpolator • PositionInterpolator2D • ScalarInterpolator --presented by fred--

  25. Interpolation component • ColorInterpolator --presented by fred--

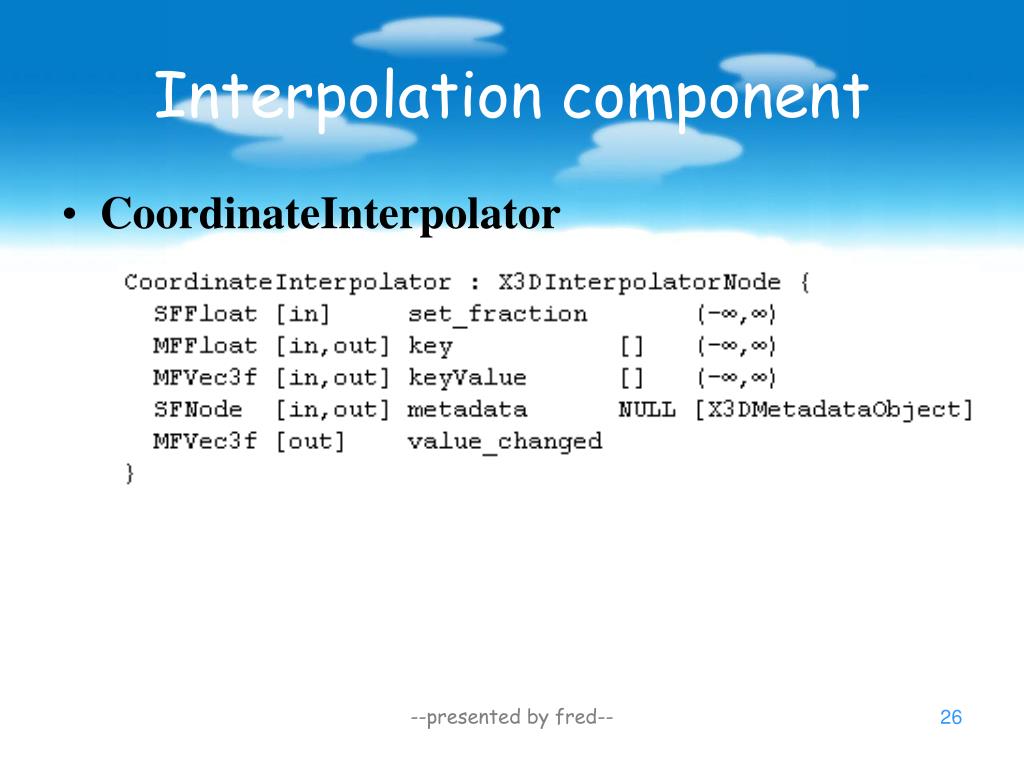

  26. Interpolation component • CoordinateInterpolator --presented by fred--

  27. Interpolation component • CoordinateInterpolator2D --presented by fred--

  28. Interpolation component • NormalInterpolator --presented by fred--

  29. Interpolation component • OrientationInterpolator --presented by fred--

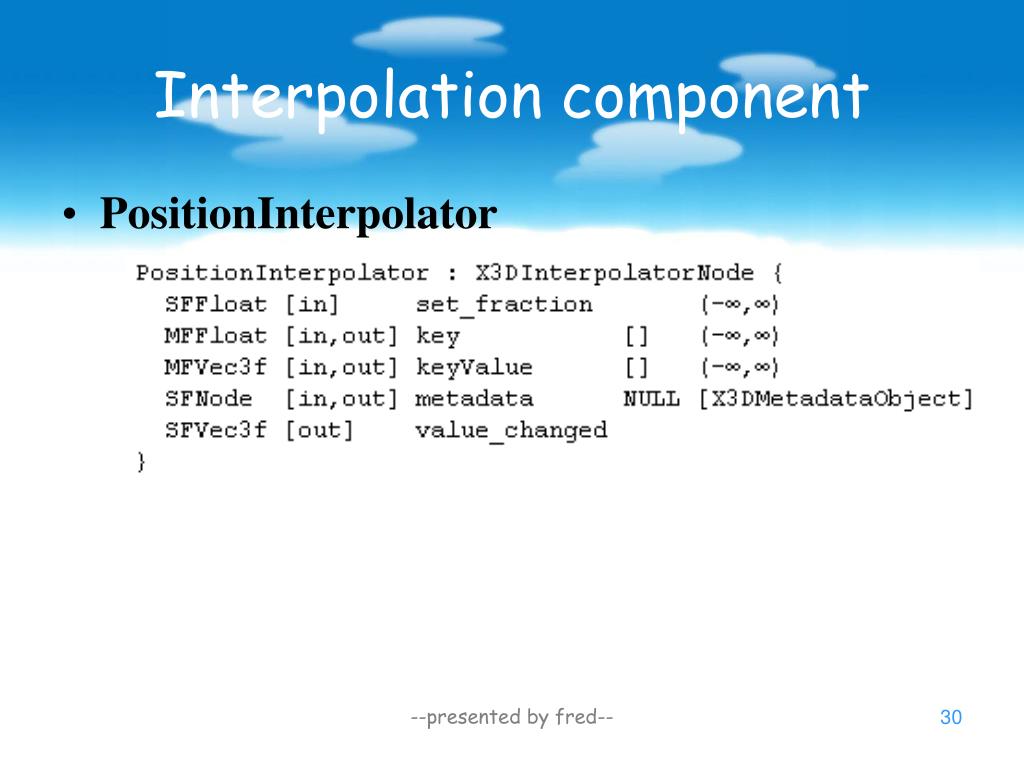

  30. Interpolation component • PositionInterpolator --presented by fred--

  31. Interpolation component • PositionInterpolator2D --presented by fred--

  32. Interpolation component • ScalarInterpolator --presented by fred--

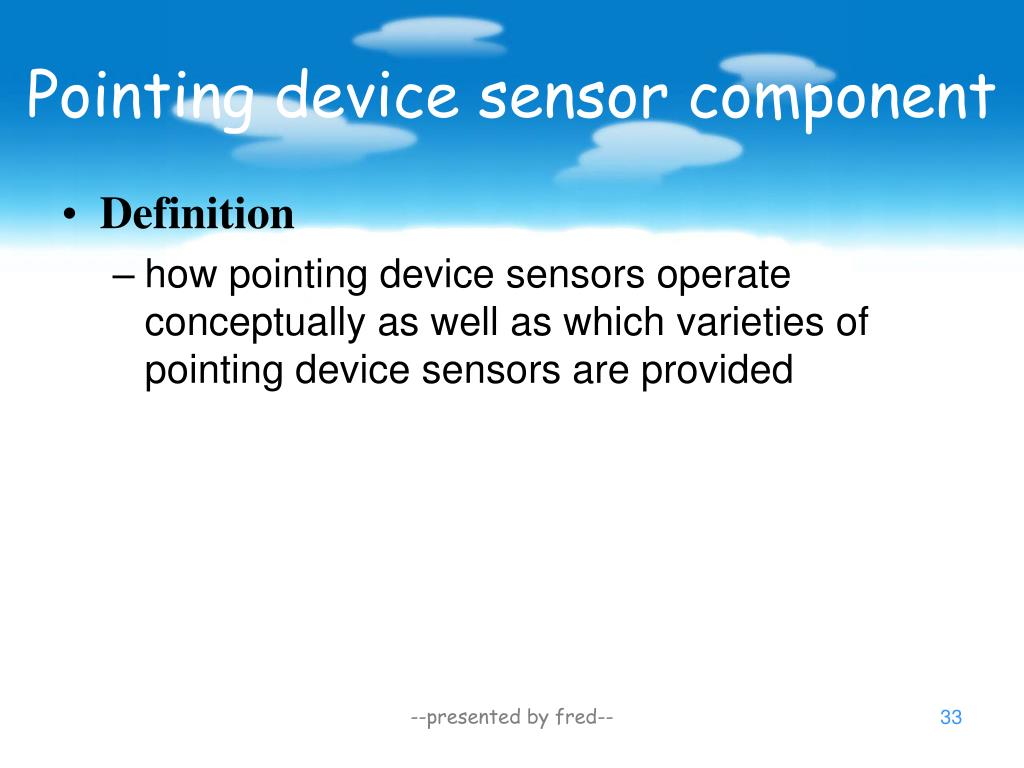

  33. Pointing device sensor component • Definition • how pointing device sensors operate conceptually as well as which varieties of pointing device sensors are provided --presented by fred--

  34. Pointing device sensor component • Abstract type --presented by fred--

  35. Pointing device sensor component --presented by fred--

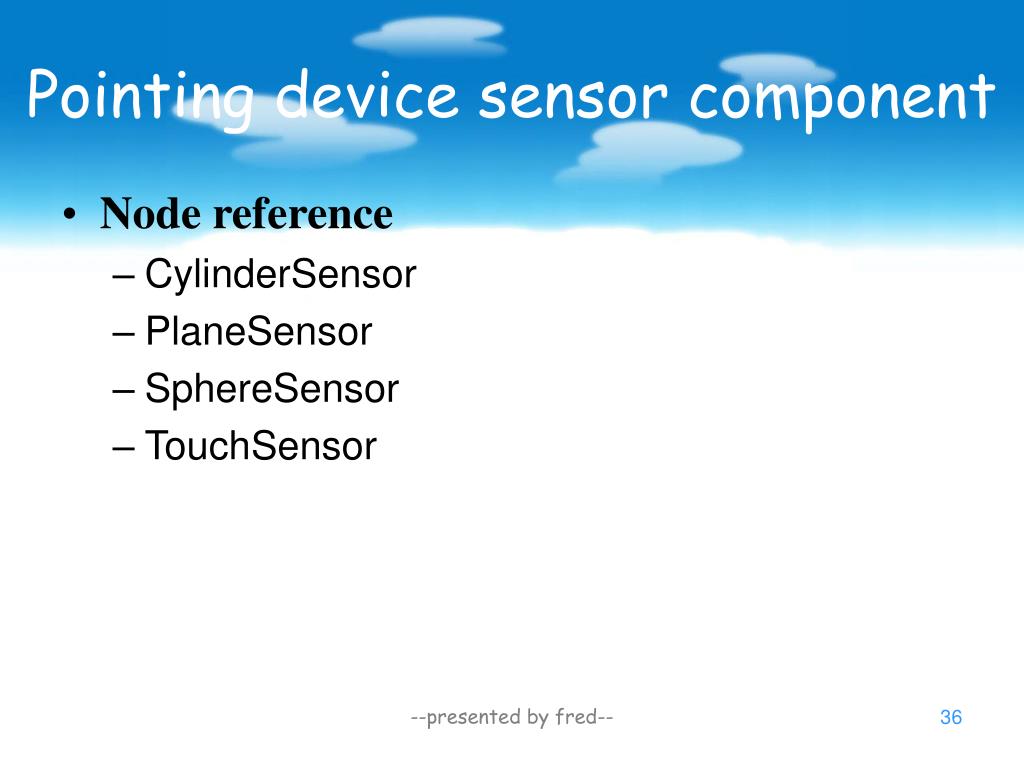

  36. Pointing device sensor component • Node reference • CylinderSensor • PlaneSensor • SphereSensor • TouchSensor --presented by fred--

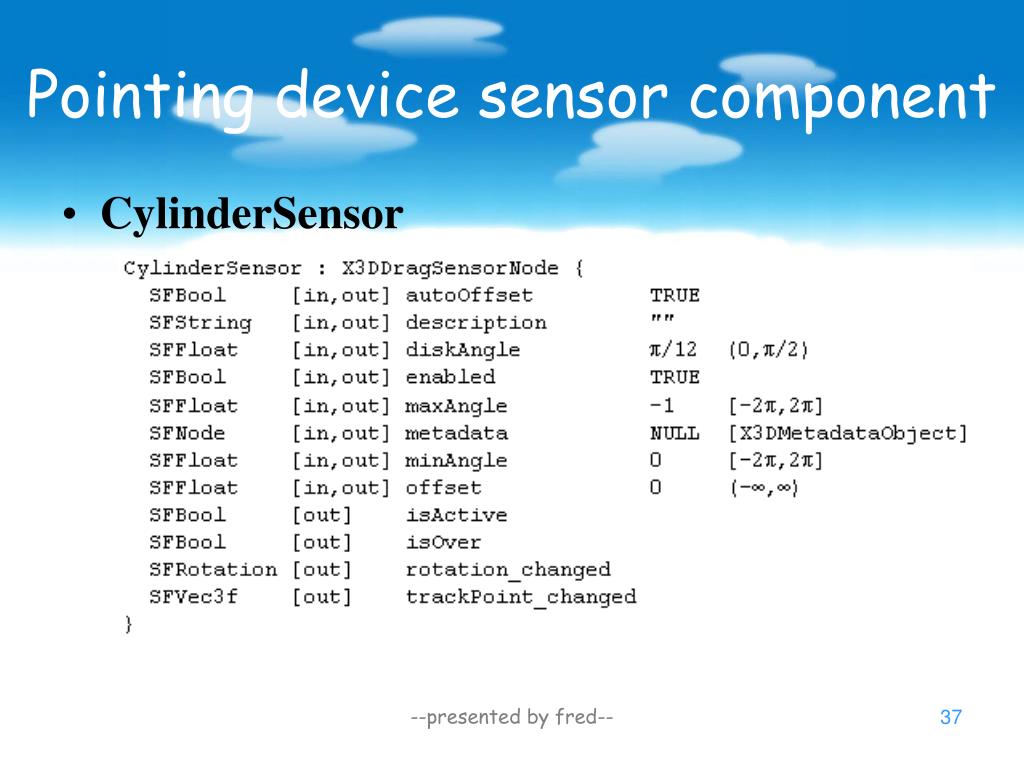

  37. Pointing device sensor component • CylinderSensor --presented by fred--

  38. Pointing device sensor component • PlaneSensor --presented by fred--

  39. Pointing device sensor component • SphereSensor --presented by fred--

  40. Pointing device sensor component • TouchSensor --presented by fred--
