  1. IT607 - Software Engineering Kavi Arya KReSIT, IIT-Bombay

  2. Beware of the computer! • From software verticals to embedded systems • Growing number of critical applications

  3. Designer Productivity • “The Mythical Man Month” by Frederick Brooks ’75 • More designers on team => lower productivity because of increasing communication costs between groups • Consider 1M transistor project:- Say, a designer has productivity of 5000 transistor/mth- Each extra designer => decrease of 100 transistor/mth productivity in group due to comm. costs • 1 designer 1M/5000 => 200mth • 10 designer 1M/(10*4100) => 24.3mth • 25 designer 1M/(25*2600) => 15.3mth • 27 designer 1M/(27*2400) => 15.4mth • Need new design technology to shrink design gap Source: Embedded System Design: Frank Vahid/ Tony Vargis (John Wiley & Sons, Inc.2002)

  4. Software Chronic Crisis W. Wayt Gibbs, Software Chronic Crisis, Scientific American, September 1994 Studies in the USA have shown: • For every 6 new large-scale software systems put into operation, 2 others are cancelled! • The average software development project over shoots its schedule by half (and larger projects generally do worse). • Around 75% of all large systems are “operating failures” i.e. do not function as intended or are not used at all. [Source of USA figures: Software Productivity Research]

  5. The Problem • 1/4 of large software projects are canceled • Average software project 50% over cost • 3/4 of large systems are “operating failures” • Software in high demand • Cell phone: 30 kLOC • 4-speed transmission: 20 kLOC • B-2 Stealth Bomber: 3.5 MLOC

  6. Current Situation • However, today the vast majority of code is still hand crafted from programming languages by artisans using techniques they neither measure nor are able to repeat consistently. • But academics have made some progress in formal methods and in instituting software engineeringdegrees. • Industry has made some progress towards market structures and technology supporting reusablesoftware parts. • Even so, a research innovation typically requires 18 years to become standard industrial practice. [SEI finding]

  7. Current trends: The decade ahead • A combination of academic industry and government is needed to hoist software development to the level of an industrial age engineering discipline within the decade (2005) • As we move into the Information Age, error-free software will become the expected norm. • This will be especially true for embedded software in consumer products. • The amount of s/w in consumer products is doubling every 2 years e.g. TV 500Kb, Shaver 2Kb • Existing problems in attempts to develop error-free Real-Time s/w for defense applications do not give us confidence (Gilles Kahn of INRIA)

  8. Some Solutions • Progress on Software Process, e.g. the SEI’s Capability Maturity Model (CMM) • 5 Level Model - 1 is Chaotic, 2 is Repeatable, 3 is Defined, 4 is Managed and 5 is Optimising • But 75% of companies are at Level 1 and 24% are at Levels 2 and 3. • USA Space Shuttle software maintenance is at Level 5.

  9. Progress on Software Reuse • There is some work on component based development, reusable parts and standardisation to support reuse • But more research is needed before this becomes widespread industrial practice.

  10. Causes of Failure • Shifting requirements • Denver had $20M changes after construction began • New or legacy system dependencies • Poor specification • High complexity, coupling • Large size • Lack of calendar time • Insufficient tools and techniques • Poor management

  11. Some Progress • Shifting requirements: Prototype-first • System dependencies: Architectures, processes • Poor Specification: Formal methods • High complexity: Domain analysis, architectures • Large size: Modular decomposition • Lack of calendar time: Processes • Insufficient tools and techniques: More work… • Poor management: Books

  12. Formal Methods • The science behind software engineering • Based on sets, Boolean logic, predicate logic • Or graph theory, automata theory, probability and statistics

  13. New Processes • XP: lightweight evolutionary process • On-site customer, prototypes • Always a working system, trade time for features • Write test cases first • Cleanroom: Don’t let bugs in • Don’t execute code (and maybe don’t compile!) • Independent verification group • Analyze quality statistically • Only integrate verified components • And others…

  14. Evaluation: The Capability Maturity Model • SEI’s Capability Maturity Model (CMM) • Levels 1 (chaos) to 5 (repeatable, predictable) • Increased productivity and quality, lower risk • Understand and fix process problems • Most organizations are at level 1

  15. Does It Work? • Raytheon went from level 1 to 2 to 3 ’87 to ’92 • 15 projects saved $15M • 2x productivity, 7.7x ROI • Motorola 1993 report • 34 projects assessed at all CMM levels • Level 5 vs level 1: defect rate 10x lower, cycle time 8x shorter, productivity 3x better • 6.77x ROI • Also: no improvement at level 3, costs are high

  16. But… • Companies can fool the rating • Discourages companies from hard projects • Doesn’t encourage valuable projects • CMM is a poor predictor for challenging projects • Honeywell (CMM level 5) and QRAS

  17. Characteristics of a Good Process • Should be precisely defined – no ambiguity about what is to be done, when, how, etc. • It must be predictable – can be repeated in other projects with confidence about its outcome • Predictable with respect to effort, cost: Project A: Web-bawd library applications done by 3 persons in 4 months  another project B (guest house bookings), similar in complexity should also take about 12 person months.

  18. A Good Process … • Predictable for quality: with respect to number and type of defects, performance, … • Predictable process is said to be ‘under statistical control’ , where actual values are close to expected values • It supports testing and maintainability • Maintenance by third party • Follow standards, provide necessary documentation • This characteristic differentiates between prototype and product

  19. A Good Process … • Facilitates early detection of and removal of defects • Defects add to project cost • Late detection/correction is costly • It should facilitate monitoring and improvement • Based on feedback • Permit use of new tools, technologies • Permit measurements

  20. Projects Some Ideas: Ekalavya Infrastructure (Prof. DB Phatak) • Build Ekalavya core infrastructure using software engineering principles • Core infrastructure: 2 projects • Modules: 2 projects Some Ideas: “J to E Simulator (capacity planning tool) Prof. Umesh Bellur • Architect, design , build. Some Ideas: Affordable ERP System (Prof. Kavi / Prof. Bernard) • Think of an ERP for Kirana stores • 15M shops threatened by Malls • Each shop supporting 5-6 people Some Ideas: Prof. Kavi Arya • Customer Relationship Management Tool (brandable) • Architect, design , build.

  21. References • “Software’s Chronic Crisis” by W. Wayt Gibbs 2003 • W. Wayt Gibbs, Software Chronic Crisis, Scientific American, September 1994 • “Topics in Tools and Environments for a Distributed Cooperative Work”, Koichiro Ochimizu. Japan Adv. Inst. of Science and Technologies School of Information Science • Software Engineering: A Practitioner’s Approach, Roger Pressman, McGraw Hill International Edition. • Misc web-based resources

  22. Software Applications • system software • application software • engineering/scientific software • embedded software • product-line software • WebApps (Web applications) • AI software

  23. Software—New Categories • Ubiquitous computing—wireless networks • Netsourcing—the Web as a computing engine • Open source—”free” source code open to the computing community (a blessing, but also a potential curse!) • Also … (see Chapter 32) • Data mining • Grid computing • Cognitive machines • Software for nanotechnologies

  24. Legacy Software Why must it change? • software must be adapted to meet the needs of new computing environments or technology. • software must be enhanced to implement new business requirements. • software must be extended to make it interoperable with other more modern systems or databases. • software must be re-architected to make it viable within a network environment.

  25. Software Evolution • The Law of Continuing Change (1974): E-type systems must be continually adapted else they become progressively less satisfactory. • The Law of Increasing Complexity (1974): As an E-type system evolves its complexity increases unless work is done to maintain or reduce it. • The Law of Self Regulation (1974): The E-type system evolution process is self-regulating with distribution of product and process measures close to normal. • The Law of Conservation of Organizational Stability (1980): The average effective global activity rate in an evolving E-type system is invariant over product lifetime. • The Law of Conservation of Familiarity (1980): As an E-type system evolves all associated with it, developers, sales personnel, users, for example, must maintain mastery of its content and behavior to achieve satisfactory evolution. • The Law of Continuing Growth (1980): The functional content of E-type systems must be continually increased to maintain user satisfaction over their lifetime. • The Law of Declining Quality (1996): The quality of E-type systems will appear to be declining unless they are rigorously maintained and adapted to operational environment changes. • The Feedback System Law (1996): E-type evolution processes constitute multi-level, multi-loop, multi-agent feedback systems and must be treated as such to achieve significant improvement over any reasonable base. Source: Lehman, M., et al, “Metrics and Laws of Software Evolution—The Nineties View,” Proceedings of the 4th International Software Metrics Symposium (METRICS '97), IEEE, 1997, can be downloaded from: http://www.ece.utexas.edu/~perry/work/papers/feast1.pdf

  26. A Layered Technology Software Engineering tools methods process model a “quality” focus

  27. A Process Framework • Process framework • Framework activities • work tasks • work products • milestones & deliverables • QA checkpoints • Umbrella Activities

  28. Framework Activities • Communication • Planning • Modeling • Analysis of requirements • Design • Construction • Code generation • Testing • Deployment

  29. Umbrella Activities • Software project management • Formal technical reviews • Software quality assurance • Software configuration management • Work product preparation and production • Reusability management • Measurement • Risk management

  30. The Process Model:Adaptability • the framework activities will always be applied on every project ... BUT • the tasks (and degree of rigor) for each activity will vary based on: • the type of project • characteristics of the project • common sense judgment; concurrence of the project team

  31. The CMMI • The CMMI defines each process area in terms of “specific goals” and the “specific practices” required to achieve these goals. • Specific goals establish the characteristics that must exist if the activities implied by a process area are to be effective. • Specific practicesrefine a goal into a set of process-related activities.

  32. Process Patterns • Process patterns define a set of activities, actions, work tasks, work products and/or related behaviors • A template is used to define a pattern • Typical examples: • Customer communication (a process activity) • Analysis (an action) • Requirements gathering (a process task) • Reviewing a work product (a process task) • Design model (a work product)

  33. Process Assessment • The process should be assessed to ensure that it meets a set of basic process criteria that have been shown to be essential for a successful software engineering. • Many different assessment options are available: • SCAMPI • CBA IPI • SPICE • ISO 9001:2000

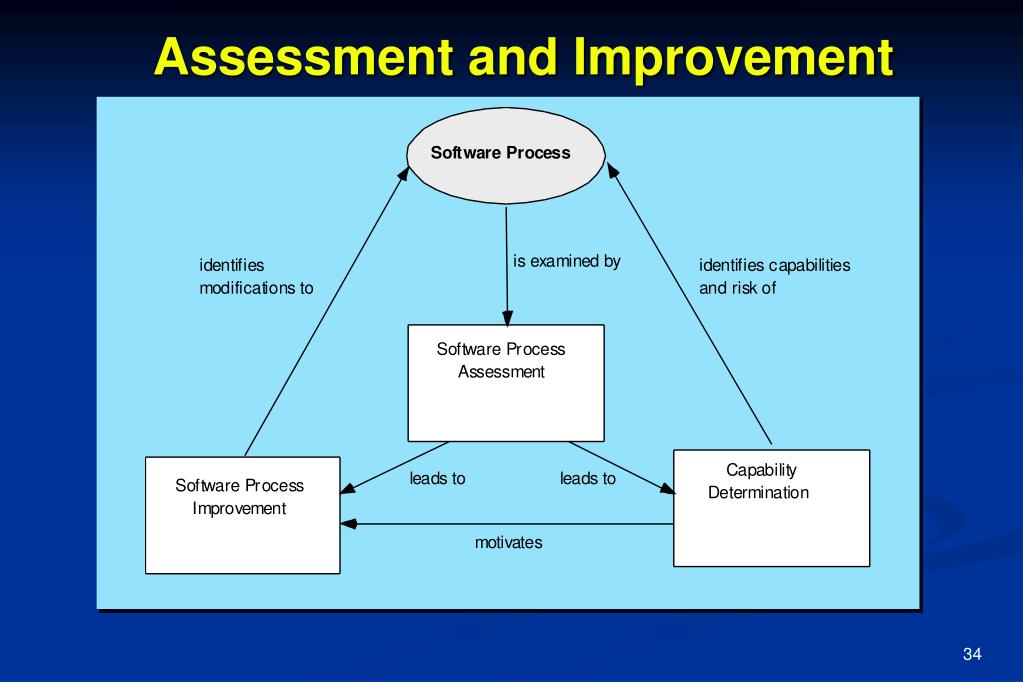

  34. Assessment and Improvement

  35. Personal Software Process (PSP) • Recommends five framework activities: • Planning • High-level design • High-level design review • Development • Postmortem • stresses the need for each software engineer to identify errors early and as important, to understand the types of errors

  36. Team Software Process (TSP) • Each project is “launched” using a “script” that defines the tasks to be accomplished • Teams are self-directed • Measurement is encouraged • Measures are analyzed with the intent of improving the team process

  37. The Primary Goal of Any Software Process: High Quality Remember: High quality = project timeliness Why? Less rework!

  38. Prescriptive Models • Prescriptive process models advocate an orderly approach to software engineering That leads to a few questions … • If prescriptive process models strive for structure and order, are they inappropriate for a software world that thrives on change? • Yet, if we reject traditional process models (and the order they imply) and replace them with something less structured, do we make it impossible to achieve coordination and coherence in software work?

  39. The Waterfall Model

  40. The Incremental Model

  41. The RAD Model

  42. Evolutionary Models: Prototyping Quick plan communication Modeling Quick design Deployment delivery & feedback Construction of prototype

  43. Evolutionary Models: The Spiral

  44. Evolutionary Models: Concurrent

  45. Still Other Process Models • Component based development—the process to apply when reuse is a development objective • Formal methods—emphasizes the mathematical specification of requirements • AOSD—provides a process and methodological approach for defining, specifying, designing, and constructing aspects • Unified Process—a “use-case driven, architecture-centric, iterative and incremental” software process closely aligned with the Unified Modeling Language (UML)

  46. The Unified Process (UP) inception elaboration inception

  47. UP Phases

  48. UP Work Products

  49. The Manifesto for Agile Software Development • “We are uncovering better ways of developing software by doing it and helping others do it. Through this work we have come to value: • Individuals and interactions over processes and tools • Working software over comprehensive documentation • Customer collaboration over contract negotiation • Responding to change over following a plan • That is, while there is value in the items on the right, we value the items on the left more.” Kent Beck et al

  50. What is “Agility”? • Effective (rapid and adaptive) response to change • Effective communication among all stakeholders • Drawing the customer onto the team • Organizing a team so that it is in control of the work performed Yielding … • Rapid, incremental delivery of software
