Understanding Precision Measuring Tools: Rulers, Micrometers, and Dial Calipers

DESCRIPTION

Precision measuring tools, such as rulers, micrometers, and dial calipers, allow for accurate measurements in varying increments. Rulers measure larger distances in inches, while dial calipers and micrometers measure down to thousandths of an inch. The dial caliper features graduated scales in both inches and tenths, with a dial indicator for precise readings. Mastering these tools is essential for accurate engineering measurements, which require a strong grasp of both accuracy and precision in comparison to standard dimensions. Practice techniques are included to enhance learning.

1 / 16

Télécharger la présentation

Understanding Precision Measuring Tools: Rulers, Micrometers, and Dial Calipers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Precision Measuring

  2. Precision Measuring Tools • The Ruler • The Micrometer • The Dial Caliper • Each tool can measure things in smaller and smaller increments • From larger increments-the Ruler distances in inchs, to very small increments distances in thousandths of an inch-the Dial Caliper

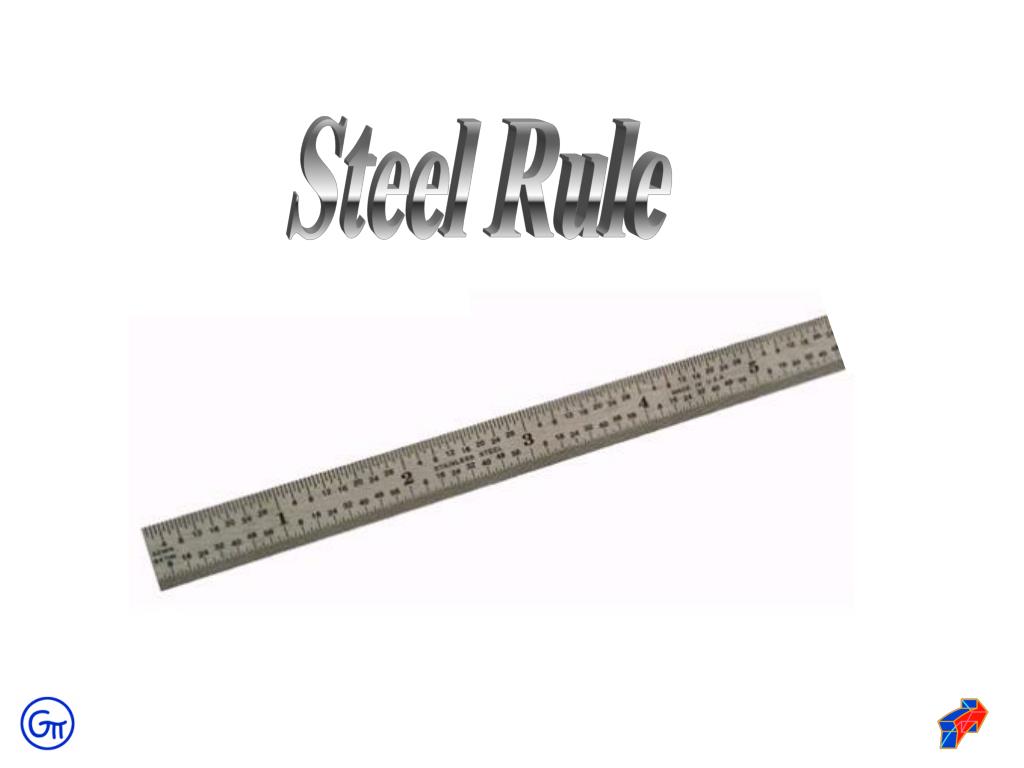

  3. Steel Rule

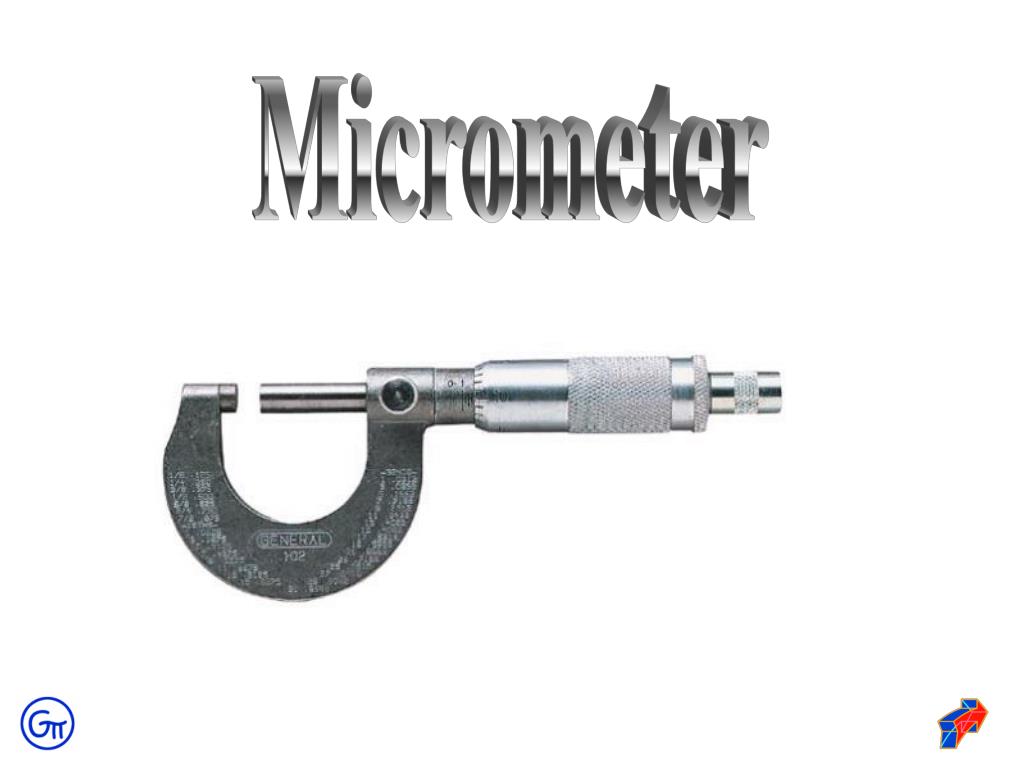

  4. Micrometer

  5. Dial Caliper

  6. The dial caliper is: a precision measuring instrument. The caliper’s blade graduations are: in inches and tenths (.1) of an inch. The caliper’s dial graduations are: in thousandths (.001) of an inch. One full revolution of the pointer on the dial equals: one hundred thousandths (.100).

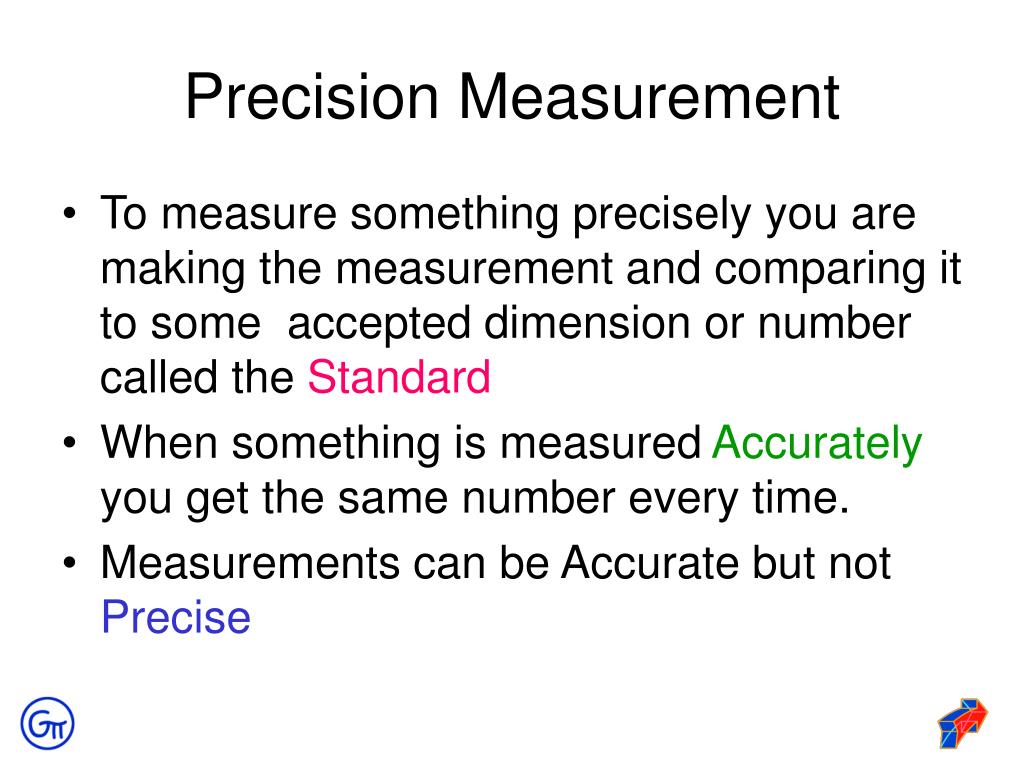

  7. Precision Measurement • To measure something precisely you are making the measurement and comparing it to some accepted dimension or number called the Standard • When something is measured Accurately you get the same number every time. • Measurements can be Accurate but not Precise

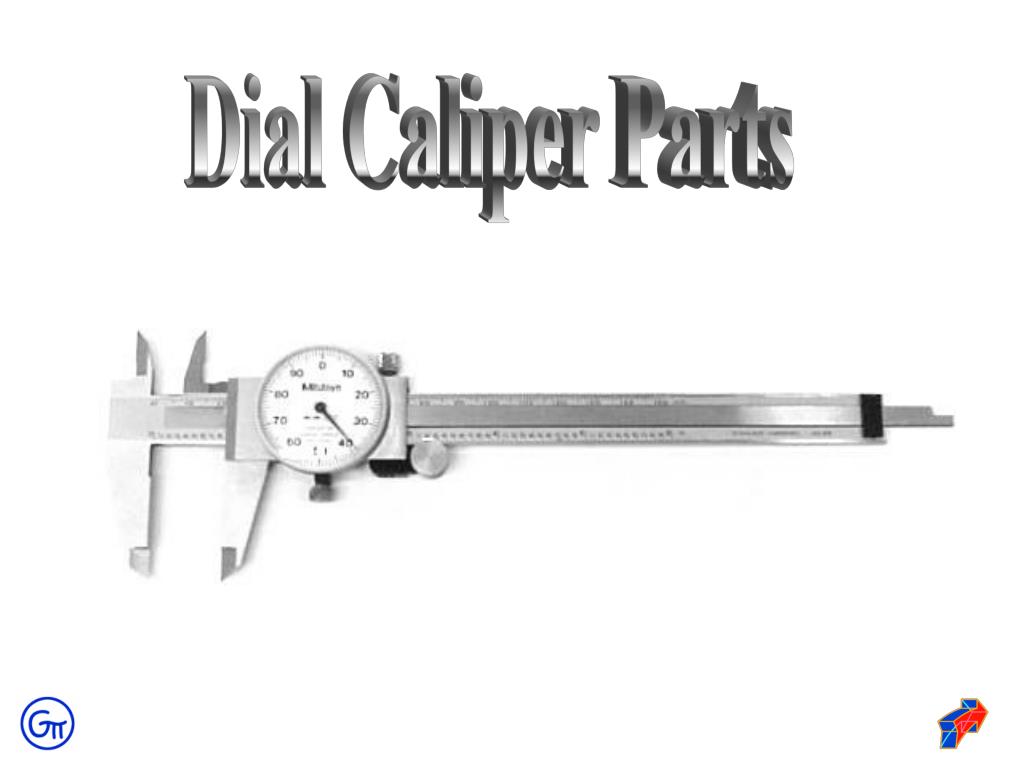

  8. Dial Caliper Parts

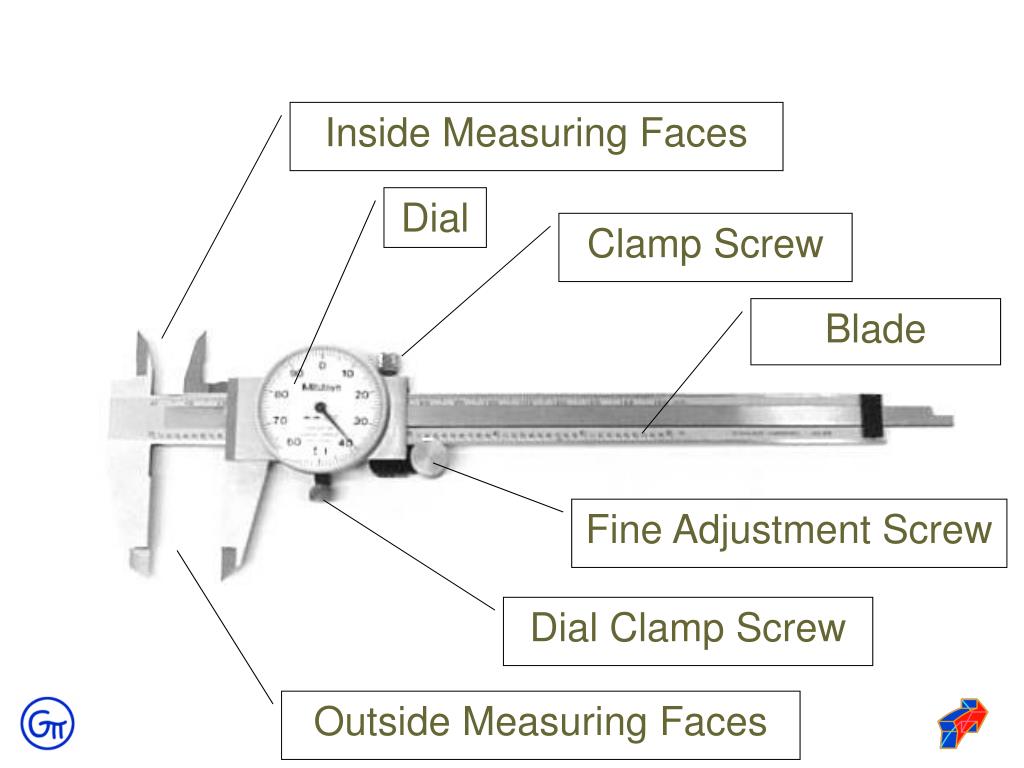

  9. Inside Measuring Faces Dial Clamp Screw Blade Fine Adjustment Screw Dial Clamp Screw Outside Measuring Faces

  10. Precision Technical Drawings • Go back to the previous slide and draw the Dial Caliper in your engineering notebook, making sure to label all of the parts.

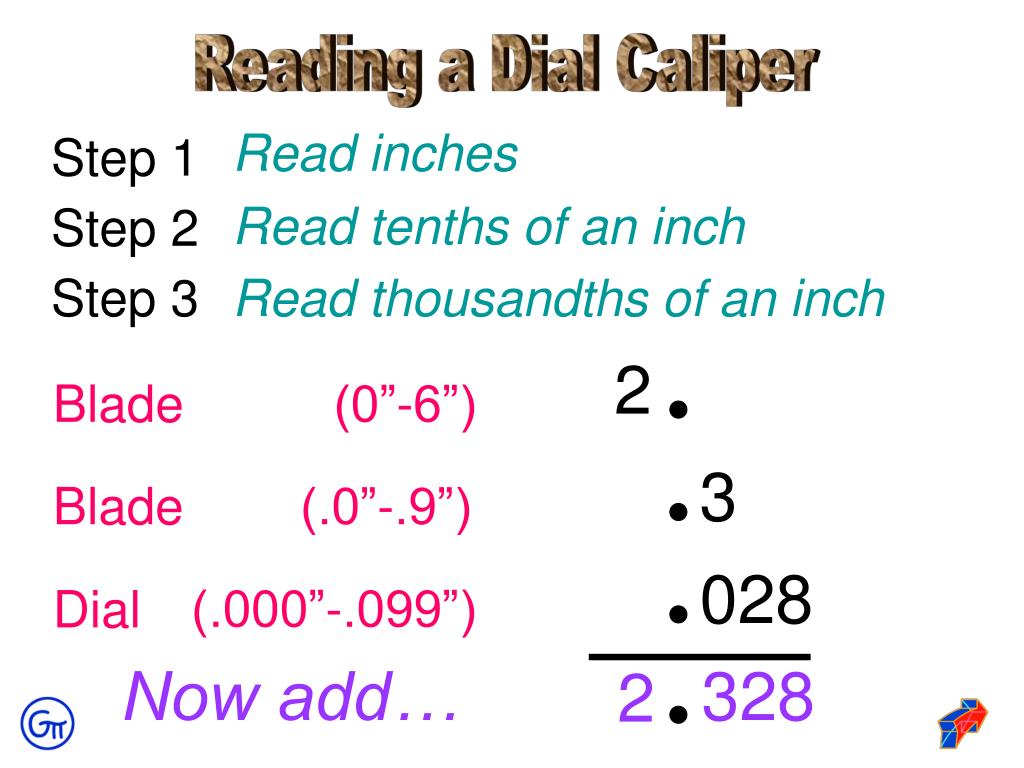

  11. Blade (0”-6”) Blade (.0”-.9”) (.000”-.099”) Dial 328 2 Reading a Dial Caliper Read inches Step 1 Read tenths of an inch Step 2 Step 3 Read thousandths of an inch 2 3 028 Now add…

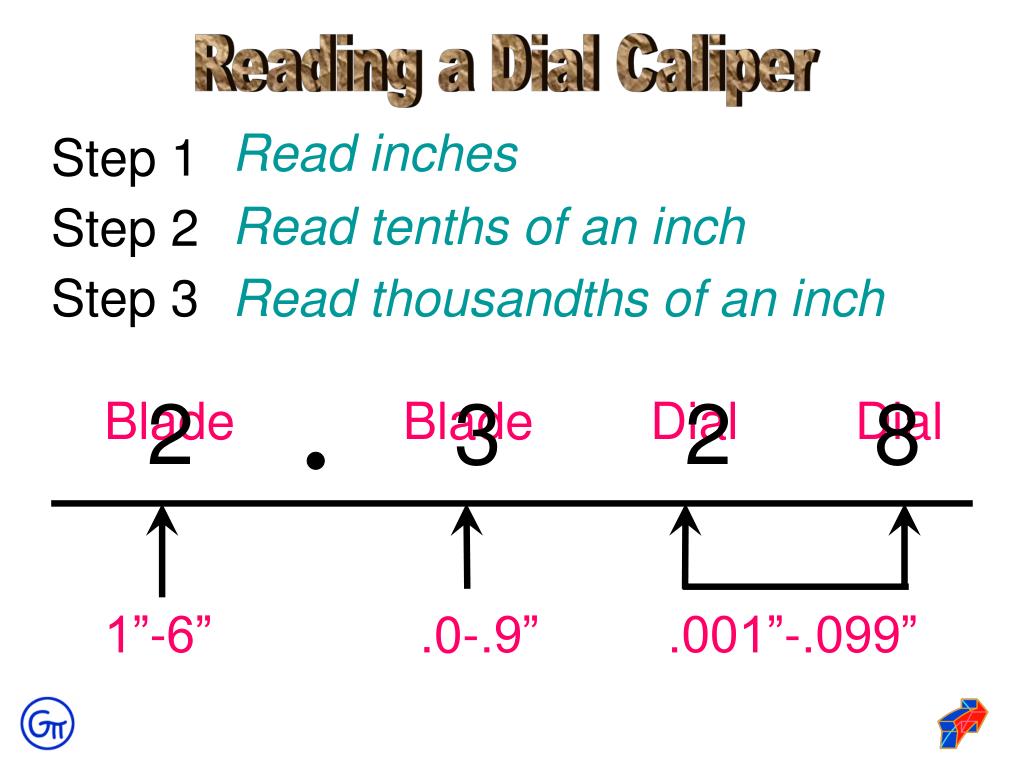

  12. Blade Blade Dial Dial 1”-6” .0-.9” .001”-.099” Reading a Dial Caliper Read inches Step 1 Read tenths of an inch Step 2 Step 3 Read thousandths of an inch 2 3 2 8

  13. Reading a Caliper Practice Step 1 Read inches 4 Step 2 Read tenths of an inch .5 Step 3 Read thousandths of an inch .007 The new dial reading is?_________

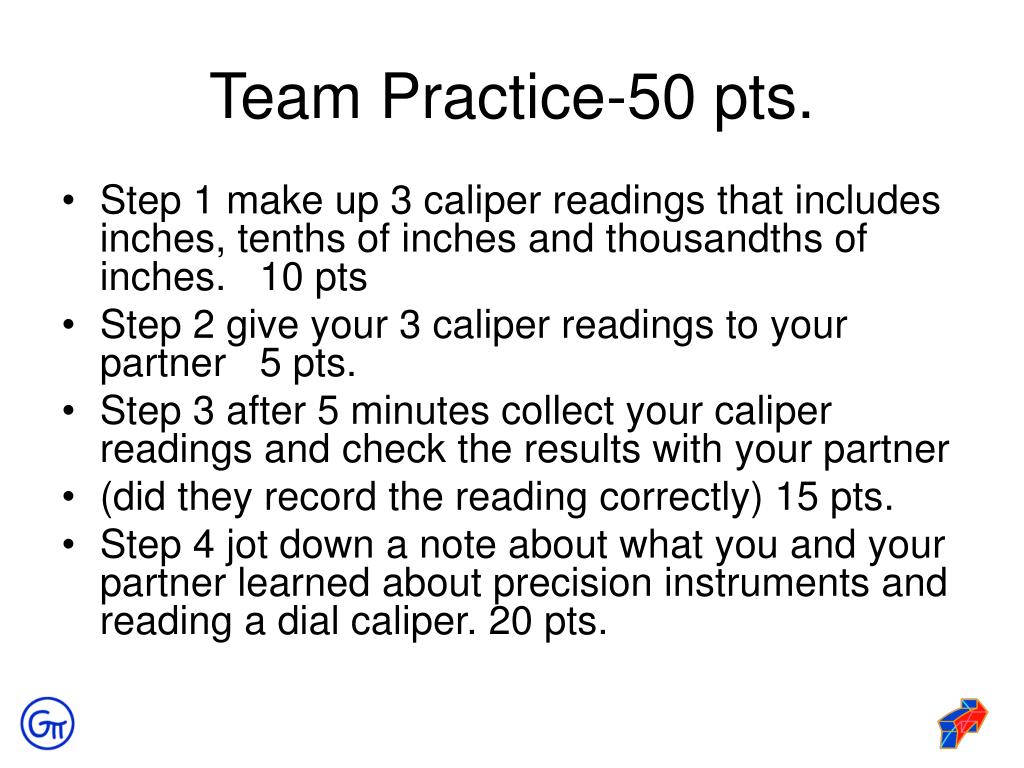

  14. Team Practice-50 pts. • Step 1 make up 3 caliper readings that includes inches, tenths of inches and thousandths of inches. 10 pts • Step 2 give your 3 caliper readings to your partner 5 pts. • Step 3 after 5 minutes collect your caliper readings and check the results with your partner • (did they record the reading correctly) 15 pts. • Step 4 jot down a note about what you and your partner learned about precision instruments and reading a dial caliper. 20 pts.

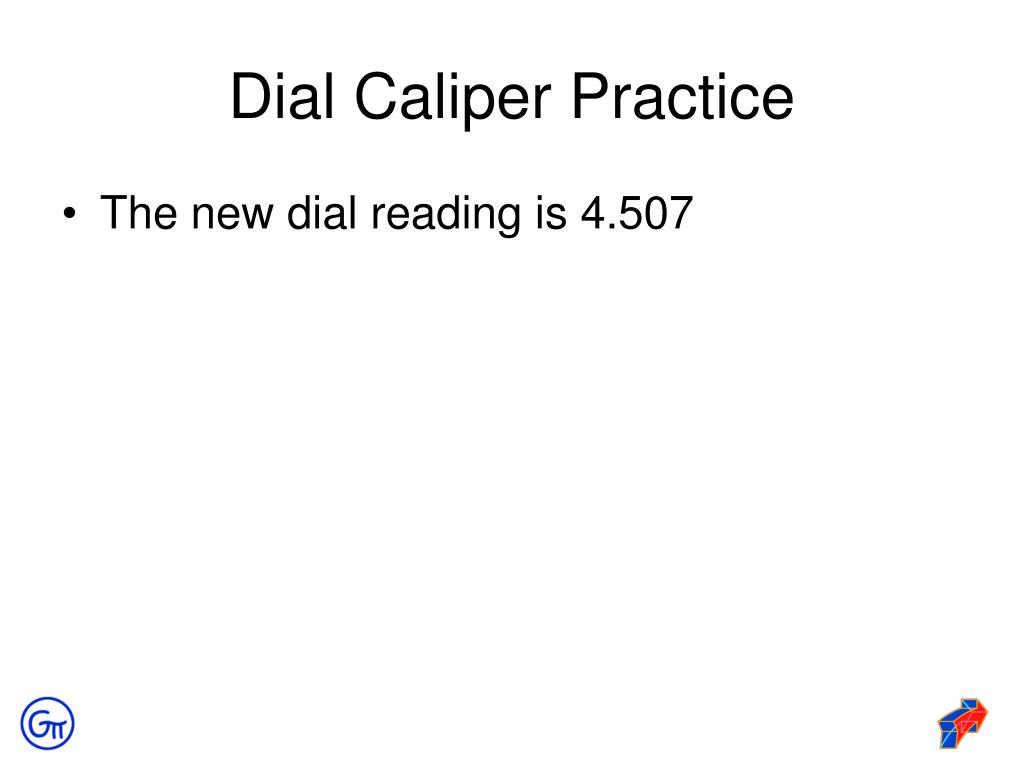

  15. Dial Caliper Practice • The new dial reading is 4.507
