Quick Installation Guide for Hurricane8800P. ( For Singapore Users ). A. Hardware Installation. Console Port. 4. 1. Line Jack. For Serial Cable (RS-232) , to connect to Serial Port (Normally , no need to connect it).

gary-rogers
Télécharger la présentation

Microfilter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

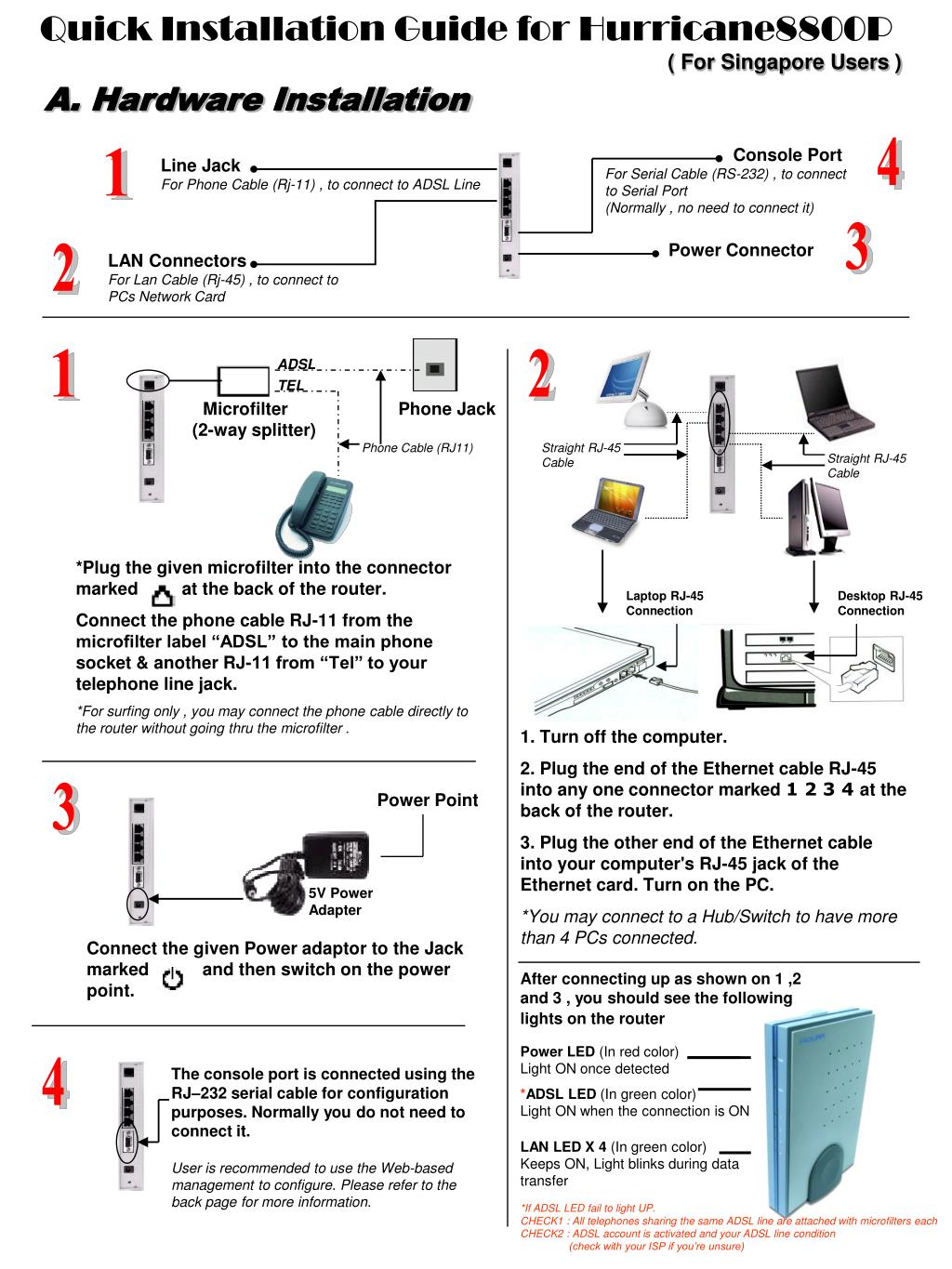

  1. Quick Installation Guide for Hurricane8800P ( For Singapore Users ) A. Hardware Installation Console Port 4 1 Line Jack For Serial Cable (RS-232) , to connect to Serial Port (Normally , no need to connect it) For Phone Cable (Rj-11) , to connect to ADSL Line 3 Power Connector 2 LAN Connectors For Lan Cable (Rj-45) , to connect to PCs Network Card 1 ADSL 2 TEL Microfilter Phone Jack (2-way splitter) Phone Cable (RJ11) Straight RJ-45 Cable Straight RJ-45 Cable *Plug the given microfilter into the connector marked at the back of the router. Connect the phone cable RJ-11 from the microfilter label “ADSL” to the main phone socket & another RJ-11 from “Tel” to your telephone line jack. *For surfing only , you may connect the phone cable directly to the router without going thru the microfilter . Laptop RJ-45 Connection Desktop RJ-45 Connection 1. Turn off the computer. 2. Plug the end of the Ethernet cable RJ-45 into any one connector marked 1 2 3 4 at the back of the router. 3. Plug the other end of the Ethernet cable into your computer's RJ-45 jack of the Ethernet card. Turn on the PC. *You may connect to a Hub/Switch to have more than 4 PCs connected. 3 Power Point 5V Power Adapter Connect the given Power adaptor to the Jack marked and then switch on the power point. After connecting up as shown on 1 ,2 and 3 , you should see the following lights on the router Power LED (In red color) Light ON once detected 4 The console port is connected using the RJ–232 serial cable for configuration purposes. Normally you do not need to connect it. User is recommended to use the Web-based management to configure. Please refer to the back page for more information. *ADSL LED (In green color) Light ON when the connection is ON LAN LED X 4 (In green color) Keeps ON, Light blinks during data transfer *If ADSL LED fail to light UP. CHECK1 : All telephones sharing the same ADSL line are attached with microfilters each CHECK2 : ADSL account is activated and your ADSL line condition (check with your ISP if you’re unsure)

  2. B. Configure Your PCs Specify a static IP for your individual PCs. For Windows 95/98/ME Go To Control Panel >Network>TCP/IP of your LAN card > Properties 1 2 3 4 Add Gateway to 192.168.101.1 Select TCP/IP of your Lan Card and then click Properties Enable DNS server Host : pc Add Singnet/Pacnet DNS 165.21.83.88 *Set IP Address to 192.168.101.X (X : 2~254) Remember to click on the Add button Set Subnet Mask to 255.255.255.0 *IP Address for each PC MUST BE Unique. Example PC 1 IP add is 192.168.101.2 , therefore PC 2 IP add should be 192.168.101.3 and so forth. For Windows 2000/XP Click the Start button and then Control Panel. From there, click the Network and Internet Connections icon. Then click the Network Connections icon 3 4 1 Key in the IP Add , Subnet Mask , Gateway and DNS Server as follow Select the Local Area Connection icon for the applicable Ethernet adapter and then do a Right Click and select Properties 2 Select Internet Protocol(TCP/IP) and then Click Properties Note : The router is OS Independent C. Web-Based Configuration Open Internet Explorer/Netscape , type in http://192.168.101.1 5 Notes: i) You may have to disable the proxy settings on your internet browser. ii) For IE user , go to Tools> Internet Options>Connections>Choose Never dial a connection>go to LAN Settings>Disable Proxy Server ii) For Netscape user , click Edit>Preferences>Advanced>Proxies>Choose Direct connection to the Internet 1 0 Click AddInterface under Security Interface 1 The system will remind you to enter the administrator ’s username and password when restarting or configuring. 6 Add LAN Interface •Name: ppp-0 •Interface Type:external Click Apply The configuration of PPPoA Router mode has been done Default username: admin password: admin 2 *ClickRouter mode under Configuration and choose PPPOA routed. Then click Configure 7 1 1 Click AddInterfaceunder Security Interfaceagain (i) Description: Name of the WAN connection. (e.g. SingNet) (ii) Choose CHAP (iii) User name and Password: The user name and password will be provided by your ISP when applying for ADSL service. (e.g.prolink@singnet) (iv) The rest of the settings will be in default (v) Click theConfigure button 3 8 Add WAN Interface •Name : eth-0 or ip1 •Interface Type : Choose internal Click Apply NOTE: Please remember to save the configuration after finishing the settings. Click Save Config and then click the Save button to store your settings 4 9 ClickSecurity. Choose Enableunder Security State and click Change State *Pls refer to the manual for the configuration of other routing modes. Click Enable NAT to internal interfaces .
