GO NO GO Thread Gauges Ensuring Accurate and Reliable Thread Inspection

GO NO GO Thread Gauges from Gaugestools are designed for accurate inspection of internal and external threads in precision manufacturing. Crafted from hardened, wear-resistant steel, they ensure reliable verification of pitch diameter, thread form, and tolerance limits. The GO gauge confirms proper fit, while the NO GO gauge detects oversize threads. Ideal for quality control, they deliver durability, consistency, and confidence in every measurement. https://www.gaugestools.com/go-no-go-thread-gauge/

gaugestools
Télécharger la présentation

GO NO GO Thread Gauges Ensuring Accurate and Reliable Thread Inspection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

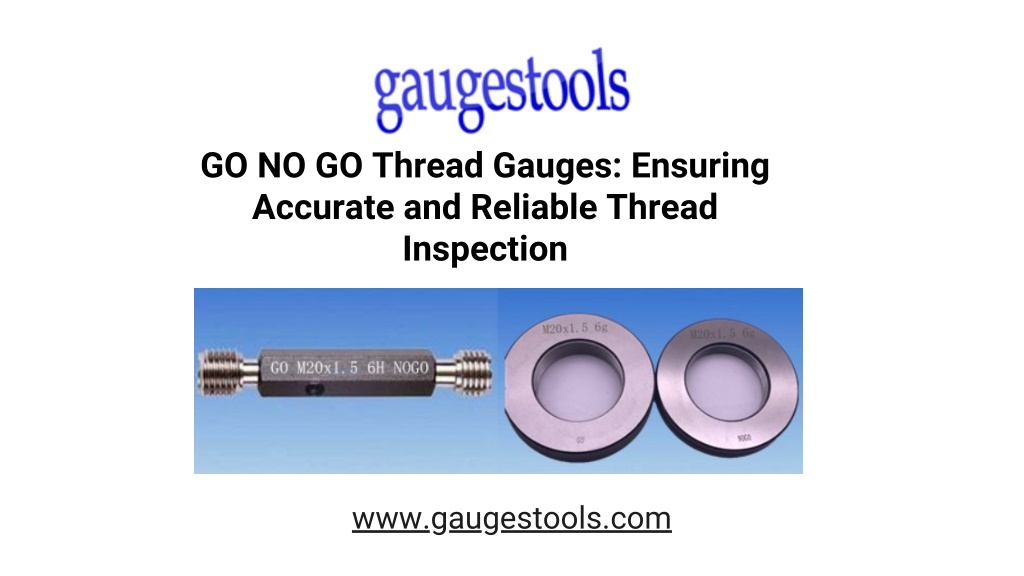

  1. GO NO GO Thread Gauges: Ensuring Accurate and Reliable Thread Inspection www.gaugestools.com

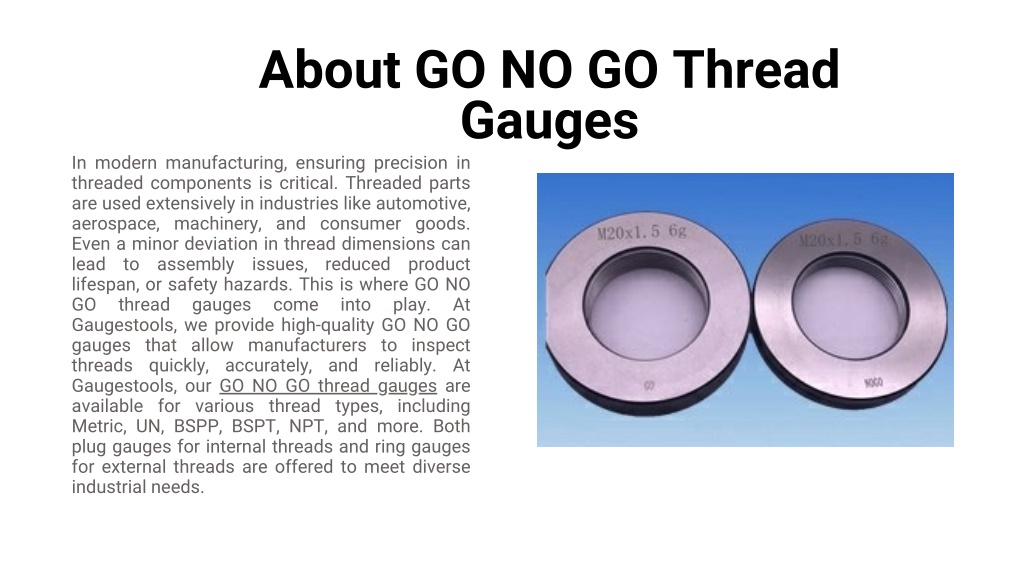

  2. About GO NO GO Thread Gauges In modern manufacturing, ensuring precision in threaded components is critical. Threaded parts are used extensively in industries like automotive, aerospace, machinery, and consumer goods. Even a minor deviation in thread dimensions can lead to assembly issues, reduced product lifespan, or safety hazards. This is where GO NO GO thread gauges come into play. At Gaugestools, we provide high-quality GO NO GO gauges that allow manufacturers to inspect threads quickly, accurately, and reliably. At Gaugestools, our GO NO GO thread gauges are available for various thread types, including Metric, UN, BSPP, BSPT, NPT, and more. Both plug gauges for internal threads and ring gauges for external threads are offered to meet diverse industrial needs.

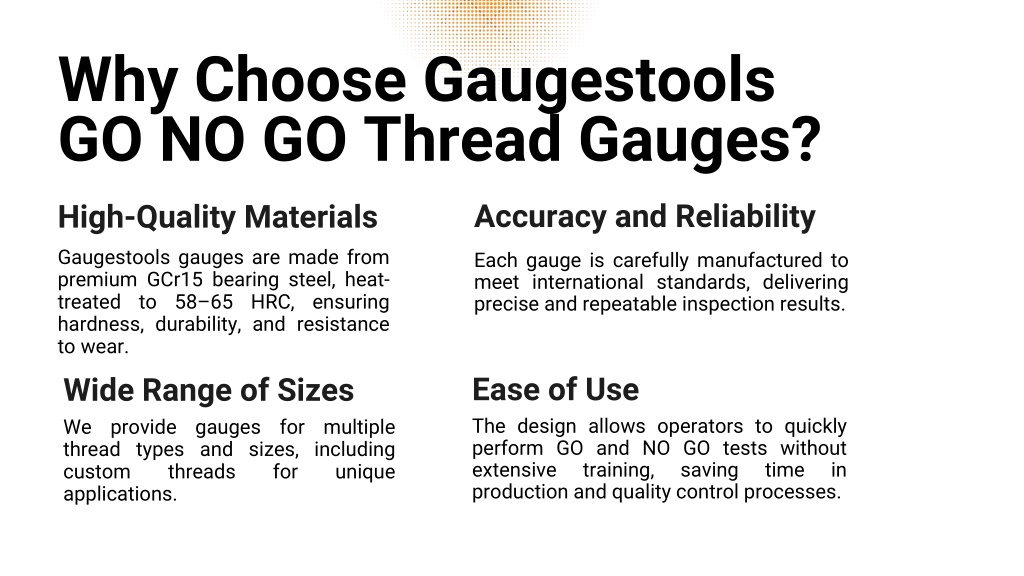

  3. Why Choose Gaugestools GO NO GO Thread Gauges? Accuracy and Reliability High-Quality Materials Gaugestools gauges are made from premium GCr15 bearing steel, heat- treated to 58–65 HRC, ensuring hardness, durability, and resistance to wear. Wide Range of Sizes Each gauge is carefully manufactured to meet international standards, delivering precise and repeatable inspection results. Ease of Use The design allows operators to quickly perform GO and NO GO tests without extensive training, production and quality control processes. We provide gauges for multiple thread types and sizes, including custom threads applications. saving time in for unique

  4. Types of GO NO GO Thread Gauges GO NO GO thread gauges come in two main types: Thread Plug Gauges These gauges are used to inspect internal threads, such as nuts or tapped holes. A plug gauge has both a GO and a NO GO end, often connected with a handle for small sizes or as separate pieces for larger threads. The GO end ensures the minimum thread diameter is met, while the NO GO end confirms the maximum limit is not exceeded. Thread Ring Gauges Ring gauges inspect external threads, such as screws and bolts. The GO ring confirms the thread is not undersized, and the NO GO ring ensures it is not oversized. Gaugestools manufactures durable ring gauges with hardened steel to withstand frequent use while maintaining accuracy.

  5. Applications of GO NO GO Thread Gauges GO NO GO thread gauges are used extensively across industries. Their fast and accurate inspection capability makes them essential for maintaining high-quality standards in mass production. Maintenance & Service Machinery Manufacturing Automotive Ensures screws, and engine components fit precisely. Critical in inspecting high-precision components where safety is paramount. Quick verification of threaded parts in the field without measuring tools. Verifies threaded parts in machines, tools, and heavy equipment.

  6. Benefits of Using GO NO GO Thread Gauges 01 Speed Pass/fail inspection is faster than using micrometers or thread measuring wires. 02 Reliability Provides consistent results even in high- volume production. 03 Durability Properly manufactured gauges, like those from Gaugestools, last for years with minimal wear.

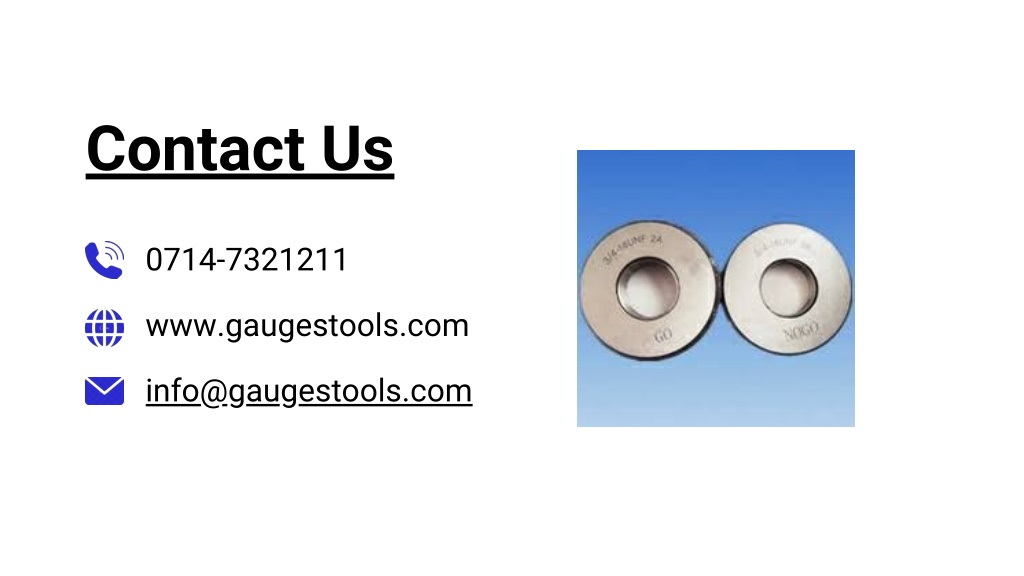

  7. Contact Us 0714-7321211 www.gaugestools.com info@gaugestools.com
