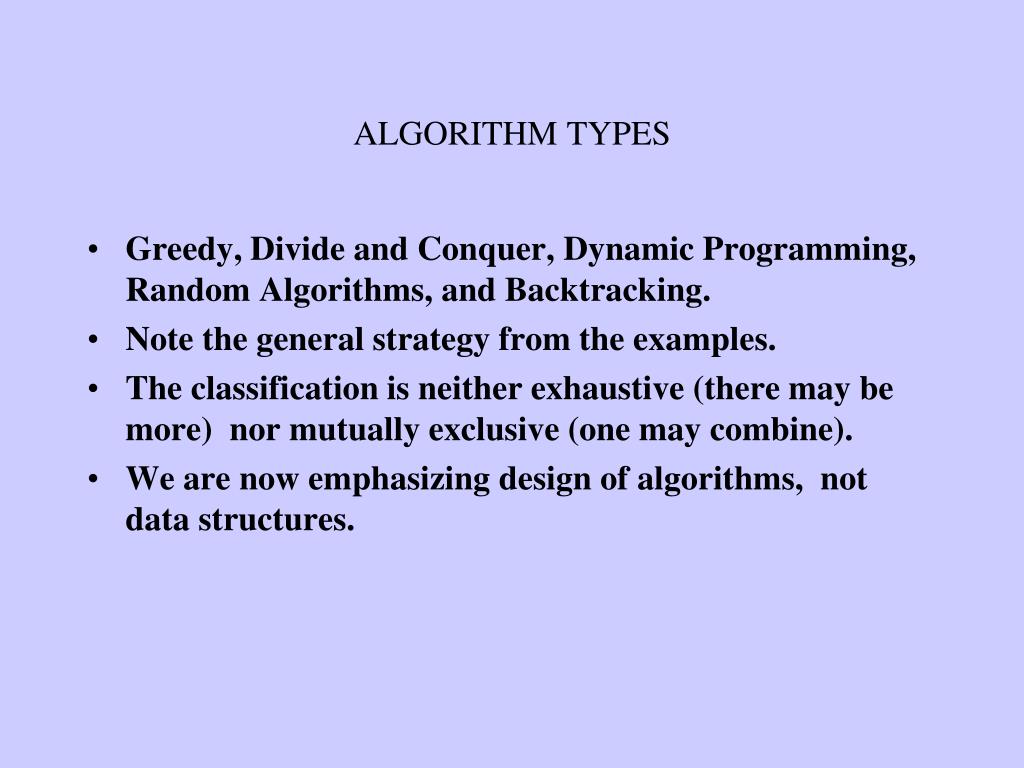

  1. ALGORITHM TYPES Greedy, Divide and Conquer, Dynamic Programming, Random Algorithms, and Backtracking. Note the general strategy from the examples. The classification is neither exhaustive (there may be more) nor mutually exclusive (one may combine). We are now emphasizing design of algorithms, not data structures.

  2. GREEDY: Some Scheduling problems Scheduling Algorithm: Optimizing function is aggregate finish-time with one processor (job-id, duration pairs)::(j1, 15), (j2, 8), (j3, 3), (j4, 10): aggregate FT in this order is 15+23+26+36=100 Note: durations of tasks are getting added multiple times: 15 + (15+8) + ((15+8) + 3) + . . . Optimal schedule is the Greedy schedule: j3, j2, j4, j1. Aggregate FT=3+11+21+36=71 [Let the lower values get added more times: shortest job first] Sort: O(n log n), + Placing: (n), Total: O(n log n),

  3. MULTI-PROCESSOR SCHEDULING (Aggregate FT) Optimizing Fn. Aggregate FT - Strategy: Assign pre-ordered jobs over processors one by one Input (job-id, duration)::(j2, 5), (j1, 3), (j5, 11), (j3, 6), (j4, 10), (j8, 18), (j6, 14), (j7, 15), (j9, 20): 3 proc Sort first: (j1, 3), (j2, 5), (j3, 6), (j4, 10), (j5, 11), (j6, 14), (j7, 15), (j8, 18), (j9, 20) // O (n log n) Schedule next job on earliest available processor Proc 1: j1, j4, j7 Proc 2: j2, j5, j8 Proc 3: j3, j6, j9 // Sort: Theta(n log n), Place: Theta(n), Total: Theta(n log n) Note the first task is to order jobs for a “greedy” pick up

  4. Optimizing Fn. Last FT - Strategy: Sort jobs in reverse order, assign next job on the earliest available processor (j3, 6), (j1, 3), (j2, 5), (j4, 10), (j6, 14), (j5, 11), (j8, 18), (j7, 15), (j9, 20): 3 proc Reverse sort- (j9, 20), (j8, 18), (j7, 15), (j6, 14), (j5, 11), (j4, 10), (j3, 6), (j2, 5), (j1, 3) Proc 1: j9 - 20, j4 - 30, j1 - 33. Proc 2: j8 - 18, j5 - 29, j3 - 35, Proc 3: j7 - 15, j6 - 29, j2 - 34, Last FT = 35. // sort: O(n log n) // place: naïve: (nM), with heap over processors: O(n log m) Optimal: Proc1: j2, j5, j8; Proc 2: j6, j9; Proc 3: j1, j3, j4, j7. Last FT = 34. Greedy alg is not optimal algorithm here, but the relative err <= [1/3 - 1/3m], for m processors. An NP-complete problem, greedy alg is polynomial O(n logn) for n jobs (from sorting, assignment is additional O(n), choice of next proc. In each cycle O(log m) using heap, total O(n logn + n logm), for n>>m the first term dominates). MULTI-PROCESSOR SCHEDULING (Last FT)

  5. HUFFMAN CODES Problem: device a (binary) coding of alphabets for a text, given their frequency in the text, such that the total number of bits in the translation is minimum. Encoding: alphabets on leaves of a binary tree (each edge indicating 0 or 1). Result of Weiss’ book: Fig 10.11, page 392, for 7 alphabets: (a, 001, freq=10, total=3x10=30 bits), (e, 01, 15, 2x15=30 bits), (i, 10, 12, 24 bits), (s, 00000, 3, 15 bits), (t, 0001, 4, 16 bits), (space, 11, 13, 26 bits), (newline, 00001, 1, 5 bits), Total bits=146 is the minimum possible.

  6. HUFFMAN CODES: Algorithm At every iteration, form a binary tree using the two smallest (lowest aggregate frequency) available trees in a forest, the tree’s frequency is the aggregate of its leaves’ frequency. Start from a forest of all nodes (alphabets) with their frequencies being their weights. When the final single binary-tree is formed use that tree for encoding. Example: Weiss: page 390-395.

  7. HUFFMAN CODES: Complexity First, initialize a min-heap for n nodes: O(n) Pick 2 best (minimum) trees: 2(log n) Do that for an order of n times: O(n log n) Insert 1 or 2 trees in the heap: O(log n) Do that for an order of n times: O(n log n) Total: O(n log n)

  8. RATIONAL KNAPSACK(not in the text) Given a set of objects with (Weight, Profit) pair, and a Knapsack of limited weight capacity (M), find a subset of objects for the knapsack to maximize profit, partial objects (broken) are allowed. Greedy Algorithm: Put objects in the KS in a non-increasing (high to low) order of profit density (profit/weight). Break the last object which does not fit in the KS otherwise. Example: (4, 12), (5, 20), (10, 10), (12, 6); M=14. Solution: KS={(5, 20), (4, 12), (5, 5), Weight=14, Profit=37}. Optimal, polynomial algorithm O(N log N) for N objects - from sorting. 0-1 KS problem: cannot break any object: NP-complete, Greedy Algorithm is no longer optimal.

  9. APPROXIMATE BIN PACKING Problem: fill in objects each of size<= 1, in minimum number of bins (optimal) each of size=1 (NP-complete). Example: 0.2, 0.5, 0.4, 0.7, 0.1, 0.3, 0.8. Solution: B1: 0.2+0.8, B2: 0.3+0.7, B3: 0.1+0.4+0.5. All bins are full, so must be optimal solution (note: optimal solution need not have all bins full). Online problem: do not have access to the full set: incremental; Offline problem: can order the set before starting.

  10. ONLINE BIN PACKING Theorem 1: No online algorithm can do better than 4/3 of the optimal #bins, for any given input set. Proof. (by contradiction: we will use a particular input set, on which our online algorithm A presumably violates the Theorem) Consider input of M items of size 1/2 - k, followed by M items of size 1/2 + k, for 0<k<0.01 [Optimum #bin should be M for them.] Suppose alg A can do better than 4/3, and it packs first M items in b bins, which optimally needs M/2 bins. So, by assumption of violation of Thm, b/(M/2)<4/3, or b/M<2/3 [fact 0]

  11. ONLINE BIN PACKING • Each bin has either 1 or 2 items • Say, the first b bins containing x items, • So, x is at most or 2b items • So, left out items are at least or (2M-x) in number [fact 1] • When A finishes with all 2M items, all 2-item bins are within the first b bins, • So, all of the bins after first b bins are 1-item bins [fact 2] • fact 1 plus fact 2: after first b bins A uses at least or (2M-x) number of bins • or BA (b + (2M - 2b)) = 2M - b.

  12. ONLINE BIN PACKING • - So, the total number of bins used by A (say, BA) is at least • or, BA (b + (2M - 2b)) = 2M - b. • - Optimal needed are M bins. • - So, (2M-b)/M < (BA /M)  4/3 (by assumption), • or, b/M>2/3 [fact 4] • - CONTRADICTION between fact 0 and fact 4 => A can never do better than 4/3 for this input.

  13. NEXT-FIT ONLINE BIN-PACKING If the currentitem fits in the currentbin put it there, otherwise move on to the next bin. Linear time with respect to #items - O(n), for n items. Example: Weiss Fig 10.21, page 364. Thm 2: Suppose, M optimum number of bins are needed for an input. Next-fit never needs more than 2M bins. Proof: Content(Bj) + Content(Bj+1) >1, So, Wastage(Bj) + Wastage(Bj+1)<2-1, Average wastage<0.5, less than half space is wasted, so, should not need more than 2M bins.

  14. FIRST-FIT ONLINE BIN-PACKING Scan the existing bins, starting from the first bin, to find the place for the next item, if none exists create a new bin. O(N2) naïve, O(NlogN) possible, for N items. Obviously cannot need more than 2M bins! Wastes less than Next-fit. Thm 3: Never needs more than Ceiling(1.7M). Proof: too complicated. For random (Gaussian) input sequence, it takes 2% more than optimal, observed empirically. Great!

  15. BEST-FIT ONLINE BIN-PACKING Scan to find the tightest spot for each item (reduce wastage even further than the previous algorithms), if none exists create a new bin. Does not improve over First-Fit in worst case in optimality, but does not take more worst-case time either! Easy to code.

  16. OFFLINE BIN-PACKING Create a non-increasing order (larger to smaller) of items first and then apply some of the same algorithms as before. GOODNESS of FIRST-FIT NON-INCREASING ALGORITHM: Lemma 1: If M is optimal #of bins, then all items put by the First-fit in the “extra” (M+1-th bin onwards) bins would be of size  1/3 (in other words, all items of size>1/3, and possibly some items of size  1/3 go into the first M bins). Proof of Lemma 1. (by contradiction) Suppose the lemma is not true and the first object that is being put in the M+1-th bin as the Algorithm is running, is say, si, is of size>1/3. Note, none of the first M bins can have more than 2 objects (size of each>1/3). So, they have only one or two objects per bin.

  17. Proof of Lemma 1 continued. We will prove that the first j bins (0  jM) should have exactly 1 item each, and next M-j bins have 2 items each (i.e., 1 and 2 item-bins do not mix in the sequence of bins) at the time si is being introduced. Suppose contrary to this there is a mix up of sizes and bin# B_x has two items and B_y has 1 item, for 1x<yM. The two items from bottom in B_x, say, x1 and x2; it must be x1y1, where y1 is the only item in B_y At the time of entering si, we must have {x1, x2, y1}  si, because si is picked up after all the three. So, x1+ x2  y1 + si. Hence, if x1 and x2 can go in one bin, then y1 and si also can go in one bin. Thus, first-fit would put si in By, and not in the M+1-th bin. This negates our assumption that single occupied bins could mix with doubly occupied bins in the sequence of bins (over the first M bins) at the moment M+1-th bin is created. OFFLINE BIN-PACKING

  18. Proof of Lemma 1 continued: Now, in an optimal fitthat needs exactly M bins: si cannot go into first j-bins (1 item-bins), because if it were feasible there is no reason why First-fit would not do that (such a bin would be a 2-item bin within the 1-item bin set). Similarly, if si could go into one of the next (M-j) bins (irrespective of any algorithm), that would mean redistributing 2(M-j)+1 items in (M-j) bins. Then one of those bins would have 3 items in it, where each item>1/3 (because si>1/3). So, si cannot fit in any of those M bins by any algorithm, if it is >1/3. Also note that if si does not go into those first j bins none of objects in the subsequent (M-j) bins would go either, i.e., you cannot redistribute all the objects up to si in the first M bins, or you need more than M bins optimally. This contradicts the assumption that the optimal #bin is M. Restating: either si  1/3, or if si goes into (M+1)-th bin then optimal number of bins could not be M. In other words, all items of size >1/3 goes into M or lesser number of bins, when M is the optimal #of bins for the given set. End of Proof of Lemma 1. OFFLINE BIN-PACKING

  19. Lemma 2: The #of objects left out after M bins are filled (i.e., the ones that go into the extra bins, M+1-th bin onwards) are at most M. [This is a static picture after First Fit finished working] Proof of Lemma 2. On the contrary, suppose there are M or more objects left. [Note that each of them are <1/3 because they were picked up after si from the Lemma 1 proof.] Note, j=1Nsj  M, since M is optimum #bins, where N is #items. Say, each bin Bj of the first M bins has items of total weight Wj in each bin, and xk represent the items in the extra bins ((M+1)-th bin onwards): x1, …, xM, … OFFLINE BIN-PACKING

  20. OFFLINE BIN-PACKING •  i=1N si j=1M Wj + k=1Mxk (the first term sums over bins, & the second term over items) = j=1M (Wj + xj) • But  i=1N si  M, • or, j=1M (Wj + xj)  i=1N si  M. • So, Wj+xj  1 • But, Wj+xj > 1, otherwise xj (or one of the xi’s) would go into the bin containing Wj, by First-fit algorithm. • Therefore, we have i=1Nsi > M. A contradiction. End of Proof of Lemma 2.

  21. Theorem: If M is optimum #bins, then First-fit-offline will not take more than M + (1/3)M #bins. Proof of Theorem10.4. #items in “extra” bins is  M. They are of size  1/3. So, 3 or more items per those “extra” bins. Hence #extra bins itself  (1/3)M. # of non-extra (initial) bins = M. Total #bins  M + (1/3)M End of proof. OFFLINE BIN-PACKING

  22. Example: MergeSort, QuickSort, Binary-search. Recursive calls on divided parts of the input, combine the results from those calls, and then return. A special case of recurrence equation becomes important in analysis (Master Theorem) T(N) = aT(N/b) + (Nk), where a1 and b>1. Solution: T(N) = [case 1] for a>bk, (Nlogba) [case 2] for a = bk, (Nk logN) [case 3] for a<bk, (Nk) Proof: [Easy, READ IT, Weiss: p 371-373] DIVIDE and CONQUER STRATEGY

  23. Example: Binary Search Algorithm BinSearch (array a, int start, int end, key) // T(N) if start=end // (1) if a[start] = = key then return start else return failure; else // start  end center = (start+end)/2; if a[center] < key BinSearch (a, start, center, key) else BinSearch (a, center+1, end, key); // T(n/2) end if; End BinSearch. // T(N) = 1 + T(N/2)

  24. INTEGER MULTIPLICATION: Divide the bits/digits into two sets, X = XL*10(size/2) + XR, and Y = YL*10(size/2) + YR X*Y = XL*YL*10(size) + (XL*YR + XR*YL)*10 (size/2) + XR*YR, four recursive calls to problems of size=size/2, and three additions of size=size/2. T(N) = 4T(N/2) + O(N), or a=4, b=2, and k=1, or case of a>bk. Solution, T(N) = O(N logba) = O(N2). DIVIDE and CONQUER STRATEGY

  25. DIVIDE and CONQUER STRATEGY: INTEGER MULT • Change the algorithm for three recursive calls! • XL*YR + XR*YL = (XL - XR)*(YR - YL) + XL*YL + XR*YR • Now, T(N) = 3T(N/2) + O(N). • More additions, but the order (last term) does not change • Same case, but solution is, • T(N) = O(Nlog23) = O(N1.59).

  26. MATRIX MULTIPLICATION: Naïve multiplication: O(N3) Divide two square matrices into 4 parts each of size N/2, and recursively multiply (N/2 x N/2) matrices, and add resulting (N/2 x N/2) matrices, then put them back to their respective places. Eight recursive calls, O(N2) overhead for additions. T(N) = 8T(N/2) + O(N2). Solution [case a >bk]: T(N) = O(N^ logba) = O(N3) Strassen’s algorithm; rewrite multiplication formula reducing recursive calls to 7 from 8. T(N) = 7T(n/2) + O(N2) Solution: T(N) = O(Nlog27) = O(N2.81) DIVIDE and CONQUER STRATEGY

  27. In case the divide and conquer strategy can divide the problem at a very small level, and there are repetition of some calculation over some components, then one can apply a bottom up approach: calculate the smaller components first and then keep combining them until the highest level of the problem is solved. Draw the recursion tree of Fibonacci-series calculation, you will see example of such repetitive calculations f(n) = f(n-1) + f(n-2), for n>1; and f(n)=1 otherwise fib(n) calculation n = 1, 2, 3, 4, 5 fib = 1, 2, 3, 5, 8 [ p 385] DYNAMIC PROGRAMMING STRATEGY

  28. DYNAMIC PROGRAMMING STRATEGY (Continued) Recursive fib(n) if (n<=1) return 1; else return (fib(n-1) + fib(n-2)). Time complexity: exponential, O(kn) for some k>1.0 Iterative fibonacci(n) fib(0) = fib(1) = 1; for i=2 through n do fib(i) = fib(i-1) + fib(i-2); end for; return fib(n). Time complexity: O(n), Space complexity: O(n)

  29. SpaceSaving-fibonacci(n) if (n<=1) return 1; int last=1, last2last=1, result=1; for i=2 through n do result = last + last2last; last2last = last; last=result end for; return result. Time complexity: O(n), Space complexity: O(1) DYNAMIC PROGRAMMING STRATEGY (Continued)

  30. The recursive call recalculates fib(1) 5 times, fib(2) 3 times, fib(3) 2 times - in fib(5) calculation. The complexity is exponential. In iterative calculation we avoid repetition by storing the needed values in variables - complexity of order n. Dynamic Programming approach consumes more memory to store the result of calculations of lower levels for the purpose of calculating the next higher level. They are typically stored in atable. DYNAMIC PROGRAMMING STRATEGY (Continued)

  31. Same as the Rational Knapsack Problem, except that you MAY NOT break any object. The Greedy algorithm no longer gets correct answer. DP uses a table for optimal profit P(j, k): for the first j objects (in any arbitrary ordering of objects) with a variable knapsack limit k. Develop the table with rows j=1 through N (#objects), and for each row, go from k=0 through M (the KS limit). Finally P(N, M) gets the result. 0-1 Knapsack Problem (not in the book)

  32. 0-1 Knapsack Problem (not in the book) • The formula for • P(j, k) = (case 1) P(j-1, k), if wj>k, wj weight of the j-th object; else • P(j, k) = (case2) max-between{P(j-1, k-wj)+pj, P(j-1, k)} • Explanation for the formula is quite intuitive.

  33. 0-1 knapsack recursive algorithm Algorithm P(j, k) If j = = 0 or k = = 0 then return 0; //recursion termination else if Wj>k then return P(j-1, k) else return max{P(j-1, k-Wj) + pj, P(j-1, k)} End algorithm. Driver: call P(n, M), for given n objects & KS limit M. Complexity: ?

  34. 0-1 Knapsack DP-algorithm For all j, k, P(0, k) = P(j, 0) = 0; //initialize For j=1 to n do For k= 1 to m do if Wj>k then P(j, k) = P(j-1, k) else P(j, k)= max{P(j-1, k-Wj) + pj, P(j-1, k)} Complexity: O(NM), pseudo-polynomial because M is an input value. If M=30.5 the table would be of size O(10NM), or if M=30.54 it would be O(100NM).

  35. 0-1 Knapsack Problem (Example) Objects (wt, p) = {(2, 1), (3, 2), (5, 3)}. M=8 J| 0 1 2 3 4 5 6 7 8 O -- -- -- -- -- -- -- -- -- 1| 0 0 1 1 1 1 1 1 1 2| 0 0 1 2 2 3 3 3 3 3| 0 0 1 2 2 3 3 4 5 HOW TO FIND KS CONTENT FROM TABLE? SPACE COMPLEXITY?

  36. ABCD a chain of matrices to be multiplied, where A (5x1), B(1x4), C(4x3), and D(3x6). Resulting matrix would be of size (5x6). # scalar or integer multiplications for (BC), is 1.4.3, and the resulting matrix’s dimension is (1x3), 1 column and 3 rows. Ordering of Matrix-chain Multiplications

  37. Ordering of Matrix-chain Multiplications • There are multiple ways to order the multiplication: (A(BC))D, A(B(CD)), (AB)(CD), ((AB)C)D, and A((BC)D). Resulting matrix would be the same but the efficiency of calculation would vary drastically. • Efficiency depends on #scalar multiplications. In the case of (A(BC))D, it is = 1.4.3 + 5.1.3 + 5.3.6 = 117. In the case (AB)CD), it is = 4.3.6 + 1.4.6 + 5.1.6 = 126. • Our problem here is to find the best such ordering. An exhaustive search is too expensive - Catalan number involving n!

  38. For a sequence A1...(Aleft....Aright)...An, we want to find optimal break point for the parenthesized sequence. Calculate for ( right-left+1) number of cases and find minimum: min{(Aleft...Ai) (Ai+1... Aright), with left  i < right}, Or, M(left, right) = min{M(left, i) + M(i+1, right) + rowleft .coli .colright, with left  i < right}. Start the calculation at the lowest level with two matrices, AB, BC, CD etc. Then calculate for triplets, ABC, BCD etc. And so on.. Ordering of Matrix-chain Multiplications continued

  39. Matrix-chain Recursive algorithm Recursive Algorithm M(left, right) if left > right return 0 else return min{M(left, i) + M(i+1, right) + rowleft .coli .colright, for lefti<right}; end algorithm. Driver: call M(1, n).

  40. Matrix-chain DP-algorithm for all 1 j<i  n do M[i][j] = 0; //lower triangle 0 for size = 1 to n do // size of subsequence for l =1 to n-size+1 do r = left+size-1; //move along diagonal M[l][r] = infinity; //minimizer for i = l to r do x = M(l, i) + M(i+1, r) + rowleft .coli .colright; if x < min then M(l, r) = x // Complexity?

  41. A1 (5x3), A2 (3x1), A3 (1x4), A4 (4x6). c(1,1) = c(2, 2) = c(3, 3) = c(4, 4) = 0 c(1, 2) = c(1,1) + c(2,2) + 5.3.1 = 0 + 0 + 15. c(1,3) = min{I=1 c(1,1)+c(2,3)+5.3.4, I=2 c(1,2)+c(3,3)+5.1.4 } = min{72, 35} = 35(2) c(1,4) = min{ I=1 c(1,1)+c(2,4)+5.3.6, I=2 c(1,2)+c(3,4)+5.1.6, I=3 c(1,3)+c(4,4)+5.4.6} = min{132, 69, 155} = 69(2) 69 comes from the break-point i=2: (A1.A2)(A3.A4) You may need to recursively break the sub-parts too, by looking at which value of i gave the min value at that stage, e.g., for (1,3) it was i=2: (A1.A2)A3 Ordering of Matrix-chain Multiplications (Example)

  42. j = 1 2 3 4 i 1 0 15 35(2) 69(2) 2 0 12 42 3 0 24 4 0 Calculation goes diagonally. Ordering of Matrix-chain Multiplications (Example) Triplets Pairs

  43. Computing the actual break points j = 1 2 3 4 5 6 i 1 - - (2) (2) (3) (3) 2 - - (3) (3) (4) 3 - - (4) (4) 4 - (3) (4) 5 - - - 6 - - - ABCDEF -> (ABC)(DEF) -> ((AB)C) (D(EF))

  44. Ordering of Matrix-chain Multiplications (DP Algorithm) Algorithm optMult: returns cost matrix m and tracking matrix lastChange. (1) for (left=1 through n) do cost[left][left] = 0; (2) for k=2 through n do // k is the size of the sub-chain for left=1 through (n-k+1) do right=left+k-1; (5) cost[left][right] = infinity; //break is between I and I+1 for I=left through (right-1) do (7) cst=cost[left][I]+cost[I+1][right] + row[left]*col[I]*col[right]; (8) if (cst<cost[left][right]) then (9) cost[left][right] = cst; (10) lastChange[left][right]=I;

  45. Optimal Binary Search Tree [REMIND BINARY-SEARCH TREE for efficiently accessing an element in an ordered list] [DRAW MULTIPLE BIN-SEARCH TREES FOR SAME SET, EXPLAIN ACCESS STEP FOR NODES.] Note: the access step for each node is its distance from the root plus one. So, it is relative to the sub-tree in which the node is in. Assume some measure of frequency of access is associated with data at each node. Then different tree organization will have different aggregate access steps over all nodes, because the depths of the nodes are different on different tree. [EXPLAIN DIFFERENT AGGREGATE COST FOR DIFFERENT TREE.] Problem: We want to find the optimal aggregate access steps, and a bin-search tree organization that produces it.

  46. Optimal Binary Search Tree (Continued) Say, the optimal cost for a sub-tree is C(left, right). Note, when this sub-tree is at depth one (under a parent, within another higher level sub-tree) then EACH node’s access step will increase by 1 in the higher level subtree.

  47. a1 a2 … aleft … ak … aright … an fk C(k+1, right) C(left, k-1)

  48. Optimal Binary Search Tree (Continued) If the i-th node is at the root for this sub-tree, then C(left, right) = min[left i right] { f(i) + C(left, i-1) + C(i+1, right) + åj=lti-1f(j) + åj=i+1rt f(j)} [additional costs] = min[left  i  right] { C(left, i-1) + C(i+1, right) + åj=ltrtf(j)} We will use the above formula to compute C(1, n). We will start from one element sub-tree and finish with n element full tree.

  49. Optimal Binary Search Tree (Continued) Like matrix-chain multiplication-ordering we will develop a triangular part of the cost matrix (rt>= lt), and we will develop it diagonally(rt = lt + size) Note that our boundary condition is different now, c(left, right)=0 if left>right (meaningless cost) We start from, left=right: single node trees (not with left=right-1: pairs of matrices, as in matrix-chain-mult case). Also, i now goes from ‘left’ through ‘right,’ and i is excluded from both the subtrees’ C’s.

  50. Optimal Binary Search Tree (Example) Keys: A1(7), A2(10), A3(5), A4(8), and A5(4). C(1, 1)=7, C(2, 2)=10, …. C(1,2)=min{k=1C(1,0)+C(2,2)+f1+f2=0+10+17, k=2C(1,1) + C(3,2) + f1+f2 = 7 + 0 + 17} = min{27, 24} = 24 (i=2) j = 1 2 3 4 5 i 1 7 24(2) 34 55 67 2 0 10 20 41 51 3 0 5 18 26 4 0 8 16 5 0 4 This algorithm: O(n3). However, O(n2) is feasible.
