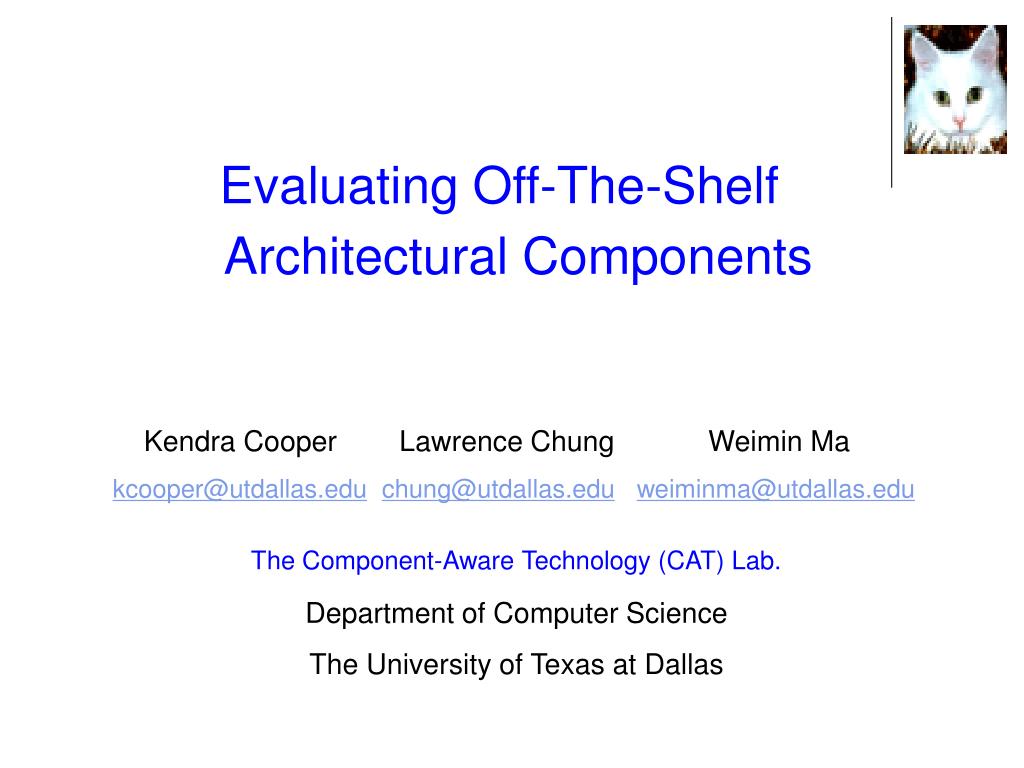

  1. Evaluating Off-The-Shelf Architectural Components Kendra Cooper Lawrence Chung Weimin Ma kcooper@utdallas.educhung@utdallas.eduweiminma@utdallas.edu The Component-Aware Technology (CAT) Lab. Department of Computer Science The University of Texas at Dallas

  2. An Example: Home Appliance Control System (HACS) What do I need ??? What is the type of HACS Controller? What is the type of AC Controller?

  3. Evaluating Home Appliance Control System (HACS) Components Specifier How to effectively evaluate components, simple and composite?

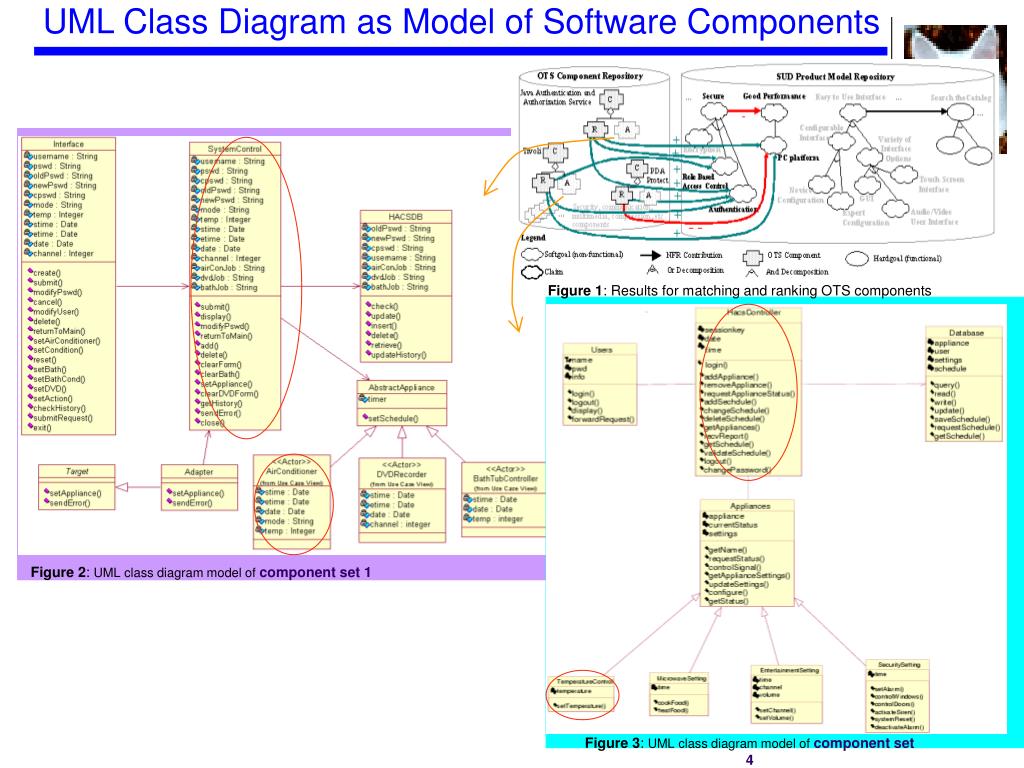

  4. UML Class Diagram as Model of Software Components Figure 1: Results for matching and ranking OTS components Figure 2: UML class diagram model of component set 1 Figure 3: UML class diagram model of component set 4

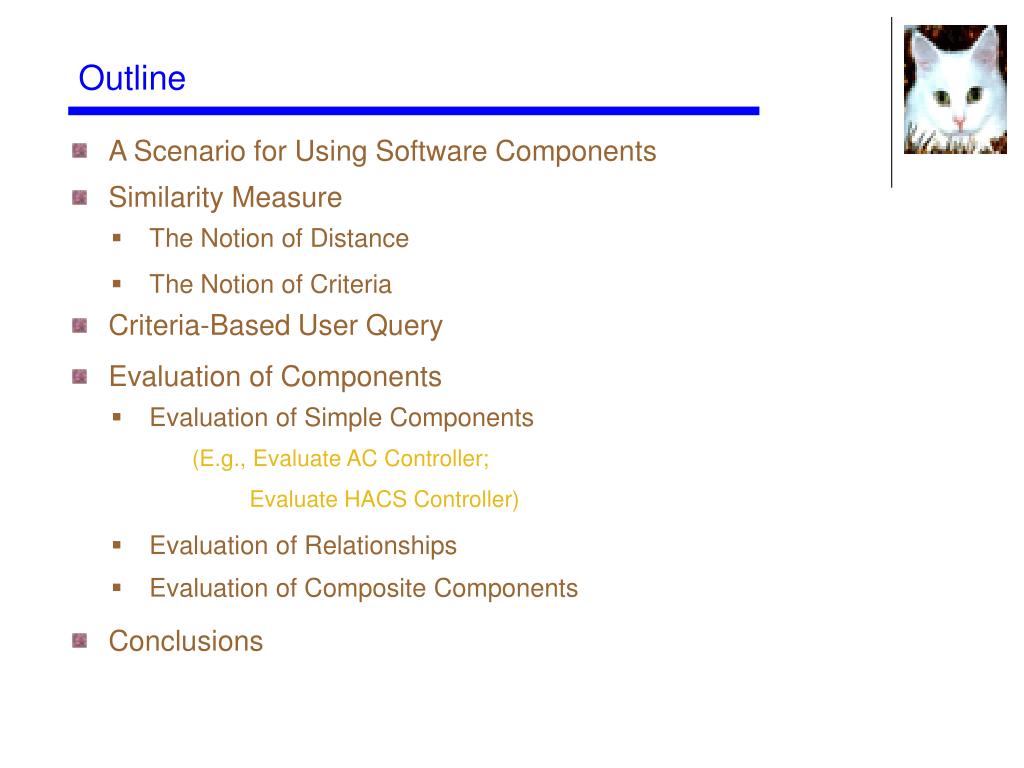

  5. Outline • A Scenario for Using Software Components • Similarity Measure • The Notion of Distance • The Notion of Criteria • Criteria-Based User Query • Evaluation of Components • Evaluation of Simple Components (E.g., Evaluate AC Controller; Evaluate HACS Controller) • Evaluation of Relationships • Evaluation of Composite Components • Conclusions

  6. Evaluator User A Scenario for Using Software Components 2. Is there an AC Controller with feature “Set Temp”? 3. Component set 3>>4>{1, 2} Searching … 1. I need AC Controller with feature “Set Temp” & HACS Controller with feature “Check Status”. Component Sets/Vendors 1,2 3,4 4. Is there a HACS Controller with feature “Check Status”? negotiate Specifier 5. Component set 3>>4>>1>>2 Evaluator 6. Do HACS Controller and AC Controller fit together well? 7. Component set {2, 3}>>{1, 4} 8. How well do the component sets match? 9. A possible ranking: 3>>{4, 2}>>1 >>: better match

  7. Similarity Measure: The Notion of Distance Simple Component: Composite Component: Distance is 1. Distance is 1. ？ ？ Distance is 0. ？ Distance is 2. Distance is 1. Distance is 1. Distance is 3. Distance is 2. Distance is 1. No context consideration. Criterion a: number of figures. Criterion a: number of figures. Criterion b: number & shape of figures. Criterion b: number & shape of figures. Type of relationship & number of extra intermediaries Criteria are necessary for software component evaluation!

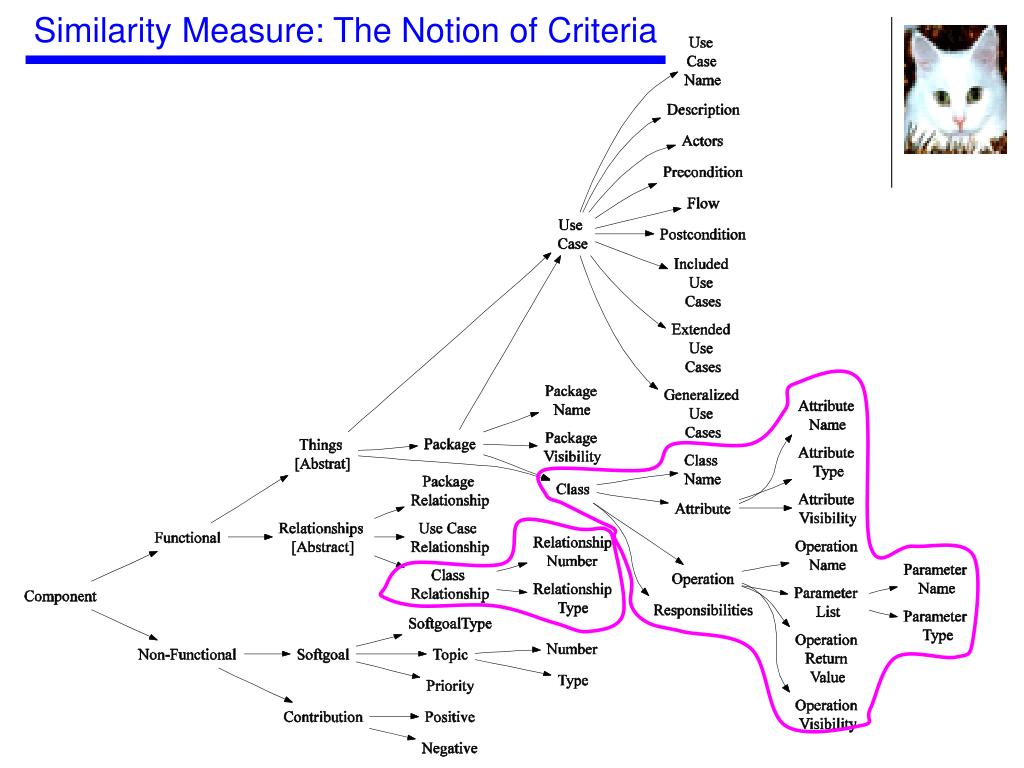

  8. Similarity Measure: The Notion of Criteria

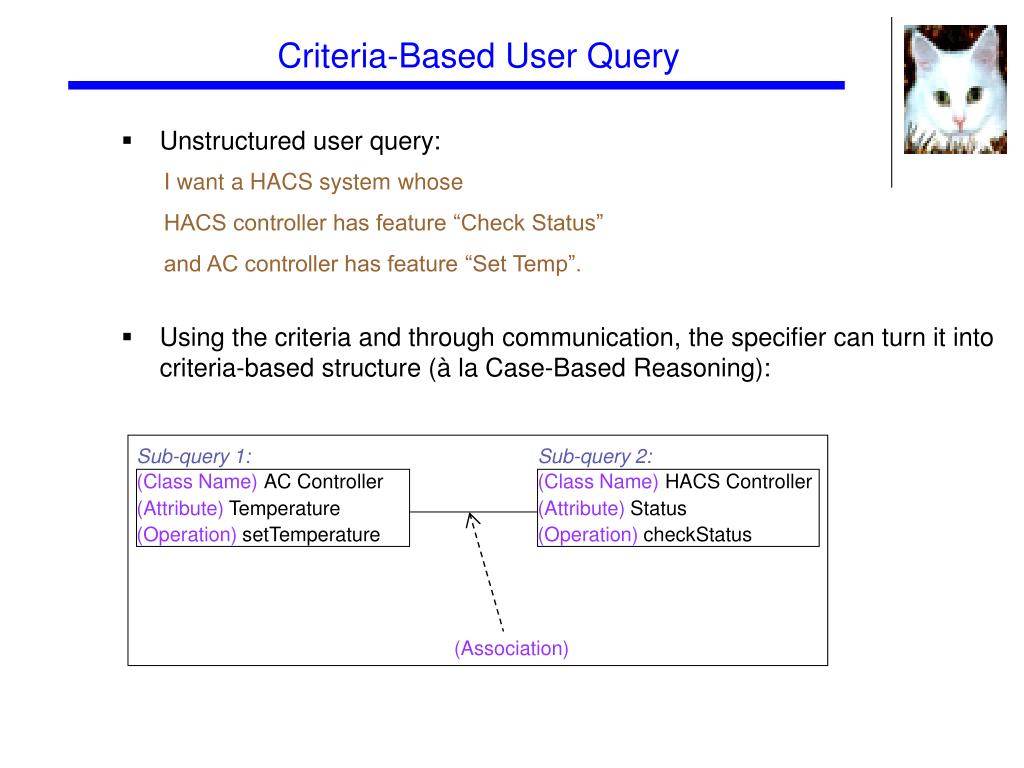

  9. Criteria-Based User Query • Unstructured user query: I want a HACS system whose HACS controller has feature “Check Status” and AC controller has feature “Set Temp”. • Using the criteria and through communication, the specifier can turn it into criteria-based structure (à la Case-Based Reasoning): Sub-query 1: Sub-query 2: (Class Name)AC Controller (Attribute) Temperature (Operation) setTemperature (Class Name)HACS Controller (Attribute) Status (Operation) checkStatus (Association)

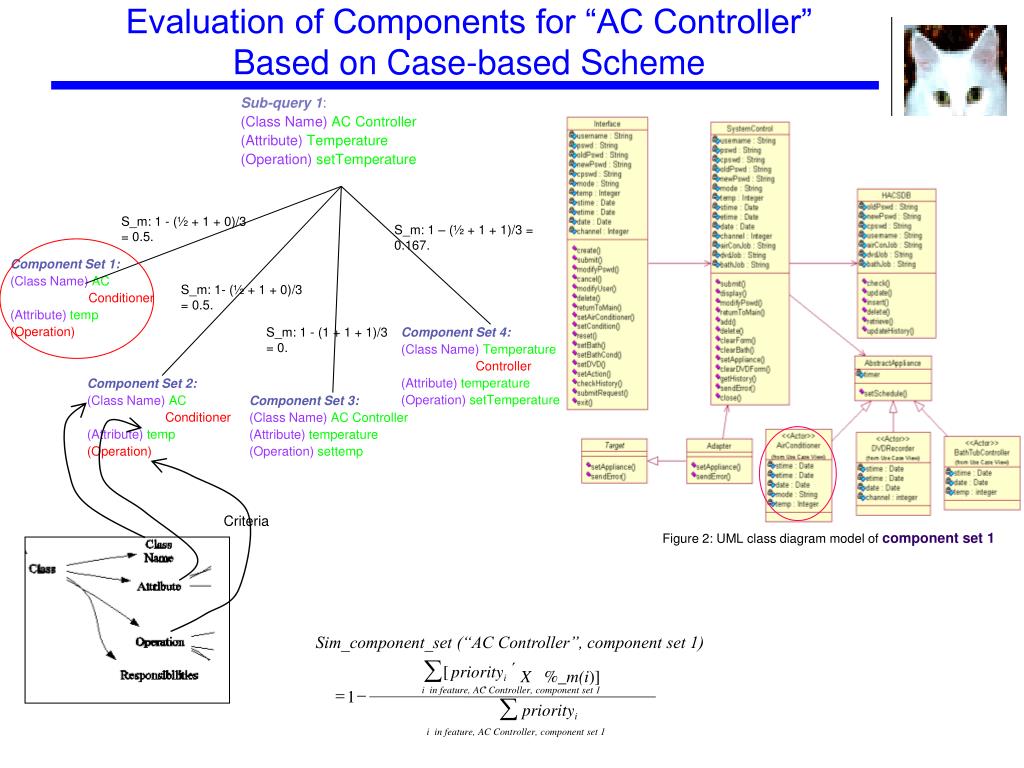

  10. Evaluation of Components for “AC Controller” Based on Case-based Scheme Sub-query 1: (Class Name) AC Controller (Attribute) Temperature (Operation) setTemperature S_m: 1 - (½ + 1 + 0)/3 = 0.5. S_m: 1 – (½ + 1 + 1)/3 = 0.167. Component Set 1: (Class Name) AC Conditioner (Attribute) temp (Operation) S_m: 1- (½ + 1 + 0)/3 = 0.5. S_m: 1 - (1 + 1 + 1)/3 = 0. Component Set 4: (Class Name) Temperature Controller (Attribute) temperature (Operation) setTemperature Component Set 2: (Class Name) AC Conditioner (Attribute) temp (Operation) Component Set 3: (Class Name) AC Controller (Attribute) temperature (Operation) settemp Criteria Figure 2: UML class diagram model of component set 1 Sim_component_set (“AC Controller”, component set 1) å ´ [ priority X %_m(i)] i i in feature, AC Controller, component set 1 " = - 1 å priority i i in feature, AC Controller, component set 1

  11. Evaluation of Components for “HACS Controller” Based on Case-based Scheme Sub-query 2: (Class Name) HACS Controller (Attribute) Status (Operation) checkStatus S_m: 1 – (½ + 0 + ¼)/3 = 0.75. S_m: 1 – (1 + 0 + 0)/3 = 0.667. Component Set 1: (Class Name) System Control (Attribute) (Operation) getHistory Component Set 4: (Class Name) HACS Controller (Attribute) (Operation) S_m: 1 – (½ + 0 + 0)/3 = 0.833. S_m: 1 – (½ + 0 + 1)/3 = 0.5. Component Set 2: (Class Name) System Control (Attribute) (Operation) Component Set 3: (Class Name) HACS Interaction Device (Attribute) (Operation) checkstatus Figure 2: UML class diagram model of component set 1 Criteria Sim_component_set (“AC Controller”, component set 1) å ´ [ priority X %_m(i)] i i in feature, AC Controller, component set 1 " = - 1 å priority i i in feature, AC Controller, component set 1

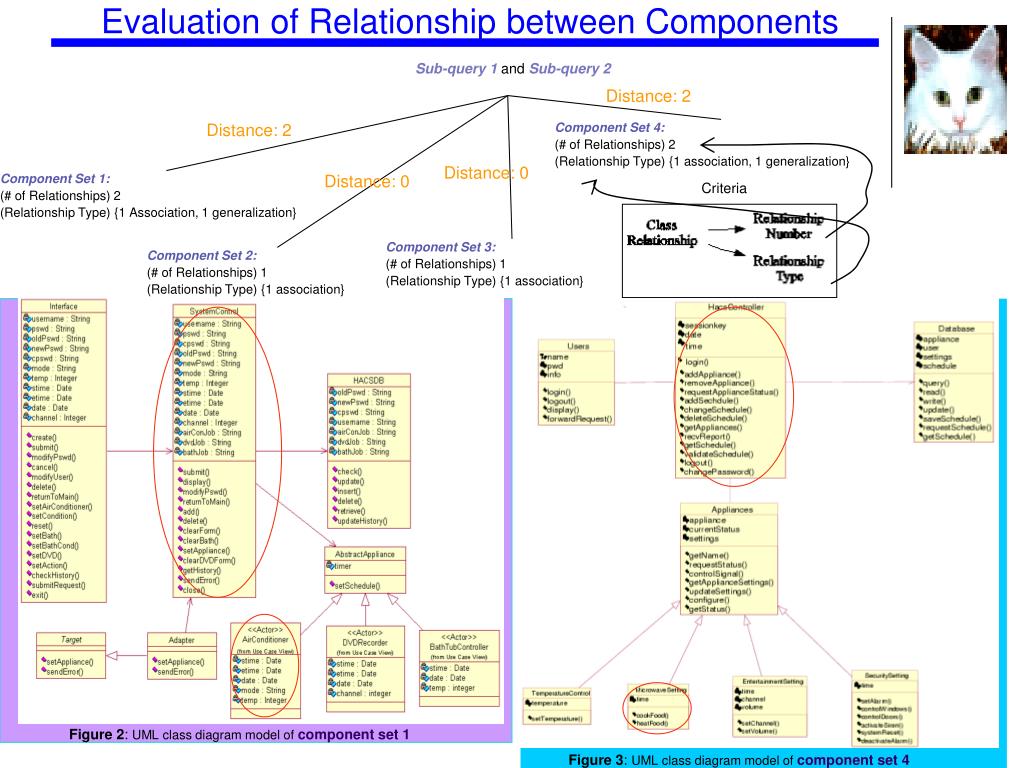

  12. Evaluation of Relationship between Components Sub-query 1 and Sub-query 2 Distance: 2 Distance: 2 Component Set 4: (# of Relationships) 2 (Relationship Type) {1 association, 1 generalization} Distance: 0 Component Set 1: (# of Relationships) 2 (Relationship Type) {1 Association, 1 generalization} Distance: 0 Criteria Component Set 3: (# of Relationships) 1 (Relationship Type) {1 association} Component Set 2: (# of Relationships) 1 (Relationship Type) {1 association} Figure 2: UML class diagram model of component set 1 Figure 3: UML class diagram model of component set 4

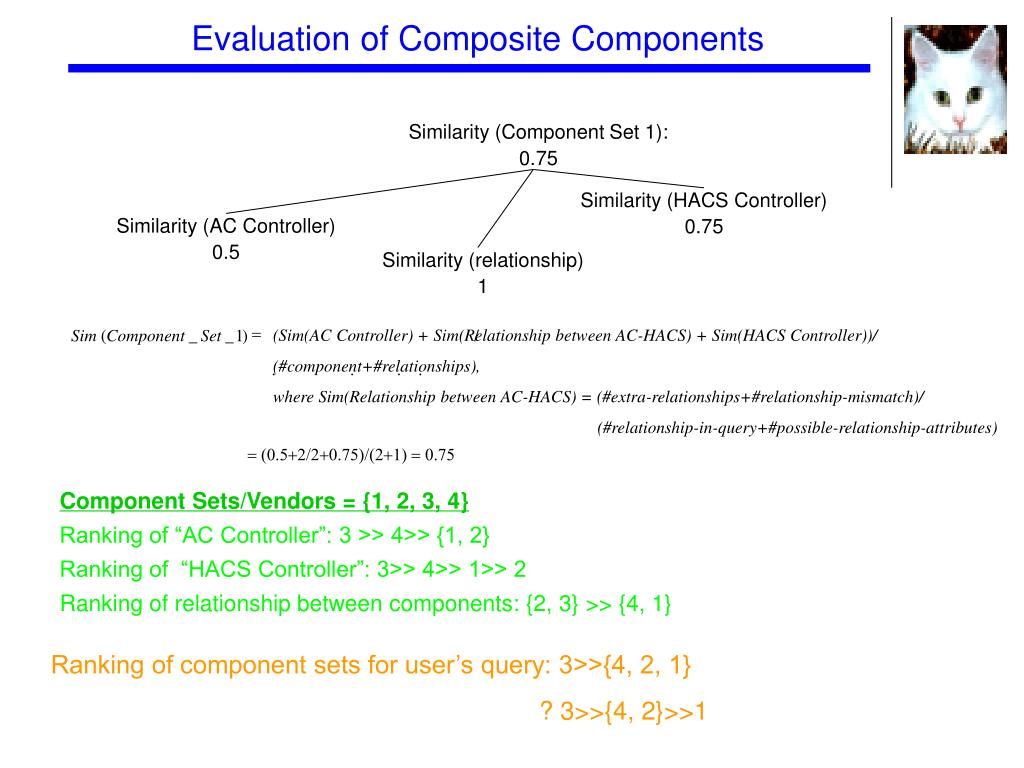

  13. Evaluation of Composite Components Similarity (Component Set 1): 0.75 Similarity (HACS Controller) 0.75 Similarity (AC Controller) 0.5 Similarity (relationship) 1 = (Sim(AC Controller) + Sim(Relationship between AC-HACS) + Sim(HACS Controller))/ (#component+#relationships), where Sim(Relationship between AC-HACS) = (#extra-relationships+#relationship-mismatch)/ (#relationship-in-query+#possible-relationship-attributes) Sim ( Component _ Set _ 1 ) / . . . . = (0.5+2/2+0.75)/(2+1) = 0.75 Component Sets/Vendors = {1, 2, 3, 4} Ranking of “AC Controller”: 3 >> 4>> {1, 2} Ranking of “HACS Controller”: 3>> 4>> 1>> 2 Ranking of relationship between components: {2, 3} >> {4, 1} Ranking of component sets for user’s query: 3>>{4, 2, 1} ? 3>>{4, 2}>>1

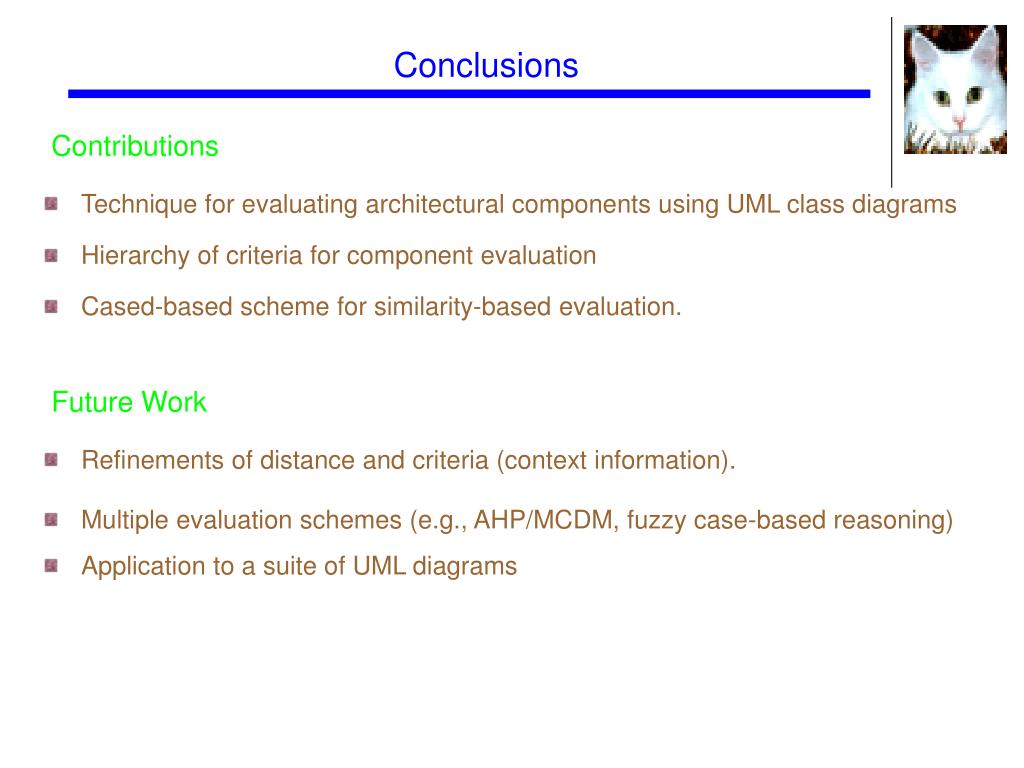

  14. Contributions Technique for evaluating architectural components using UML class diagrams Conclusions Hierarchy of criteria for component evaluation Cased-based scheme for similarity-based evaluation. Future Work Refinements of distance and criteria (context information). Multiple evaluation schemes (e.g., AHP/MCDM, fuzzy case-based reasoning) Application to a suite of UML diagrams
