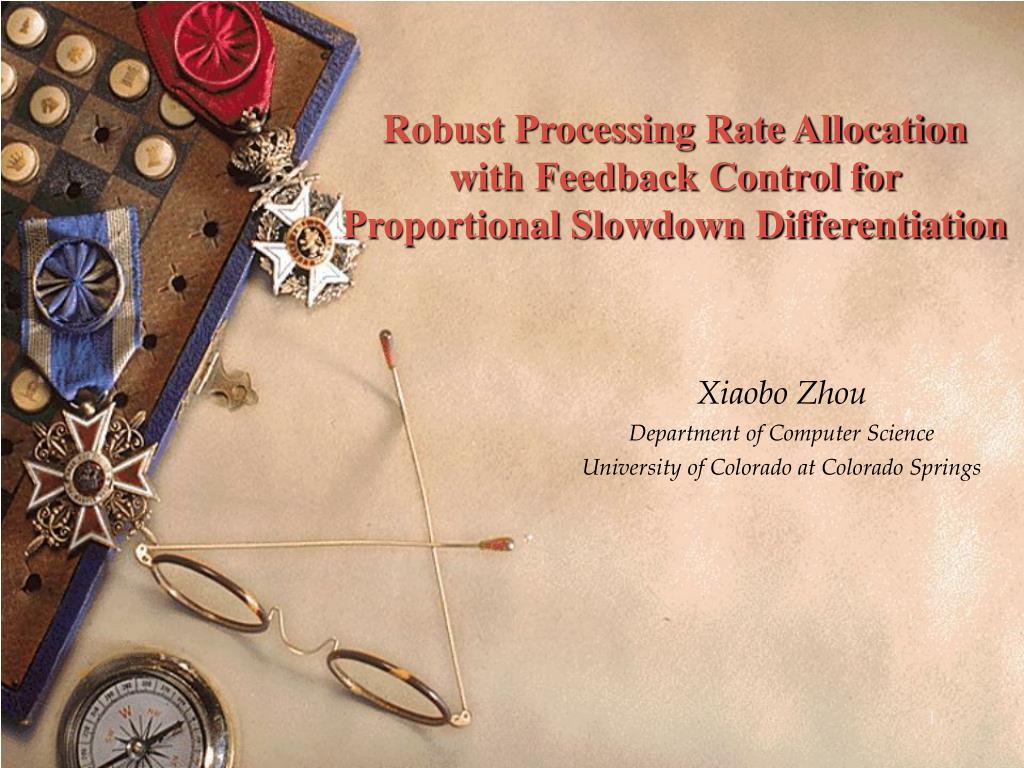

  1. Robust Processing Rate Allocationwith Feedback Control for Proportional Slowdown Differentiation Xiaobo Zhou Department of Computer Science University of Colorado at Colorado Springs

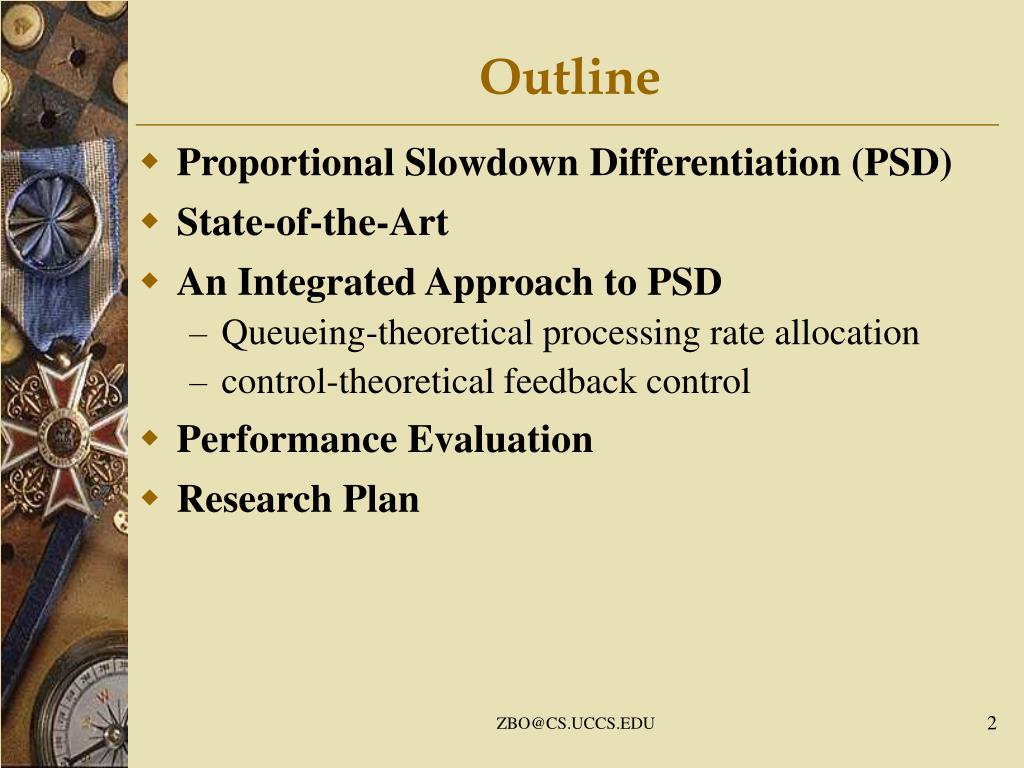

  2. Outline • Proportional Slowdown Differentiation (PSD) • State-of-the-Art • An Integrated Approach to PSD • Queueing-theoretical processing rate allocation • control-theoretical feedback control • Performance Evaluation • Research Plan ZBO@CS.UCCS.EDU

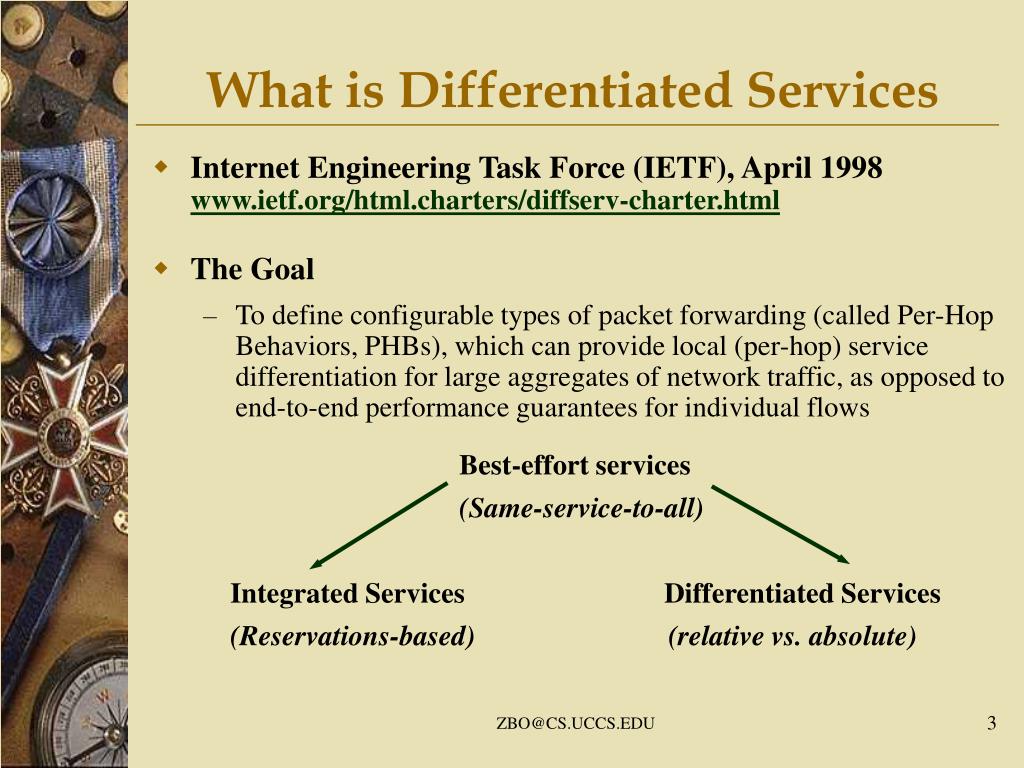

  3. What is Differentiated Services • Internet Engineering Task Force (IETF), April 1998www.ietf.org/html.charters/diffserv-charter.html • The Goal • To define configurable types of packet forwarding (called Per-Hop Behaviors, PHBs), which can provide local (per-hop) service differentiation for large aggregates of network traffic, as opposed to end-to-end performance guarantees for individual flows Best-effort services (Same-service-to-all) Integrated Services Differentiated Services (Reservations-based) (relative vs. absolute) ZBO@CS.UCCS.EDU

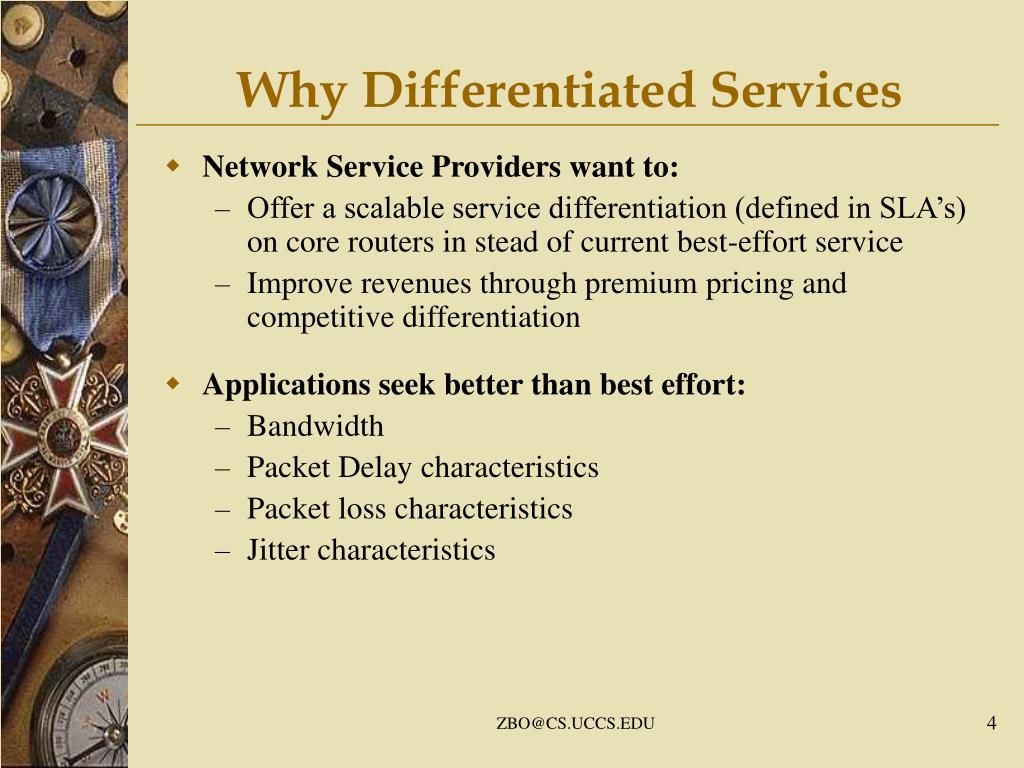

  4. Why Differentiated Services • Network Service Providers want to: • Offer a scalable service differentiation (defined in SLA’s) on core routers in stead of current best-effort service • Improve revenues through premium pricing and competitive differentiation • Applications seek better than best effort: • Bandwidth • Packet Delay characteristics • Packet loss characteristics • Jitter characteristics ZBO@CS.UCCS.EDU

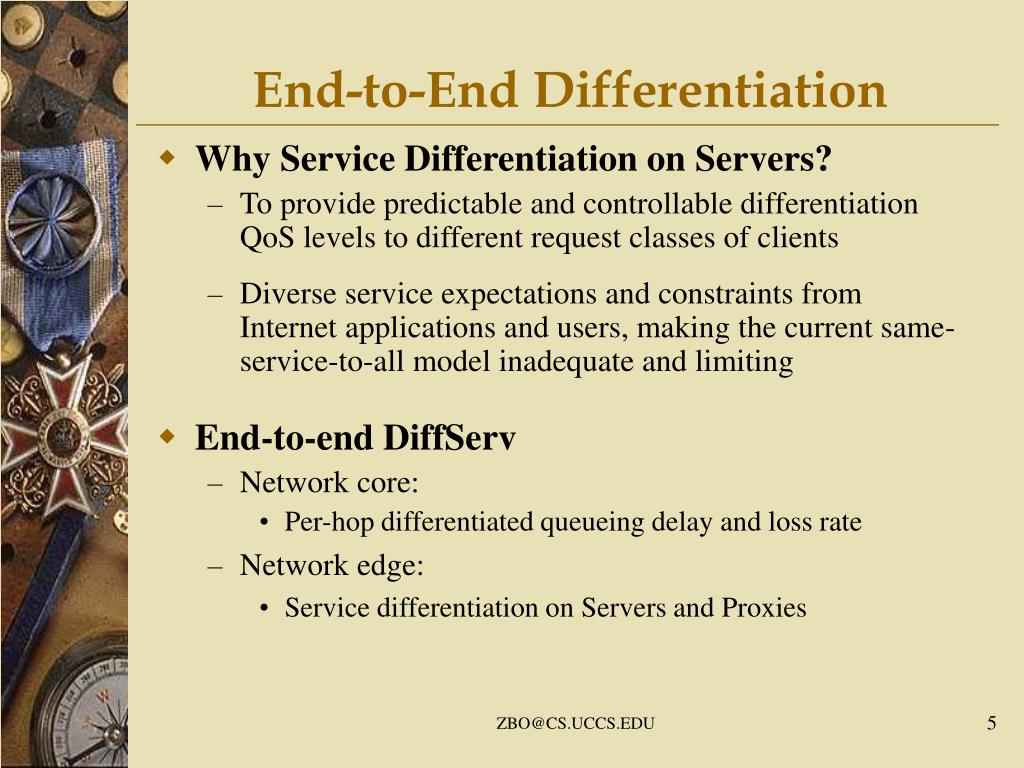

  5. End-to-End Differentiation • Why Service Differentiation on Servers? • To provide predictable and controllable differentiation QoS levels to different request classes of clients • Diverse service expectations and constraints from Internet applications and users, making the current same-service-to-all model inadequate and limiting • End-to-end DiffServ • Network core: • Per-hop differentiated queueing delay and loss rate • Network edge: • Service differentiation on Servers and Proxies ZBO@CS.UCCS.EDU

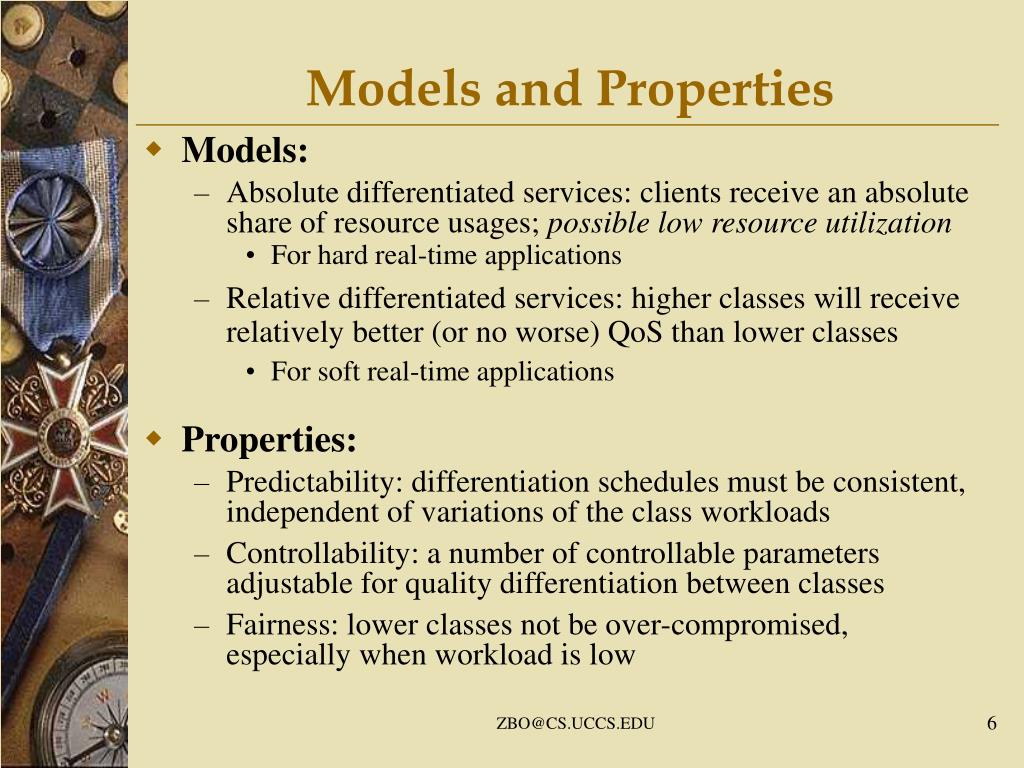

  6. Models and Properties • Models: • Absolute differentiated services: clients receive an absolute share of resource usages; possible low resource utilization • For hard real-time applications • Relative differentiated services: higher classes will receive relatively better (or no worse) QoS than lower classes • For soft real-time applications • Properties: • Predictability: differentiation schedules must be consistent, independent of variations of the class workloads • Controllability: a number of controllable parameters adjustable for quality differentiation between classes • Fairness: lower classes not be over-compromised, especially when workload is low ZBO@CS.UCCS.EDU

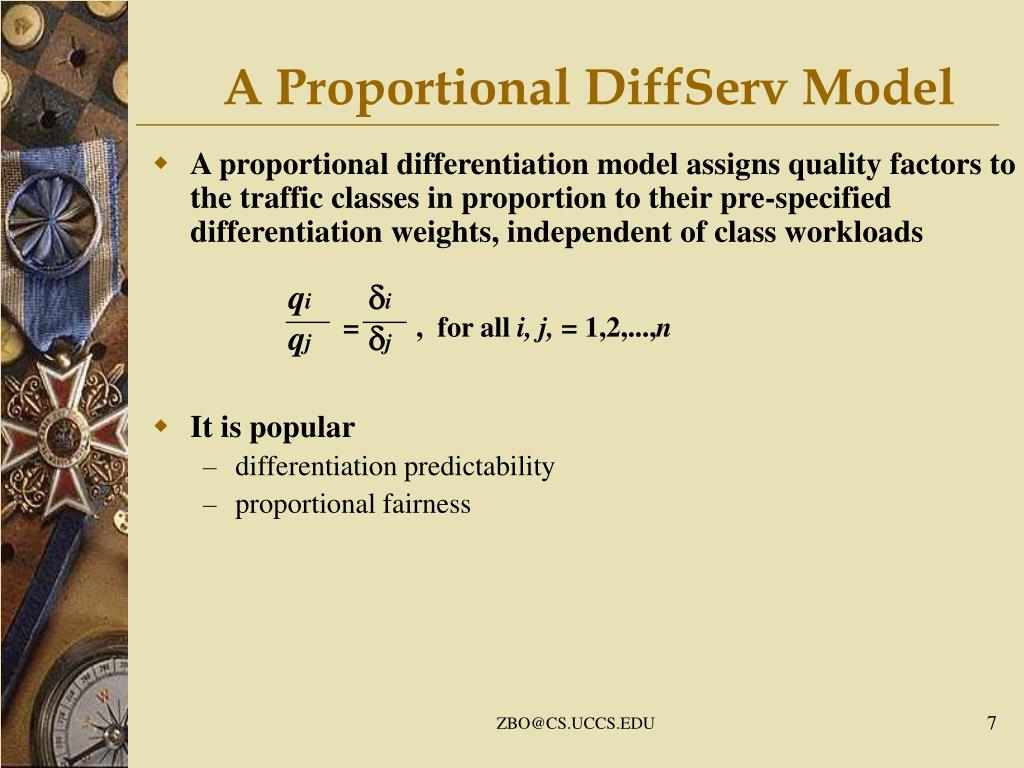

  7. A Proportional DiffServ Model • A proportional differentiation model assigns quality factors to the traffic classes in proportion to their pre-specified differentiation weights, independent of class workloads • It is popular • differentiation predictability • proportional fairness qi i qj j = , for all i, j, = 1,2,...,n ZBO@CS.UCCS.EDU

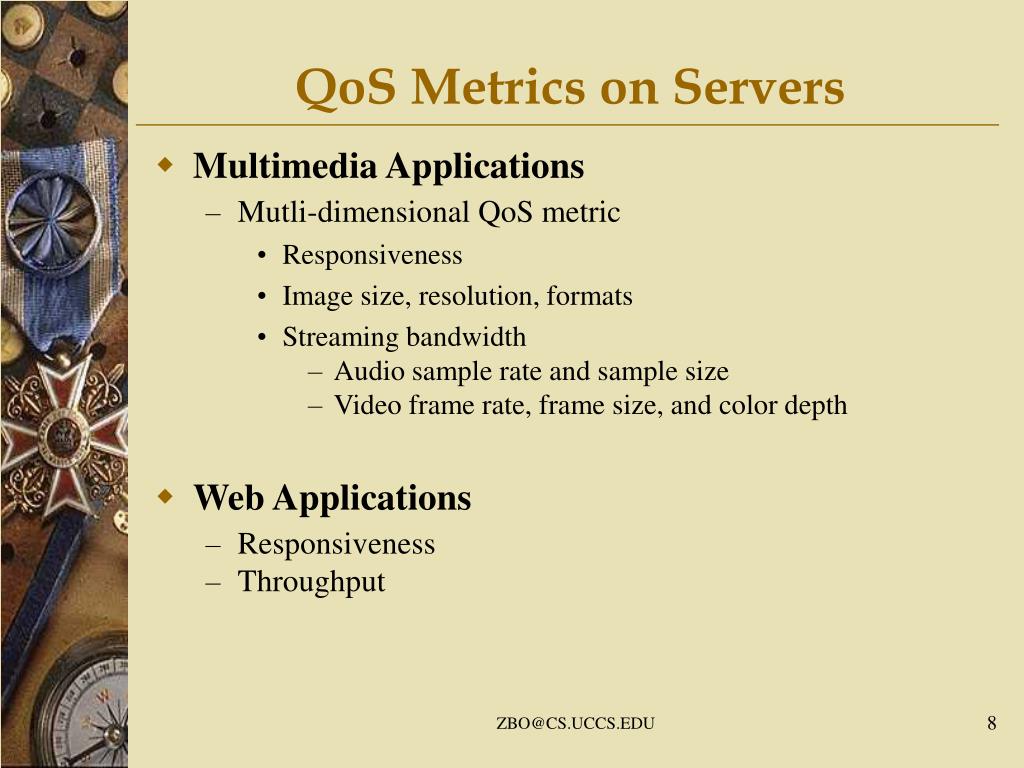

  8. QoS Metrics on Servers • Multimedia Applications • Mutli-dimensional QoS metric • Responsiveness • Image size, resolution, formats • Streaming bandwidth • Audio sample rate and sample size • Video frame rate, frame size, and color depth • Web Applications • Responsiveness • Throughput ZBO@CS.UCCS.EDU

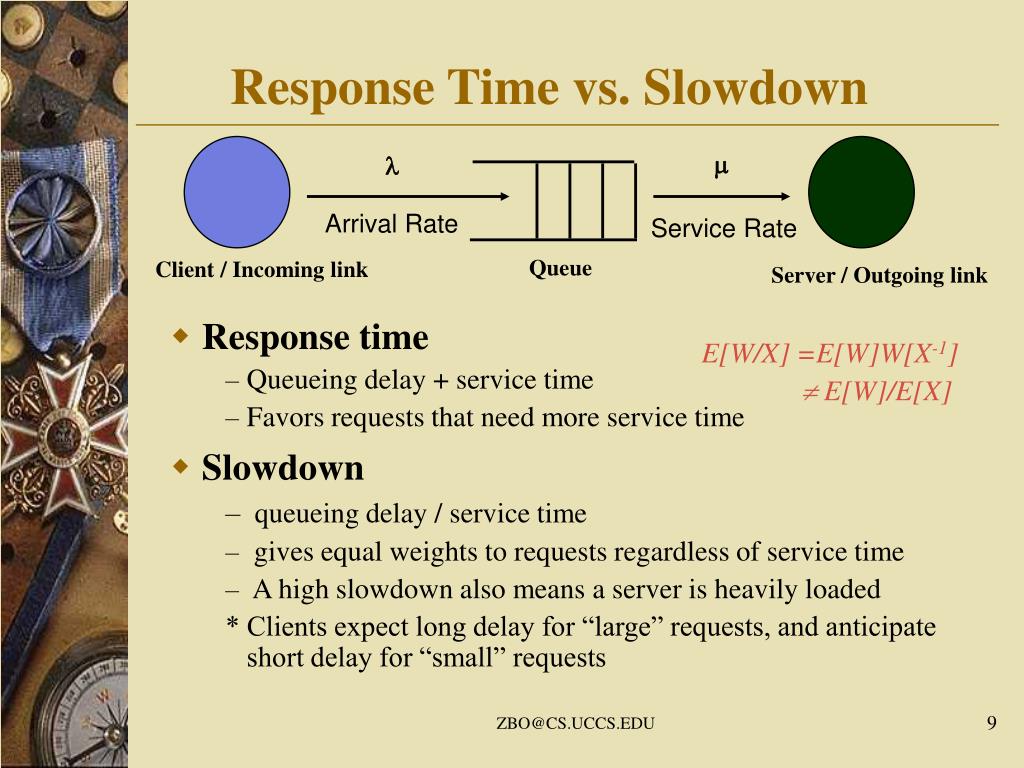

  9.  Arrival Rate Service Rate Queue Client / Incoming link Server / Outgoing link Response Time vs. Slowdown • Response time • Queueing delay + service time • Favors requests that need more service time • Slowdown • queueing delay / service time • gives equal weights to requests regardless of service time • A high slowdown also means a server is heavily loaded * Clients expect long delay for “large” requests, and anticipate short delay for “small” requests E[W/X] =E[W]W[X-1]  E[W]/E[X] ZBO@CS.UCCS.EDU

  10. State-of-the-Art • Queueing-delay differentiation • Strict priority based packet/request scheduling • Time-dependent priority based request packet/scheduling • Response time differentiation • Strict priority based request scheduling • Adaptive process allocation for proportional differentiation • Slowdown differentiation • queueing-theoretical Processing rate allocation • M/M/1 PS queue for stretch factor differentiation • M/G_P/1 FCFS queue ZBO@CS.UCCS.EDU

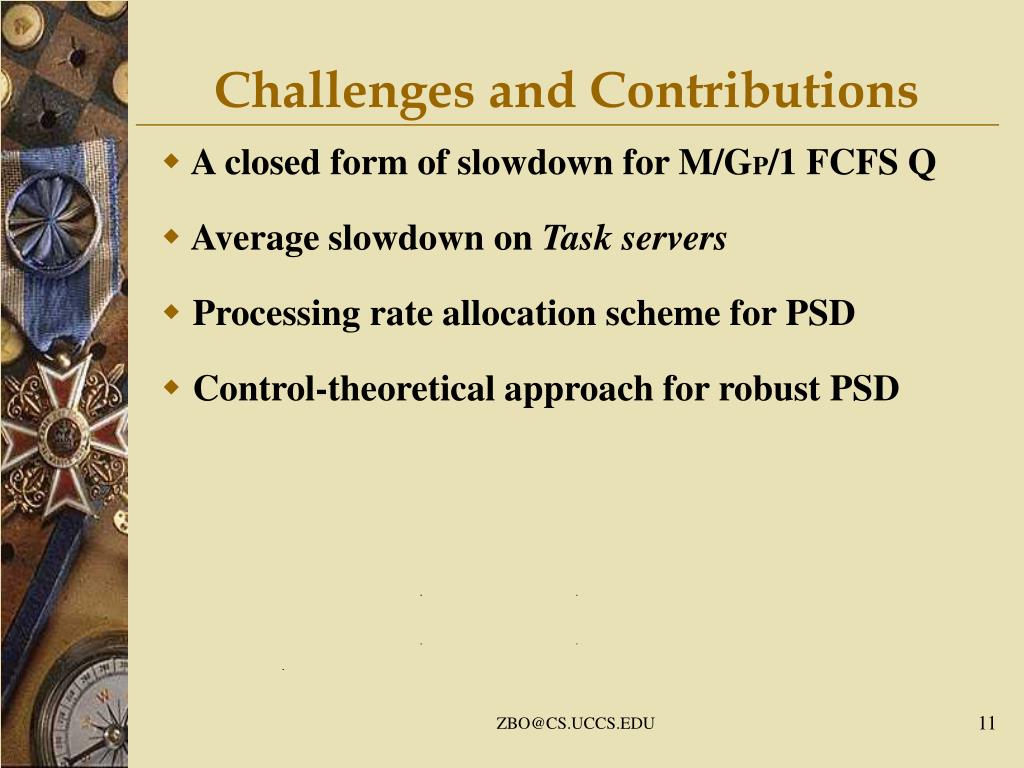

  11. Challenges and Contributions • A closed form of slowdown for M/GP/1 FCFS Q • Average slowdown on Task servers • Processing rate allocation scheme for PSD • Control-theoretical approach for robust PSD ZBO@CS.UCCS.EDU

  12. A Heavy-tailed Distribution • The Pareto distribution is a typical heavy-tailed • In practice, there is some upper bound on the maximum size of a job (p) -- Bounded Pareto distribution f(x) Power law w/ exp - -1 x p k ZBO@CS.UCCS.EDU

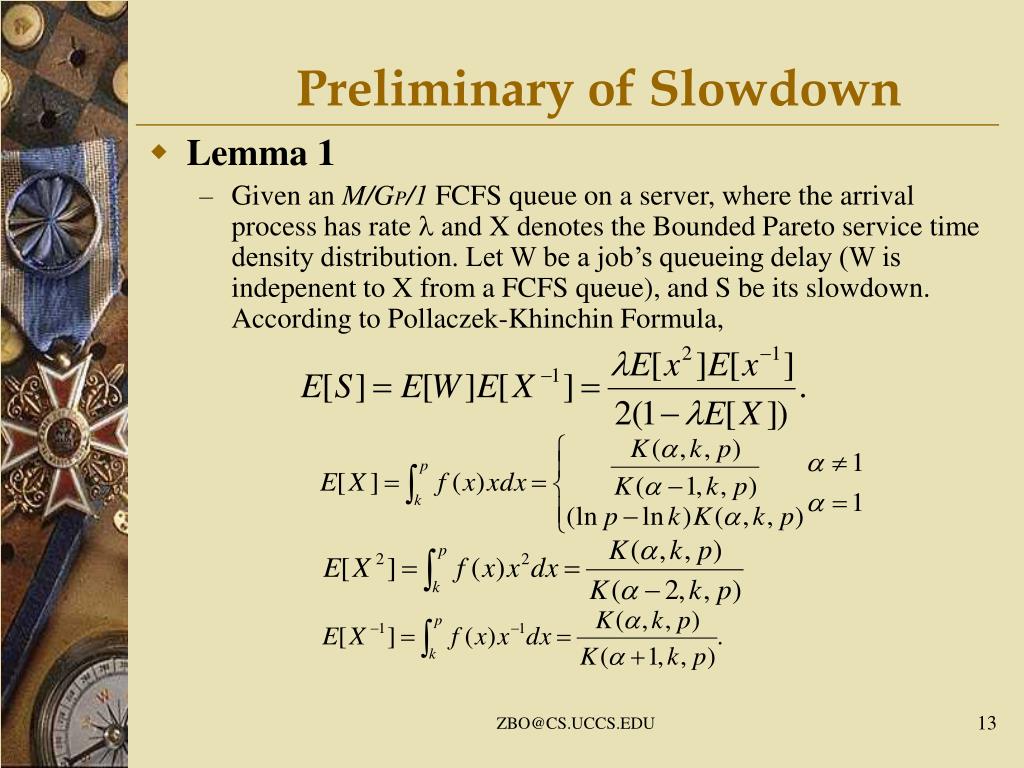

  13. Preliminary of Slowdown • Lemma 1 • Given an M/GP/1 FCFS queue on a server, where the arrival process has rate  and X denotes the Bounded Pareto service time density distribution. Let W be a job’s queueing delay (W is indepenent to X from a FCFS queue), and S be its slowdown. According to Pollaczek-Khinchin Formula, ZBO@CS.UCCS.EDU

  14. Slowdown on a Task Server • What is a task server? • A processing unit, handling a request class in FCFS manner • Let ci be the normalized processing rate of task server i • \sum_{i=1}^{N} ci = 1 0 < ci  1 for 0  i N • A process, a thread, a processor, a server node • Lemma 2 • Given an M/GP/1 FCFS queue on a task server i with processing rate. Xi denotes the Bounded Pareto service time density distribution on the task server: • E[Xi] = 1/ci E[X] • E[X2i] = 1/c2i E[X2] • E[X-1i] = ci E[X-1] ZBO@CS.UCCS.EDU

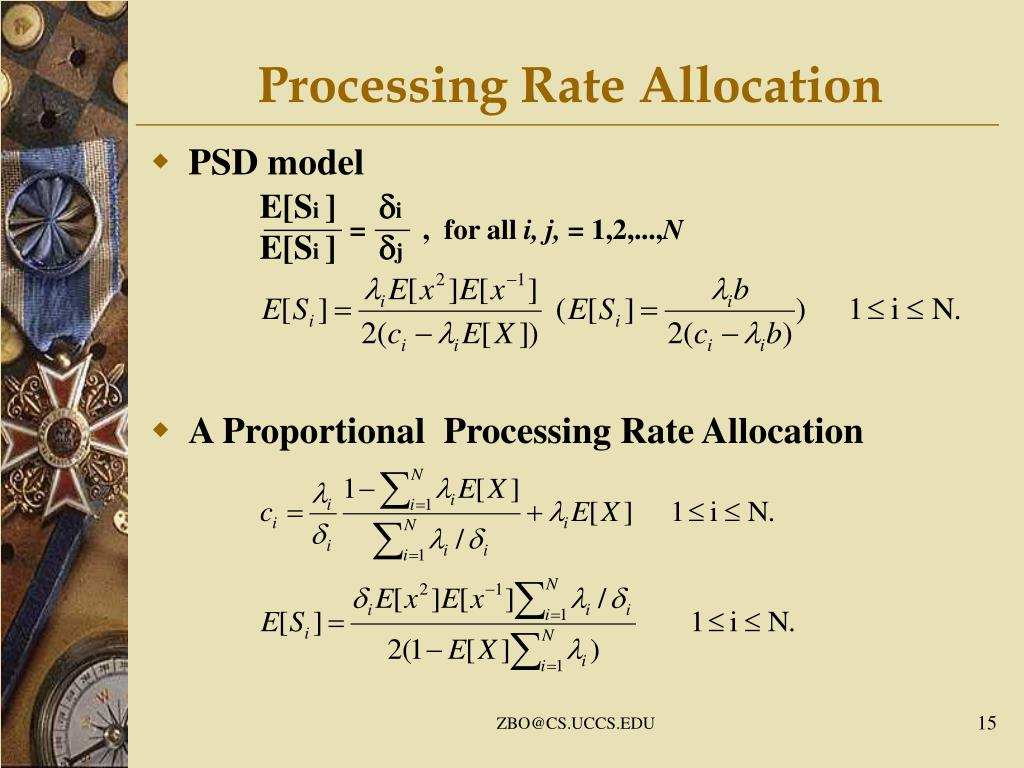

  15. Processing Rate Allocation • PSD model • A Proportional Processing Rate Allocation E[Si ] i E[Si ] j = , for all i, j, = 1,2,...,N ZBO@CS.UCCS.EDU

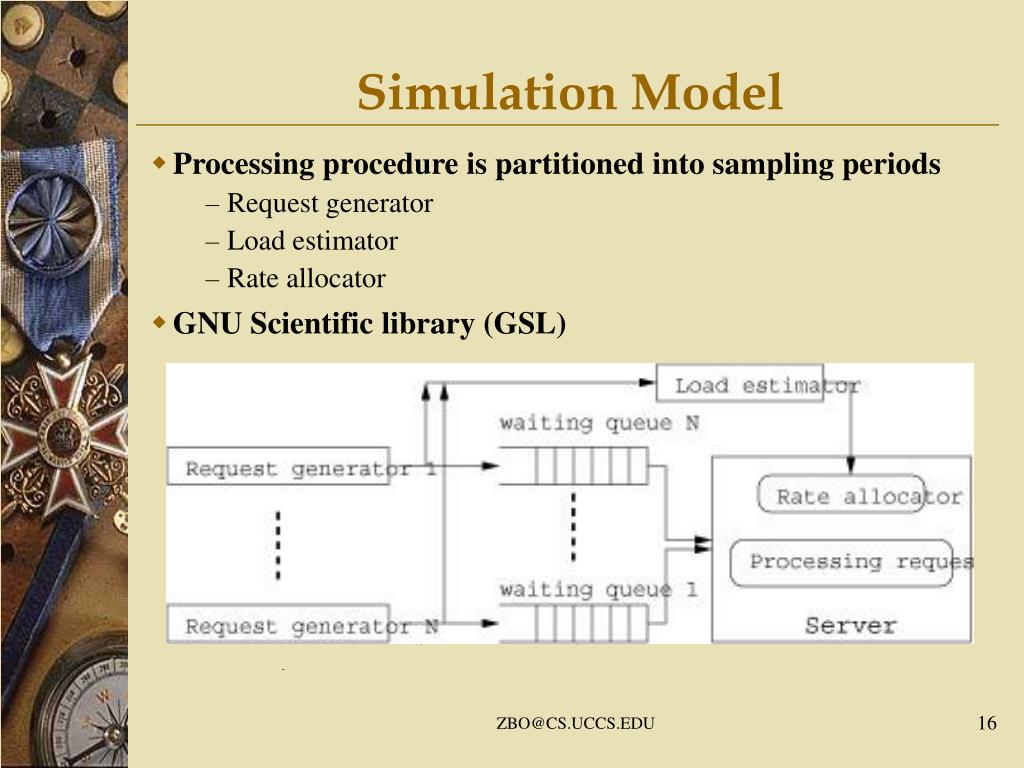

  16. Simulation Model • Processing procedure is partitioned into sampling periods • Request generator • Load estimator • Rate allocator • GNU Scientific library (GSL) ZBO@CS.UCCS.EDU

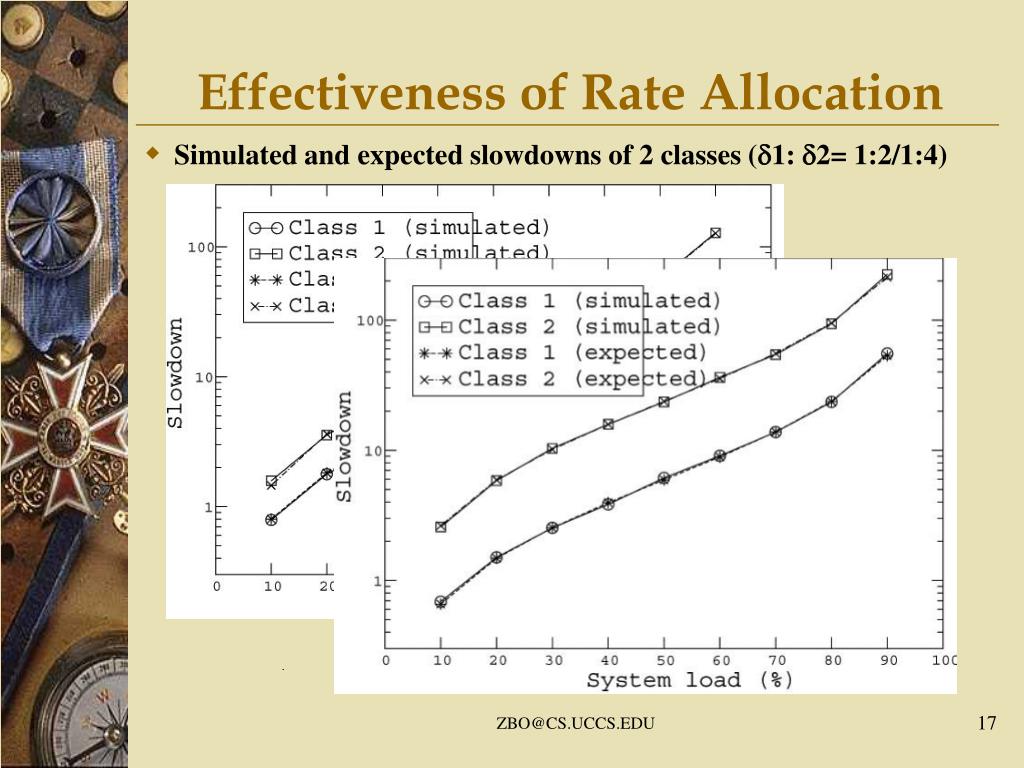

  17. Effectiveness of Rate Allocation • Simulated and expected slowdowns of 2 classes (1: 2= 1:2/1:4) ZBO@CS.UCCS.EDU

  18. Effectiveness of Rate Allocation • Simulated and expected slowdowns of 3 classes (1: 2: 2= 1:2:3) ZBO@CS.UCCS.EDU

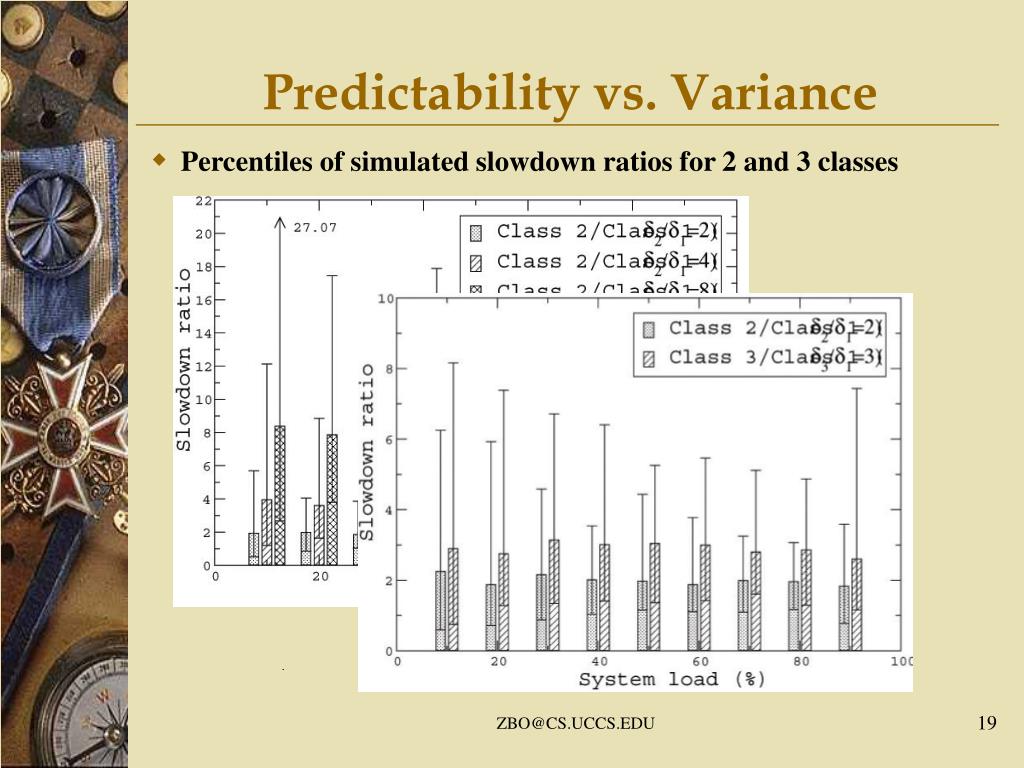

  19. Predictability vs. Variance • Percentiles of simulated slowdown ratios for 2 and 3 classes ZBO@CS.UCCS.EDU

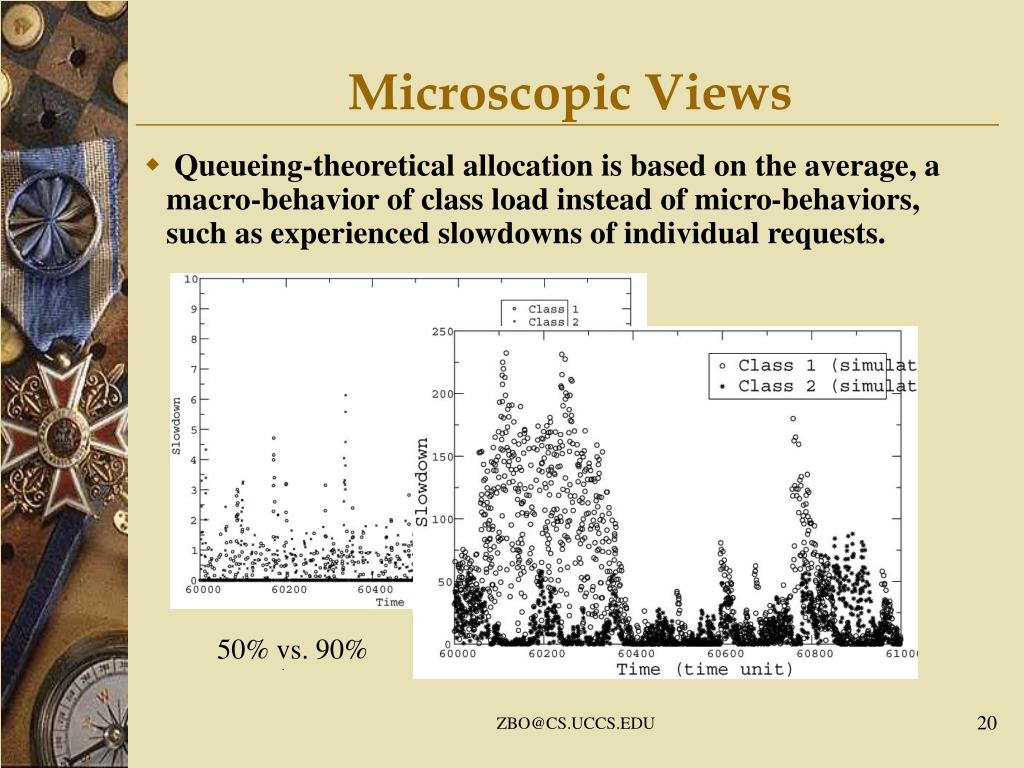

  20. Microscopic Views • Queueing-theoretical allocation is based on the average, a macro-behavior of class load instead of micro-behaviors, such as experienced slowdowns of individual requests. 50% vs. 90% ZBO@CS.UCCS.EDU

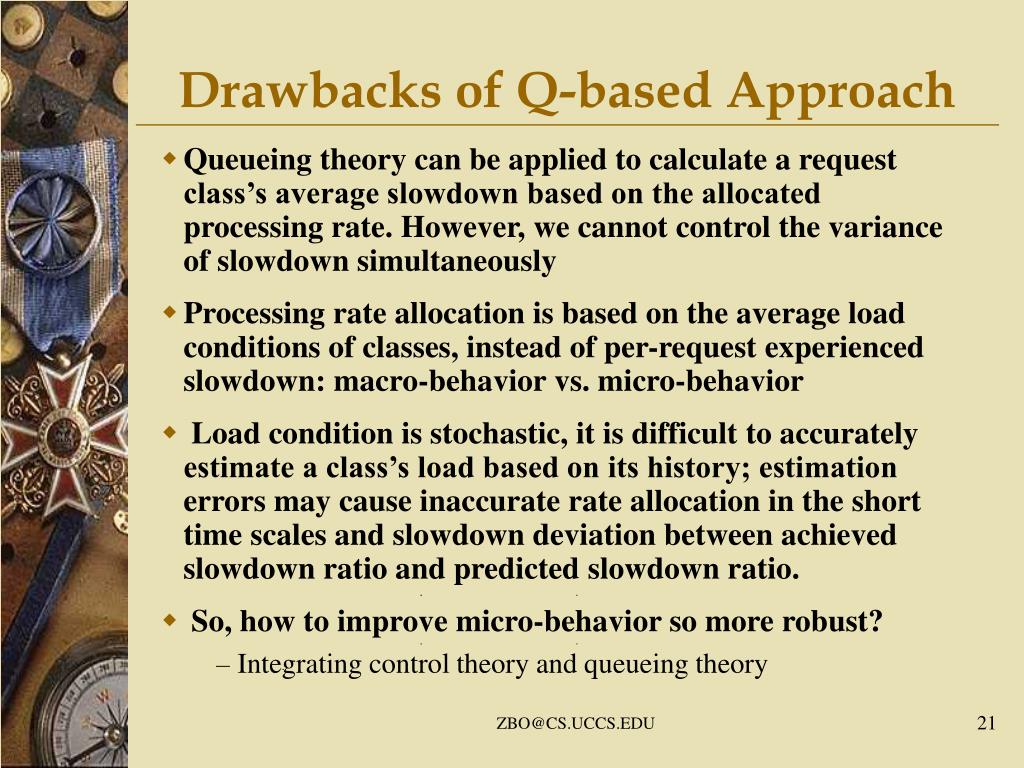

  21. Drawbacks of Q-based Approach • Queueing theory can be applied to calculate a request class’s average slowdown based on the allocated processing rate. However, we cannot control the variance of slowdown simultaneously • Processing rate allocation is based on the average load conditions of classes, instead of per-request experienced slowdown: macro-behavior vs. micro-behavior • Load condition is stochastic, it is difficult to accurately estimate a class’s load based on its history; estimation errors may cause inaccurate rate allocation in the short time scales and slowdown deviation between achieved slowdown ratio and predicted slowdown ratio. • So, how to improve micro-behavior so more robust? • Integrating control theory and queueing theory ZBO@CS.UCCS.EDU

  22. Queueing & Control Integration • Queueing theoretical rate predictor • A control loop is used for each pair of adjacent classes • Sensor/monitor measures the achieved slowdown ratio • Deviation controller adjusts the rate allocation • Actuator translate the abstract controller output to physical action ZBO@CS.UCCS.EDU

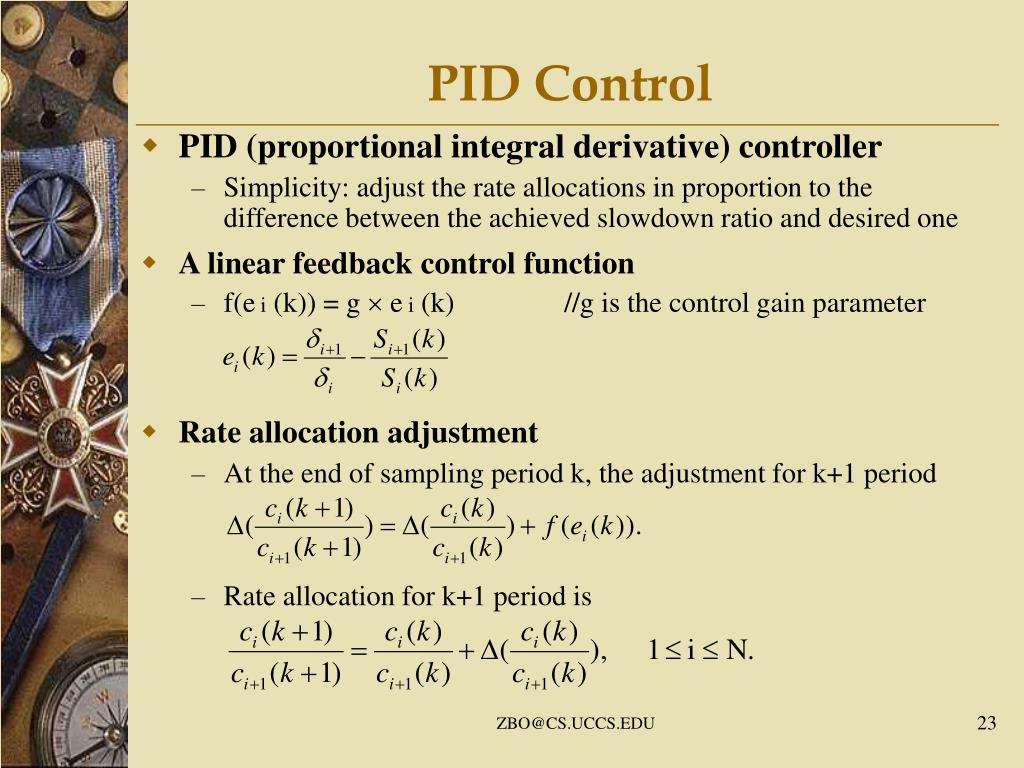

  23. PID Control • PID (proportional integral derivative) controller • Simplicity: adjust the rate allocations in proportion to the difference between the achieved slowdown ratio and desired one • A linear feedback control function • f(e i (k)) = g  e i (k) //g is the control gain parameter • Rate allocation adjustment • At the end of sampling period k, the adjustment for k+1 period • Rate allocation for k+1 period is ZBO@CS.UCCS.EDU

  24. A New Simulation Model • Integration of queueing and control theory • Feedback controller • Comparator (sensor/monitor) ZBO@CS.UCCS.EDU

  25. Performance Evaulation • Integrated approach vs. queueing-theoretical approach ZBO@CS.UCCS.EDU

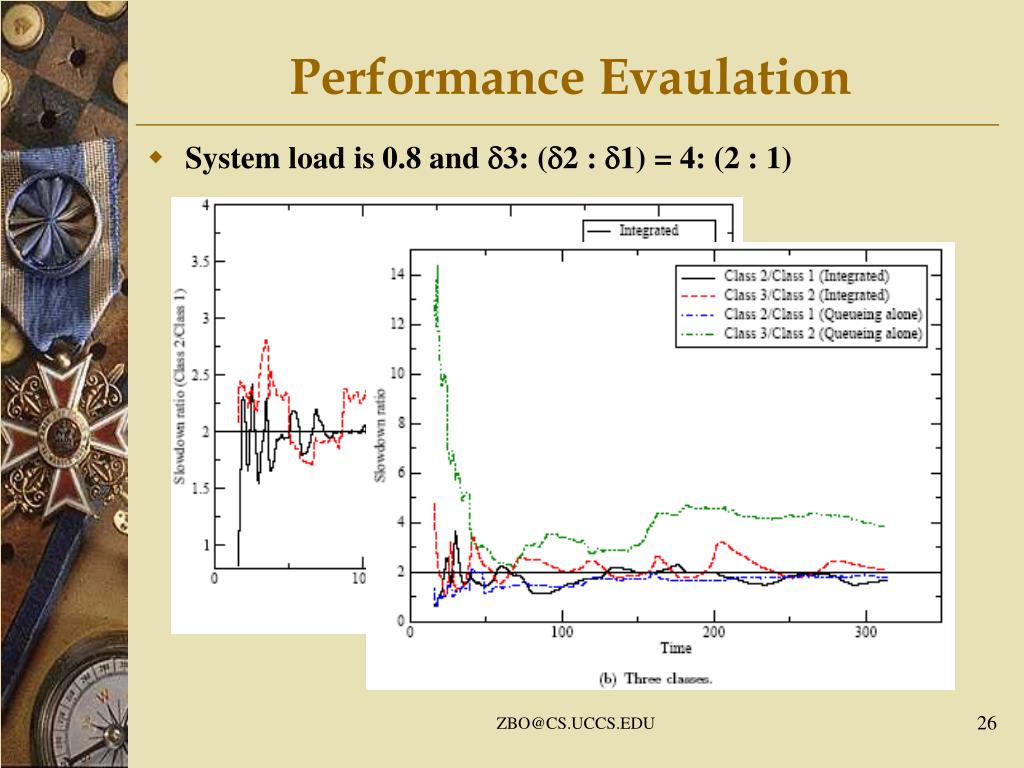

  26. Performance Evaulation • System load is 0.8 and 3: (2 : 1) = 4: (2 : 1) ZBO@CS.UCCS.EDU

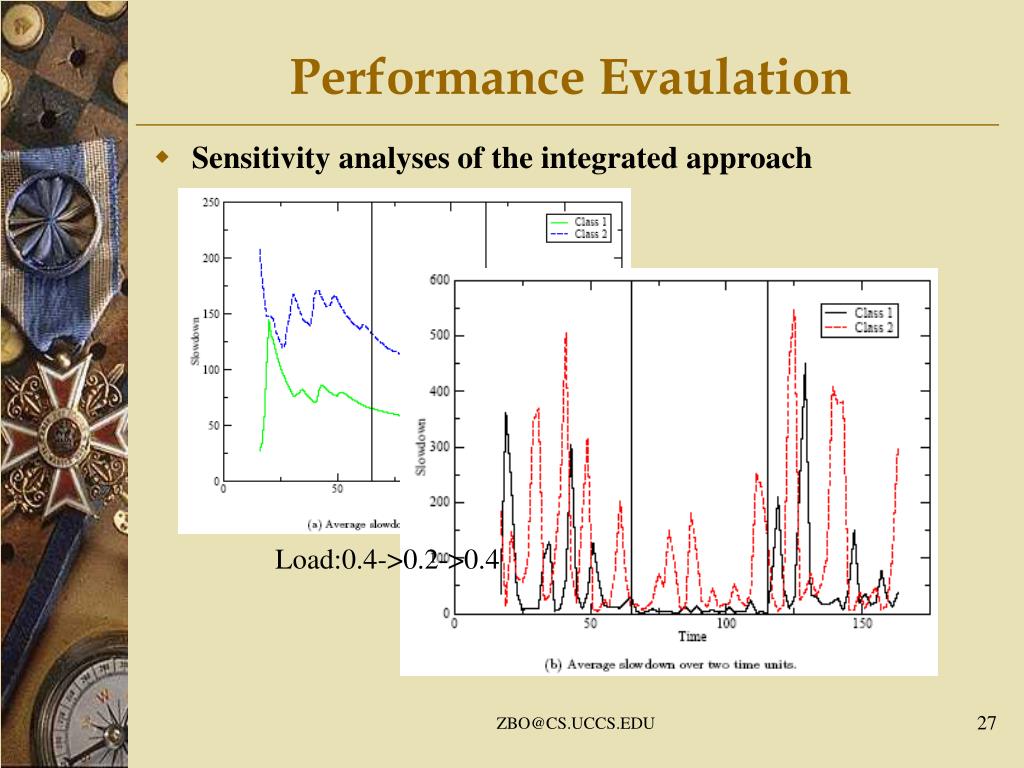

  27. Performance Evaulation • Sensitivity analyses of the integrated approach Load:0.4->0.2->0.4 ZBO@CS.UCCS.EDU

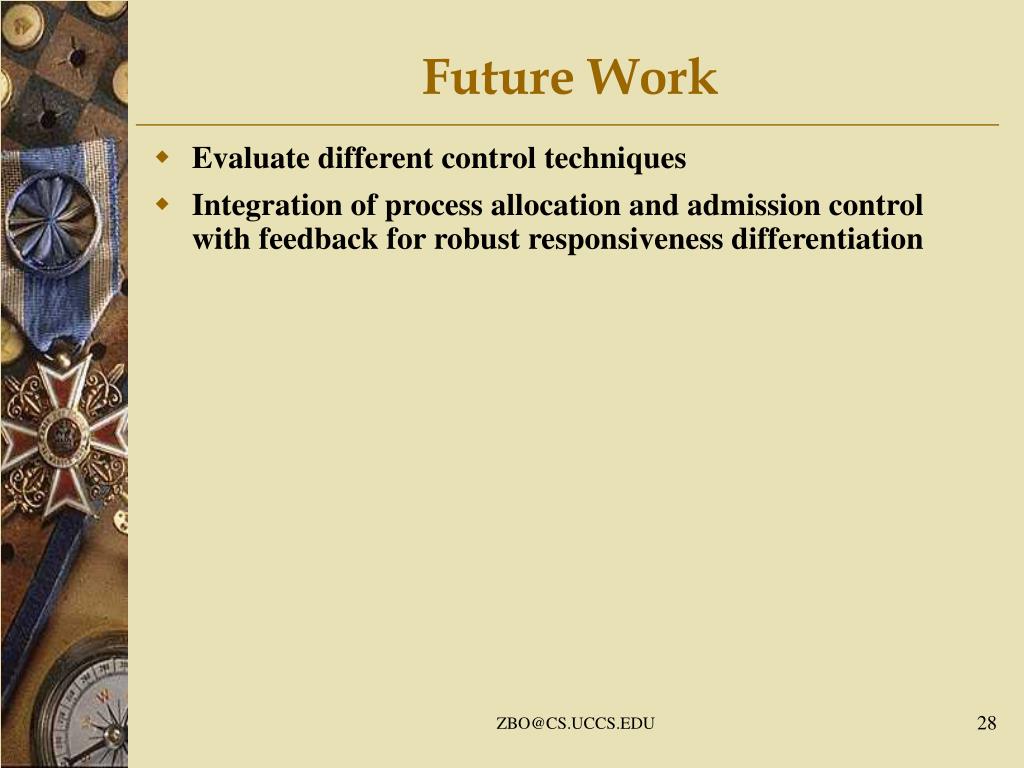

  28. Future Work • Evaluate different control techniques • Integration of process allocation and admission control with feedback for robust responsiveness differentiation ZBO@CS.UCCS.EDU

  29. P&P for IDF Applications • Multi-dimensional Input & Requirements • Distributed data sources • Different data formats • Different data priority levels • Different decision requirements • Different workload characteristics • Multi-dimensional Platform and Performance Metric • Cluster node partitioning • Performance measurement • Performance differentiation ZBO@CS.UCCS.EDU
