  1. General introduction RG / BS BUrners TRAining CEntre

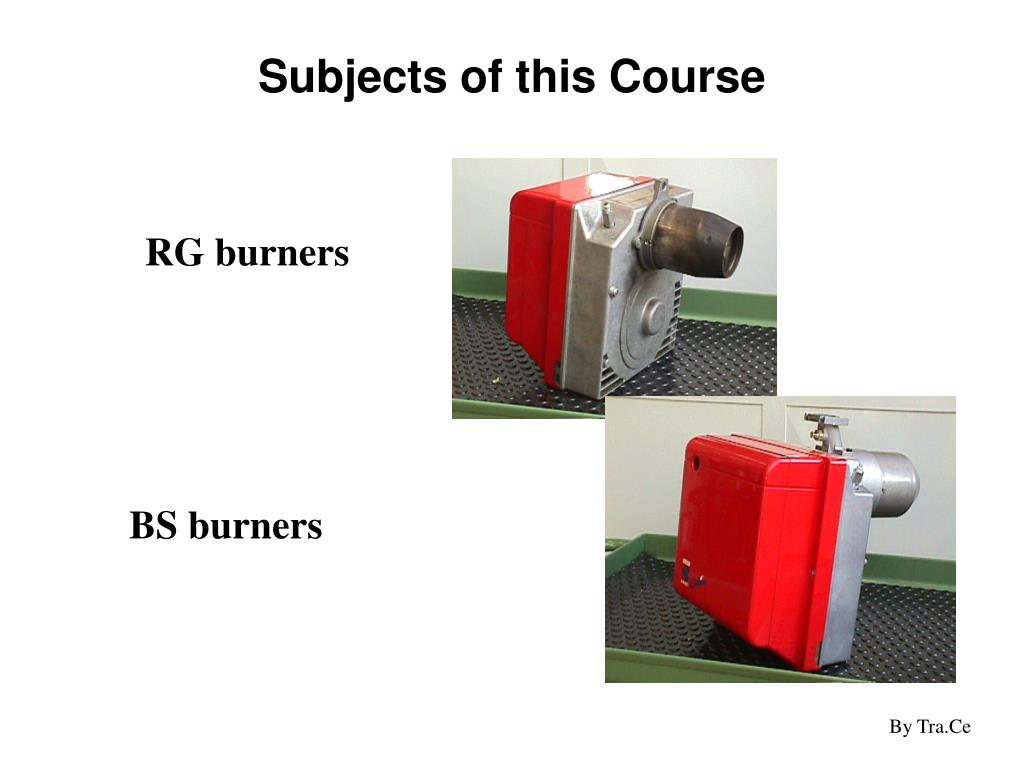

  2. Subjects of this Course RG burners BS burners By Tra.Ce

  3. OIL BURNERS

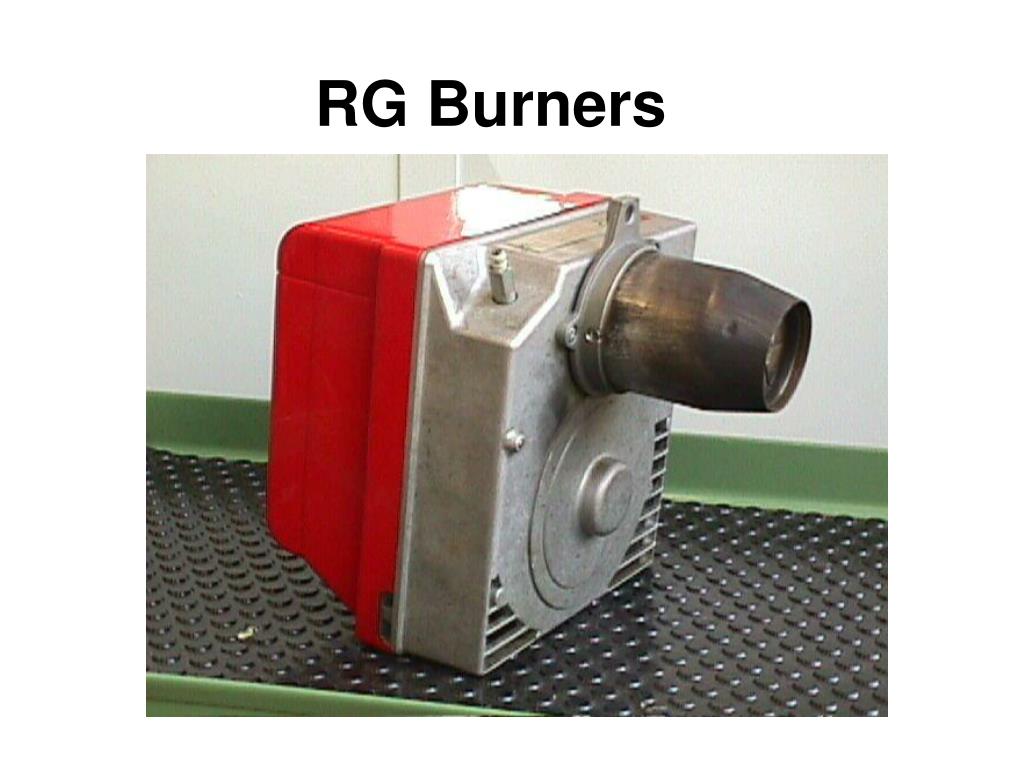

  4. RG Burners

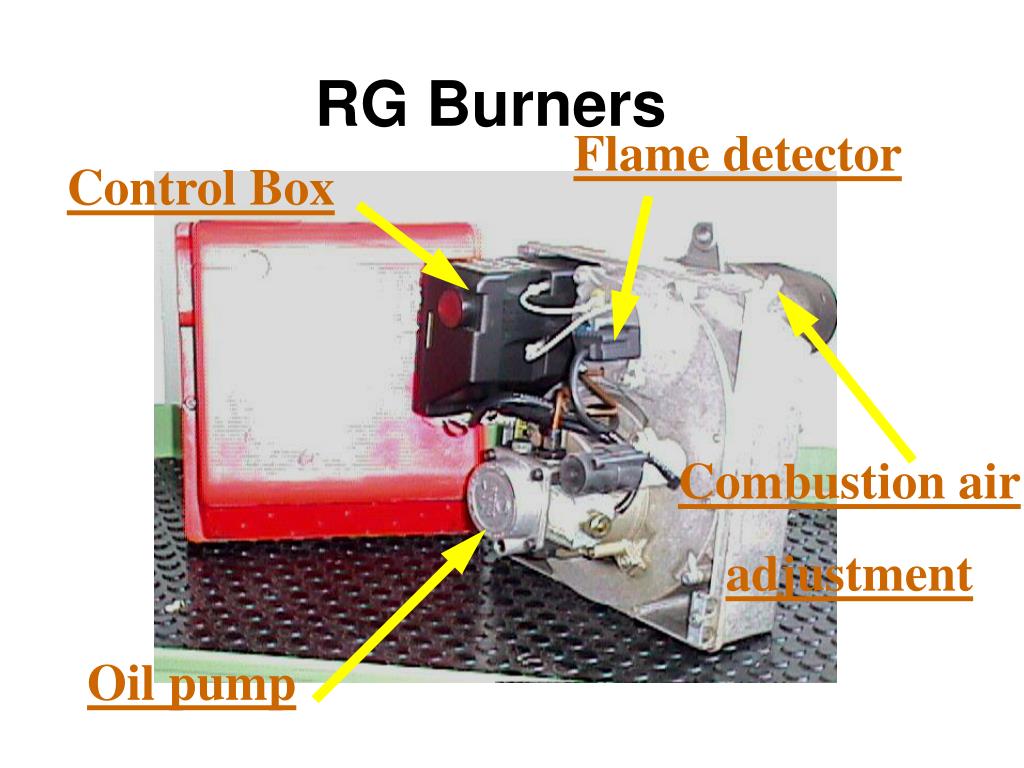

  5. Flame detector Control Box Combustion air adjustment Oil pump RG Burners

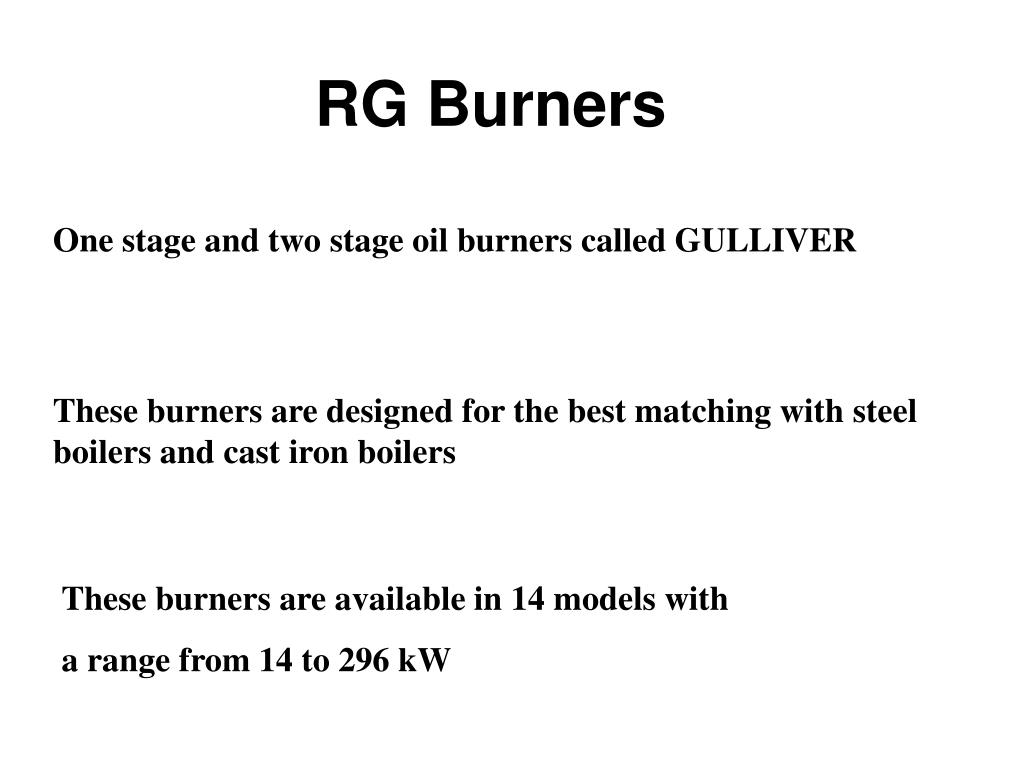

  6. RG Burners One stage and two stage oil burners called GULLIVER These burners are designed for the best matching with steel boilers and cast iron boilers These burners are available in 14 models with a range from 14 to 296 kW

  7. CODE R G 1 R K D R - RIELLO G - LIGHT OIL 1 - SIZE OF THE BURNER R - PRE-HEATER TYPE PTC K - CONICAL COMBUSTION HEAD D - TWO STAGE BURNERS S - PRESSURE JUMP

  8. RG 0.2 R 14.2 - 27.3 kW RG 0.3 R 21.3 - 38 kW RG 0.3 21.3 - 38 kW RG 1 RK 15 - 60 kW RG 1 R 20 - 60 kW 21 - 60 kW 47 - 119 kW 83 - 178 kW 119 - 237 kW Range of Firing Rates RG 1 RG 2 RG 3 RG 4 S

  9. NEWS From MAY 2000 a new Gulliver burner will be available that will replace the models RG0.2R, RG0.3R and RG0.3 GULLIVERINO [LITTLE GULLIVER] Identifiable by the name : RG 0 For a range from 16.6 to 36.7 kW

  10. Model RG 0 -“Gulliverino”

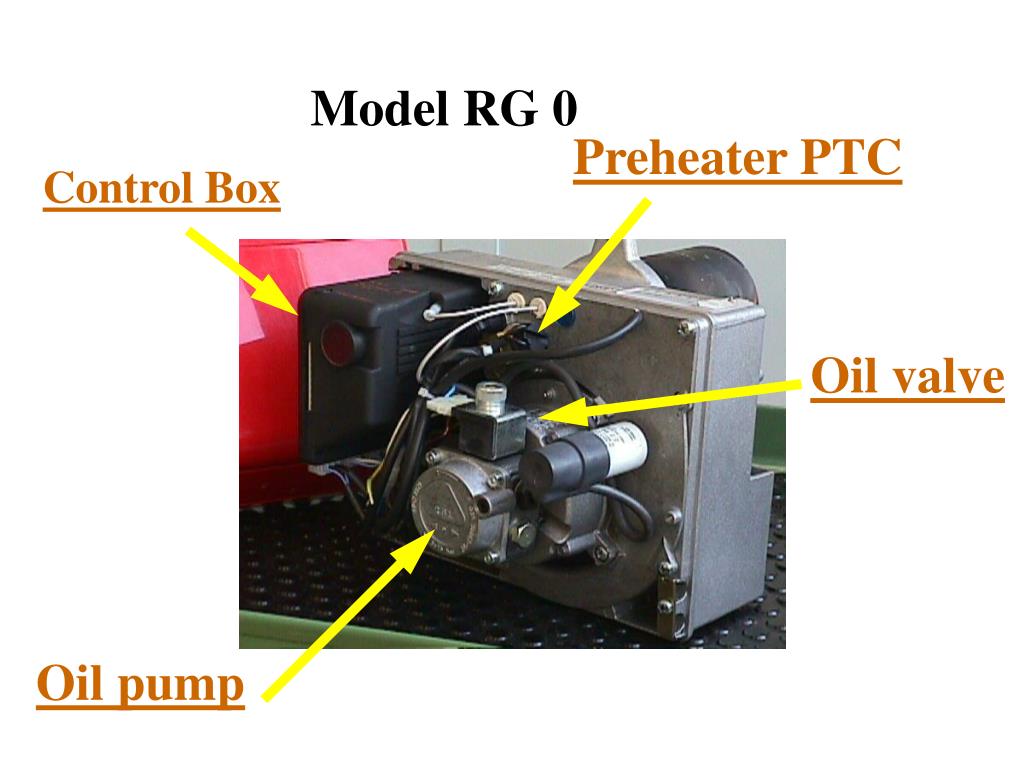

  11. Preheater PTC Control Box Oil valve Oil pump Model RG 0

  12. Features The new version is 44 mm lower than the other Gulliver Reduced noise level 3 dBA lower than the other Gulliver Fixed Combustion head, the 3 models differ only in turbolator disc Hand rotor wheel air damper adjustment Air inlet is on top of front panel NOx emission level is around 200 mg/kWh, compared with european max requirement of 250 mg/kWh

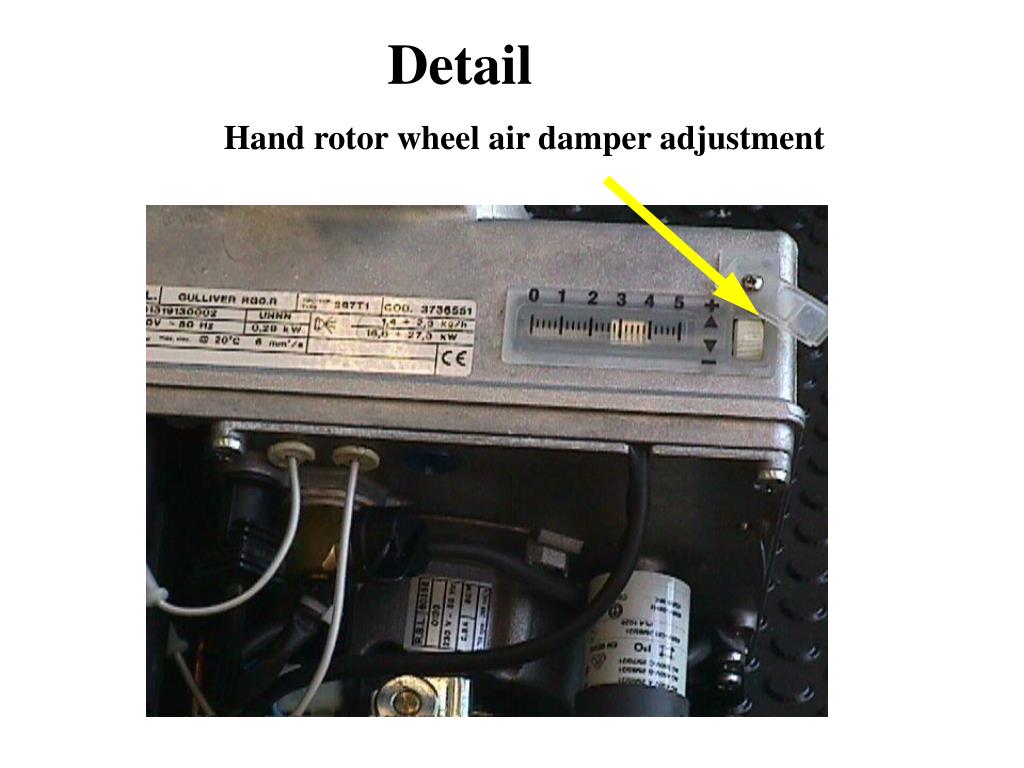

  13. Hand rotor wheel air damper adjustment Detail

  14. Air damper NO-banging system used also for index Air damper adjustment wheel Air damper adjustment

  15. Notch index Comparison between RG0.2R and RG0 air damper adjustment Air damper adjustment Real opening N° turns air screw adjustment

  16. RG 0 R 16.6 - 27.3 kW RG 0.1 R 21.3 - 36.7 kW RG 0.1 22.5 - 35.6 kW RG 0.2 R 14.2 - 27.3 kW RG 0.3 R 21.3 - 38 kW RG 0.3 21.3 - 38 kW Range of Firing Rates From May 2000, they will be replaced RG 1 RK 15 - 60 kW RG 1 R 20 - 60 kW RG 1 21 - 60 kW RG 2 47 - 119 kW 83 - 178 kW RG 3 119 - 237 kW RG 4 S

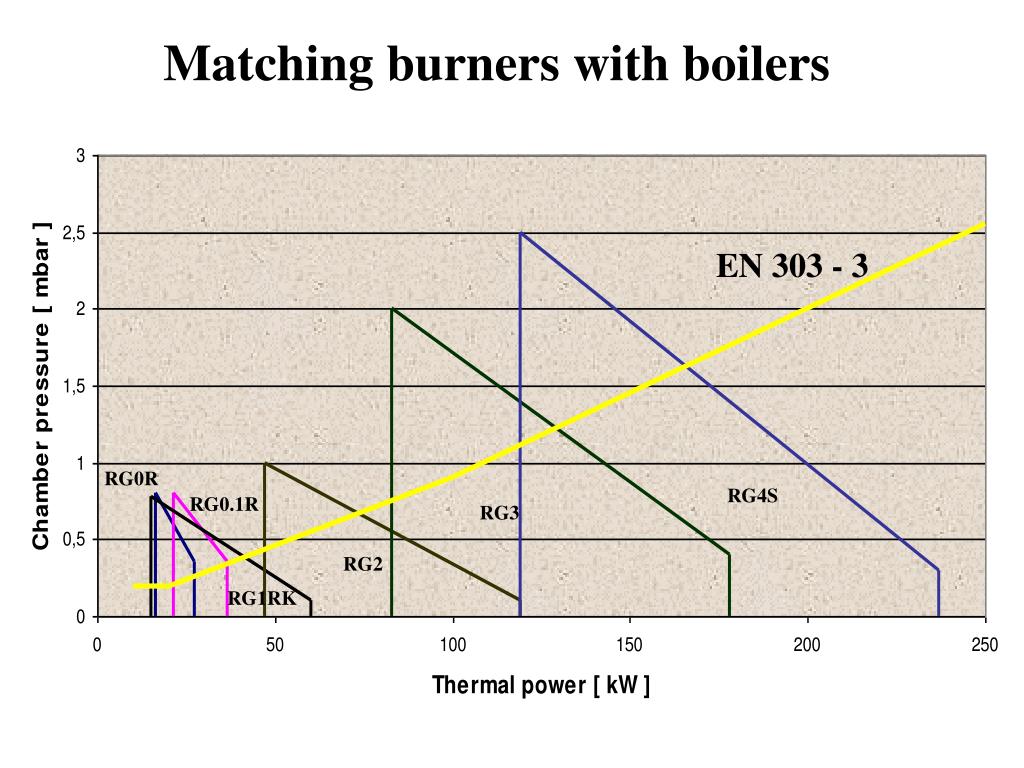

  17. EN 303 - 3 RG0R RG4S RG0.1R RG3 RG2 RG1RK Matching burners with boilers

  18. RIELLO GULLIVERRG-DSERIES Two stage OIL burners

  19. RIELLO GULLIVERRG-DSERIES Two stage OIL burners

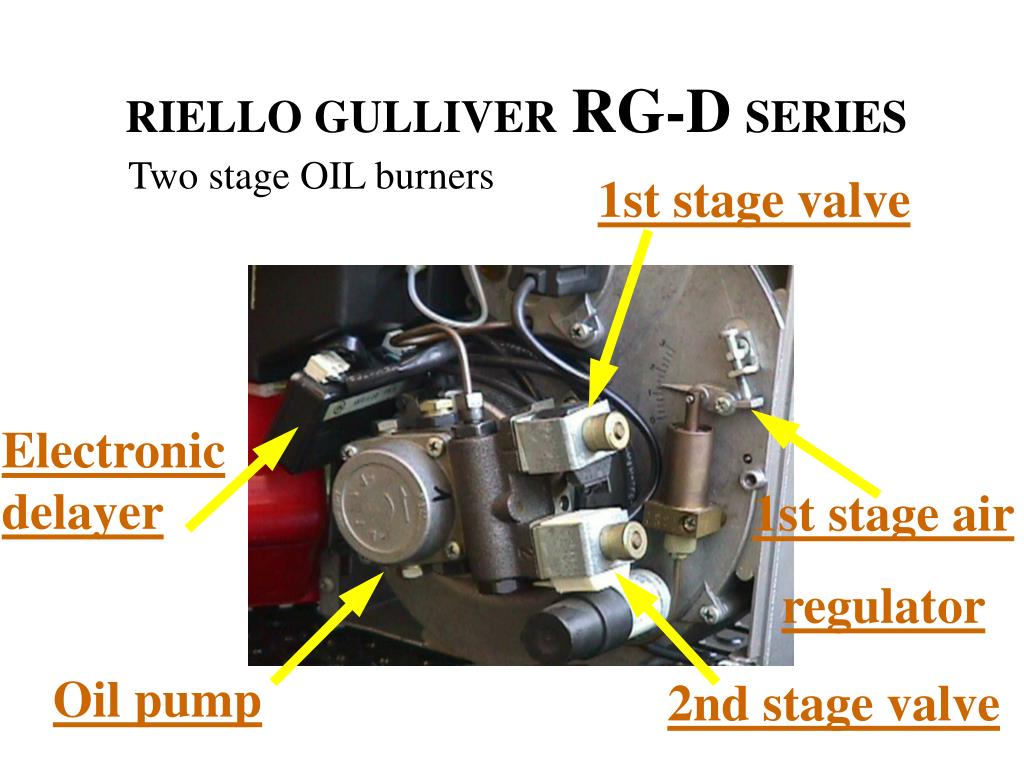

  20. 1st stage valve Electronic delayer 1st stage air regulator Oil pump 2nd stage valve RIELLO GULLIVERRG-DSERIES Two stage OIL burners

  21. RG 1 RKD 14.2 / 17-60 kW RG 2 D 42 / 49-118 kW RG 3 D 65/ 83-178 kW RG 4 D 106 / 130-227 kW RG 5 D 94 / 126-294 kW RG D series Range of Firing Rates

  22. 553 SE With pre-heater Without pre-heater 552 SE 553 SE/E With continuous pre-heater 550 SE With pre-heater and IRD flame detector or amplified photoresistance Control Boxes model Features

  23. Accessories Hour counter Kit Code: 3001024 only for 553SE On line filter Code: 3000926

  24. Hour counter Kit RG1RK cod.: 3000982 , mm 180 Code: 3001024 only for 553SE RG1-RG1R cod.: 3000963 , mm 160 RG2-RG2D cod.: 3000964 , mm 180 On line filter Code: 3000926 RG3-RG3D cod.: 3000965 , mm 210 RG4S-RG4D cod.: 3000966 , mm 210 RG5-RG5D cod.: 3000981 , mm 300 Accessories Extended combustion head Kit

  25. Hour counter Kit Code: 3001024 only for 553SE On line filter Code: 3000926 RG2-RG2D cod.: 3000967 , mm 300 RG3-RG3D cod.: 3000968 , mm 300 RG4S-RG4D cod.: 3000969 , mm 300 Accessories Extension combustion head Kit Extra extended combustion head Kit

  26. GAS BURNERS

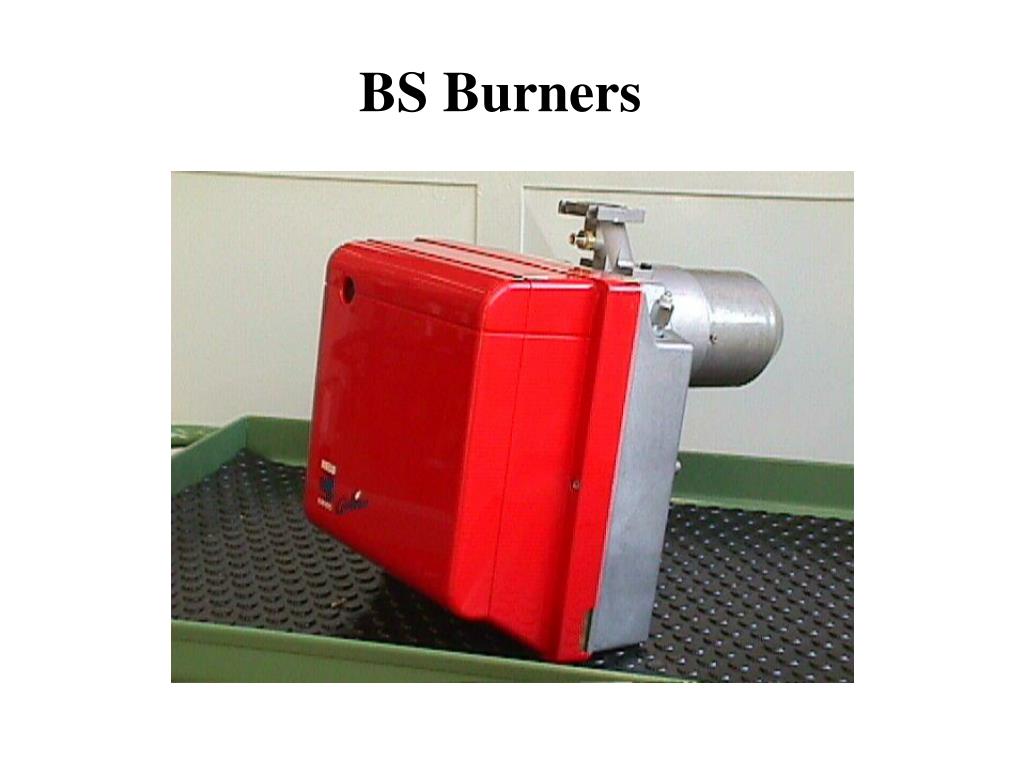

  27. BS Burners

  28. Gas connection Gas Pressure point Control Box Air Pressure point Air pressure switch BS Burners

  29. BS Burners One stage and two stage gas burners called GULLIVER The Burners are designed for the best matching with steel boilers and cast iron boilers Adjustable Combustion head length Burners designed only in LOW-NOx version: NOx emission below 80 mg/kWh Burners are available in 8 models with a range from 16 to 246 kW

  30. CODE B S 2 D B - BLUE S - GAS 2 - SIZE OF THE BURNER D - TWO STAGE BURNERS

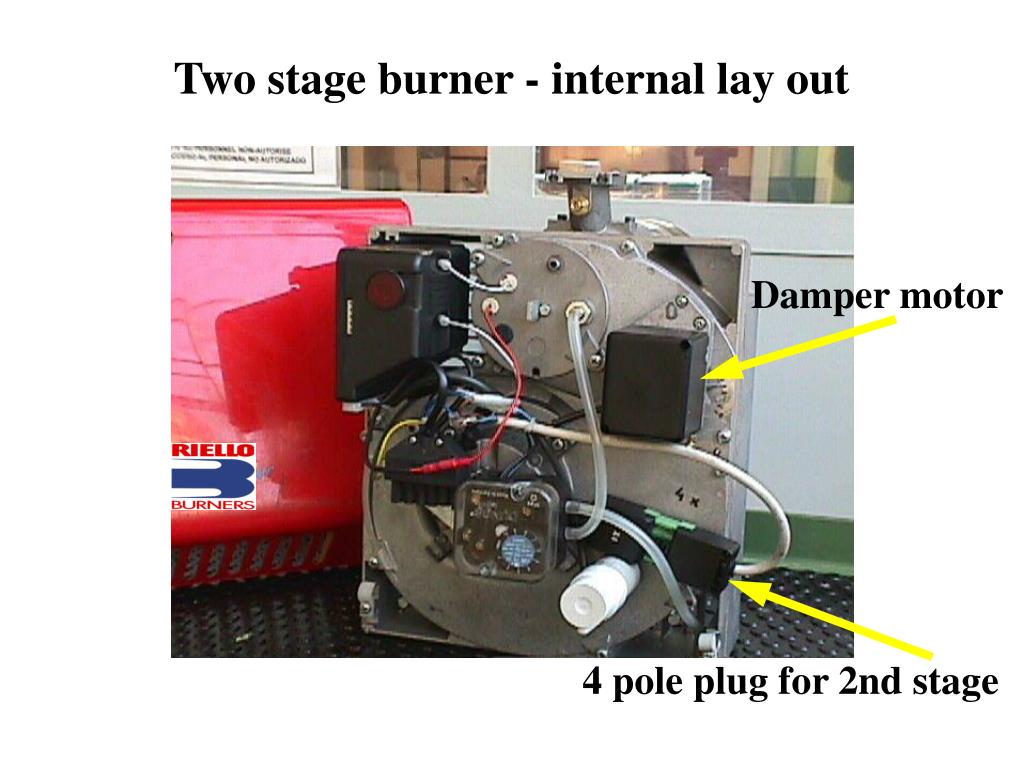

  31. Damper motor 4 pole plug for 2nd stage Two stage burner - internal lay out

  32. One stage burners BS 1 16-52 kW BS 2 35 - 51 kW BS 3 65 - 189 kW BS 4 110 - 246 kW Two stage burners BS 1 D 16/ 19-52 kW BS 2 D 35/ 40 - 51 kW BS 3 D 65/ 75 - 189 kW BS 4 D 110/ 140-246 kW Range of Firing rates

  33. Gas Trains

  34. Flange type: A , B , C Gas Train : Flanges of connection

  35. Burn. Mod. type code 3970085 3970086 MBD 403 G MBD 405 G A flange BS1 MBD 405 G MBD 407 G 3970087 3970069 BS2 B flange MBD 407 G MBD 410 G MBD 412 G 3970088 3970092 3970093 BS3 BS4 C flange Choice of correct gas train Separate seal control kit VPS 504 code n° 3010123

  36. Burn. Mod. type code A flange BS1D 3970089 MBD/2 405 G MBD/2 405 G MBD/2 407 G 3970090 3970070 BS2D B flange MBD/2 407 G MBD/2 410 G MBD/2 412 G 3970091 3970094 3970095 BS3D BS4D C flange Choice of correct gas train Separate seal control kit VPS 504 code n° 3010123

  37. Cod. 3001003 BS1 - BS1D Cod. 3001004 BS2 - BS2D Cod. 3001005 BS3 - BS3D Cod. 3001011 BS4 - BS4D LPG kit

  38. BS2 - BS2D Extended combustion head kit Length 175 / 185 mm Cod. 3001007 Extra extended combustion head kit BS2 - BS2D Length 275 / 285 mm Cod. 3001008 Accessories

  39. BS3 - BS3D Extended combustion head kit Length 270 / 285 mm Cod. 3001009 Extended combustion head kit BS4 - BS4D Length 250 / 280 mm Cod. 3001016 Accessories
