Lower Limb

Lower Limb. What is a limb? Skeleton Joints Pelvis or limb girdle Hip/Hip Muscles Lumber and sacral plexus—getting spinal nerves out onto limb Muscles—anterior and posterior compartments Surface anatomy. Skeleton (homologous with upper limb) Muscles--anterior, posterior compartments

gaye
Télécharger la présentation

Lower Limb

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

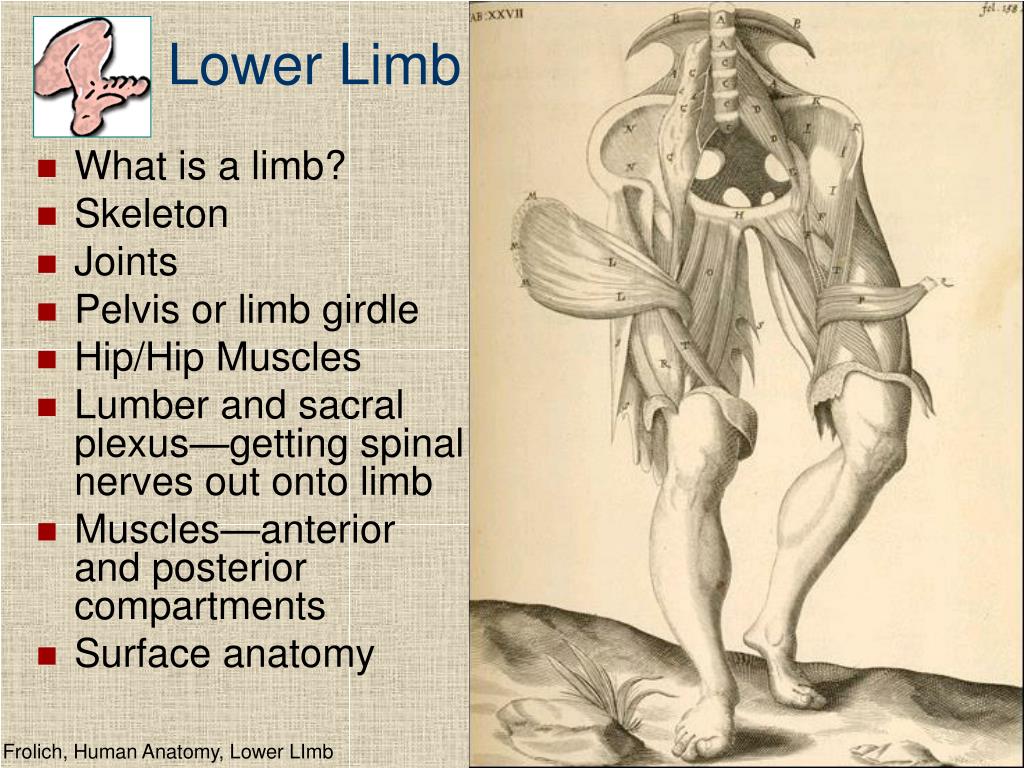

  1. Lower Limb • What is a limb? • Skeleton • Joints • Pelvis or limb girdle • Hip/Hip Muscles • Lumber and sacral plexus—getting spinal nerves out onto limb • Muscles—anterior and posterior compartments • Surface anatomy • Skeleton (homologous with upper limb) • Muscles--anterior, posterior compartments • Nerves--sciatic, femoral • Surface anatomy

  2. What is a limb? • Ventral somatic outgrowth of outer tube • Bones (made of bony tissue, cartilage, and other tissues) • Joints • Muscles • Nerves (with motor neurons to muscles, sensory neurons to skin, proprioceptors) • No viscera--all innervation is somatic (motor or sensory) from ventral ramus of spinal nerve (except autonomics to blood vessels)

  3. Upper Limb Lower Limb • Scapula • Humerus • Radius, ulna • Carpals • Digits • Metacarpals • Phalanges • Pelvis • Femur • Tibia, fibula • Tarsals • Digits • Metatarsals • Phalanges

  4. Upper Limb • Scapula • Humerus • Radius, ulna • Carpals • Digits • Metacarpals • Phalanges

  5. Tibia/fibula • Tibia--big toe side • Fibula--little toe side (no pronation/supination)

  6. Ankle • Talus--forms ankle joint • Calcaneus--forms heel

  7. Foot • Function: • Support weight • Act as lever when walking • Tarsals • Talus = ankle • Between tibia + fibula • Articulates w/both • Calcaneus = heel • Attachment for Calcaneal tendon • Carries talus • Metatarsals • Homologous to metacarpals • Phalanges • Smaller, less nimble

  8. Joints of Lower Limb • Hip (femur + acetabulum) • Ball + socket • Multiaxial • Synovial • Knee (femur + patella) • Plane • Gliding of patella • Synovial • Knee (femur + tibia) • Hinge • Biaxial • Synovial

  9. Joints of Lower Limb • Proximal Tibia + Fibula • Plane • Gliding • Synovial • Distal Tibia + Fibula • Slight “give” • Fibrous • Ankle (Tibia/Fibula + Talus) • Hinge • Uniaxial • Synovial pg 218

  10. Hip Flexion/extension Abduction/adduction Lateral/medial rotation Knee Flexion/extension Ankle Dorsiflexion/plantarflexion Inversion/eversion Toes Flexion/extension Bending on posterior side is flexion (except hip) Bending on anterior sided is extension (except hip) Lower Limb Movements

  11. Pelvic tilt and a reverse lumbar curve (or how we got to be upright) • Bowl concept • pelvis spills forward • Hernia • “beer belly” • In human minor pelvis is behind (posterior) to guts and abdominal cavity • Compare human pelvic position with quadruped (cat for instance)

  12. Human pelvis still has quadruped orientation

  13. Bony structure of the pelvis MAIN STRUCTURES • Hip bone (innominate, os coxae)--fusion of • Ilium (“hips”) • Ischium (“rear”) • Pubis (anterior midline) • Sacrum and coccyx • Acetabulum • Femur--head, neck, greater trochanter HOLES • False and true pelvis (major, minor pelvis) • Pelvic inlet, pelvic outlet • Sacrotuberous ligament • Sacrospinous ligament • Greater, lesser sciatic foramen • Obturator foramen

  14. Female Male • Cavity is broad, shallow • Pelvic inlet oval + outlet round • Bones are lighter, thinner • Pubic angle larger • Coccyx more flexible, straighter • Ischial tuberosities shorter, more everted • Cavity is narrow, deep • Smaller inlet + outlet • Bones heavier, thicker • Pubic angle more acute • Coccyx less flexible, more curved • Ischial tuberosities longer, face more medially

  15. Posterior and lateral hip • Gluts (gluteal nn.) • Maximus—extensor of thigh • Medius--pelvic tilt (relative to insertion with foot planted) • Lateral rotators (spinal nn.) • Piriformis syndrome

  16. Anterior Hip • Iliopsoas • iliacus • psoas • Quadratus lumborum

  17. Lumbar and sacral plexus • Mr. Bill is happy—so easy • Lumbar plexus forms femoral n.—anterior • Sacral plexus forms sciatic n.--posterior Femoral n. Sciatic n.

  18. Lumbar plexus (femoral nerve) Sacral plexus (sciatic nerve) With leg out to side like quadruped, lumbar-anterior, sacral-posterior makes sense

  19. Dermatomes show twisting of leg during development Dorsal becomes anterior: thus “dorsiflexion” and extension in anterior compartment (unlike upper limb) Ventral becomes posterior: thus flexion is in posterior compartment (unlike upper limb)

  20. Anterior/Posterior compartments

  21. Thigh movements by compartment

  22. Anterior thigh (femoral n.) • Sartorius (Tailor’s muscle) • Quads (four) • Rectus femoris (crosses hip) • 3 vastus mm. (vast--big)

  23. Posterior thigh (sciatic n.) • Hamstrings • Biceps femoris • Semimembranous • Semitendinous

  24. Medial thigh (obturator n.) • Adductor muscles • Gracilis • Adductor • Magnus • Longus • brevis

  25. Leg movements by compartment (in leg all nn are branches of sciatic)

  26. Anterior Leg (deep fibular n.) • Extensors (dorsiflexors) • Fibularis (peroneus) longus • Extensor digitorum longus • Extensor hallicus longus • Tibialis anteriorus

  27. Lateral Leg (superficial fibular n.) • Fibularis brevis/longus

  28. Posterior Leg (tibial n.) • Flexors (plantarflexors) • Gastrocs and soleus • Flexor digitorum longus • Flexor hallucus longus

  29. Human gait • Humans only large mammal marathoners, ultra-runners • Prehistoric cultures hunted by exhausting large prey • Bipedalism very efficient energetically • Gastroc-Achilles spring • One other large mammal more efficient—also bipedal

  30. Intrinsics of foot

  31. pg 792 Surface Anatomy: Anterior Thigh + Leg • Palpate • Patella • Condyles of femur • Femoral Triangle • Sartorius (lateral) • Adductor longus (medial) • Inguinal ligament (superior) • Femoral a + v, lymph nodes pg 785

  32. Surface Anatomy: Posterior Leg • Popliteal fossa • Diamond-shape fossa behind knee • Boundaries • Biceps femoris (sup-lat) • Semitendinosis + semimembranosis (sup-med) • Gastrocnemius heads (inf) • Contents • Popliteal a + v • Calcaneal (Achilles) tendon pg 793

  33. Blood supply to lower limb • Internal Iliac • Cranial + Caudal Gluteals= gluteals • Internal Pudendal = perineum, external genitalia • Obturator = adductor muscles • External Iliac • Femoral = lower limb • Deep femoral = adductors, hamstrings, quadriceps • Popliteal (continuation of femoral) • Geniculars = knee • Anterior Tibial = ant. leg muscles, further branches to feet • Posterior Tibial = flexor muscles, plantar arch, branches to toes
