  1. MIRAENANOTECH Co.,Ltd. 製品納入仕樣書 Specification 品 名 Product Name MIRAENANOTECHOptical film 型 名 Model UTE 21 MIRAENANOTECH Co.,Ltd. Drawn By Checked By Approved By

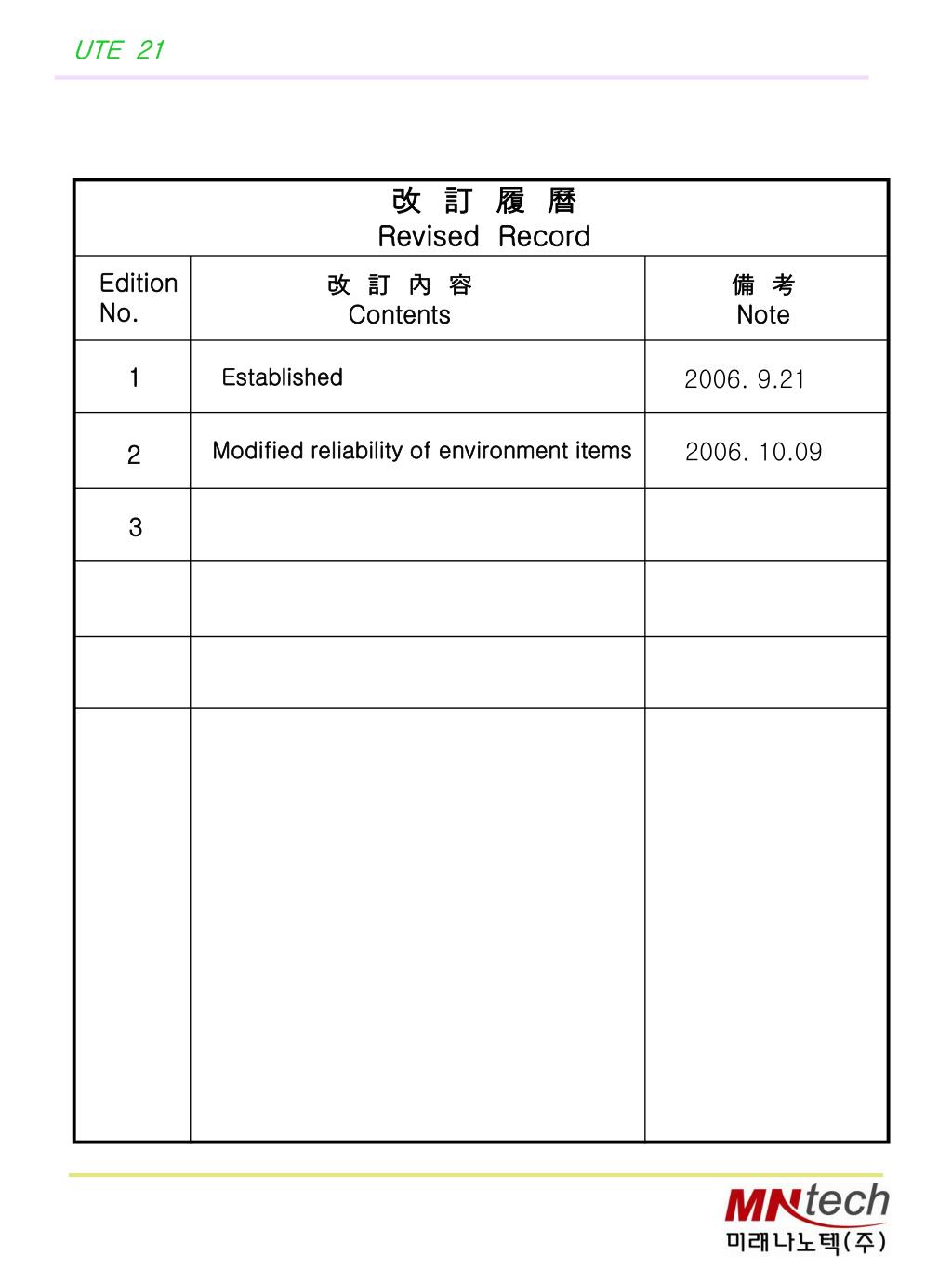

  2. 改 訂 履 曆 Revised Record Edition No. 改 訂 內 容 Contents 備 考 Note Established 1 2006. 9.21 Modified reliability of environment items 2006. 10.09 2 3

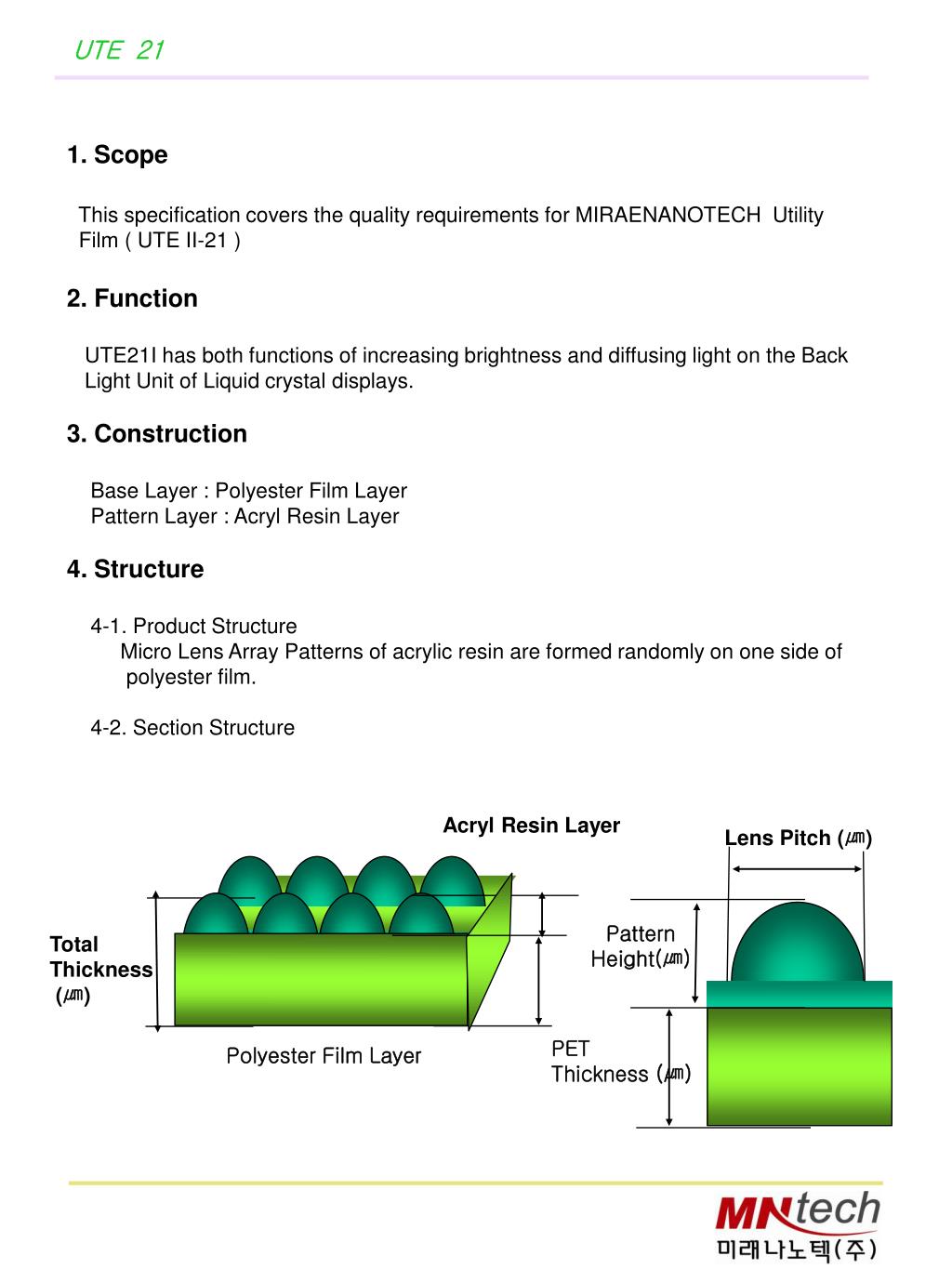

  3. 1. Scope This specification covers the quality requirements for MIRAENANOTECH Utility Film ( UTE II-21 ) 2. Function UTE21I has both functions of increasing brightness and diffusing light on the Back Light Unit of Liquid crystal displays. 3. Construction Base Layer : Polyester Film Layer Pattern Layer : Acryl Resin Layer 4. Structure 4-1. Product Structure Micro Lens Array Patterns of acrylic resin are formed randomly on one side of polyester film. 4-2. Section Structure Acryl Resin Layer Lens Pitch (㎛) Pattern Height(㎛) Total Thickness (㎛) PET Thickness (㎛) Polyester Film Layer

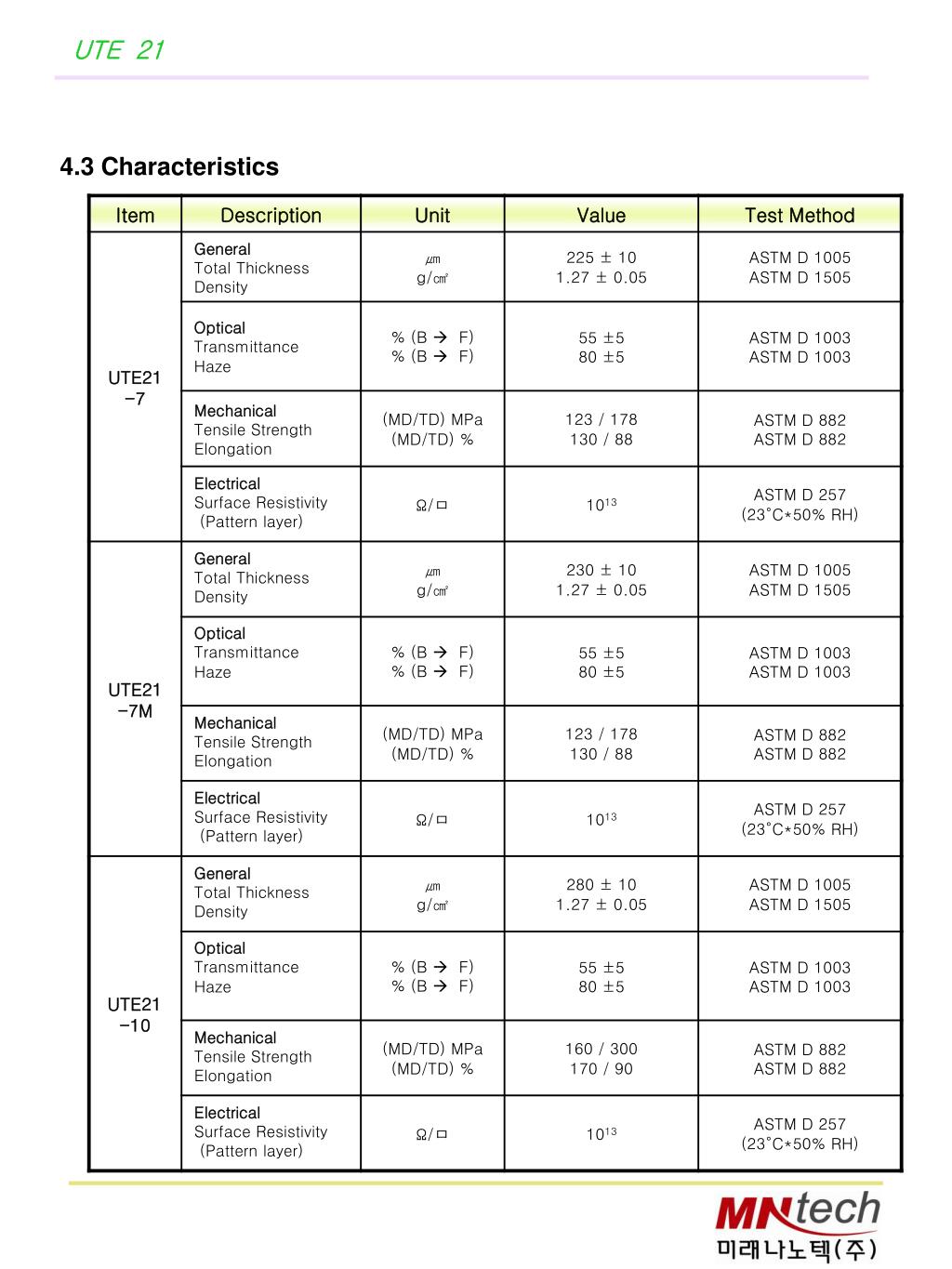

  4. 4.3 Characteristics

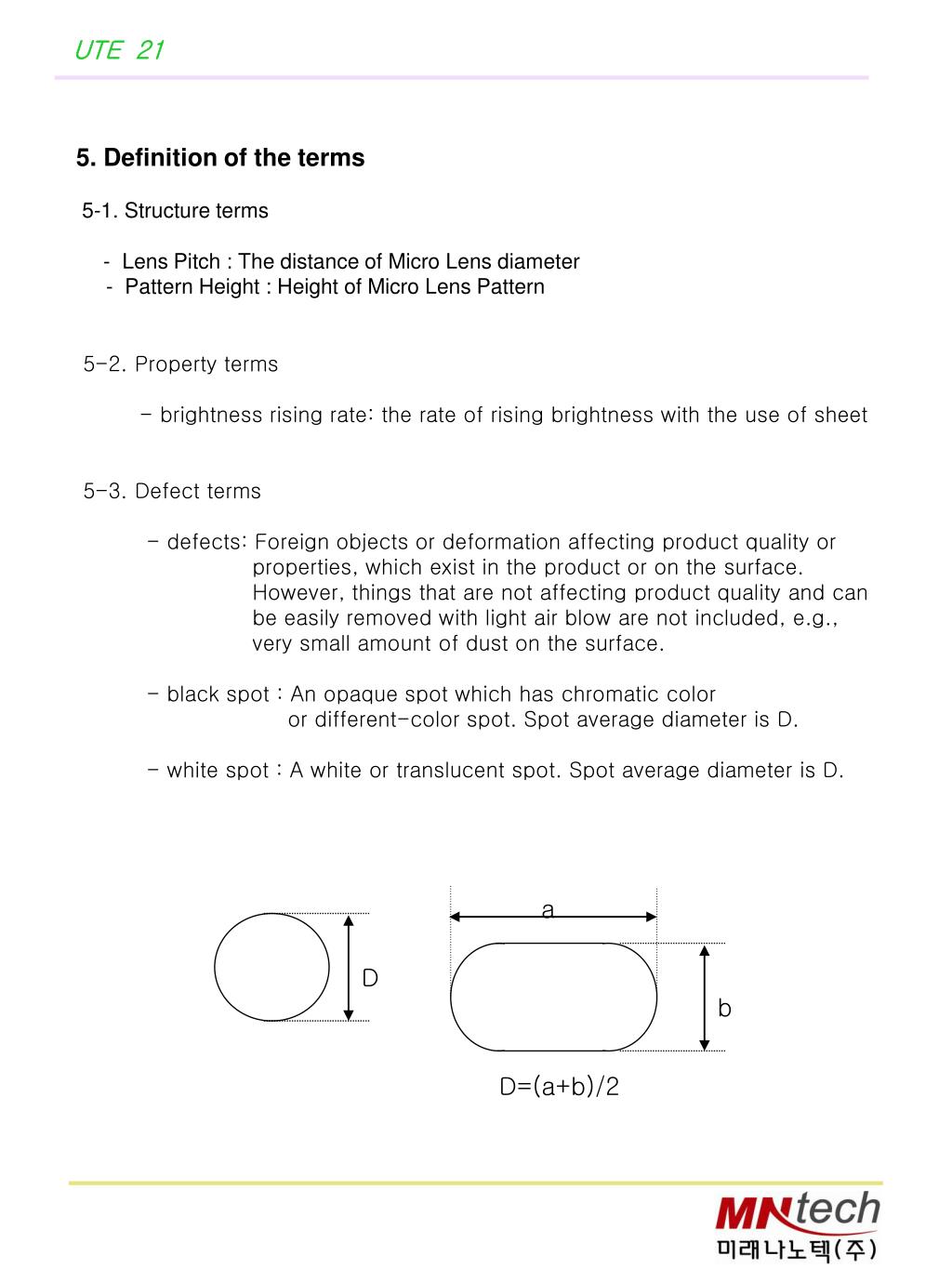

  5. a D b D=(a+b)/2 5. Definition of the terms 5-1. Structure terms - Lens Pitch : The distance of Micro Lens diameter - Pattern Height : Height of Micro Lens Pattern 5-2. Property terms - brightness rising rate: the rate of rising brightness with the use of sheet 5-3. Defect terms - defects: Foreign objects or deformation affecting product quality or properties, which exist in the product or on the surface. However, things that are not affecting product quality and can be easily removed with light air blow are not included, e.g., very small amount of dust on the surface. - black spot : An opaque spot which has chromatic color or different-color spot. Spot average diameter is D. - white spot : A white or translucent spot. Spot average diameter is D.

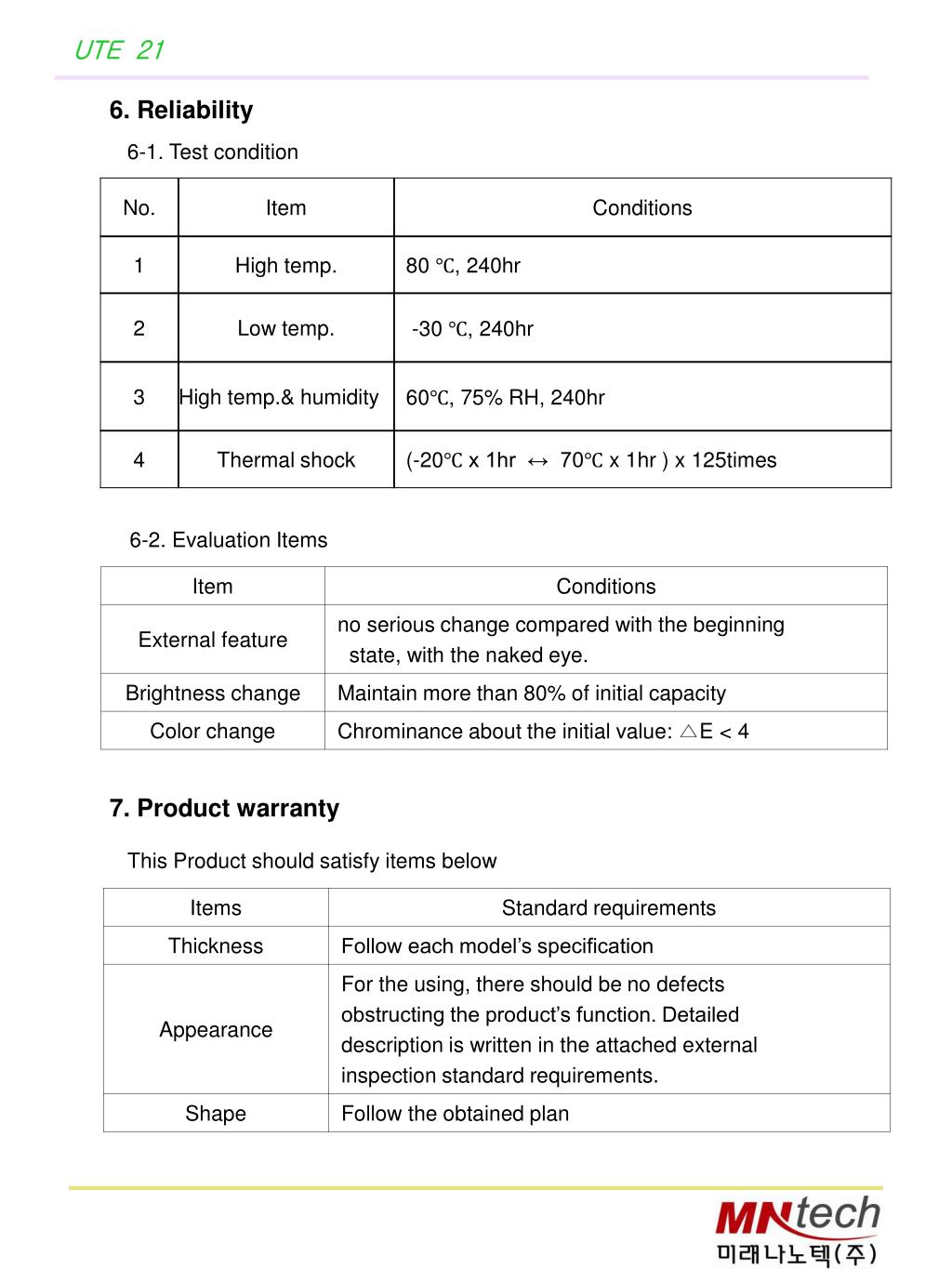

  6. 6. Reliability 6-1. Test condition 6-2. Evaluation Items 7. Product warranty This Product should satisfy items below

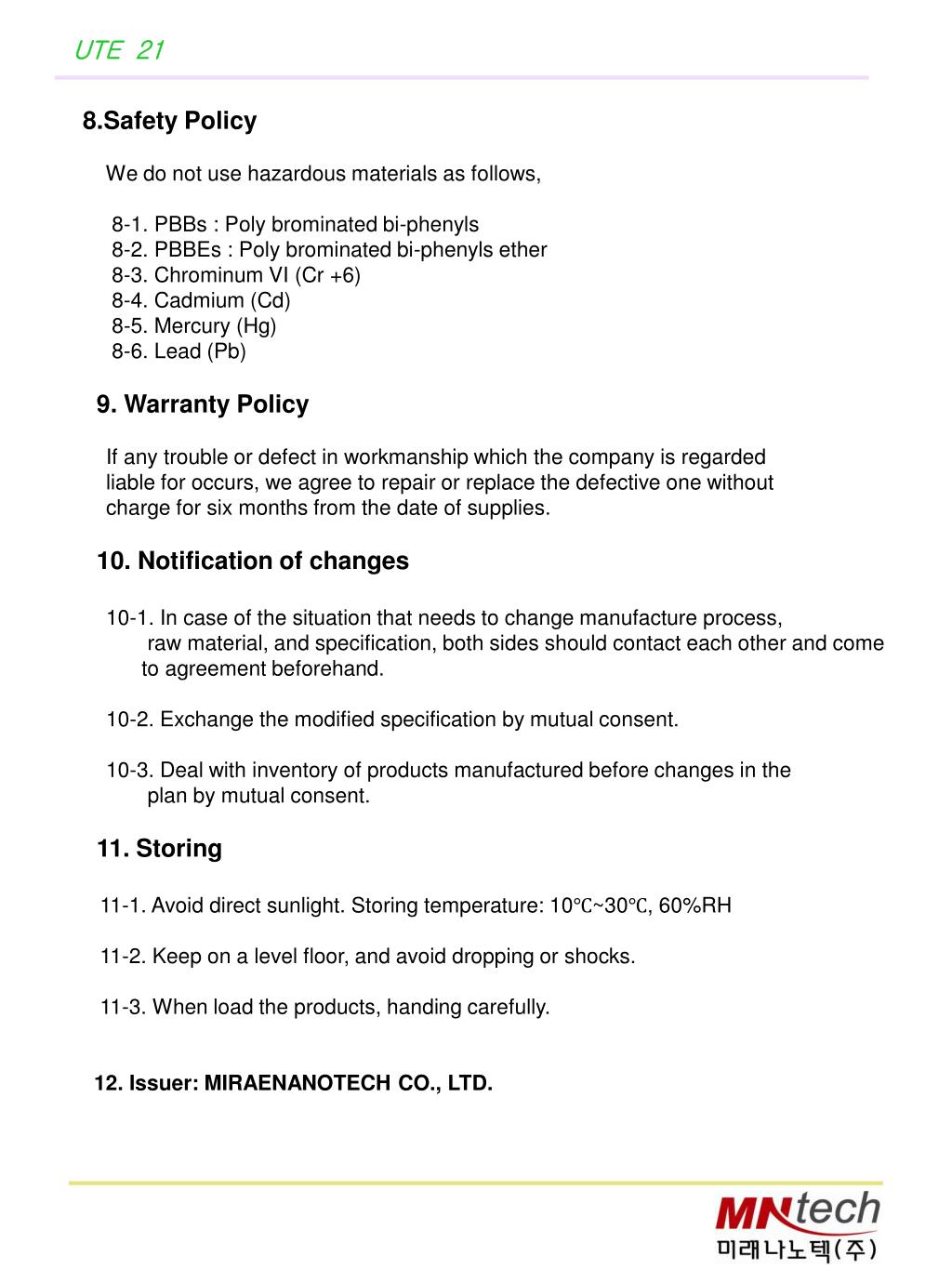

  7. 8.Safety Policy We do not use hazardous materials as follows, 8-1. PBBs : Poly brominated bi-phenyls 8-2. PBBEs : Poly brominated bi-phenyls ether 8-3. Chrominum VI (Cr +6) 8-4. Cadmium (Cd) 8-5. Mercury (Hg) 8-6. Lead (Pb) 9. Warranty Policy If any trouble or defect in workmanship which the company is regarded liable for occurs, we agree to repair or replace the defective one without charge for six months from the date of supplies. 10. Notification of changes 10-1. In case of the situation that needs to change manufacture process, raw material, and specification, both sides should contact each other and come to agreement beforehand. 10-2. Exchange the modified specification by mutual consent. 10-3. Deal with inventory of products manufactured before changes in the plan by mutual consent. 11. Storing 11-1. Avoid direct sunlight. Storing temperature: 10℃~30℃, 60%RH 11-2. Keep on a level floor, and avoid dropping or shocks. 11-3. When load the products, handing carefully. 12. Issuer: MIRAENANOTECH CO., LTD.

  8. Attachment #1 Appearance Inspection • Above inspection rule don’t include in the defectives from mis-handling • Test Condition • : Above size are the measurement after covering with LCD cell of customers. • But if customer need to discuss about normal inspection rules nor apply more strongly rule • in UTE21, both customer and MNTech will made the limit sample for reference in produce • line and the agreement about mutual inspection rules.
