  1. ICT 6641: Advanced Embedded System Lecture 3 Arithmetic, Logic Instructions, Prof. S. M. Lutful Kabir IICT, BUET Session: April, 2011

  2. Review on Lecture-2 • Branching and Looping • Loop inside loop • Different types of JMP Instructions • Different types of CALL Instructions • Stack and Stack Pointer • The PUSH and POP Instruction • The Subroutine Call and Returning From it • Pipelining • Instruction Cycle Time for the AVR • Calculation of Delay Time IICT, BUET

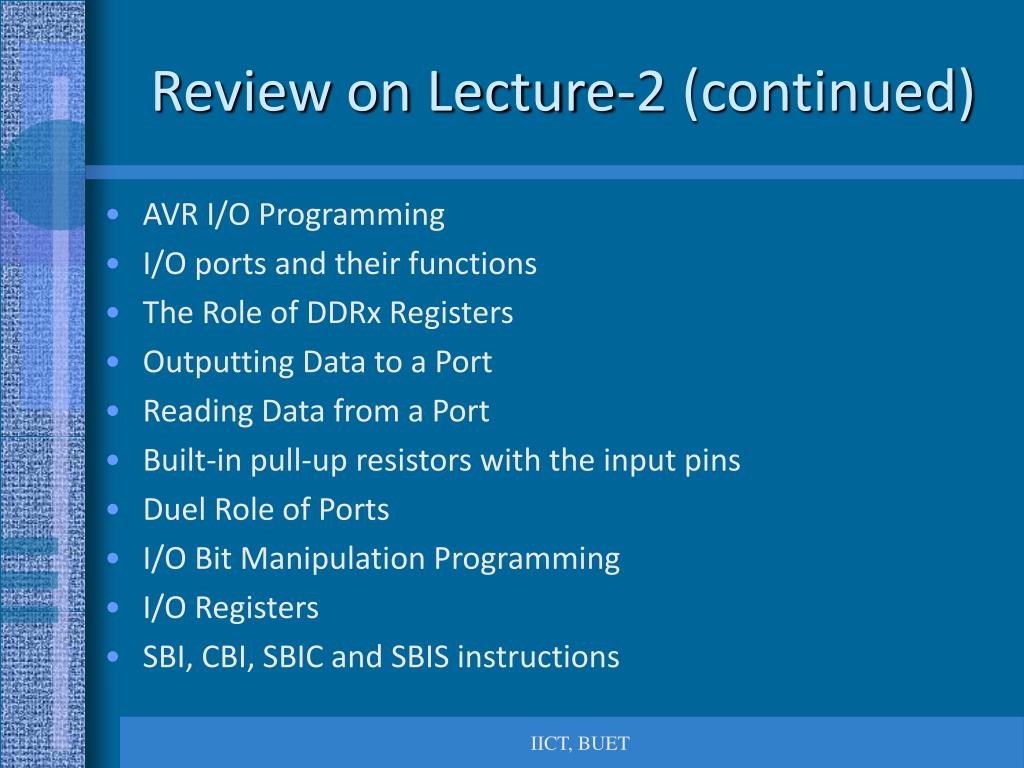

  3. Review on Lecture-2 (continued) • AVR I/O Programming • I/O ports and their functions • The Role of DDRx Registers • Outputting Data to a Port • Reading Data from a Port • Built-in pull-up resistors with the input pins • Duel Role of Ports • I/O Bit Manipulation Programming • I/O Registers • SBI, CBI, SBIC and SBIS instructions IICT, BUET

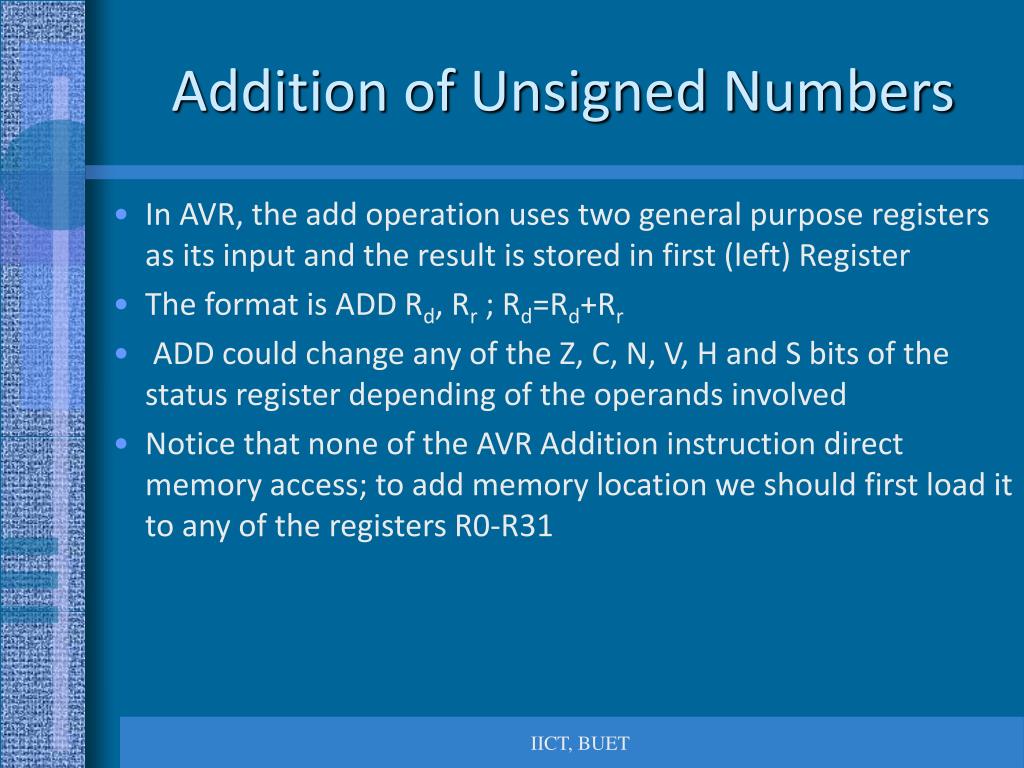

  4. Addition of Unsigned Numbers • In AVR, the add operation uses two general purpose registers as its input and the result is stored in first (left) Register • The format is ADD Rd, Rr ; Rd=Rd+Rr • ADD could change any of the Z, C, N, V, H and S bits of the status register depending of the operands involved • Notice that none of the AVR Addition instruction direct memory access; to add memory location we should first load it to any of the registers R0-R31 IICT, BUET

  5. How the status bits are affected during addition LDI R21, 0xF5 Solution : LDI R22, 0x0B F5H 1111 0101 ADD R21, R22 0BH0000 1011 100H 10000 0000 • After the addition, register R21 contains 00 and the flags are as follows, • C = 1, because there is a carry out of D7 • Z = 1, because the result in the destination register (R21) is zero • H = 1, because there is a Carry from D3 to D4 IICT, BUET

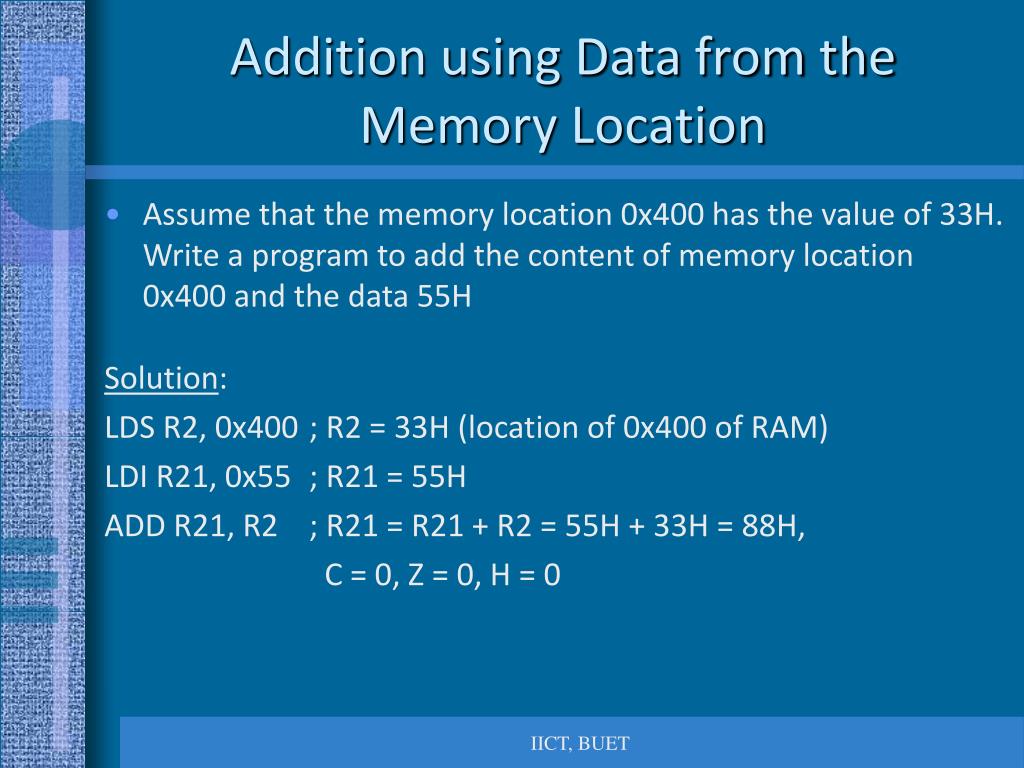

  6. Addition using Data from the Memory Location • Assume that the memory location 0x400 has the value of 33H. Write a program to add the content of memory location 0x400 and the data 55H Solution: LDS R2, 0x400 ; R2 = 33H (location of 0x400 of RAM) LDI R21, 0x55 ; R21 = 55H ADD R21, R2 ; R21 = R21 + R2 = 55H + 33H = 88H, C = 0, Z = 0, H = 0 IICT, BUET

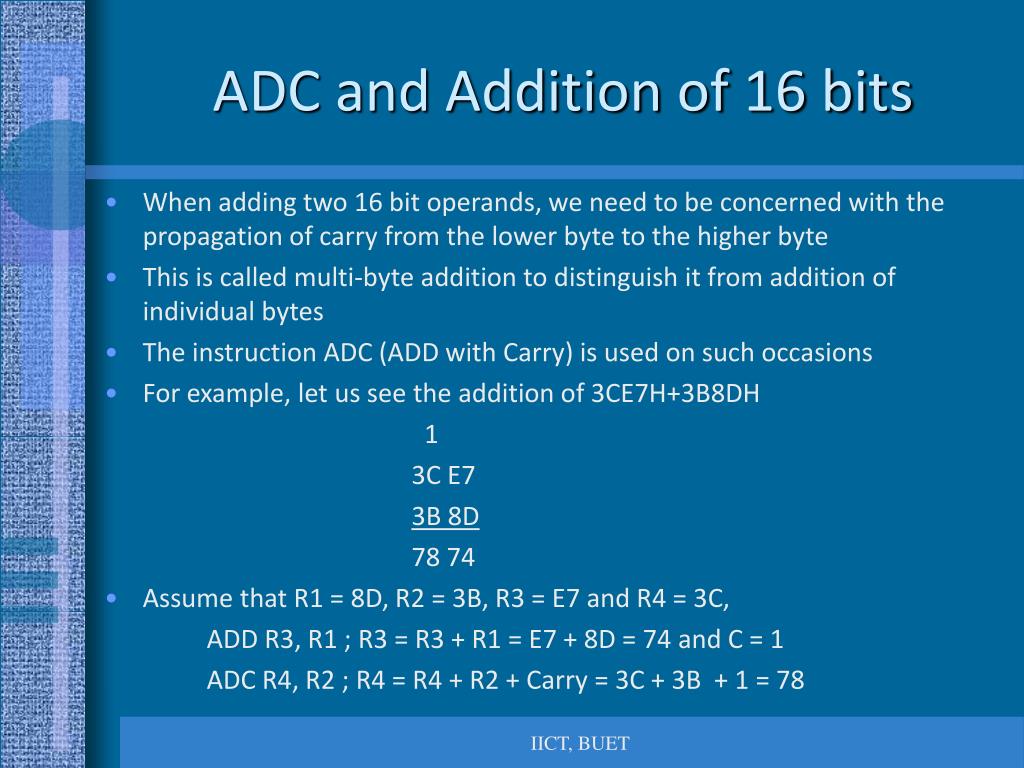

  7. ADC and Addition of 16 bits • When adding two 16 bit operands, we need to be concerned with the propagation of carry from the lower byte to the higher byte • This is called multi-byte addition to distinguish it from addition of individual bytes • The instruction ADC (ADD with Carry) is used on such occasions • For example, let us see the addition of 3CE7H+3B8DH 1 3C E7 3B 8D 78 74 • Assume that R1 = 8D, R2 = 3B, R3 = E7 and R4 = 3C, ADD R3, R1 ; R3 = R3 + R1 = E7 + 8D = 74 and C = 1 ADC R4, R2 ; R4 = R4 + R2 + Carry = 3C + 3B + 1 = 78 IICT, BUET

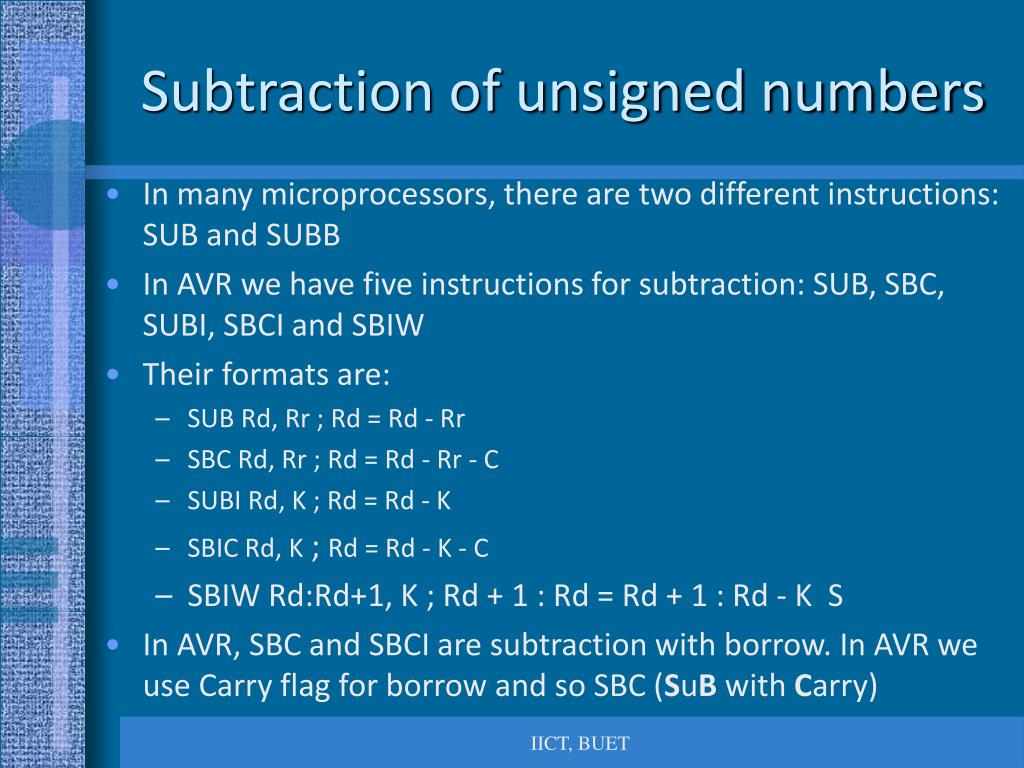

  8. Subtraction of unsigned numbers • In many microprocessors, there are two different instructions: SUB and SUBB • In AVR we have five instructions for subtraction: SUB, SBC, SUBI, SBCI and SBIW • Their formats are: • SUB Rd, Rr ; Rd = Rd - Rr • SBC Rd, Rr ; Rd = Rd - Rr - C • SUBI Rd, K ; Rd = Rd - K • SBIC Rd, K ; Rd = Rd - K - C • SBIW Rd:Rd+1, K ; Rd + 1 : Rd = Rd + 1 : Rd - K S • In AVR, SBC and SBCI are subtraction with borrow. In AVR we use Carry flag for borrow and so SBC (SuB with Carry) IICT, BUET

  9. SUB Rd, Rr [Rd = Rd – Rr] • In subtraction, AVR microcontroller (in fact all modern CPUs) use the 2’s complement method • One can summarize the steps of the hardware of the CPU in executing the SUB instruction for unsigned numbers as follows: • 1. Take the 2’s complement of subtrahend (left side operand) • 2. Add with the minuend (right side operator) • 3. Invert the carry IICT, BUET

  10. Example of SUB instruction • Show the steps involved in the following: • LDI R20, 0x23 • LDI R21, 0x3F • SUB R21, R20 Solution R21 = 3F 0011 1111 0011 1111 R20 = 23 0010 0011 1101 1101 (2’s complement) 1C 1 0001 1100 • C = 0 and D7=N=0 • The flags will be set as follows: C=0 and N=0 (Notice that there is a carry but C flag will be set to 0, [this will be discussed later] • The programmer will look into N (or C) to determine +ve or -ve IICT, BUET

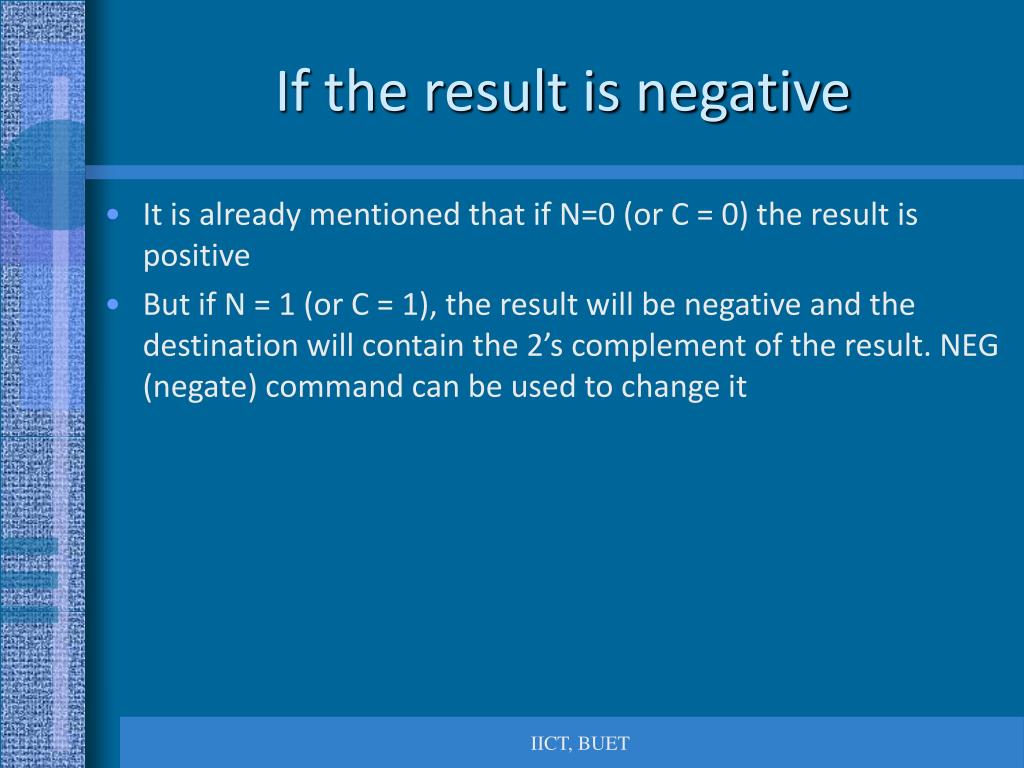

  11. If the result is negative • It is already mentioned that if N=0 (or C = 0) the result is positive • But if N = 1 (or C = 1), the result will be negative and the destination will contain the 2’s complement of the result. NEG (negate) command can be used to change it IICT, BUET

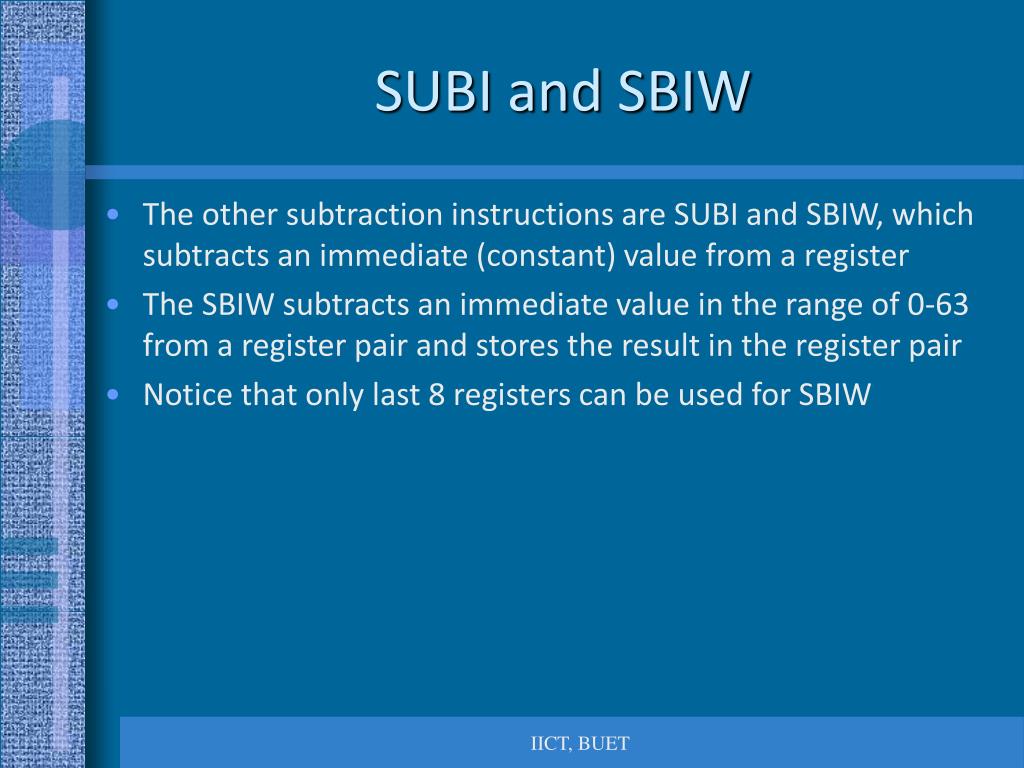

  12. SUBI and SBIW • The other subtraction instructions are SUBI and SBIW, which subtracts an immediate (constant) value from a register • The SBIW subtracts an immediate value in the range of 0-63 from a register pair and stores the result in the register pair • Notice that only last 8 registers can be used for SBIW IICT, BUET

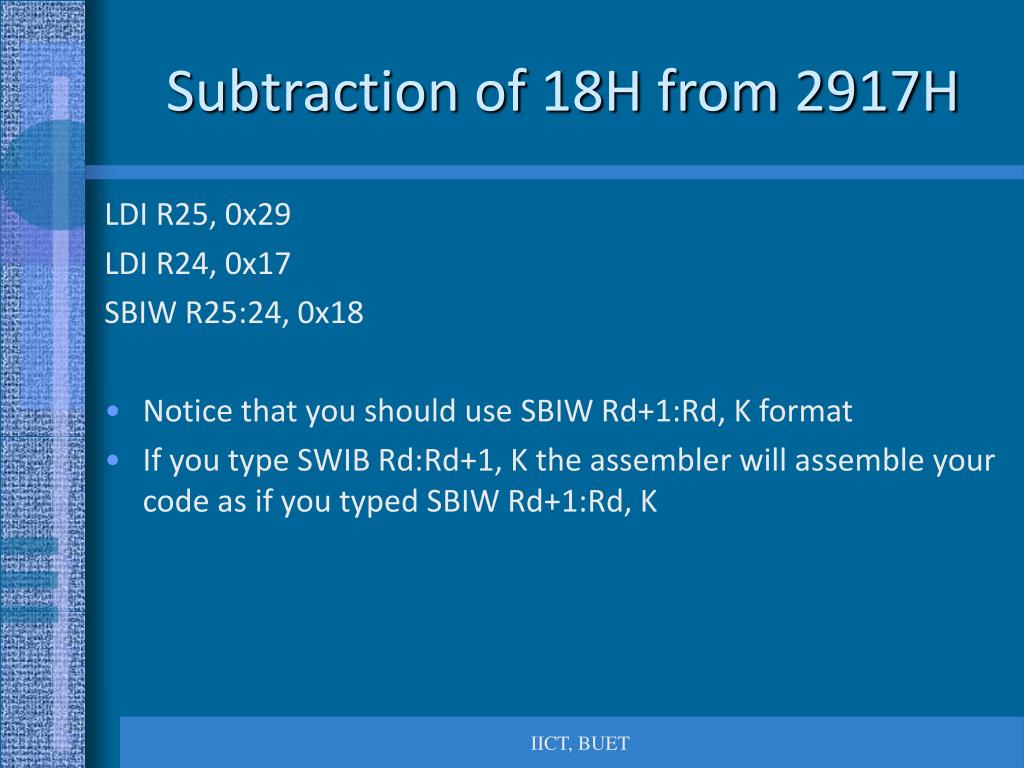

  13. Subtraction of 18H from 2917H LDI R25, 0x29 LDI R24, 0x17 SBIW R25:24, 0x18 • Notice that you should use SBIW Rd+1:Rd, K format • If you type SWIB Rd:Rd+1, K the assembler will assemble your code as if you typed SBIW Rd+1:Rd, K IICT, BUET

  14. SBC (Rd  Rd – Rr – C) Subtract with borrow (denoted by C) • This instruction is used for multi-byte numbers and will take care of borrow of the lower byte • If the borrow flag is set to one (C=1) prior to executing the SBC instruction, this operation also subtracts 1 from the result • Example: 1 LDI R26, 0x62 27 62H LDI R27, 0x96 12 96H LDI R28, 0x96 14 CCH LDI R29, 0x12 SUB R26, R28 --> C=1, N=1 SBC R27, R29 IICT, BUET

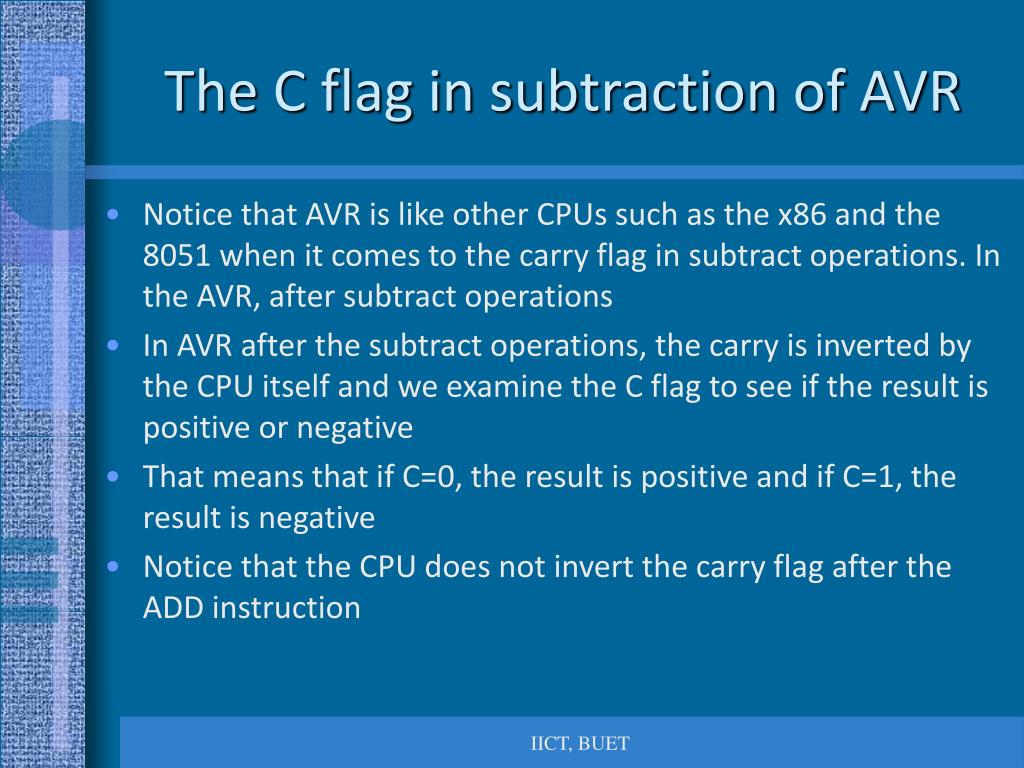

  15. The C flag in subtraction of AVR • Notice that AVR is like other CPUs such as the x86 and the 8051 when it comes to the carry flag in subtract operations. In the AVR, after subtract operations • In AVR after the subtract operations, the carry is inverted by the CPU itself and we examine the C flag to see if the result is positive or negative • That means that if C=0, the result is positive and if C=1, the result is negative • Notice that the CPU does not invert the carry flag after the ADD instruction IICT, BUET

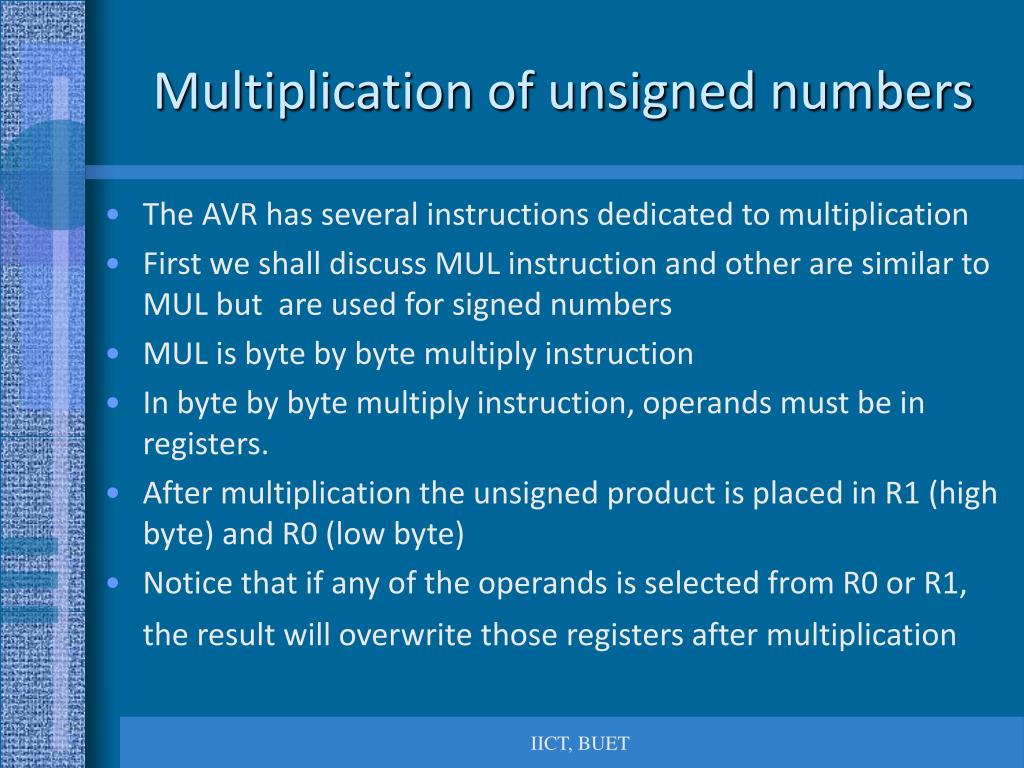

  16. Multiplication of unsigned numbers • The AVR has several instructions dedicated to multiplication • First we shall discuss MUL instruction and other are similar to MUL but are used for signed numbers • MUL is byte by byte multiply instruction • In byte by byte multiply instruction, operands must be in registers. • After multiplication the unsigned product is placed in R1 (high byte) and R0 (low byte) • Notice that if any of the operands is selected from R0 or R1, the result will overwrite those registers after multiplication IICT, BUET

  17. Multiplication Summary ------------------------------------------------------------------------------------------------------- Multiplication Application Byte1 Byte2 High byte Low byte of result of result ------------------------------------------------------------------------------------------------------- MUL Rd, Rr Unsigned numbers Rd Rr R1 R0 MULS Rd, Rr Signed numbers Rd Rr R1 R0 MULSU Rd, Rr Unsigned number with Rd Rr R1 R0 signed number ------------------------------------------------------------------------------------------------------- IICT, BUET

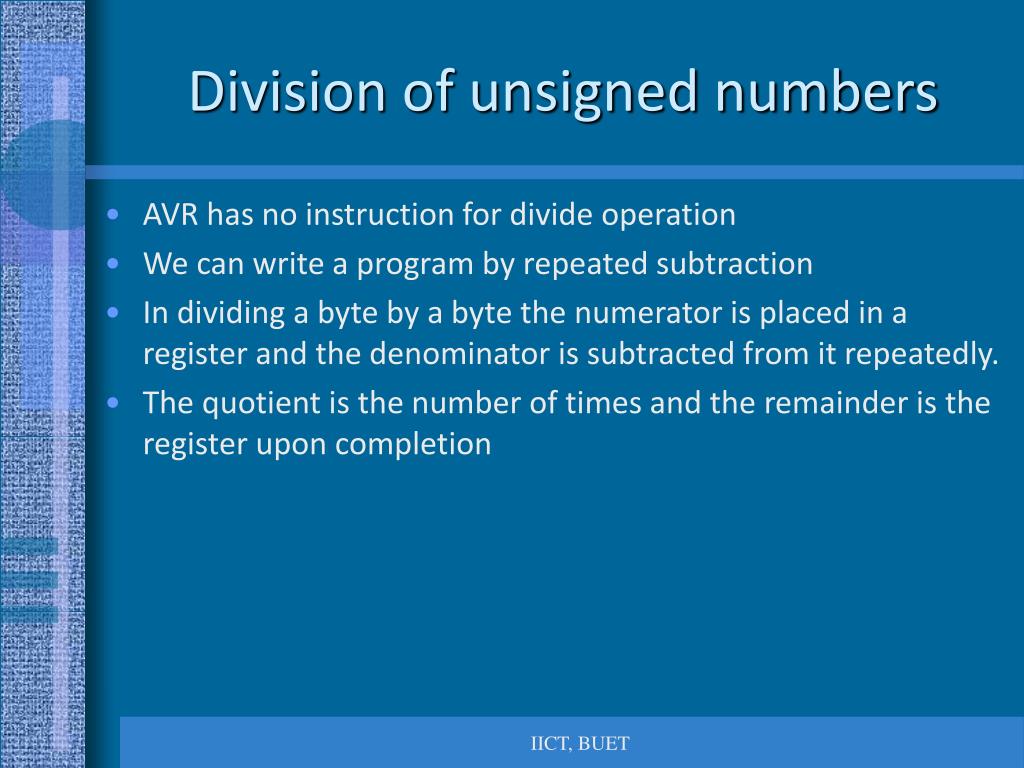

  18. Division of unsigned numbers • AVR has no instruction for divide operation • We can write a program by repeated subtraction • In dividing a byte by a byte the numerator is placed in a register and the denominator is subtracted from it repeatedly. • The quotient is the number of times and the remainder is the register upon completion IICT, BUET

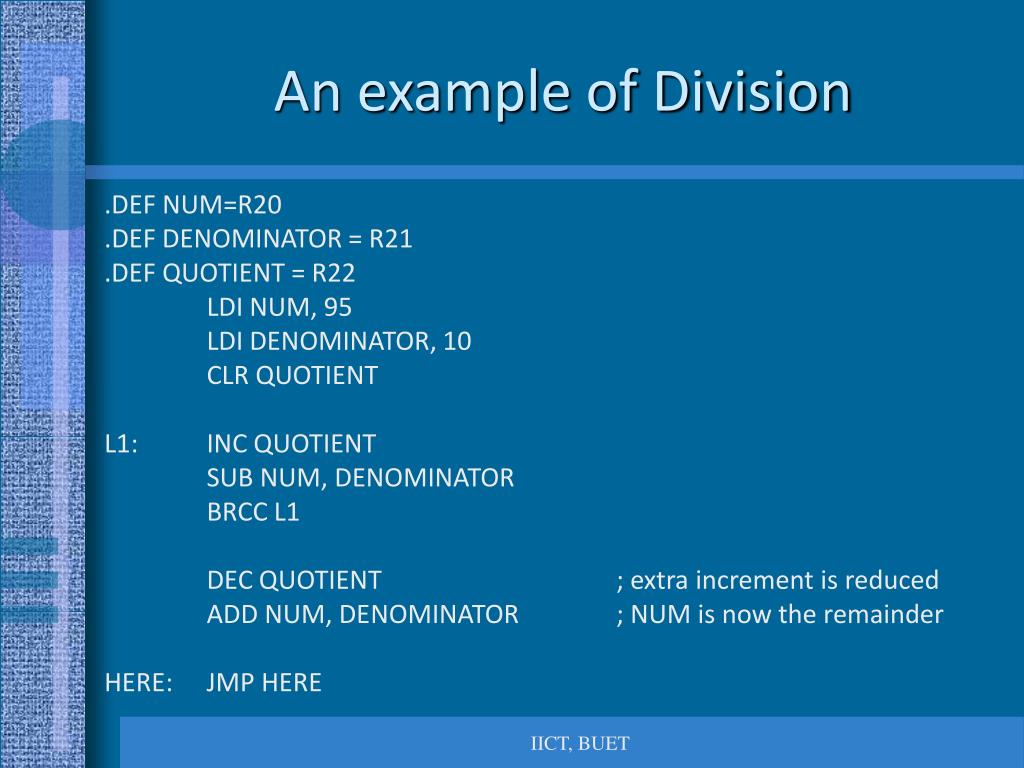

  19. An example of Division .DEF NUM=R20 .DEF DENOMINATOR = R21 .DEF QUOTIENT = R22 LDI NUM, 95 LDI DENOMINATOR, 10 CLR QUOTIENT L1: INC QUOTIENT SUB NUM, DENOMINATOR BRCC L1 DEC QUOTIENT ; extra increment is reduced ADD NUM, DENOMINATOR ; NUM is now the remainder HERE: JMP HERE IICT, BUET

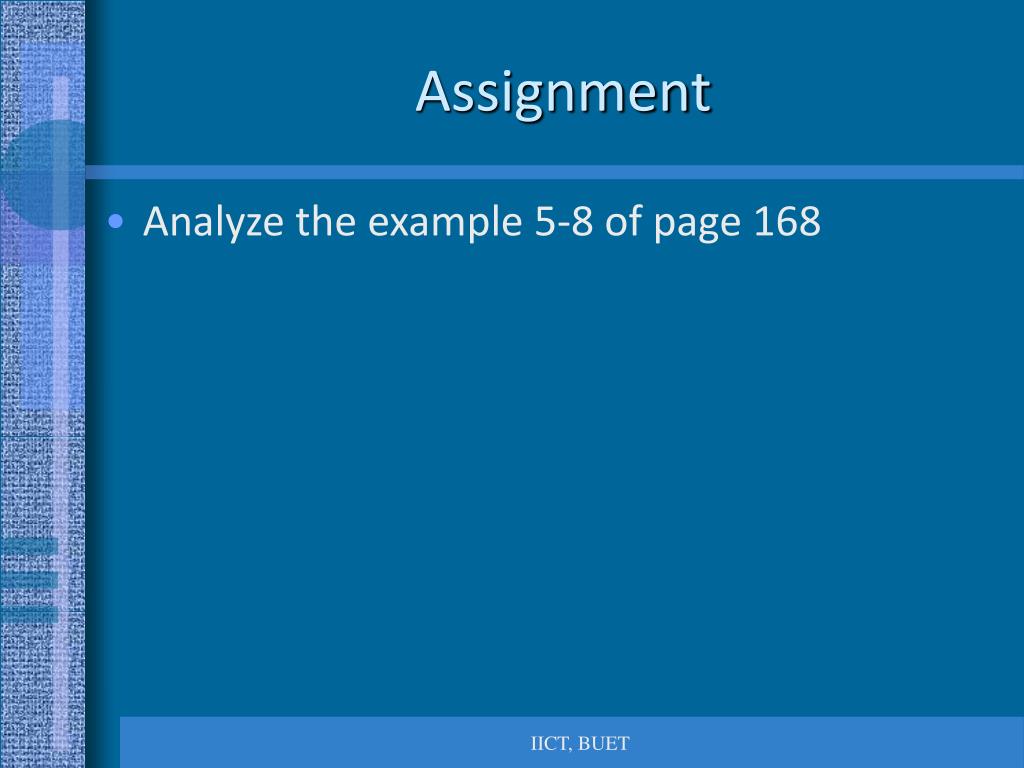

  20. Assignment • Analyze the example 5-8 of page 168 IICT, BUET

  21. Signed Number Concepts and Arithmetic Operations • All data items used so far have been unsigned numbers meaning that the entire 8-bit operand was used for the magnitude • To represent a number as signed, the MSB is set aside for sign • The sign is represented by 0 for positive (+ve) numbers and 1 for negative (-ve) numbers • The steps in representing a negative number (in 2’s Complement) • Represent the number in 8-bit binary • Invert the digits • Add 1 with the inverted number • -127 is represented by 81H, -34H by CCH, -5 as FBH IICT, BUET

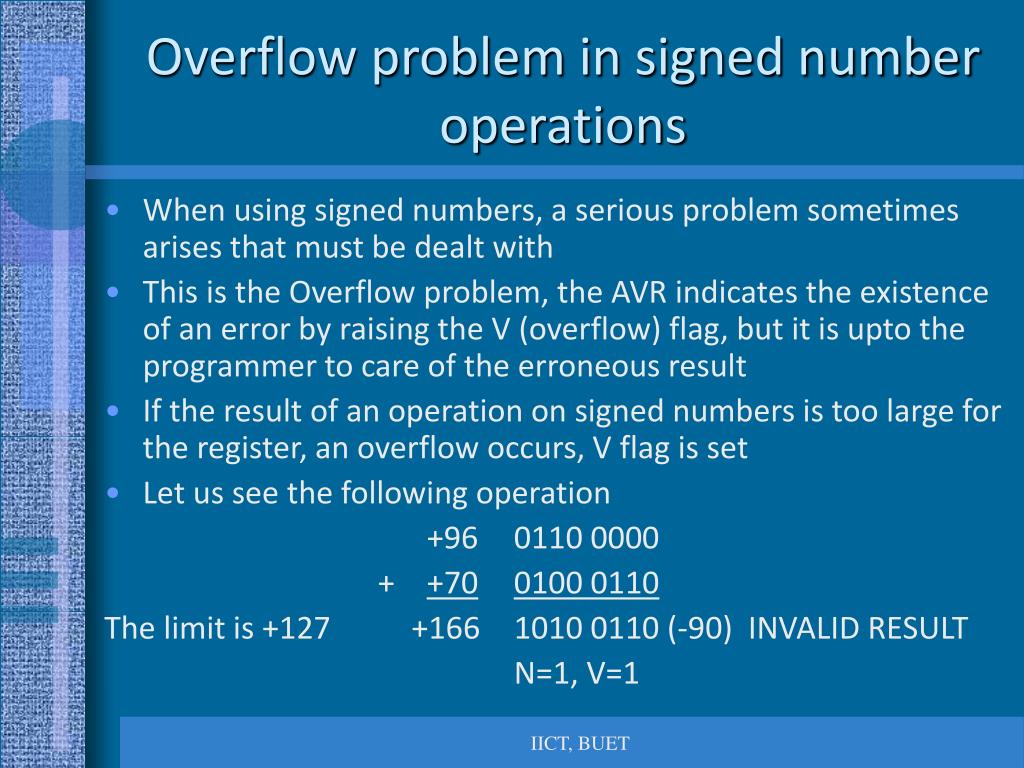

  22. Overflow problem in signed number operations • When using signed numbers, a serious problem sometimes arises that must be dealt with • This is the Overflow problem, the AVR indicates the existence of an error by raising the V (overflow) flag, but it is upto the programmer to care of the erroneous result • If the result of an operation on signed numbers is too large for the register, an overflow occurs, V flag is set • Let us see the following operation +96 0110 0000 + +700100 0110 The limit is +127 +166 1010 0110 (-90) INVALID RESULT N=1, V=1 IICT, BUET

  23. When is the V flag set? • In 8-bit signed operations, V is set to 1 if either of the following conditions occurs: • There is a carry from D6 to D7 but no carry out of D7 (C=0) • There is a carry from D7 out (C=1) but no carry from D6 to D7 • In other words, the overflow flag is set the overflow flag is set to 1 if there is a carry from D6 to D7 or from D7 out but not the both • It means that if there are carry both from D6 to D7 and from D7 out, V=0 IICT, BUET

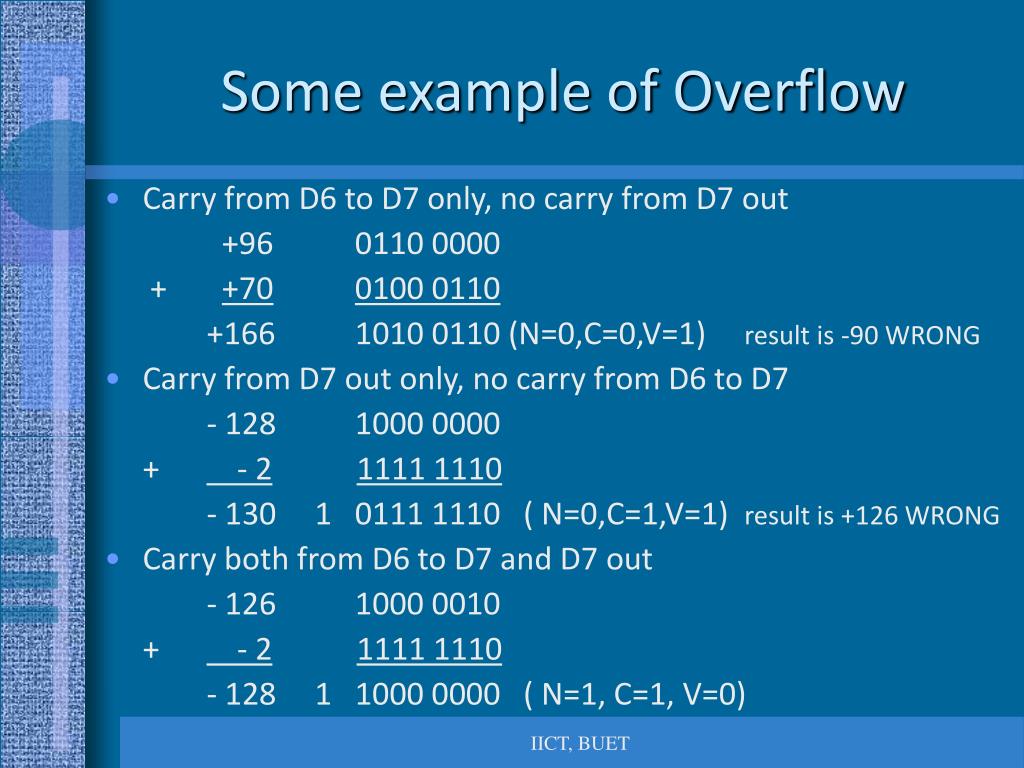

  24. Some example of Overflow • Carry from D6 to D7 only, no carry from D7 out +96 0110 0000 + +700100 0110 +166 1010 0110 (N=0,C=0,V=1) result is -90 WRONG • Carry from D7 out only, no carry from D6 to D7 - 128 1000 0000 + - 21111 1110 - 130 1 0111 1110 ( N=0,C=1,V=1) result is +126 WRONG • Carry both from D6 to D7 and D7 out - 126 1000 0010 + - 21111 1110 - 128 1 1000 0000 ( N=1, C=1, V=0) IICT, BUET

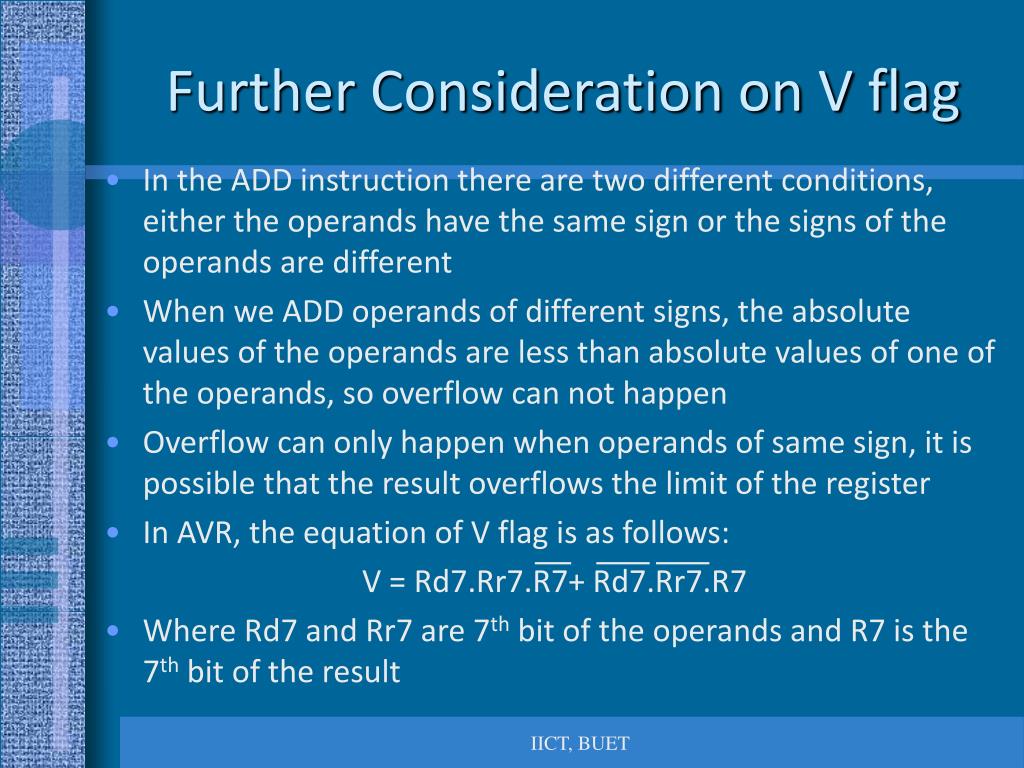

  25. Further Consideration on V flag • In the ADD instruction there are two different conditions, either the operands have the same sign or the signs of the operands are different • When we ADD operands of different signs, the absolute values of the operands are less than absolute values of one of the operands, so overflow can not happen • Overflow can only happen when operands of same sign, it is possible that the result overflows the limit of the register • In AVR, the equation of V flag is as follows: V = Rd7.Rr7.R7+ Rd7.Rr7.R7 • Where Rd7 and Rr7 are 7th bit of the operands and R7 is the 7th bit of the result IICT, BUET

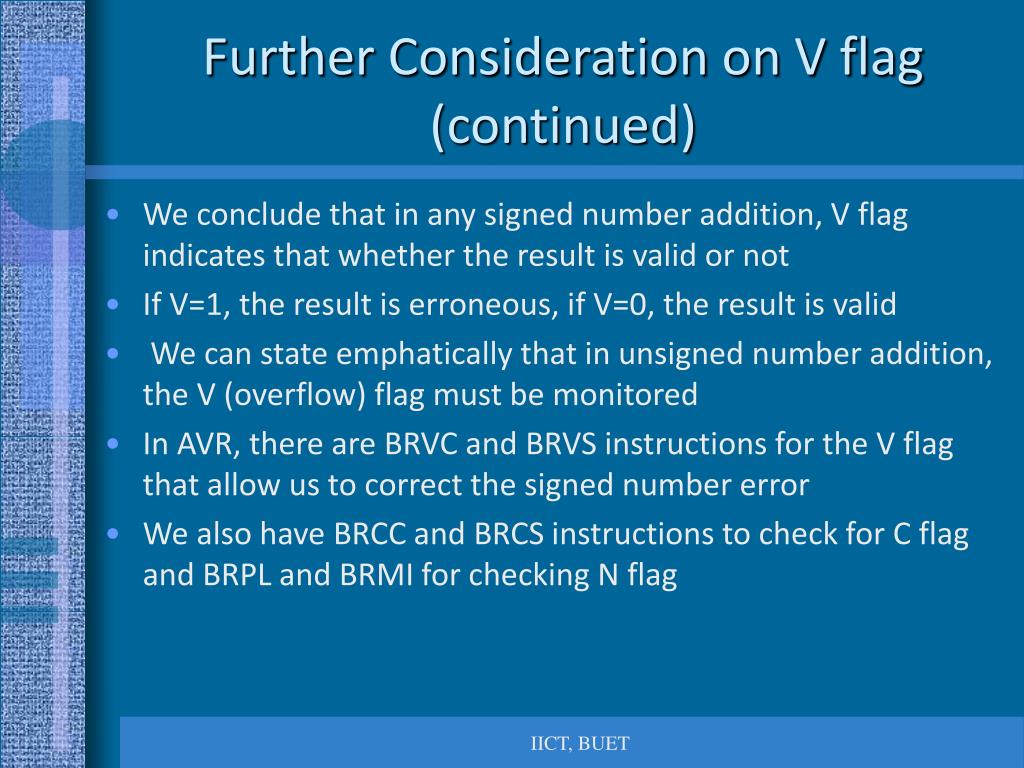

  26. Further Consideration on V flag (continued) • We conclude that in any signed number addition, V flag indicates that whether the result is valid or not • If V=1, the result is erroneous, if V=0, the result is valid • We can state emphatically that in unsigned number addition, the V (overflow) flag must be monitored • In AVR, there are BRVC and BRVS instructions for the V flag that allow us to correct the signed number error • We also have BRCC and BRCS instructions to check for C flag and BRPL and BRMI for checking N flag IICT, BUET

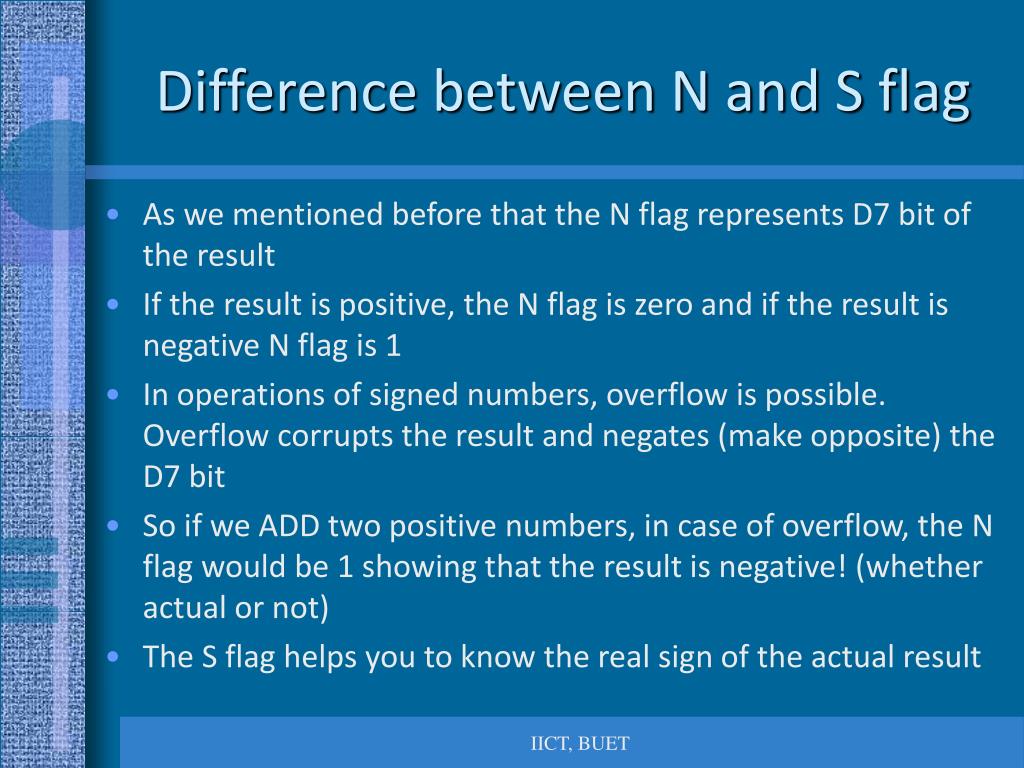

  27. Difference between N and S flag • As we mentioned before that the N flag represents D7 bit of the result • If the result is positive, the N flag is zero and if the result is negative N flag is 1 • In operations of signed numbers, overflow is possible. Overflow corrupts the result and negates (make opposite) the D7 bit • So if we ADD two positive numbers, in case of overflow, the N flag would be 1 showing that the result is negative! (whether actual or not) • The S flag helps you to know the real sign of the actual result IICT, BUET

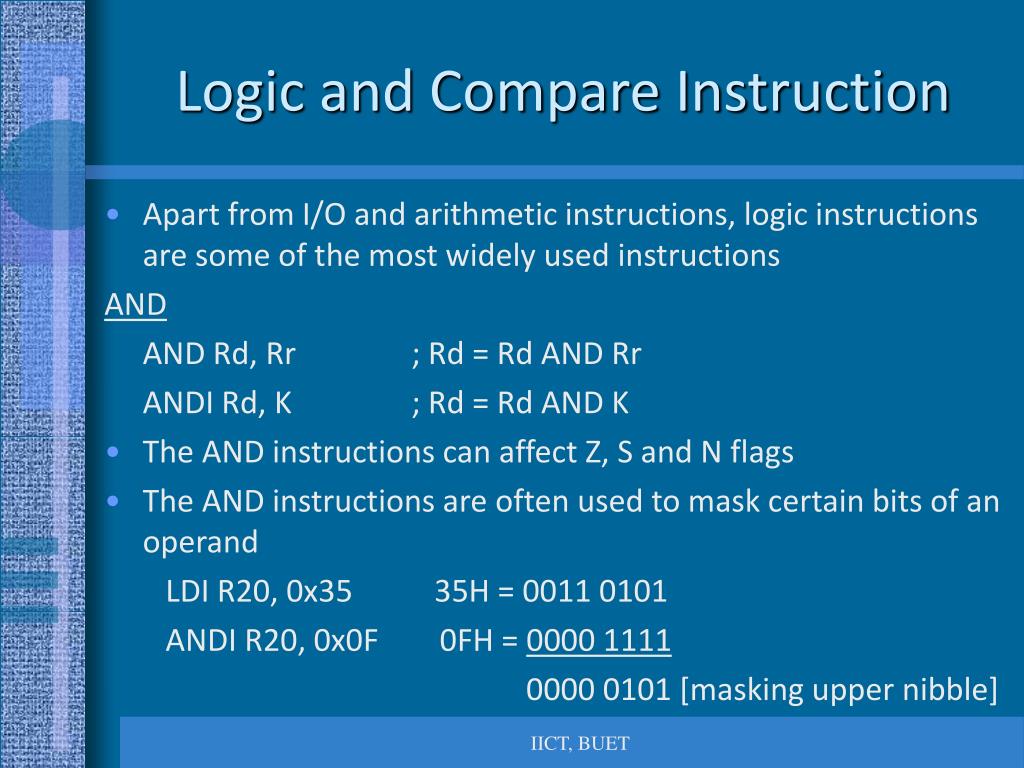

  28. Logic and Compare Instruction • Apart from I/O and arithmetic instructions, logic instructions are some of the most widely used instructions AND AND Rd, Rr ; Rd = Rd AND Rr ANDI Rd, K ; Rd = Rd AND K • The AND instructions can affect Z, S and N flags • The AND instructions are often used to mask certain bits of an operand LDI R20, 0x35 35H = 0011 0101 ANDI R20, 0x0F 0FH = 0000 1111 0000 0101 [masking upper nibble] IICT, BUET

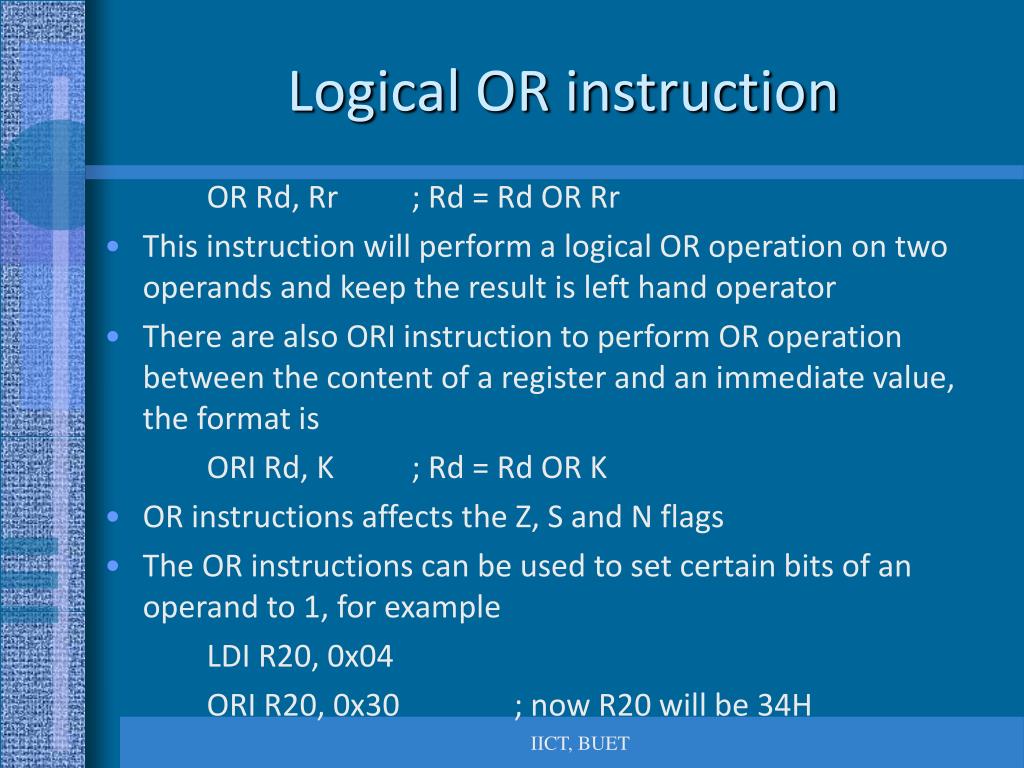

  29. Logical OR instruction OR Rd, Rr ; Rd = Rd OR Rr • This instruction will perform a logical OR operation on two operands and keep the result is left hand operator • There are also ORI instruction to perform OR operation between the content of a register and an immediate value, the format is ORI Rd, K ; Rd = Rd OR K • OR instructions affects the Z, S and N flags • The OR instructions can be used to set certain bits of an operand to 1, for example LDI R20, 0x04 ORI R20, 0x30 ; now R20 will be 34H IICT, BUET

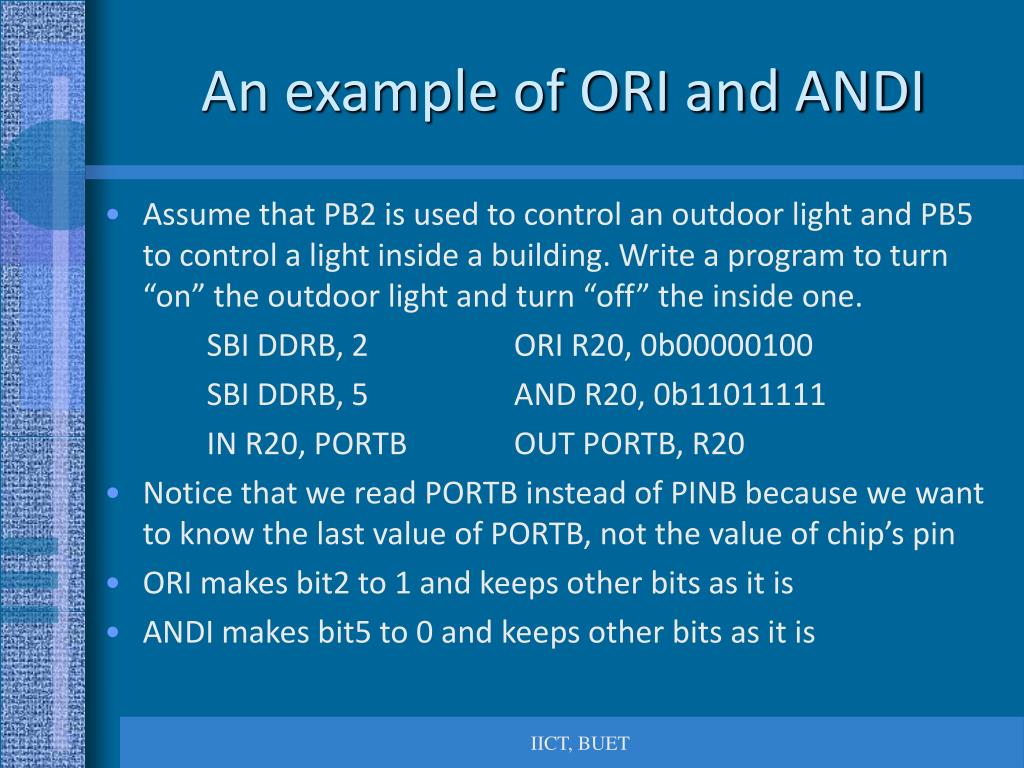

  30. An example of ORI and ANDI • Assume that PB2 is used to control an outdoor light and PB5 to control a light inside a building. Write a program to turn “on” the outdoor light and turn “off” the inside one. SBI DDRB, 2 ORI R20, 0b00000100 SBI DDRB, 5 AND R20, 0b11011111 IN R20, PORTB OUT PORTB, R20 • Notice that we read PORTB instead of PINB because we want to know the last value of PORTB, not the value of chip’s pin • ORI makes bit2 to 1 and keeps other bits as it is • ANDI makes bit5 to 0 and keeps other bits as it is IICT, BUET

  31. EX-OR instruction • EOR Rd, Rs ; Rd = Rd XOR Rs • This instruction performs EX-OR between two operands and keeps the result is the left operand • The EX-OR will affect the Z, S and N flags • EX-OR can be used to check whether the values in two registers are equal or not OVER : IN R20, PORTB LDI R21, 0x45 EOR R20, R21 BRNE OVER • Another widely used application of EX-OR is to toggle the bits of an operand; EOR R0, R20, and R20 is initialized with 0xFF IICT, BUET

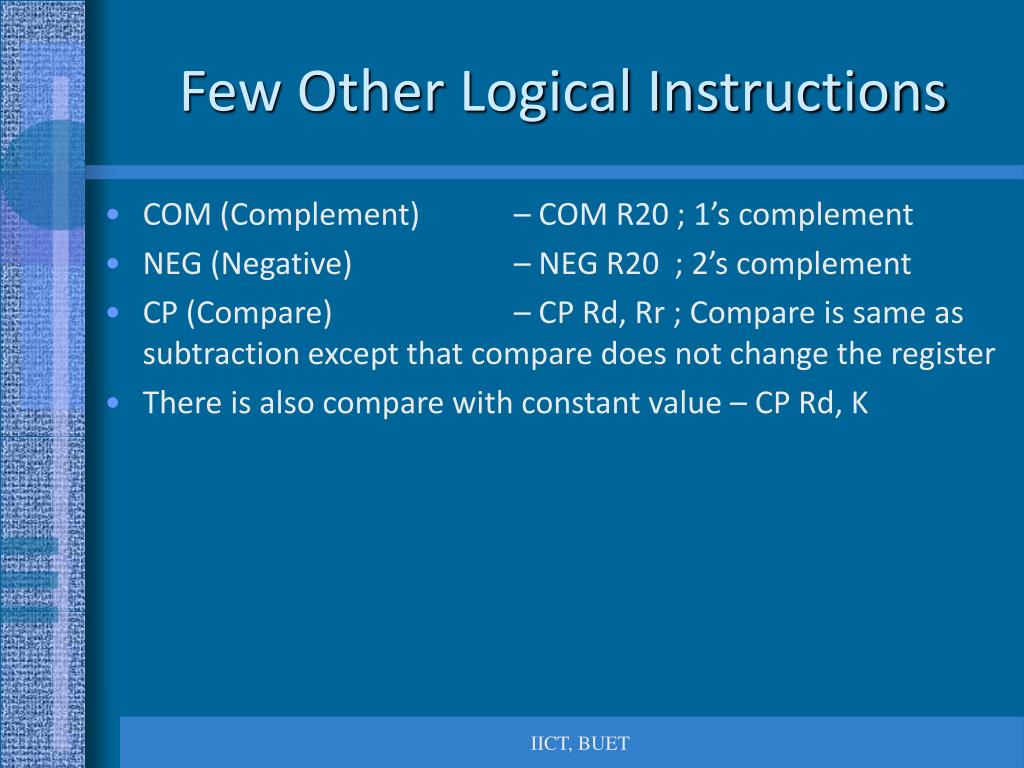

  32. Few Other Logical Instructions • COM (Complement) – COM R20 ; 1’s complement • NEG (Negative) – NEG R20 ; 2’s complement • CP (Compare) – CP Rd, Rr ; Compare is same as subtraction except that compare does not change the register • There is also compare with constant value – CP Rd, K IICT, BUET

  33. Branch Instruction IICT, BUET

  34. Rotate and Shift Instructions • ROR Rd ; Rotate Rd right through carry MSB LSB C • ROL Rd ; Rotate Rd left through carry MSB LSB C IICT, BUET

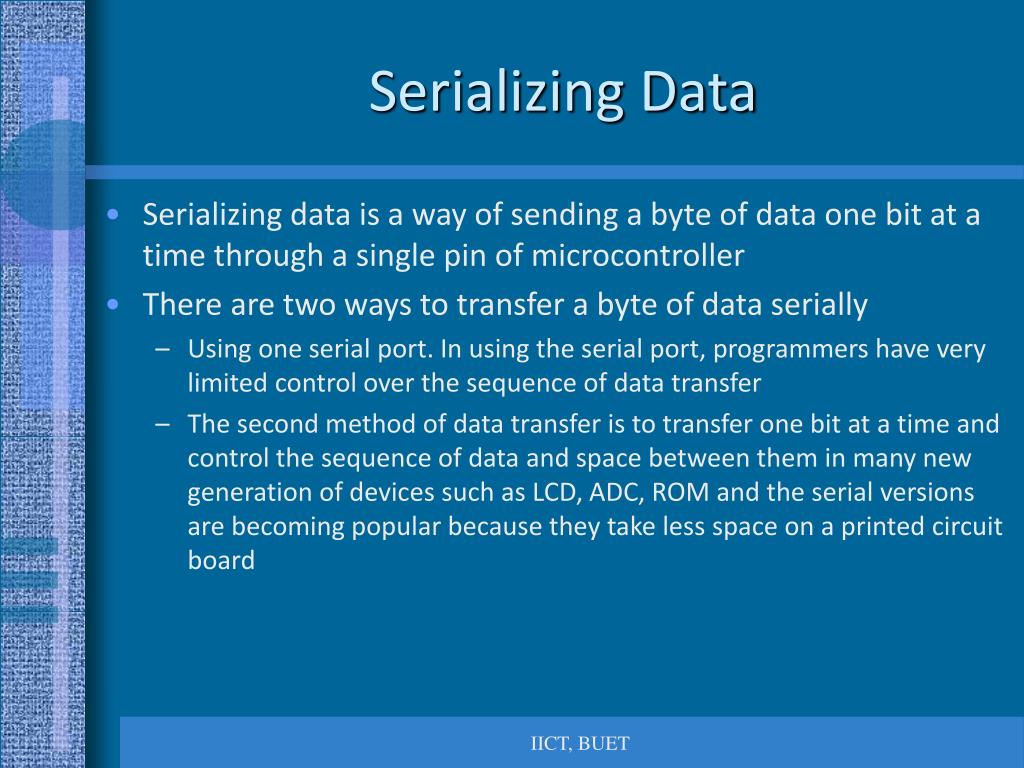

  35. Serializing Data • Serializing data is a way of sending a byte of data one bit at a time through a single pin of microcontroller • There are two ways to transfer a byte of data serially • Using one serial port. In using the serial port, programmers have very limited control over the sequence of data transfer • The second method of data transfer is to transfer one bit at a time and control the sequence of data and space between them in many new generation of devices such as LCD, ADC, ROM and the serial versions are becoming popular because they take less space on a printed circuit board IICT, BUET

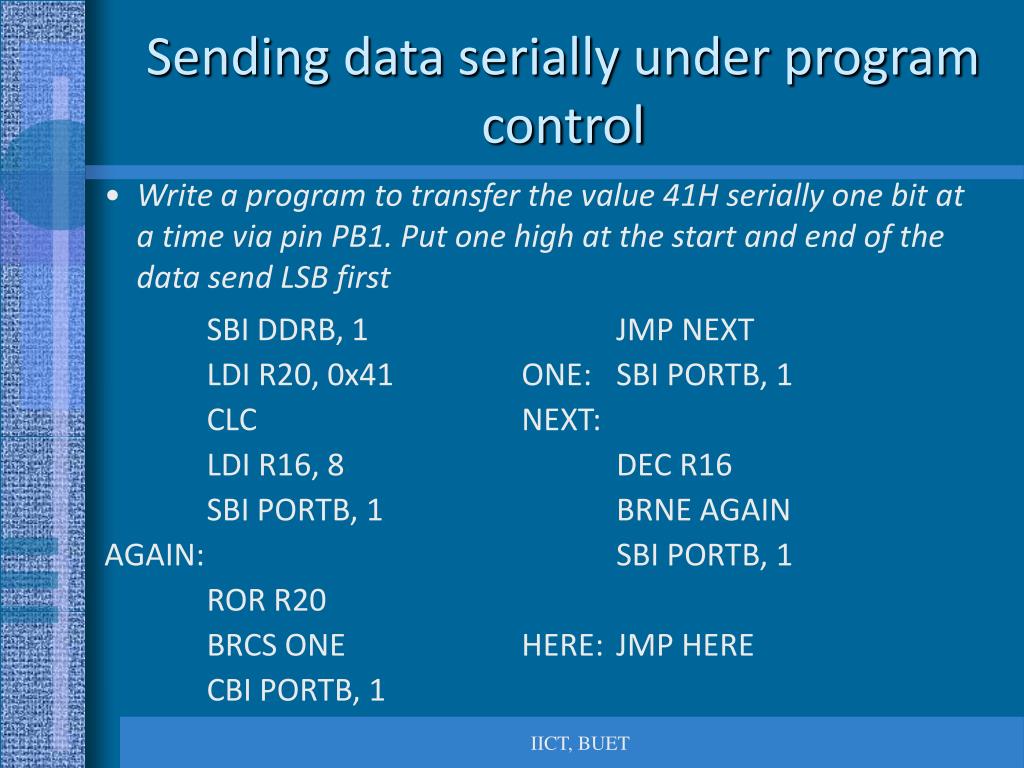

  36. Sending data serially under program control • Write a program to transfer the value 41H serially one bit at a time via pin PB1. Put one high at the start and end of the data send LSB first SBI DDRB, 1 JMP NEXT LDI R20, 0x41 ONE: SBI PORTB, 1 CLC NEXT: LDI R16, 8 DEC R16 SBI PORTB, 1 BRNE AGAIN AGAIN: SBI PORTB, 1 ROR R20 BRCS ONE HERE: JMP HERE CBI PORTB, 1 IICT, BUET

  37. Bring Data Serially CBI DDRC, 1 LDI R16, 8 LDI R20, 0 AGAIN: SBIC PINC, 7 SEC SBIS PINC, 7 CLC ROR R20 DEC R16 BRNE AGAIN HERE: JMP HERE • Write a program to bring a byte of data serially through pin PC7 and save it in R20 register. The byte comes in LSB first IICT, BUET

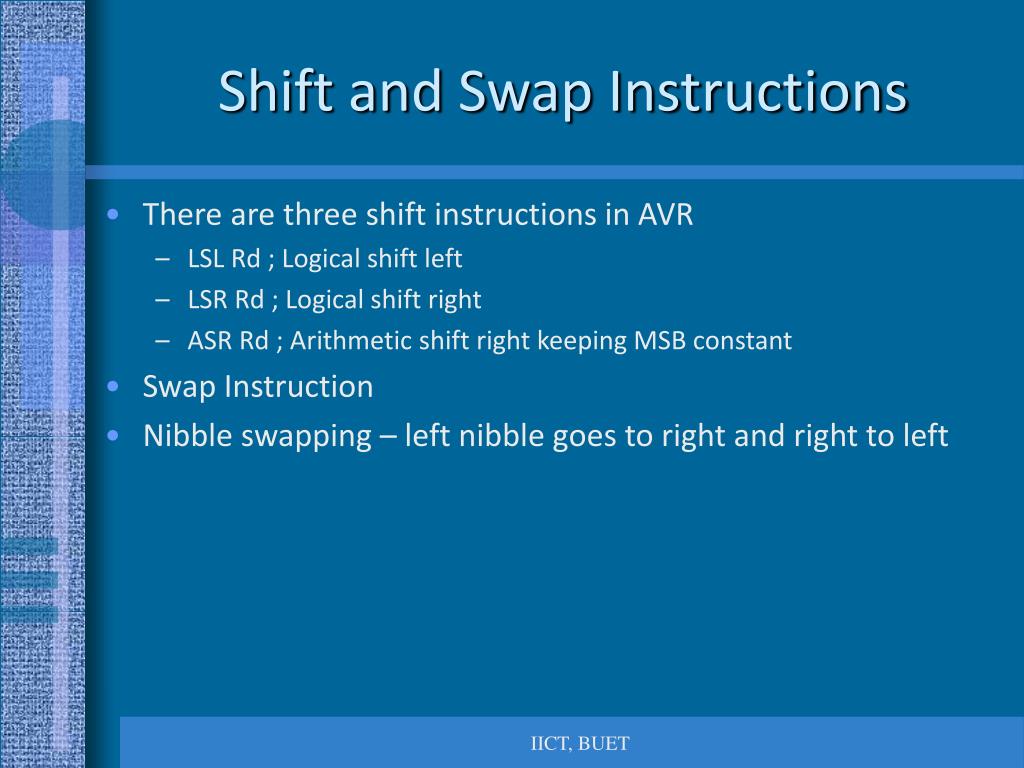

  38. Shift and Swap Instructions • There are three shift instructions in AVR • LSL Rd ; Logical shift left • LSR Rd ; Logical shift right • ASR Rd ; Arithmetic shift right keeping MSB constant • Swap Instruction • Nibble swapping – left nibble goes to right and right to left IICT, BUET

  39. End of Lecture 3 IICT, BUET
