  1. Design Patterns CS 124 Reference: Gamma et al(“Gang-of-4”), Design Patterns

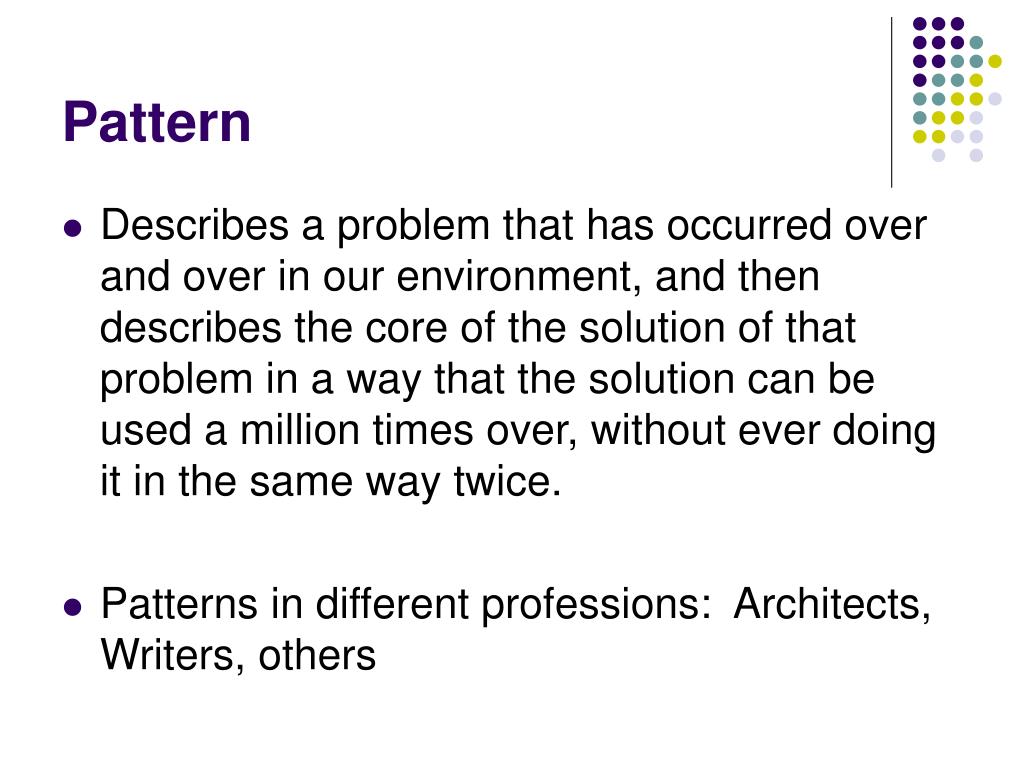

  2. Pattern • Describes a problem that has occurred over and over in our environment, and then describes the core of the solution of that problem in a way that the solution can be used a million times over, without ever doing it in the same way twice. • Patterns in different professions: Architects, Writers, others

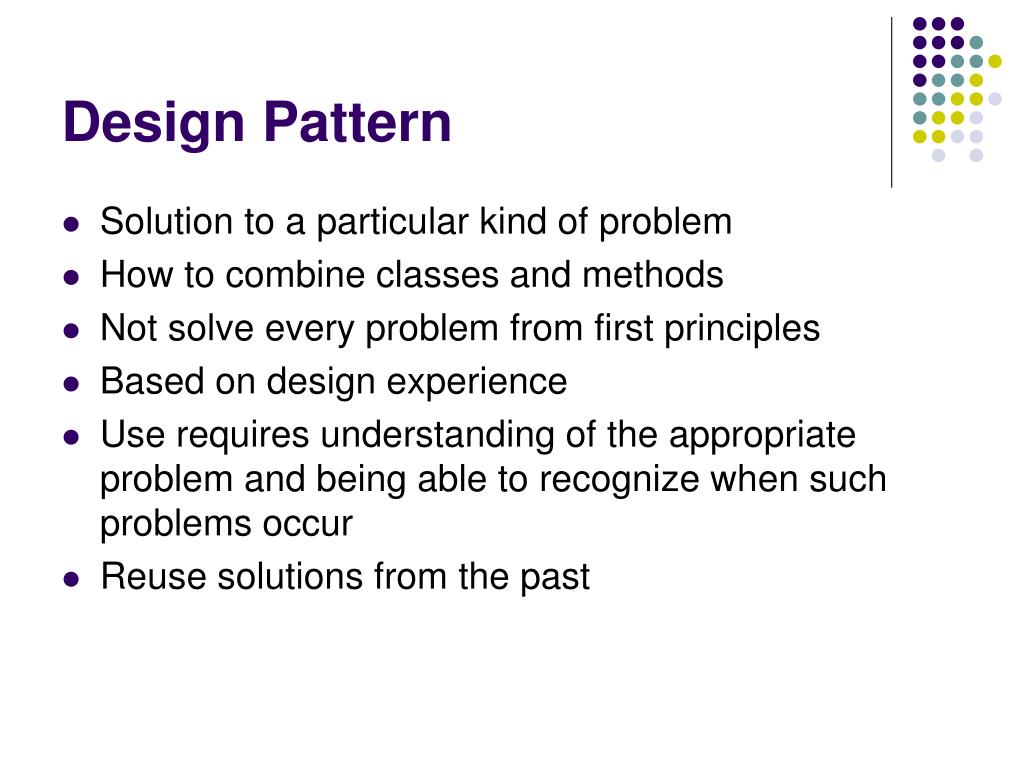

  3. Design Pattern • Solution to a particular kind of problem • How to combine classes and methods • Not solve every problem from first principles • Based on design experience • Use requires understanding of the appropriate problem and being able to recognize when such problems occur • Reuse solutions from the past

  4. Describing a Pattern • Name • Intent/Problem • Situation (problem) and context • When to apply the pattern; conditions • Solution • Elements that make up the design, relationships, collaboration; more a template rather than a concrete solution • How the general arrangement of elements (classes and objects) solves it • UML diagrams (class relationships and responsibilities) and code implications

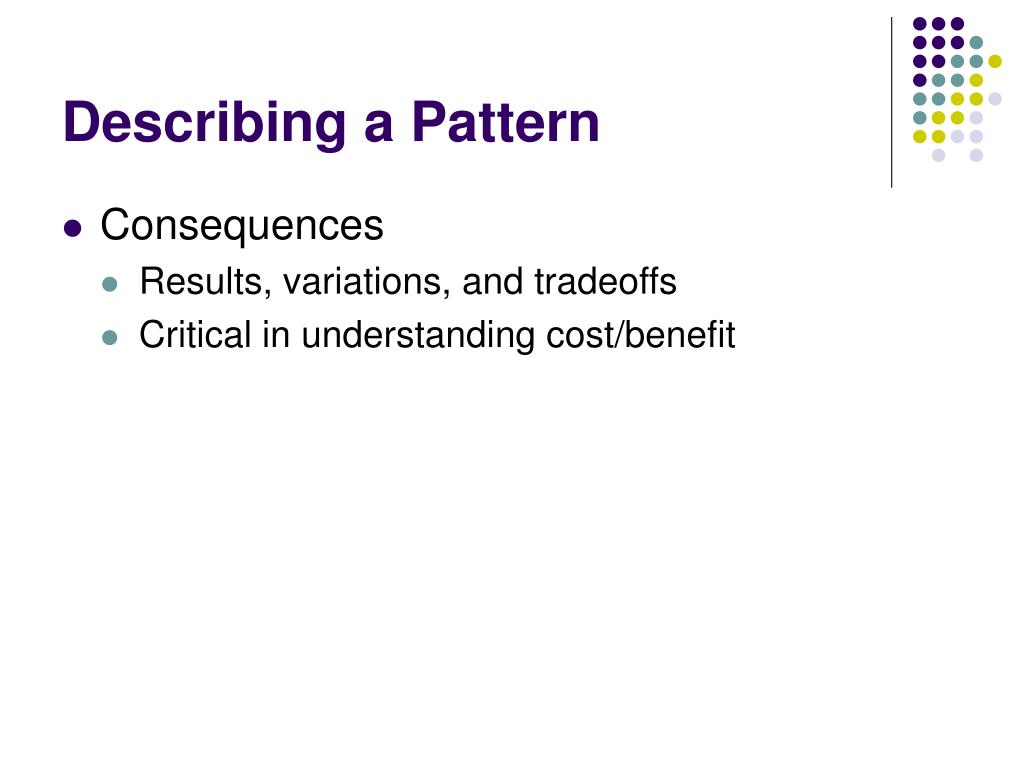

  5. Describing a Pattern • Consequences • Results, variations, and tradeoffs • Critical in understanding cost/benefit

  6. How to select design patterns • Consider how the design patterns solve design problems • Scan intent section • Consider how patterns interrelate • Study patterns of like purpose • Examine cause of redesign • Consider what should be variable in design (what you might want to change without redesign): Encapsulate the concept that varies

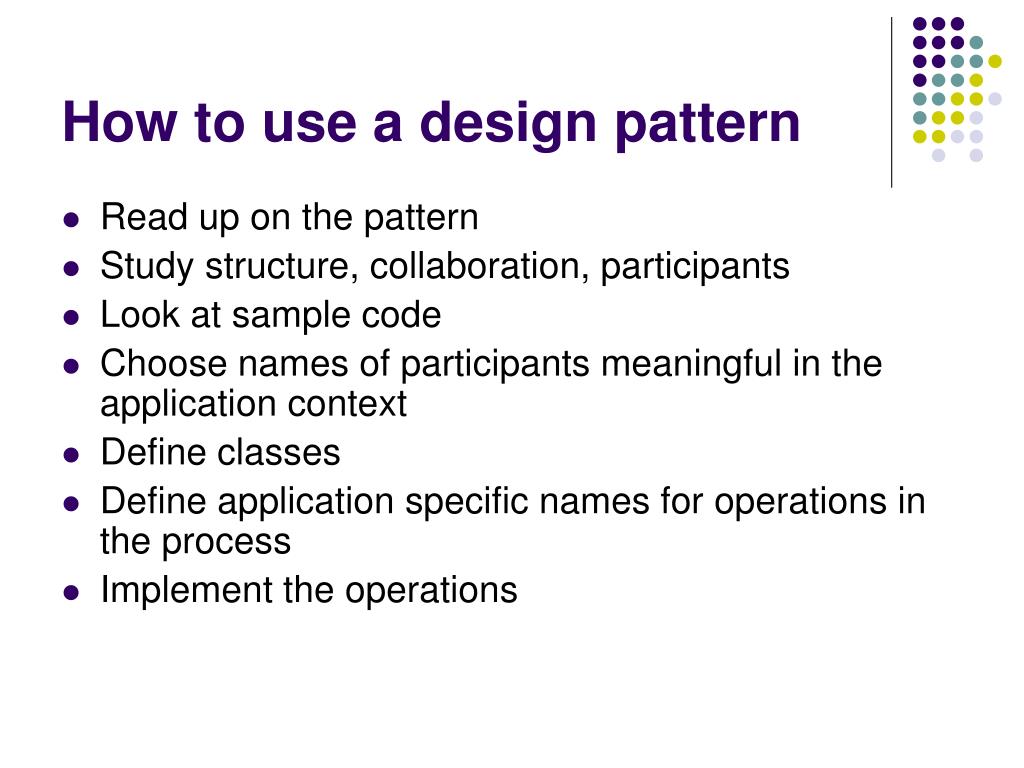

  7. How to use a design pattern • Read up on the pattern • Study structure, collaboration, participants • Look at sample code • Choose names of participants meaningful in the application context • Define classes • Define application specific names for operations in the process • Implement the operations

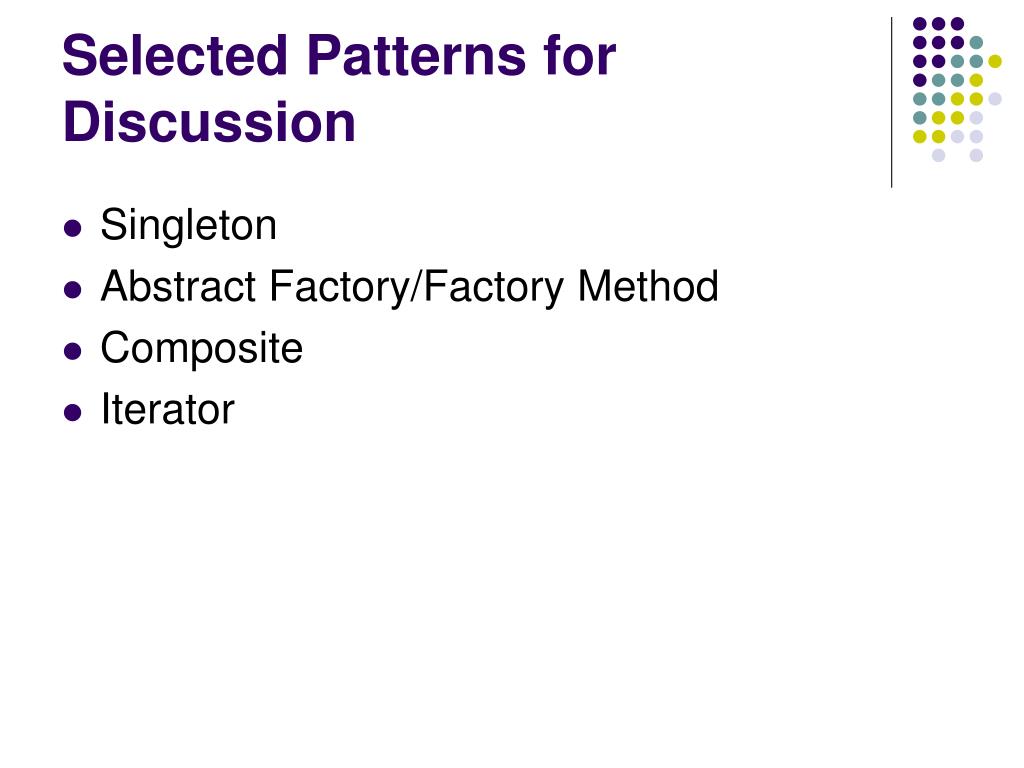

  8. Selected Patterns for Discussion • Singleton • Abstract Factory/Factory Method • Composite • Iterator

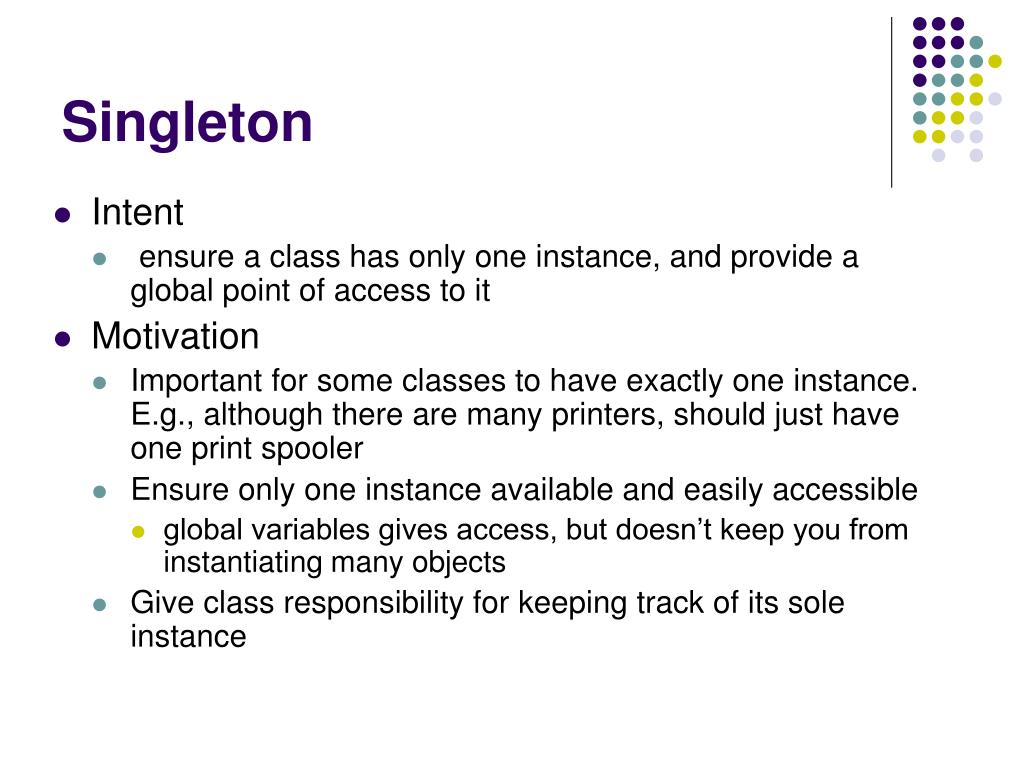

  9. Singleton • Intent • ensure a class has only one instance, and provide a global point of access to it • Motivation • Important for some classes to have exactly one instance. E.g., although there are many printers, should just have one print spooler • Ensure only one instance available and easily accessible • global variables gives access, but doesn’t keep you from instantiating many objects • Give class responsibility for keeping track of its sole instance

  10. Design Solution • Defines a getInstance() operation that lets clients access its unique instance • May be responsible for creating its own unique instance Singleton static uniqueinstance Singleton data static getInstance() Singleton methods…

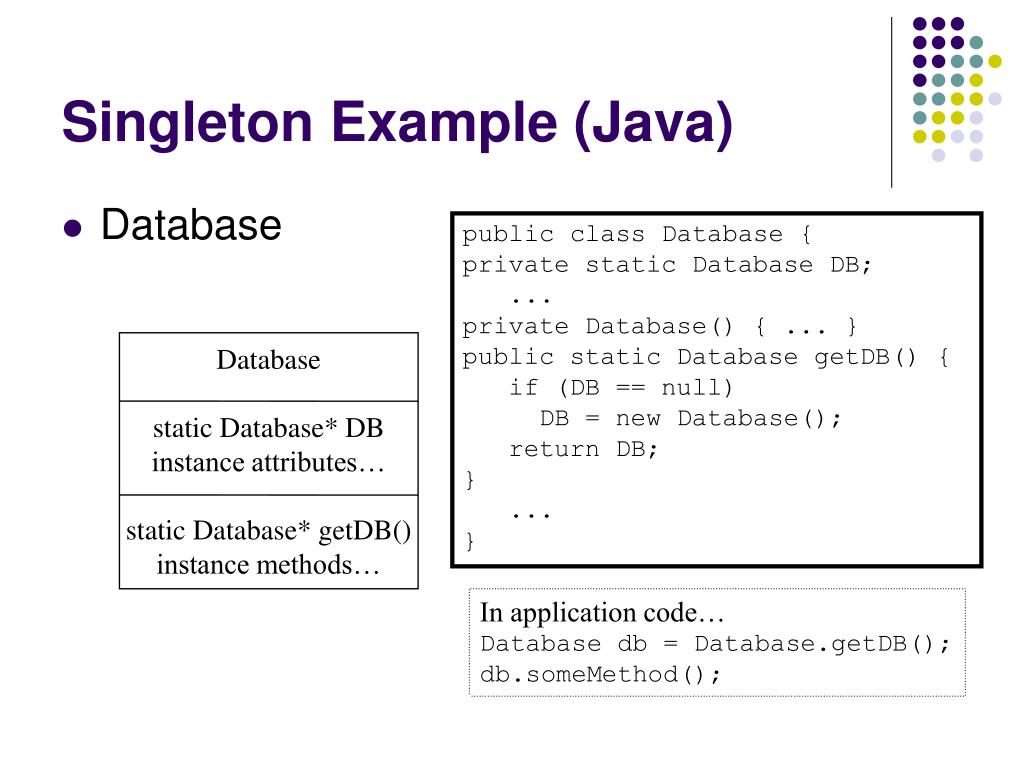

  11. Singleton Example (Java) • Database public class Database { private static Database DB; ... private Database() { ... } public static Database getDB() { if (DB == null) DB = new Database(); return DB; } ... } Database static Database* DB instance attributes… static Database* getDB() instance methods… In application code… Database db = Database.getDB(); db.someMethod();

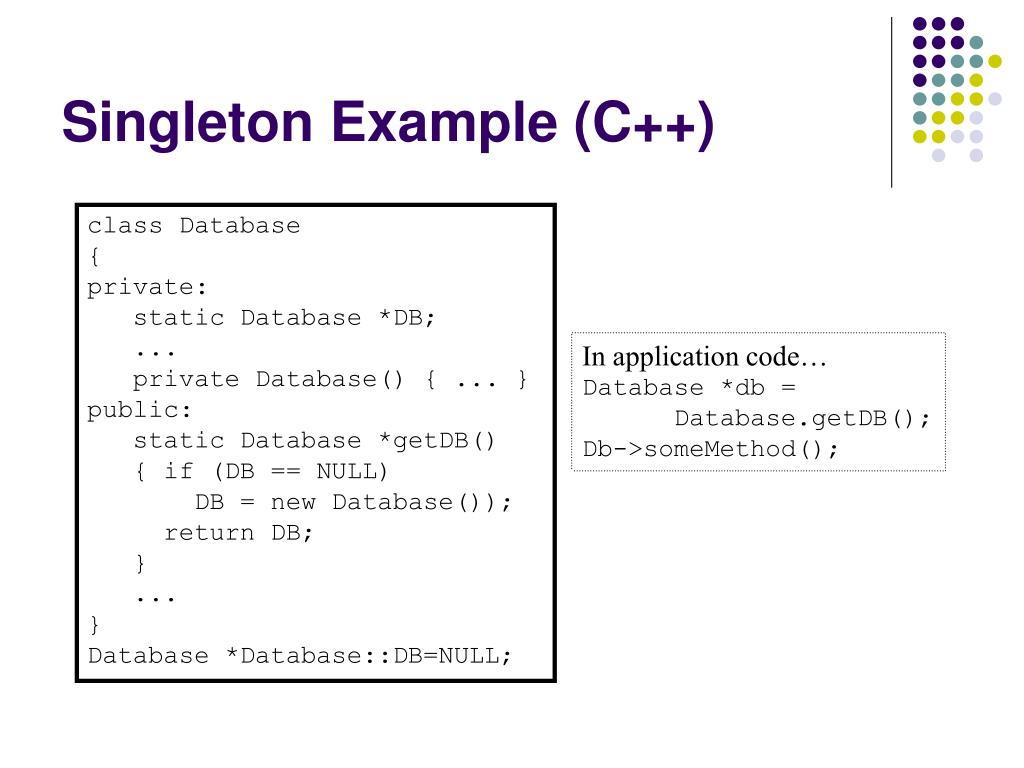

  12. Singleton Example (C++) class Database { private: static Database *DB; ... private Database() { ... } public: static Database *getDB() { if (DB == NULL) DB = new Database()); return DB; } ... } Database *Database::DB=NULL; In application code… Database *db = Database.getDB(); Db->someMethod();

  13. Implementation • Declare all of class’s constructors private • prevent other classes from directly creating an instance of this class • Hide the operation that creates the instance behind a class operation (getInstance) • Variation: Since creation policy is encapsulated in getInstance, possible to vary the creation policy

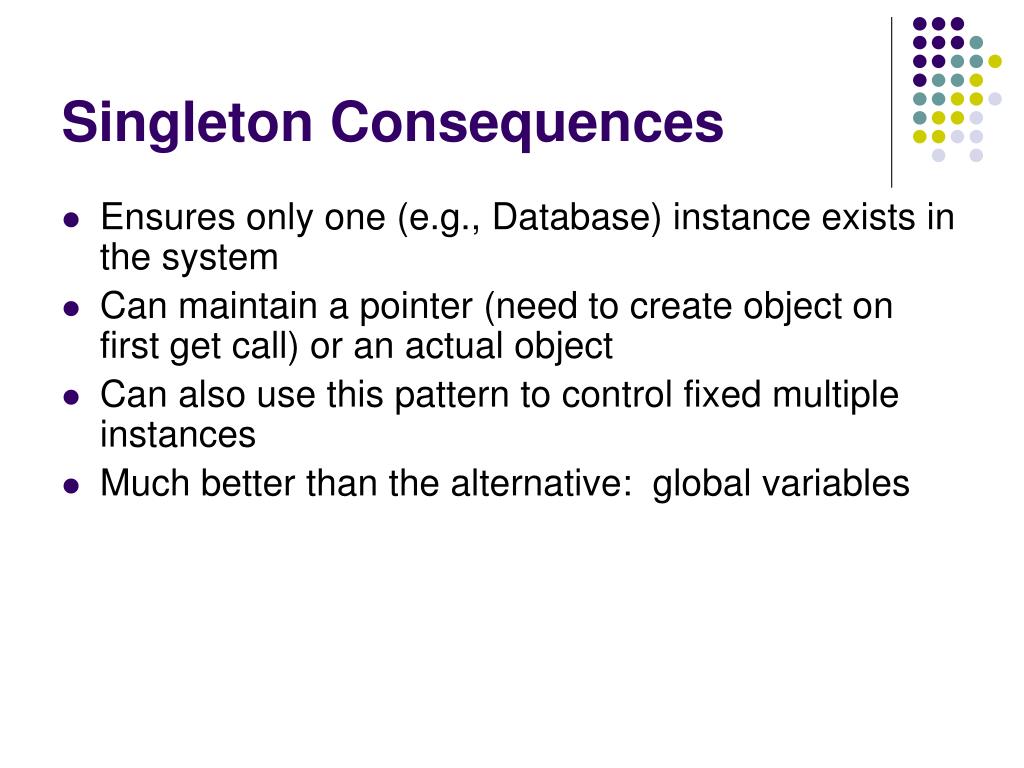

  14. Singleton Consequences • Ensures only one (e.g., Database) instance exists in the system • Can maintain a pointer (need to create object on first get call) or an actual object • Can also use this pattern to control fixed multiple instances • Much better than the alternative: global variables

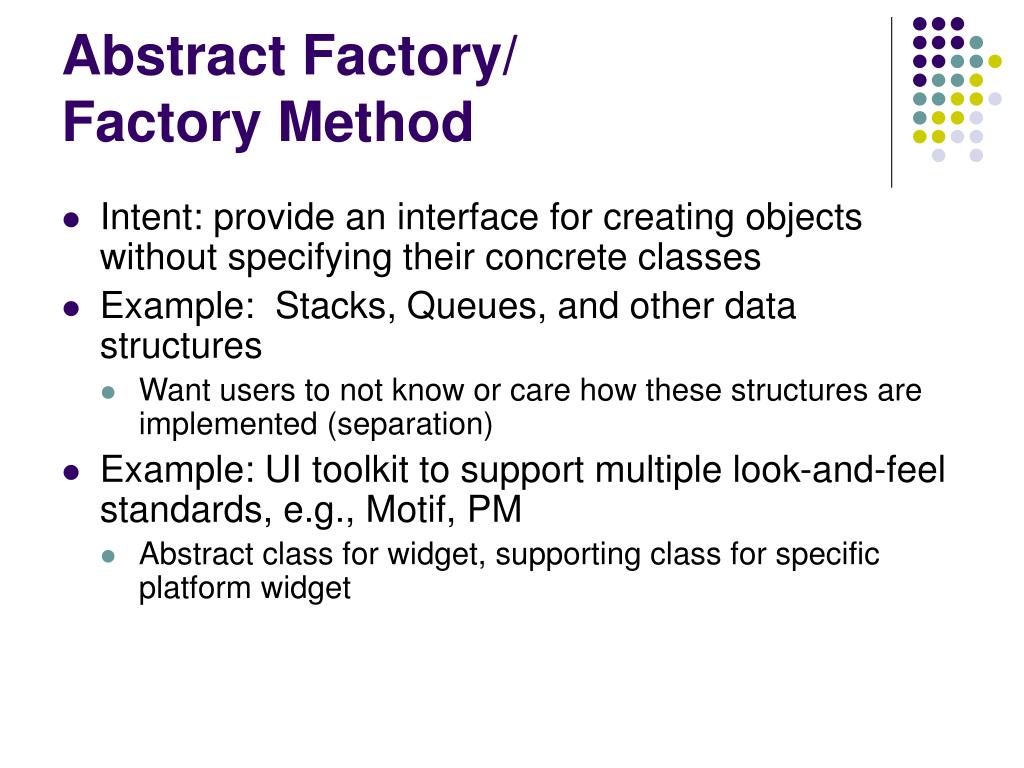

  15. Abstract Factory/Factory Method • Intent: provide an interface for creating objects without specifying their concrete classes • Example: Stacks, Queues, and other data structures • Want users to not know or care how these structures are implemented (separation) • Example: UI toolkit to support multiple look-and-feel standards, e.g., Motif, PM • Abstract class for widget, supporting class for specific platform widget

  16. Solutions in C++ • Use of header file (class declarations) and implementation file (method definitions) ok but limited • Header file usually contains private declarations which are technically part of the implementation • Change in implementation requires that the application using the data structure be recompiled • Alternative: create an abstract superclass with pure virtual data structure methods

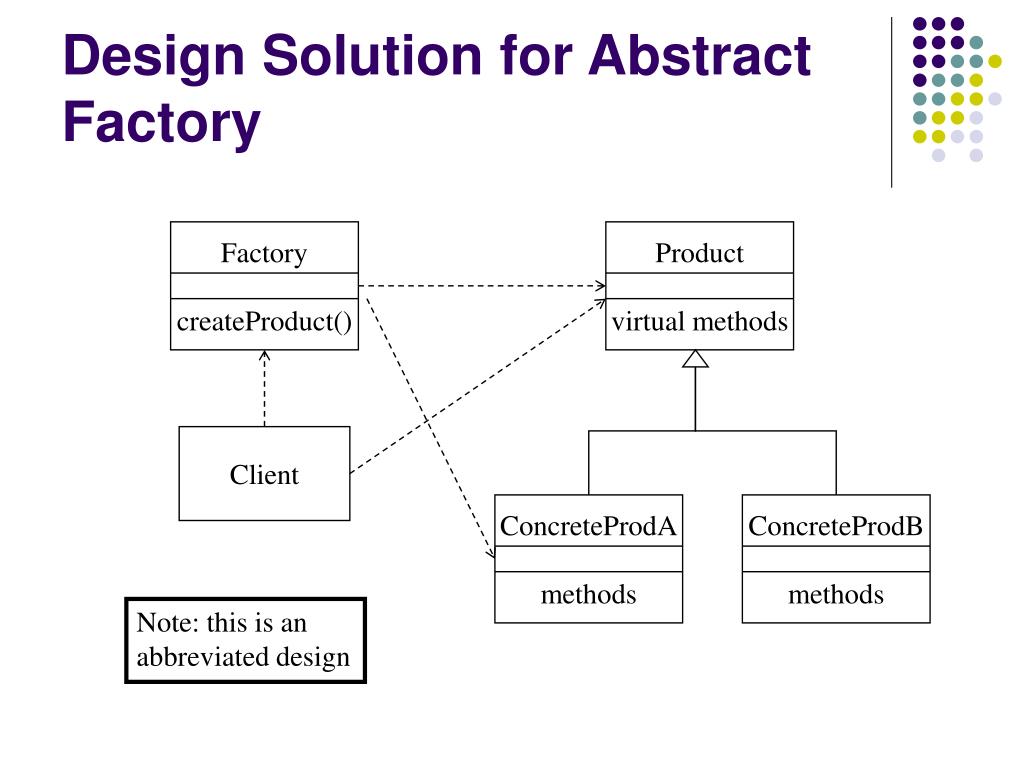

  17. Design Solution for Abstract Factory Factory createProduct() Product virtual methods Client ConcreteProdA methods ConcreteProdB methods Note: this is an abbreviated design

  18. Participants • Factory • implements the operations to create concrete product objects • actual pattern includes abstract and concrete factory classes • (Abstract) Product: declares an interface for a type of product object • Concrete Product • defines a product object to be created by the corresponding concrete factory • implements the abstract product interface • Client: uses only Factory and Abstract Product

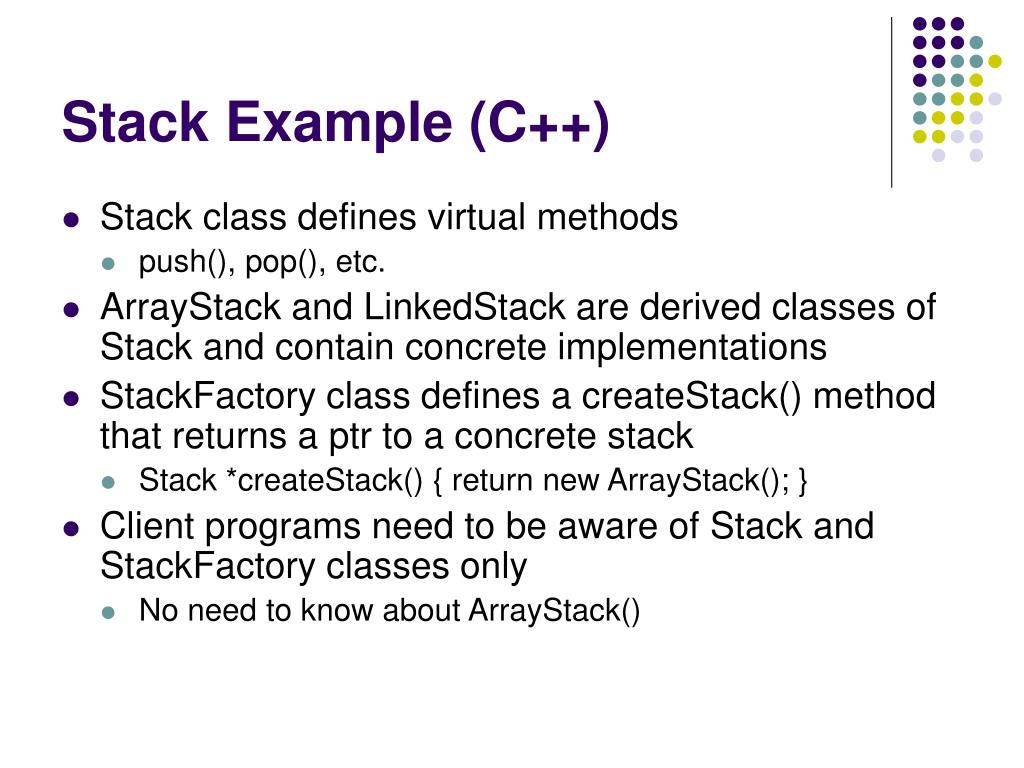

  19. Stack Example (C++) • Stack class defines virtual methods • push(), pop(), etc. • ArrayStack and LinkedStack are derived classes of Stack and contain concrete implementations • StackFactory class defines a createStack() method that returns a ptr to a concrete stack • Stack *createStack() { return new ArrayStack(); } • Client programs need to be aware of Stack and StackFactory classes only • No need to know about ArrayStack()

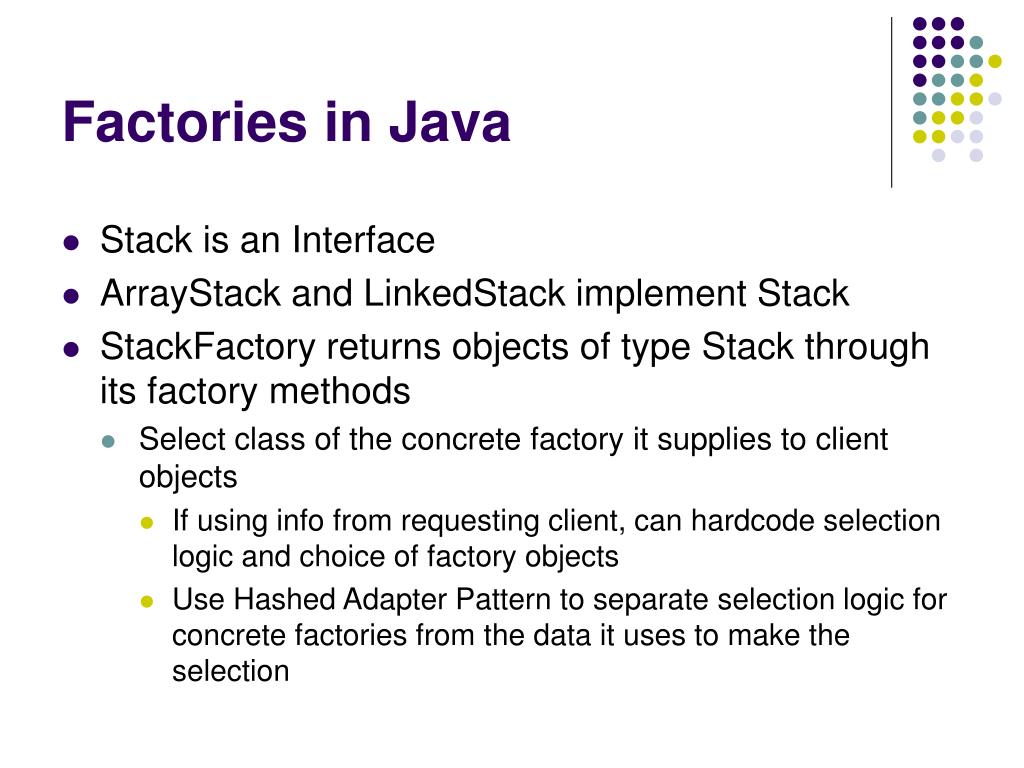

  20. Factories in Java • Stack is an Interface • ArrayStack and LinkedStack implement Stack • StackFactory returns objects of type Stack through its factory methods • Select class of the concrete factory it supplies to client objects • If using info from requesting client, can hardcode selection logic and choice of factory objects • Use Hashed Adapter Pattern to separate selection logic for concrete factories from the data it uses to make the selection

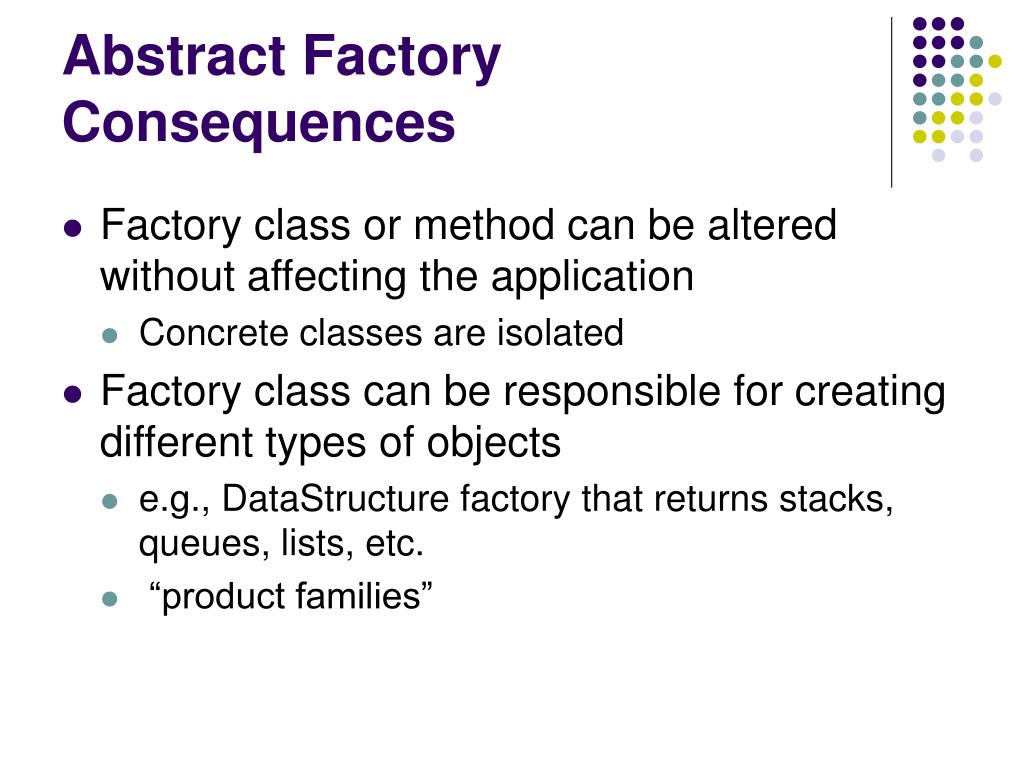

  21. Abstract FactoryConsequences • Factory class or method can be altered without affecting the application • Concrete classes are isolated • Factory class can be responsible for creating different types of objects • e.g., DataStructure factory that returns stacks, queues, lists, etc. • “product families”

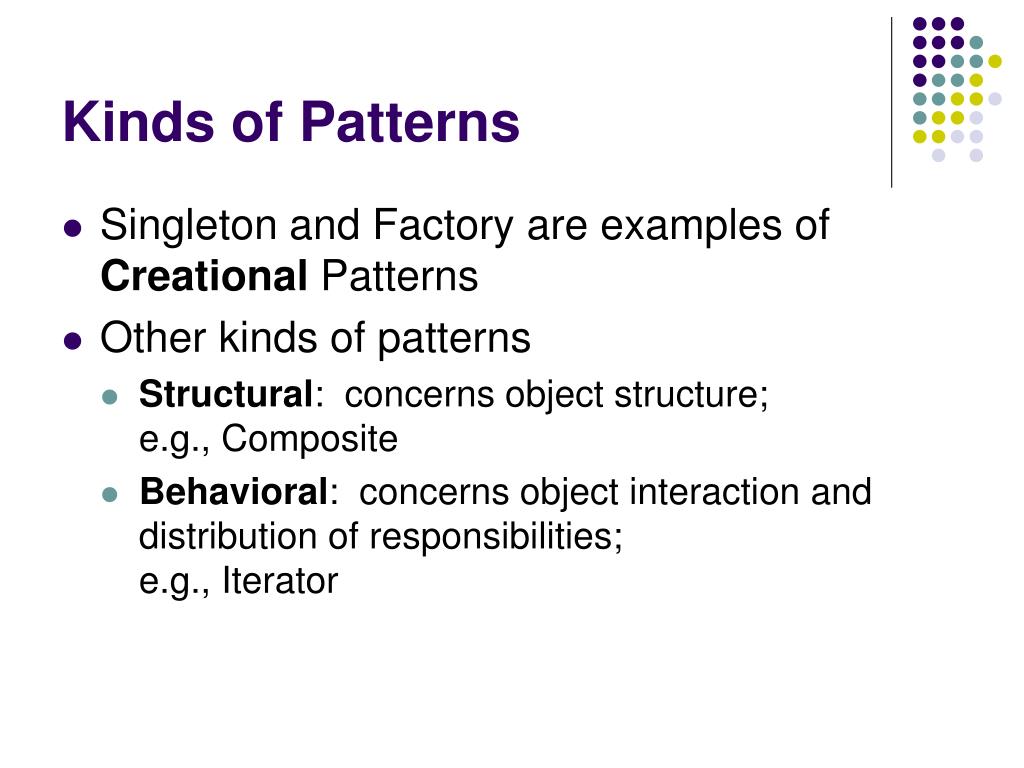

  22. Kinds of Patterns • Singleton and Factory are examples of Creational Patterns • Other kinds of patterns • Structural: concerns object structure;e.g., Composite • Behavioral: concerns object interaction and distribution of responsibilities;e.g., Iterator

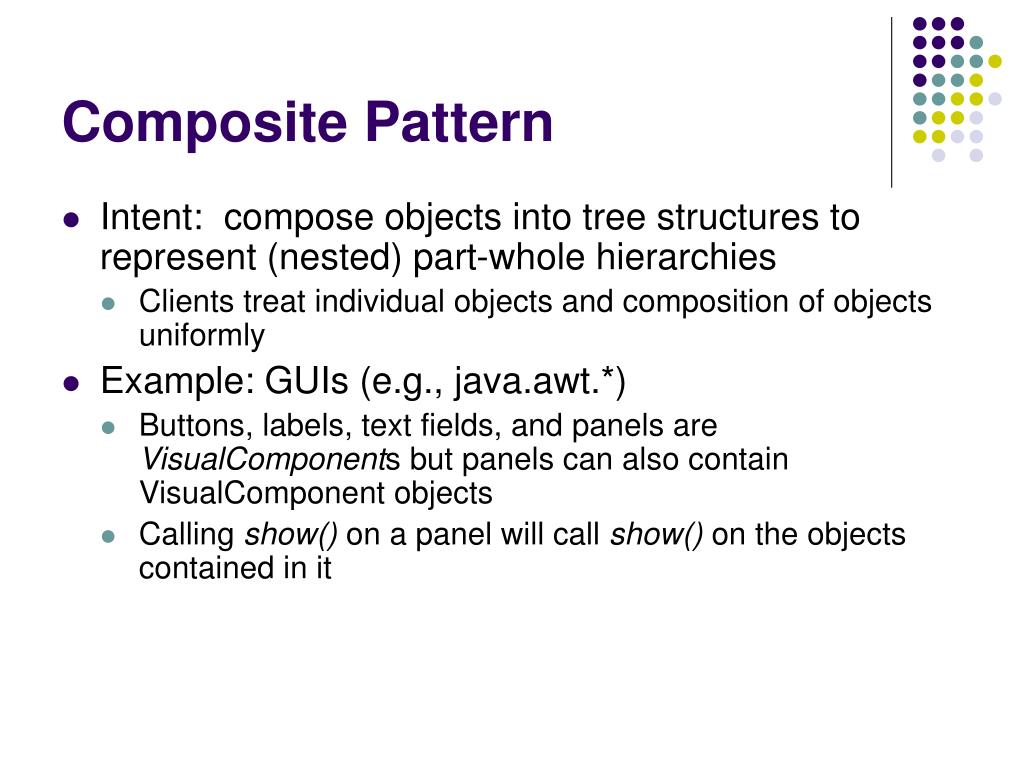

  23. Composite Pattern • Intent: compose objects into tree structures to represent (nested) part-whole hierarchies • Clients treat individual objects and composition of objects uniformly • Example: GUIs (e.g., java.awt.*) • Buttons, labels, text fields, and panels are VisualComponents but panels can also contain VisualComponent objects • Calling show() on a panel will call show() on the objects contained in it

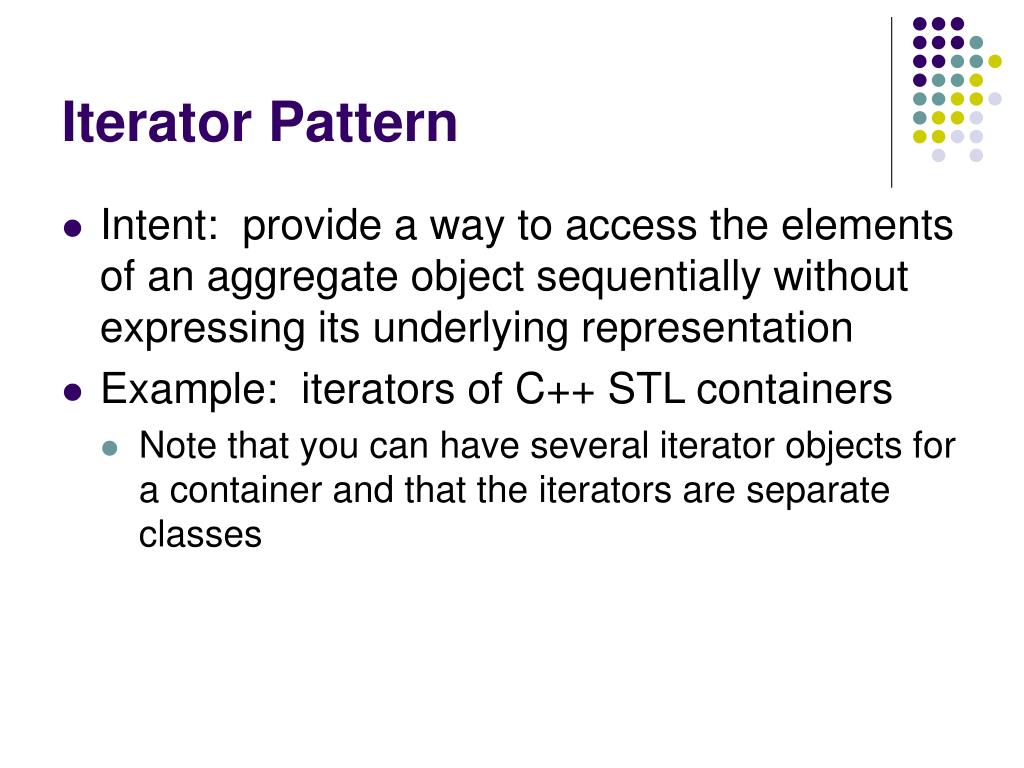

  24. Iterator Pattern • Intent: provide a way to access the elements of an aggregate object sequentially without expressing its underlying representation • Example: iterators of C++ STL containers • Note that you can have several iterator objects for a container and that the iterators are separate classes

  25. Creational Patterns • Abstract Factory • Builder • Factory Method • Prototype • Singleton

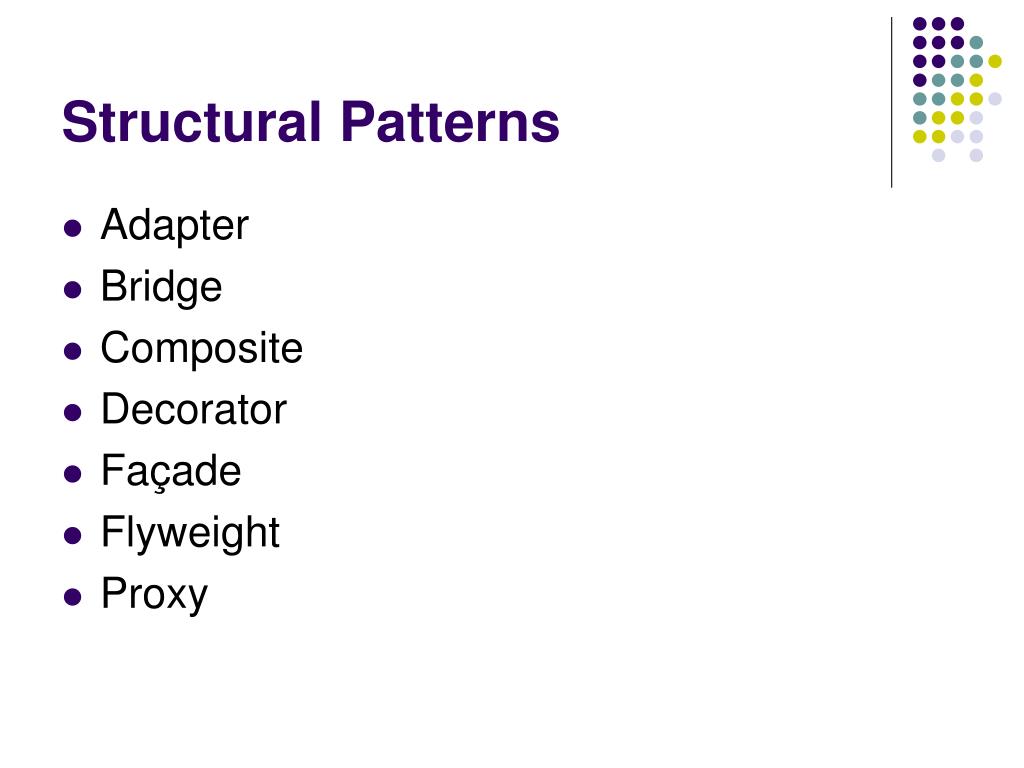

  26. Structural Patterns • Adapter • Bridge • Composite • Decorator • Façade • Flyweight • Proxy

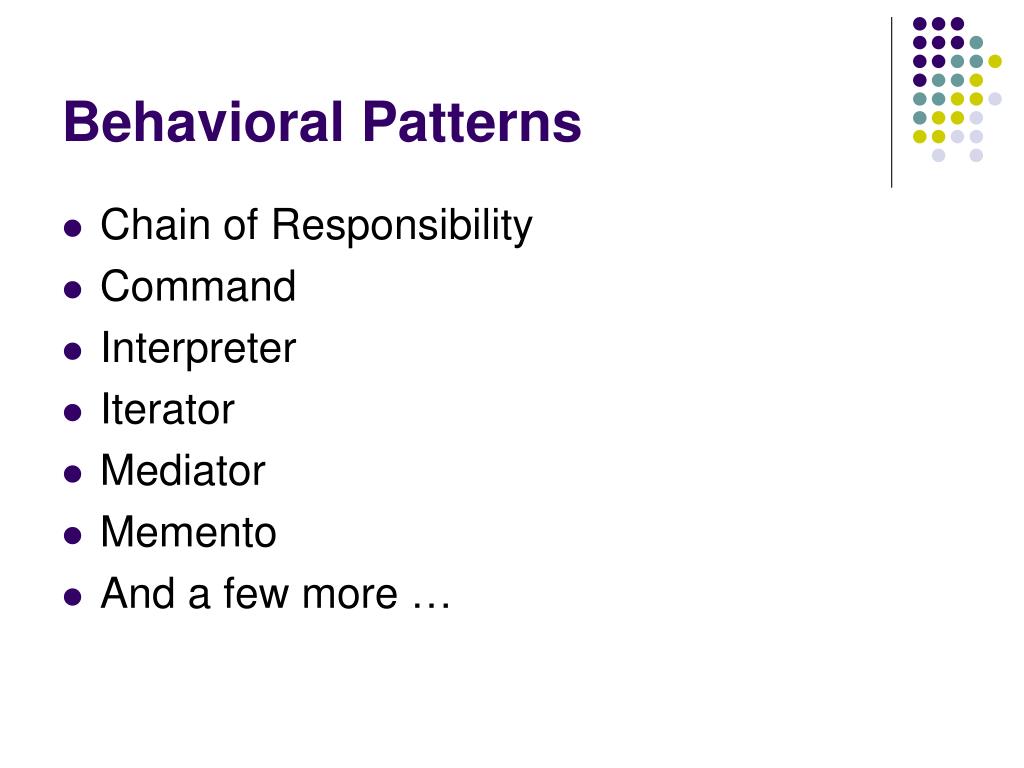

  27. Behavioral Patterns • Chain of Responsibility • Command • Interpreter • Iterator • Mediator • Memento • And a few more …

  28. Summary • Main point: to recognize that there are proven solutions to problems that a designer/ programmer may encounter • Solutions are results of others’ experiences • Towards “standard approaches” • Search for such solutions first • Although there is some merit attempting to create the solution yourself • Becoming a design architect • Up Next: inventory of other patterns
