Understanding Logic and AI Knowledge Representation

1. CSM6120Introduction to Intelligent Systems Propositional and Predicate Logic

2. Logic and AI • Would like our AI to have knowledge about the world, and logically draw conclusions from it • Search algorithms generate successors and evaluate them, but do not “understand” much about the setting • Example question: is it possible for a chess player to have 8 pawns and 2 queens? • Search algorithm could search through tons of states to see if this ever happens…

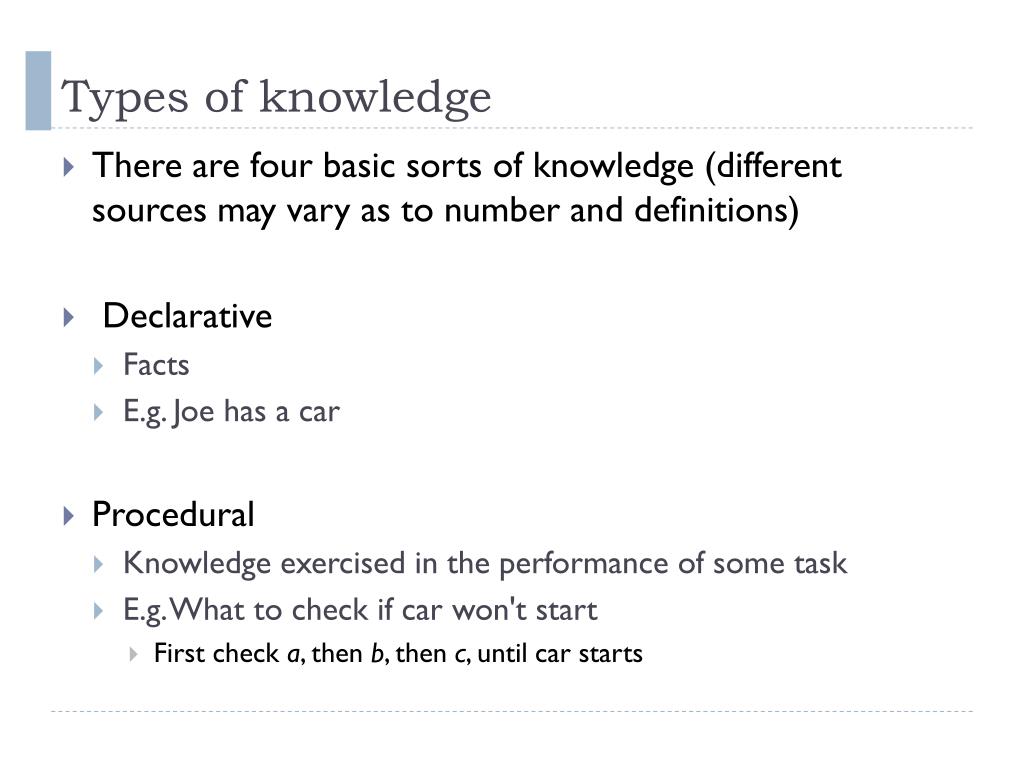

3. Types of knowledge • There are four basic sorts of knowledge (different sources may vary as to number and definitions) • Declarative • Facts • E.g. Joe has a car • Procedural • Knowledge exercised in the performance of some task • E.g. What to check if car won't start • First check a, then b, then c, until car starts

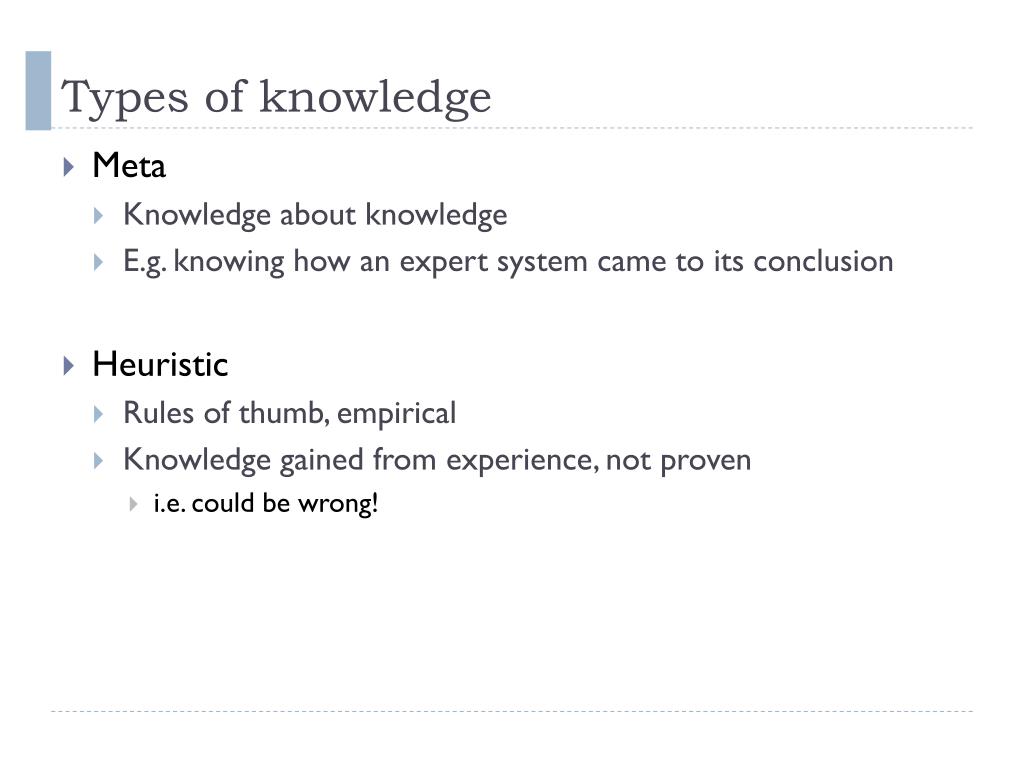

4. Types of knowledge • Meta • Knowledge about knowledge • E.g. knowing how an expert system came to its conclusion • Heuristic • Rules of thumb, empirical • Knowledge gained from experience, not proven • i.e. could be wrong!

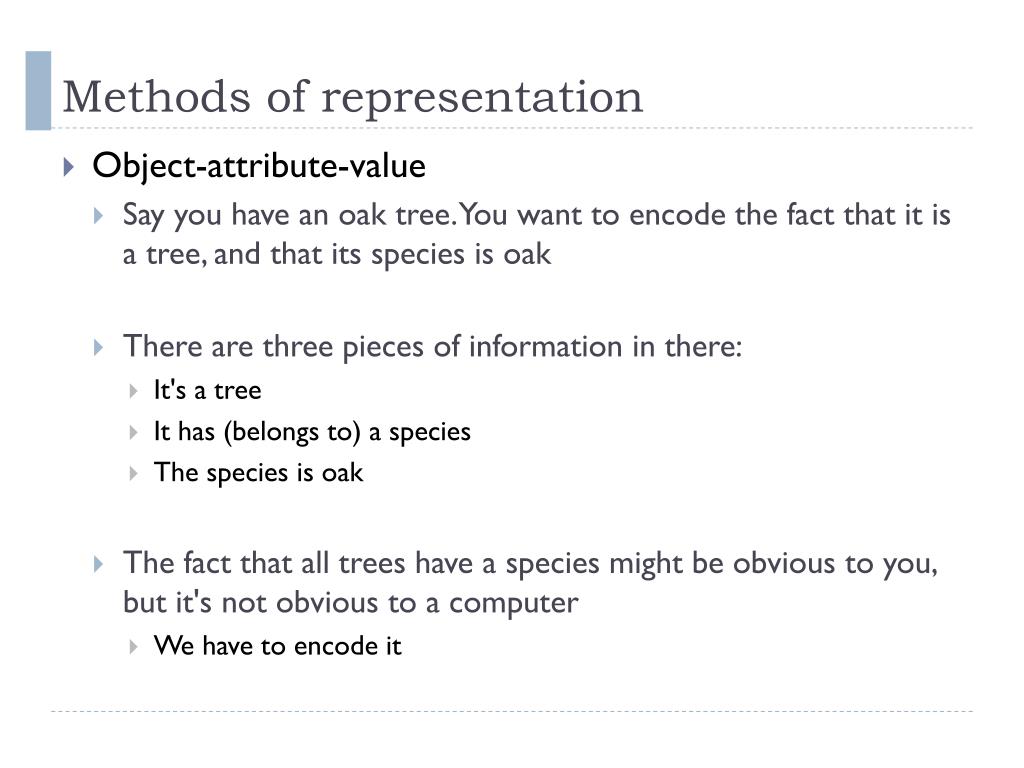

5. Methods of representation • Object-attribute-value • Say you have an oak tree. You want to encode the fact that it is a tree, and that its species is oak • There are three pieces of information in there: • It's a tree • It has (belongs to) a species • The species is oak • The fact that all trees have a species might be obvious to you, but it's not obvious to a computer • We have to encode it

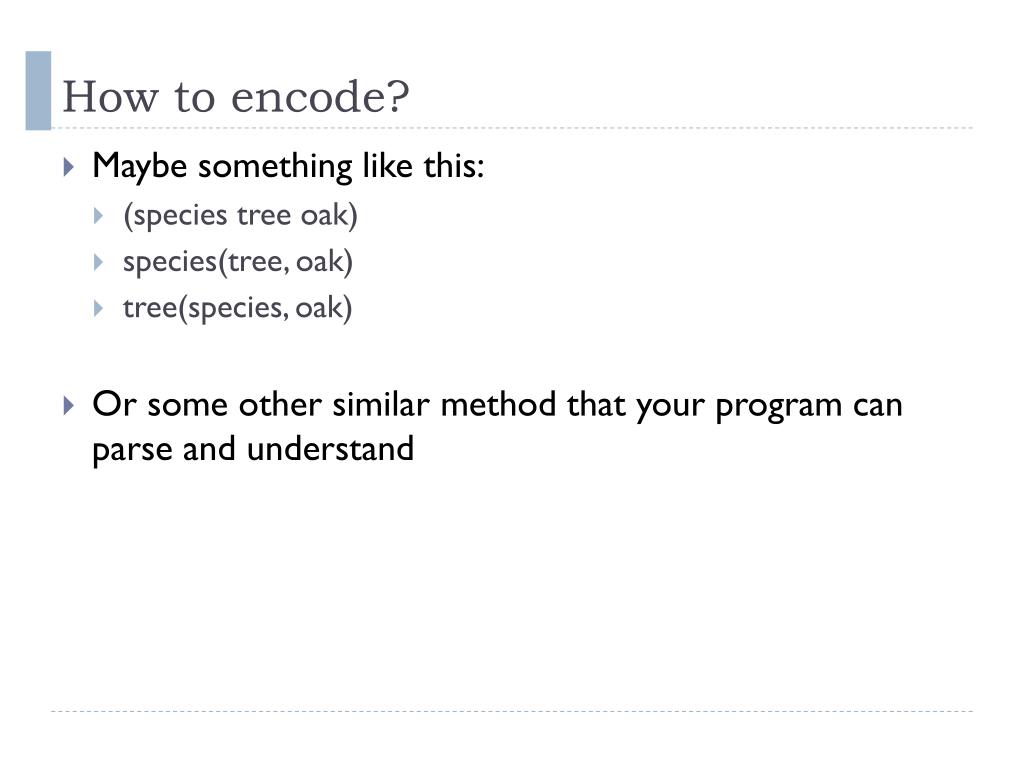

6. How to encode? • Maybe something like this: • (species tree oak) • species(tree, oak) • tree(species, oak) • Or some other similar method that your program can parse and understand

7. What if you’re not sure? • You could include an uncertainty factor • The uncertainty factor is a number which can be taken into account by your program when making its decisions • The final conclusion of any program where uncertainty was used in the input is likely to also have an uncertainty factor • If you're not sure of the facts, how can the program be sure of the result?

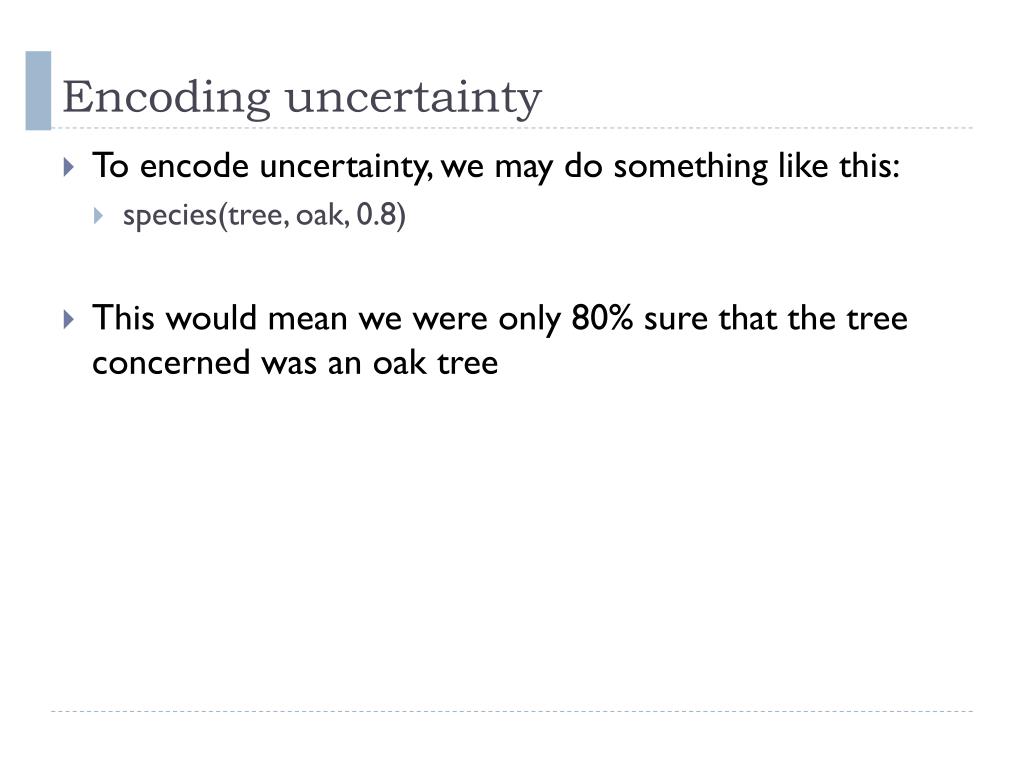

8. Encoding uncertainty • To encode uncertainty, we may do something like this: • species(tree, oak, 0.8) • This would mean we were only 80% sure that the tree concerned was an oak tree

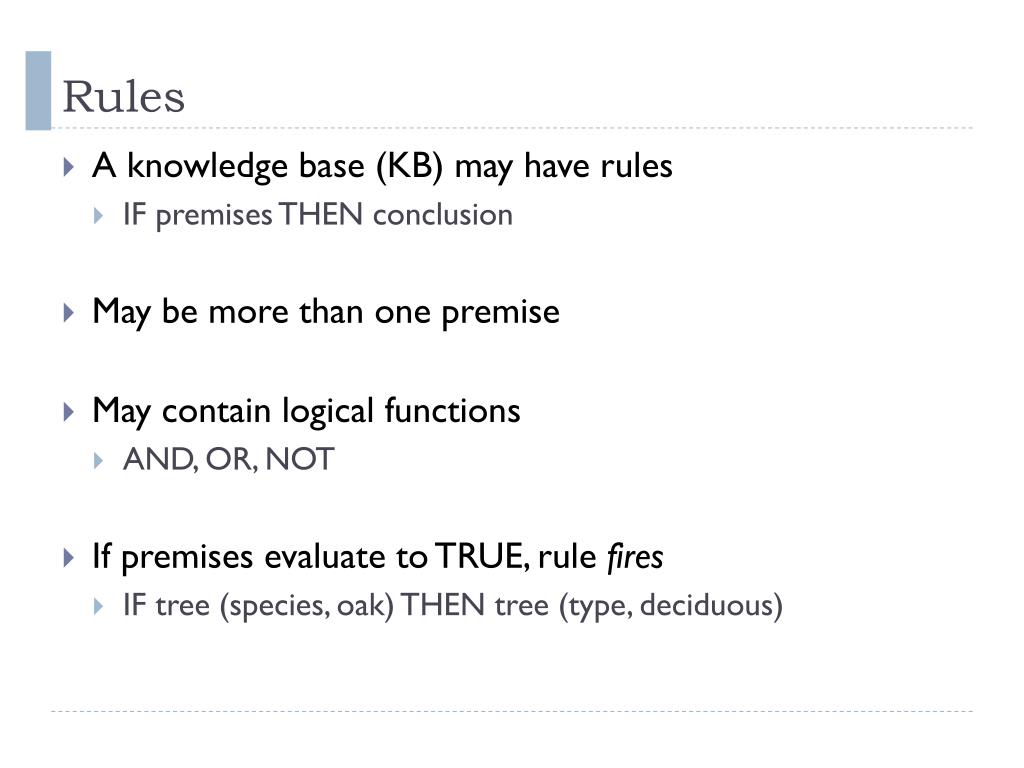

9. Rules • A knowledge base (KB) may have rules • IF premises THEN conclusion • May be more than one premise • May contain logical functions • AND, OR, NOT • If premises evaluate to TRUE, rule fires • IF tree (species, oak) THEN tree (type, deciduous)

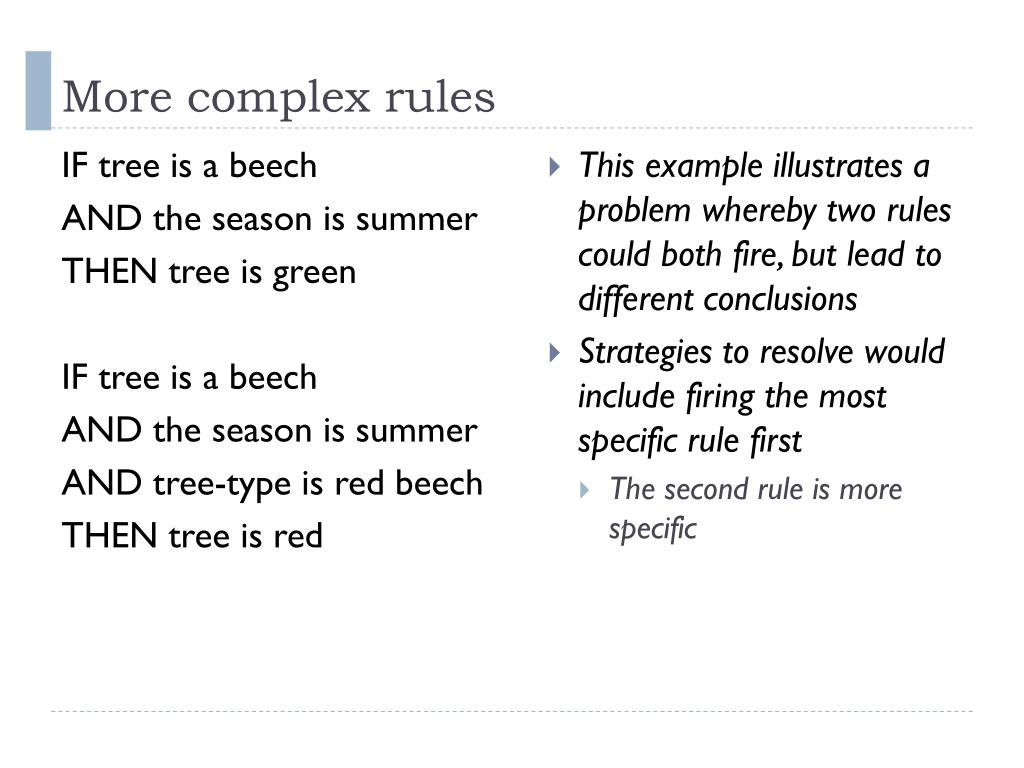

10. More complex rules IF tree is a beech AND the season is summer THEN tree is green IF tree is a beech AND the season is summer AND tree-type is red beech THEN tree is red • This example illustrates a problem whereby two rules could both fire, but lead to different conclusions • Strategies to resolve would include firing the most specific rule first • The second rule is more specific

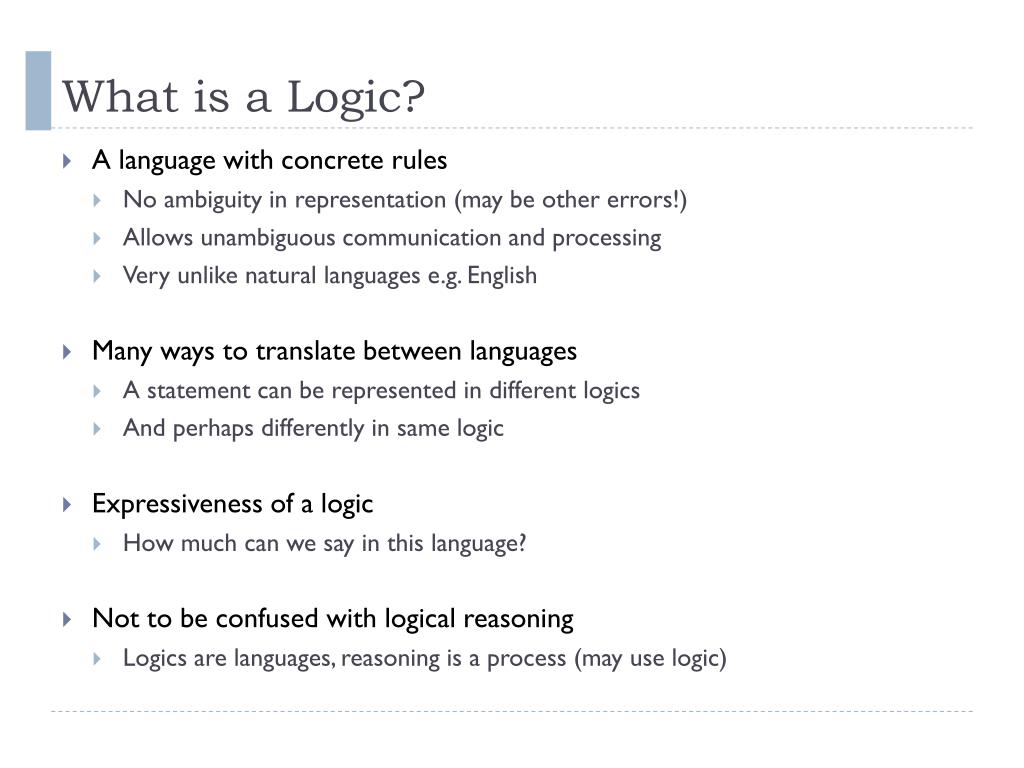

11. What is a Logic? • A language with concrete rules • No ambiguity in representation (may be other errors!) • Allows unambiguous communication and processing • Very unlike natural languages e.g. English • Many ways to translate between languages • A statement can be represented in different logics • And perhaps differently in same logic • Expressiveness of a logic • How much can we say in this language? • Not to be confused with logical reasoning • Logics are languages, reasoning is a process (may use logic)

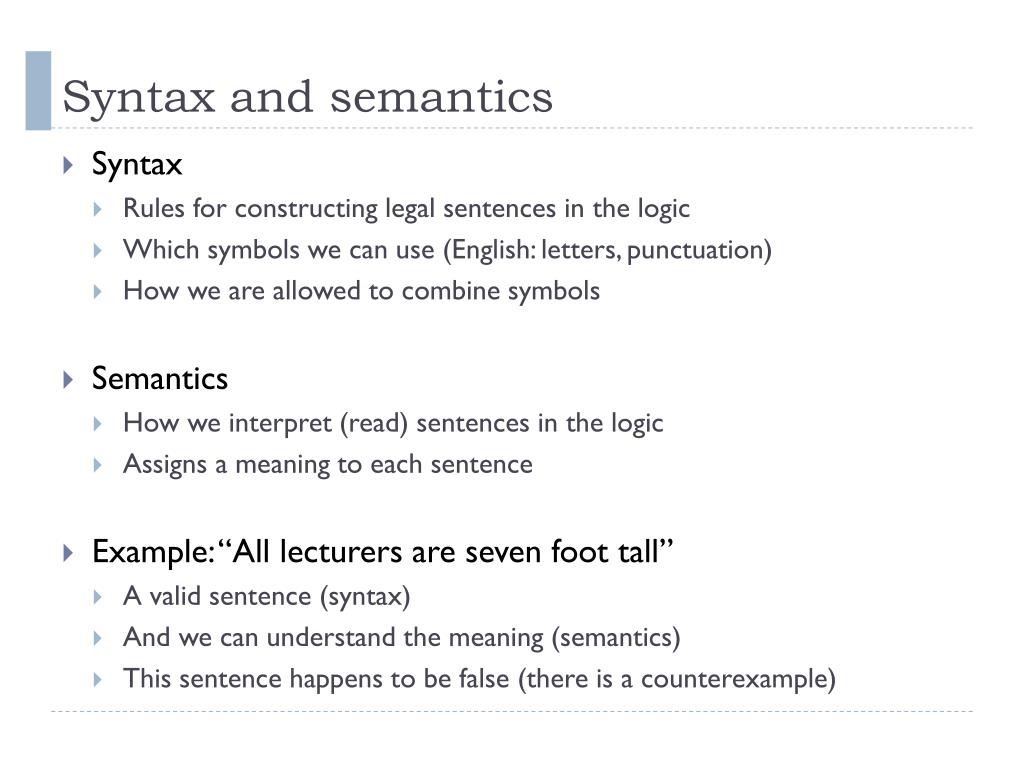

12. Syntax and semantics • Syntax • Rules for constructing legal sentences in the logic • Which symbols we can use (English: letters, punctuation) • How we are allowed to combine symbols • Semantics • How we interpret (read) sentences in the logic • Assigns a meaning to each sentence • Example: “All lecturers are seven foot tall” • A valid sentence (syntax) • And we can understand the meaning (semantics) • This sentence happens to be false (there is a counterexample)

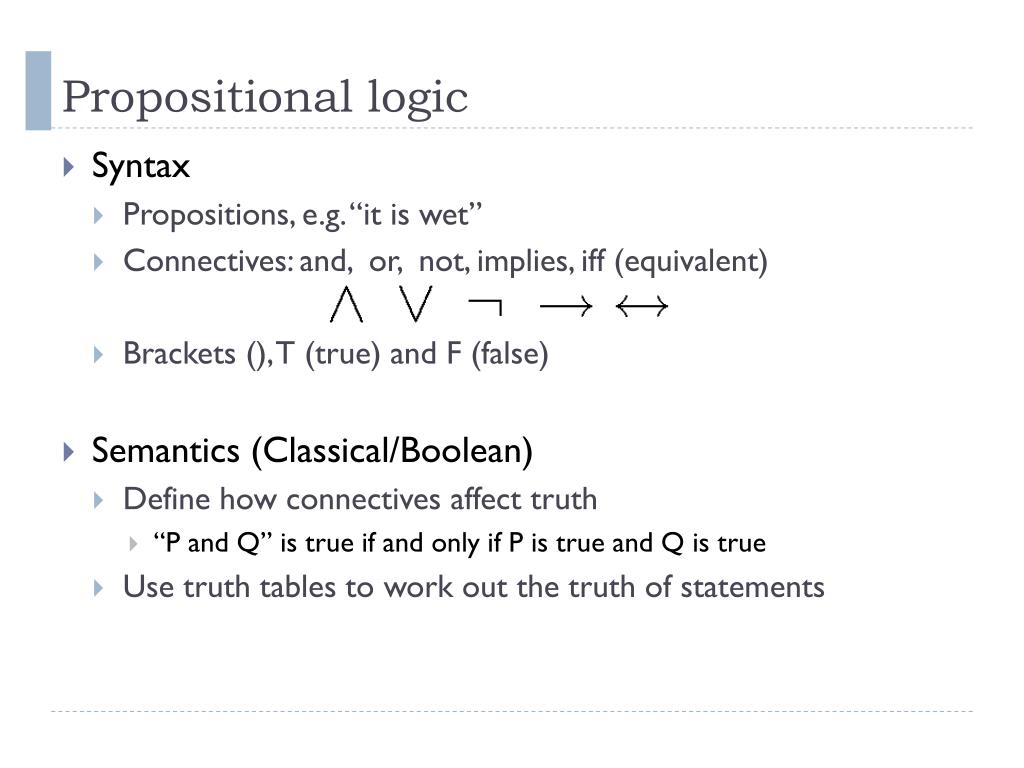

13. Propositional logic • Syntax • Propositions, e.g. “it is wet” • Connectives: and, or, not, implies, iff (equivalent) • Brackets (), T (true) and F (false) • Semantics (Classical/Boolean) • Define how connectives affect truth • “P and Q” is true if and only if P is true and Q is true • Use truth tables to work out the truth of statements

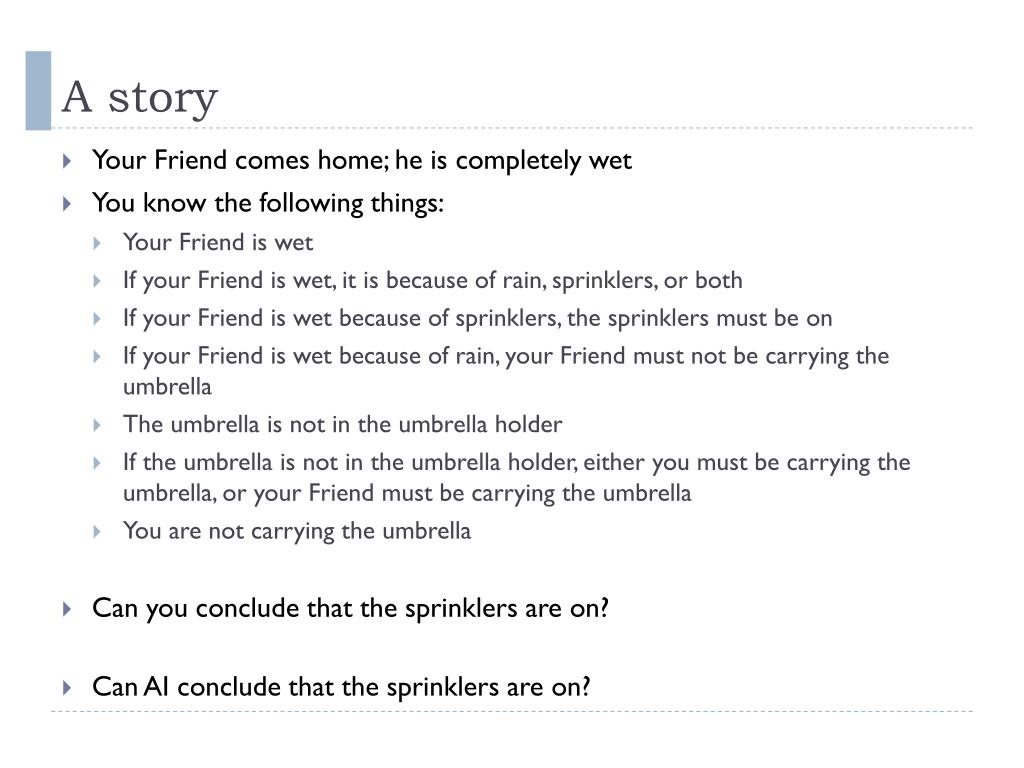

14. A story • Your Friend comes home; he is completely wet • You know the following things: • Your Friend is wet • If your Friend is wet, it is because of rain, sprinklers, or both • If your Friend is wet because of sprinklers, the sprinklers must be on • If your Friend is wet because of rain, your Friend must not be carrying the umbrella • The umbrella is not in the umbrella holder • If the umbrella is not in the umbrella holder, either you must be carrying the umbrella, or your Friend must be carrying the umbrella • You are not carrying the umbrella • Can you conclude that the sprinklers are on? • Can AI conclude that the sprinklers are on?

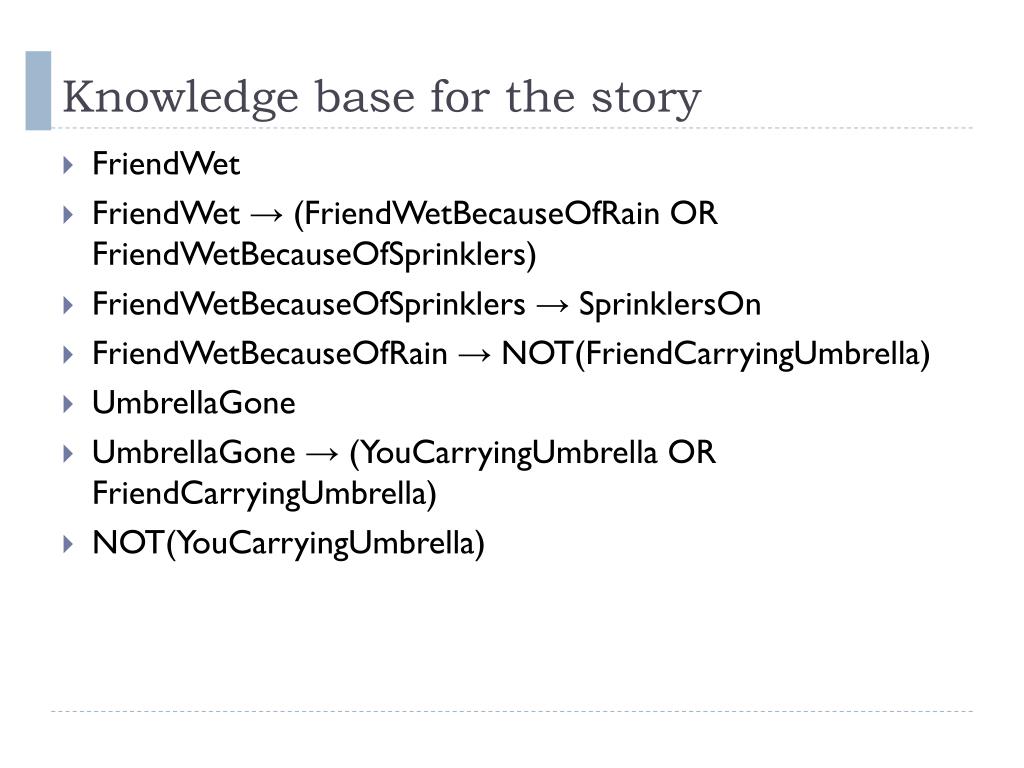

15. Knowledge base for the story • FriendWet • FriendWet → (FriendWetBecauseOfRain OR FriendWetBecauseOfSprinklers) • FriendWetBecauseOfSprinklers → SprinklersOn • FriendWetBecauseOfRain → NOT(FriendCarryingUmbrella) • UmbrellaGone • UmbrellaGone → (YouCarryingUmbrella OR FriendCarryingUmbrella) • NOT(YouCarryingUmbrella)

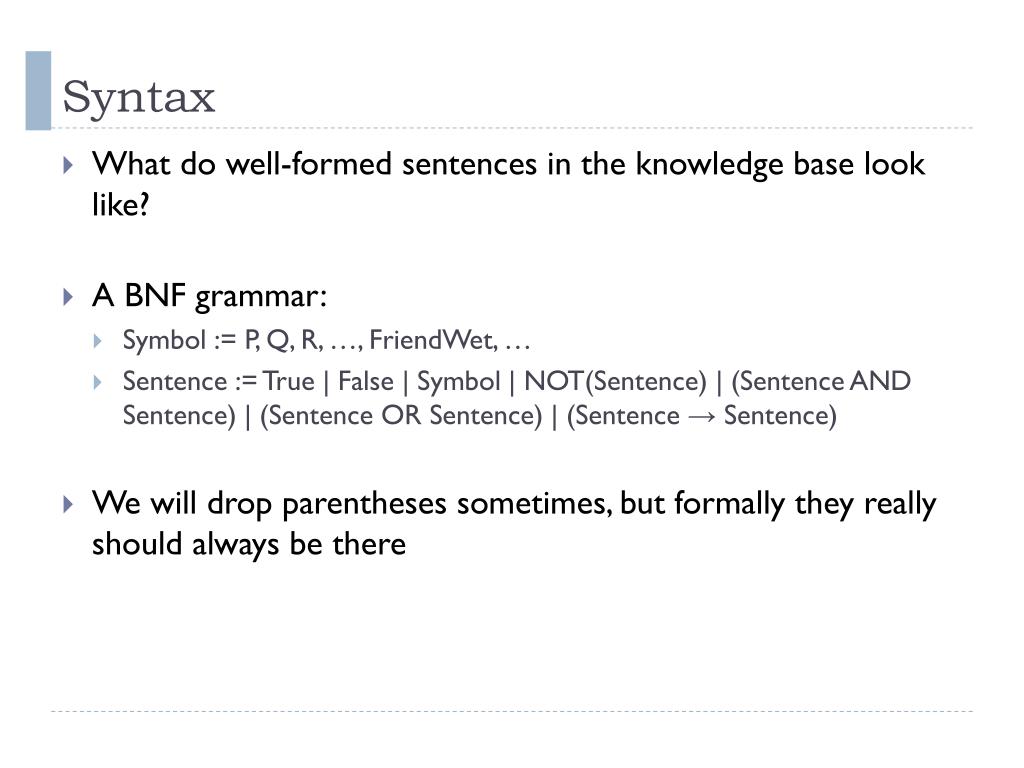

16. Syntax • What do well-formed sentences in the knowledge base look like? • A BNF grammar: • Symbol := P, Q, R, …, FriendWet, … • Sentence := True | False | Symbol | NOT(Sentence) | (Sentence AND Sentence) | (Sentence OR Sentence) | (Sentence → Sentence) • We will drop parentheses sometimes, but formally they really should always be there

17. Semantics • A model specifies which of the propositional symbols are true and which are false • Given a model, I should be able to tell you whether a sentence is true or false • Truth table defines semantics of operators: • Given a model, can compute truth of sentence recursively with these

18. Tautologies • A sentence is a tautology if it is true for any setting of its propositional symbols • (P OR Q) OR (NOT(P) AND NOT(Q)) is a tautology

19. Is this a tautology? • (P → Q) OR (Q → P)

20. Logical equivalences • Two sentences are logically equivalent if they have the same truth value for every setting of their propositional variables • P OR Q and NOT(NOT(P) AND NOT(Q)) are logically equivalent. Tautology = logically equivalent to True

21. Famous logical equivalences • (a OR b) ≡ (b OR a) commutatitvity • (a AND b) ≡ (b AND a) commutatitvity • ((a AND b) AND c) ≡ (a AND (b AND c)) associativity • ((a OR b) OR c) ≡ (a OR (b OR c)) associativity • NOT(NOT(a)) ≡ a double-negation elimination • (a → b) ≡ (NOT(b) → NOT(a)) contraposition • (a → b) ≡ (NOT(a) OR b) implication elimination • NOT(a AND b) ≡ (NOT(a) OR NOT(b)) De Morgan • NOT(a OR b) ≡ (NOT(a) AND NOT(b)) De Morgan • (a AND (b OR c)) ≡ ((a AND b) OR (a AND c)) distributivity • (a OR (b AND c)) ≡ ((a OR b) AND (a OR c)) distributivity

22. Entailment • A set of premises A logically entails a conclusion B (written as A |= B) if and only if every model/interpretation that satisfies the premises also satisfies the conclusion, i.e. A → B • i.e. B is a valid consequence of A • {p} |= (p∨q) • {p} |# (p ∧ q) • (e.g. p=T, q=F) • {p, q} |= (p ∧ q)

23. Entailment • We have a knowledge base (KB) of things that we know are true • FriendWetBecauseOfSprinklers • FriendWetBecauseOfSprinklers → SprinklersOn • Can we conclude that SprinklersOn? • We say SprinklersOn is entailed by the KB if, for every setting of the propositional variables for which the KB is true, SprinklersOn is also true SprinklersOn is entailed! (KB |= SprinklersOn)

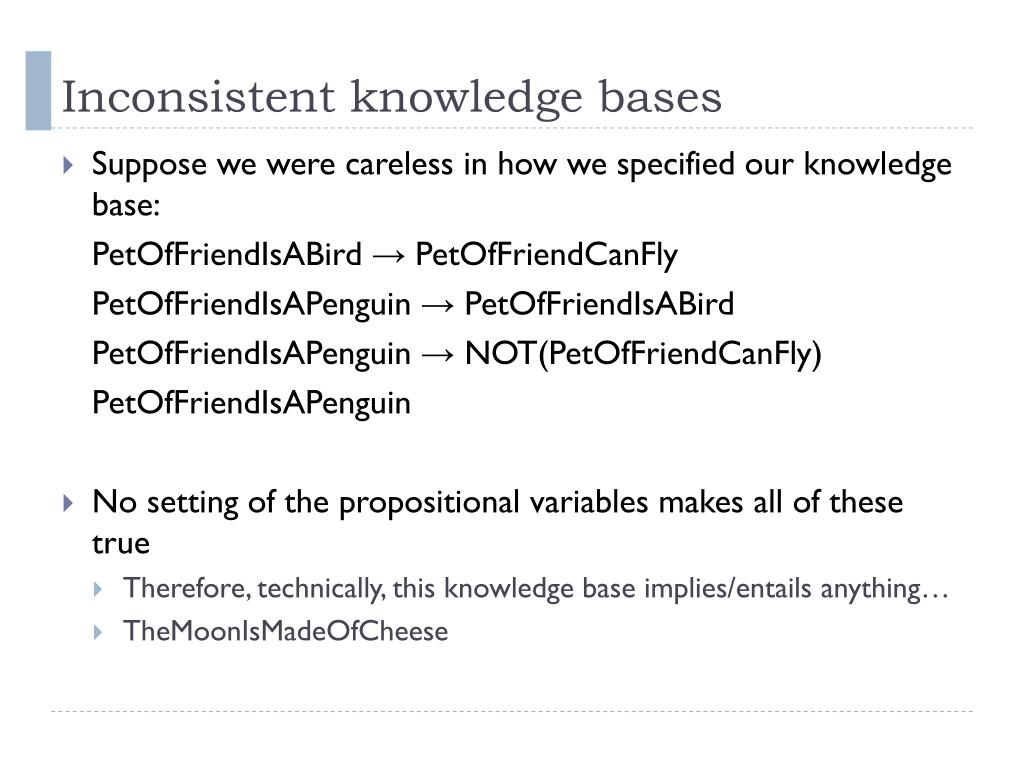

24. Inconsistent knowledge bases • Suppose we were careless in how we specified our knowledge base: PetOfFriendIsABird → PetOfFriendCanFly PetOfFriendIsAPenguin → PetOfFriendIsABird PetOfFriendIsAPenguin → NOT(PetOfFriendCanFly) PetOfFriendIsAPenguin • No setting of the propositional variables makes all of these true • Therefore, technically, this knowledge base implies/entails anything… • TheMoonIsMadeOfCheese

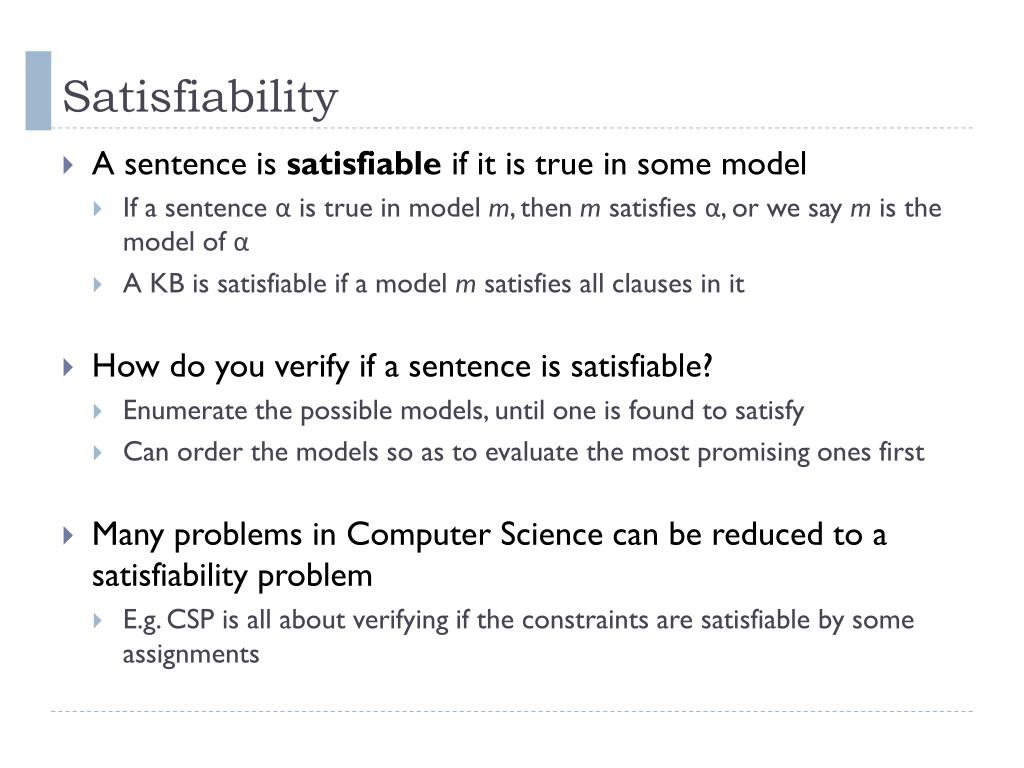

25. Satisfiability • A sentence is satisfiable if it is true in some model • If a sentence α is true in model m, then m satisfies α, or we say m is the model of α • A KB is satisfiable if a model m satisfies all clauses in it • How do you verify if a sentence is satisfiable? • Enumerate the possible models, until one is found to satisfy • Can order the models so as to evaluate the most promising ones first • Many problems in Computer Science can be reduced to a satisfiability problem • E.g. CSP is all about verifying if the constraints are satisfiable by some assignments

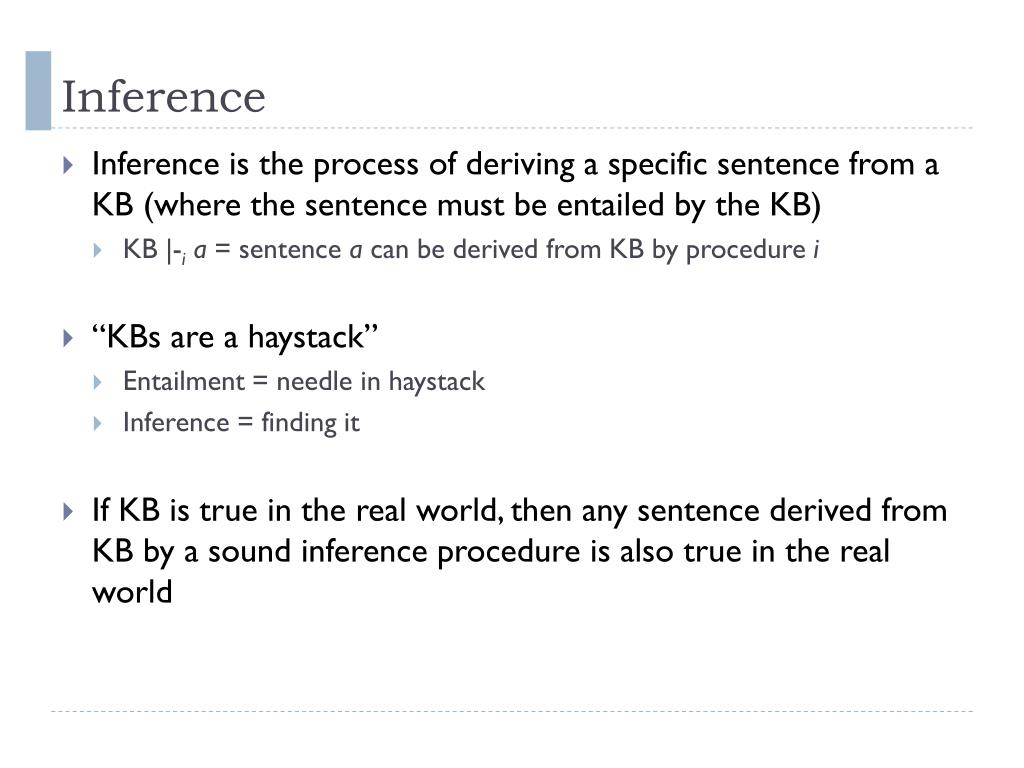

26. Inference • Inference is the process of deriving a specific sentence from a KB (where the sentence must be entailed by the KB) • KB |-i a = sentence a can be derived from KB by procedure i • “KBs are a haystack” • Entailment = needle in haystack • Inference = finding it • If KB is true in the real world, then any sentence derived from KB by a sound inference procedure is also true in the real world

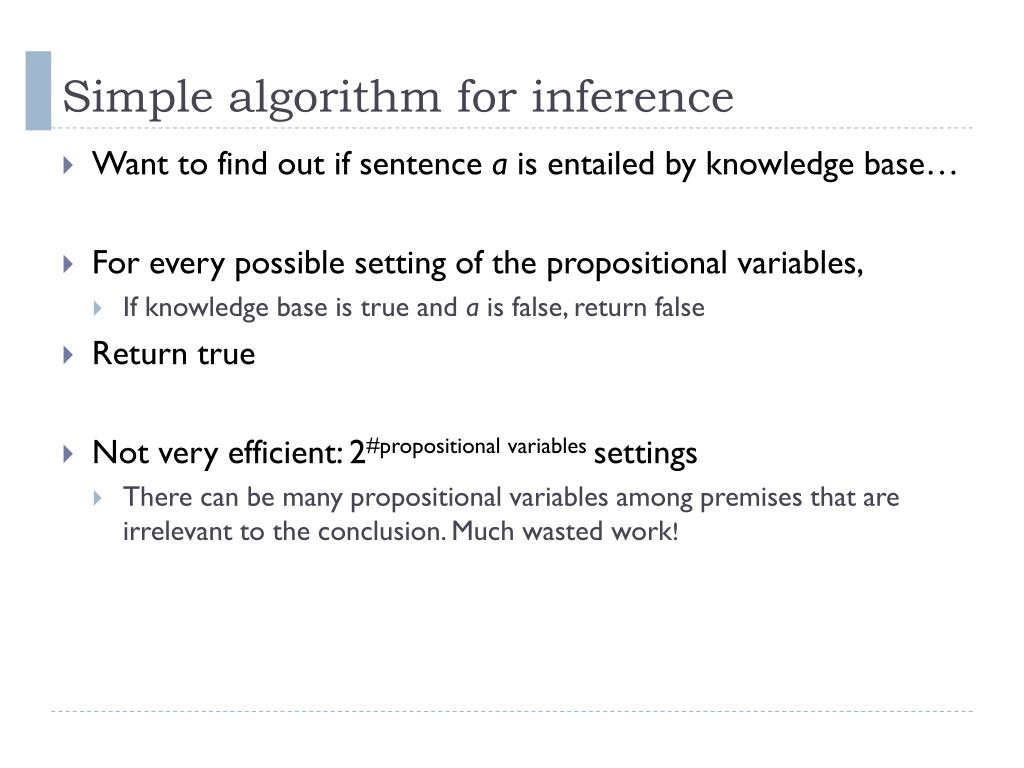

27. Simple algorithm for inference • Want to find out if sentence a is entailed by knowledge base… • For every possible setting of the propositional variables, • If knowledge base is true and a is false, return false • Return true • Not very efficient: 2#propositional variables settings • There can be many propositional variables among premises that are irrelevant to the conclusion. Much wasted work!

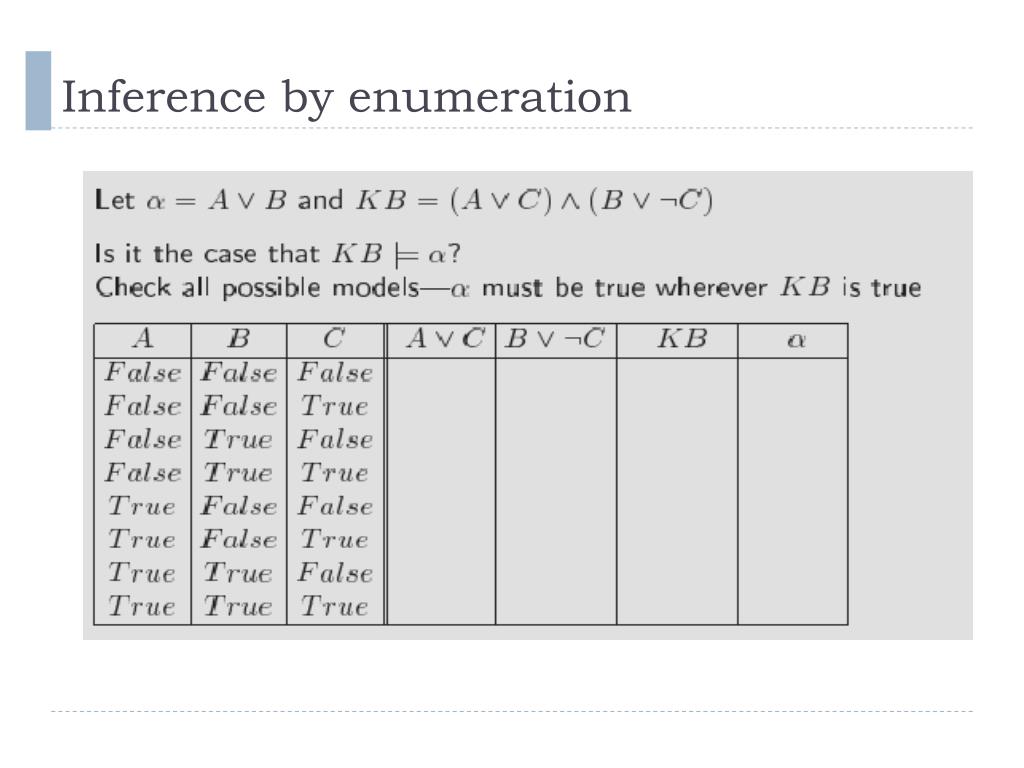

28. Inference by enumeration

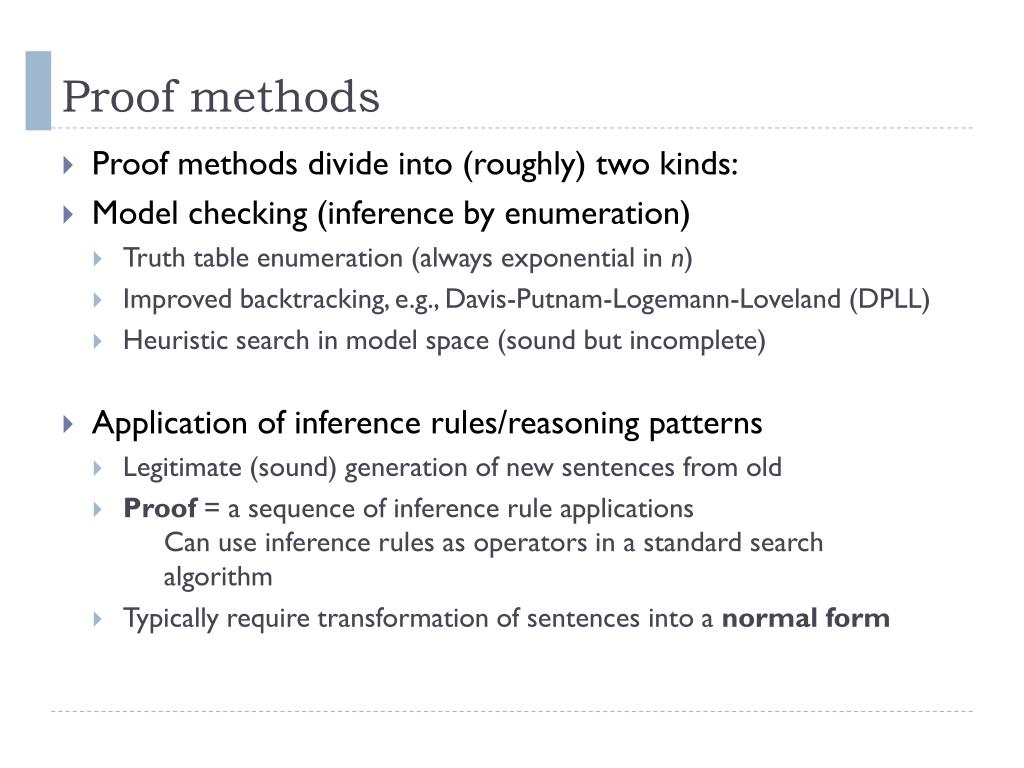

30. Proof methods • Proof methods divide into (roughly) two kinds: • Model checking (inference by enumeration) • Truth table enumeration (always exponential in n) • Improved backtracking, e.g., Davis-Putnam-Logemann-Loveland (DPLL) • Heuristic search in model space (sound but incomplete) • Application of inference rules/reasoning patterns • Legitimate (sound) generation of new sentences from old • Proof = a sequence of inference rule applications Can use inference rules as operators in a standard search algorithm • Typically require transformation of sentences into a normal form

31. Reasoning patterns • Obtain new sentences directly from some other sentences in knowledge base according to reasoning patterns • E.g., if we have sentences a and a → b, we can correctly conclude the new sentence b • This is called modus ponens • E.g., if we have a AND b, we can correctly conclude a • All of the logical equivalences from before also give reasoning patterns

32. Formal proof that the sprinklers are on • Knowledge base: • FriendWet • FriendWet → (FriendWetBecauseOfRain OR FriendWetBecauseOfSprinklers) • FriendWetBecauseOfSprinklers → SprinklersOn • FriendWetBecauseOfRain → NOT(FriendCarryingUmbrella) • UmbrellaGone • UmbrellaGone → (YouCarryingUmbrella OR FriendCarryingUmbrella) • NOT(YouCarryingUmbrella)

33. Formal proof that the sprinklers are on • YouCarryingUmbrella OR FriendCarryingUmbrella(modus ponens on 5 and 6) • NOT(YouCarryingUmbrella) → FriendCarryingUmbrella(equivalent to 8) • FriendCarryingUmbrella(modus ponens on 7 and 9) • NOT(NOT(FriendCarryingUmbrella) (equivalent to 10) • NOT(NOT(FriendCarryingUmbrella)) → NOT(FriendWetBecauseOfRain) (equivalent to 4 by contraposition) • NOT(FriendWetBecauseOfRain) (modus ponens on 11 and 12) • FriendWetBecauseOfRain OR FriendWetBecauseOfSprinklers(modus ponens on 1 and 2) • NOT(FriendWetBecauseOfRain) → FriendWetBecauseOfSprinklers(equivalent to 14) • FriendWetBecauseOfSprinklers(modus ponens on 13 and 15) • SprinklersOn(modus ponens on 16 and 3)

34. Reasoning about penguins • Knowledge base: • PetOfFriendIsABird → PetOfFriendCanFly • PetOfFriendIsAPenguin → PetOfFriendIsABird • PetOfFriendIsAPenguin → NOT(PetOfFriendCanFly) • PetOfFriendIsAPenguin • PetOfFriendIsABird(modus ponens on 4 and 2) • PetOfFriendCanFly(modus ponens on 5 and 1) • NOT(PetOfFriendCanFly) (modus ponens on 4 and 3) • NOT(PetOfFriendCanFly) → FALSE (equivalent to 6) • FALSE (modus ponens on 7 and 8) • FALSE → TheMoonIsMadeOfCheese(tautology) • TheMoonIsMadeOfCheese(modus ponens on 9 and 10)

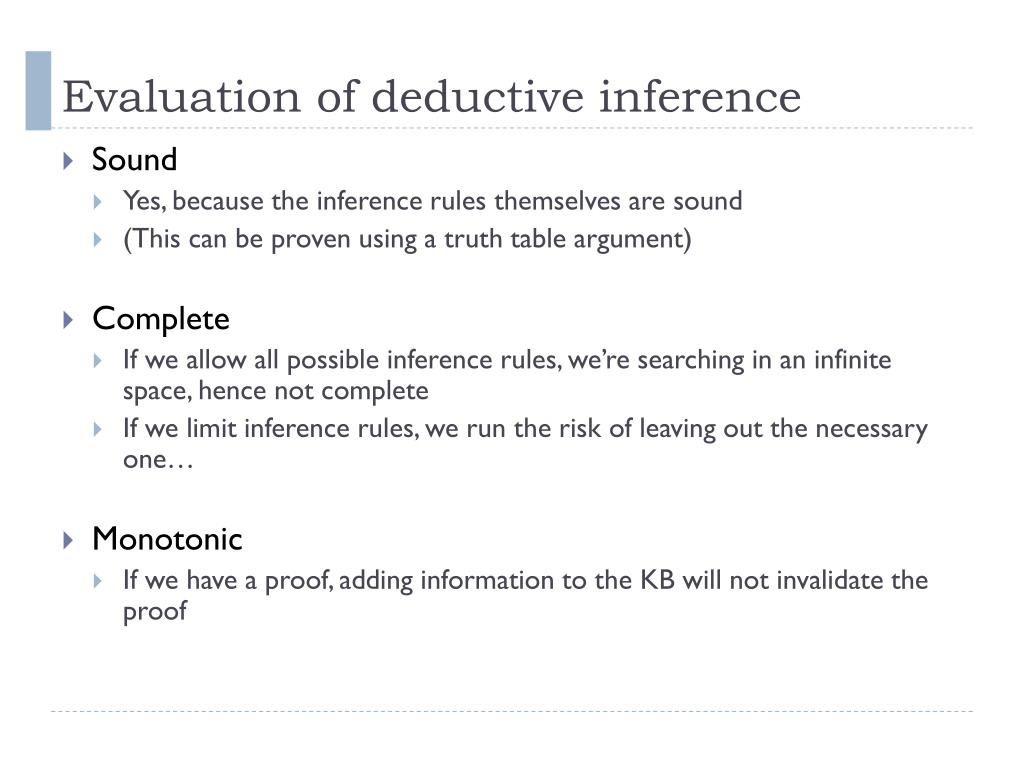

35. Evaluation of deductive inference • Sound • Yes, because the inference rules themselves are sound • (This can be proven using a truth table argument) • Complete • If we allow all possible inference rules, we’re searching in an infinite space, hence not complete • If we limit inference rules, we run the risk of leaving out the necessary one… • Monotonic • If we have a proof, adding information to the KB will not invalidate the proof

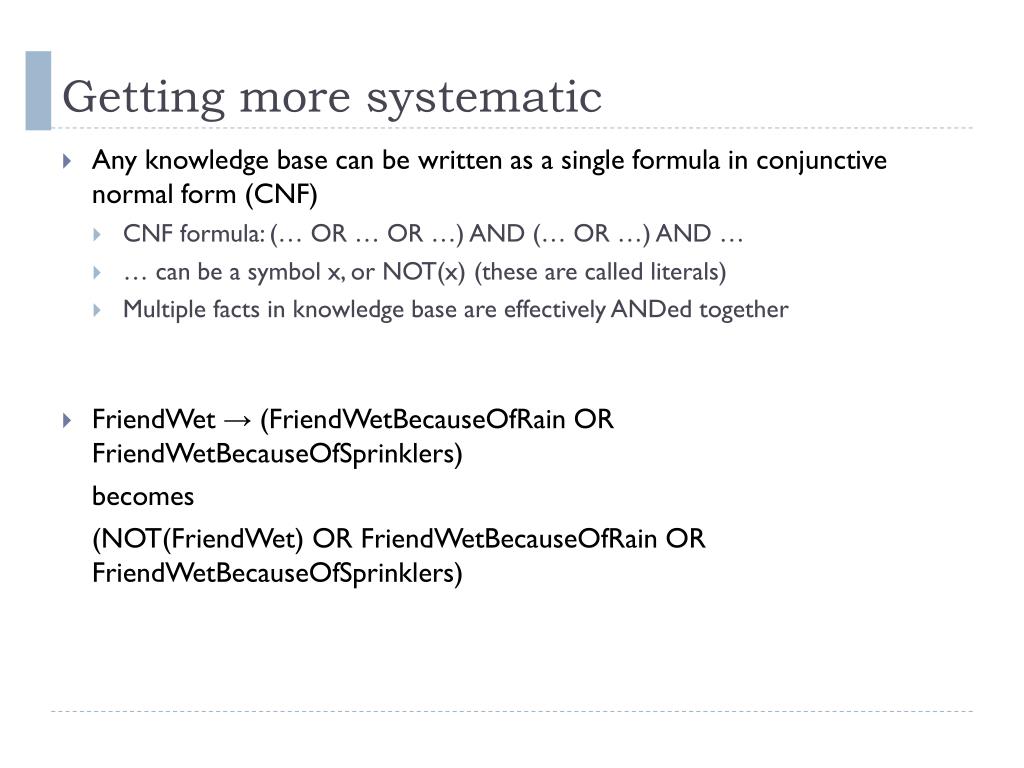

36. Getting more systematic • Any knowledge base can be written as a single formula in conjunctive normal form (CNF) • CNF formula: (… OR … OR …) AND (… OR …) AND … • … can be a symbol x, or NOT(x) (these are called literals) • Multiple facts in knowledge base are effectively ANDed together • FriendWet → (FriendWetBecauseOfRain OR FriendWetBecauseOfSprinklers) becomes (NOT(FriendWet) OR FriendWetBecauseOfRain OR FriendWetBecauseOfSprinklers)

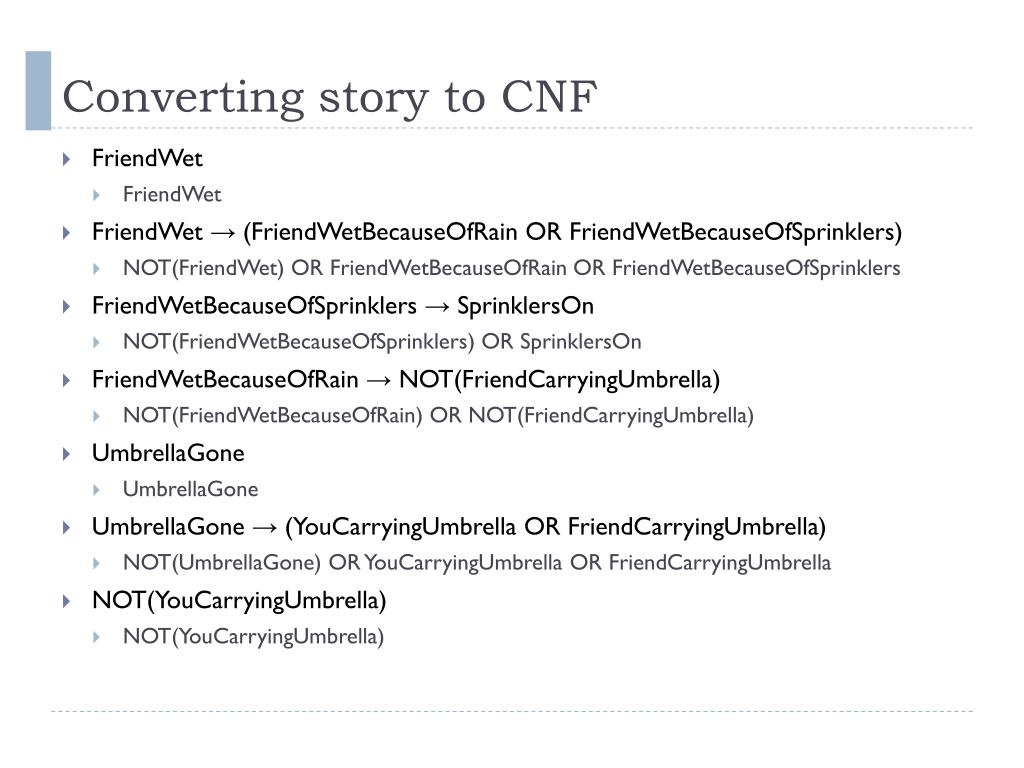

37. Converting story to CNF • FriendWet • FriendWet • FriendWet → (FriendWetBecauseOfRain OR FriendWetBecauseOfSprinklers) • NOT(FriendWet) OR FriendWetBecauseOfRain OR FriendWetBecauseOfSprinklers • FriendWetBecauseOfSprinklers → SprinklersOn • NOT(FriendWetBecauseOfSprinklers) OR SprinklersOn • FriendWetBecauseOfRain → NOT(FriendCarryingUmbrella) • NOT(FriendWetBecauseOfRain) OR NOT(FriendCarryingUmbrella) • UmbrellaGone • UmbrellaGone • UmbrellaGone → (YouCarryingUmbrella OR FriendCarryingUmbrella) • NOT(UmbrellaGone) OR YouCarryingUmbrella OR FriendCarryingUmbrella • NOT(YouCarryingUmbrella) • NOT(YouCarryingUmbrella)

38. Unit resolution • Unit resolution: if we have l1 OR l2 OR … li … OR lk and NOT(li) we can conclude l1 OR l2 OR … li -1 OR li +1 OR … OR lk • Basically modus ponens

39. Applying resolution to story problem • FriendWet • NOT(FriendWet) OR FriendWetBecauseOfRain OR FriendWetBecauseOfSprinklers • NOT(FriendWetBecauseOfSprinklers) OR SprinklersOn • NOT(FriendWetBecauseOfRain) OR NOT(FriendCarryingUmbrella) • UmbrellaGone • NOT(UmbrellaGone) OR YouCarryingUmbrella OR FriendCarryingUmbrella • NOT(YouCarryingUmbrella) • NOT(UmbrellaGone) OR FriendCarryingUmbrella (6,7) • FriendCarryingUmbrella (5,8) • NOT(FriendWetBecauseOfRain) (4,9) • NOT(FriendWet) OR FriendWetBecauseOfSprinklers (2,10) • FriendWetBecauseOfSprinklers (1,11) • SprinklersOn (3,12)

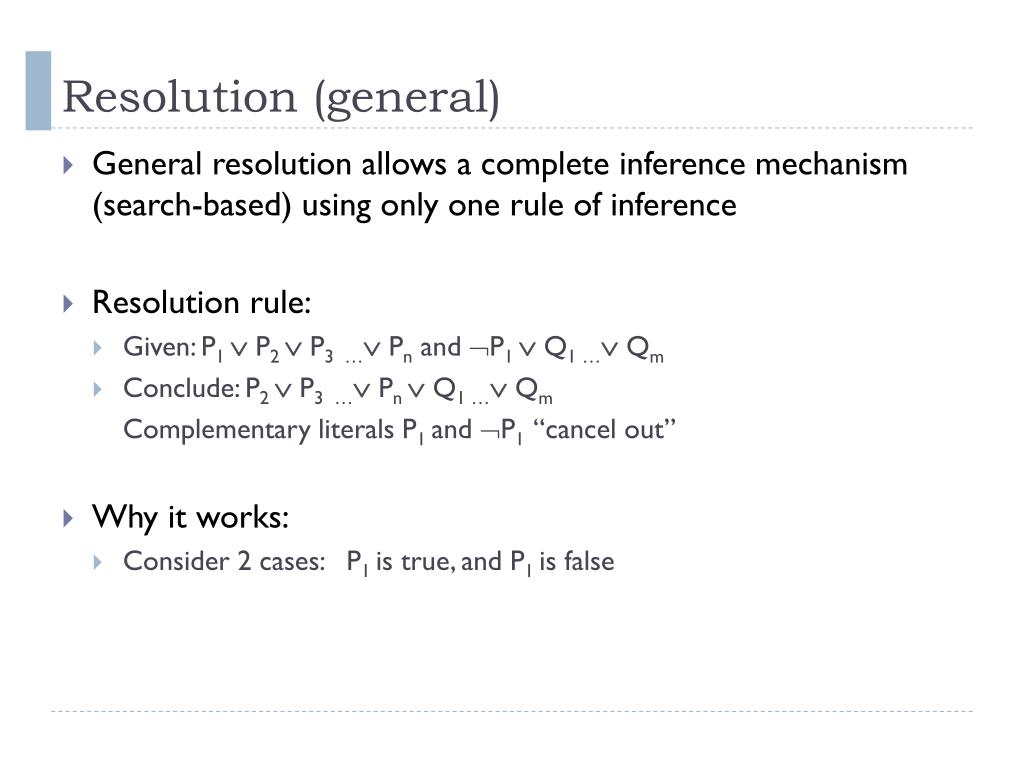

40. Resolution (general) • General resolution allows a complete inference mechanism (search-based) using only one rule of inference • Resolution rule: • Given: P1  P2  P3 … Pn and P1  Q1 … Qm • Conclude: P2  P3 … Pn Q1 … Qm Complementary literals P1 and P1 “cancel out” • Why it works: • Consider 2 cases: P1 is true, and P1 is false

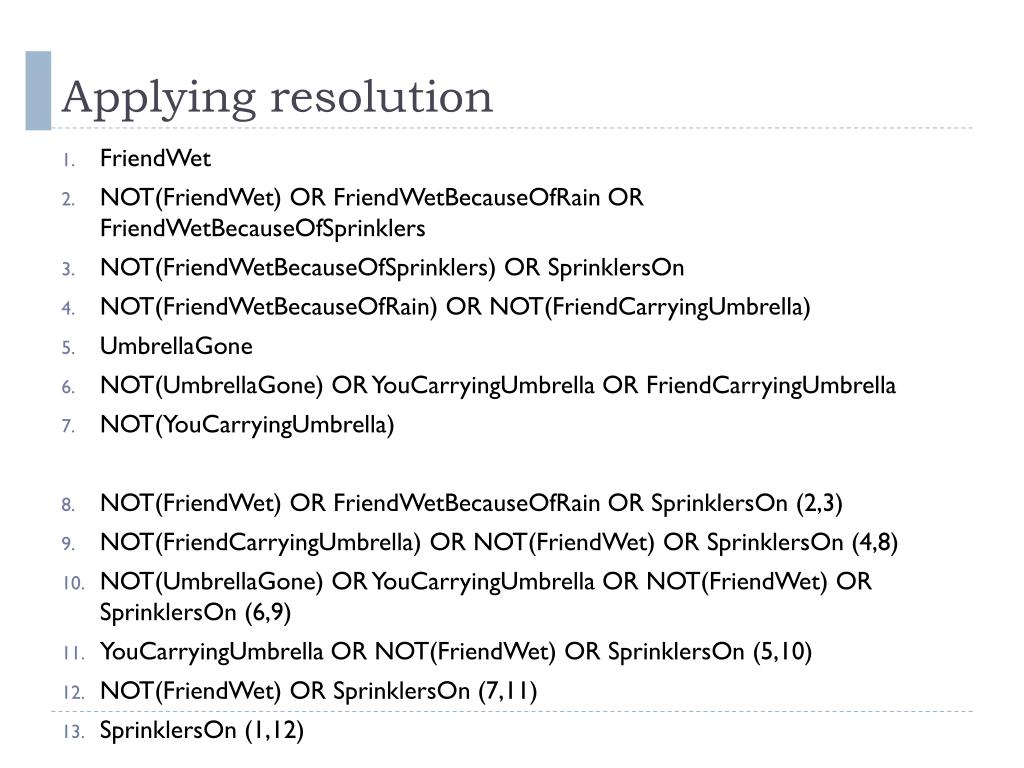

41. Applying resolution • FriendWet • NOT(FriendWet) OR FriendWetBecauseOfRain OR FriendWetBecauseOfSprinklers • NOT(FriendWetBecauseOfSprinklers) OR SprinklersOn • NOT(FriendWetBecauseOfRain) OR NOT(FriendCarryingUmbrella) • UmbrellaGone • NOT(UmbrellaGone) OR YouCarryingUmbrella OR FriendCarryingUmbrella • NOT(YouCarryingUmbrella) • NOT(FriendWet) OR FriendWetBecauseOfRain OR SprinklersOn (2,3) • NOT(FriendCarryingUmbrella) OR NOT(FriendWet) OR SprinklersOn (4,8) • NOT(UmbrellaGone) OR YouCarryingUmbrella OR NOT(FriendWet) OR SprinklersOn (6,9) • YouCarryingUmbrella OR NOT(FriendWet) OR SprinklersOn (5,10) • NOT(FriendWet) OR SprinklersOn (7,11) • SprinklersOn (1,12)

42. Systematic inference… • General strategy: if we want to see if sentence a is entailed, add NOT(a) to the knowledge base and see if it becomes inconsistent (we can derive a contradiction) • = proof by contradiction • CNF formula for modified knowledge base is satisfiable if and only if sentence a is not entailed • Satisfiable = there exists a model that makes the modified knowledge base true = modified knowledge base is consistent

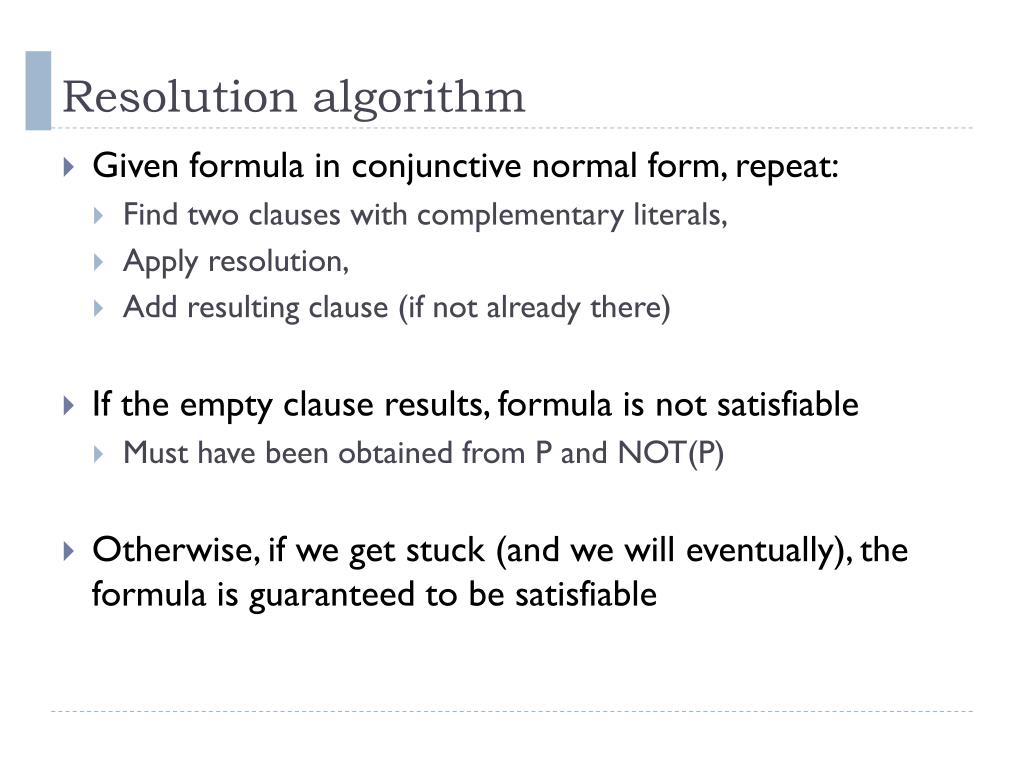

43. Resolution algorithm • Given formula in conjunctive normal form, repeat: • Find two clauses with complementary literals, • Apply resolution, • Add resulting clause (if not already there) • If the empty clause results, formula is not satisfiable • Must have been obtained from P and NOT(P) • Otherwise, if we get stuck (and we will eventually), the formula is guaranteed to be satisfiable

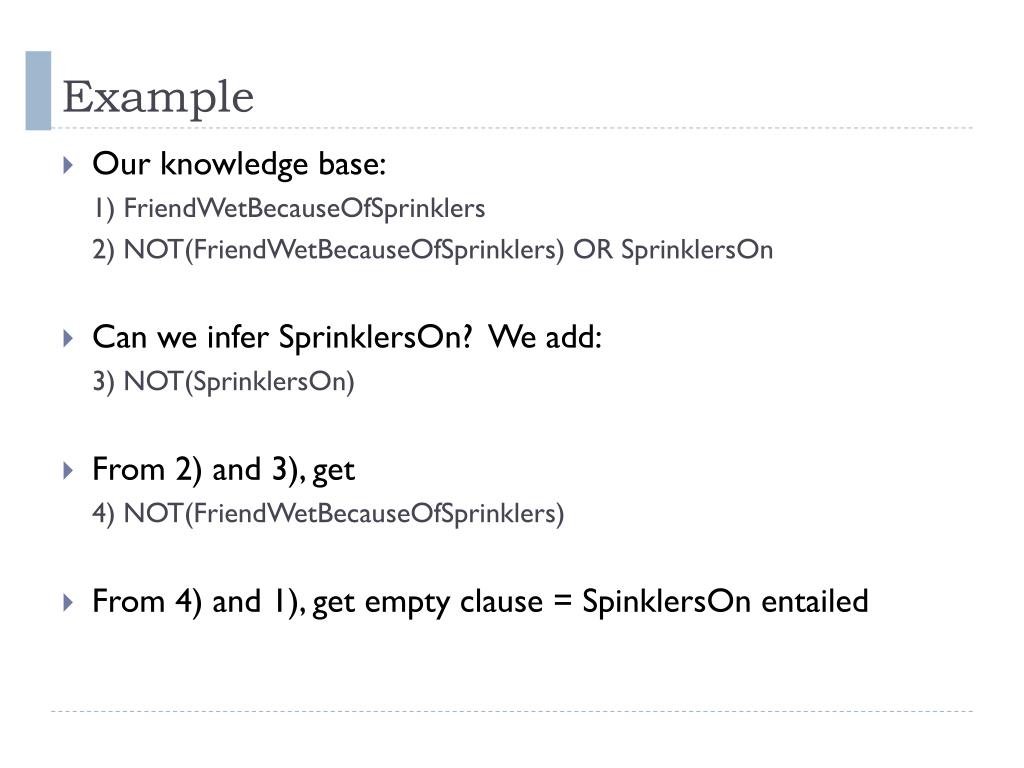

44. Example • Our knowledge base: 1) FriendWetBecauseOfSprinklers 2) NOT(FriendWetBecauseOfSprinklers) OR SprinklersOn • Can we infer SprinklersOn? We add: 3) NOT(SprinklersOn) • From 2) and 3), get 4) NOT(FriendWetBecauseOfSprinklers) • From 4) and 1), get empty clause = SpinklersOn entailed

45. Exercises • In twos/threes, please!
