大空間設計

DESCRIPTION

大空間設計. 除了. 樓梯、. 盥洗室、. 影印機房、. 儲藏室、. 電機室、. 工作室、. 管道間. 等等一些特殊用途的場所之外. 空無一物。. 有如一個空曠的大房間. 便於家具的調整及陳列. 就結構上的承載原理. 舉「中空樓板」為例說明如下. 中空樓板的優點. 旋楞鋼管為襯管置水泥間形成中空 , 減輕樓板重量. 樓板兼小樑 , 傳達支撐力至四週. 跨度大、無樑、無柱可任意配置傢俱. 樓板中空 , 具隔熱、隔音效果佳. 天花板與地板一樣平整 , 省裝修費用. 旋楞鋼管中空可作水電、音響、網路等配管線之需.

Download

1 / 4

Mar 18, 2014

Télécharger la présentation

大空間設計

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

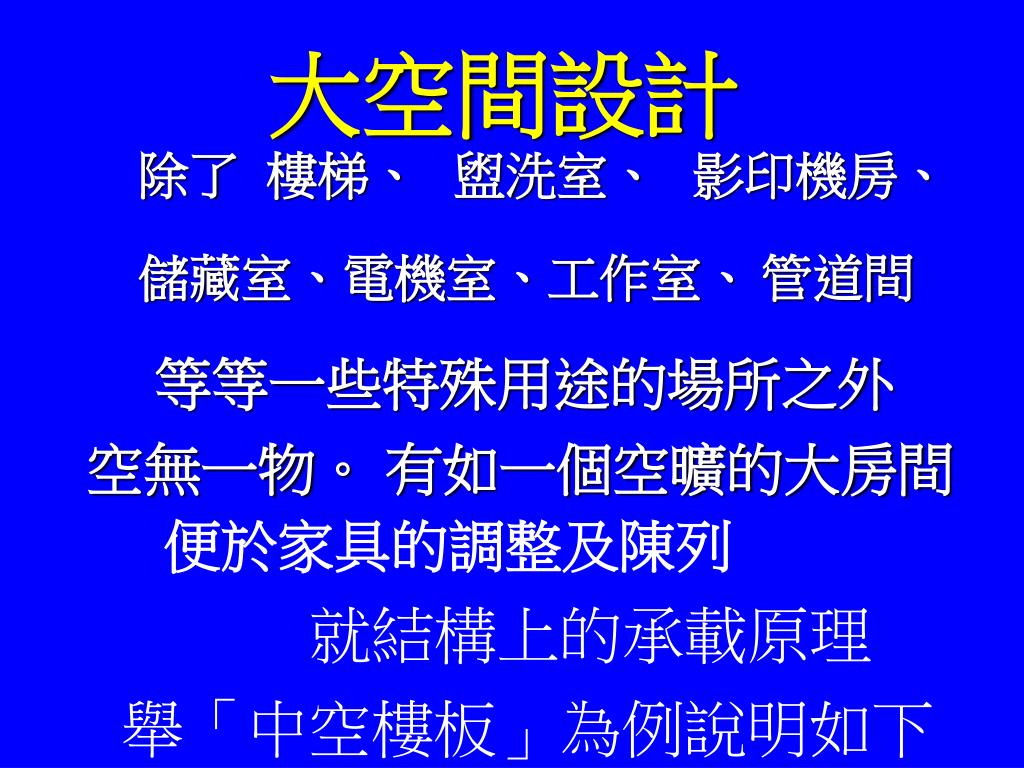

大空間設計 除了樓梯、盥洗室、影印機房、儲藏室、電機室、工作室、管道間等等一些特殊用途的場所之外空無一物。有如一個空曠的大房間便於家具的調整及陳列就結構上的承載原理舉「中空樓板」為例說明如下
中空樓板的優點 旋楞鋼管為襯管置水泥間形成中空,減輕樓板重量樓板兼小樑,傳達支撐力至四週跨度大、無樑、無柱可任意配置傢俱樓板中空,具隔熱、隔音效果佳天花板與地板一樣平整,省裝修費用旋楞鋼管中空可作水電、音響、網路等配管線之需
中空樓板(Hollow Slba)設計
钢筋实线 钢管圆形中空 35 25公分公分工字梁两虚线间水泥楼板灰色若铁轨般承重设计中空楼板『工』字梁集合体剖面图
