  1. AIXM 5.1 - UML to XSD AIXM 5.1 XML Developers' Seminar #2 – Dec 2009

  2. Content • Overview of AIXM files • Mapping rules for Datatypes • Mapping rules for Features • Presentation AIXM scripts • Creation of an extension AIXM 5.1 - UML to XSD

  3. AIXM 5.1 includes GML 3.2 ISO19139metadataschema W3C xlink Overview of AIXM files • The file AIXM_AbstractGML_ObjectTypes.xsd • References ISO19139 Metadata Schema • Defines the base AIXM Feature Constructs • AbstractAIXMFeatureType / AbstractAIXMFeature • AbstractAIXMTimesliceType / AbstractAIXMTimeslice • The file AIXM_DataTypes.xsd contains the mapping of the AIXM datatypes • The file AIXM_Features.xsd contains the mapping of the AIXM features AIXM 5.1 - UML to XSD

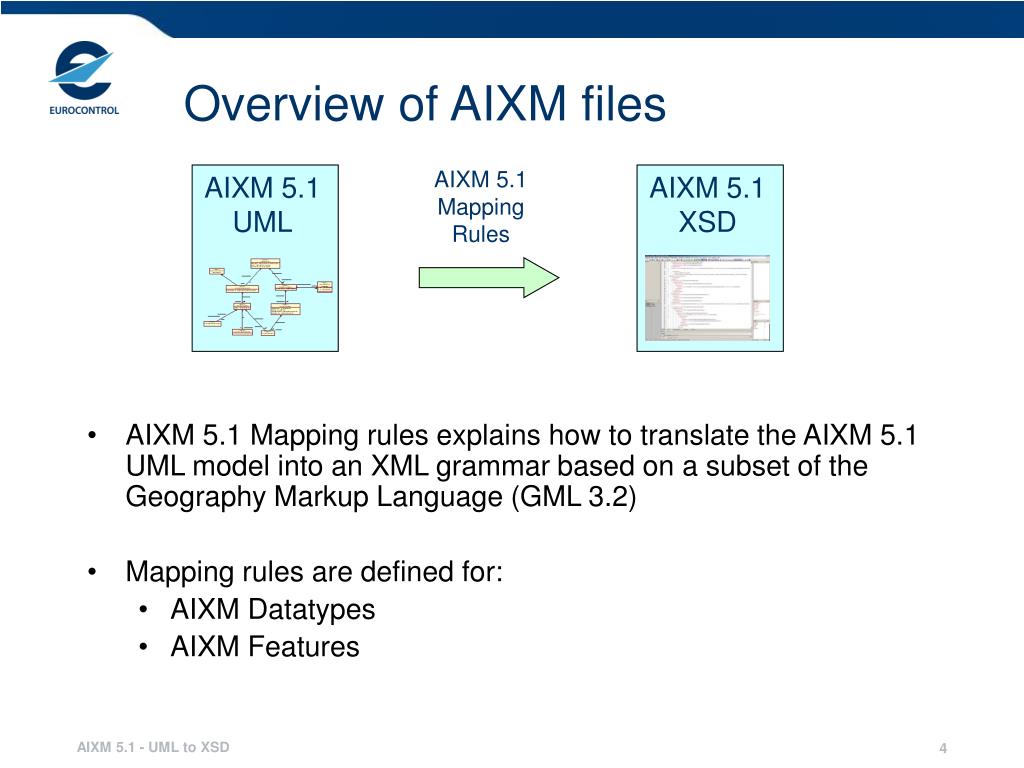

  4. AIXM 5.1UML AIXM 5.1XSD Overview of AIXM files AIXM 5.1 Mapping Rules • AIXM 5.1 Mapping rules explains how to translate the AIXM 5.1 UML model into an XML grammar based on a subset of the Geography Markup Language (GML 3.2) • Mapping rules are defined for: • AIXM Datatypes • AIXM Features AIXM 5.1 - UML to XSD

  5. AIXM 5.1 - UML to XSDMapping Rules - Datatypes

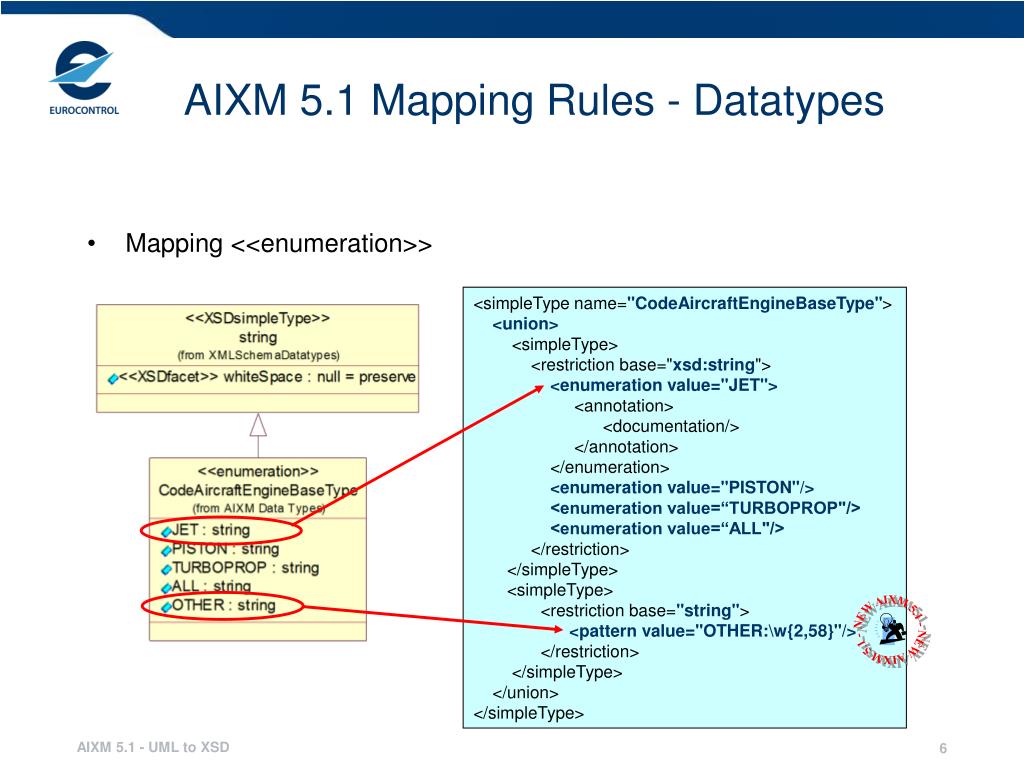

  6. NEW AIXM 5.1 - NEW AIXM 5.1 - AIXM 5.1 Mapping Rules - Datatypes • Mapping <<enumeration>> <simpleType name="CodeAircraftEngineBaseType"> <union> <simpleType> <restriction base="xsd:string"> <enumeration value="JET"> <annotation> <documentation/> </annotation> </enumeration> <enumeration value="PISTON"/> <enumeration value=“TURBOPROP"/> <enumeration value=“ALL"/> </restriction> </simpleType> <simpleType> <restriction base="string"> <pattern value="OTHER:\w{2,58}"/> </restriction> </simpleType> </union> </simpleType> AIXM 5.1 - UML to XSD

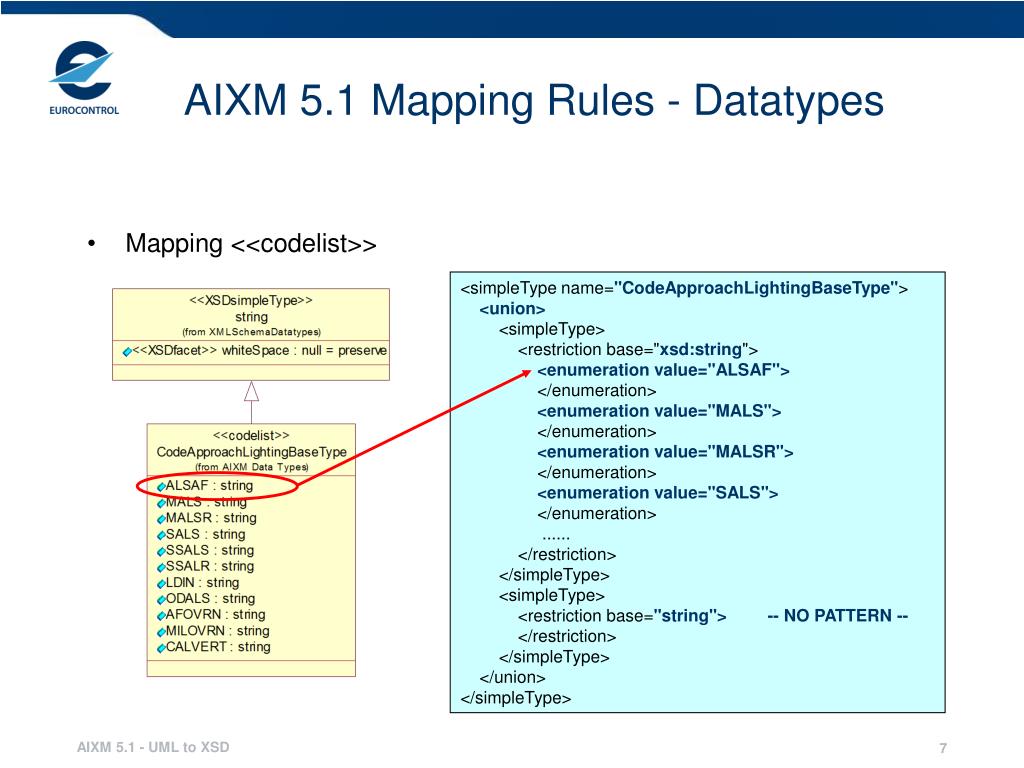

  7. AIXM 5.1 Mapping Rules - Datatypes • Mapping <<codelist>> <simpleType name="CodeApproachLightingBaseType"> <union> <simpleType> <restriction base="xsd:string"> <enumeration value="ALSAF"> </enumeration> <enumeration value="MALS"> </enumeration> <enumeration value="MALSR"> </enumeration> <enumeration value="SALS"> </enumeration> ...... </restriction> </simpleType> <simpleType> <restriction base="string"> -- NO PATTERN -- </restriction> </simpleType> </union> </simpleType> AIXM 5.1 - UML to XSD

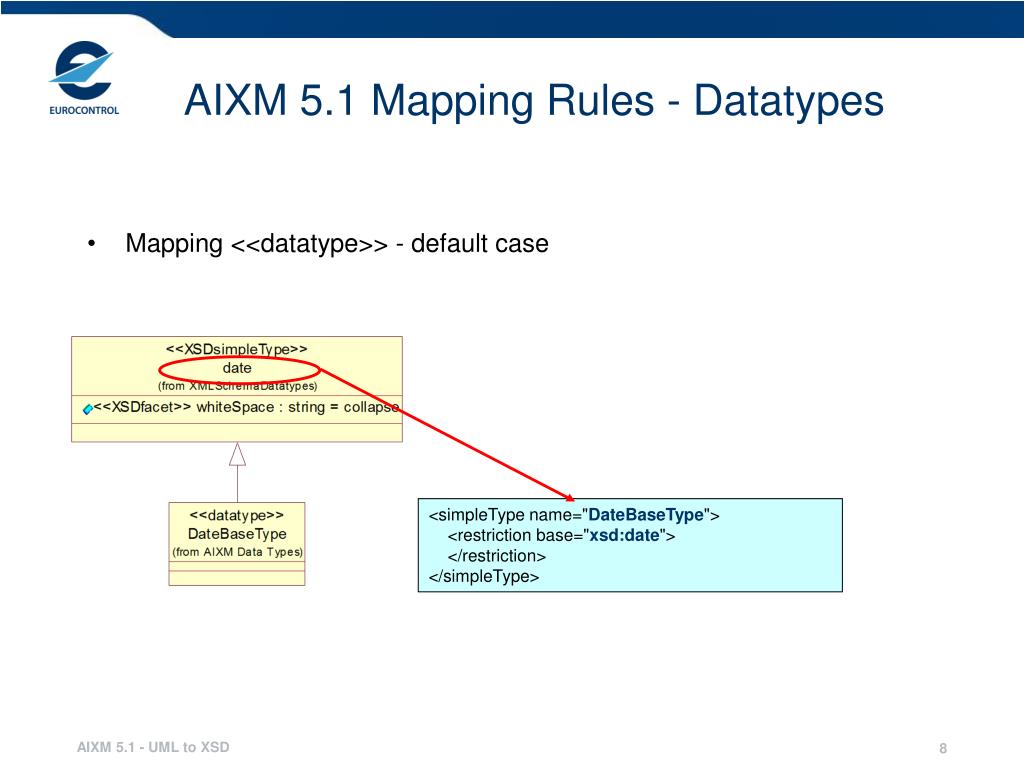

  8. AIXM 5.1 Mapping Rules - Datatypes • Mapping <<datatype>> - default case <simpleType name="DateBaseType"> <restriction base="xsd:date"> </restriction> </simpleType> AIXM 5.1 - UML to XSD

  9. NEW AIXM 5.1 - NEW AIXM 5.1 - NEW AIXM 5.1 - NEW AIXM 5.1 - NEW AIXM 5.1 - NEW AIXM 5.1 - AIXM 5.1 Mapping Rules - NilReason • Most of AIXM 5.1 Data Types define a nilReason, used to indicate the reason for a null value. AIXM 5.1 - UML to XSD

  10. NEW AIXM 5.1 - NEW AIXM 5.1 - AIXM 5.1 Mapping Rules - NilReason <simpleType name="CodeAircraftEngineBaseType"> <union> <simpleType> <restriction base="xsd:string"> <enumeration value="JET"> …………………….. </restriction> </simpleType> <simpleType> <restriction base="string"> <pattern value="OTHER:\w{2,58}"/> </restriction> </simpleType> </union> </simpleType> • Mapping nilReason <complexType name="CodeAircraftEngineType"> <simpleContent> <extension base="aixm:CodeAircraftEngineBaseType"> <attribute name="nilReason“ type="aixm:NilReasonType"/> </extension> </simpleContent> </complexType> AIXM 5.1 - UML to XSD

  11. AIXM 5.1 Mapping Rules - UOM • Mapping Units of Measurement <simpleType name=“ValDepthBaseType"> <restriction base="xsd:decimal"> </restriction> </simpleType> <complexType name="ValDepthType"> <simpleContent> <extension base="aixm:ValDepthBaseType"> <attribute name="nilReason" type="aixm:NilReasonType"/> <attribute name="uom" type="aixm:UomDepthType" use="required"/> </extension> </simpleContent> </complexType> AIXM 5.1 - UML to XSD

  12. AIXM 5.1 - UML to XSDMapping Rules - Features

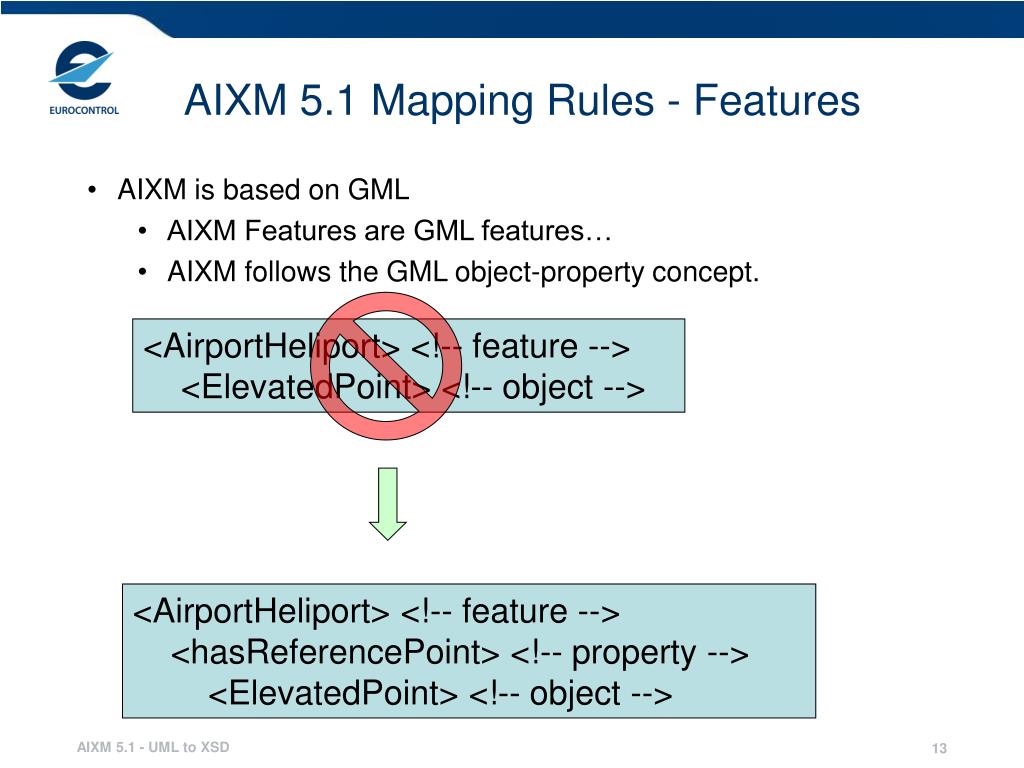

  13. AIXM 5.1 Mapping Rules - Features • AIXM is based on GML • AIXM Features are GML features… • AIXM follows the GML object-property concept. <AirportHeliport> <!-- feature --> <ElevatedPoint> <!-- object --> <AirportHeliport> <!-- feature --> <hasReferencePoint> <!-- property --> <ElevatedPoint> <!-- object --> AIXM 5.1 - UML to XSD

  14. AIXM 5.1 Mapping Rules - Features • For each AIXM Feature in the UML, the following XML schema entities are created: • FeaturePropertyType • Feature • FeatureType • FeatureTimeSlicePropertyType • FeatureTimeSlice • FeatureTimeSliceType • FeaturePropertyGroup • AIXM objects are encoded as GML objects. The mapping rules for Objects are the same as the rules for Features except that • Object do not exist outside of a feature • TimeSlice types and elements are not created AIXM 5.1 - UML to XSD

  15. RunwayPropertyType • Runway • RunwayType • RunwayTimeSlicePropertyType • RunwayTimeSlice • RunwayTimeSliceType • RunwayPropertyGroup AIXM 5.1 Mapping Rules - Features <group name="RunwayPropertyGroup"> <sequence> <element name="designator“ type="aixm:TextDesignatorType" nillable="true" minOccurs="0"> <annotation> <documentation>The full textual designator of the runway, used to uniquely identify it at an aerodrome/heliport which has more than one. E.g. 09/27, 02R/20L, RWY 1. </documentation> </annotation> </element> <element name="type" type="aixm:CodeRunwayType" nillable="true" minOccurs="0"> [………………] </sequence> </group> • UML properties are mapped into FeaturePropertyGroup AIXM 5.1 - UML to XSD

  16. RunwayPropertyType • Runway • RunwayType • RunwayTimeSlicePropertyType • RunwayTimeSlice • RunwayTimeSliceType • RunwayPropertyGroup AIXM 5.1 Mapping Rules - Features <group name="RunwayPropertyGroup"> <sequence> <element name="designator" nillable="true" minOccurs="0"> [………………] <element name="surfaceProperties" nillable="true" minOccurs="0"> <complexType> <complexContent> <extension base="aixm:SurfaceCharacteristicsPropertyType"> <attribute name="nilReason" type="gml:NilReasonEnumeration"/> </extension> </complexContent> </complexType> </element> [………………] AIXM 5.1 - UML to XSD

  17. RunwayPropertyType • Runway • RunwayType • RunwayTimeSlicePropertyType • RunwayTimeSlice • RunwayTimeSliceType • RunwayPropertyGroup AIXM 5.1 Mapping Rules - Features • UML properties are mapped into FeaturePropertyGroup <group name="RunwayPropertyGroup"> <sequence> <element name="designator" type="aixm:TextDesignatorType" nillable="true" minOccurs="0"> [………………] <element name="type" type="aixm:CodeRunwayType" nillable="true" minOccurs="0"> [………………] <element name="associatedAirportHeliport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0"> [………………] </sequence> </group> AIXM 5.1 - UML to XSD

  18. RunwayPropertyType • Runway • RunwayType • RunwayTimeSlicePropertyType • RunwayTimeSlice • RunwayTimeSliceType • RunwayPropertyGroup AIXM 5.1 Mapping Rules - Features • The RunwayTimeSliceType encapsulates all the Runway properties that change over time <complexType name="RunwayTimeSliceType"> <complexContent> <extension base="aixm:AbstractAIXMTimeSliceType"> <sequence> <group ref="aixm:RunwayPropertyGroup"/> <element name="extension" minOccurs="0" maxOccurs="unbounded"> <complexType> <sequence> <element ref="aixm:AbstractRunwayExtension"/> </sequence> <attributeGroup ref="gml:OwnershipAttributeGroup"/> </complexType> </element> </sequence> </extension> </complexContent> </complexType> AIXM 5.1 - UML to XSD

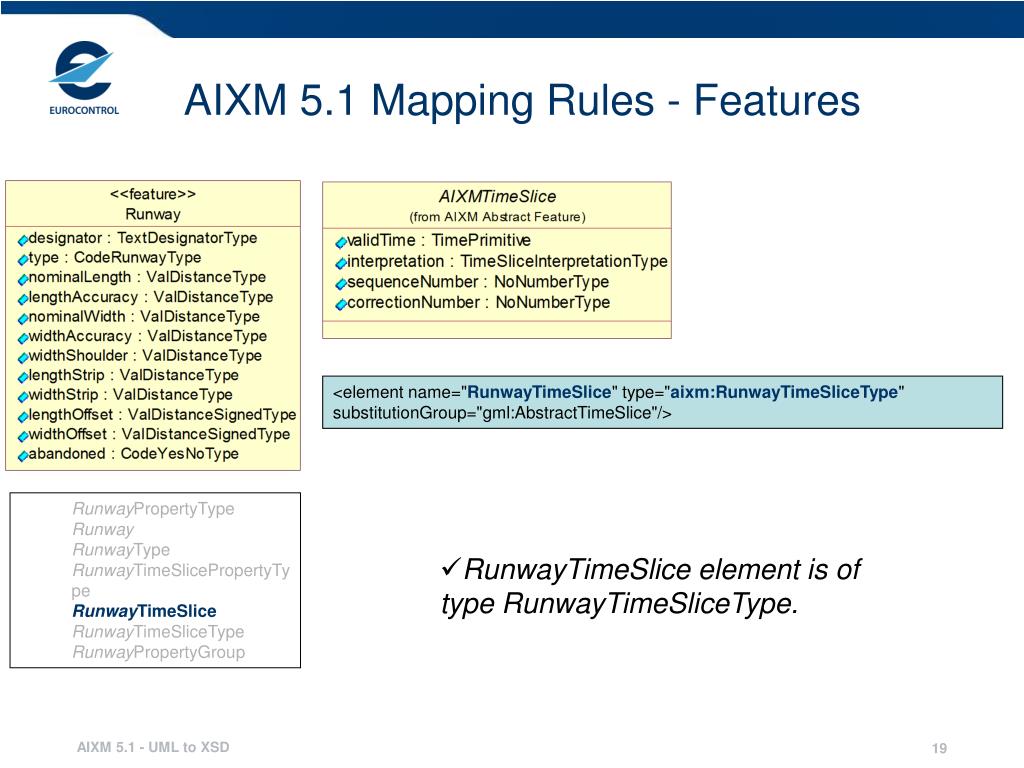

  19. RunwayPropertyType • Runway • RunwayType • RunwayTimeSlicePropertyType • RunwayTimeSlice • RunwayTimeSliceType • RunwayPropertyGroup AIXM 5.1 Mapping Rules - Features <element name="RunwayTimeSlice" type="aixm:RunwayTimeSliceType" substitutionGroup="gml:AbstractTimeSlice"/> • RunwayTimeSlice element is of type RunwayTimeSliceType. AIXM 5.1 - UML to XSD

  20. RunwayPropertyType • Runway • RunwayType • RunwayTimeSlicePropertyType • RunwayTimeSlice • RunwayTimeSliceType • RunwayPropertyGroup AIXM 5.1 Mapping Rules - Features <complexType name="RunwayTimeSlicePropertyType"> <sequence> <element ref="aixm:RunwayTimeSlice"/> </sequence> <attributeGroup ref="gml:OwnershipAttributeGroup"/> </complexType> • A GML property type containing a FeatureTimeSlice objects is created. AIXM 5.1 - UML to XSD

  21. RunwayPropertyType • Runway • RunwayType • RunwayTimeSlicePropertyType • RunwayTimeSlice • RunwayTimeSliceType • RunwayPropertyGroup AIXM 5.1 Mapping Rules - Features <complexType name="RunwayType"> <complexContent> <extension base="aixm:AbstractAIXMFeatureType"> <sequence> <element name="timeSlice" type="aixm:RunwayTimeSlicePropertyType" maxOccurs="unbounded"/> </sequence> </extension> </complexContent> </complexType> • The Runway feature type is created extending the AbstractAIXMFeatureType with the RunwayTimeSlice object created before. AIXM 5.1 - UML to XSD

  22. RunwayPropertyType • Runway • RunwayType • RunwayTimeSlicePropertyType • RunwayTimeSlice • RunwayTimeSliceType • RunwayPropertyGroup AIXM 5.1 Mapping Rules - Features <element name="Runway" type="aixm:RunwayType" substitutionGroup="aixm:AbstractAIXMFeature"> <annotation> <documentation>A defined rectangular area on a land aerodrome/heliport prepared for the landing and take-off of aircraft. Note: this includes the concept of Final Approach and Take-Off Area (FATO) for helicopters. </documentation> </annotation> </element> • The Runway feature is then defined by the RunwayType. AIXM 5.1 - UML to XSD

  23. RunwayPropertyType • Runway • RunwayType • RunwayTimeSlicePropertyType • RunwayTimeSlice • RunwayTimeSliceType • RunwayPropertyGroup AIXM 5.1 Mapping Rules - Features <complexType name="RunwayPropertyType"> <attributeGroup ref="gml:OwnershipAttributeGroup"/> <attributeGroup ref="gml:AssociationAttributeGroup"/> </complexType> • Used for relationship to feature Runway • Provides the xlink:href attribute AIXM 5.1 - UML to XSD

  24. AIXM 5.1 Mapping Rules – Other cases • Mapping Associations with Association Classes • <<datatype>> with no BaseType • <<enumeration>> CodeNilReasonType • <<datatype>> TextXHTMLBaseType Please refer to AIXM documentation: AIXM - UML to XML Schema Mapping AIXM 5.1 - UML to XSD

  25. AIXM 5.1 - UML to XSD AIXM Scripts

  26. AIXM 5.1 - UML to XSD Walkthrough AIXM 5.1 XSD Schemas

  27. AIXM 5.1 - UML to XSDCreation of an extension

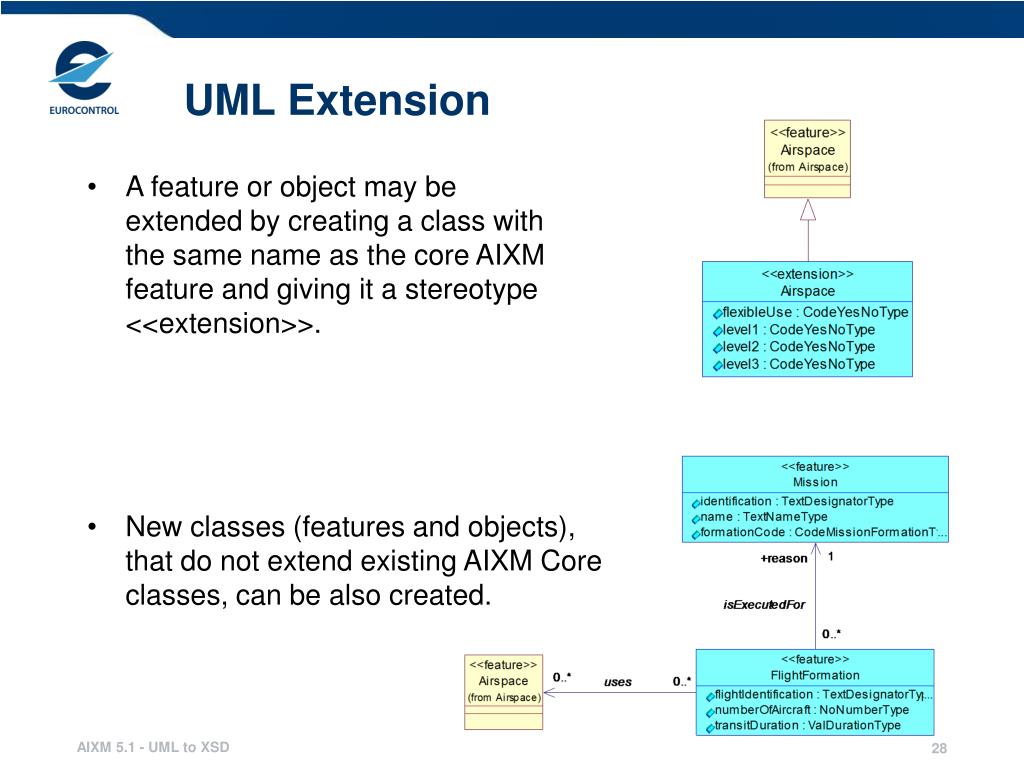

  28. UML Extension • A feature or object may be extended by creating a class with the same name as the core AIXM feature and giving it a stereotype <<extension>>. • New classes (features and objects), that do not extend existing AIXM Core classes, can be also created. AIXM 5.1 - UML to XSD

  29. UML Extension • Extensions shall NOT be included in the core AIXM packages AIXM 5.1 - UML to XSD

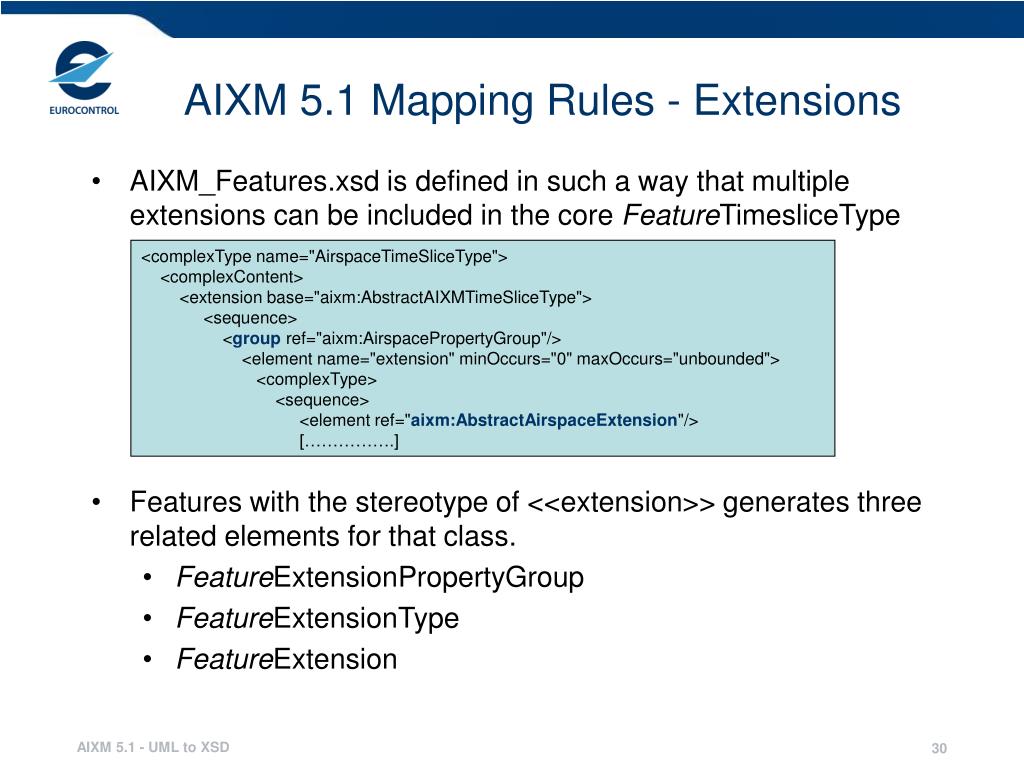

  30. AIXM 5.1 Mapping Rules - Extensions • AIXM_Features.xsd is defined in such a way that multiple extensions can be included in the core FeatureTimesliceType • Features with the stereotype of <<extension>> generates three related elements for that class. • FeatureExtensionPropertyGroup • FeatureExtensionType • FeatureExtension <complexType name="AirspaceTimeSliceType"> <complexContent> <extension base="aixm:AbstractAIXMTimeSliceType"> <sequence> <group ref="aixm:AirspacePropertyGroup"/> <element name="extension" minOccurs="0" maxOccurs="unbounded"> <complexType> <sequence> <element ref="aixm:AbstractAirspaceExtension"/> […………….] AIXM 5.1 - UML to XSD

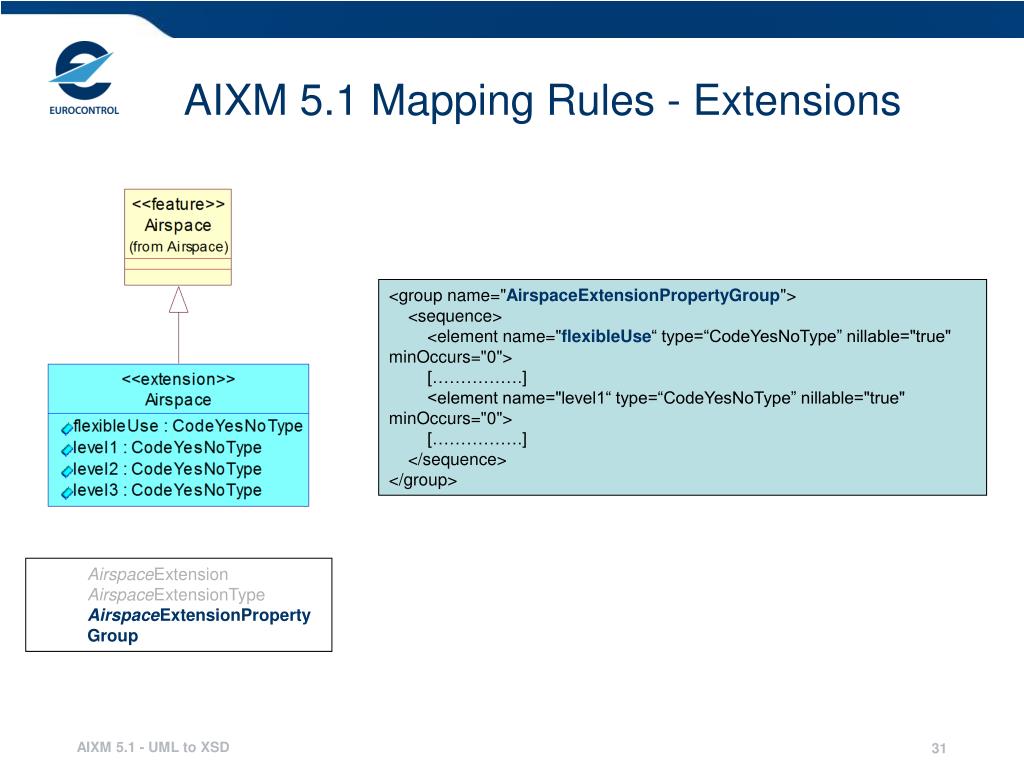

  31. AirspaceExtension • AirspaceExtensionType • AirspaceExtensionPropertyGroup AIXM 5.1 Mapping Rules - Extensions <group name="AirspaceExtensionPropertyGroup"> <sequence> <element name="flexibleUse“ type=“CodeYesNoType” nillable="true" minOccurs="0"> […………….] <element name="level1“ type=“CodeYesNoType” nillable="true" minOccurs="0"> […………….] </sequence> </group> AIXM 5.1 - UML to XSD

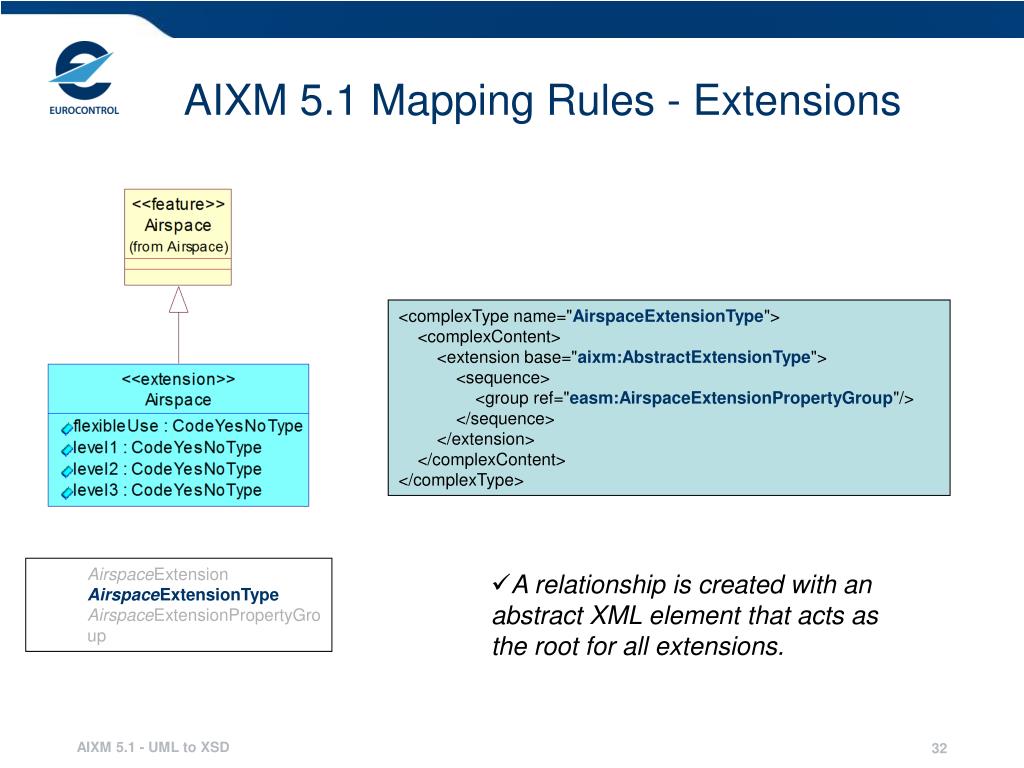

  32. AirspaceExtension • AirspaceExtensionType • AirspaceExtensionPropertyGroup AIXM 5.1 Mapping Rules - Extensions <complexType name="AirspaceExtensionType"> <complexContent> <extension base="aixm:AbstractExtensionType"> <sequence> <group ref="easm:AirspaceExtensionPropertyGroup"/> </sequence> </extension> </complexContent> </complexType> • A relationship is created with an abstract XML element that acts as the root for all extensions. AIXM 5.1 - UML to XSD

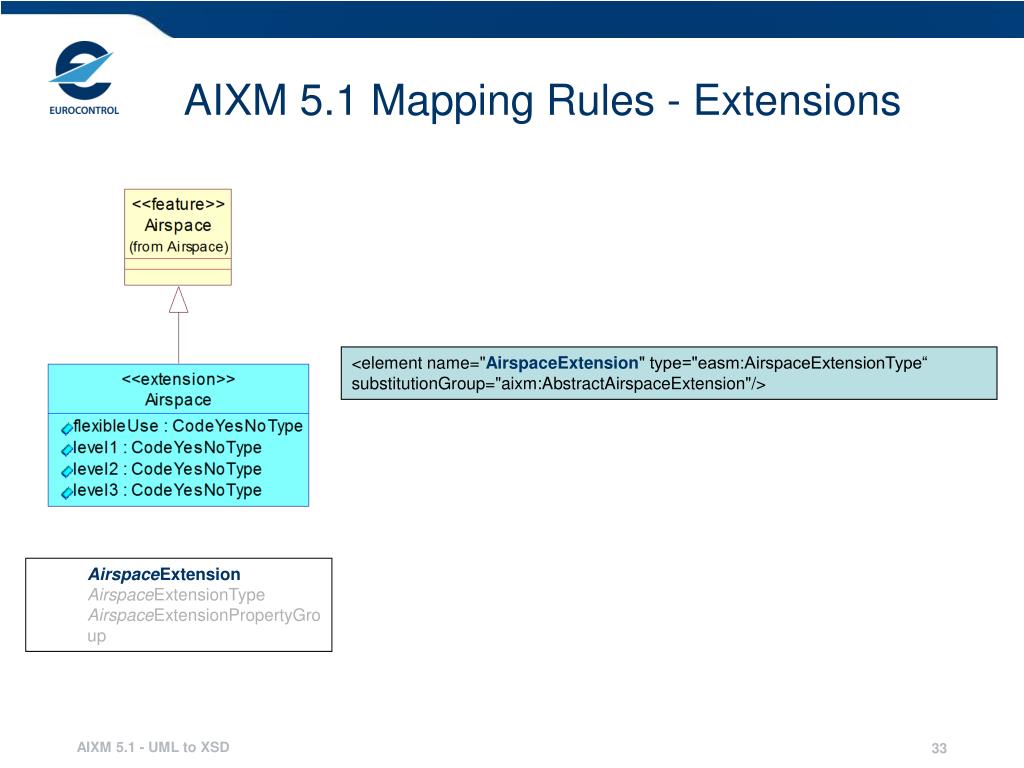

  33. AirspaceExtension • AirspaceExtensionType • AirspaceExtensionPropertyGroup AIXM 5.1 Mapping Rules - Extensions <element name="AirspaceExtension" type="easm:AirspaceExtensionType“ substitutionGroup="aixm:AbstractAirspaceExtension"/> AIXM 5.1 - UML to XSD

  34. Focus on AIXM Basic Message • Basic Message • is an AIXM 5.1 extension • contains just a collection of AIXM features AIXM 5.1 - UML to XSD

  35. Questions ?
