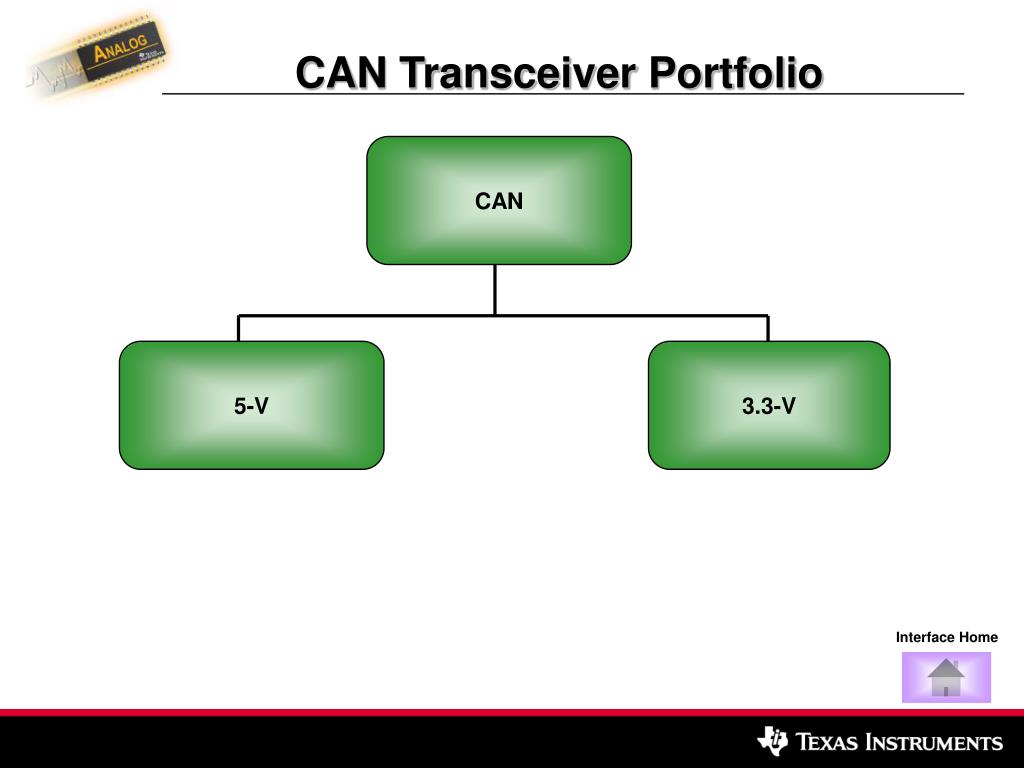

  1. Interface Home CAN Transceiver Portfolio CAN 5-V 3.3-V

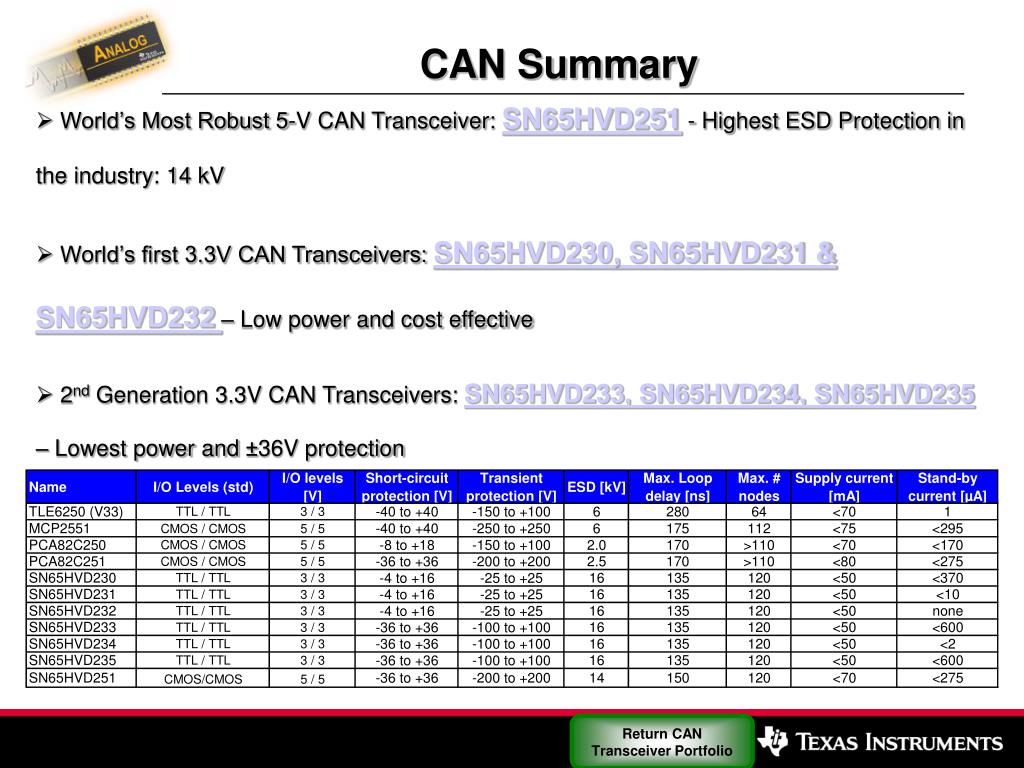

  2. CAN Summary • World’s Most Robust 5-V CAN Transceiver: SN65HVD251 - Highest ESD Protection in the industry: 14 kV • World’s first 3.3V CAN Transceivers: SN65HVD230, SN65HVD231 & SN65HVD232– Low power and cost effective • 2nd Generation 3.3V CAN Transceivers: SN65HVD233, SN65HVD234, SN65HVD235– Lowest power and ±36V protection Return CAN Transceiver Portfolio

  3. 5-V CAN Transceiver Portfolio 5-V SN65HVD251 • Standby Mode, Improved • Drop-in replacement • for PCA82C250 & PCA82C251 • Same as HVD1040 w/o • Dominant Time out Mode • Improved Drop-in replacement • for TJA1040 • TJA1040 w/ 3V MCU I/Os • Same as HVD1050 w/o • Dominant Time out Mode • Improved Drop-in Replacement • for TJA1050 • TJA1050 w/ 3V MCU I/Os SN65HVD1039 SN65HVD1040 SN65HVD1040v33 SN65HVD1049 SN65HVD1050 SN65HVD1050v33 PRODUCT PREVIEWS RTP 3Q04 Return to CAN Transceiver Portfolio

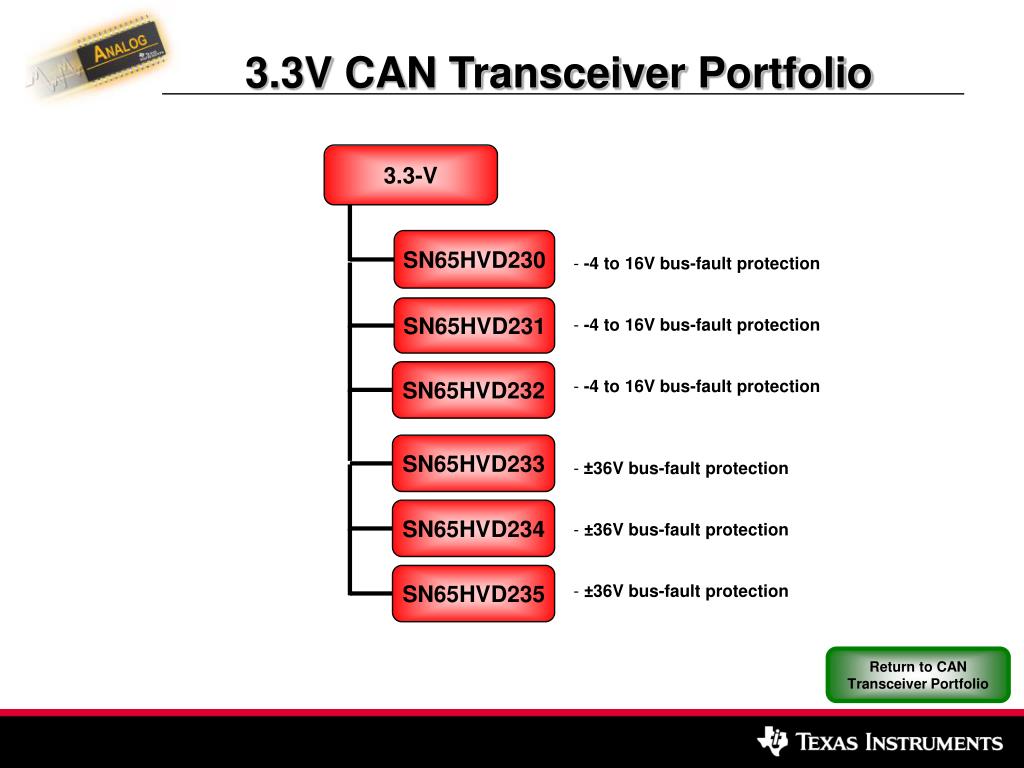

  4. 3.3V CAN Transceiver Portfolio 3.3-V SN65HVD230 • -4 to 16V bus-fault protection • -4 to 16V bus-fault protection • -4 to 16V bus-fault protection • ±36V bus-fault protection • ±36V bus-fault protection • ±36V bus-fault protection SN65HVD231 SN65HVD232 SN65HVD233 SN65HVD234 SN65HVD235 Return to CAN Transceiver Portfolio

  5. SN65HVD251 Rs CANH CANL Vref D GND Vcc R 5-V CAN Transceiver: SN65HVD251 SN65HVD251 • Drop-in Improved Replacement for the PCA82C250 and PCA82C251 • Bus fault protection of ±36V • Bus Pin ESD Protection Exceeds 14 kV HBM • Designed for signaling rates up to 1Mbps • Meets or Exceeds the Requirements of ISO 11898 • High input impedance allows for up 120 nodes • In production since November 2002 • 1k resale price is $0.90 Comparison Versus PCA82C250/1: • 14 versus 2/2.5 kV HBM ESD • High Impedance when powered down unlike Philips devices that known to disturb the bus because of it’s low impedance • No Latch-up issue if powered up with the Rs pin tied to Vcc. • No signal passed to the driver outputs from the D input during standby when it is supposed to be tri-stated SN65HVD232 Return to 5-V CAN Transceiver Portfolio Return to Summary

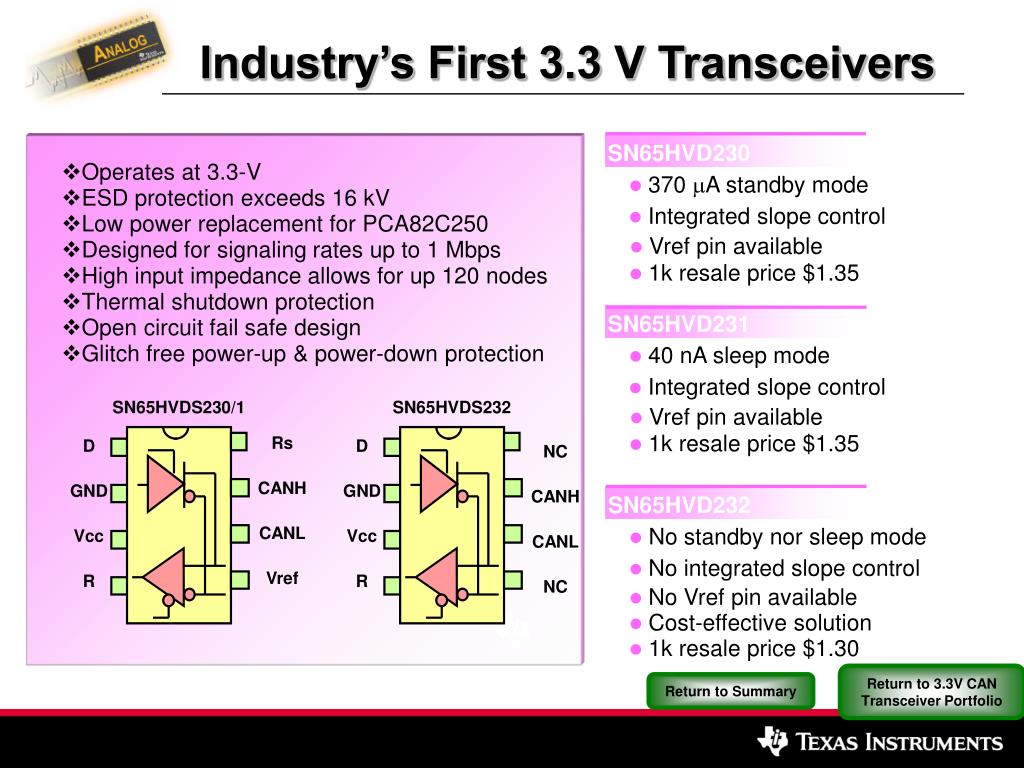

  6. SN65HVDS230/1 SN65HVDS232 Rs CANH CANL Vref D GND Vcc R D GND Vcc R Industry’s First 3.3 V Transceivers SN65HVD230 • Operates at 3.3-V • ESD protection exceeds 16 kV • Low power replacement for PCA82C250 • Designed for signaling rates up to 1 Mbps • High input impedance allows for up 120 nodes • Thermal shutdown protection • Open circuit fail safe design • Glitch free power-up & power-down protection • 370 A standby mode • Integrated slope control • Vref pin available • 1k resale price $1.35 SN65HVD231 • 40 nA sleep mode • Integrated slope control • Vref pin available • 1k resale price $1.35 NC CANH CANL NC SN65HVD232 • No standby nor sleep mode • No integrated slope control • No Vref pin available • Cost-effective solution • 1k resale price $1.30 Return to 3.3V CAN Transceiver Portfolio Return to Summary

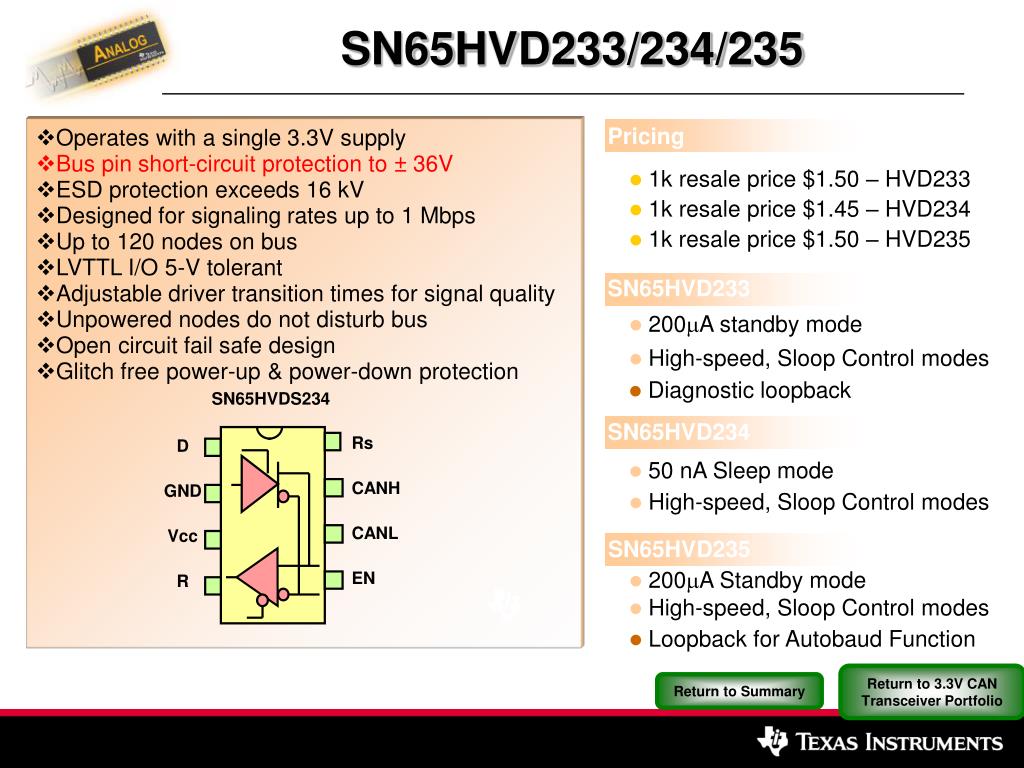

  7. SN65HVD233/234/235 Rs CANH CANL EN D GND Vcc R • Operates with a single 3.3V supply • Bus pin short-circuit protection to ± 36V • ESD protection exceeds 16 kV • Designed for signaling rates up to 1 Mbps • Up to 120 nodes on bus • LVTTL I/O 5-V tolerant • Adjustable driver transition times for signal quality • Unpowered nodes do not disturb bus • Open circuit fail safe design • Glitch free power-up & power-down protection Pricing • 1k resale price $1.50 – HVD233 • 1k resale price $1.45 – HVD234 • 1k resale price $1.50 – HVD235 SN65HVD233 • 200A standby mode • High-speed, Sloop Control modes • Diagnostic loopback SN65HVDS234 SN65HVD234 • 50 nA Sleep mode • High-speed, Sloop Control modes SN65HVD235 • 200A Standby mode • High-speed, Sloop Control modes • Loopback for Autobaud Function Return to 3.3V CAN Transceiver Portfolio Return to Summary

  8. SN65HVD1039/40/49/50 & v33PREVIEW - CAN TRANSCEIVERS - PREVIEW Features Applications • Improved Drop-in Replacement for the TJA1040/50 • Qualification in Accordance with AEC-Q100 • Very Low Electro-Magnetic Emission (EME) • Wide Common-Mode Range • Bus-Fault Protection of -27V to 40V • Meets or Exceeds the Requirements of ISO 11898 • Signaling Rates up to 1 Mbps • Low current silent or sleep modes • 3.3V uC I/O compatible versions • Power-Up/Down Glitch-free Bus Inputs and Outputs • Automotive Data Buses • DeviceNet Data Buses • Smart Distributed Systems (SDS) • SAE J1939 Standard Data Bus Interface • NMEA 2000 Standard Data Bus Interface • ISO 11783 Standard Data Bus Interface 1ku pricing: $TBD Benefits • Very Low Electro-Magnetic Emission (EME) critical for automotive applications • Wide Common-Mode Range Provides for High Electromagnetic Immunity (EMI) Sensor TMS470 MCU Vreg TPS71550 HVD251 CAN Return to 5V CAN Transceiver Portfolio

  9. TI Contacts - Interface Marketing Burak Ilhan Product Marketing 214-567-6766 burak@ti.com Steve Corrigan Strategic Marketing 214-480-4743 s-corrigan1@ti.com
