  1. Scott Thorne, MIT Andrew Bucior, FSU Evolving a New Agile SOAD MethodologyMay 13-14, 2008

  2. Evolving a New Agile SOAD Methodology • Session Objectives • What is KS? • Why did KS need a new approach? • What is the current KS methodology?

  3. Evolving a New Agile SOAD Methodology • Kuali Student • The product: • Next Generation Student Information System • Student-centric design • General Goals • Modularity • Flexibility • Configurability • The project: • Community-source development approach • Participation from founders/partners across North America • 5 year timeline with phased delivery

  4. Evolving a New Agile SOAD Methodology • Challenges • Multiple institutions with varying needs • Most methodologies are designed for a single set of business requirements. • SOA • People have a hard time letting go of existing techniques • Distributed teams • New Concepts/Representations of Core Concepts • Community-source approach • Scope of work • Timeframe

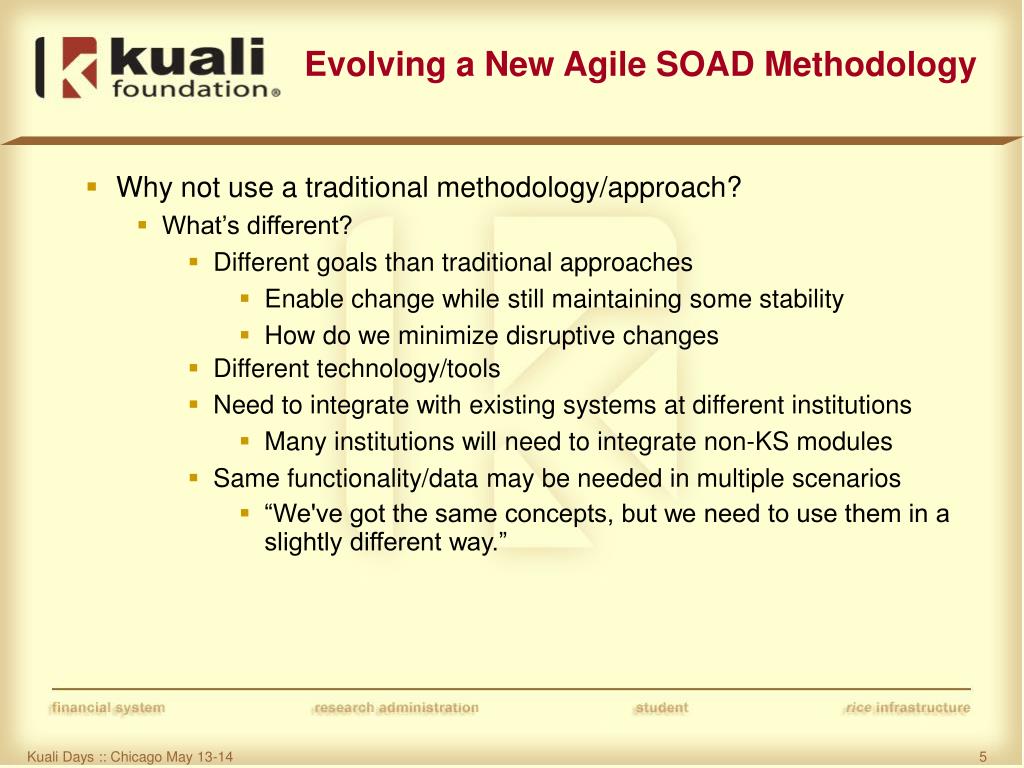

  5. Evolving a New Agile SOAD Methodology • Why not use a traditional methodology/approach? • What’s different? • Different goals than traditional approaches • Enable change while still maintaining some stability • How do we minimize disruptive changes • Different technology/tools • Need to integrate with existing systems at different institutions • Many institutions will need to integrate non-KS modules • Same functionality/data may be needed in multiple scenarios • “We've got the same concepts, but we need to use them in a slightly different way.”

  6. Evolving a New Agile SOAD Methodology • How do we partition the problem • Solve it in pieces • Not redo everything • Service Contracts provide a way to define that partitioning and predefine integration points • Designing from middle • Allow lower level details to be swapped • Allow re-use/participation in unforeseen ways • Minimize disruptive changes

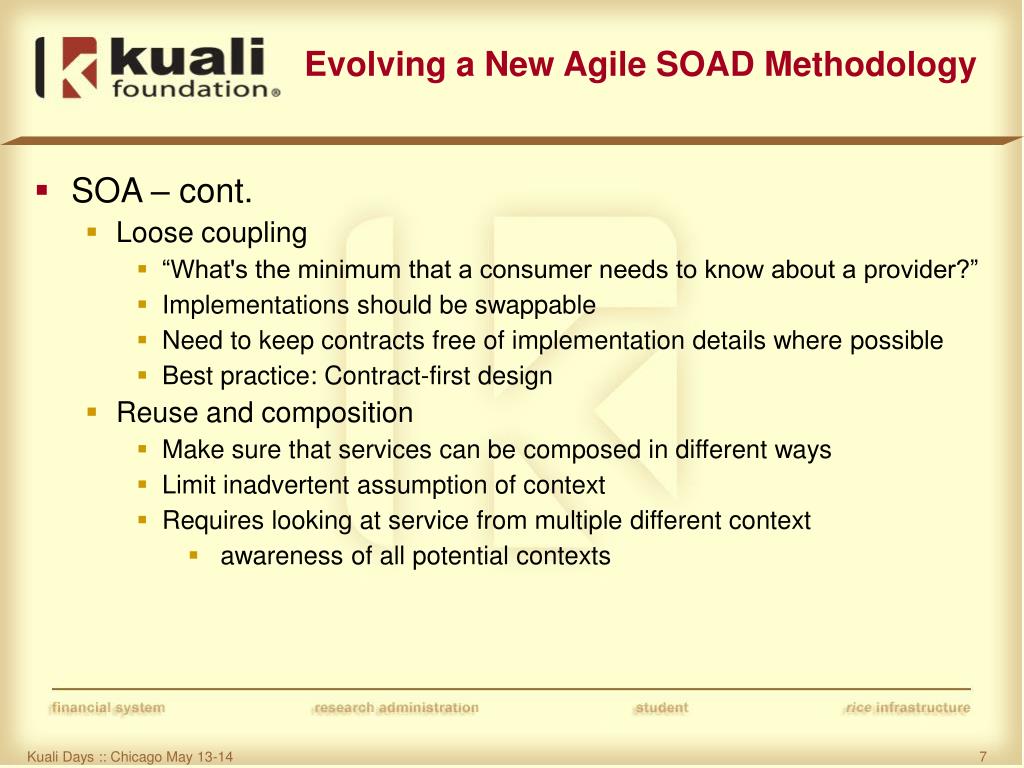

  7. Evolving a New Agile SOAD Methodology • SOA – cont. • Loose coupling • “What's the minimum that a consumer needs to know about a provider?” • Implementations should be swappable • Need to keep contracts free of implementation details where possible • Best practice: Contract-first design • Reuse and composition • Make sure that services can be composed in different ways • Limit inadvertent assumption of context • Requires looking at service from multiple different context • awareness of all potential contexts

  8. Evolving a New Agile SOAD Methodology • Existing methodologies/approaches • DB First / Data-centric • Captures shared understanding of entities and relationships • Integration/interoperability point is at the service layer, not data layer • May not have single data representation • Each module needs independence • BDUF • Detailed picture of overall service landscape • Unable to release until analysis of entire project completed • OO • Service orientation can be seen as another layer of abstraction to object orientation • Differences in principles and goals lead to different needs/approaches • Most assume complete agreement on processes/data – don't have that

  9. Evolving a New Agile SOAD Methodology • Existing methodologies/approaches -cont. • User-centric design • Lots of useful concepts for application development • Limited value for service design • Services should be designed for any User experience • Agile • Deliverable focused, adaptation, reflection • Emphasis on working code as milestones at odds with contract-first design • Other SOA Methodologies • Service design and implementation in single step at odds with contract-first design • Concepts and goals for design and implementation may be able to be teased apart

  10. Evolving a New Agile SOAD Methodology • General concept • Need to understand the entire project's scope and relationships between modules • Untangle boundaries to allow independent adoption of modules • Once boundaries are established and general functionality determined can focus on a particular module and encompassed services • Once services are defined, can then determine specific requirements for the release • Loosely maps to the general phases of functional work • Document everything we agree on; don’t dwell on the differences

  11. Evolving a New Agile SOAD Methodology • Phase 1 (Application Architecture)‏ • Split the SIS into a set of known or expected modules • Ex. would usually expect an SIS to have an Enrollment module • Gather information about the module • Make sure that institutions are agreed conceptually as to what is in that module • Resulted in initial set of deliverables • Functional Statements • Conceptual Data Models • Swim Lane Process Models • Business Questions • Start service identification • Identify capabilities • Group into service candidates

  12. Evolving a New Agile SOAD Methodology • Phase 1 – Examples of work products/deliverables • Some items are not deliverables in conventional sense • Serve as tools to enhance understanding/analysis • Used as stepping stones to next bit of work • Note: included screenshots are not usually of most recent copies of work • Older versions chosen to attempt to show simpler examples

  13. Evolving a New Agile SOAD Methodology • Functional Statements • Initial deliverable: high-level use cases • Breadth of functionality more important than depth • Format proved too formal for rapid capture • Unnecessary detail for this phase • Switched to functional statements • Ex. “A Faculty member submits grades for Course 123.” • Lowered barrier to entry • No need for introduction to template • Similar to (but not exactly the same as)‏ • Text version of Use Case Diagrams in OOAD • User Stories in Agile

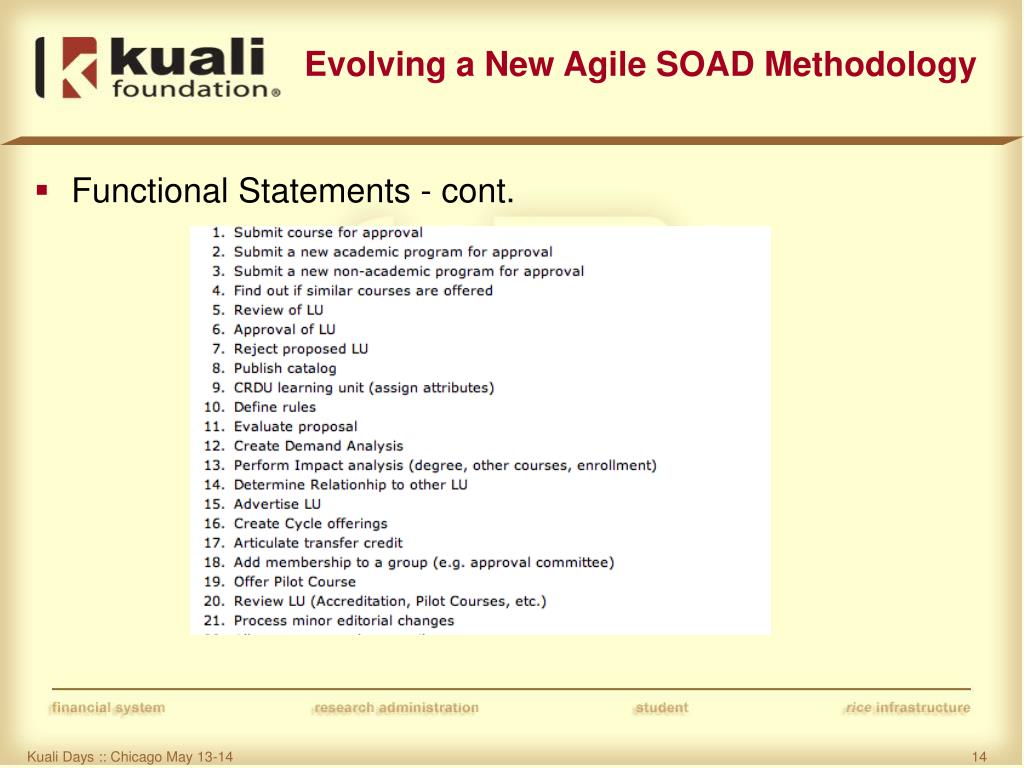

  14. Evolving a New Agile SOAD Methodology • Functional Statements - cont.

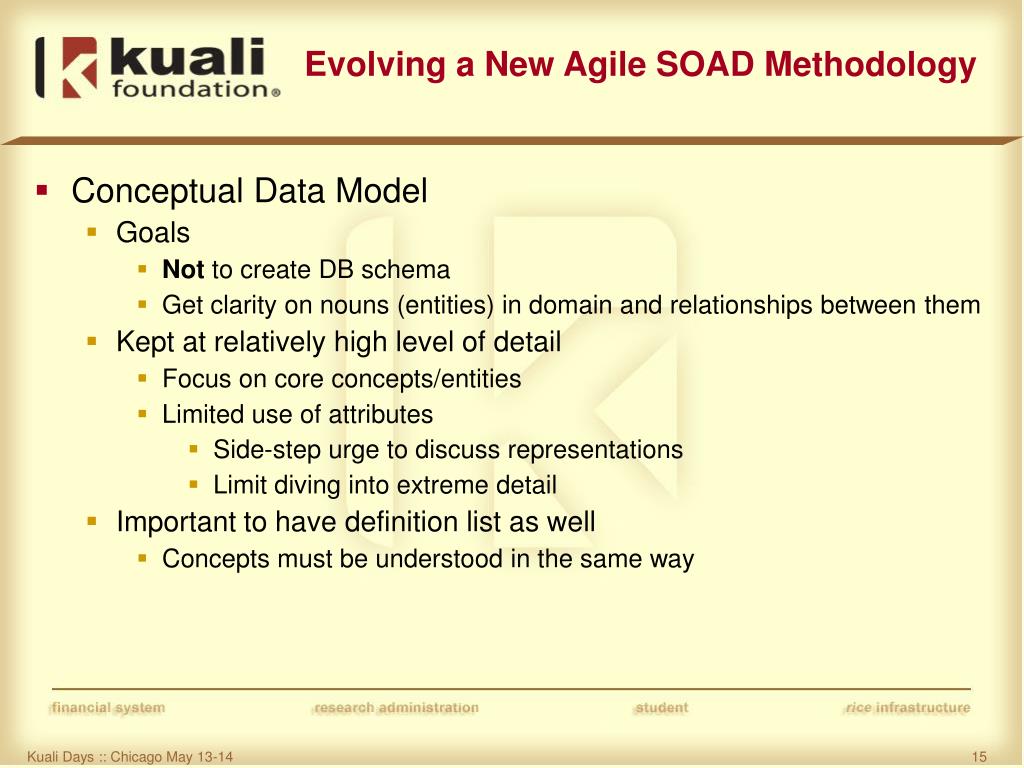

  15. Evolving a New Agile SOAD Methodology • Conceptual Data Model • Goals • Not to create DB schema • Get clarity on nouns (entities) in domain and relationships between them • Kept at relatively high level of detail • Focus on core concepts/entities • Limited use of attributes • Side-step urge to discuss representations • Limit diving into extreme detail • Important to have definition list as well • Concepts must be understood in the same way

  16. Evolving a New Agile SOAD Methodology • Conceptual Data Model - cont.

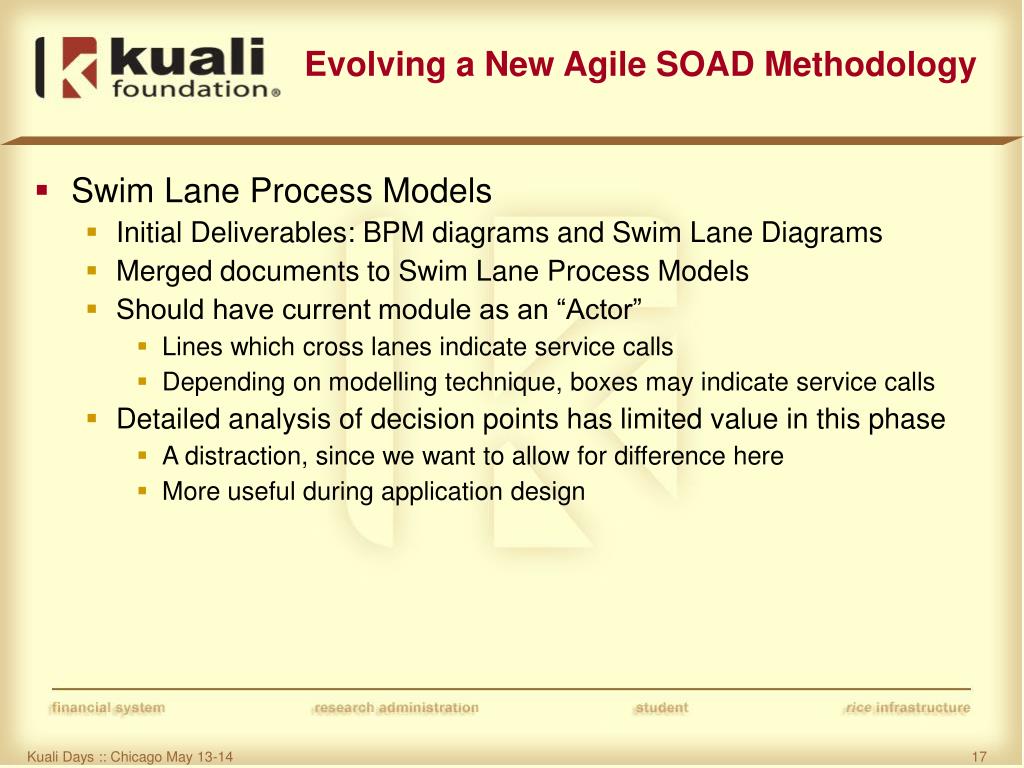

  17. Evolving a New Agile SOAD Methodology • Swim Lane Process Models • Initial Deliverables: BPM diagrams and Swim Lane Diagrams • Merged documents to Swim Lane Process Models • Should have current module as an “Actor” • Lines which cross lanes indicate service calls • Depending on modelling technique, boxes may indicate service calls • Detailed analysis of decision points has limited value in this phase • A distraction, since we want to allow for difference here • More useful during application design

  18. Evolving a New Agile SOAD Methodology • Swim Lane Process Models - cont.

  19. Evolving a New Agile SOAD Methodology • Business Questions • What questions might be asked of the module as defined? • Developed by: • Pure brain-storming session • Analysis of Swim Lane Process Models

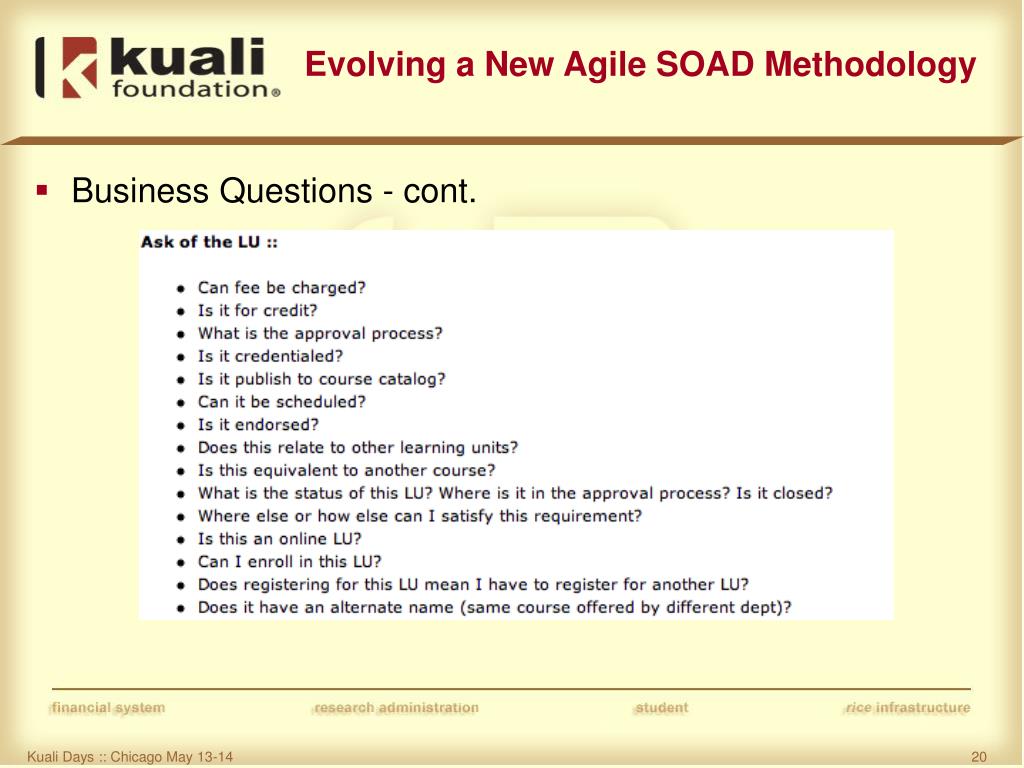

  20. Evolving a New Agile SOAD Methodology • Business Questions - cont.

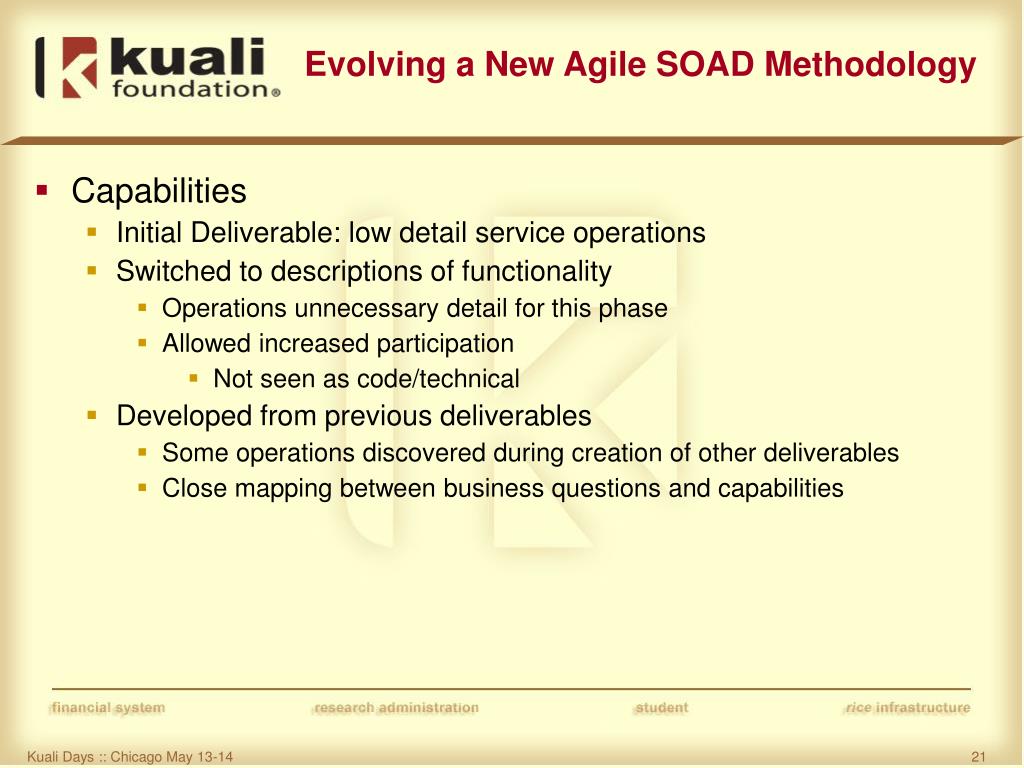

  21. Evolving a New Agile SOAD Methodology • Capabilities • Initial Deliverable: low detail service operations • Switched to descriptions of functionality • Operations unnecessary detail for this phase • Allowed increased participation • Not seen as code/technical • Developed from previous deliverables • Some operations discovered during creation of other deliverables • Close mapping between business questions and capabilities

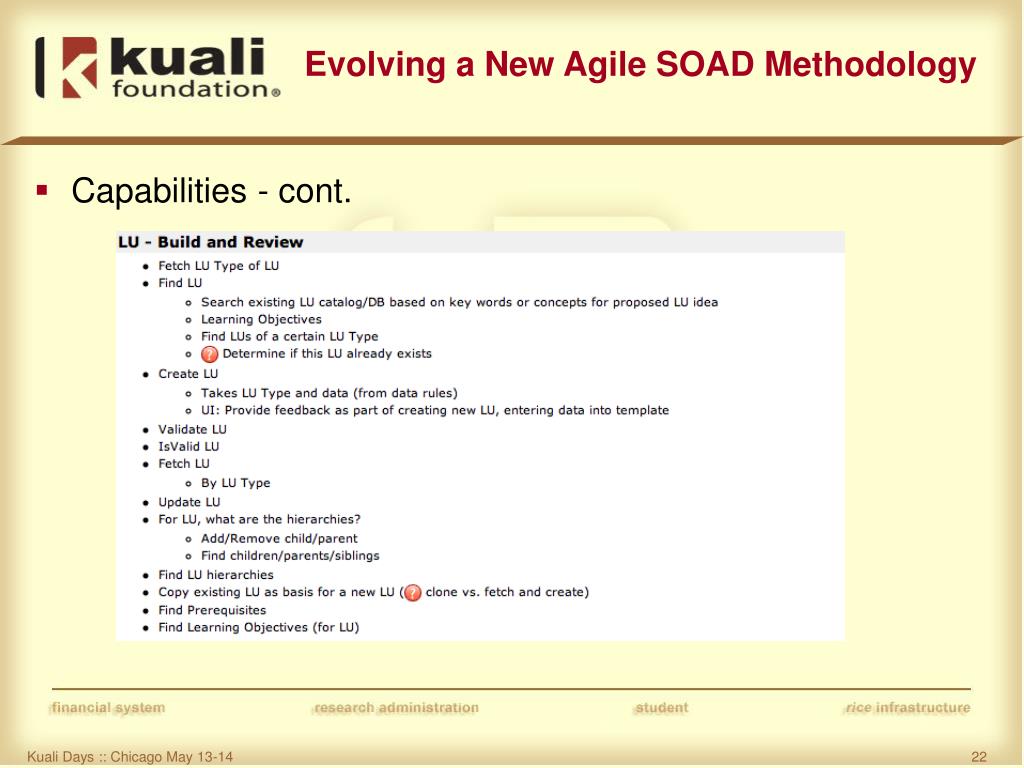

  22. Evolving a New Agile SOAD Methodology • Capabilities - cont.

  23. Evolving a New Agile SOAD Methodology • Service Candidates • Low detail in this phase • Name • Quick description • Representative capabilities • Identified through clustering of capabilities

  24. Evolving a New Agile SOAD Methodology • Service Candidates - cont.

  25. Evolving a New Agile SOAD Methodology • Cross Reference Diagram • Analysis tool • Illustrates which items are heavily intercoupled • May indicate need to merge items or shift boundaries • May suggest potential release clustering • Goal • Attempt to minimize dependencies/interactions in grid • Important to document reasoning behind results • More important as tool for analysis than actual deliverable • Useful later for visualizing potential brittle areas • Which service or module is responsible for what (SOR)‏

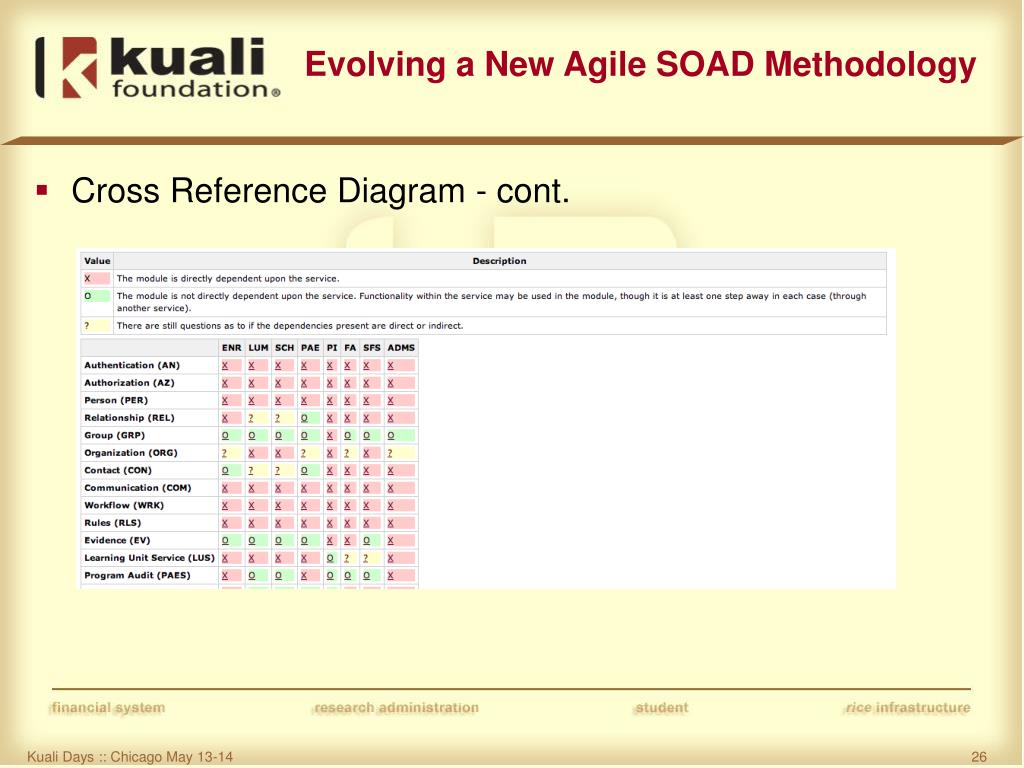

  26. Evolving a New Agile SOAD Methodology • Cross Reference Diagram - cont.

  27. Evolving a New Agile SOAD Methodology • Phase 2 (Service Modeling and Contract Design)‏ • Move into module(s) decided for next release • Working from information from phase 1, look at candidates required for first modules • Determine potential overlap in functionality or concepts • Group accordingly to ensure that boundaries are worked out - “Baskets” • Split into groups to achieve efficiencies in work • Use Case Team • Data Team • Services Team • Currently in progress on LUM and common services (our first release)‏

  28. Evolving a New Agile SOAD Methodology • Phase 2 - cont. • Collect additional scenarios in greater detail • Analyze for concepts to be expressed in data • Analyze for orchestration and infrastructure needs • Document concepts and add detail to conceptual data models • Solidify service candidates • Factoring/analysis • may change number of services or scope • Convert capabilities to operations • Create secondary documentation (detailed descriptions, cross reference matrices, service specific data models)‏ • Migrate data concepts into message structures identified in operations

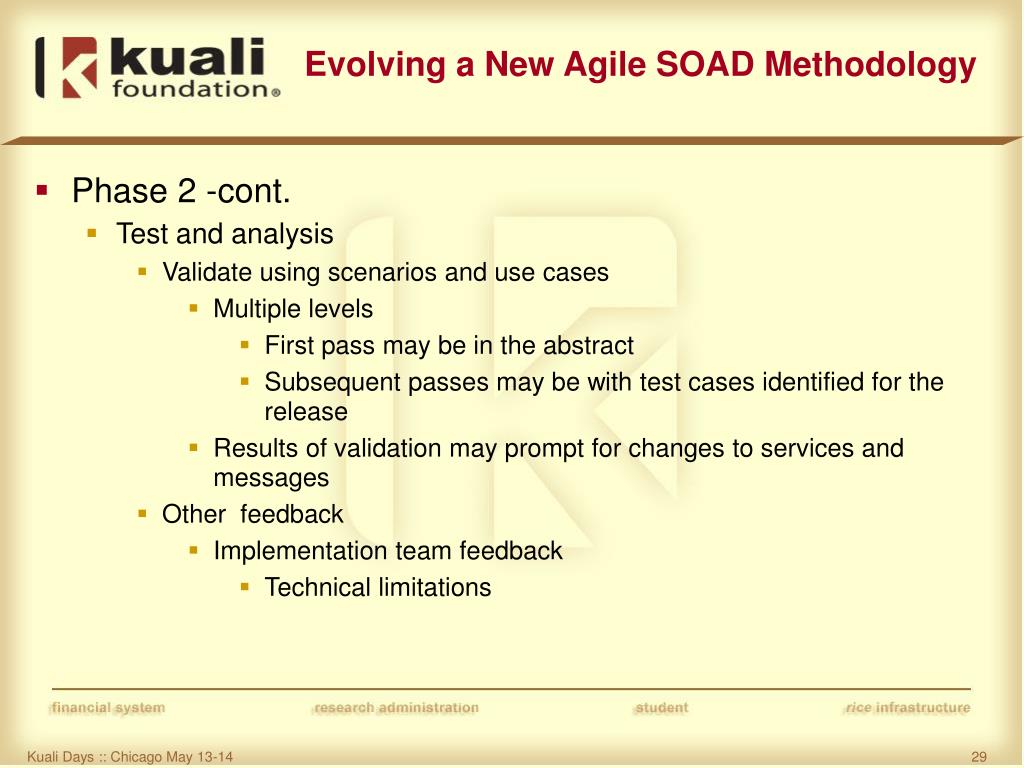

  29. Evolving a New Agile SOAD Methodology • Phase 2 -cont. • Test and analysis • Validate using scenarios and use cases • Multiple levels • First pass may be in the abstract • Subsequent passes may be with test cases identified for the release • Results of validation may prompt for changes to services and messages • Other feedback • Implementation team feedback • Technical limitations

  30. Evolving a New Agile SOAD Methodology • Phase 2 – Examples of work products/deliverables • Some are still in heavy flux • Format • Approach

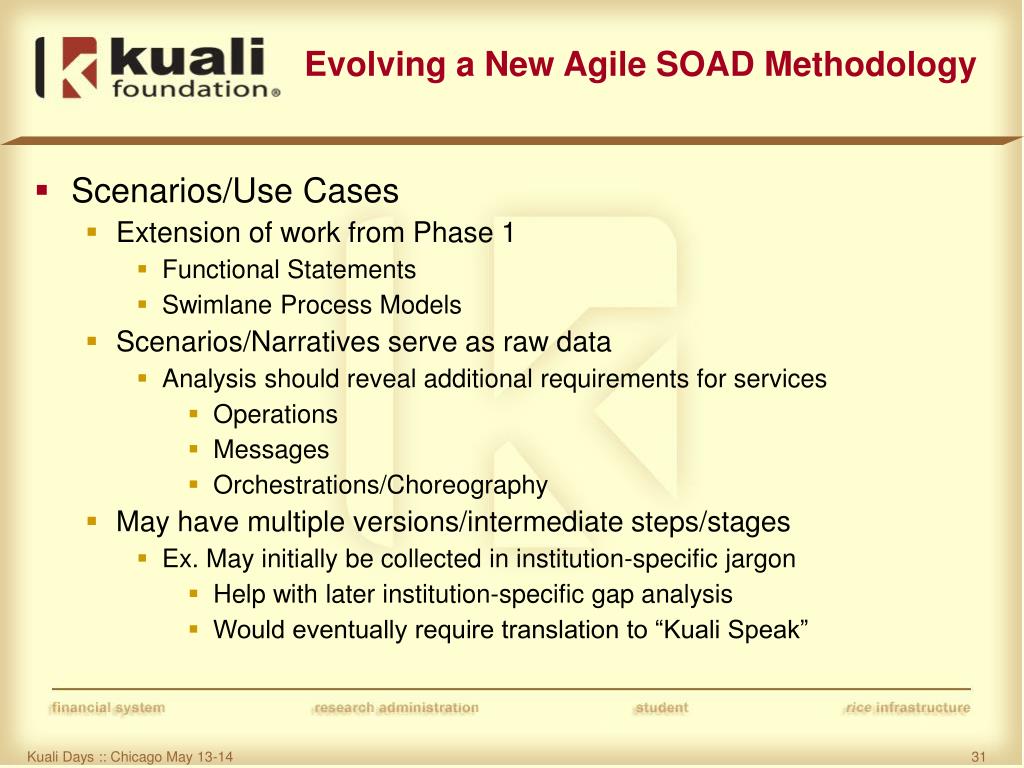

  31. Evolving a New Agile SOAD Methodology • Scenarios/Use Cases • Extension of work from Phase 1 • Functional Statements • Swimlane Process Models • Scenarios/Narratives serve as raw data • Analysis should reveal additional requirements for services • Operations • Messages • Orchestrations/Choreography • May have multiple versions/intermediate steps/stages • Ex. May initially be collected in institution-specific jargon • Help with later institution-specific gap analysis • Would eventually require translation to “Kuali Speak”

  32. Evolving a New Agile SOAD Methodology • Conceptual Data Model • Extension of work from Phase 1 • Conceptual Data Model • Definitions of Concepts/Entities • Two primary views • First: additional detail is added from work on analysis of scenarios/use cases • Concepts included should be documented as before • Ensure common understanding of concepts and reasoning • Need to start integrating concept of Service of Record • Second: service specific view • Used to provide visual depiction of concepts directly referenced as parameters or returns in contract • Due to decreased detail, may be created from earlier work

  33. Evolving a New Agile SOAD Methodology • Stack Diagrams • Analysis tool • Used to determine potential interactions/boundaries • Can combine some elements of UML sequence diagrams • Concepts • Top: Consumers/UI/Application • Bottom: Producers/data layer • Easier to draw when looking at particular context • Same service may be both above and below another service • Particular scenario limits some shifting • May shift involved services if scenario changes

  34. Evolving a New Agile SOAD Methodology • Stack Diagrams -cont.

  35. Evolving a New Agile SOAD Methodology • Service Descriptions • Extension of work from Phase 1 • Service Candidates • Primary distinctions from earlier work • May have different scope/dependencies • Additional analysis performed on areas of overlap • Cross reference diagrams • Stack diagrams • Analysis might have revealed different boundary/interaction patterns • Much more detailed • Operations instead of Capabilities • May be adjusted multiple times • Stable before detailed application work begins • Map to Service Contracts

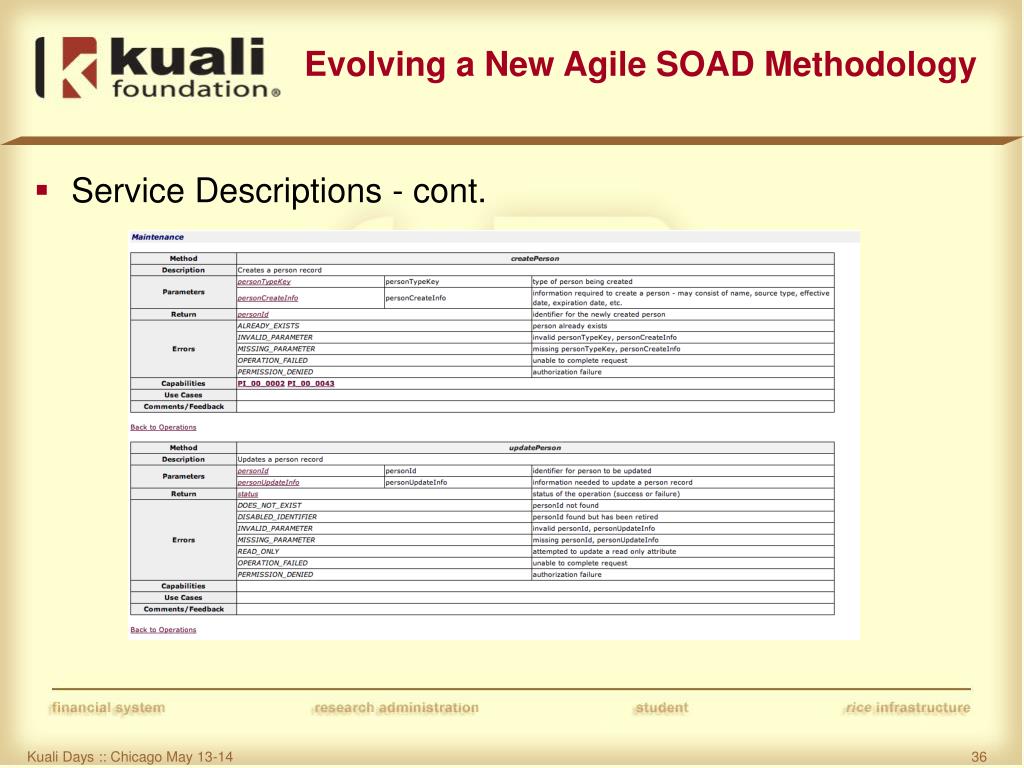

  36. Evolving a New Agile SOAD Methodology • Service Descriptions - cont.

  37. Evolving a New Agile SOAD Methodology • Message Structures • Derived from • Needs expressed in Service Descriptions • View of Conceptual Data Model • General goals • Minimize number of unique structures • While meeting the general contextual needs

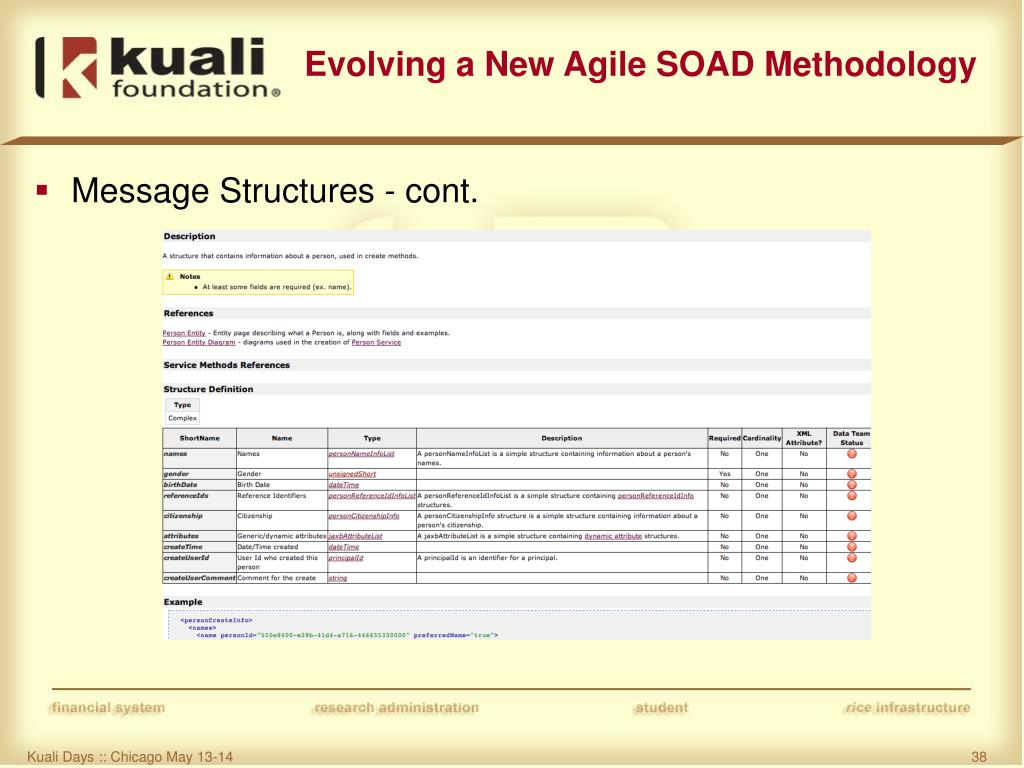

  38. Evolving a New Agile SOAD Methodology • Message Structures - cont.

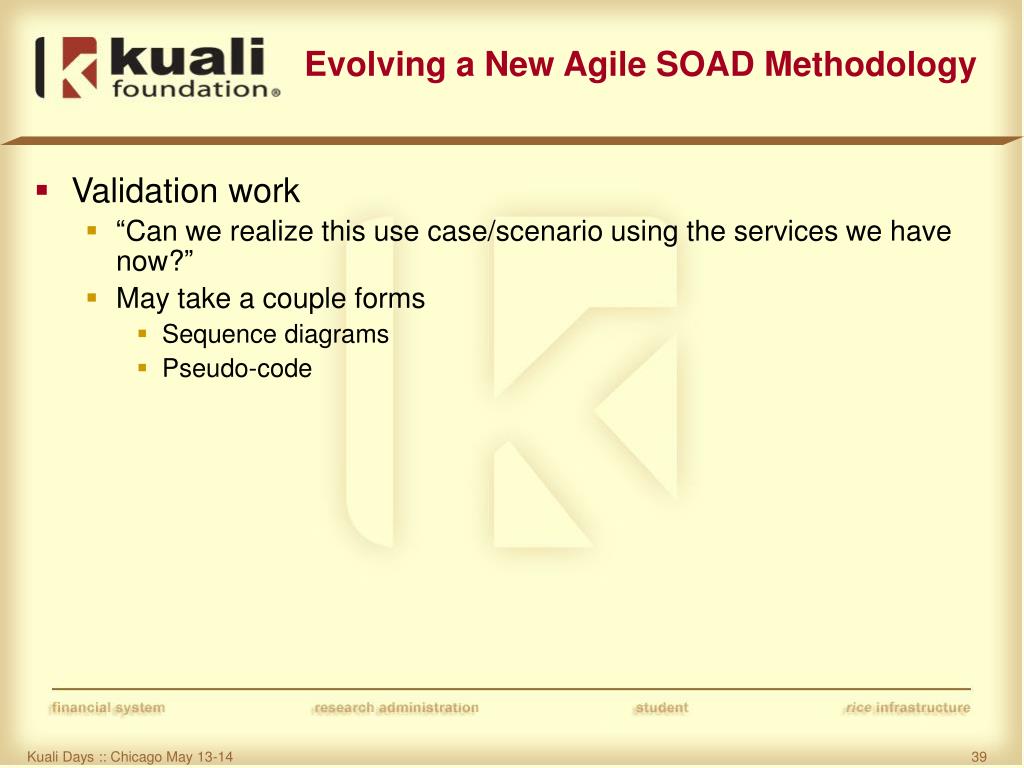

  39. Evolving a New Agile SOAD Methodology • Validation work • “Can we realize this use case/scenario using the services we have now?” • May take a couple forms • Sequence diagrams • Pseudo-code

  40. Evolving a New Agile SOAD Methodology • Validation work - cont.

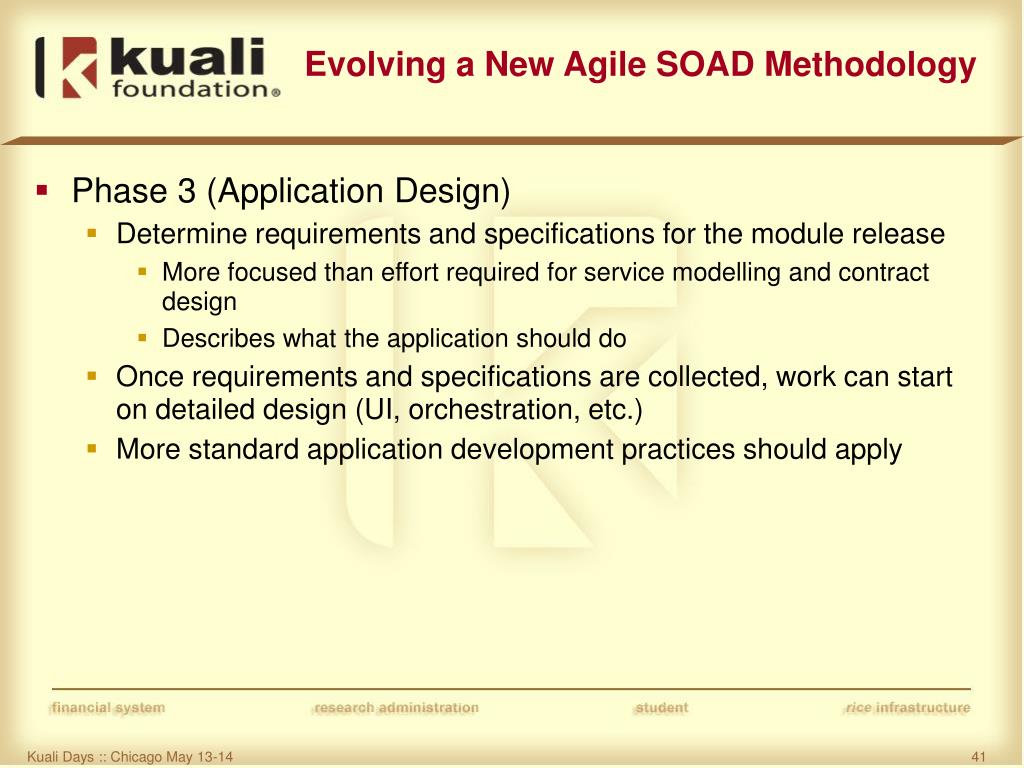

  41. Evolving a New Agile SOAD Methodology • Phase 3 (Application Design)‏ • Determine requirements and specifications for the module release • More focused than effort required for service modelling and contract design • Describes what the application should do • Once requirements and specifications are collected, work can start on detailed design (UI, orchestration, etc.)‏ • More standard application development practices should apply

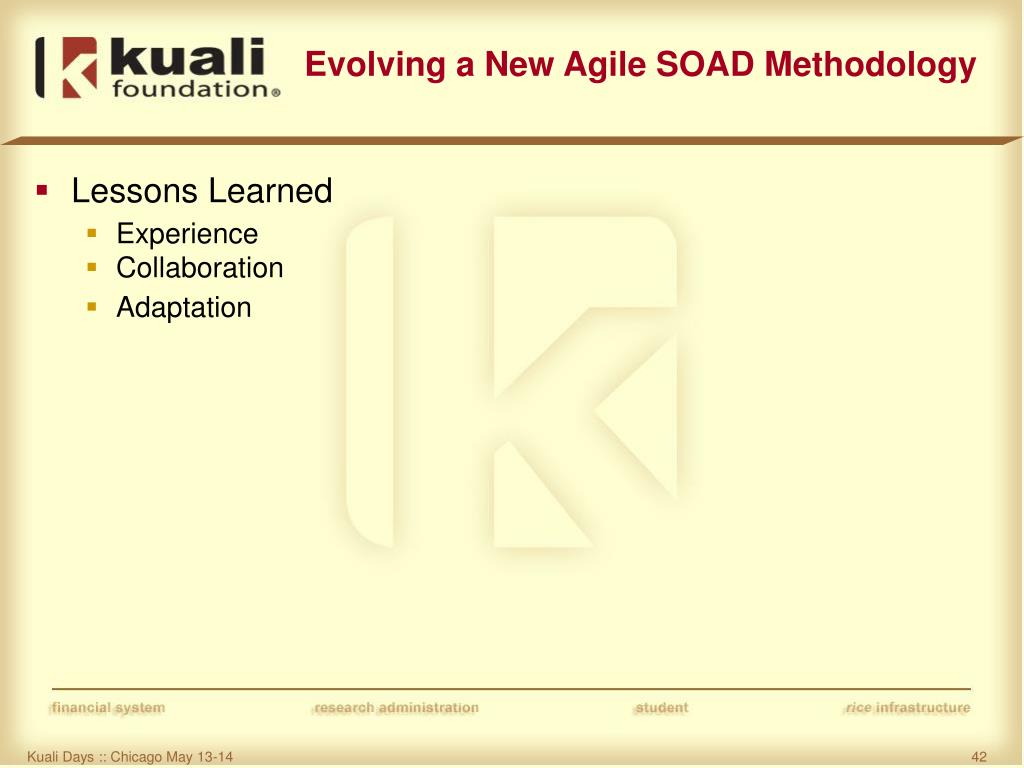

  42. Evolving a New Agile SOAD Methodology • Lessons Learned • Experience • Collaboration • Adaptation

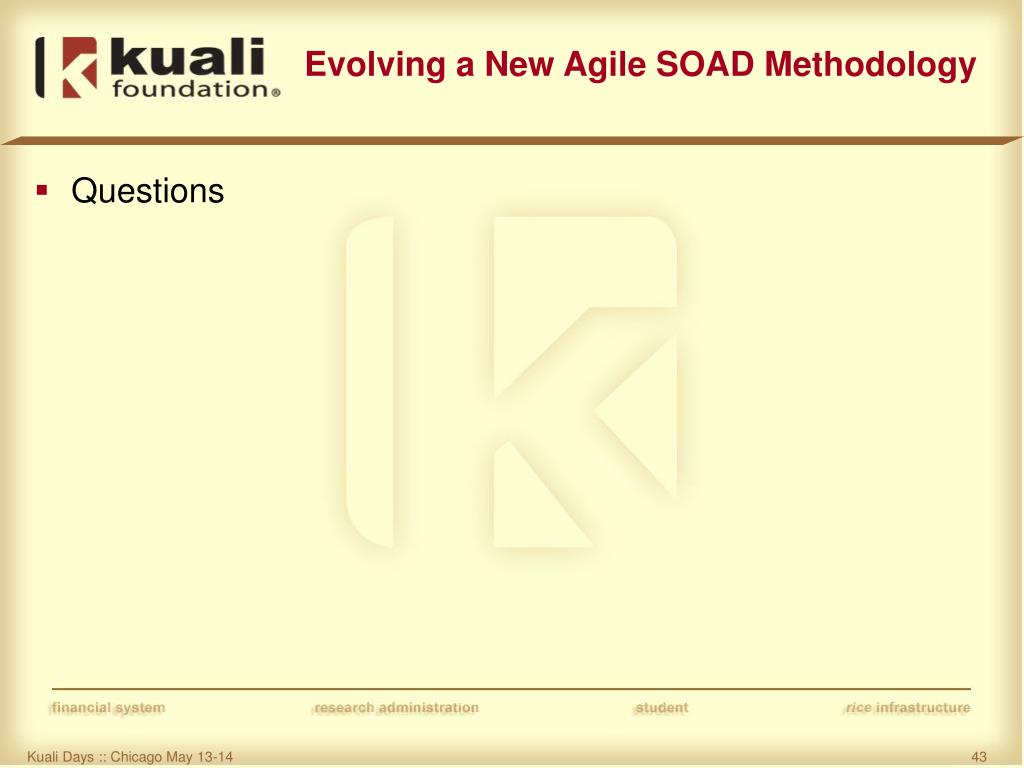

  43. Evolving a New Agile SOAD Methodology • Questions
